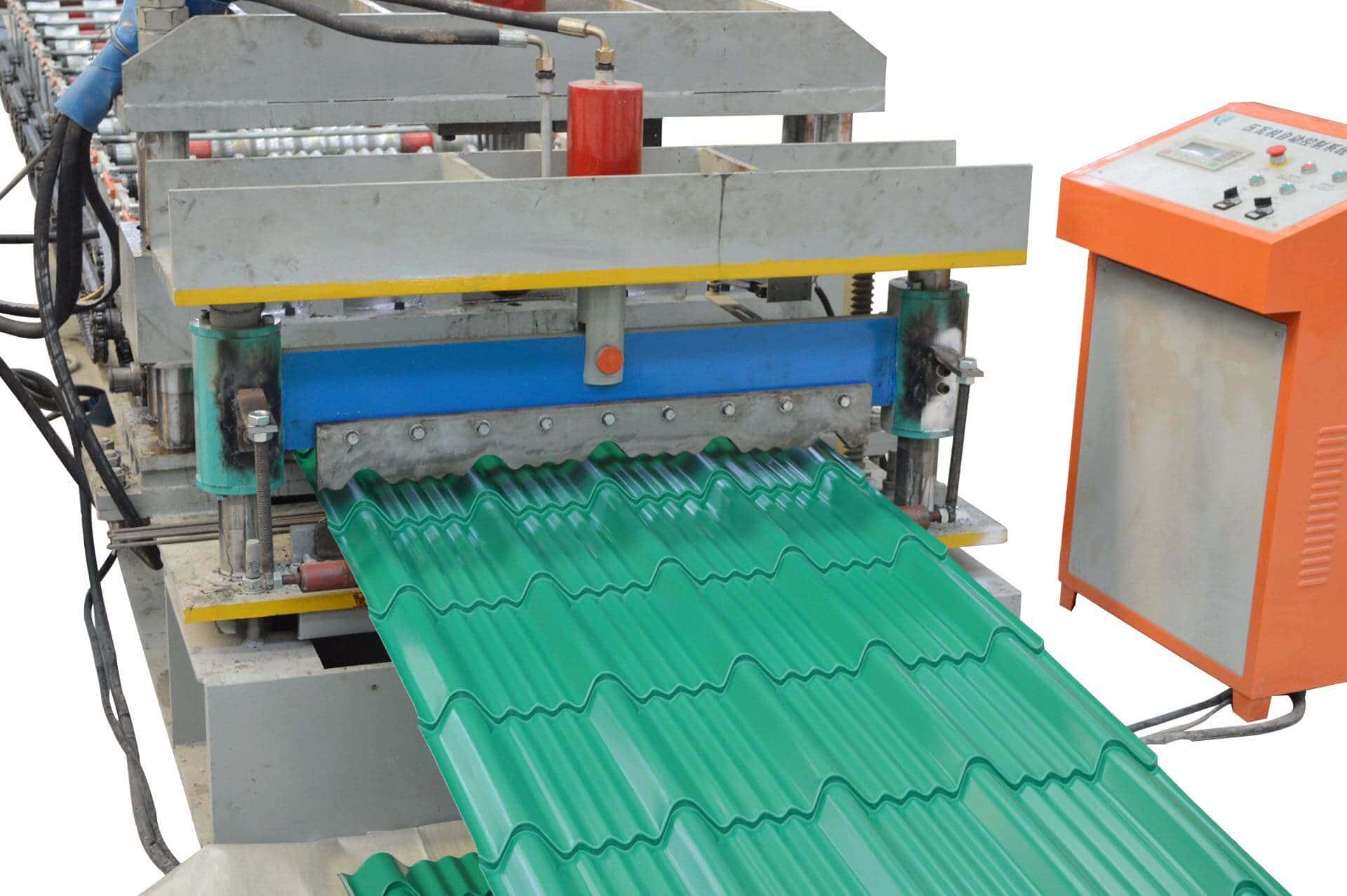

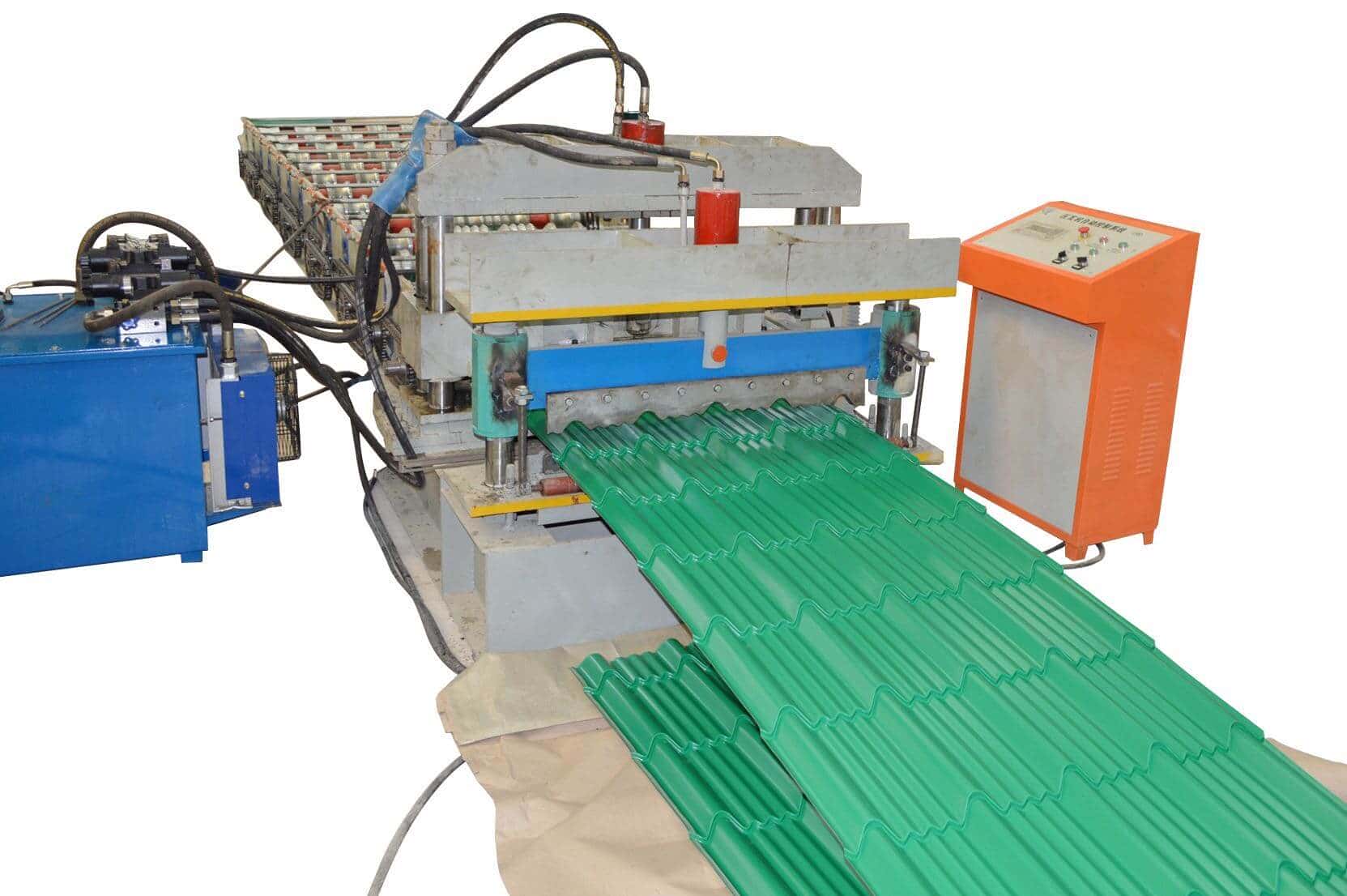

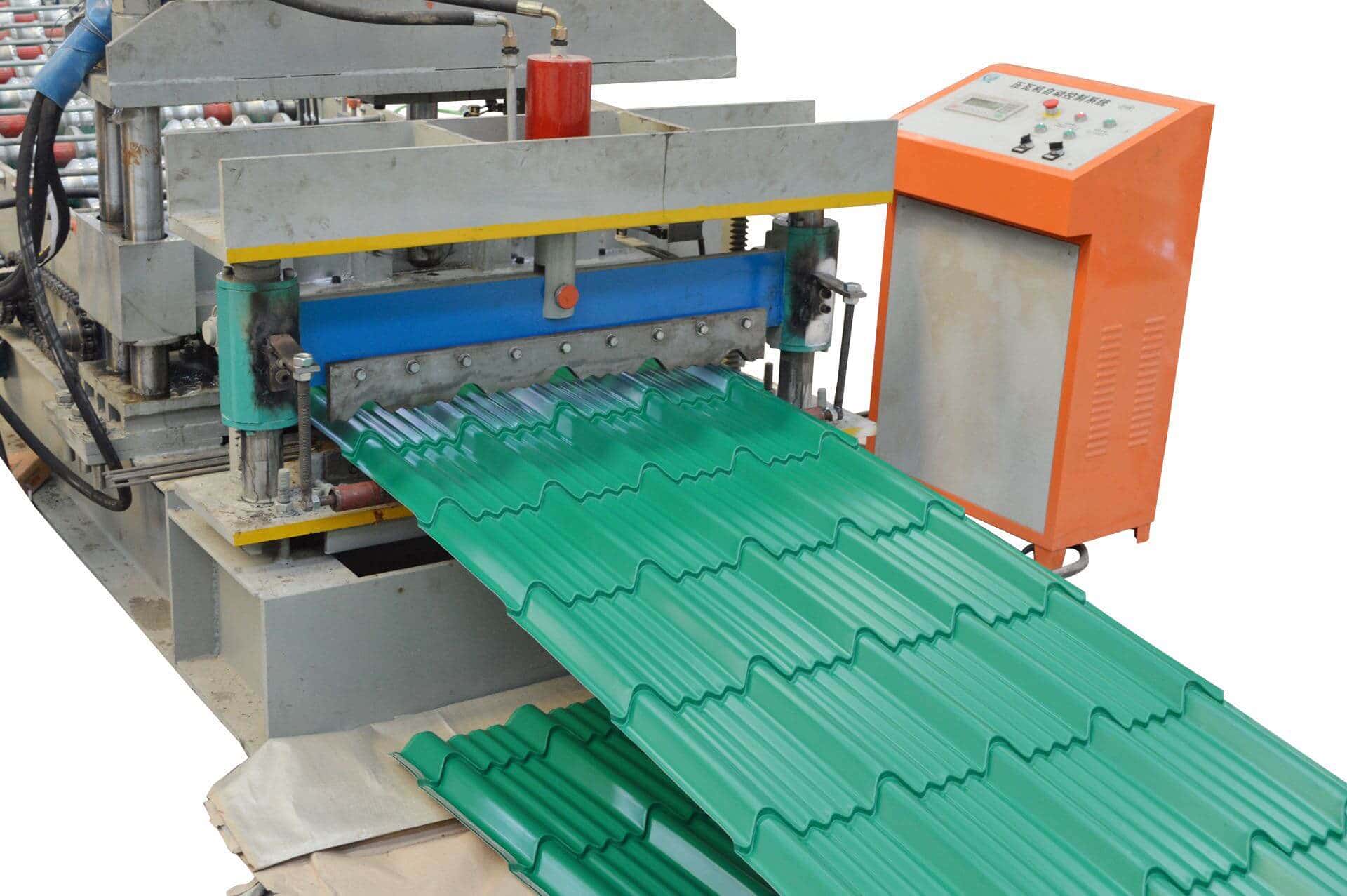

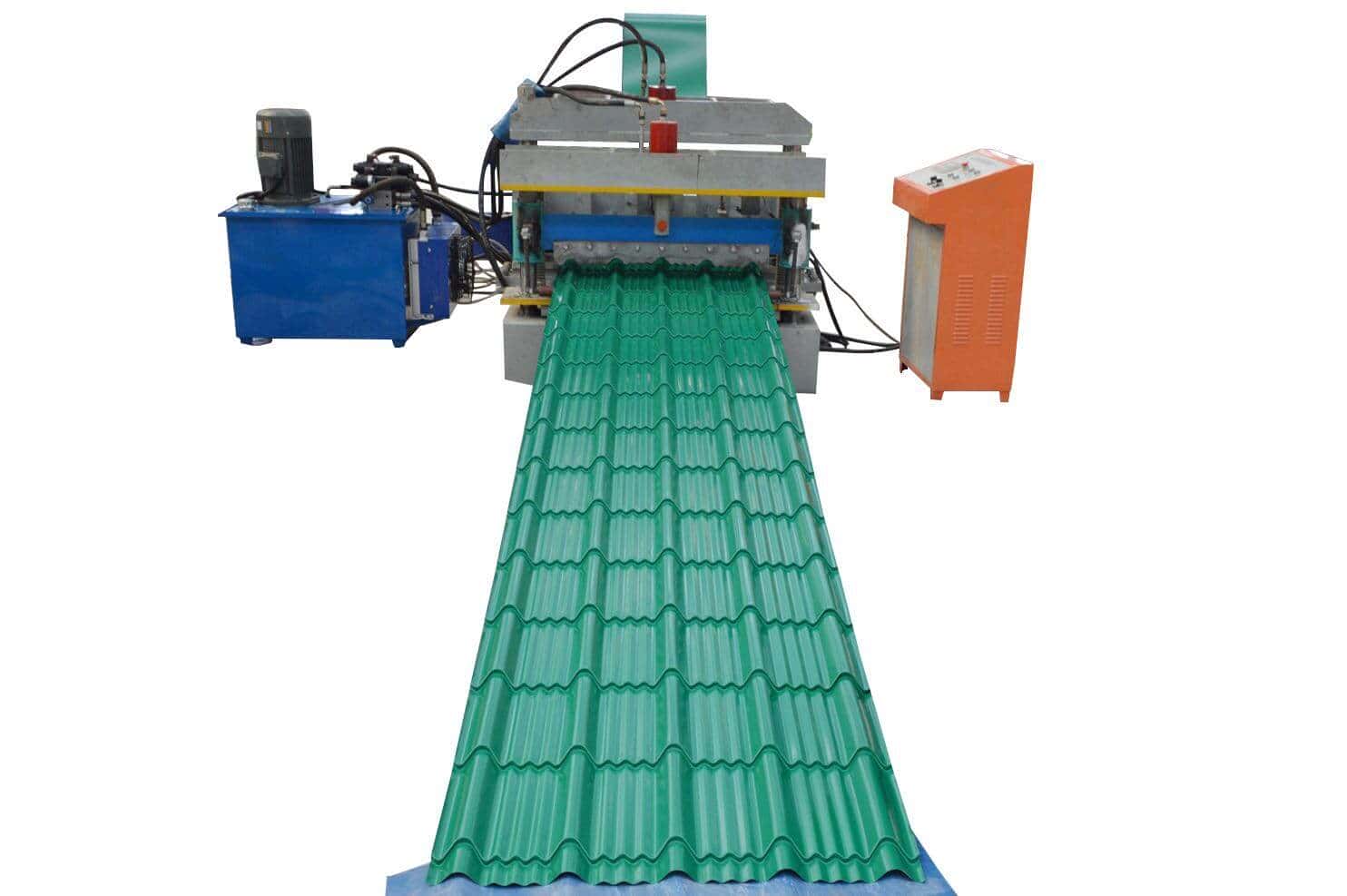

This green-glazed tile roll forming machine is an automated solution for fabricating decorative metal roof tiles. Featuring a PLC control system, precise rollers, and hydraulic cutting, the machine ensures consistent tile profiles and stable performance in long production runs. Ideal for manufacturers producing stylish roofing solutions with minimal manual handling.
1. Product Name: Green Glazed Tile Roll Forming Machine
2. Raw Material: Color Coated Steel, Galvanized Sheet
3. Thickness Range: 0.3–0.6 mm
4. Coil Width: 1000–1220 mm
5. Effective Tile Width: 828–1050 mm
6. Forming Stations: 18–20
7. Shaft Diameter: 70 mm
8. Shaft Material: 45# Steel with Heat Treatment
9. Roller Material: GCr15 Steel + Hard Chrome
10. Drive Mode: Chain Drive / Optional Gearbox
11. Main Motor Power: 5.5 kW
12. Hydraulic Station Power: 4.5 kW
13. Cutting Blade Material: Cr12 with Quenching
14. Cutting System: Hydraulic with Sensor
15. Control System: PLC + Touch Screen
16. Forming Speed: 3–6 m/min
17. Voltage: 380V/50Hz/3Phase
18. Machine Size: 7.5m x 1.5m x 1.5m
19. Weight: Approx. 6.5 Tons
20. Decoiler: Manual or Hydraulic Optional
21. Feeding Guide: Adjustable Manual
22. Noise Level: ≤65 dB

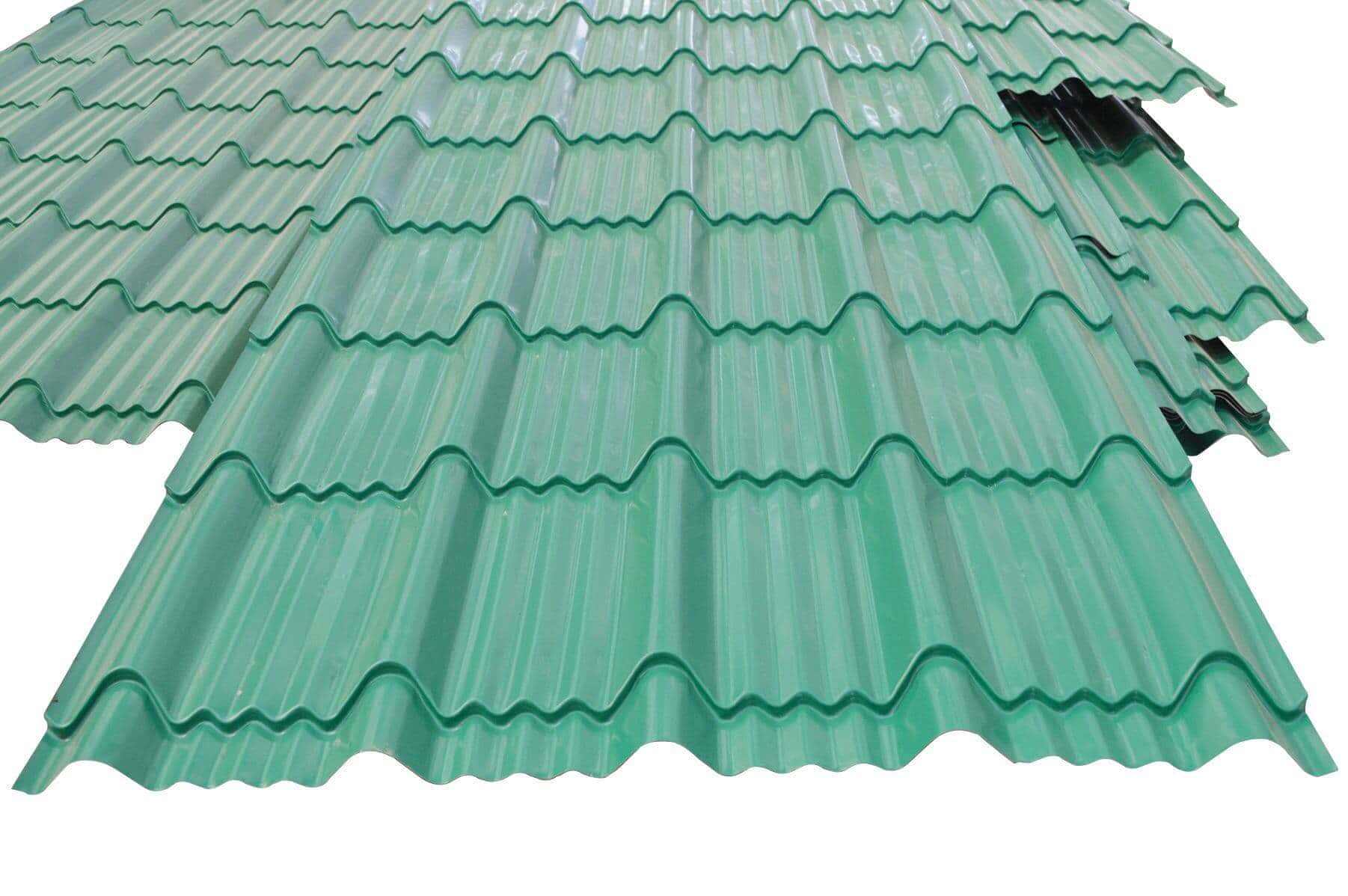

23. Tile Profile: Wave Style Glazed Tile
24. Cutter Accuracy: ±1 mm
25. Paint Color: Green Output Tile
26. Frame: Welded Steel Base
27. Lubrication: Manual
28. Safety System: Emergency Stop, Shield Covers
29. Tooling Material: High-Speed Steel
30. Productivity: 20–25 meters/min
31. Usage: Roofing Panel Manufacturing
32. Industry: Steel Roofing, Building Materials
33. Warranty: 12 Months
34. Support: Online and Onsite Available
35. Packaging: Steel Frame + Film Wrap
36. Delivery Time: 25 Days
37. Temperature Tolerance: -10°C to 45°C
38. Feeding Type: Manual or Servo Optional
39. Certification: CE, ISO9001
40. Customization: Logo, Color, Profile
