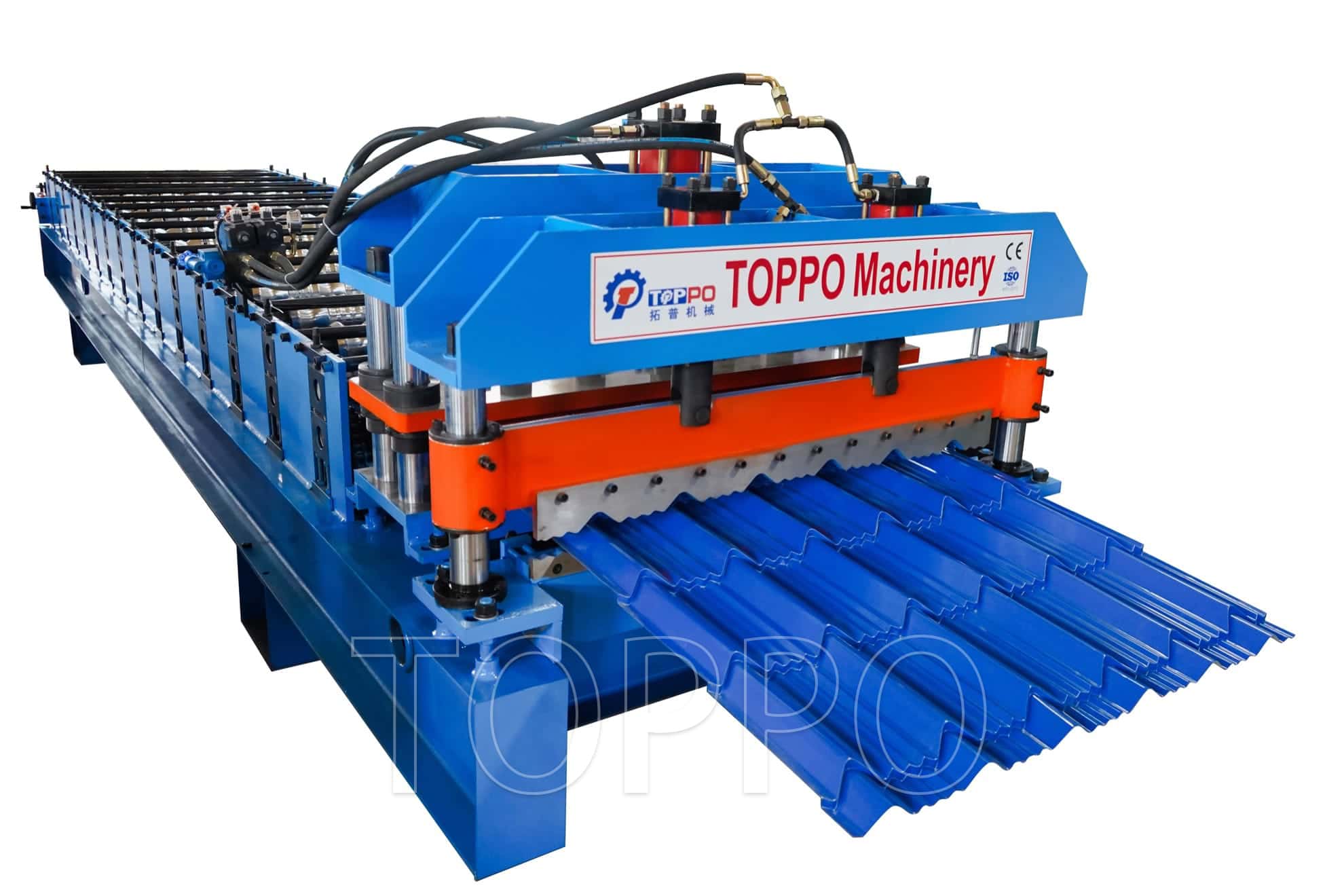

The blue glazed tile roll forming machine is engineered for accuracy and high output in metal roofing tile manufacturing. With a user-friendly touchscreen PLC control system, hardened rollers, and robust frame, it supports continuous and consistent glazed tile production for various construction applications.

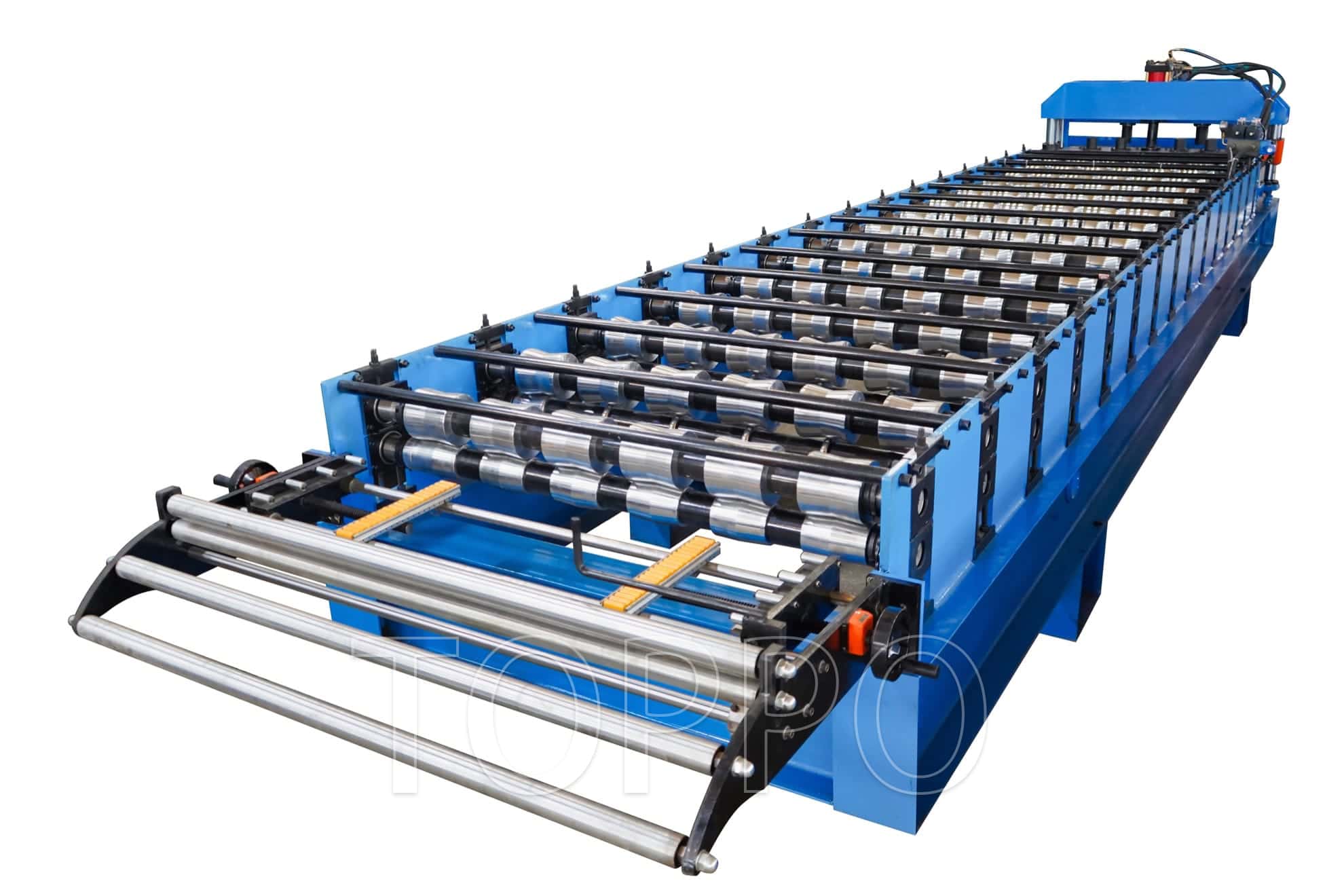

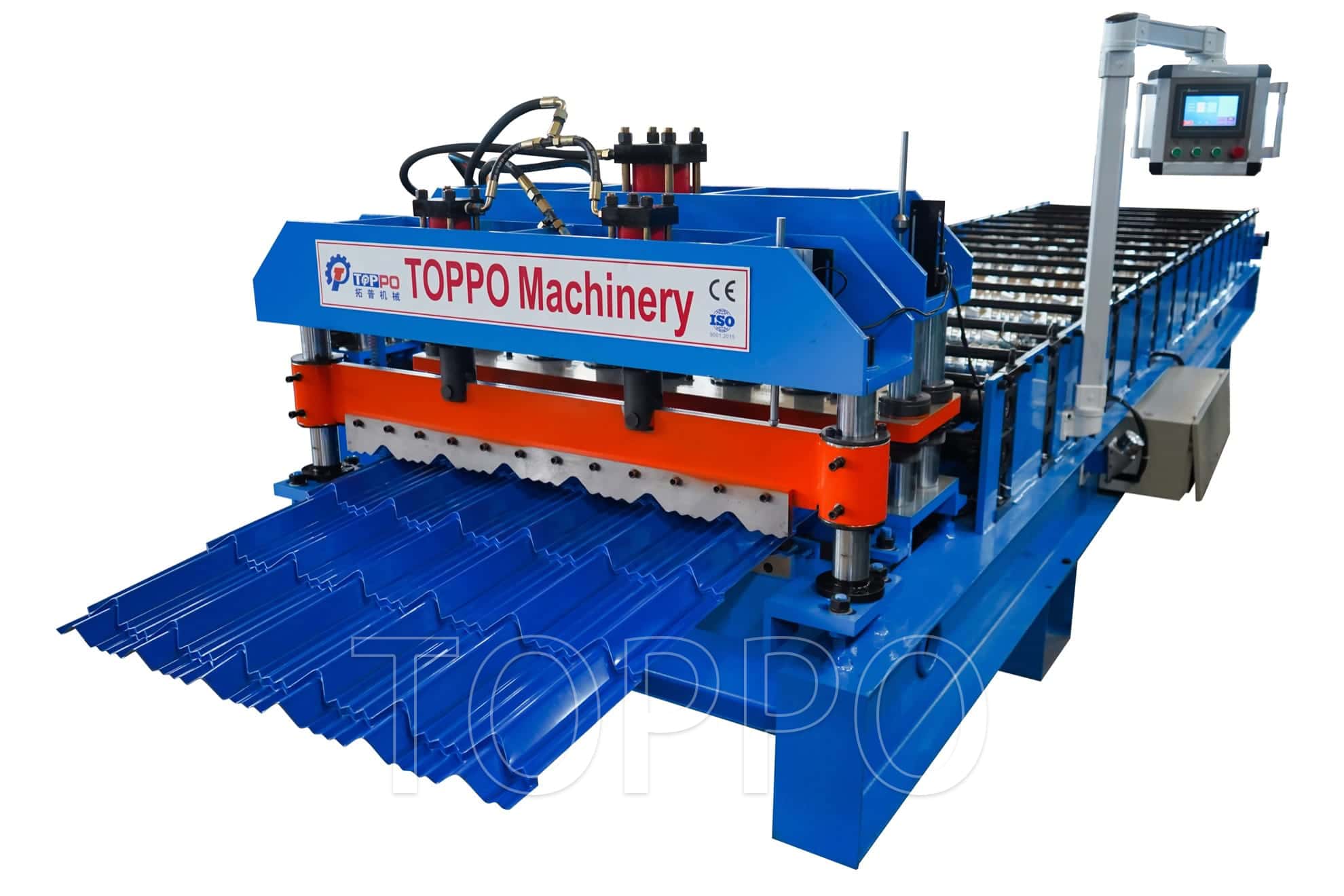

1. Product Name: Blue Glazed Tile Roll Forming Machine
2. Tile Output Color: Blue
3. Material: Color Steel, Galvanized Steel
4. Material Thickness: 0.3–0.6 mm
5. Coil Width: 1000–1220 mm

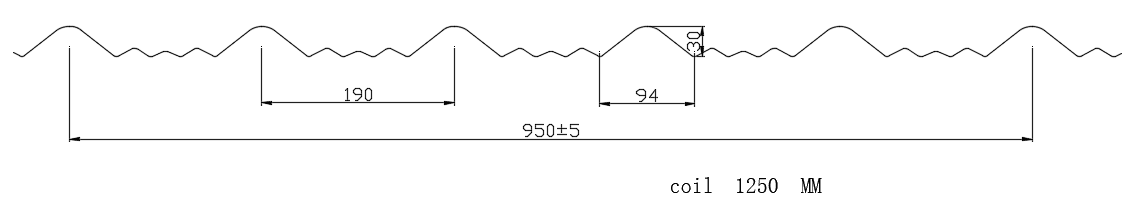

6. Effective Width: 828–1050 mm

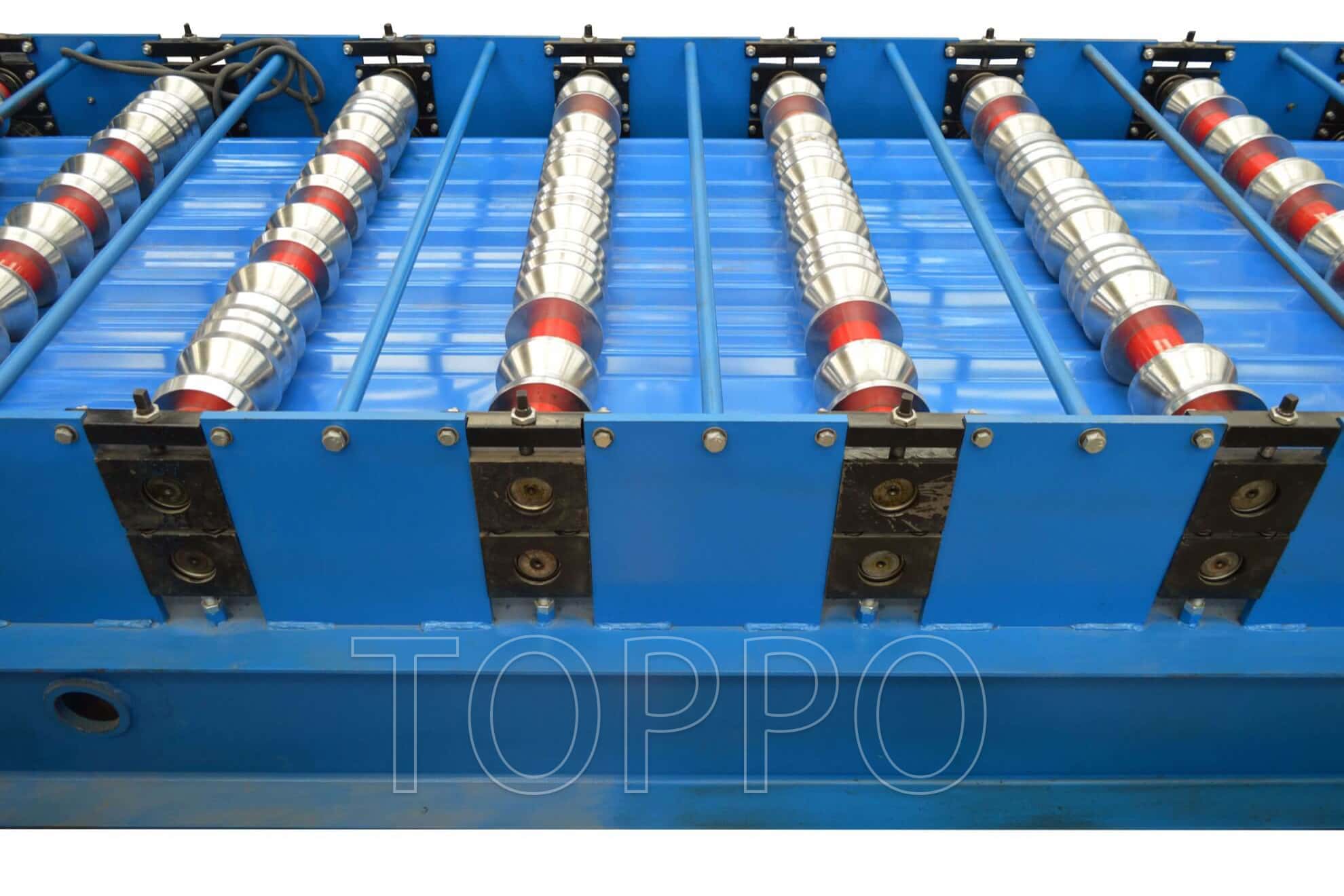

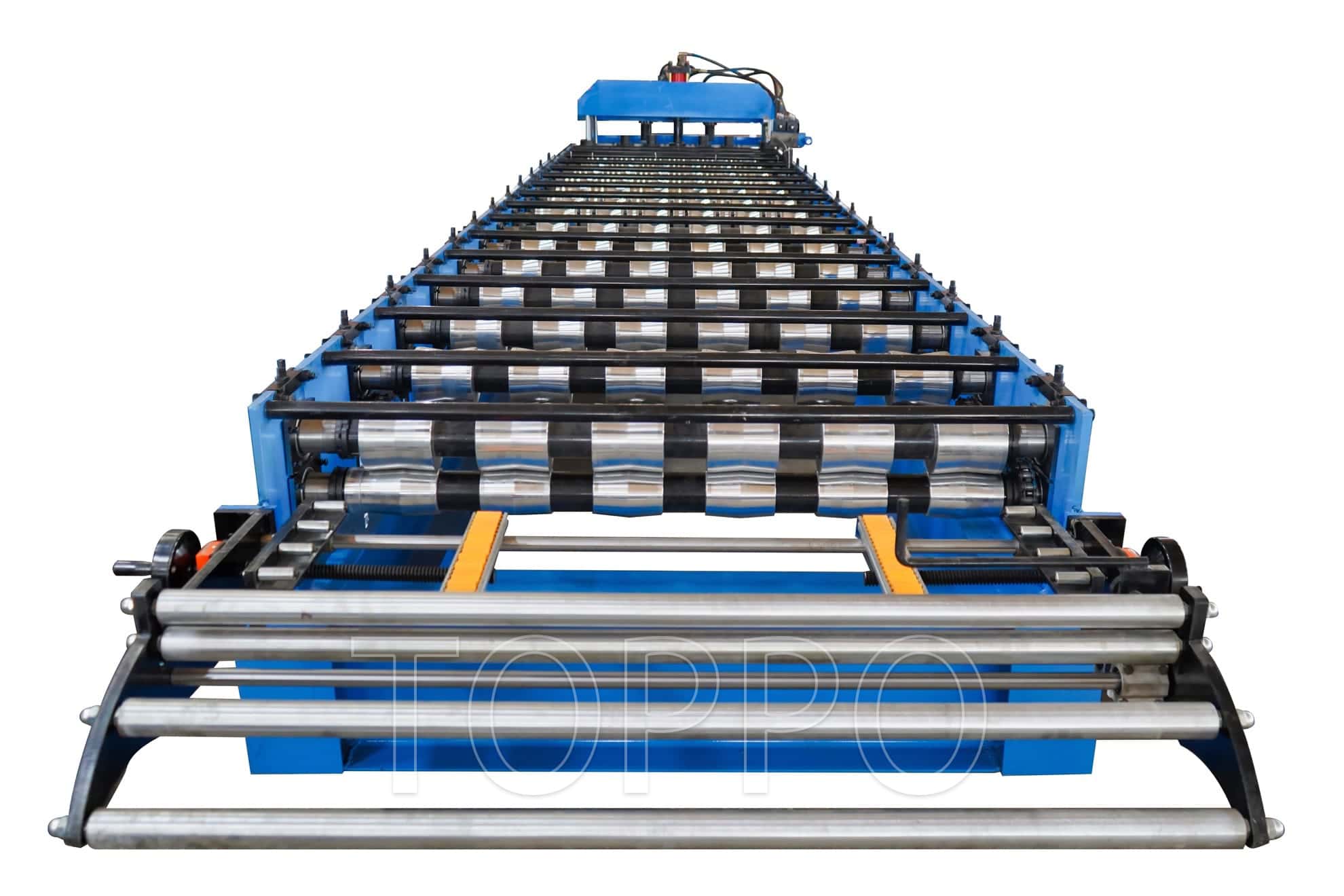

7. Roller Stations: 18–22
8. Shaft Diameter: 70 mm
9. Shaft Material: 45# Hardened Steel

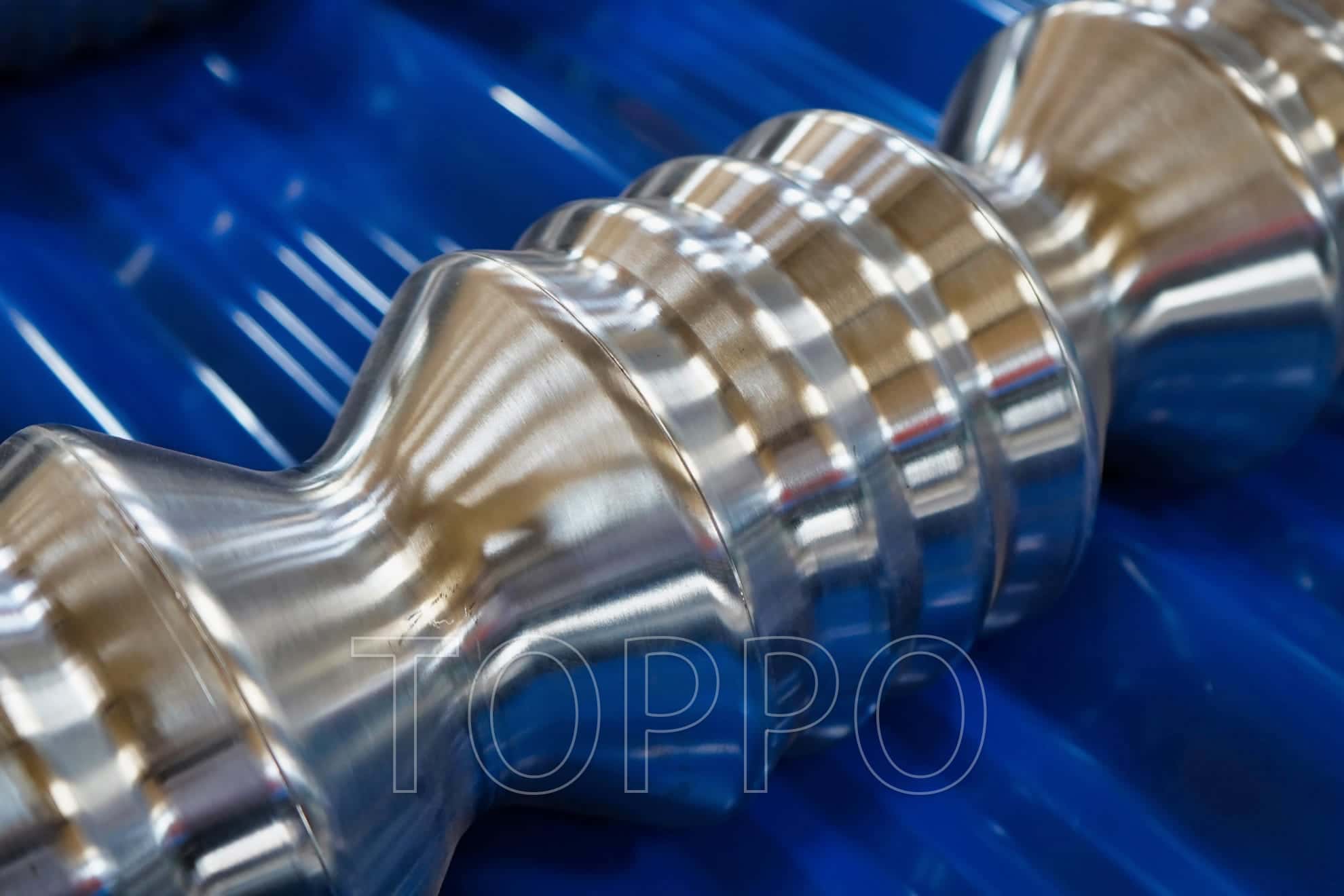

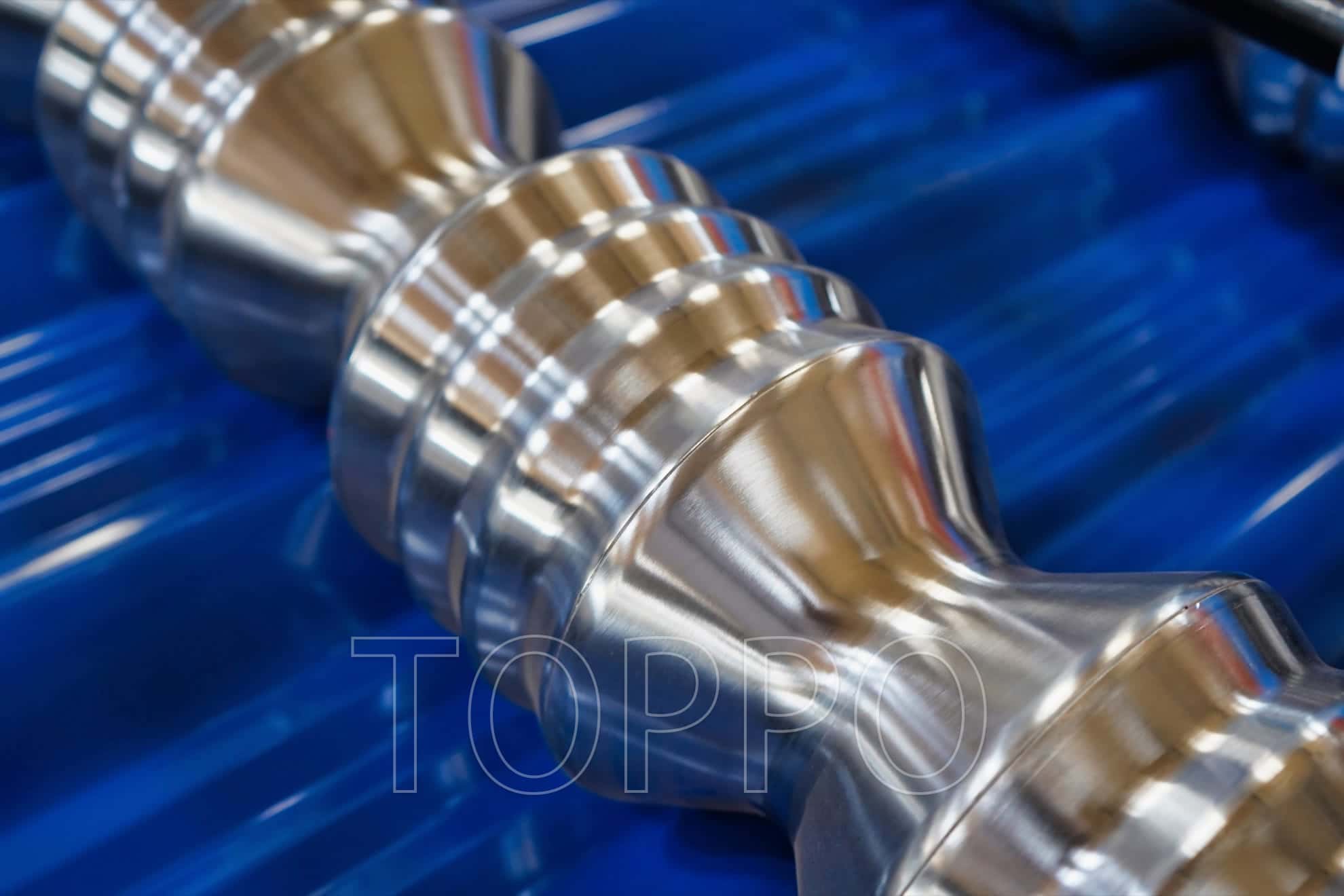

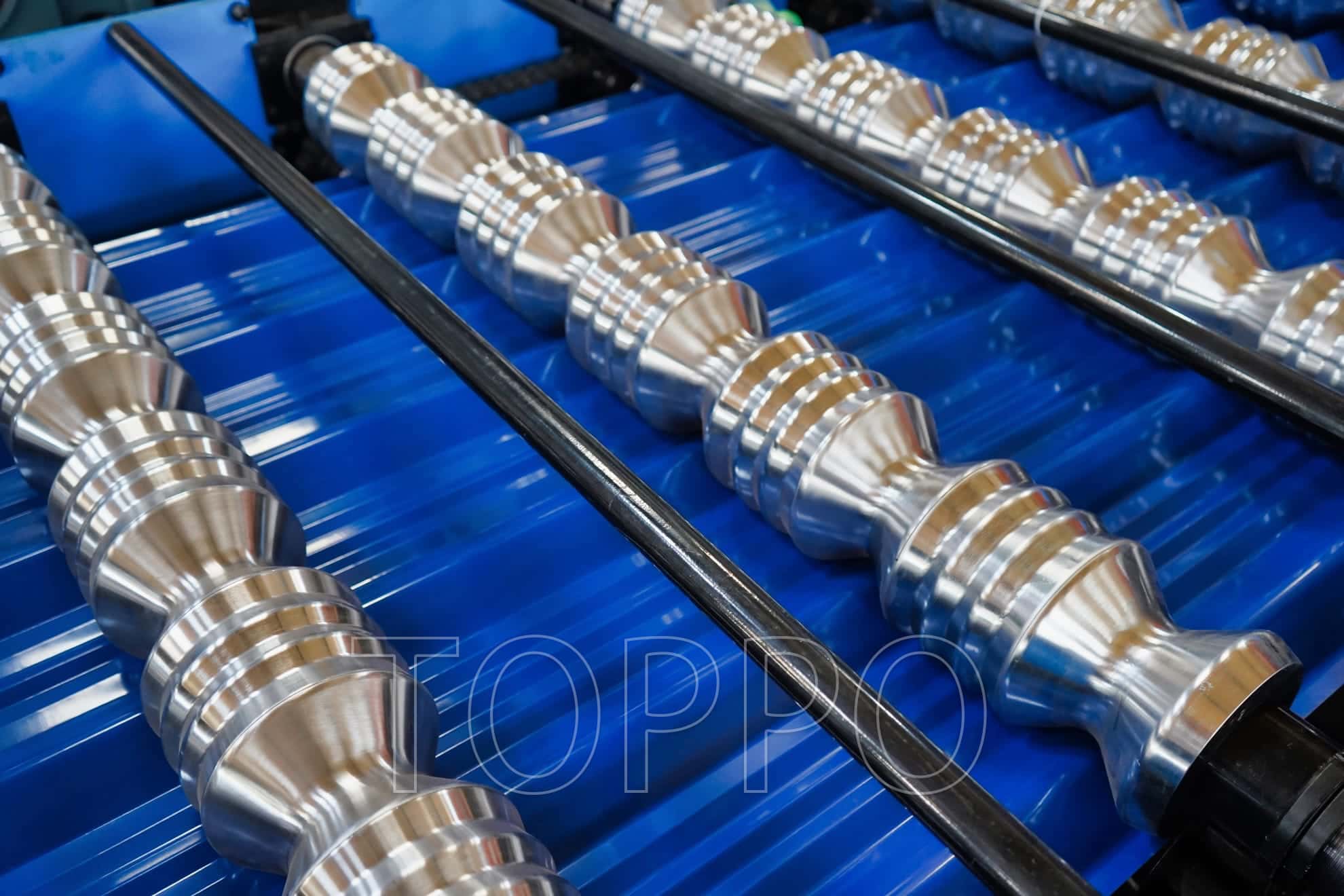

10. Roller Material: GCr15 Steel + Chrome Coating
11. Drive Mode: Chain Drive / Gearbox Optional
12. Main Motor: 5.5 kW
13. Hydraulic Power: 4 kW

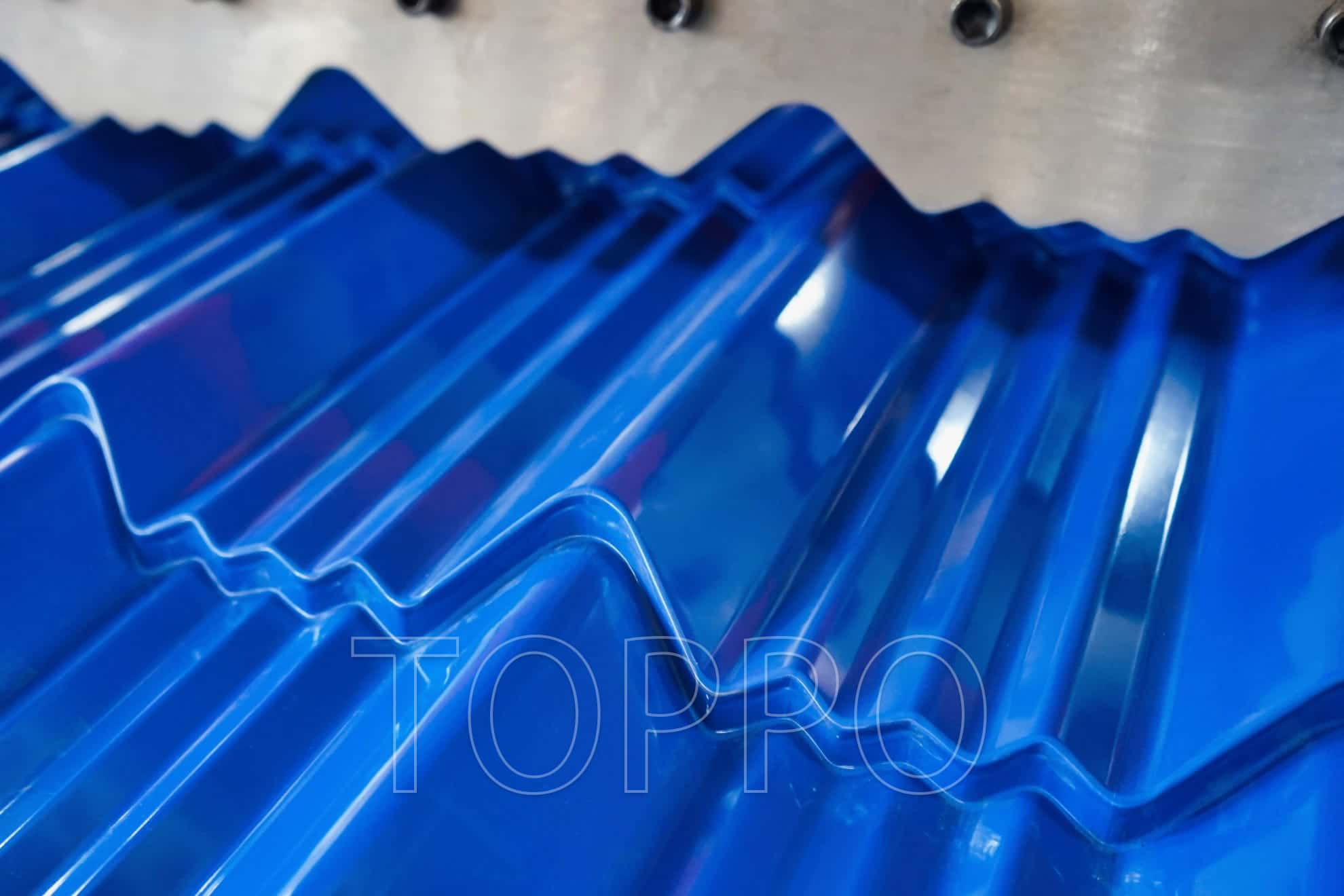

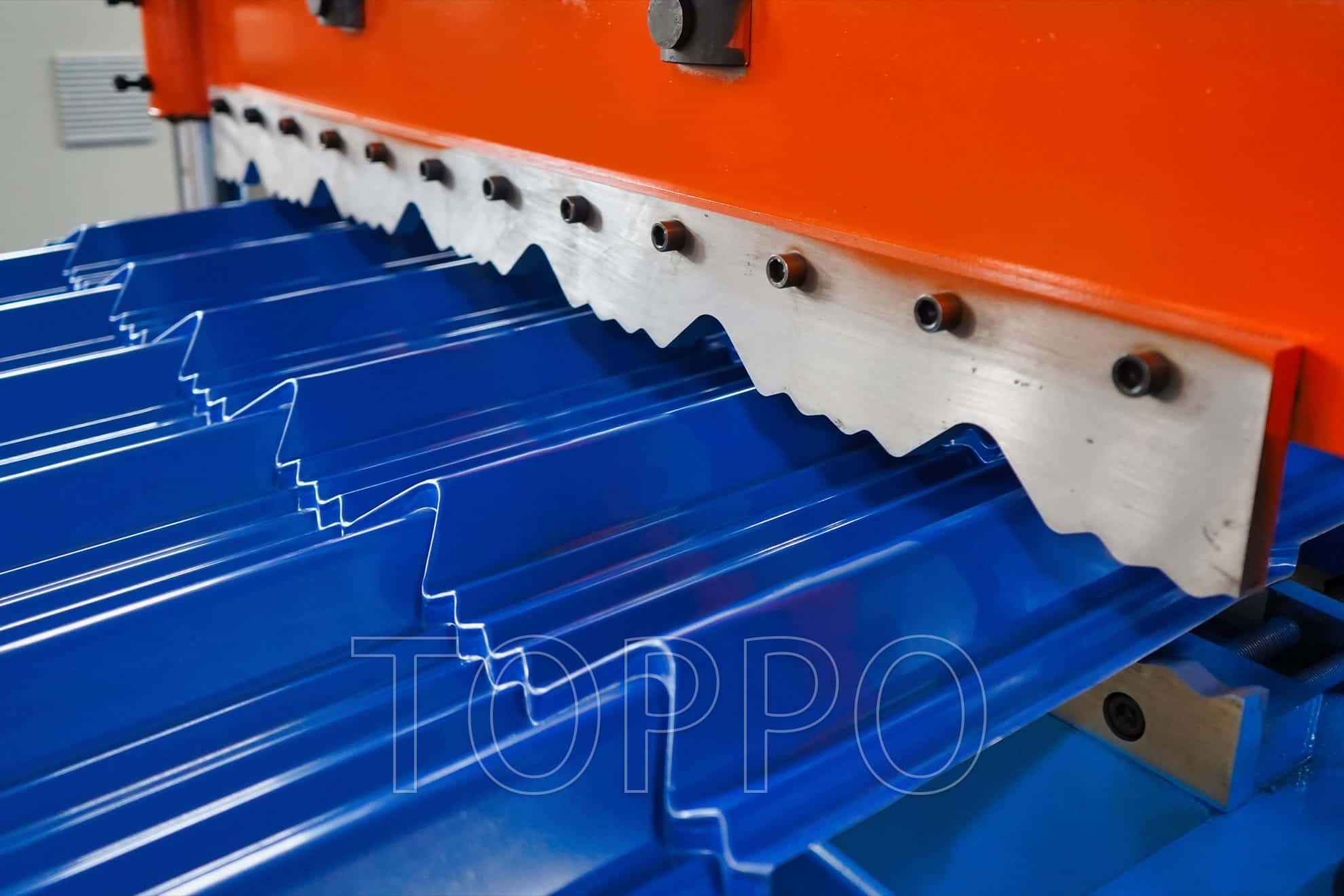

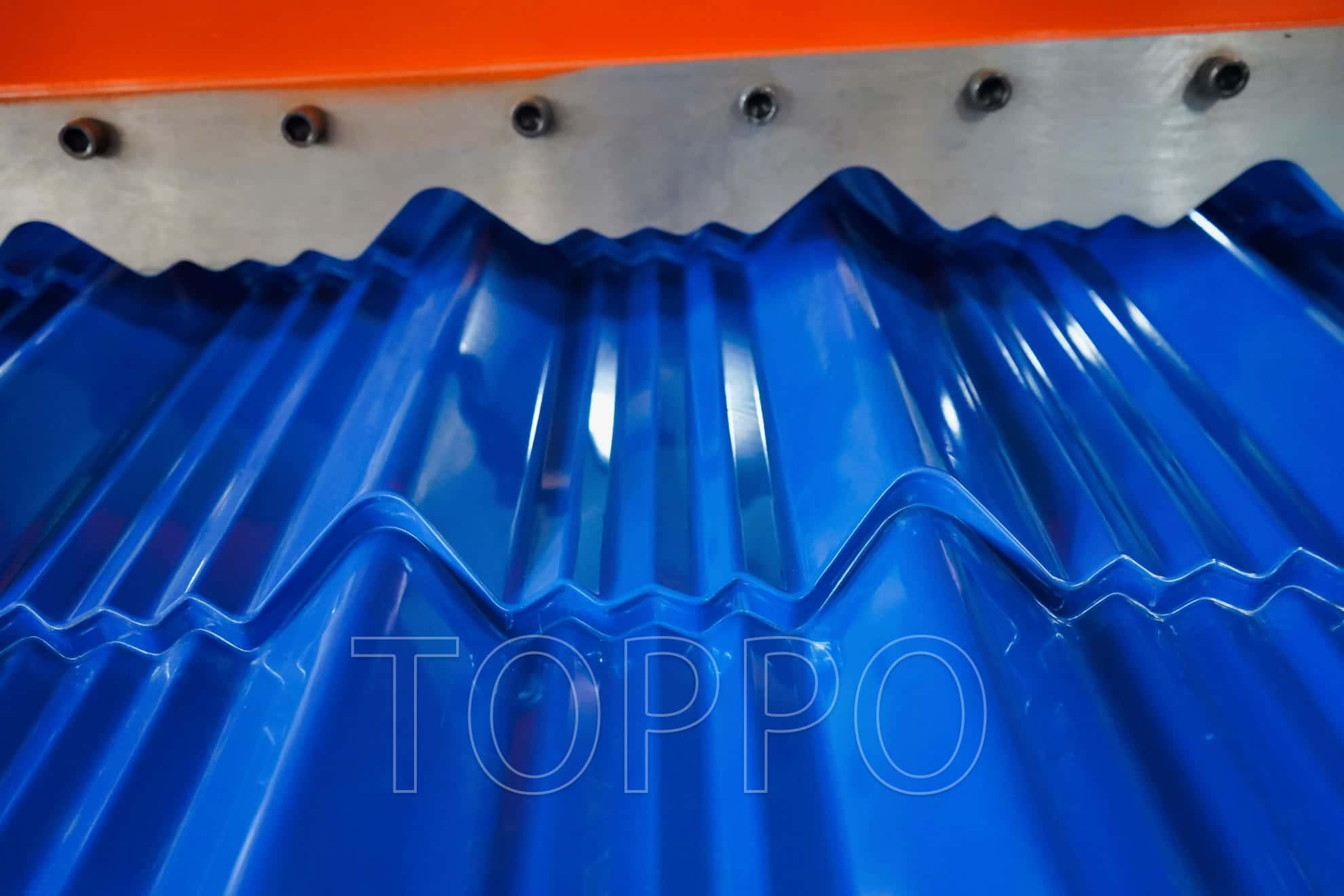

14. Cutting System: Hydraulic with Cr12 Blade

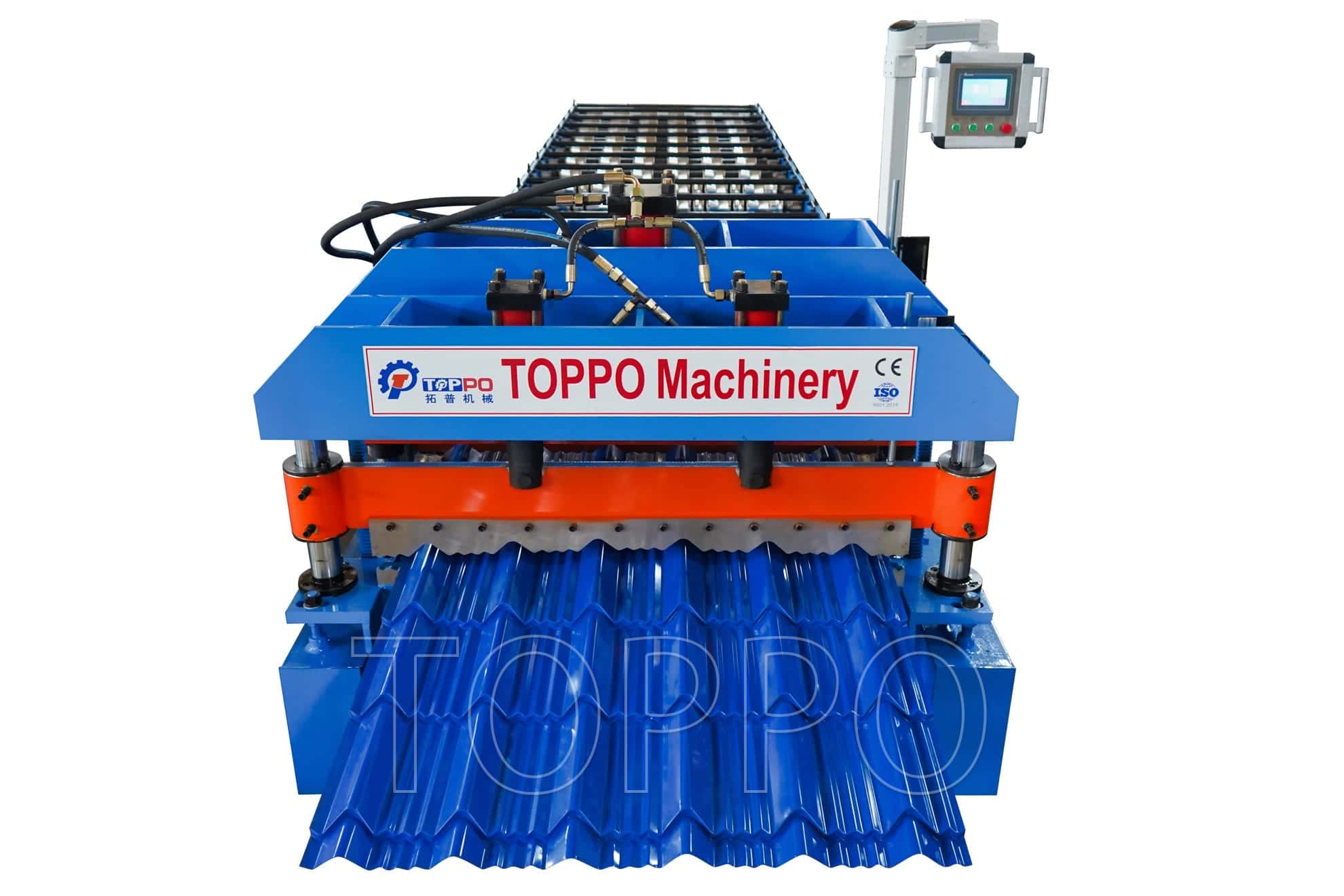

15. Control System: Touchscreen PLC (Delta/Siemens)
16. Voltage: 380V/50Hz/3Phase
17. Forming Speed: 3–5 m/min
18. Machine Size: 7.5m x 1.5m x 1.6m
19. Weight: 6.8 Tons
20. Noise Level: ≤65 dB
21. Cutter Accuracy: ±1 mm
22. Safety Features: Emergency Button, Safety Covers
23. Frame: Welded Steel Frame
24. Decoiler: Manual or Hydraulic (Optional)

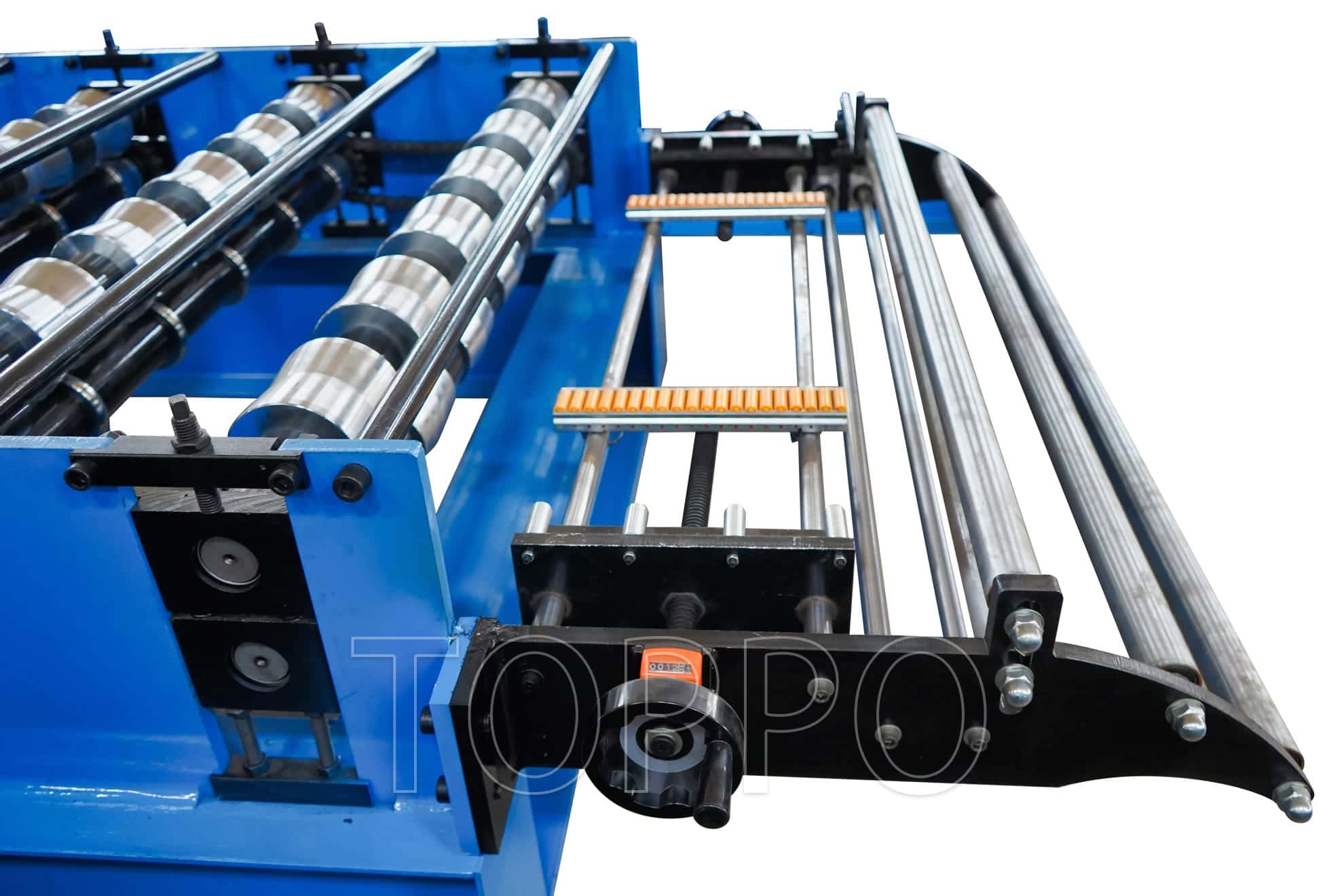

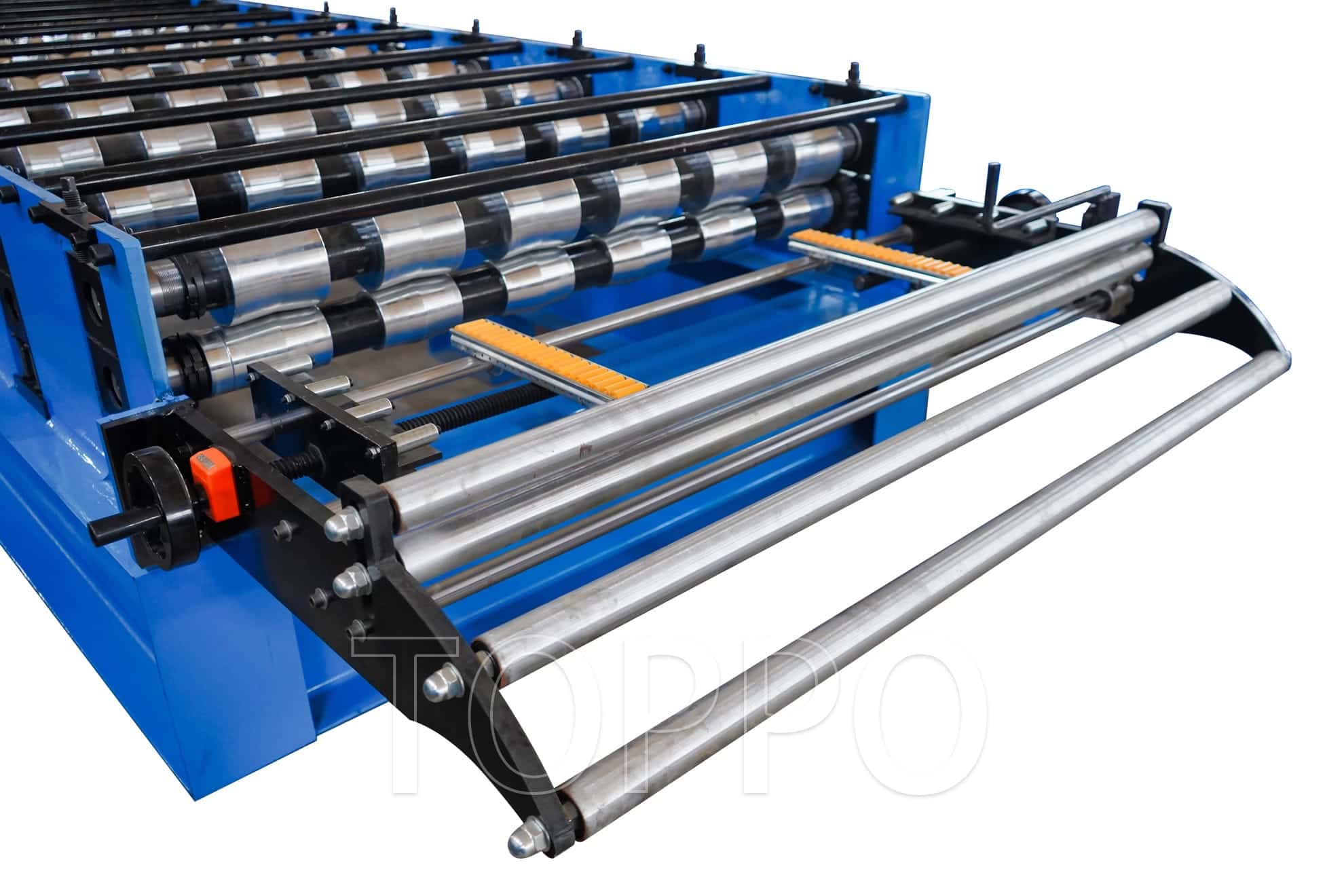

25. Feeding Guide: Adjustable
26. Paint Finish: Industrial Blue + Orange Accent
27. Lubrication: Manual
28. Tooling: Hardened Steel Dies
29. Production Capacity: 20–25 m/min
30. Operation: Fully Automatic
31. Industry Use: Roofing Tile Manufacturing
32. Certifications: ISO9001, CE
33. Warranty: 12 Months
34. Support: Remote Technical Support
35. Delivery Time: 25 Days
36. Profile Customization: Available
37. Application Fields: Villas, Residential Roofing
38. Environment Compatibility: -10°C to 45°C
39. Packaging: Plastic Film + Steel Support Frame
40. Extra Feature: High-definition output tile design
