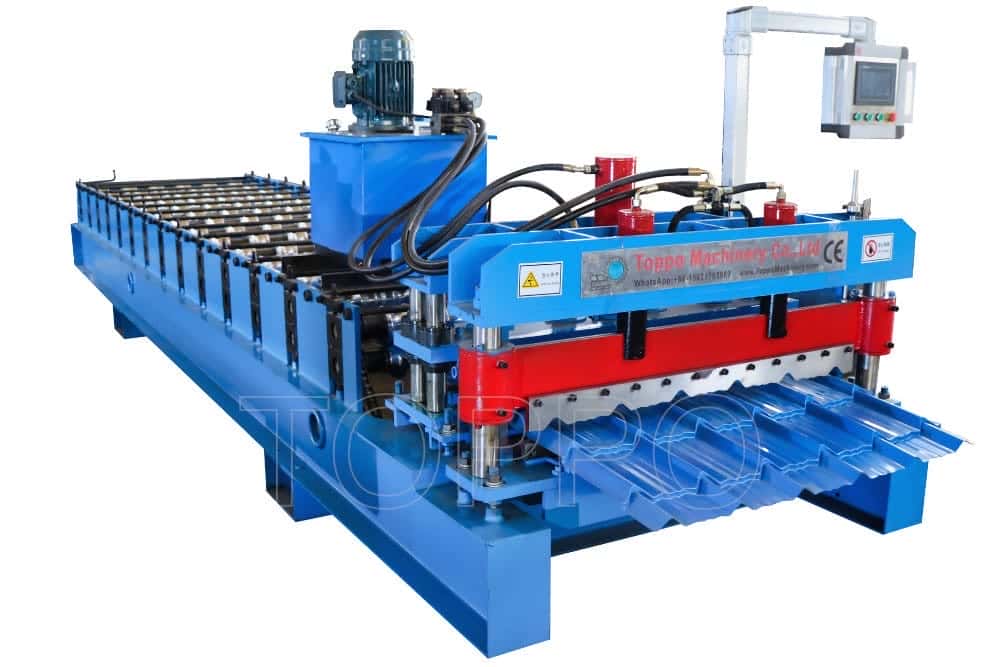

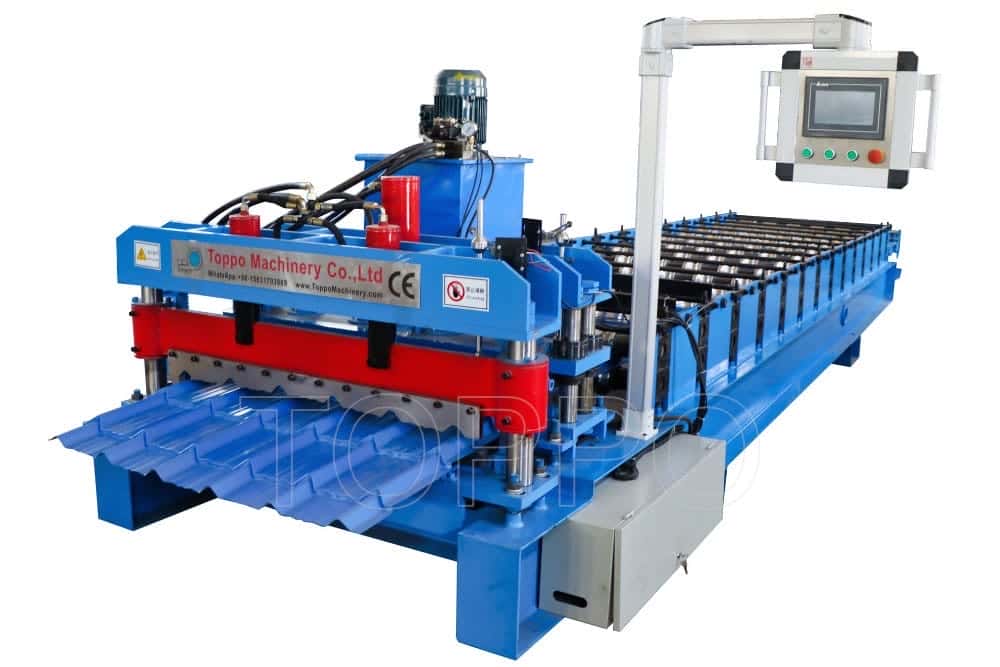

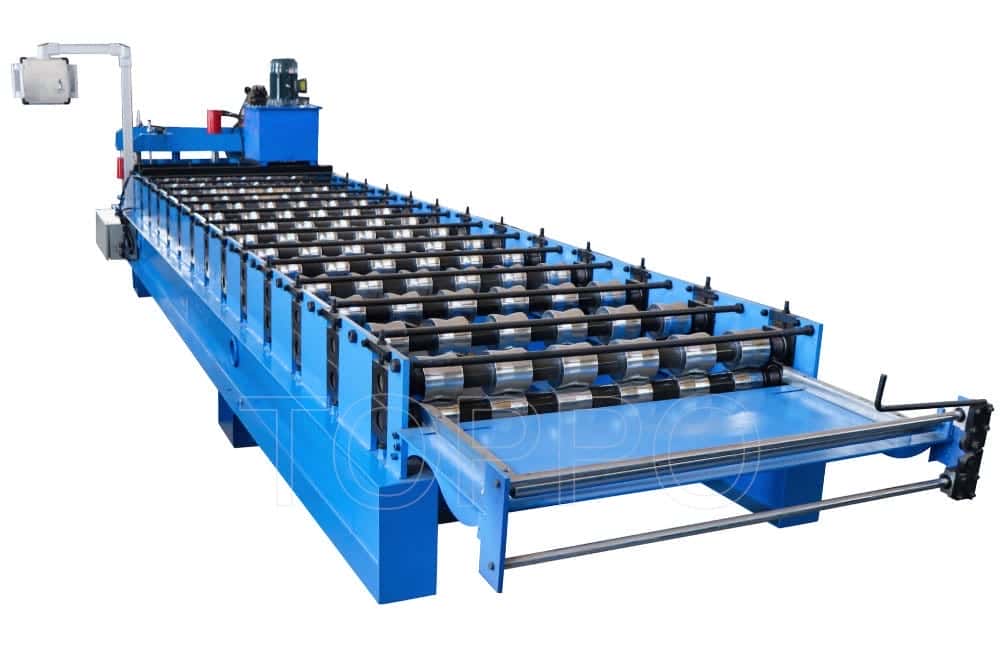

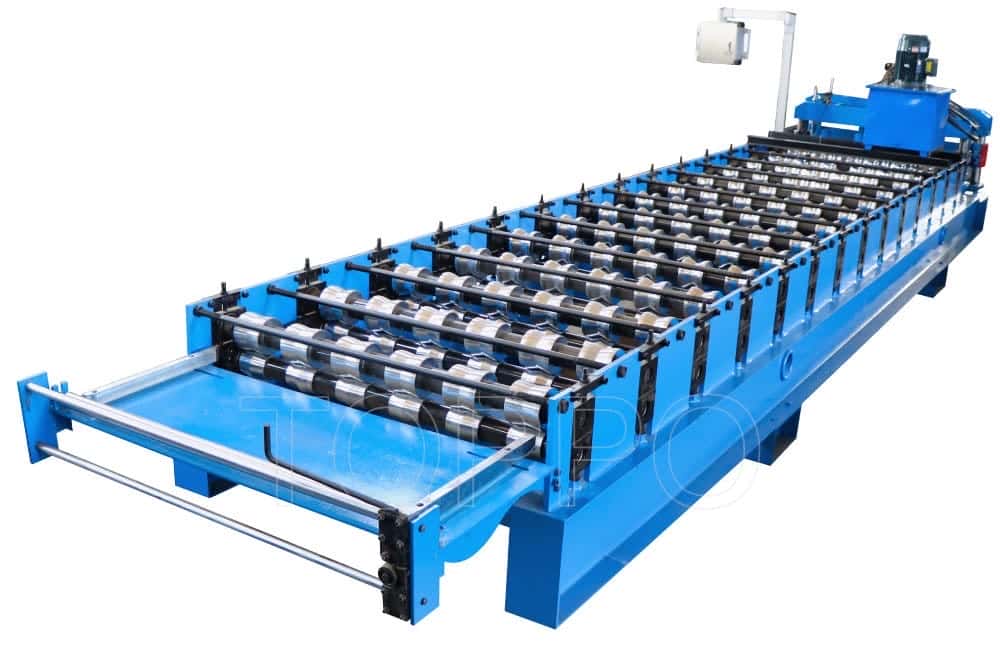

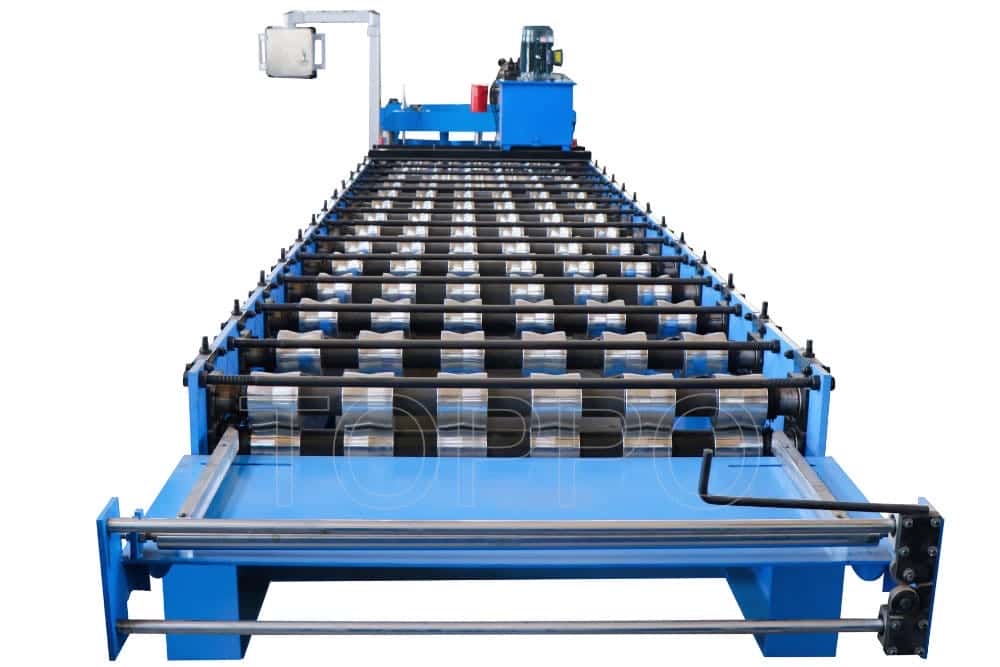

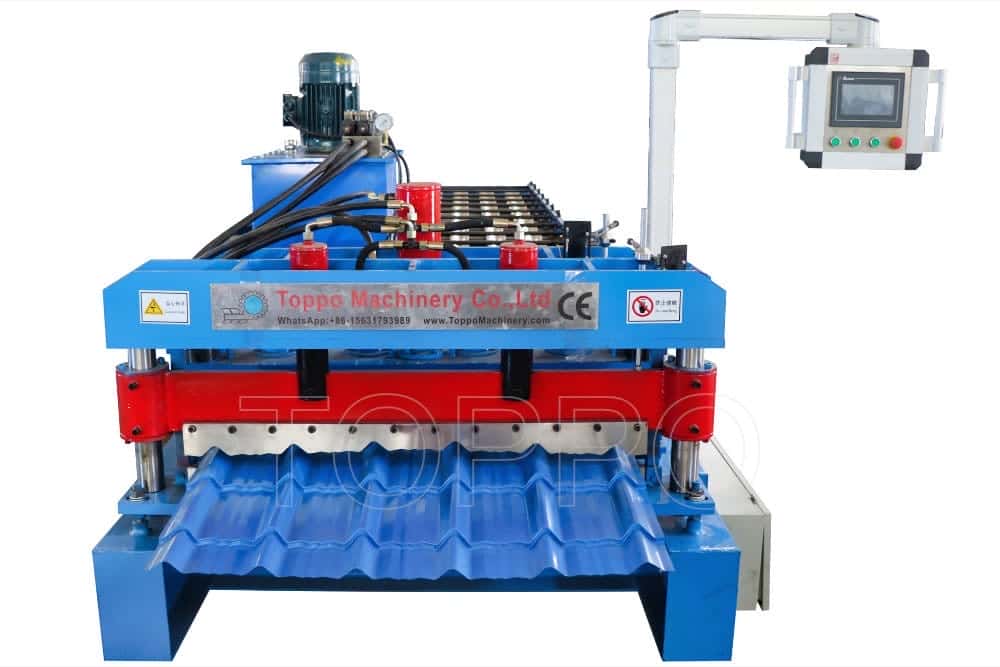

The full-automatic glazed tile roll forming machine is an advanced solution for producing high-quality metal roofing tiles. Engineered for durability and precision, this machine integrates a Delta PLC touchscreen, hardened rollers, and powerful hydraulic cutting. Ideal for modern construction demands requiring aesthetic and reliable roofing materials.
1. Product Name: Full-Automatic Glazed Tile Roll Forming Machine
2. Application: Roofing Tile Manufacturing
3. Raw Material: Color Steel / Galvanized Coil
4. Thickness Range: 0.3–0.6 mm
5. Coil Width: 1000–1250 mm
6. Effective Tile Width: 828–1050 mm

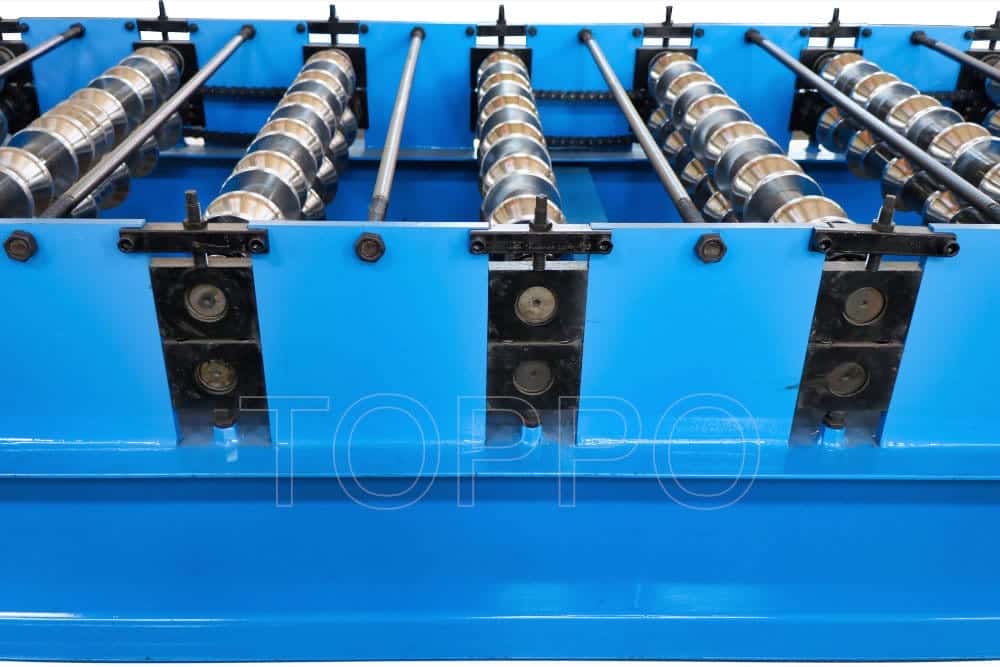

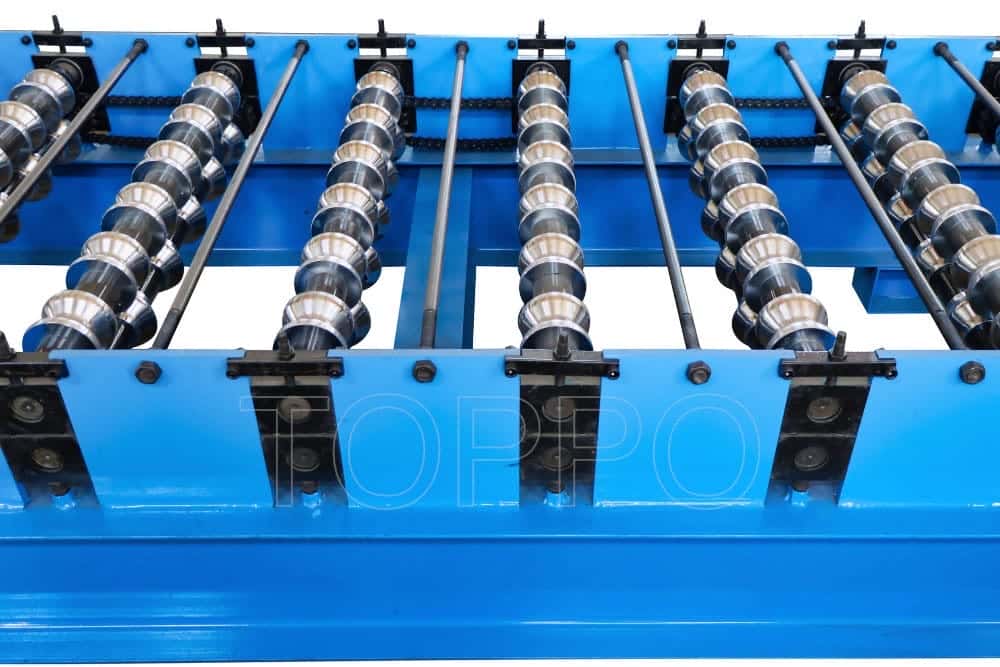

7. Forming Stations: 20

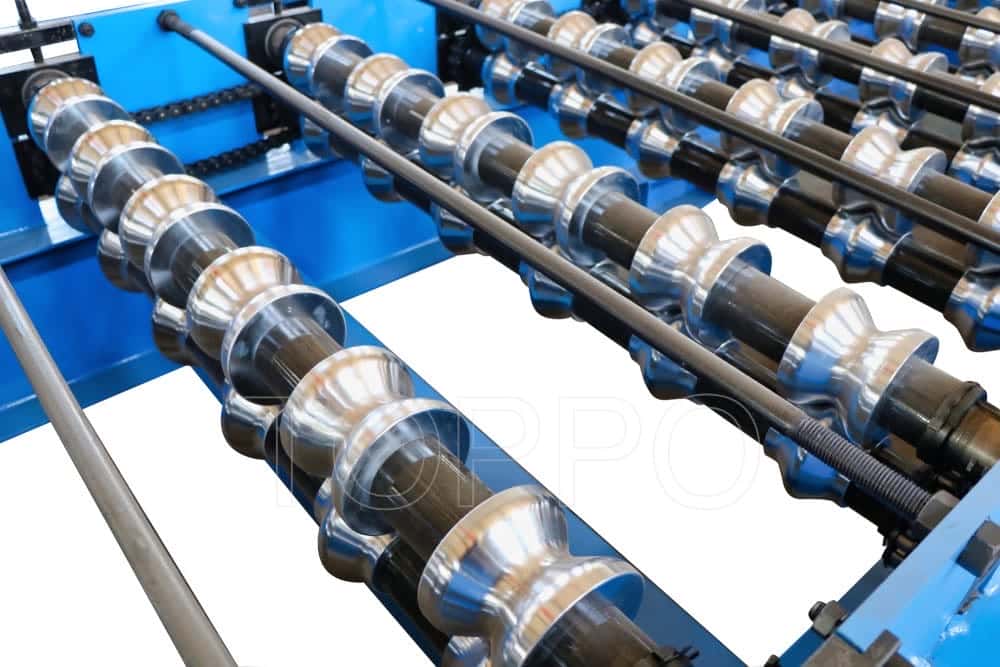

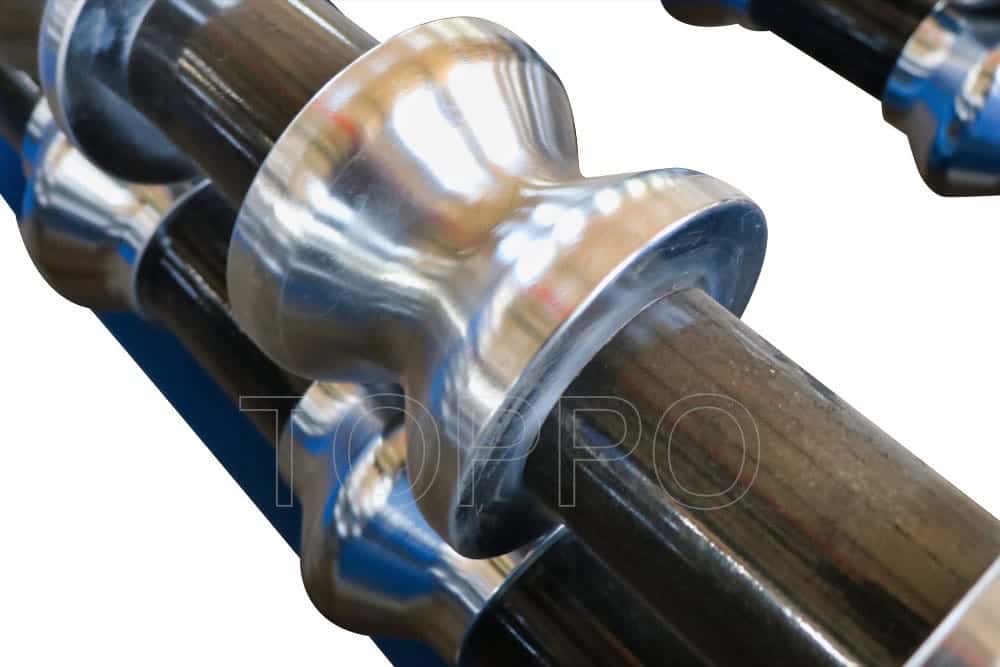

8. Roller Material: GCr15 + Chrome Coated
9. Shaft Diameter: 75 mm
10. Shaft Material: High-Grade Steel with Heat Treatment
11. Drive Mode: Chain / Gearbox

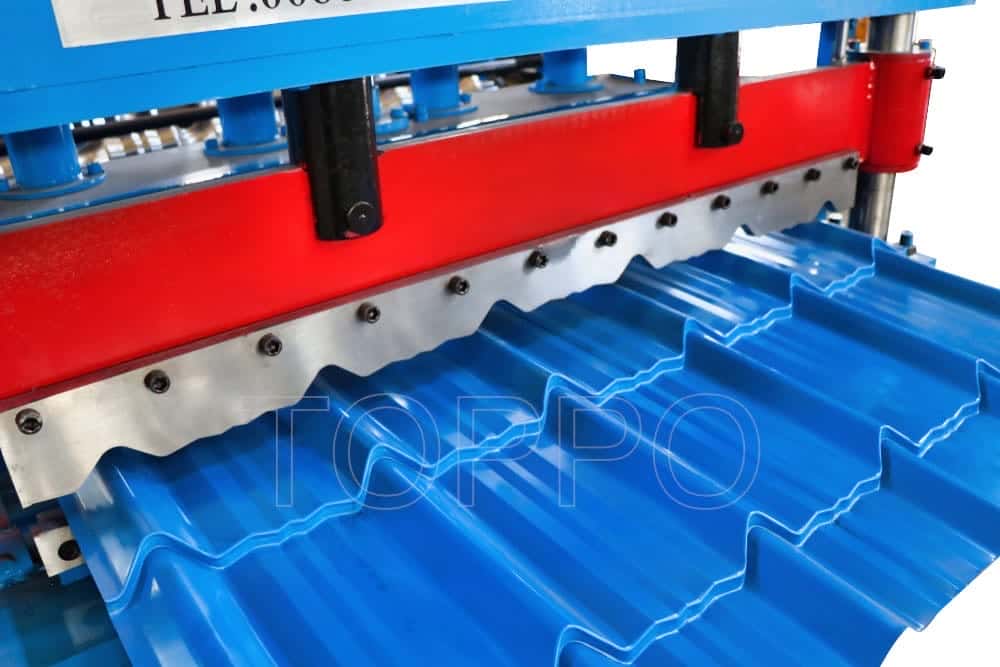

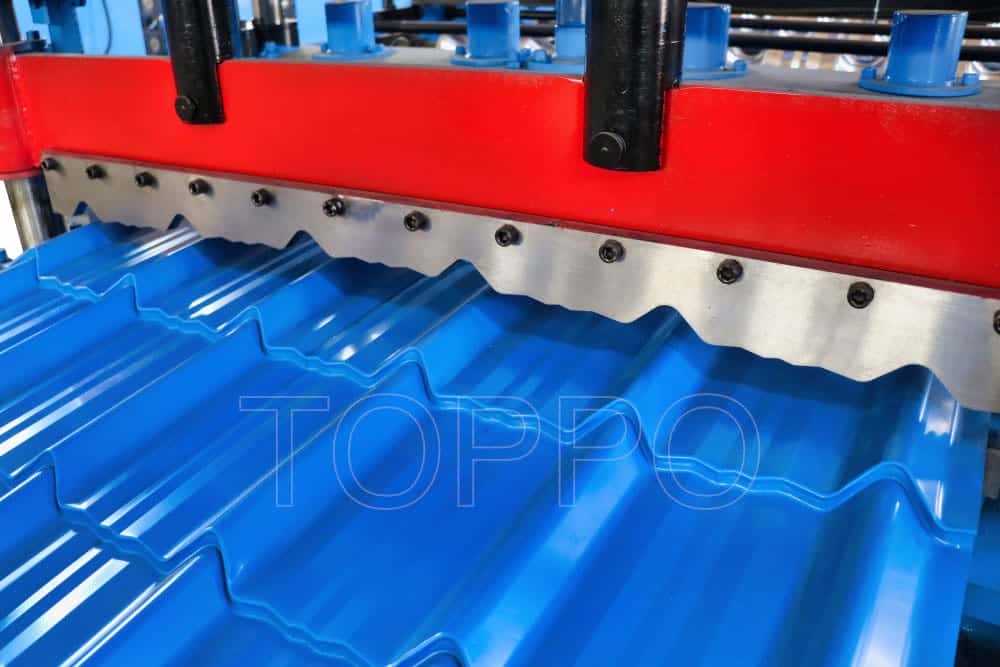

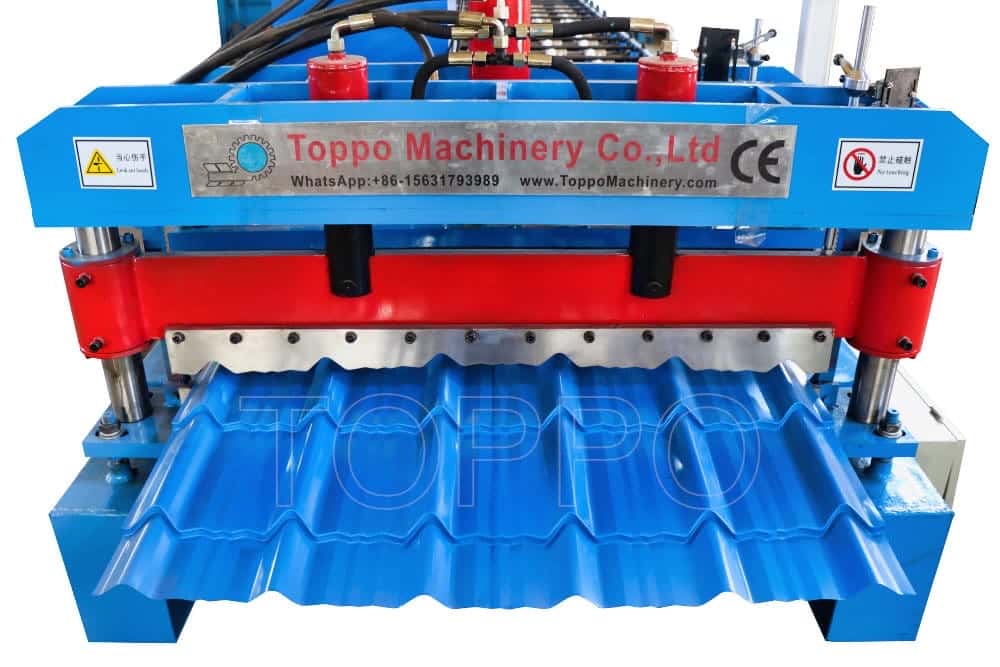

12. Cutting System: Hydraulic Cutting with Position Sensor
13. Main Motor: 7.5 kW
14. Hydraulic System Power: 5.5 kW
15. Blade Material: Cr12MoV Hardened
16. Forming Speed: 3–6 m/min
17. Voltage: 380V/50Hz/3Phase
18. Control System: Delta PLC with Touchscreen
19. Size: 8m x 1.6m x 1.6m
20. Weight: 7.2 Tons
21. Color Scheme: Blue Frame, Red Cut System
22. Output Color: Blue Tiles
23. Tile Profile: Step Glazed Tile
24. Noise Level: ≤68 dB
25. Control Accuracy: ±1 mm
26. Lubrication: Manual
27. Cooling: Optional Air Cooling
28. Decoiler: Hydraulic 5T Optional

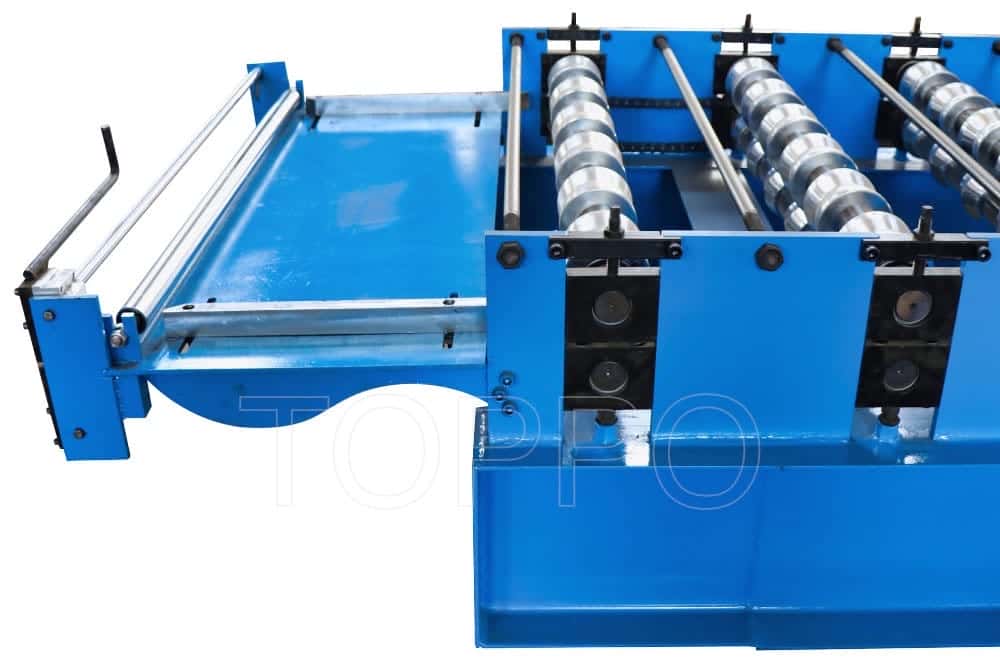

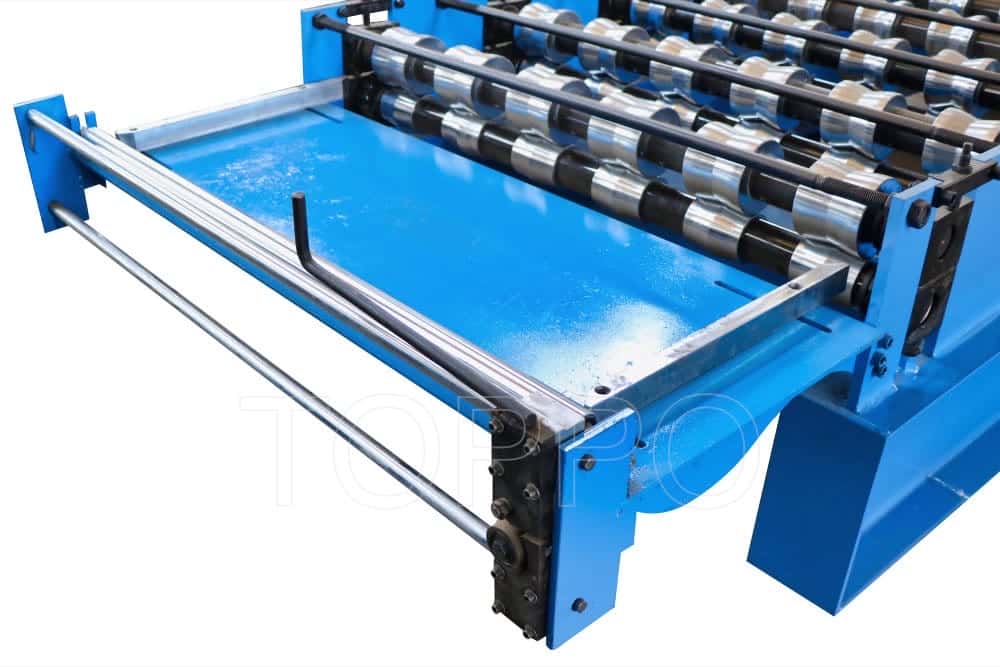

29. Feeding: Manual / Servo Adjustable
30. Certifications: CE, ISO9001
31. Warranty: 1 Year
32. Operation Mode: Fully Automatic
33. Industry Use: Metal Roofing, Construction Materials
34. Cutter Protection: Safety Shield + Stop Switch
35. Profile Customization: Supported
36. Installation: Remote / Onsite Support
37. Packaging: PE Film + Steel Brackets
38. Delivery: 25 Days
39. Output Capacity: Up to 25 m/min
40. Control Language: Multilingual Interface
