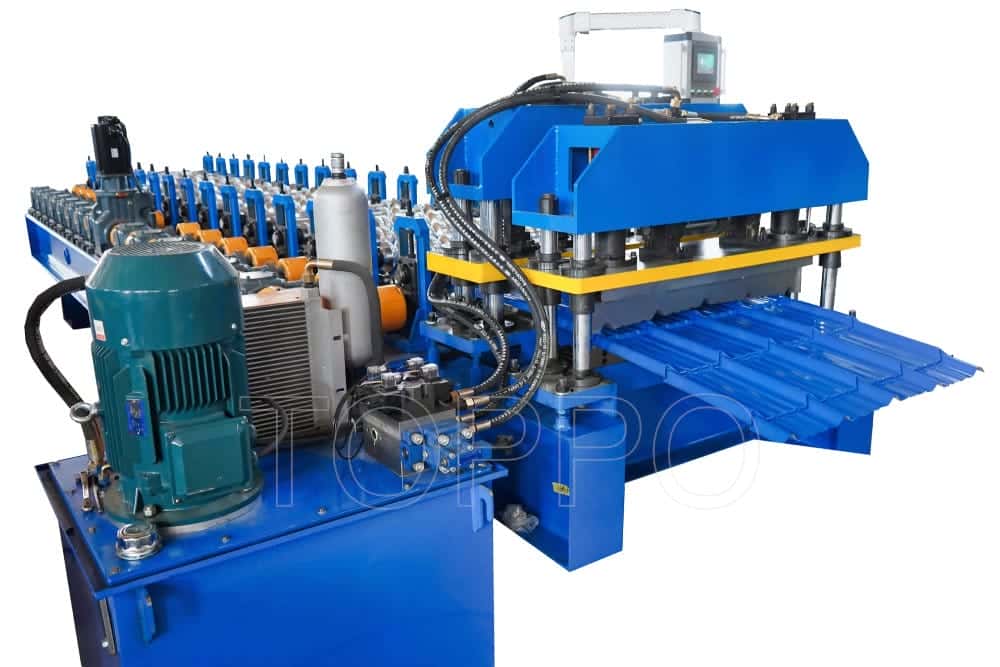

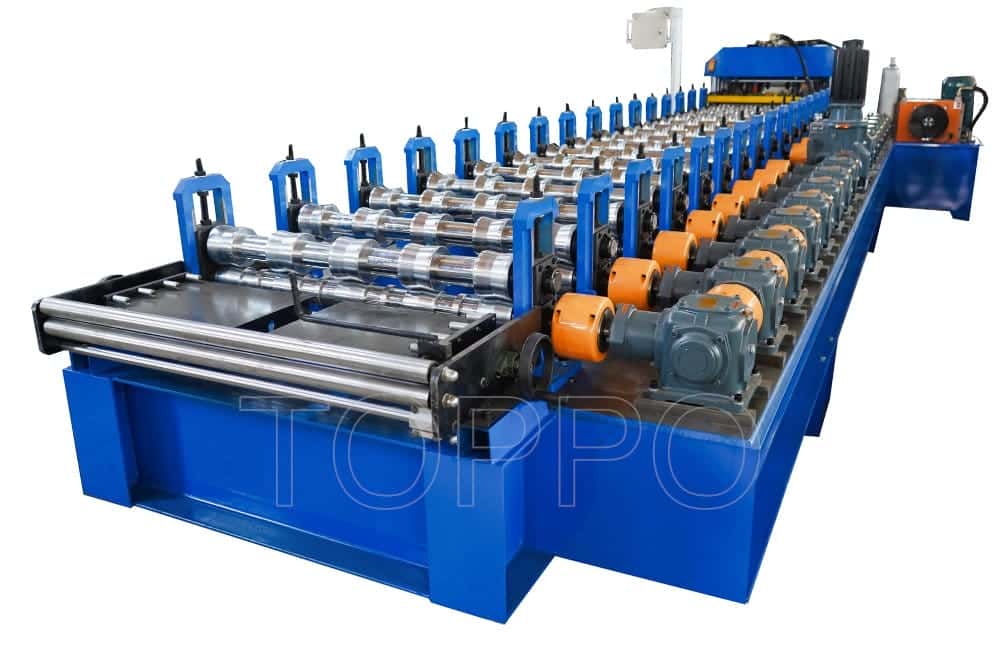

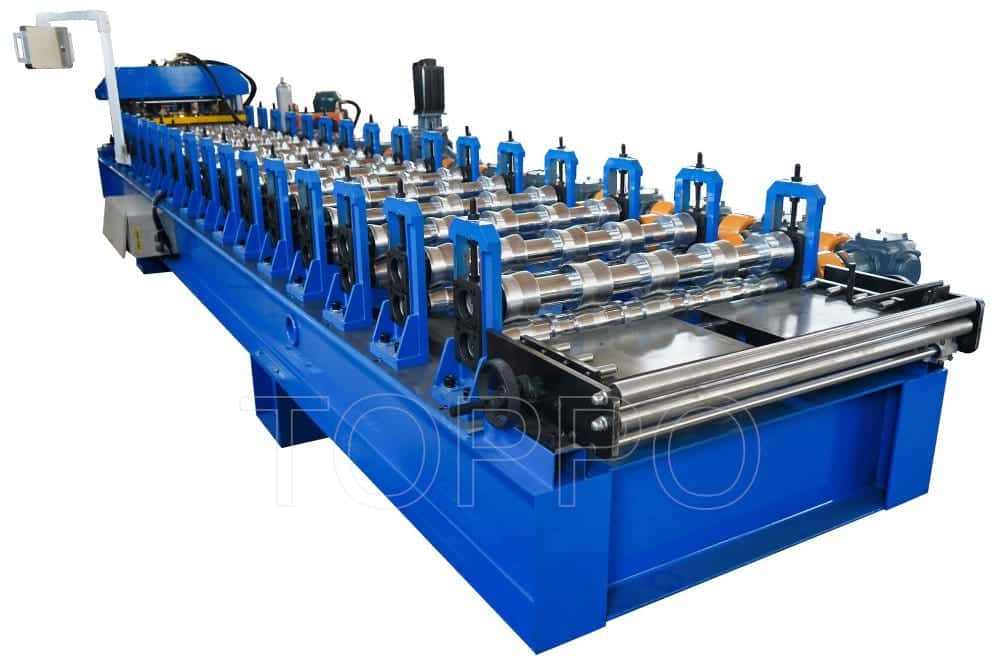

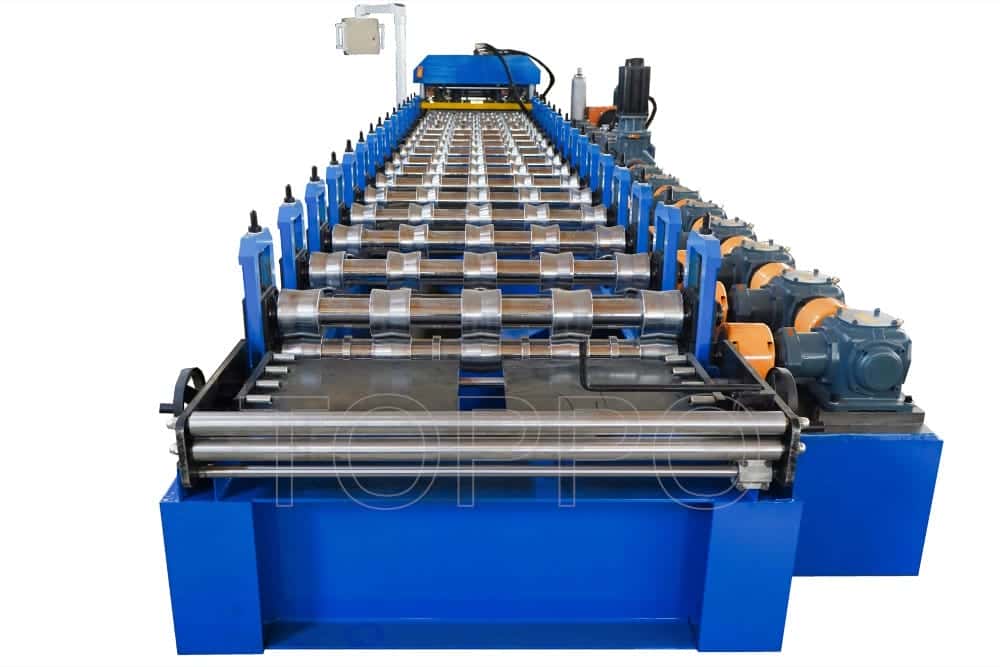

The glazed tile roll forming machine shown here is purpose-built for forming stylish, high-strength roofing tiles used in residential, commercial, and industrial construction. With a welded steel frame and PLC system, this machine provides efficient, automated tile shaping, precision control, and low operational noise. It is perfect for long-term tile production with minimal maintenance requirements.
1. Product Name: PLC Controlled Glazed Tile Roll Forming Machine
2. Output Product: Glazed Metal Roof Tile
3. Material Type: PPGI, GI Coil, Color Coated Steel
4. Thickness Range: 0.3–0.7 mm
5. Coil Width: 1000–1220 mm
6. Effective Coverage Width: 828–1050 mm

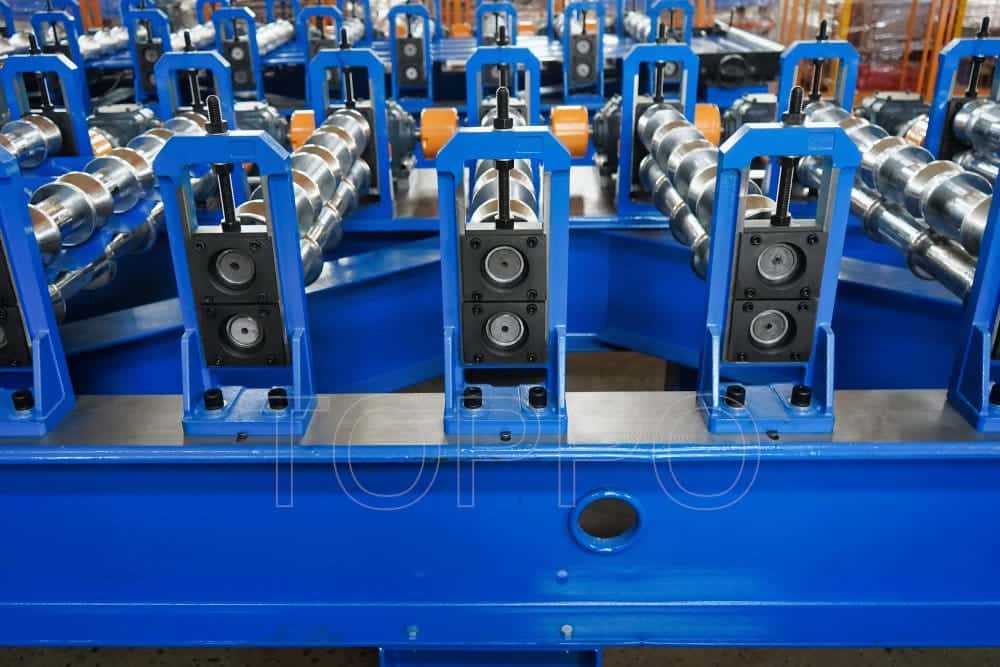

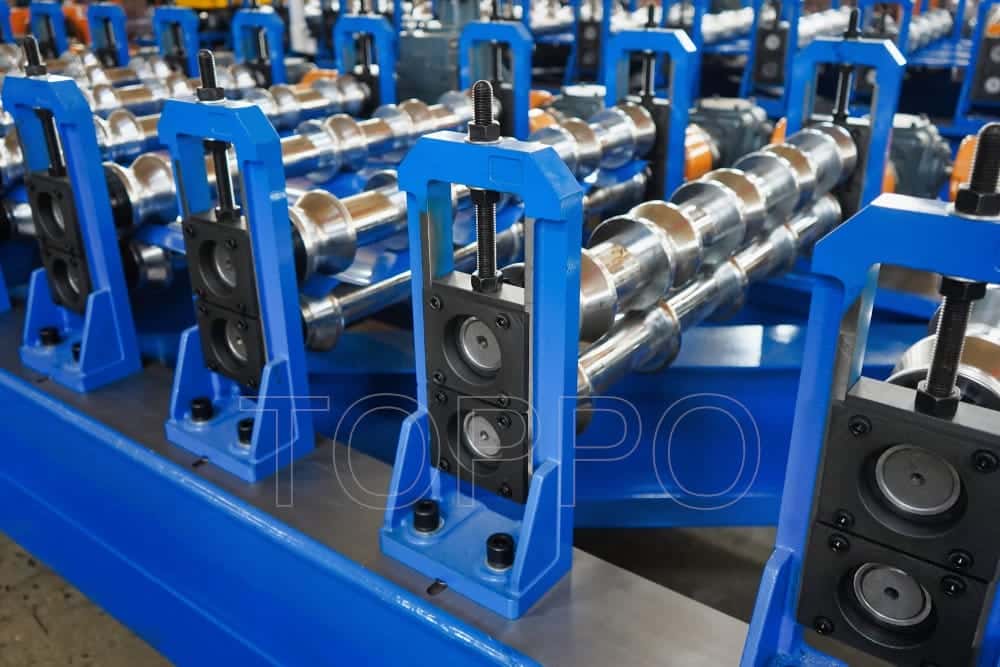

7. Roller Stations: 20
8. Shaft Diameter: 70 mm
9. Shaft Material: 45# Steel (Heat Treated)

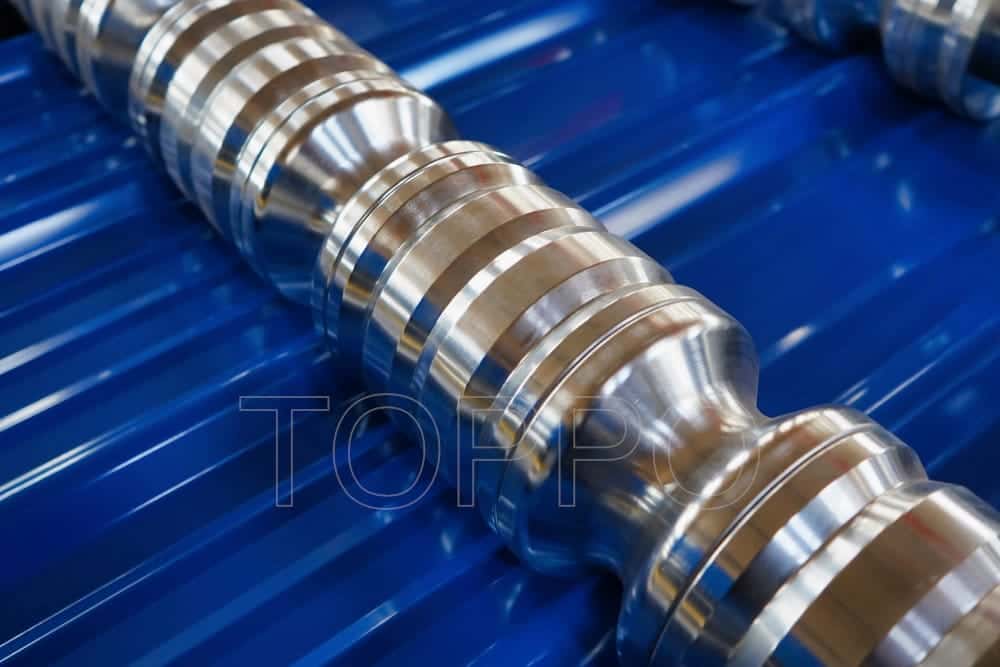

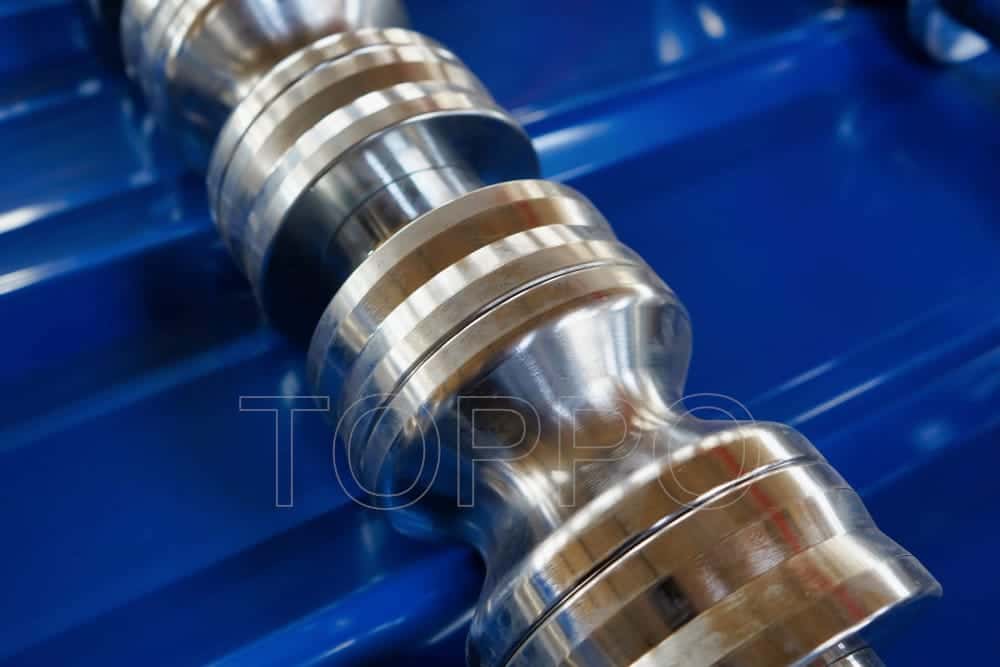

10. Roller Material: GCr15 with Chrome Plating
11. Frame: 350H Welded Steel

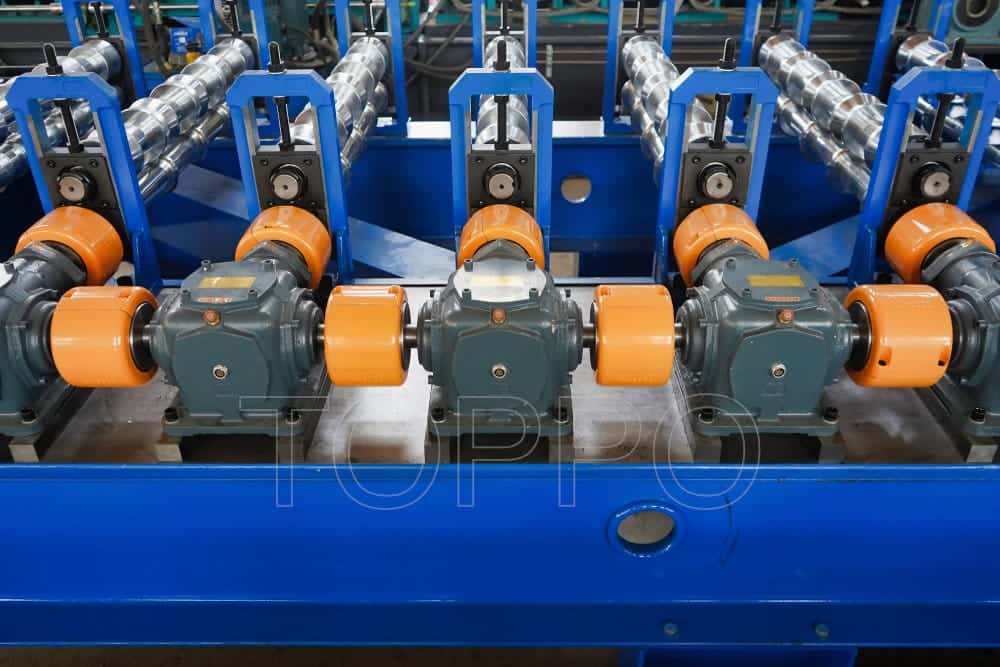

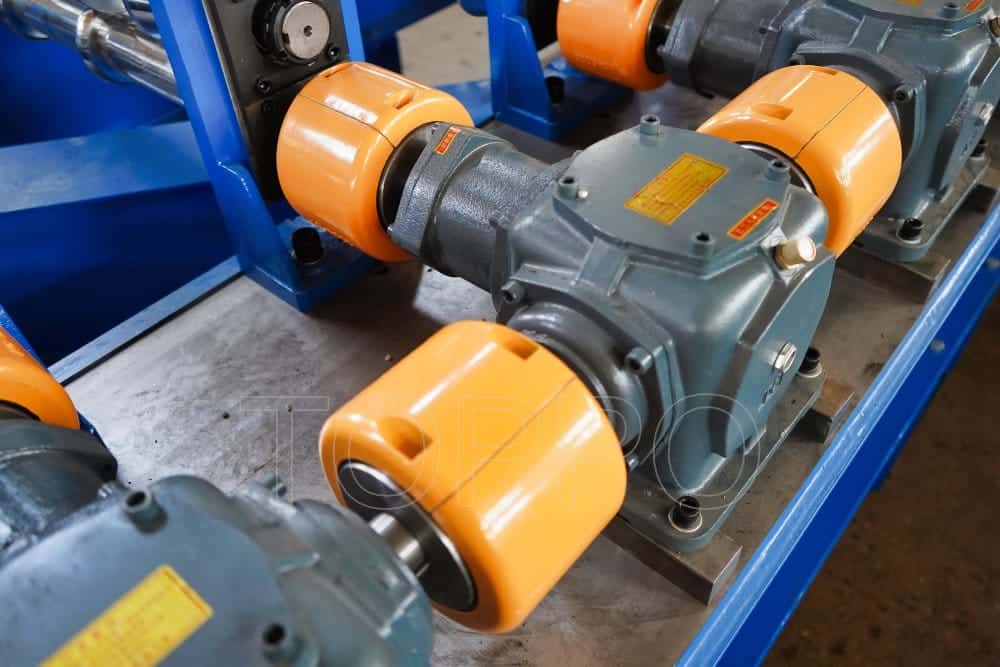

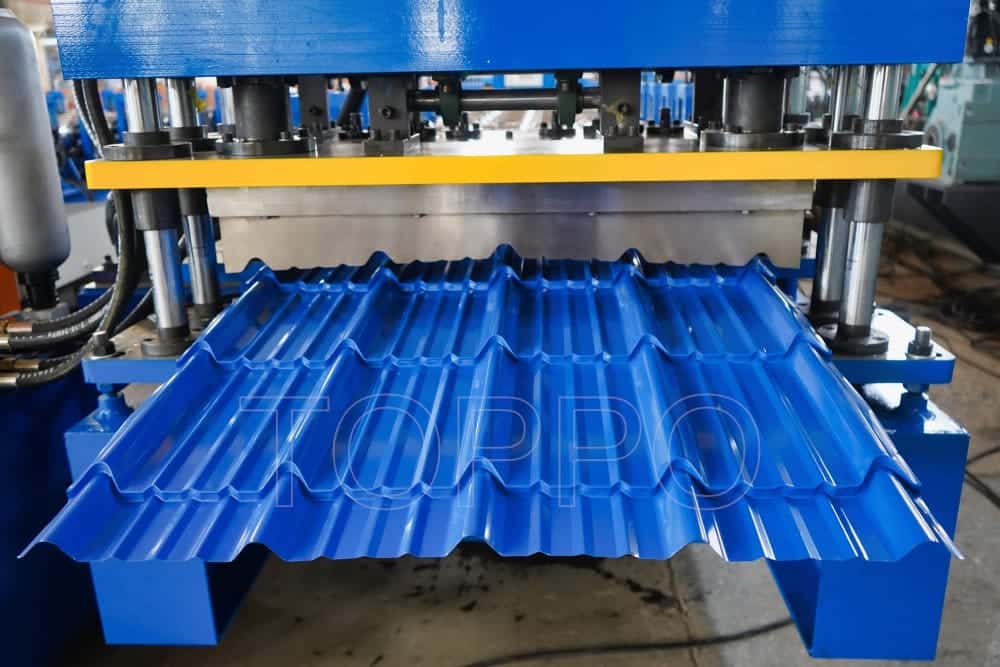

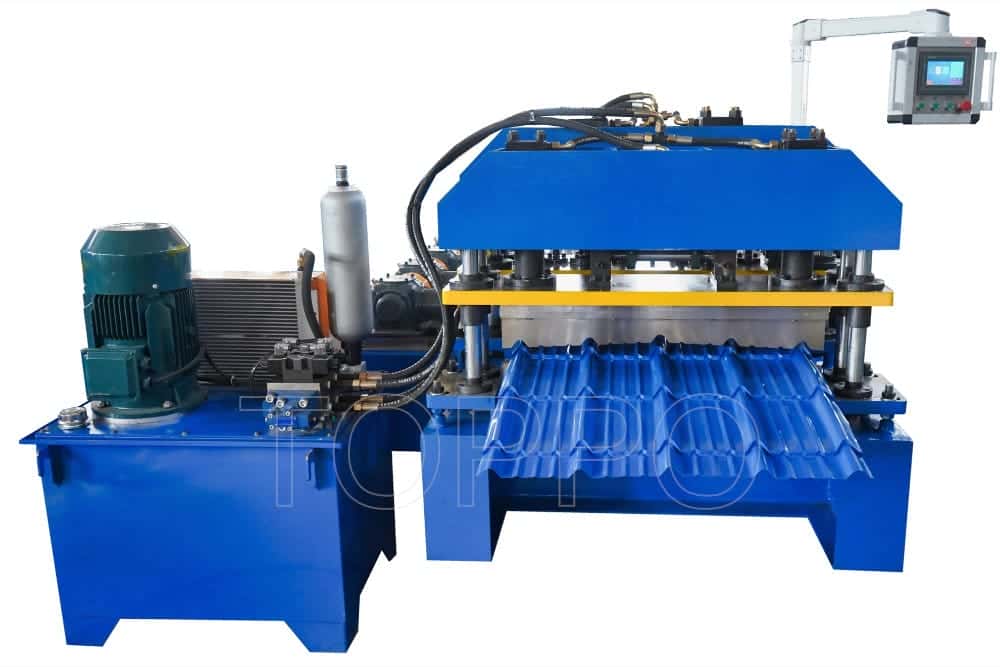

12. Drive System: Chain Drive / Gearbox Optional

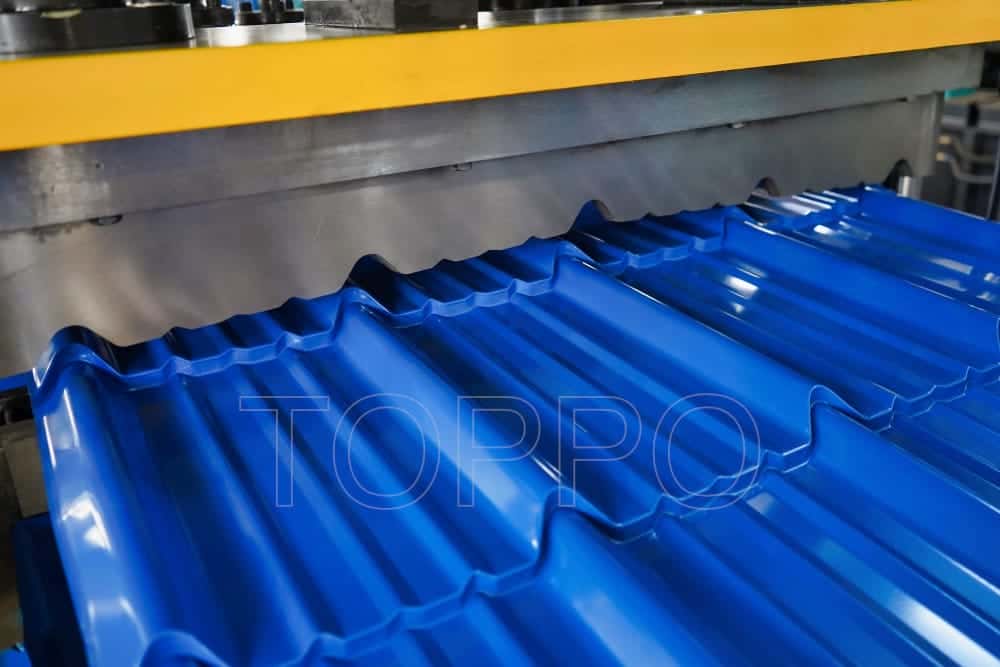

13. Cutting System: Hydraulic Post-Cutting
14. Cutting Blade: Cr12MoV Steel
15. Cutting Power: 5.5 kW
16. Main Motor Power: 7.5 kW
17. Voltage: 380V/50Hz/3Phase (Customizable)
18. Speed: 3–6 m/min
19. Cutting Accuracy: ±1 mm
20. PLC Brand: Siemens / Delta
21. Interface: Touch Screen Control
22. Machine Length: 8.0 m
23. Width: 1.5 m
24. Height: 1.6 m
25. Weight: About 7 Tons
26. Lubrication: Manual
27. Noise Level: ≤65 dB
28. Operation: Fully Automatic

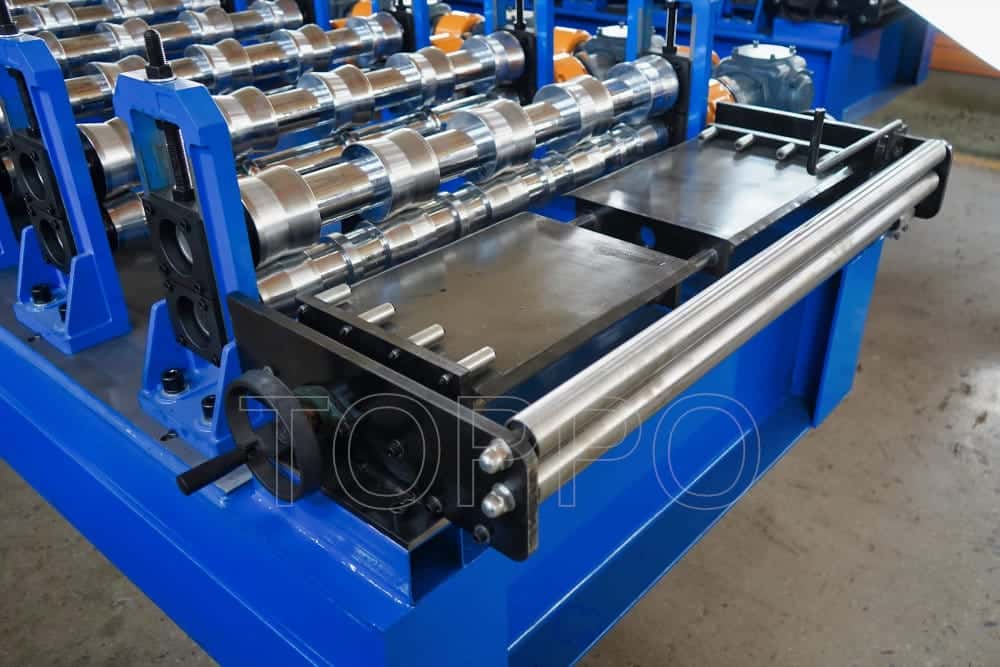

29. Feeding Guide: Manual Adjustable
30. Decoiler: Hydraulic / Manual Optional
31. Cooling: Air Cooling Optional
32. Tooling: Chrome Coated Rollers
33. Surface Finish: Industrial Blue Paint
34. Tile Profile: Step Tile / Glazed Wave Tile
35. Packaging: PE Film + Steel Bracket
36. Delivery Time: 25 Days
37. Safety Features: Emergency Button, Side Covers
38. Certification: CE, ISO9001
39. Warranty: 1 Year
40. Support: Remote Setup, Video Guide, Spare Parts
