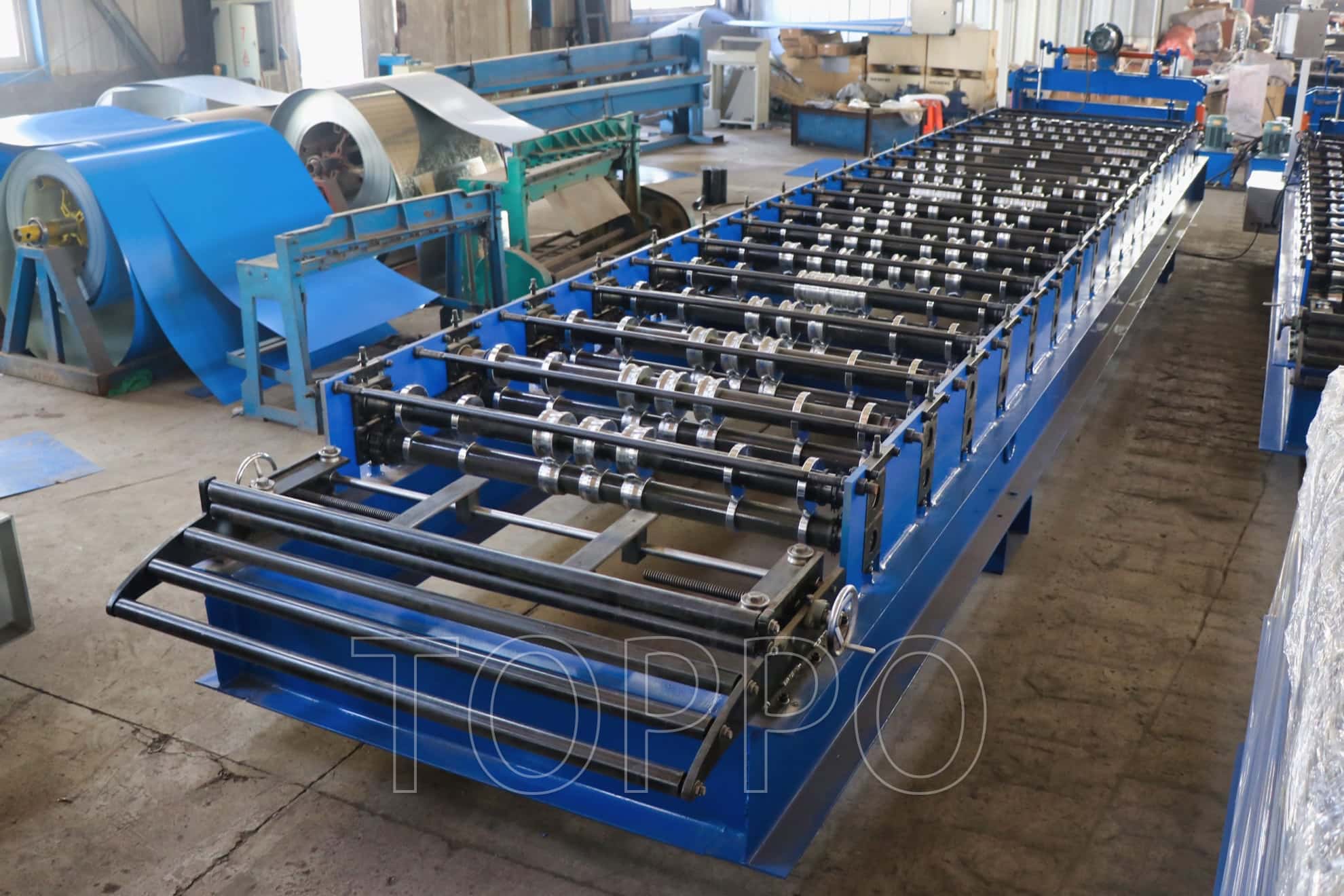

Machine Type: Trapezoidal Roof Roll Forming Machine
Forming Steps: 16-20 steps
Working Speed: 8-15m/min
Roller Material: 45# steel with hard chrome plating
Shaft Diameter: 70-80mm
Shaft Material: High-grade steel (quenched and tempered)
Drive Type: Chain drive / Gearbox drive (customizable)

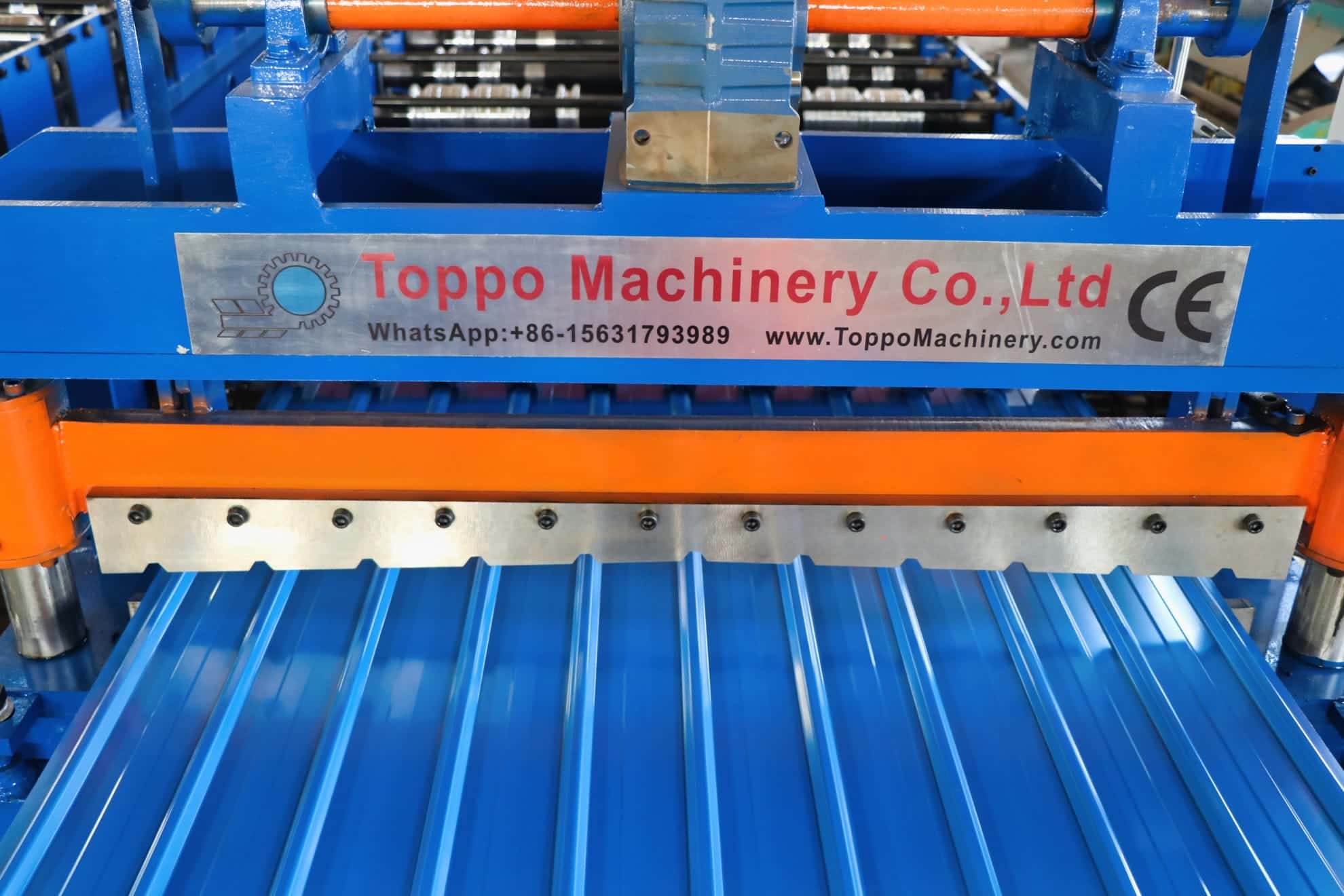

Hydraulic Cutting: Yes
Cutting Blade Material: Cr12Mov (Heat treatment)
Control System: PLC Control (Siemens/Delta/Mitsubishi)
Operation Interface: Touch screen HMI
Voltage: 380V/50Hz/3Phase (customizable)
Main Motor Power: 5.5-7.5KW
Hydraulic Power: 4KW
Application: Steel roofing sheet production
Profile Type: Trapezoidal Sheet
Feeding Width: 1000mm/1200mm/1250mm (as required)
Material Thickness: 0.3-0.8mm
Material Type: Galvanized steel, PPGI, aluminum
Frame Structure: 300H steel welded
Machine Color: Customizable (default: blue)
Cutting Type: Stop-to-cut / Fly-cut
Machine Length: 8-10 meters
Machine Width: 1.5-1.8 meters
Machine Height: 1.4-1.6 meters
Gross Weight: 5-8 tons
Warranty: 12 months
After-Sales Service: Engineers available to service overseas
Certification: CE / ISO9001
Installation: Provided with user manual and video guide
Machine Function: Roll forming, hydraulic cutting, automatic control
Forming Accuracy: ±1mm
Noise Level: ≤75dB
Lubrication System: Automatic or manual
Cooling Method: Air cooling
Line Configuration: Decoiler - Roll Former - Hydraulic Cutter - Output Table
Customization: Profile, color, voltage, logo available
Production Environment: Indoor factory setting
Typical Users: Metal building manufacturers, roofing contractors
Lead Time: 30-45 days
This advanced trapezoidal roll forming machine delivers high-speed and accurate metal sheet profiling, ideal for roofing applications across commercial, industrial, and agricultural buildings. With reliable hydraulic cutting and PLC automation, it ensures long-term stability and precision forming.
