Machine Type: Trapezoidal Sheet Roll Forming
Automation Level: Fully Automatic
Roller Stations: 18 stations
Roller Material: GCr15 steel with hard chrome coating
Forming Speed: 10-18m/min
Drive System: Gearbox drive for stable operation
Cutting Type: Hydraulic shearing
Blade Material: Cr12Mov with quenching
PLC Control: Siemens/Delta system with HMI touch screen
Main Power: 7.5KW
Hydraulic Station: 5.5KW
Power Supply: 380V/50Hz/3Phase or customizable
Material Thickness: 0.3-0.8mm
Feeding Width: 1000-1250mm
Finished Panel Width: 840/900/1050mm (customized profiles)
Material Type: Galvanized steel, color steel, aluminum
Frame Structure: H-beam welded frame
Machine Length: 9-11m
Machine Width: 1.6-1.8m
Machine Height: 1.5-1.7m
Machine Weight: 6-9 tons
Production Line: Decoiler – Roll Forming – Hydraulic Cutting – Output Table
Noise Level: ≤70dB
Cooling System: Air cooling
Lubrication: Manual or automatic
Cutting Accuracy: ±1mm
Warranty: 1 year
Support: Installation manual, video, overseas service
Surface Treatment: Paint-coated (custom colors available)
Operation: One-man operation with touchscreen
Safety Features: Emergency stop, protective covers
Standard Compliance: CE and ISO certification
Forming Purpose: Roofing panel manufacturing
Usage Scene: Construction, warehouse, industrial buildings
Custom Services: Logo, voltage, panel design
Delivery Time: 30-40 working days
Port of Shipment: Tianjin / Shanghai
Language Support: English / Spanish / Arabic etc.
Productivity: 15-25 meters per minute (depending on panel type)
Packaging: Plastic film + steel frame
MOQ: 1 Set
Applicable Industries: Building material factories, steel structure companies

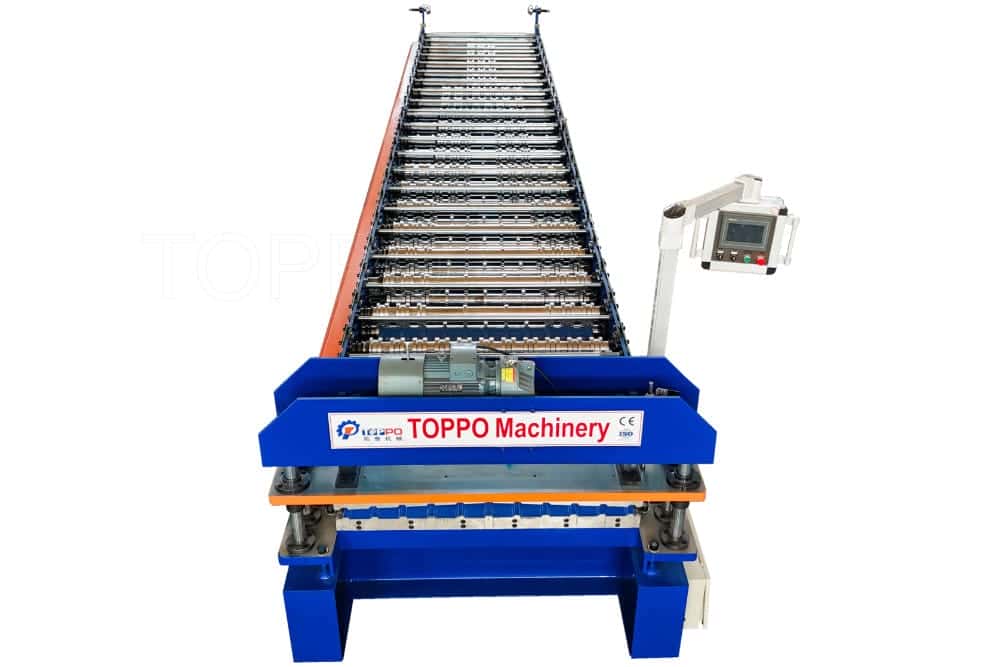

This advanced trapezoidal roofing panel roll forming machine is built for high-efficiency sheet forming. With intelligent control and robust construction, it ensures reliable performance and consistent output for large-scale roof sheet production.
