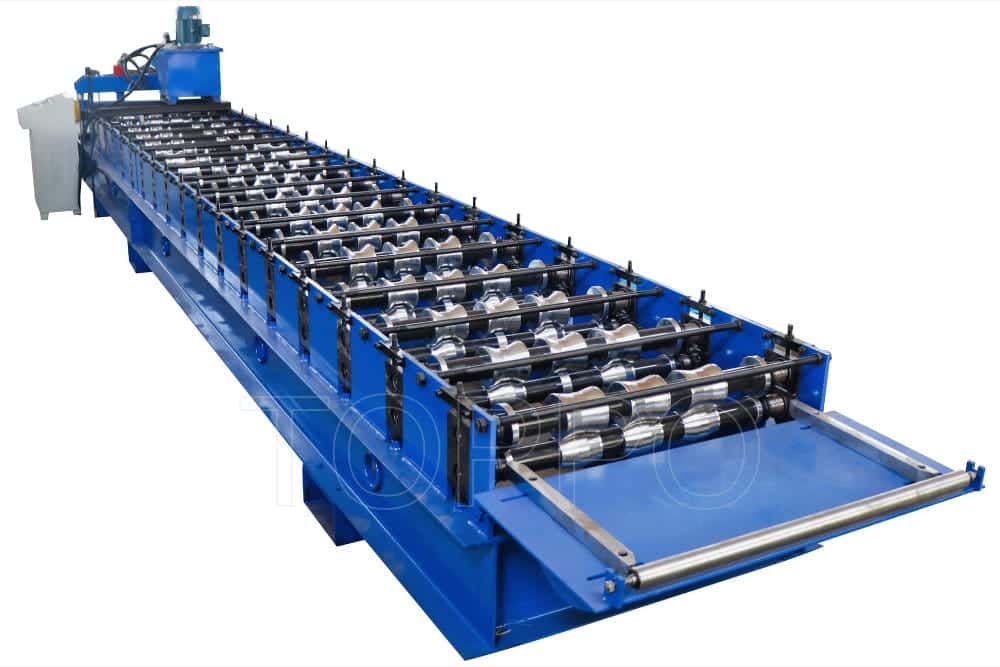

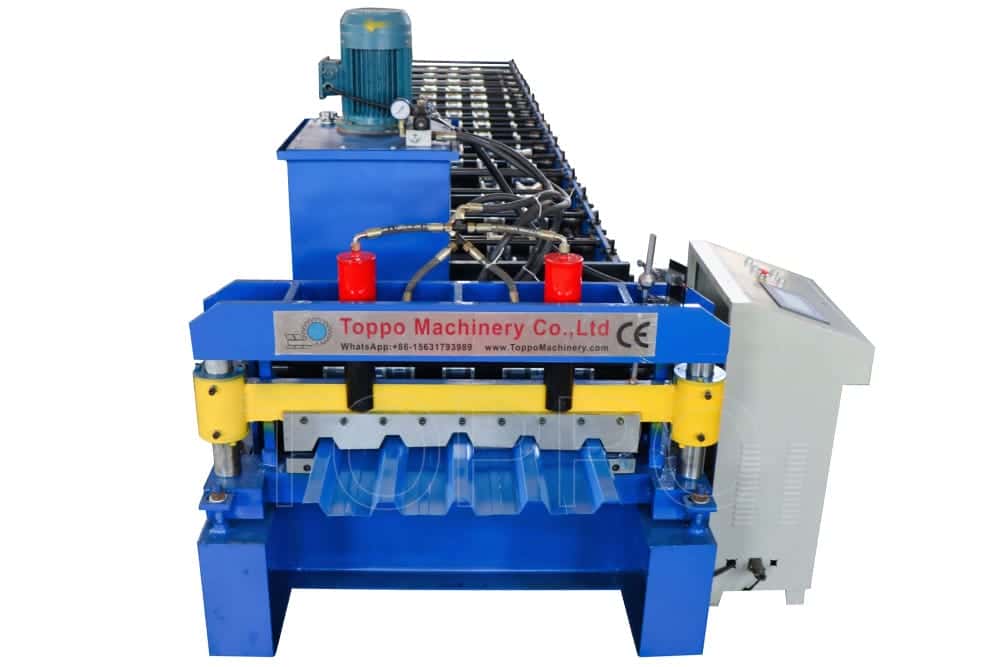

Machine Type: Roofing Sheet Trapezoidal Roll Former
Production Speed: 15-25m/min
Roller Stations: 16-20 stages
Drive Method: Gearbox drive
Control System: PLC (Delta/Siemens/Mitsubishi)
Operation Panel: Touch screen with language options
Main Motor Power: 7.5KW
Hydraulic Power: 5.5KW
Voltage: 380V/50Hz/3Phase (adjustable)
Material Width: 1000mm–1250mm
Output Width: 840/900/1050mm based on profile
Material Type: Galvanized steel, color coated sheet, aluminum
Material Thickness: 0.3–0.8mm
Frame Type: 350H steel welded base
Cutting Method: Hydraulic shearing
Blade Material: Cr12Mov with heat treatment
Precision: ±1mm
Cooling: Air cooling
Lubrication: Manual or optional automatic
Dimension (L×W×H): 9.5m × 1.6m × 1.5m
Machine Weight: 6-8 tons
Noise: ≤70dB
Automation Level: Fully automatic line
Components: Manual Decoiler – Roll Former – Hydraulic Cutter – Exit Table
Color: Customizable (default: turquoise & orange)
Usage: Production of roofing sheets for factories, workshops, warehouses
Warranty: 12 months
Installation Support: Guide video and overseas service
Certification: ISO 9001 / CE
Language Support: English, Spanish, Russian, Arabic
Port of Dispatch: Tianjin/Shanghai
MOQ: 1 unit
Delivery Time: 30 working days
Packing: Plastic film wrap with steel pallet
Forming Accuracy: High-precision trapezoidal profiles
Application Scope: Residential, commercial, and industrial building roofing
Market: Global export - Africa, Asia, Middle East, South America
Customizable: Profile drawing, color, voltage, logo
Designed for speed and reliability, this trapezoidal sheet forming machine is ideal for projects requiring continuous and high-volume production. Its robust gearbox-driven structure and intelligent control system guarantee accurate profiles and minimal downtime.
