Product Description

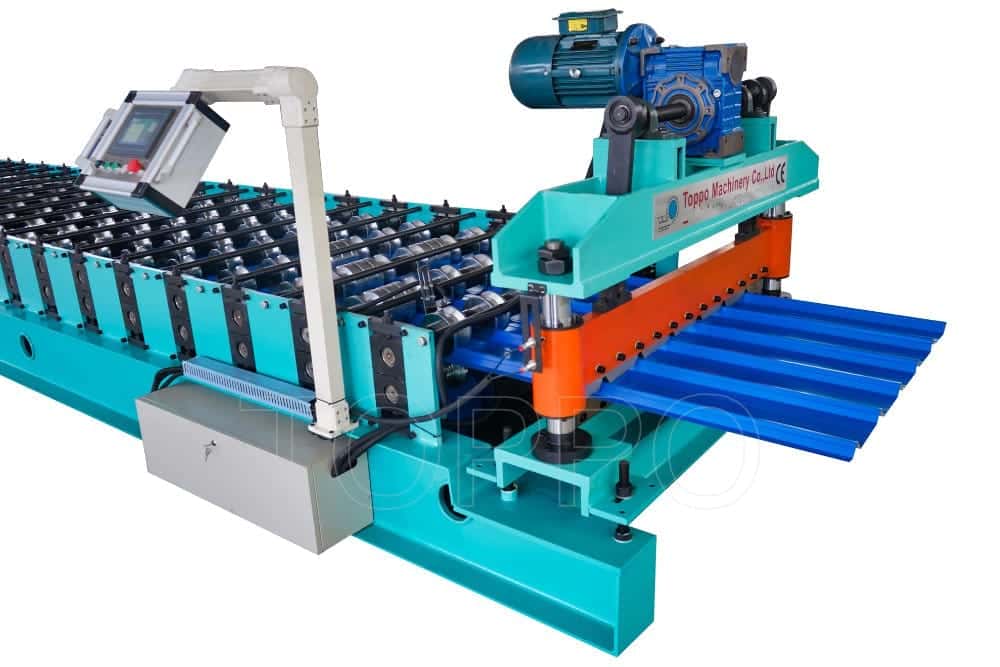

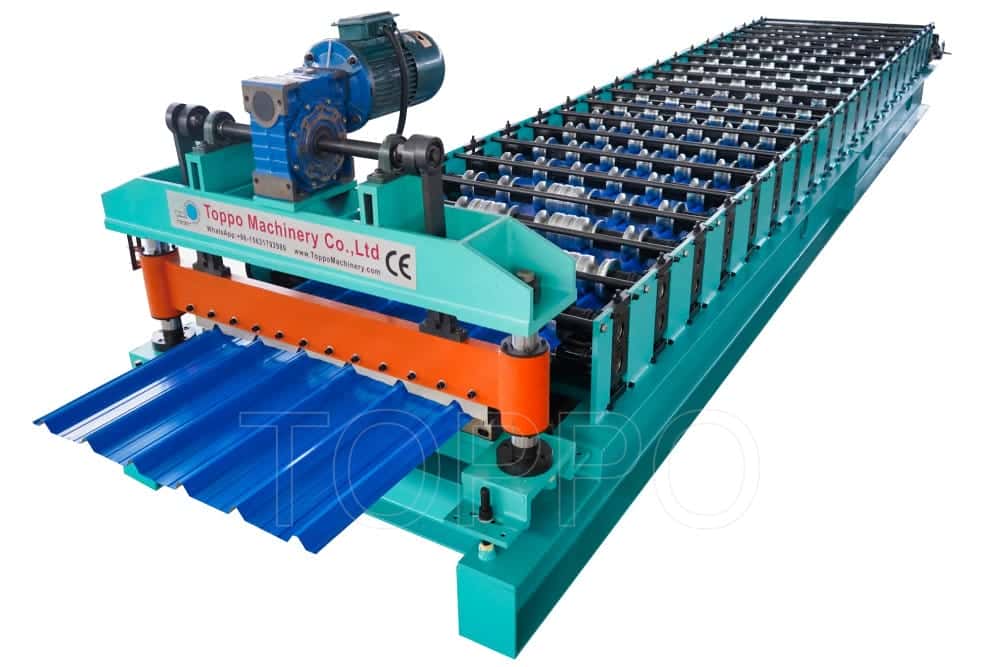

The Fully Automatic Trapezoidal Roof Roll Forming Machine is built for reliable and efficient manufacturing of roofing panels in a variety of profiles. This model features dual hydraulic cylinders for enhanced cutting stability, along with a compact and integrated design suited for medium to large-scale production needs.

Key Features & Specifications

• Applicable Material: PPGI, Galvanized Sheet, Color Steel, Aluminum

• Material Thickness: 0.3 – 0.8 mm

• Forming Speed: 10 – 18 m/min

• Main Power: 7.5 KW

• Hydraulic Cutting Power: 4 KW (dual-cylinder)

• Roller Stations: 16 – 22 rows

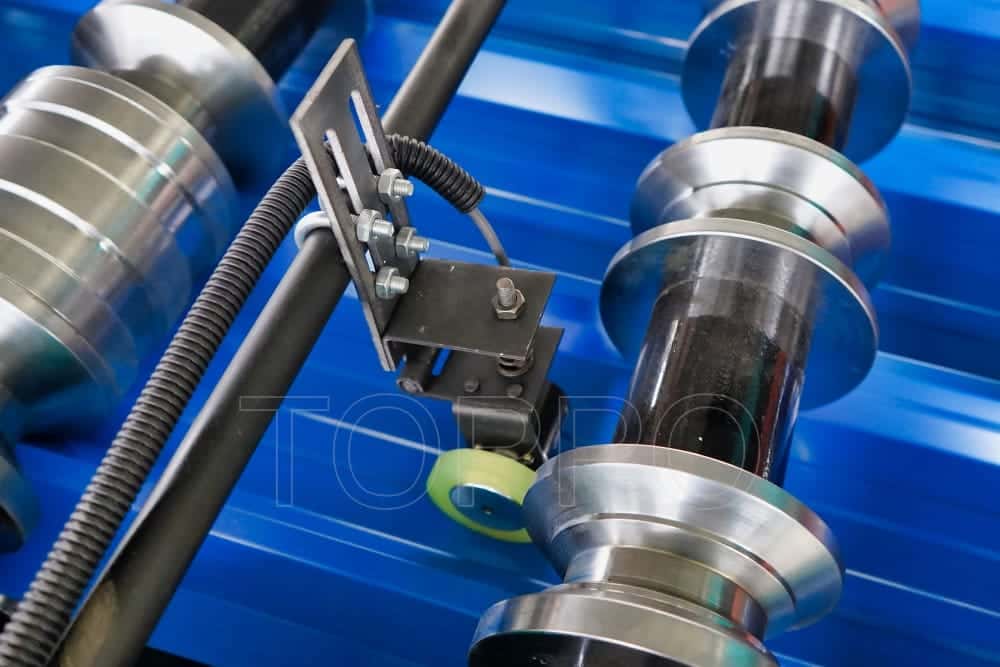

• Roller Material: GCr15 high-grade steel with heat treatment

• Shaft Diameter: 75 mm

• Frame Structure: 350 H-beam frame welding

• Drive System: Chain transmission (or optional gearbox)

• Control Panel: PLC system with 7" touch screen (Delta or Mitsubishi)

• Cutting Type: Post-cutting using hydraulic shear

• Effective Panel Width: 600 – 1000 mm

• Feeding Width: Customized as per profile

• Panel Length Accuracy: ±1 mm

• Voltage: 380V/50Hz/3Phase (customizable)

• Decoiler: Optional 3–5 ton hydraulic decoiler

• Cooling: Optional oil cooler for high-temperature operation

• Color: Custom color service available

• Dimensions: 8.2 x 1.6 x 1.5 m (approx.)

• Machine Weight: 6.5 – 8 tons

• Safety System: Full cover guards and emergency stop

• Noise Level: ≤70 dB

• Warranty: 12 months standard

• Certification: ISO9001 / CE

• Packaging: Plastic film wrapped with steel wire fixings

• Lead Time: 30–40 working days

• Installation Support: Remote or on-site setup

• Training: Operation manual and video training provided

Application Areas

• Roof panel production for industrial and commercial buildings

• Pre-engineered metal building suppliers

• Construction material fabrication companies

Benefits

• Accurate panel cutting with dual-cylinder hydraulics

• Fully automated production reduces labor cost

• Strong steel structure for long service life

• Supports custom profiles and client-specific adjustments
