Product Description

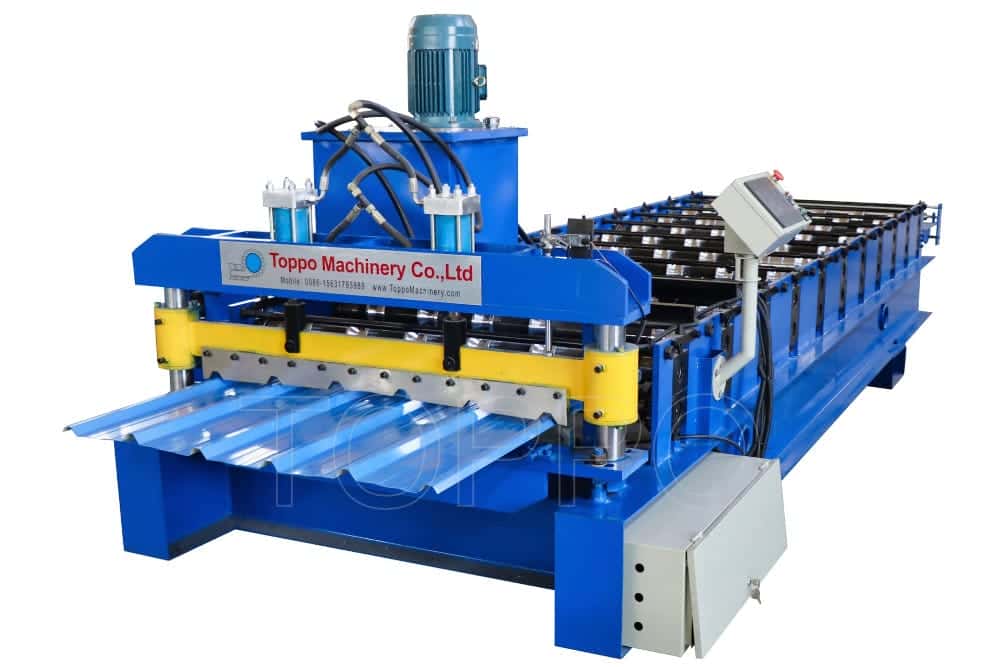

The Heavy-Duty Trapezoidal Roof Roll Forming Machine is a high-capacity forming system ideal for large-scale roofing panel production. Engineered for accuracy and reliability, it integrates a powerful hydraulic cutter, rugged steel frame, and a smart PLC control system to deliver superior panel output for industrial use.

Technical Specifications & Highlights

• Applicable Material: Galvanized steel, PPGI, Aluminum

• Material Thickness: 0.4 – 0.8 mm

• Forming Speed: 12 – 20 m/min

• Main Motor Power: 7.5 – 11 KW

• Hydraulic Cutting Power: 5.5 KW

• Roller Stations: 16 – 22 steps

• Roller Material: GCr15 hardened steel, polished and chrome plated

• Roller Shaft Diameter: 80 – 95 mm

• Machine Structure: 400 H-beam welded frame

• Drive System: Gearbox drive with chain support

• Cutting Type: Hydraulic post-cutting, automatic length adjustment

• Control System: PLC (Delta/Siemens/Mitsubishi) with touchscreen

• Panel Width Range: 600 – 1250 mm

• Feeding Width: Customized based on profile

• Output Tolerance: ±1 mm

• Noise Level: ≤72 dB

• Cooling System: Optional air/oil cooling

• Voltage: 380V/50Hz/3Phase (customizable)

• Paint: High-temperature resistant coating

• Safety Features: Full protective covers, emergency stop, lockout protection

• Language Support: Multilingual interface

• Installation: Field service or remote setup support

• Machine Weight: 8 – 10 tons

• Machine Size: Approx. 9.5 x 1.7 x 1.6 m

• Warranty: 1 year

• Certification: CE, ISO9001

• Support: Online guidance, training videos, operation manual

• Decoiler: Manual or 5-ton hydraulic decoiler optional

• Packaging: Moisture-proof packaging with steel support

• Delivery Time: 30 – 45 working days

Applications

• Large-scale metal roofing manufacturing

• Industrial steel structure construction

• Warehouses, logistics centers, prefabricated buildings

Advantages

• Heavy-duty design ensures long-term durability

• Accurate and consistent panel forming

• Flexible to different sheet widths and thicknesses

• Integrated smart control with real-time monitoring
