Product Description

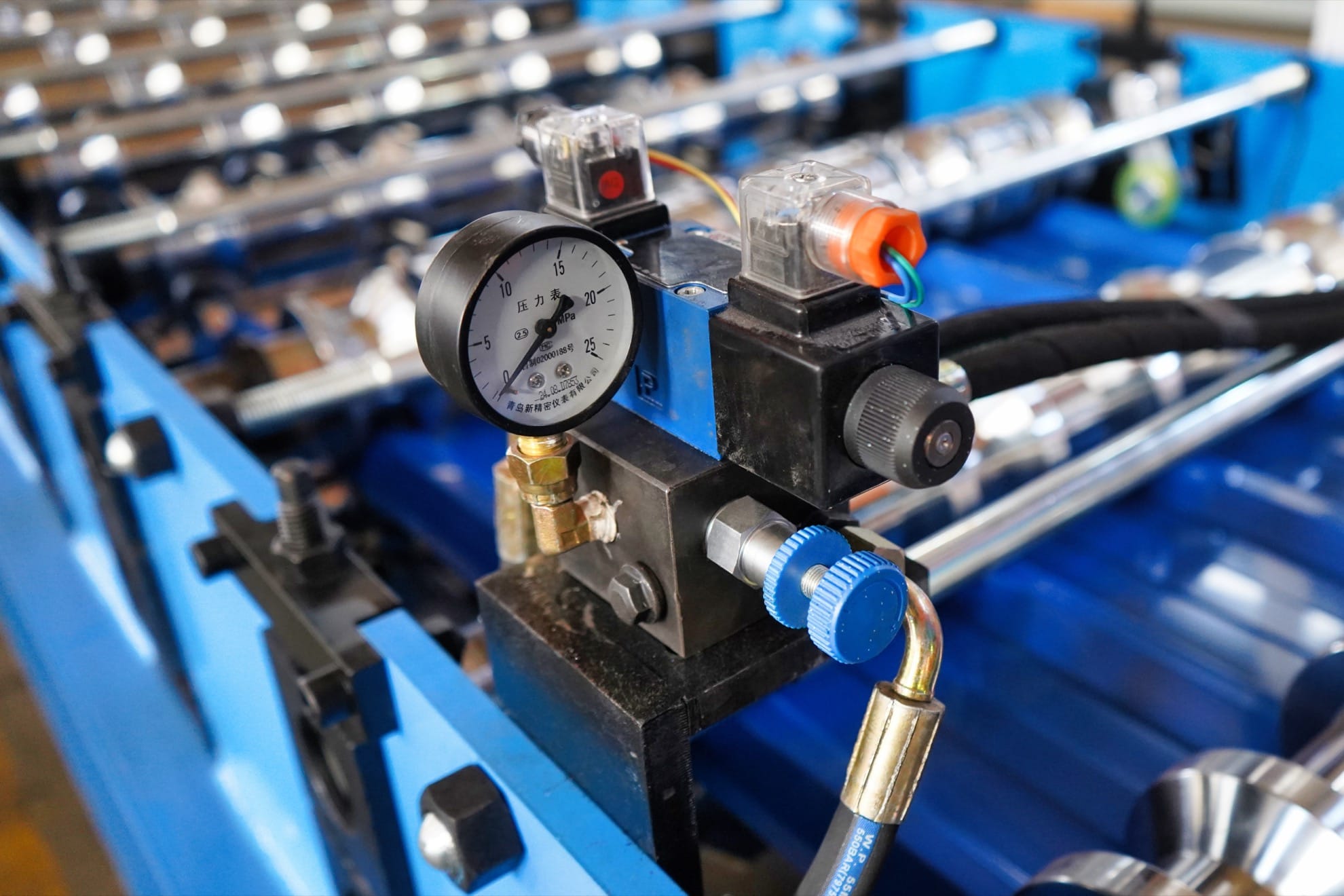

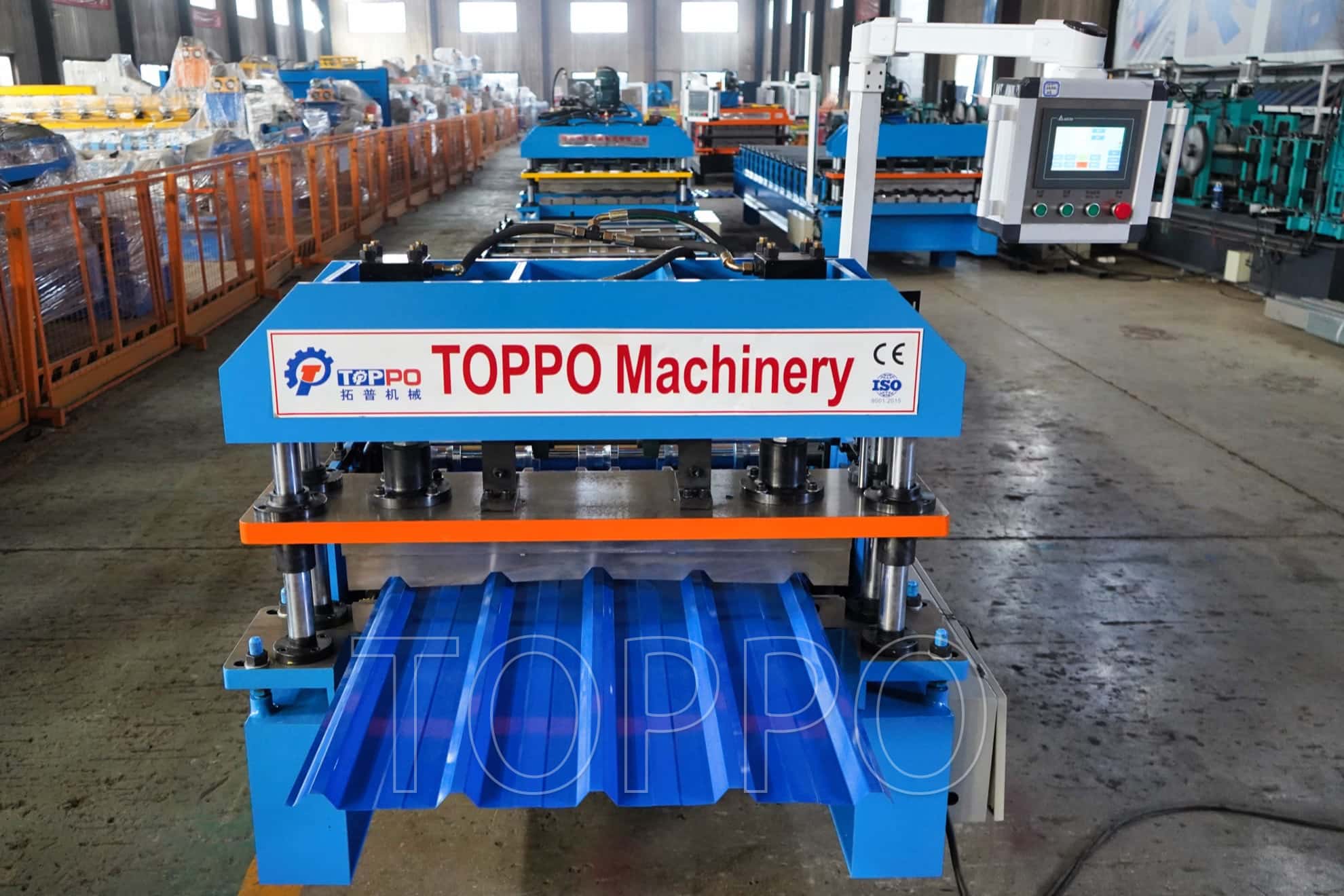

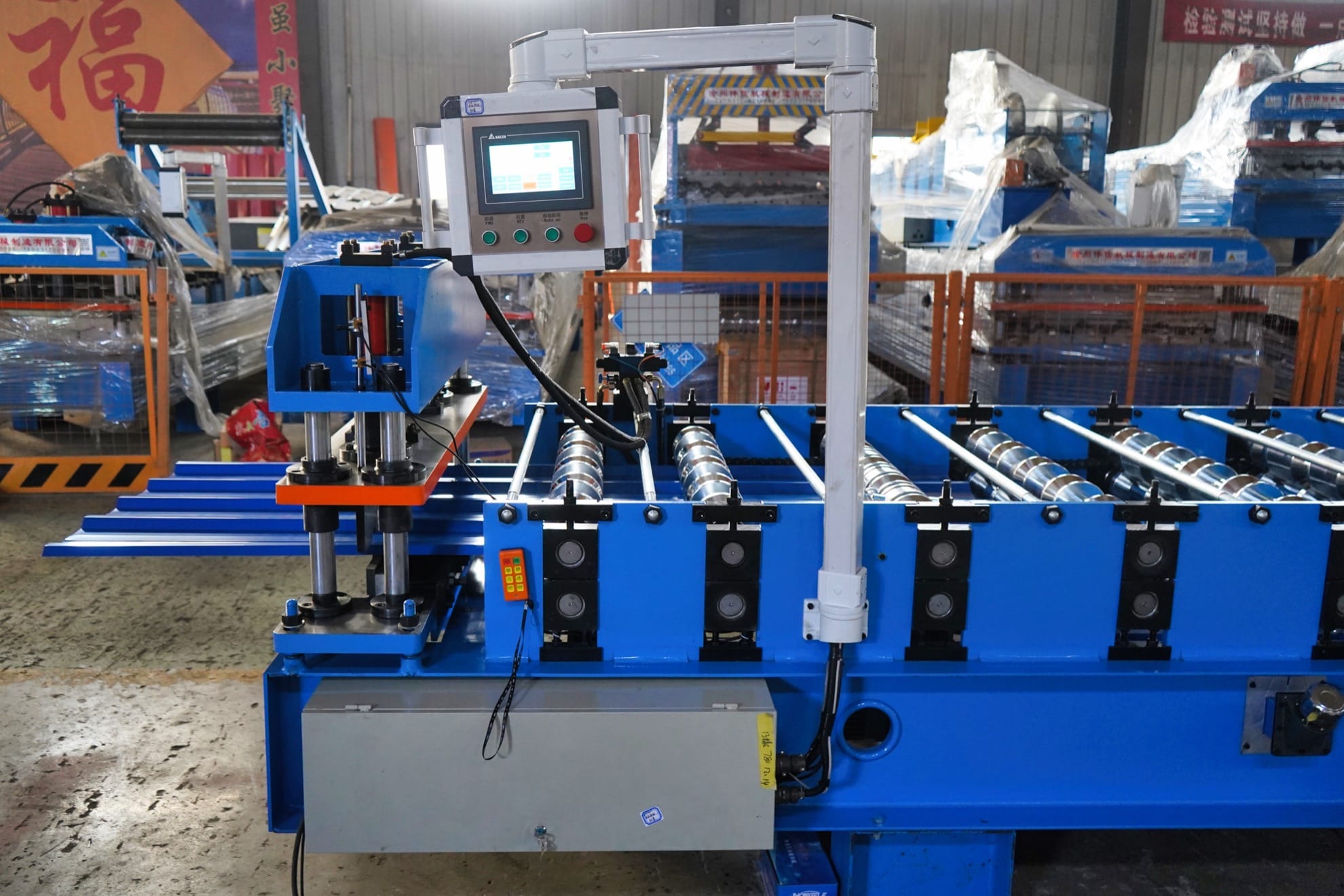

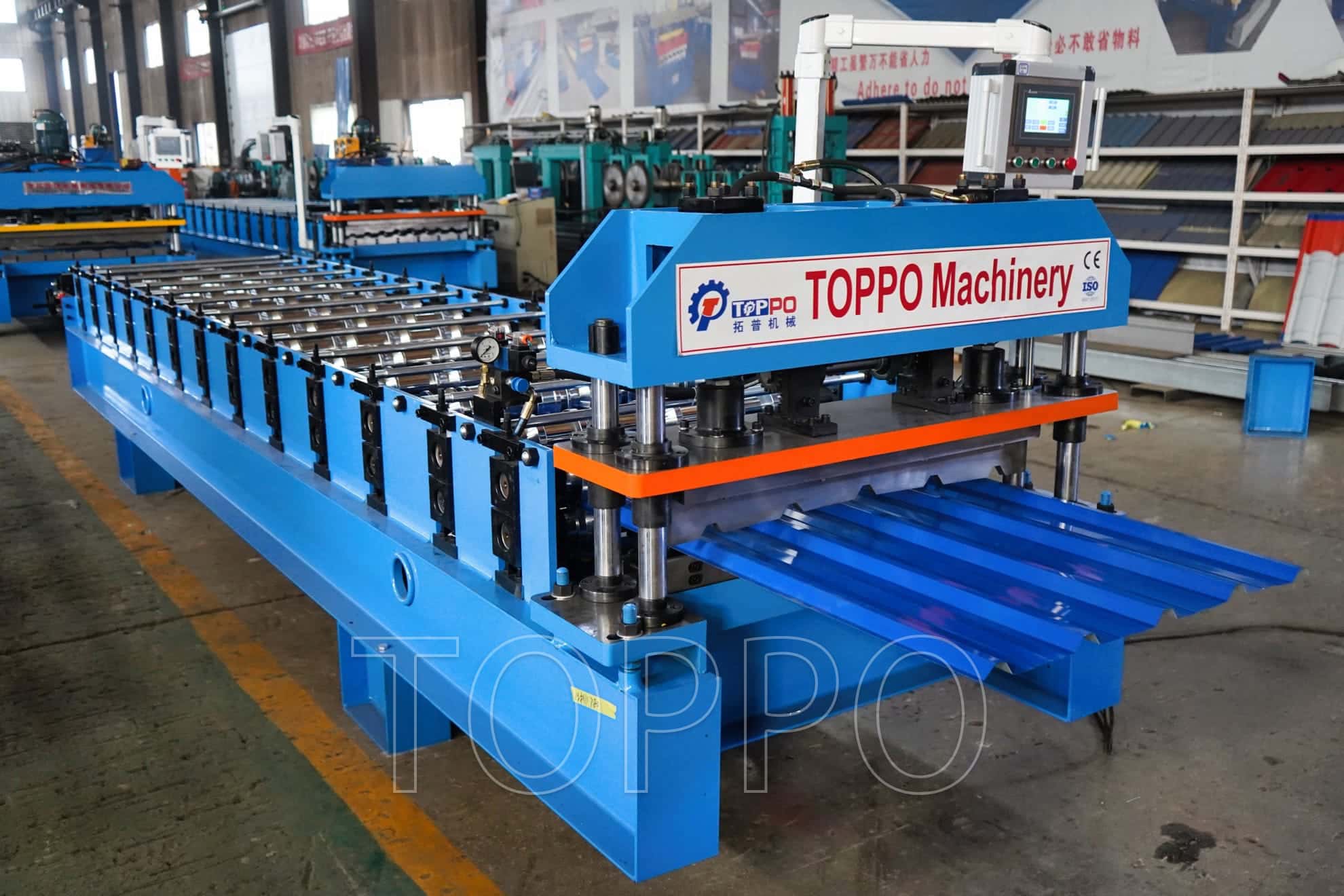

The Hydraulic Trapezoidal Roll Forming Machine is a powerful metal sheet processing solution designed for commercial and industrial roofing applications. Equipped with a reliable hydraulic cutting system and advanced roller alignment, it produces clean, consistent panels for roofing and siding systems.

Specifications & Features

• Raw Material: Galvanized steel, aluminum, pre-painted steel

• Material Thickness: 0.3 – 0.8 mm

• Working Speed: 10 – 18 m/min

• Main Drive Motor: 7.5 KW

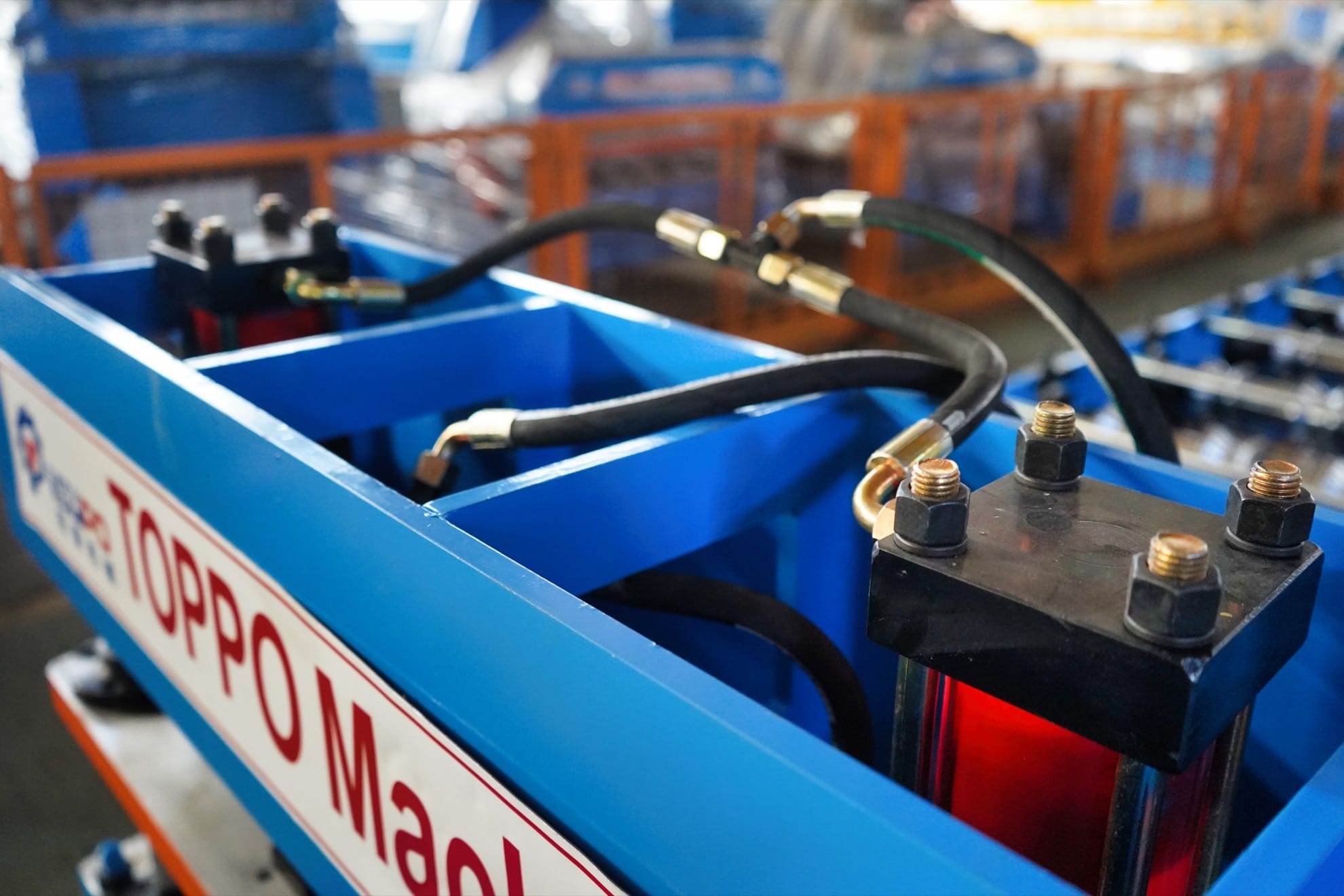

• Hydraulic Station Motor: 4 KW

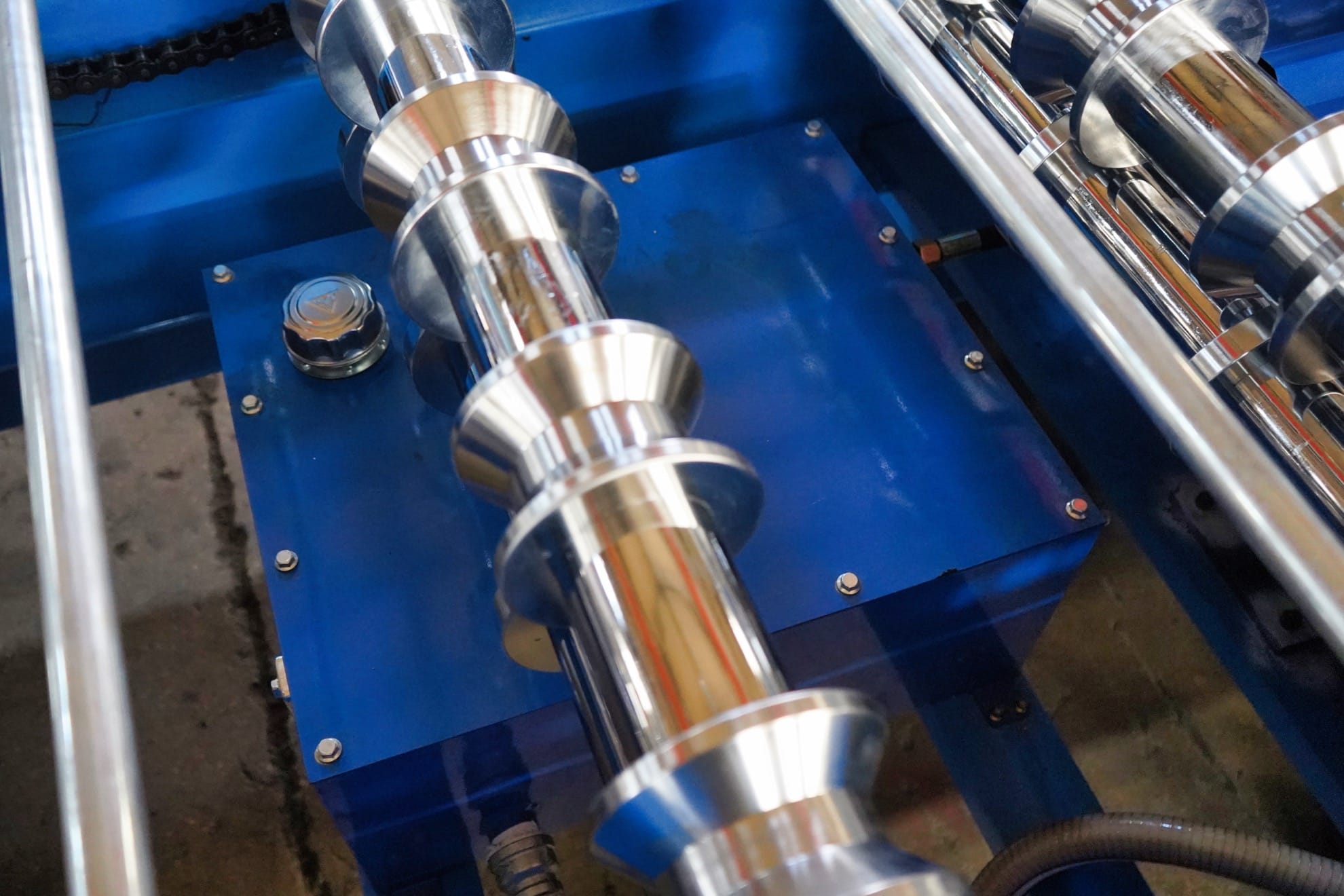

• Roller Material: GCr15 steel, quenched and chrome plated

• Roller Stations: 16 – 22

• Shaft Diameter: 75 mm

• Frame Construction: 350 H-beam steel welding

• Transmission Mode: Gearbox or chain drive

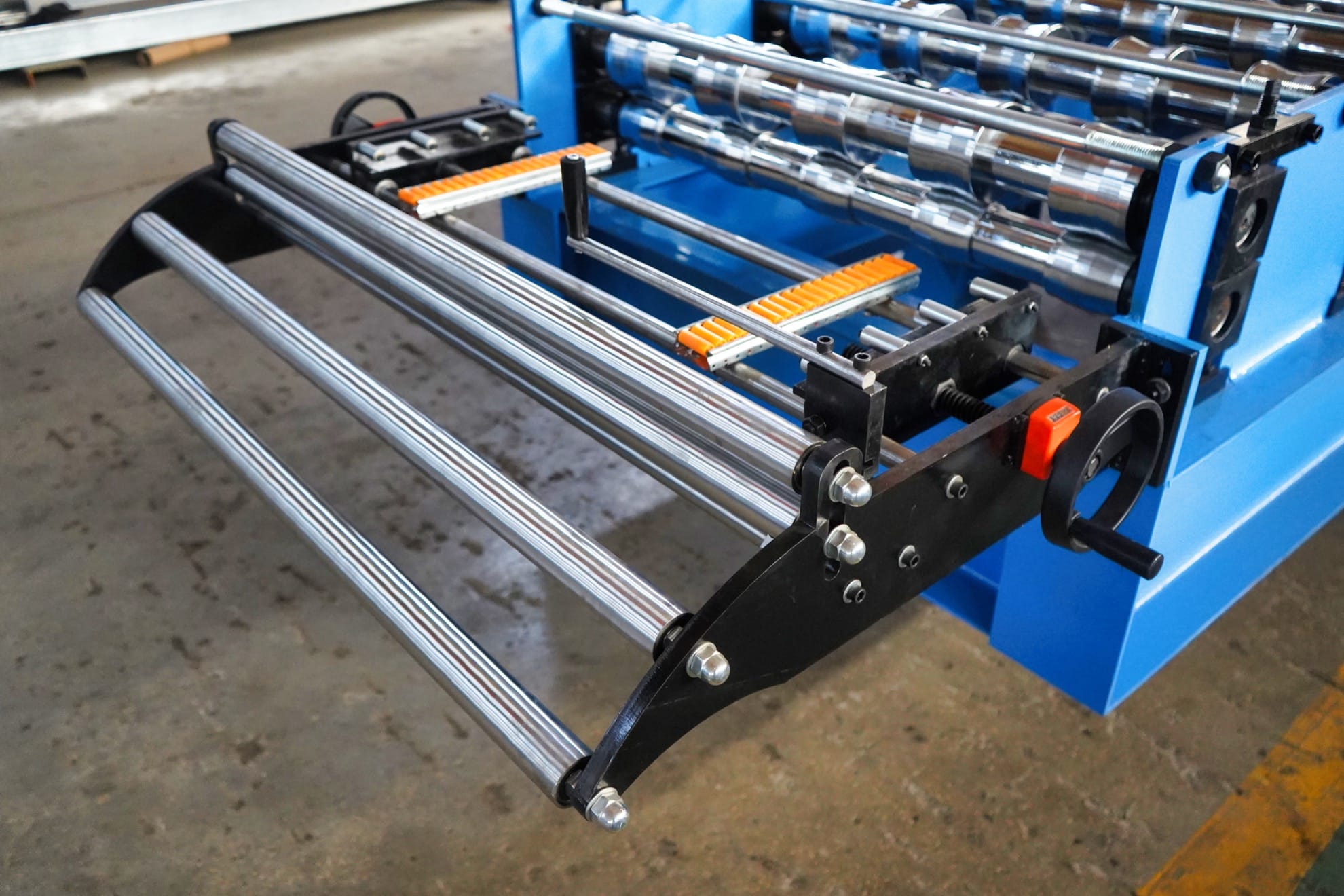

• Feeding Width: Custom based on profile drawing

• Effective Panel Width: 600 – 1000 mm

• Output Length Precision: ±1 mm

• Cutting Blade: Cr12Mov, precision hardened

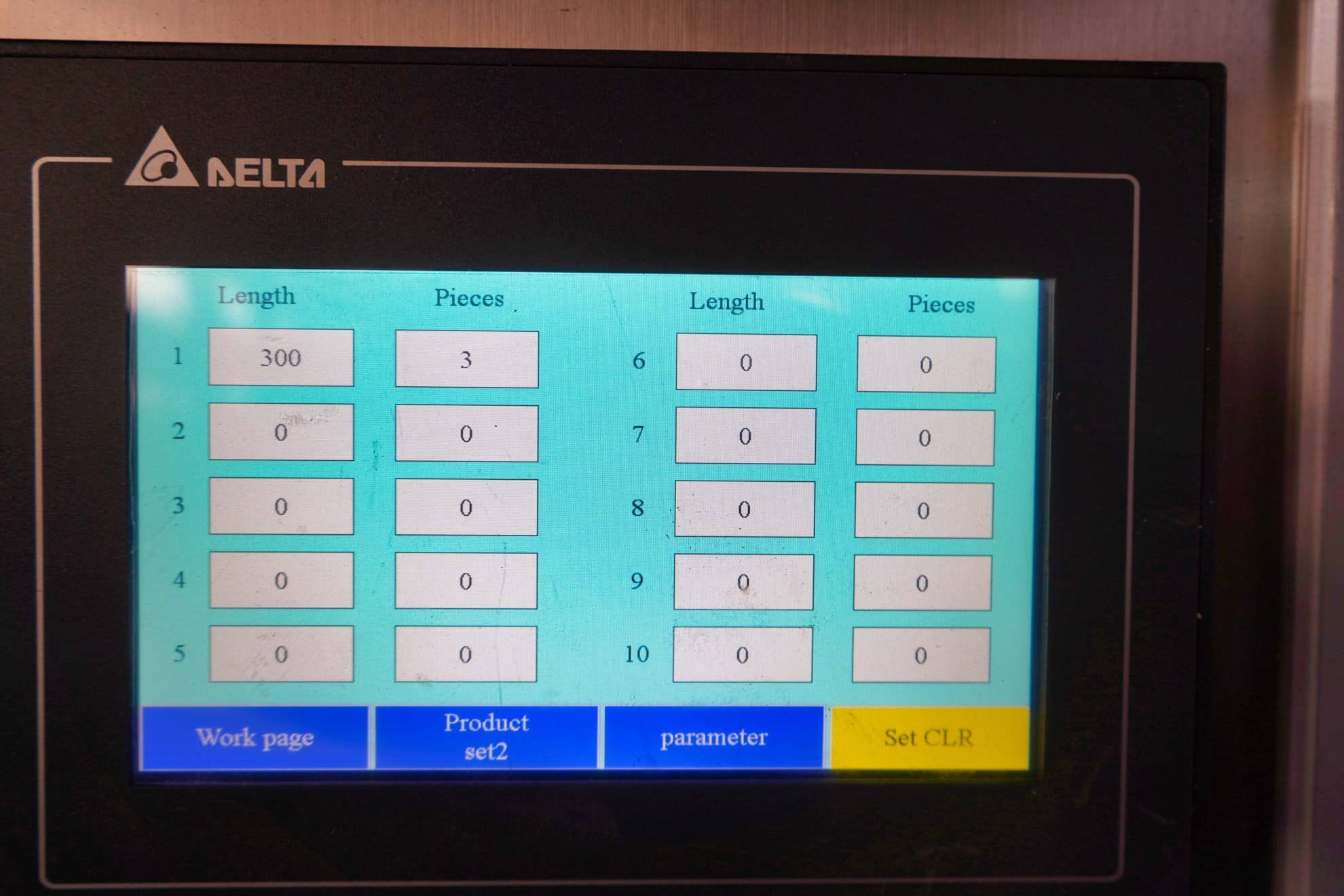

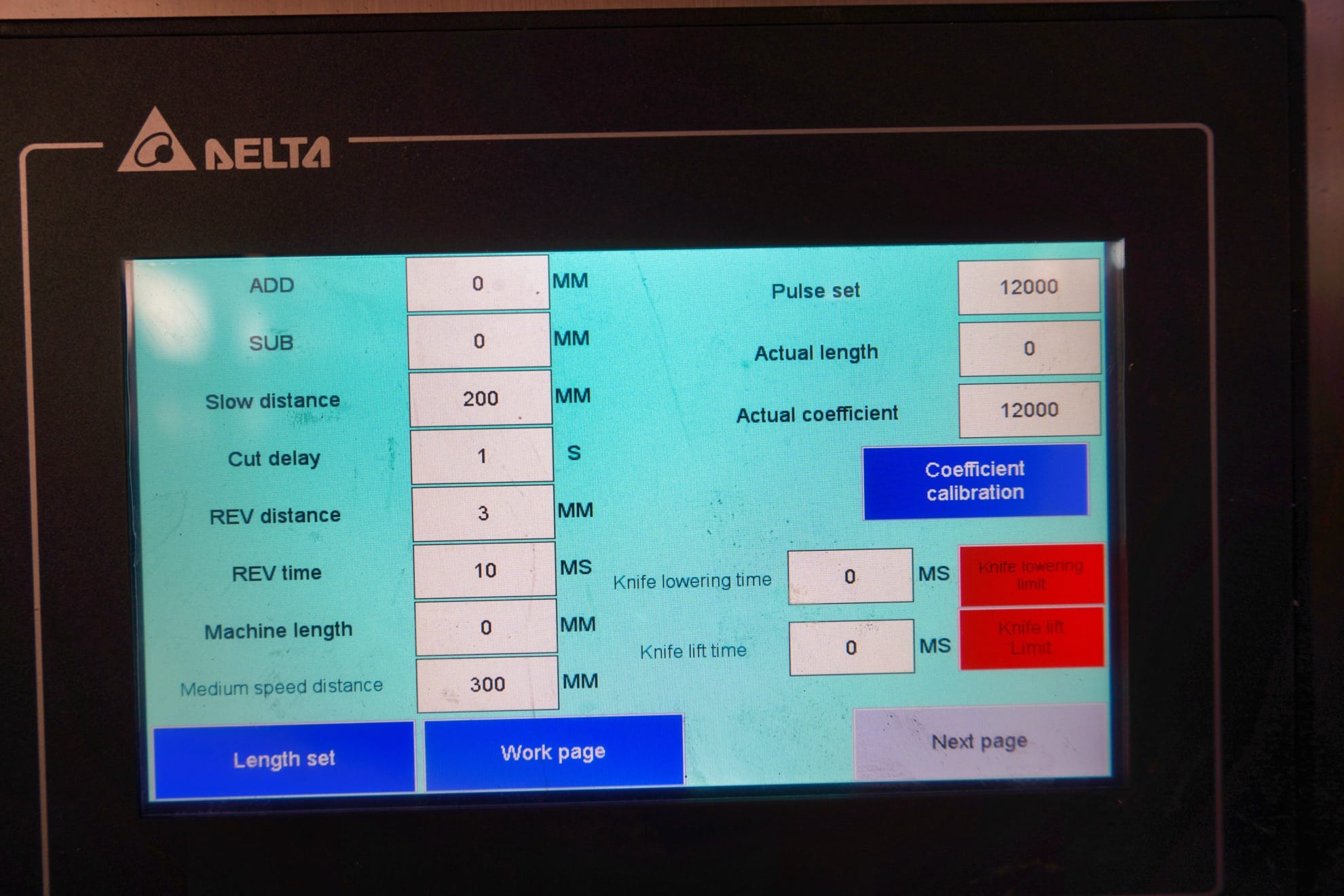

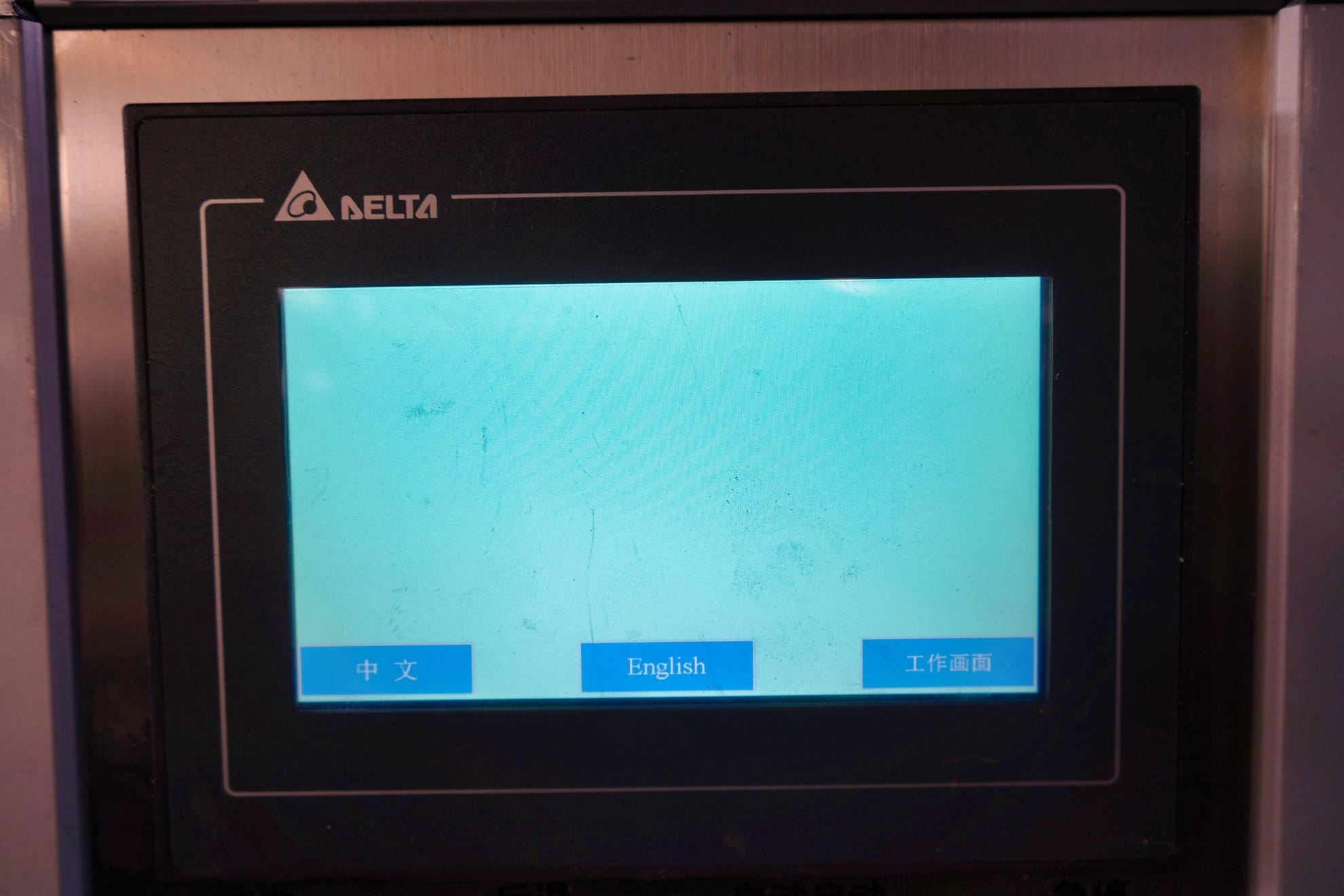

• Controller: PLC (Delta/Mitsubishi) with touchscreen HMI

• Color: Blue and red standard, optional customization

• Cooling System: Optional for hydraulic station

• Decoiler: Optional manual or hydraulic (3–5 tons)

• Machine Dimensions: Approx. 8.8 x 1.6 x 1.55 m

• Machine Weight: 7 tons (±10%)

• Paint: High-strength epoxy coating

• Safety Features: Protective guards, emergency stop button

• Noise Level: ≤70 dB

• Installation Method: On-site setup or remote assistance

• Warranty: 1 year

• Certification: CE, ISO9001

• Packaging: Waterproof film + steel wire fix

• Delivery Time: 30 – 40 working days

Applications

• Roof and wall panel manufacturing

• Steel structure buildings

• Commercial roofing systems

• Construction sheet metal supply

Advantages

• Durable build for long-term use

• Hydraulic system ensures clean, burr-free cuts

• Stable performance with smart control interface

• Supports high-volume production needs
