Product Description

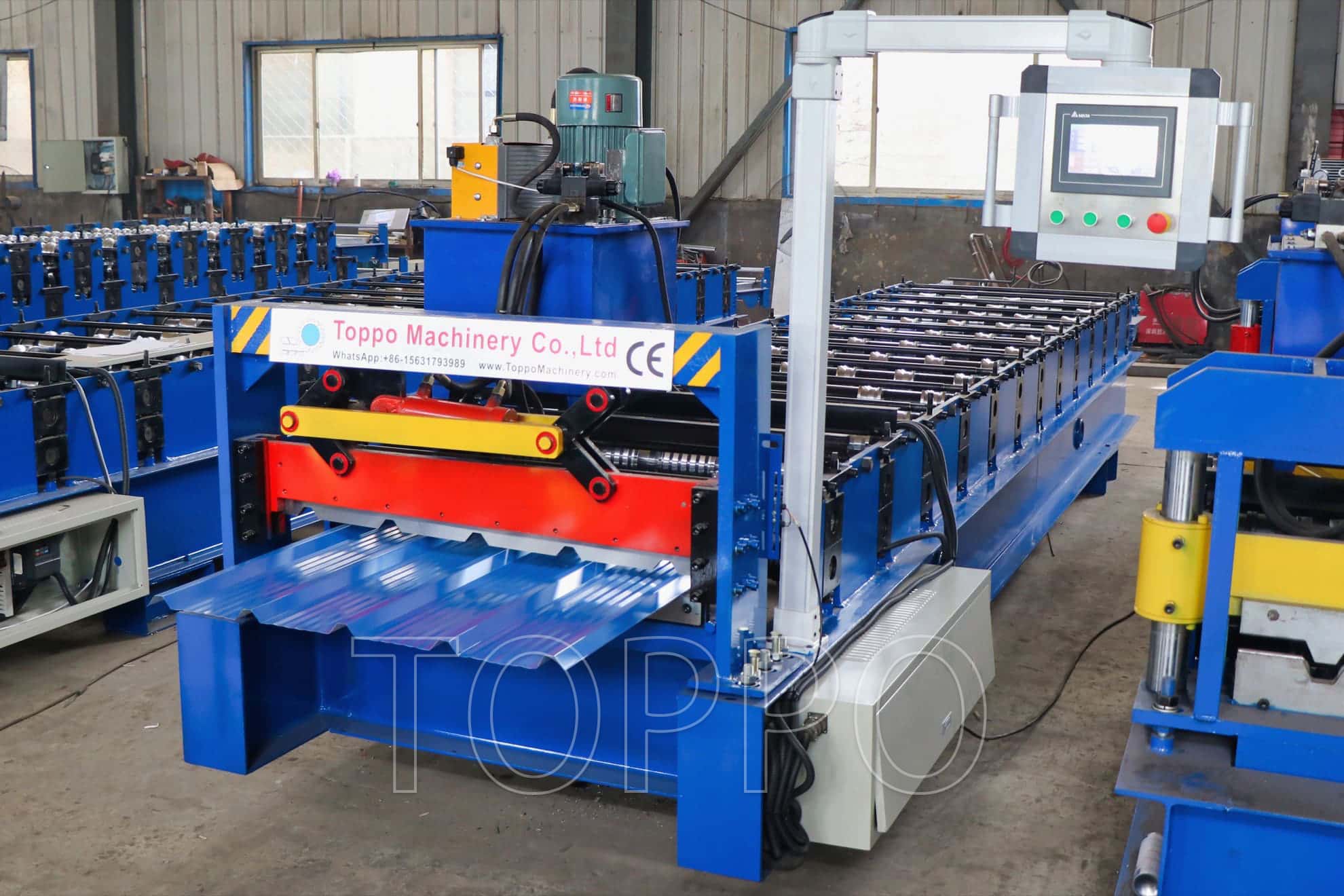

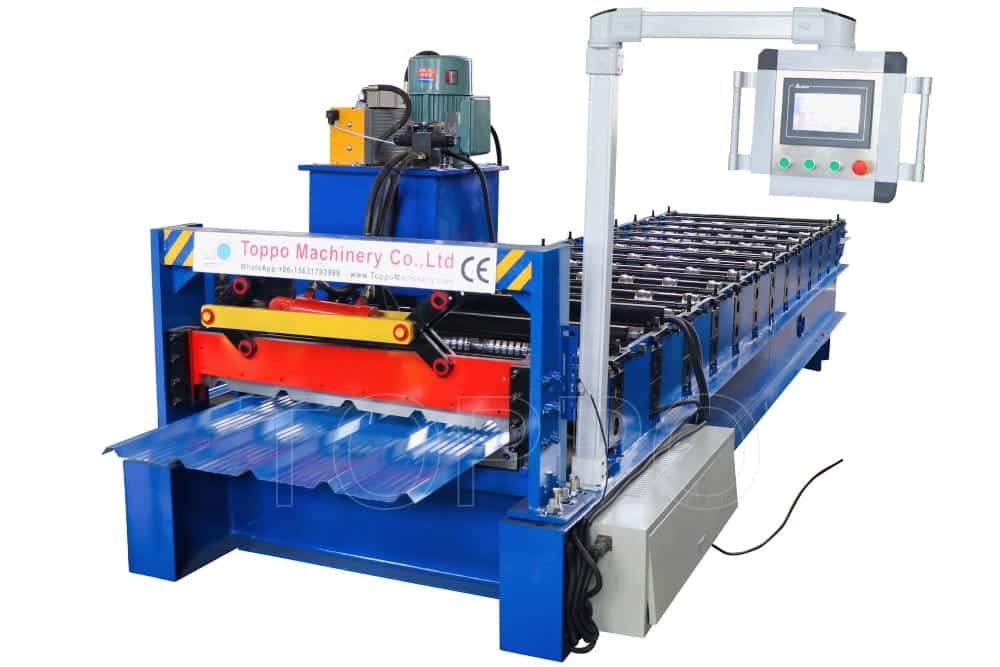

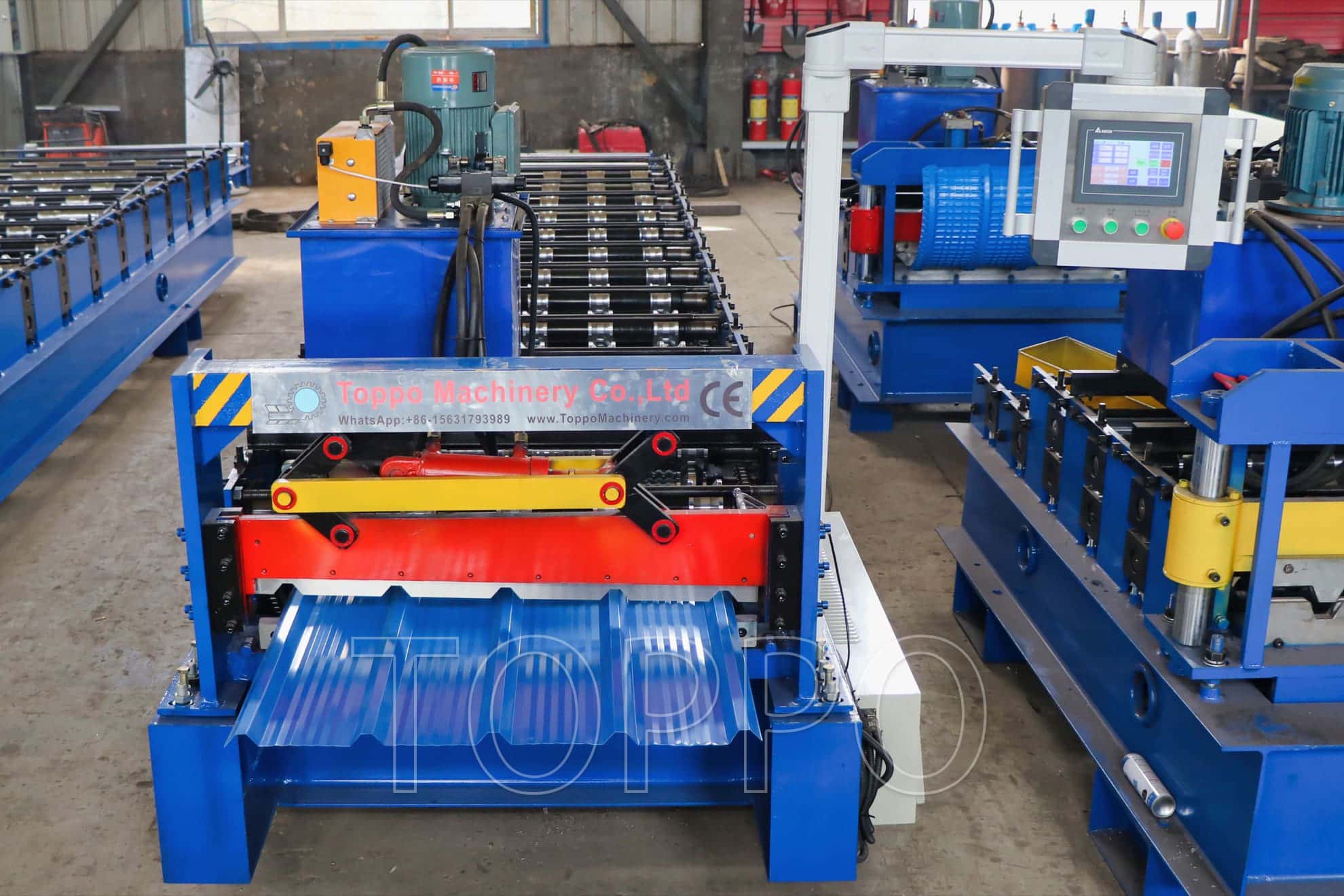

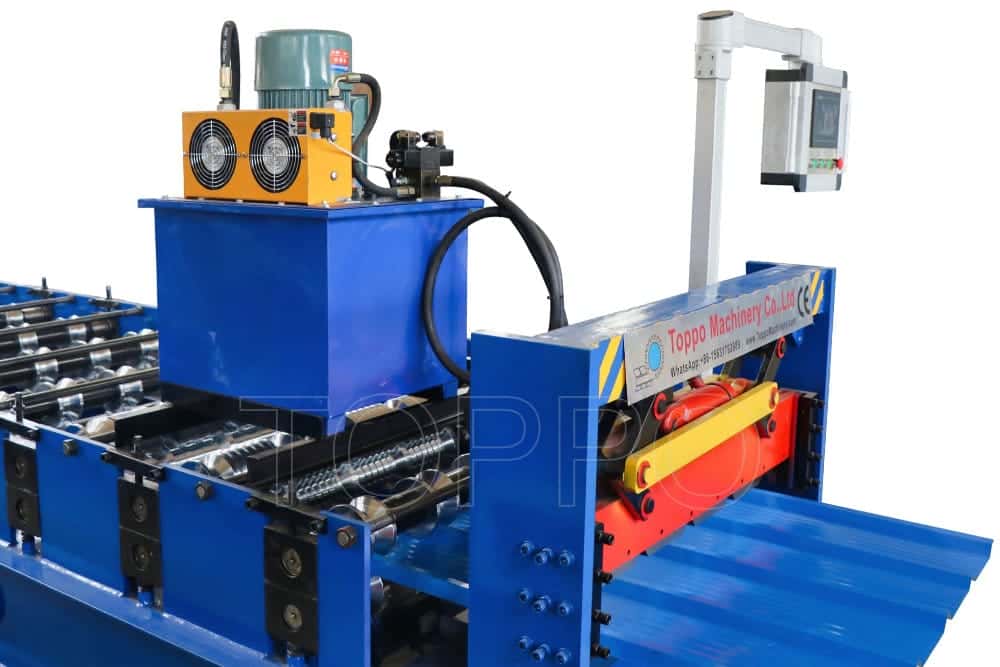

The Touchscreen Controlled Trapezoidal Roll Forming Machine is engineered for efficient and accurate metal roofing panel production. Featuring a Delta/Siemens PLC system with touchscreen interface and a robust hydraulic cutter, this machine is suitable for continuous high-volume manufacturing.

Technical Specifications & Features

• Material: Galvanized steel, PPGI, Aluminum

• Thickness: 0.3 – 0.8 mm

• Forming Speed: 12 – 18 m/min

• Main Motor Power: 7.5 KW

• Hydraulic Cutting Power: 4 KW

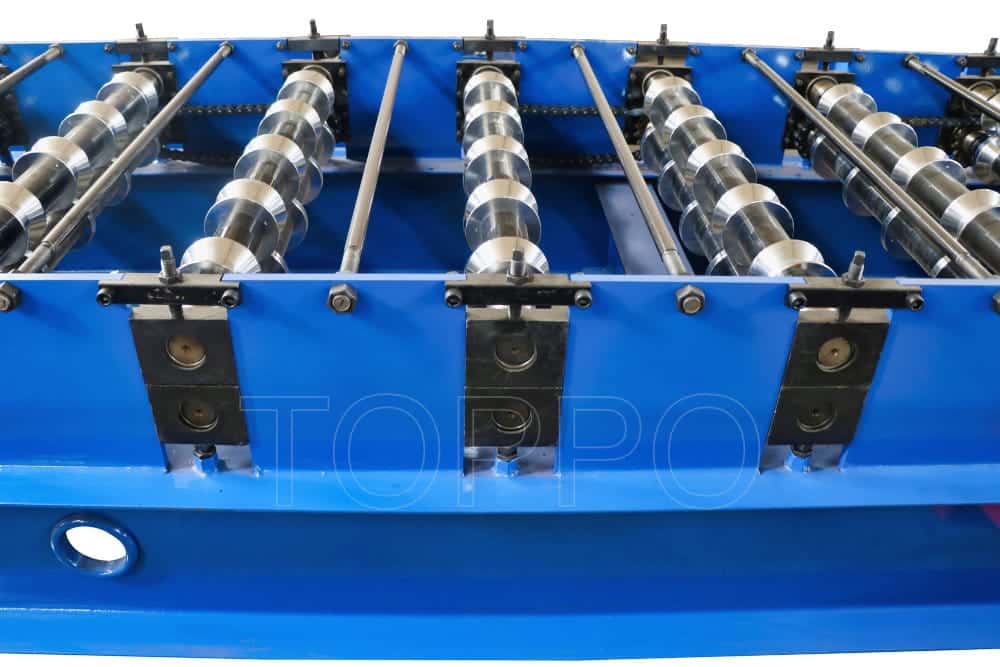

• Roller Stations: 18 – 24

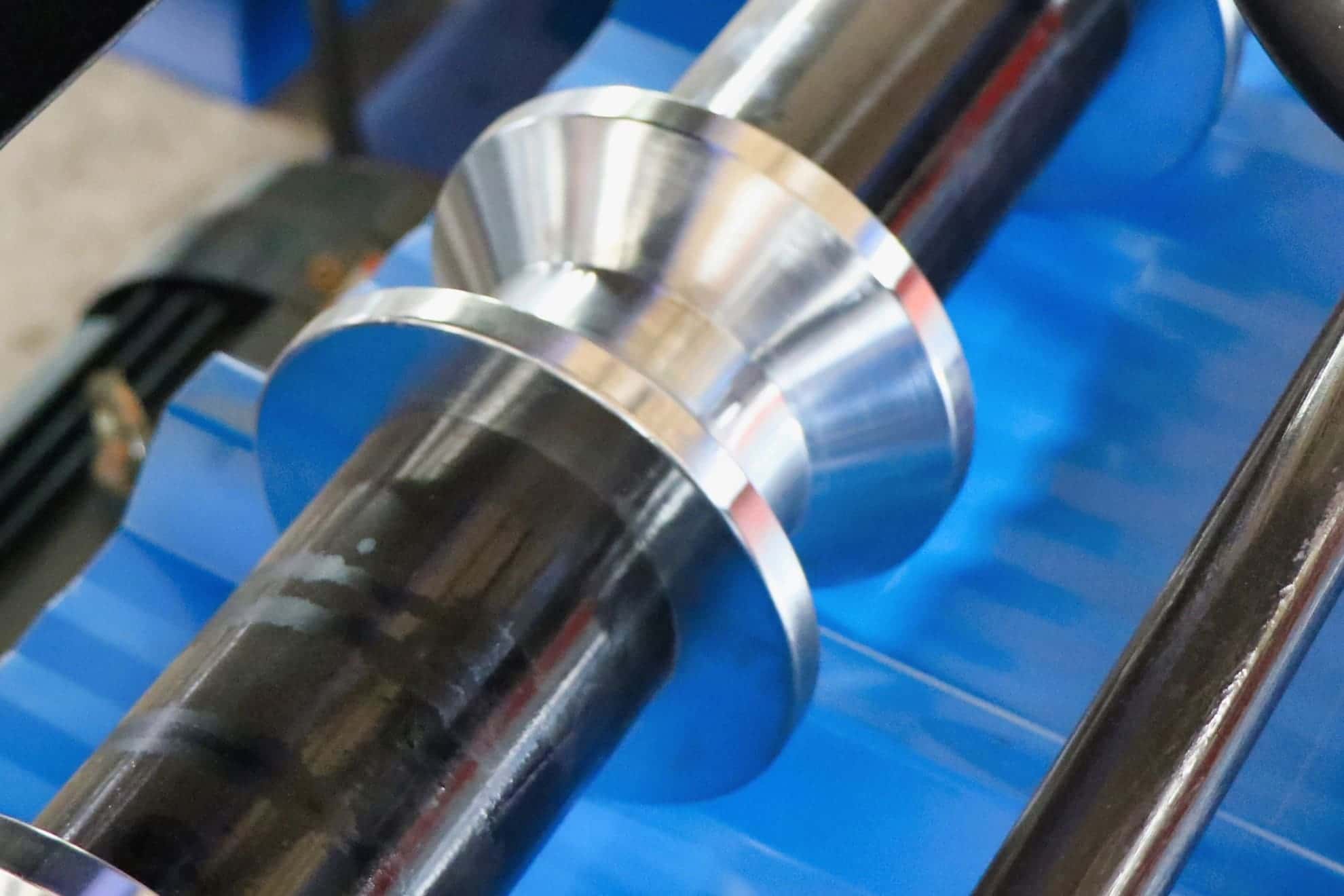

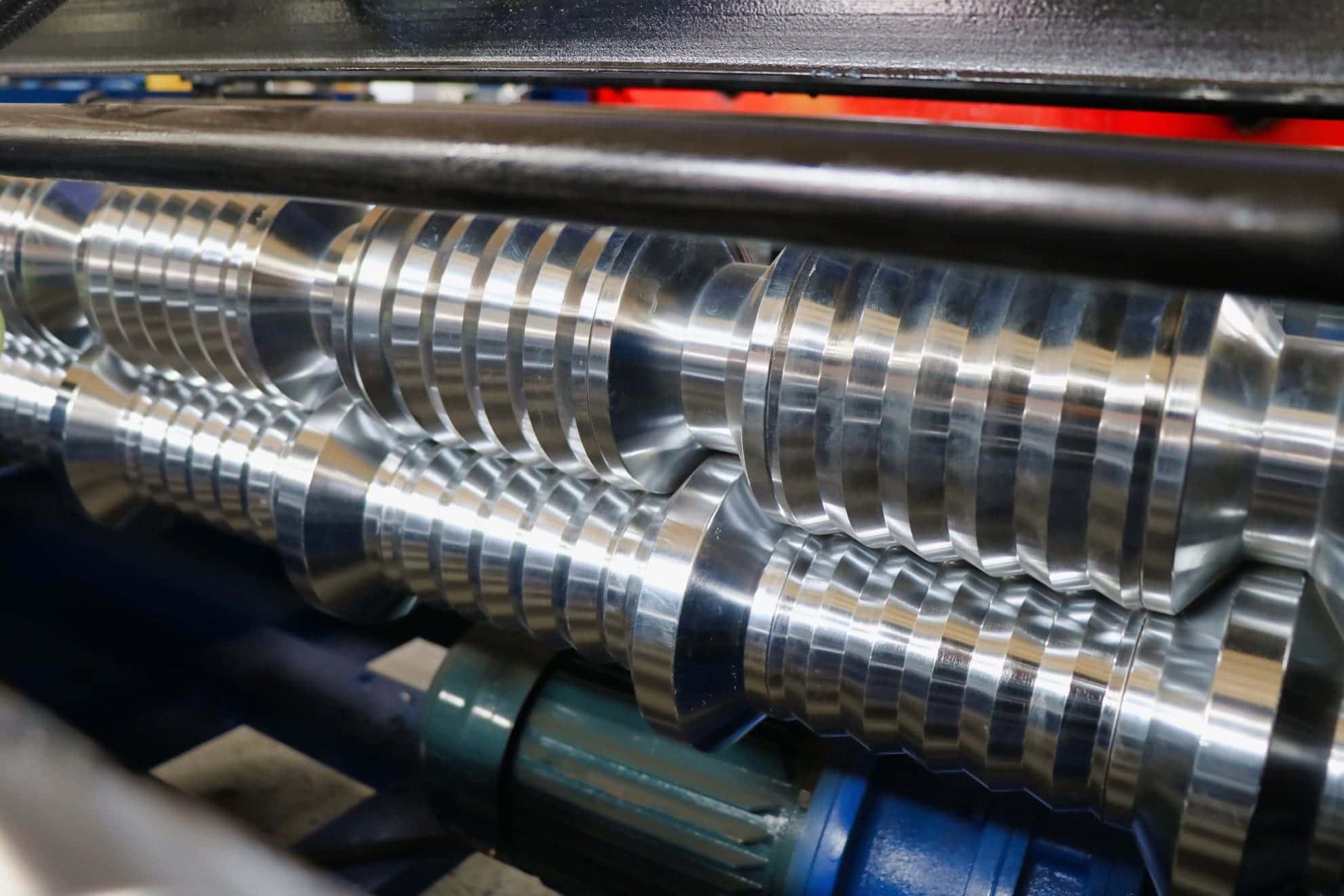

• Roller Material: 45# steel with hard chrome finish

• Roller Shaft Diameter: 75 – 90 mm

• Structure Frame: 350 mm H-beam welding

• Transmission: Chain or gearbox drive

• Control System: PLC + 7" touchscreen (Delta/Siemens)

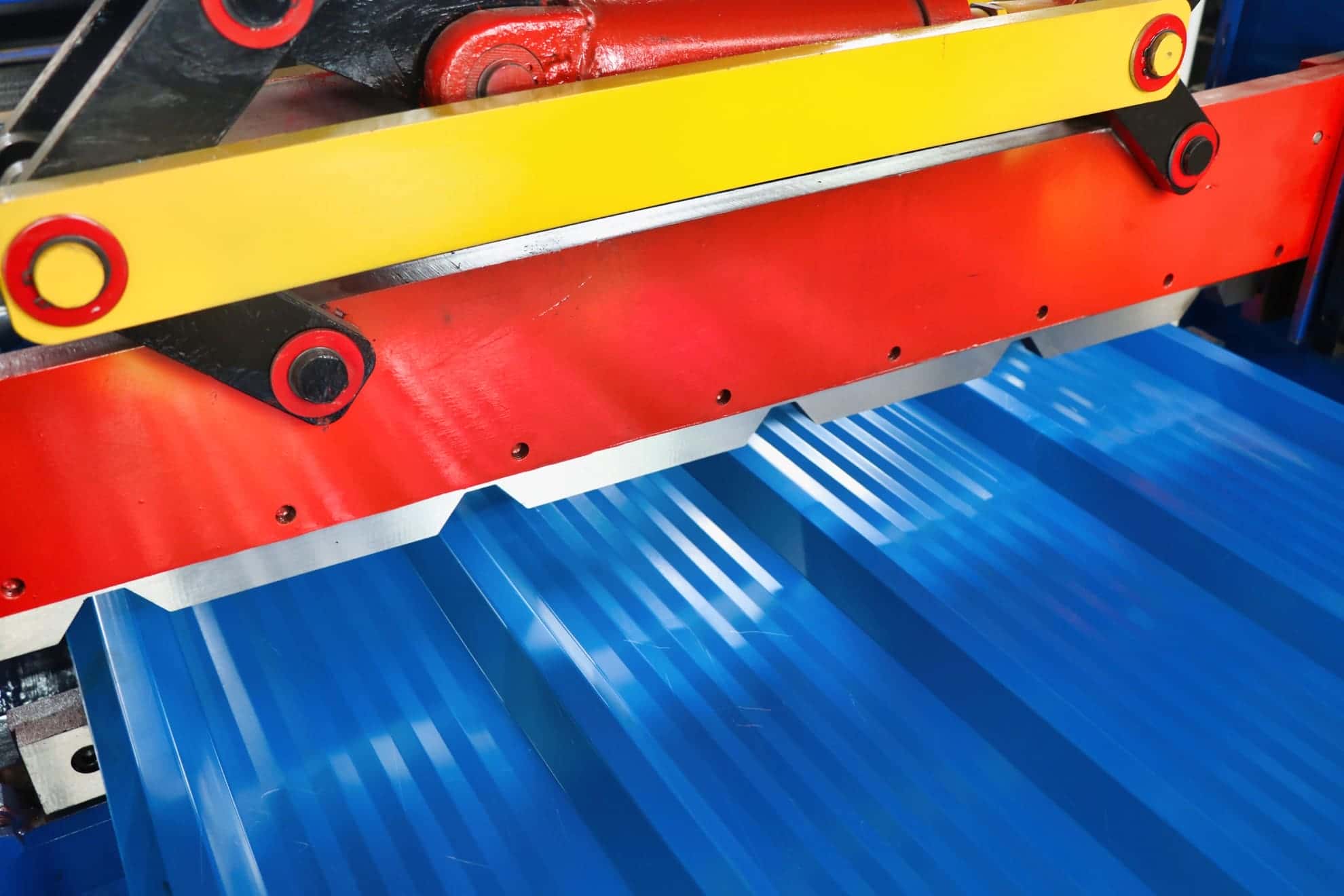

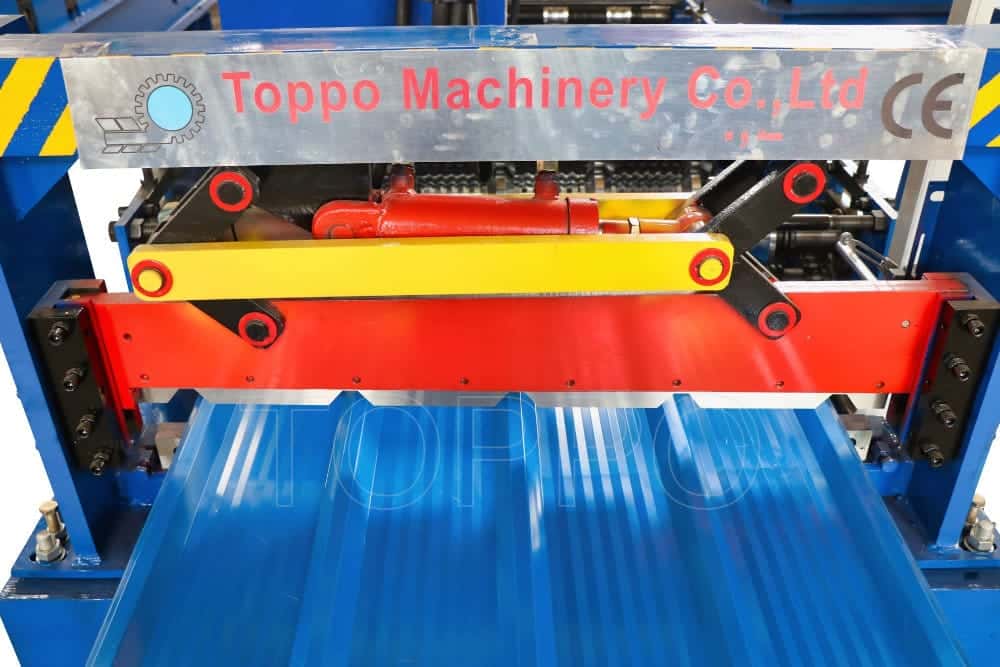

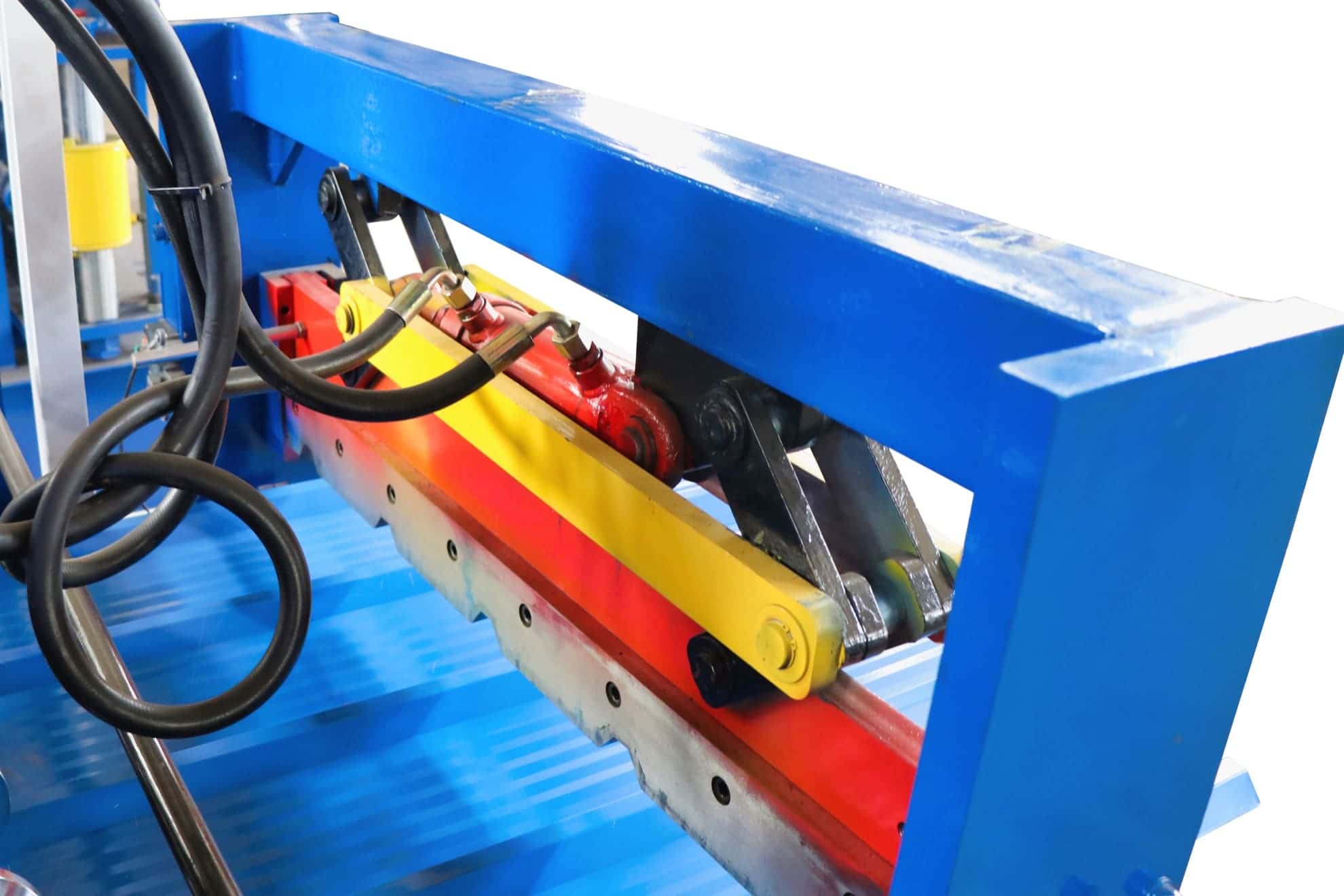

• Cutting System: Hydraulic shear, post-cut

• Panel Effective Width: 600 – 1000 mm

• Feeding Width: As per profile drawing

• Length Accuracy: ±1 mm

• Voltage: 380V/50Hz/3Phase (optional 220V/60Hz)

• Color: Blue with orange trim (custom colors available)

• Cooling System: Optional hydraulic cooler

• Machine Size: ~8.5 x 1.6 x 1.5 m

• Weight: Approx. 7 tons

• Safety: Guard covers, emergency stop button

• Support: On-site installation or remote guide

• Training: Operation videos and manuals provided

• Warranty: 1 year

• Packaging: Standard export package with waterproof wrapping

• Lead Time: 30 – 45 working days

Applications

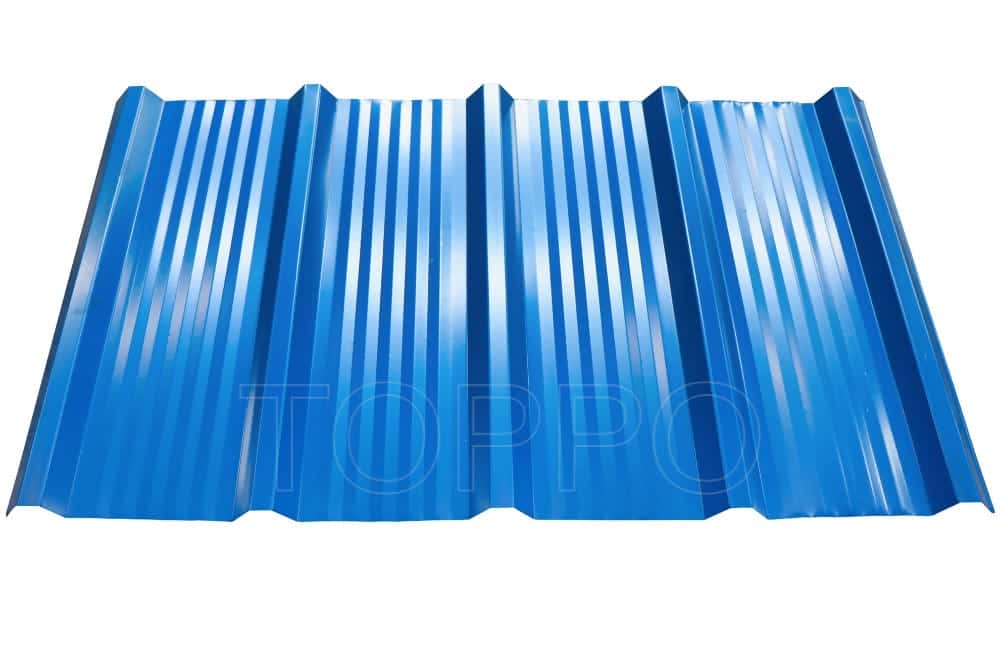

• Roof panel production for industrial buildings

• Steel structure sheet forming

• Construction and prefabricated systems

Advantages

• Smart touchscreen control system

• High output and precise panel quality

• Heavy-duty construction ensures long-term use
