Product Description

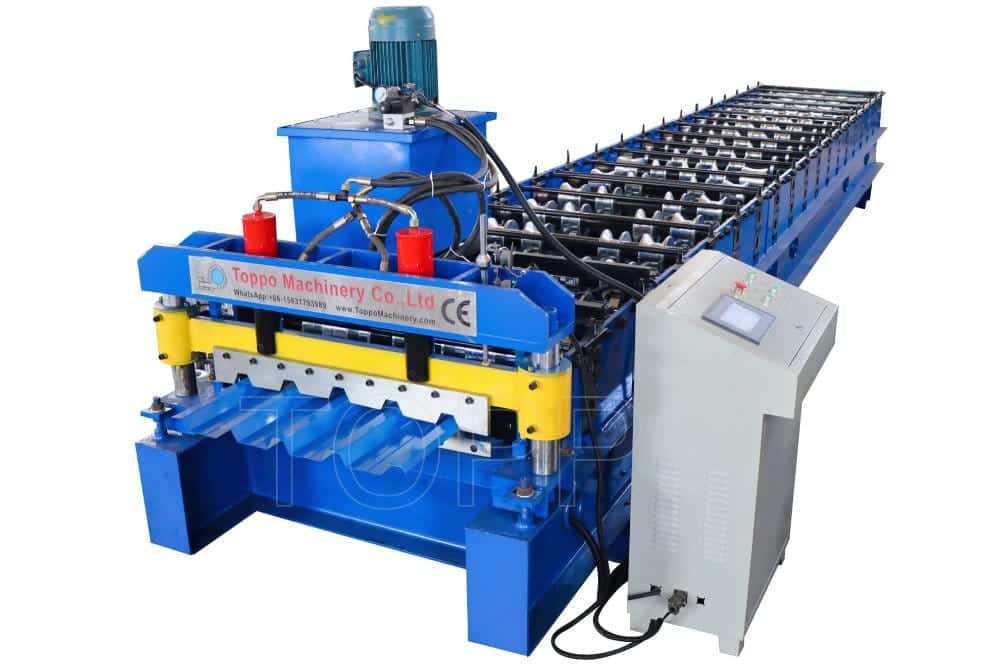

The Compact PLC-Controlled Trapezoidal Roll Forming Machine offers a modern and efficient solution for metal roof sheet production. Built for reliability and control precision, the machine suits both new entrants and established manufacturers aiming for optimal quality at a competitive price.

Technical Parameters & Highlights

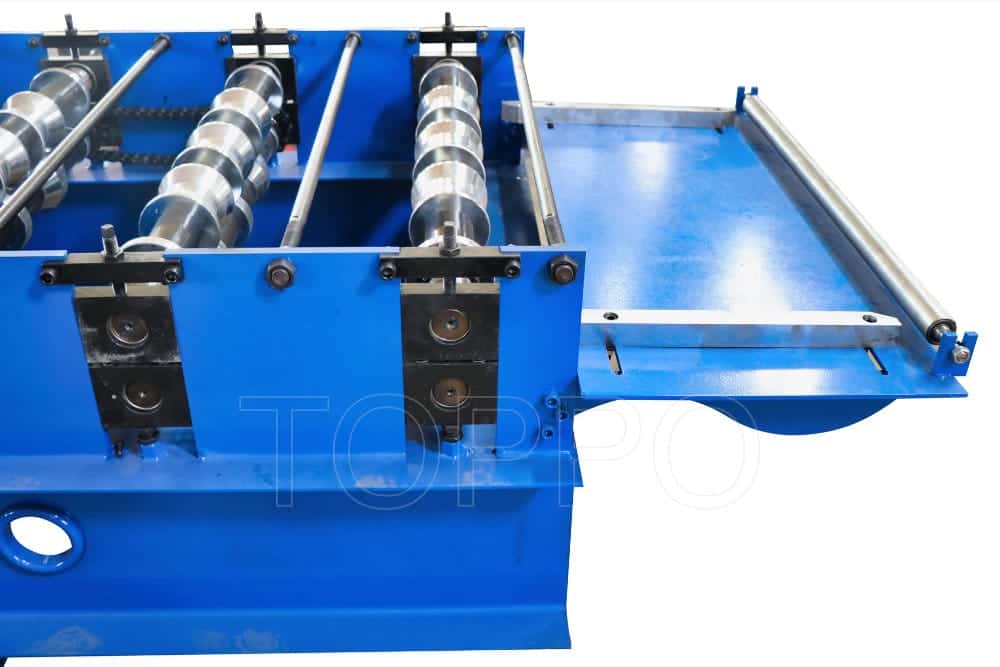

• Material Type: PPGI, Galvanized Steel, Aluminum

• Thickness: 0.3 – 0.8 mm

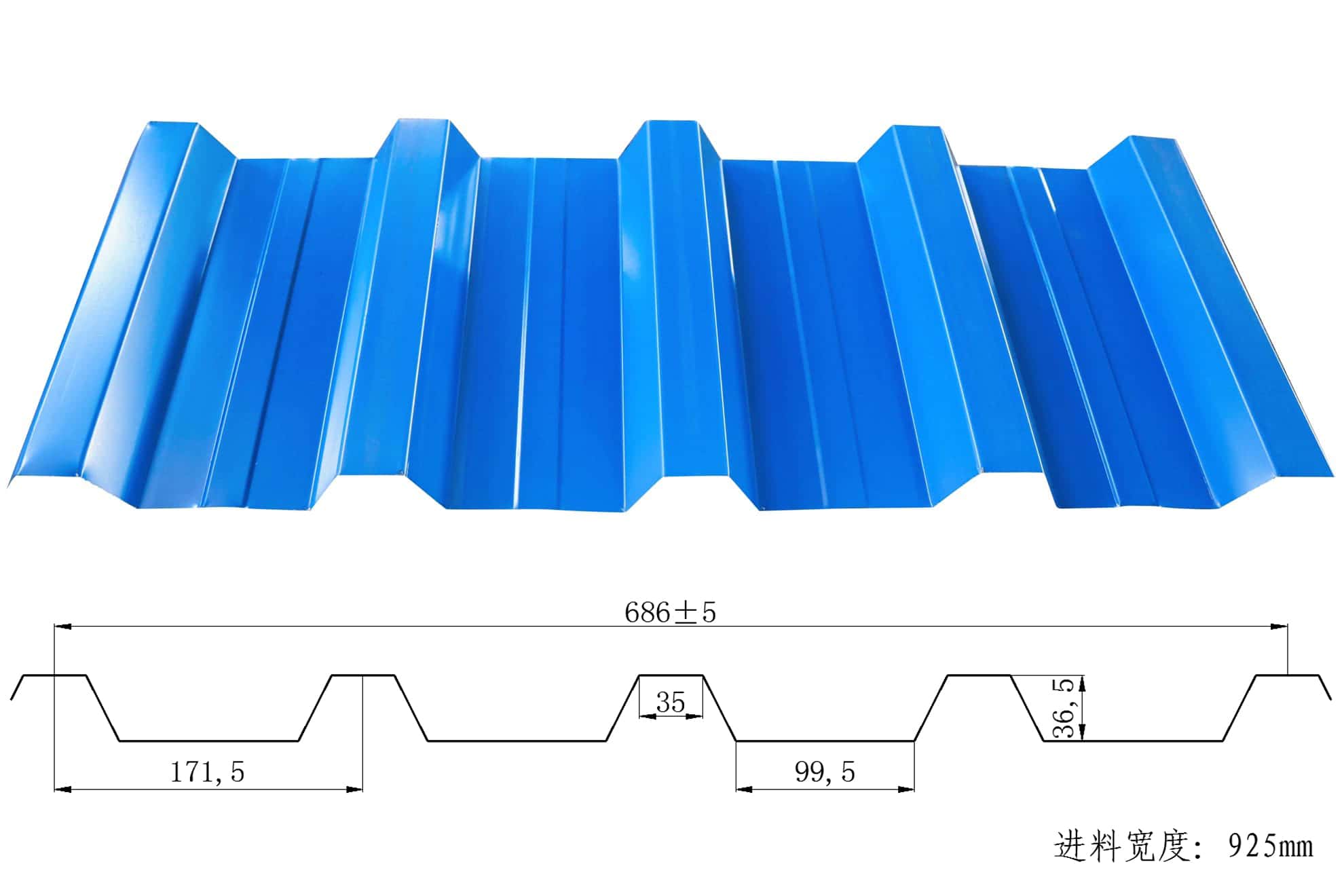

• Effective Panel Width: 600 – 1000 mm

• Feeding Width: Customized per drawing

• Production Speed: 10 – 15 m/min

• Main Motor Power: 5.5 KW

• Hydraulic Station Power: 3.7 KW

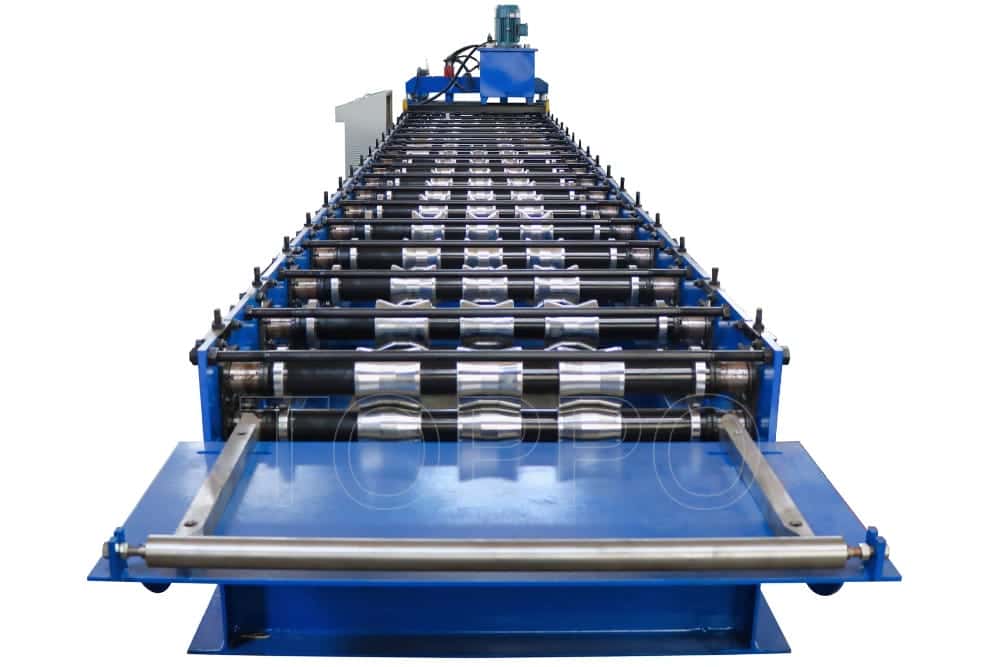

• Roller Stations: 14 – 20

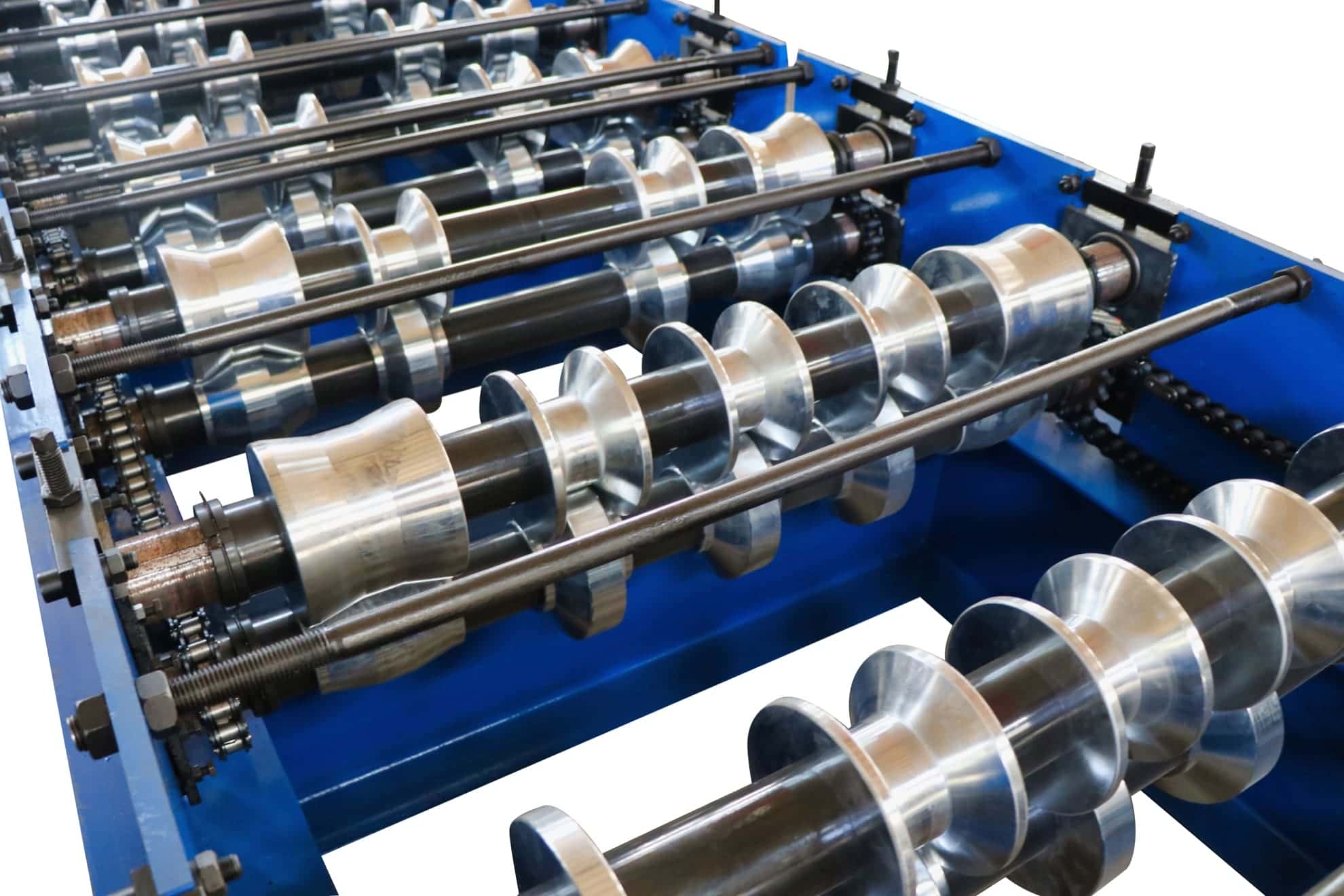

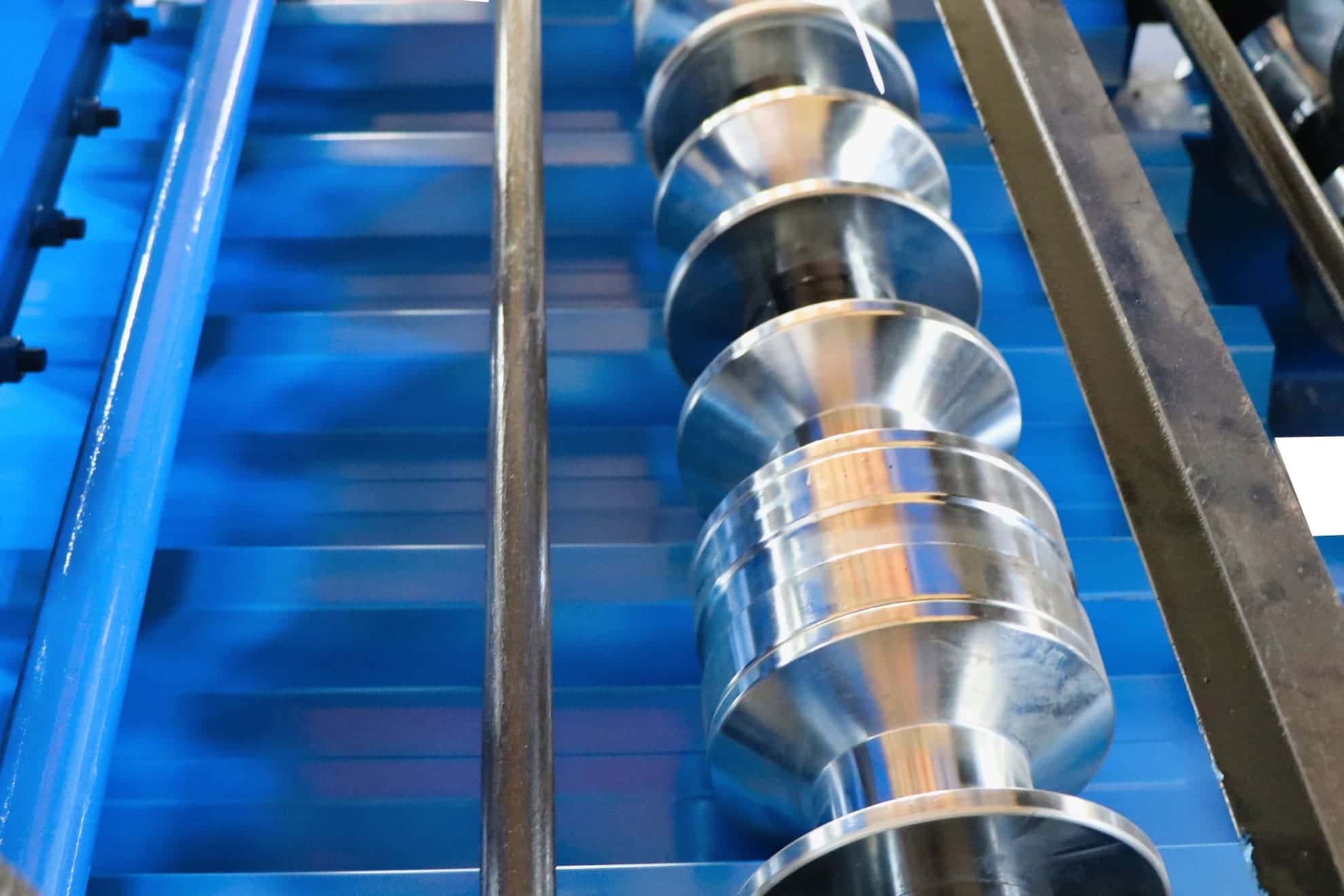

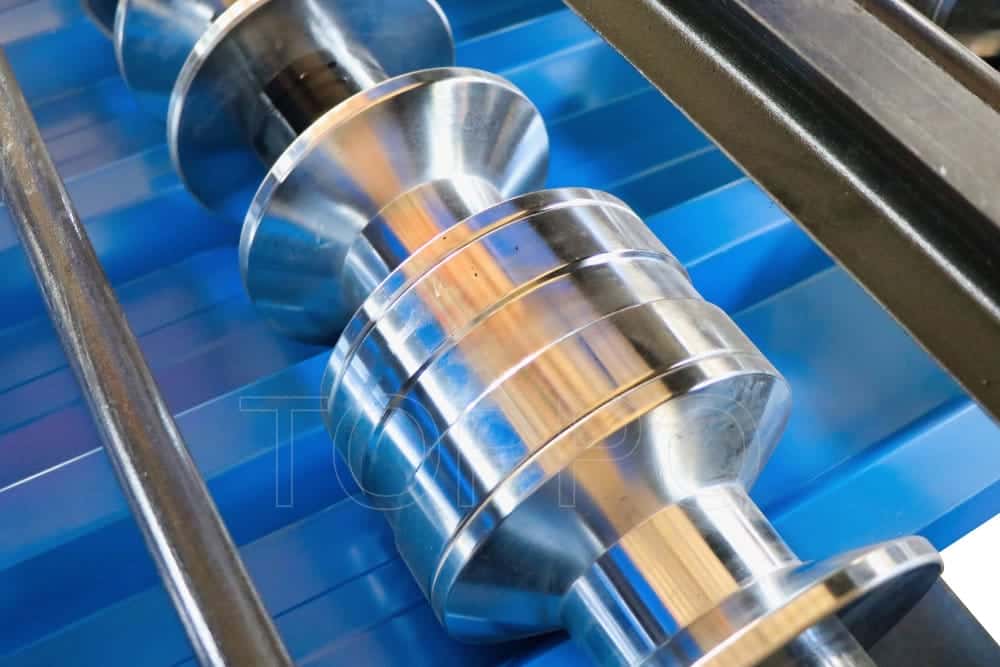

• Roller Material: 45# steel, hard chrome coated

• Roller Shaft Diameter: 70 mm

• Drive Type: Chain drive system

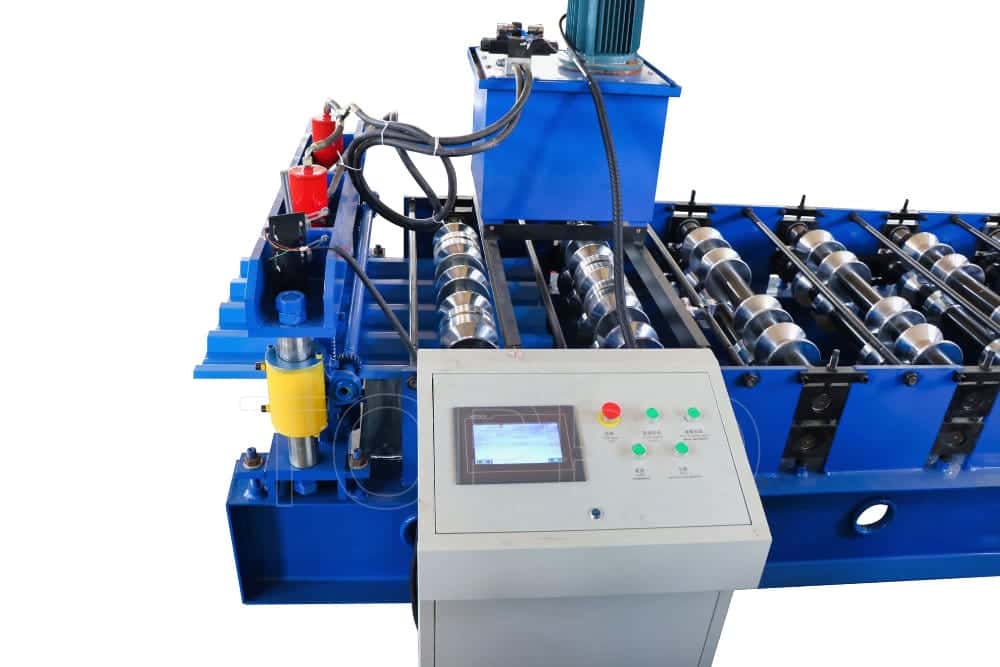

• Control System: PLC with 7" touchscreen (Delta or Mitsubishi)

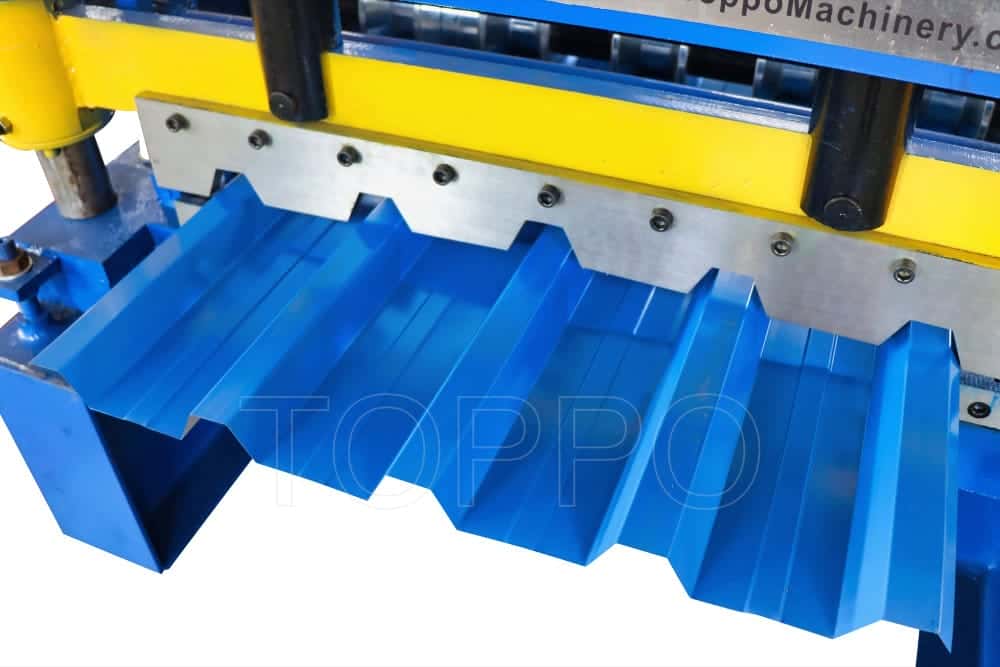

• Cutting Type: Hydraulic shear post-cutting

• Panel Accuracy: ±1 mm

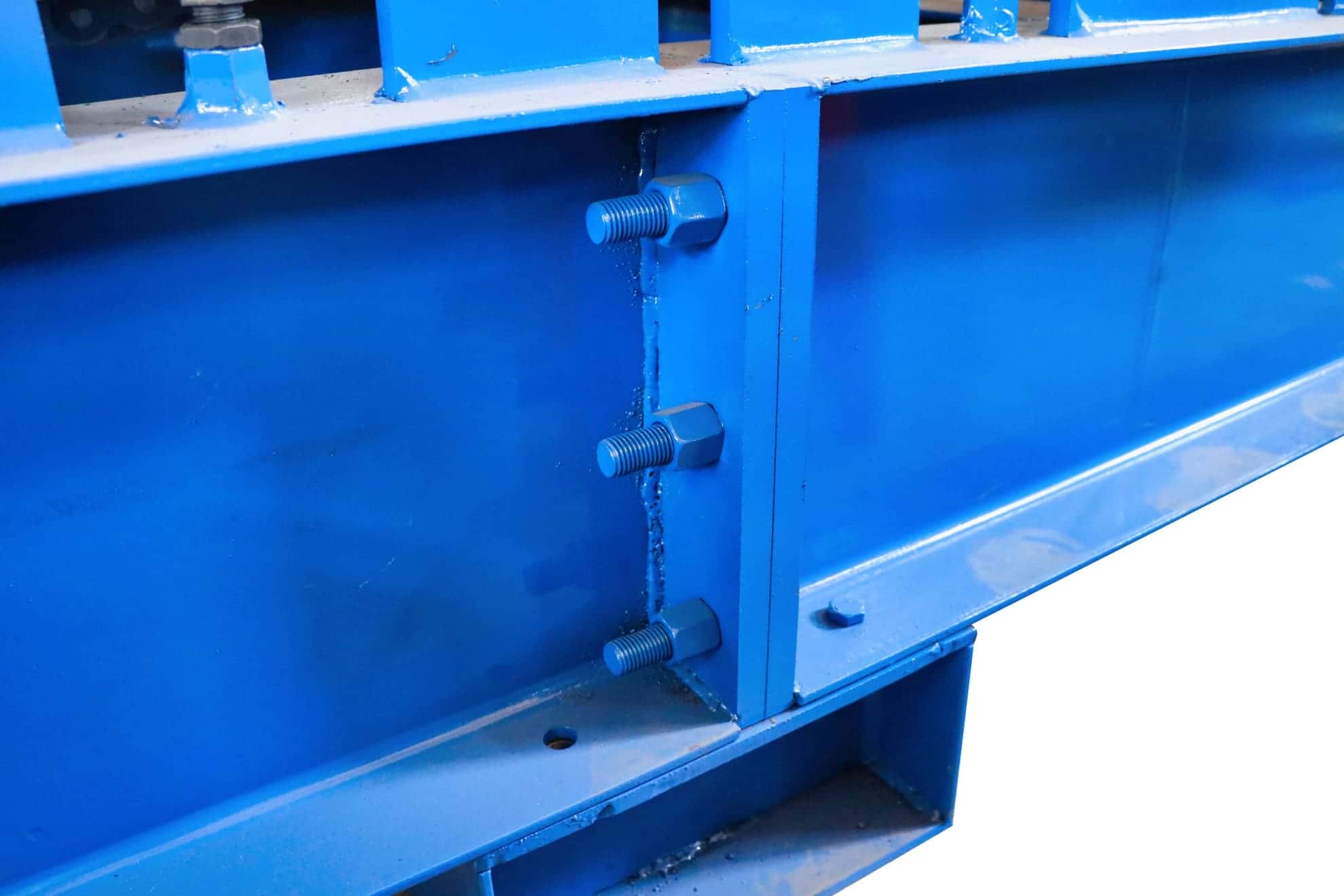

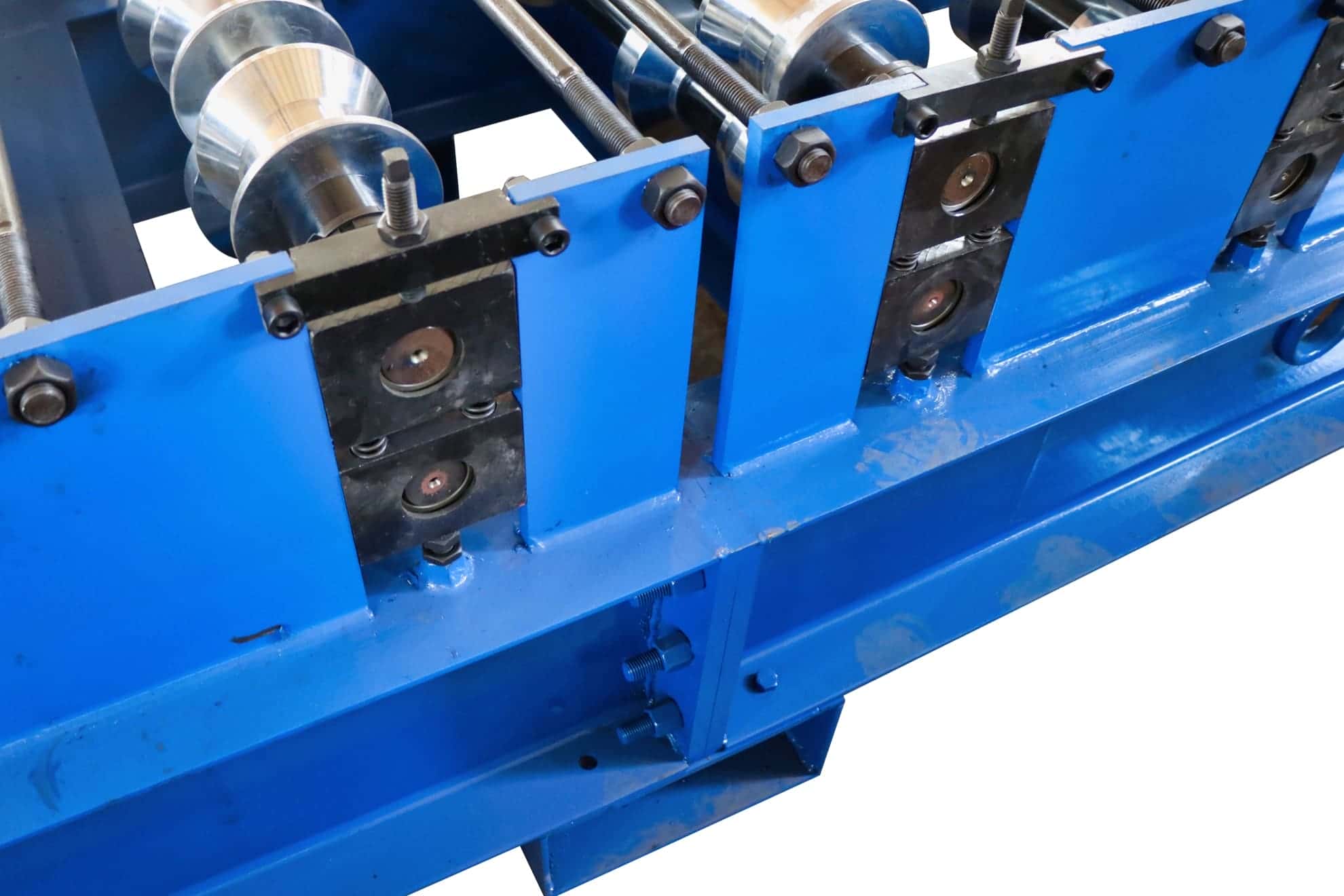

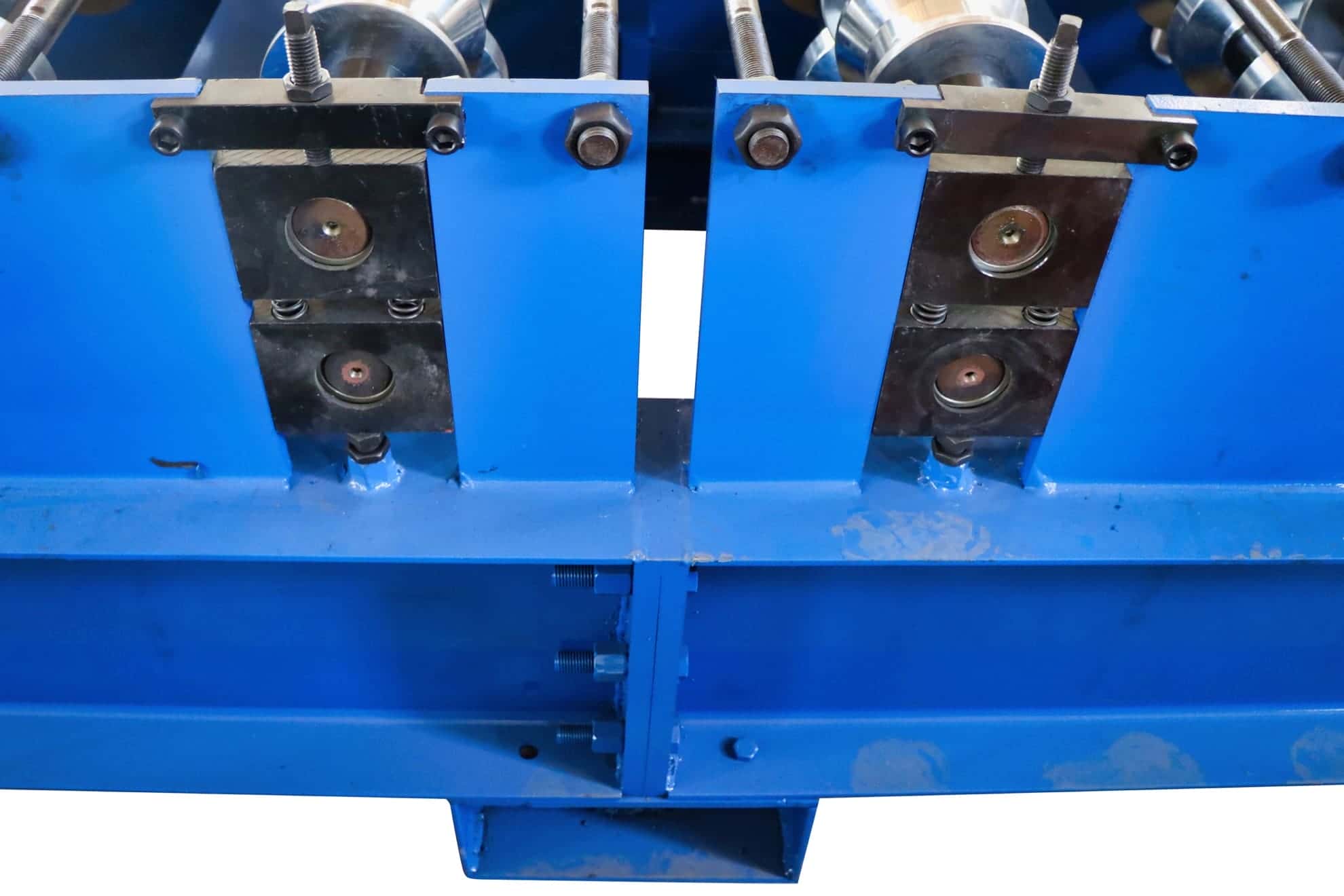

• Frame Structure: 300 mm H-beam base

• Color: Blue & red standard paint (customizable)

• Machine Size: ~7.8 x 1.5 x 1.45 m

• Machine Weight: Approx. 5.5 tons

• Voltage: 380V/50Hz/3Phase (other options available)

• Cooling: Optional air or oil cooler

• Safety Equipment: Cover guards, e-stop system

• Installation: Remote assistance or on-site support

• Warranty: 1 year

• Certification: CE, ISO9001

• Packaging: Waterproof film wrap + steel fixing

• Lead Time: 25 – 35 working days

Application

• Roofing sheet manufacturing for commercial buildings

• Construction industry panel supply

• Steel structure fabrication

Machine Benefits

• Cost-effective and space-saving design

• Simple to operate with intuitive PLC interface

• Durable components for long-lasting performance
