Product Description

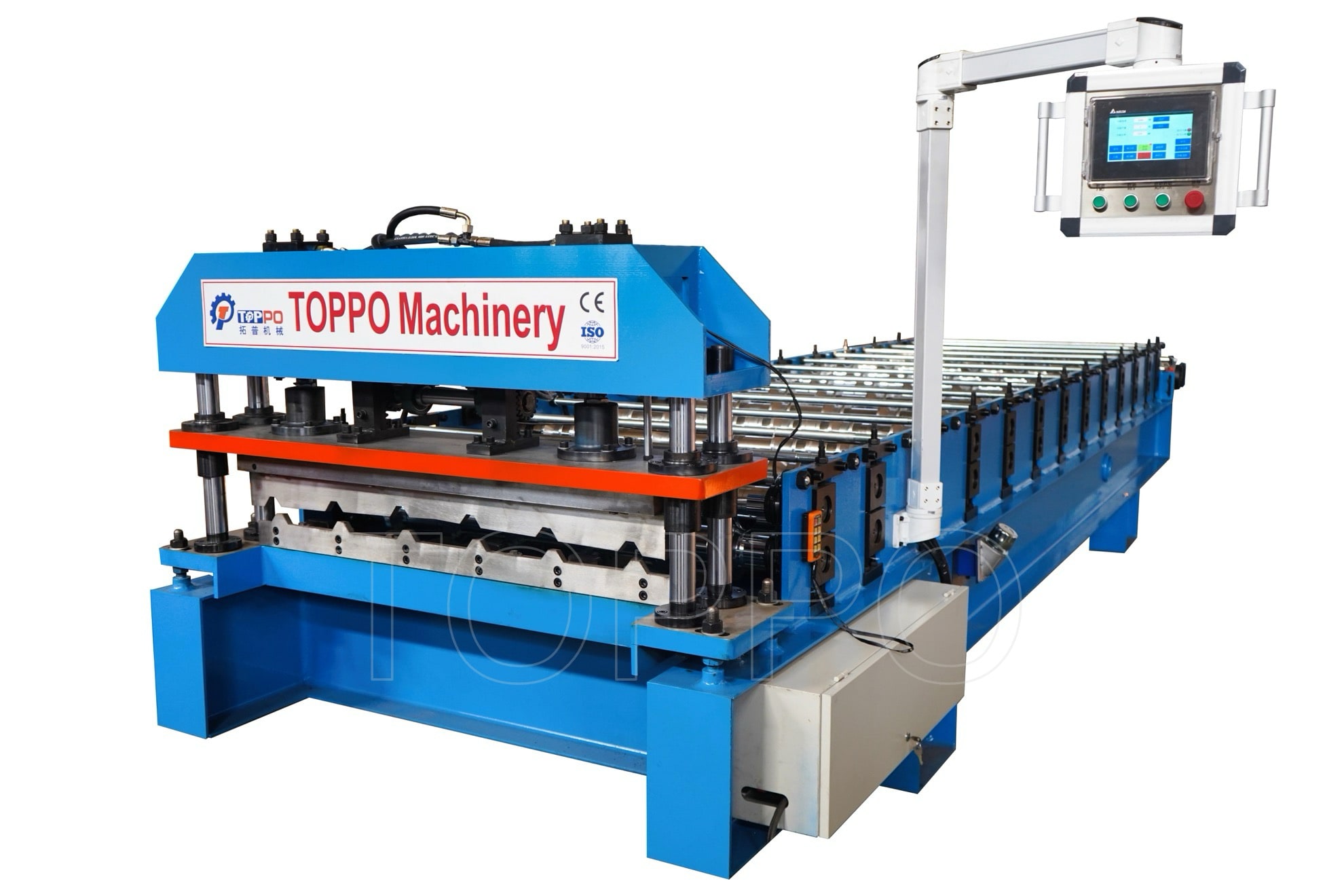

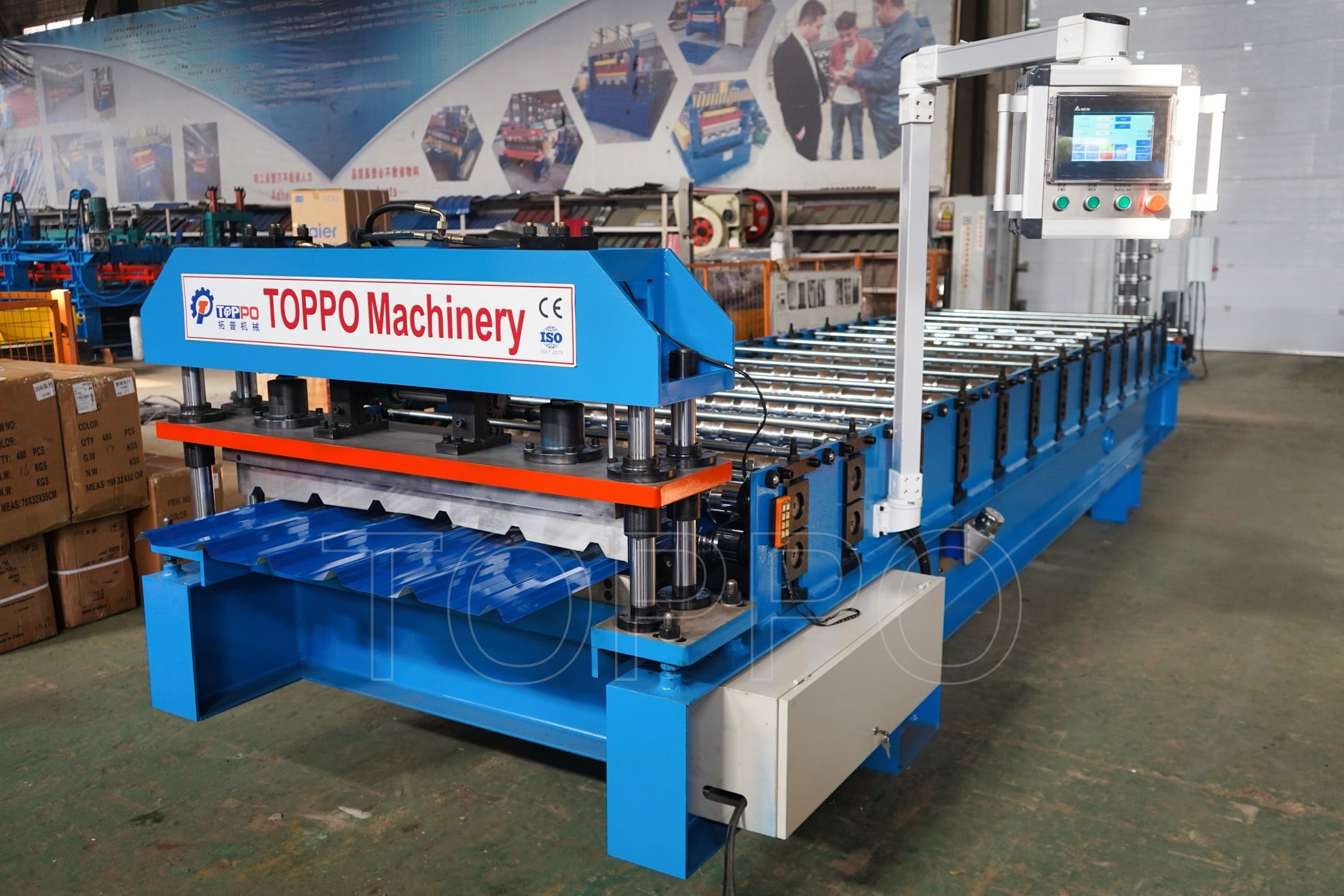

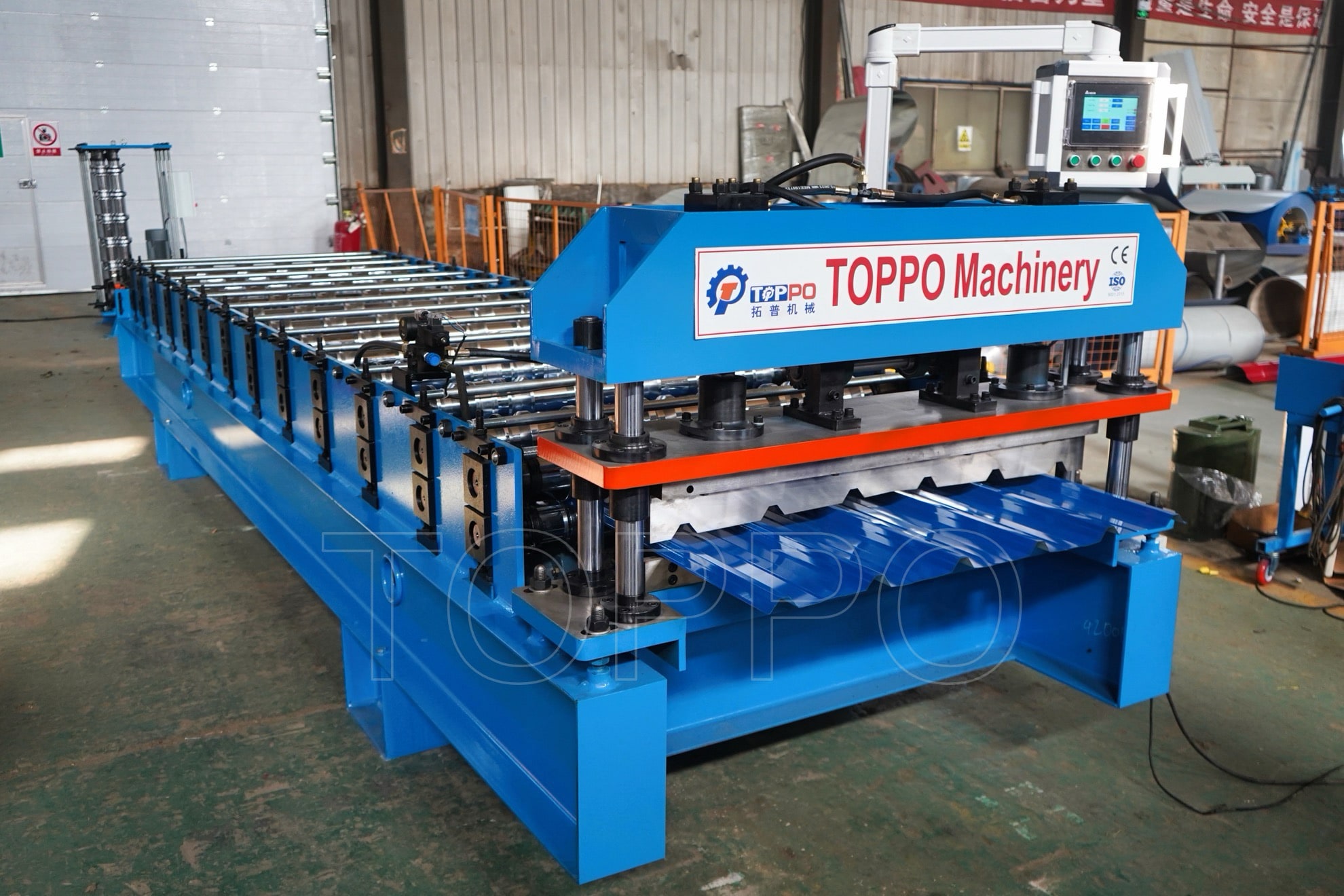

The Delta PLC Controlled Trapezoidal Roll Forming Machine is a top-tier metal forming system designed for efficient production of roofing panels. It integrates industrial-grade rollers, hydraulic cutting, and intuitive touchscreen operation, suitable for demanding roofing applications.

Technical Specifications & Performance

• Material: Galvanized steel, PPGI, Aluminum coil

• Material Thickness: 0.3 – 0.8 mm

• Forming Speed: 12 – 20 m/min

• Main Motor Power: 7.5 KW

• Hydraulic Power: 4 KW

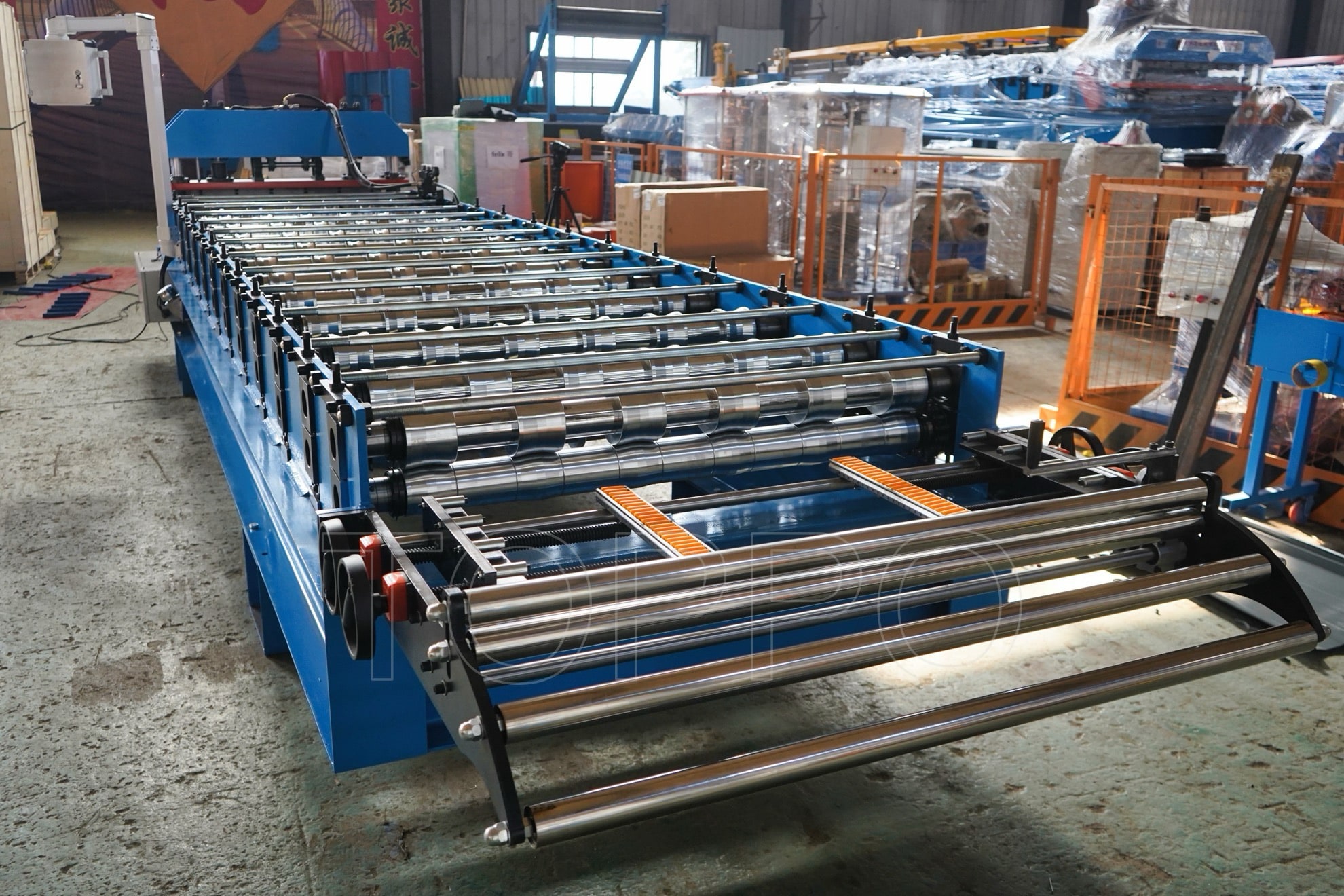

• Roller Stations: 16 – 24

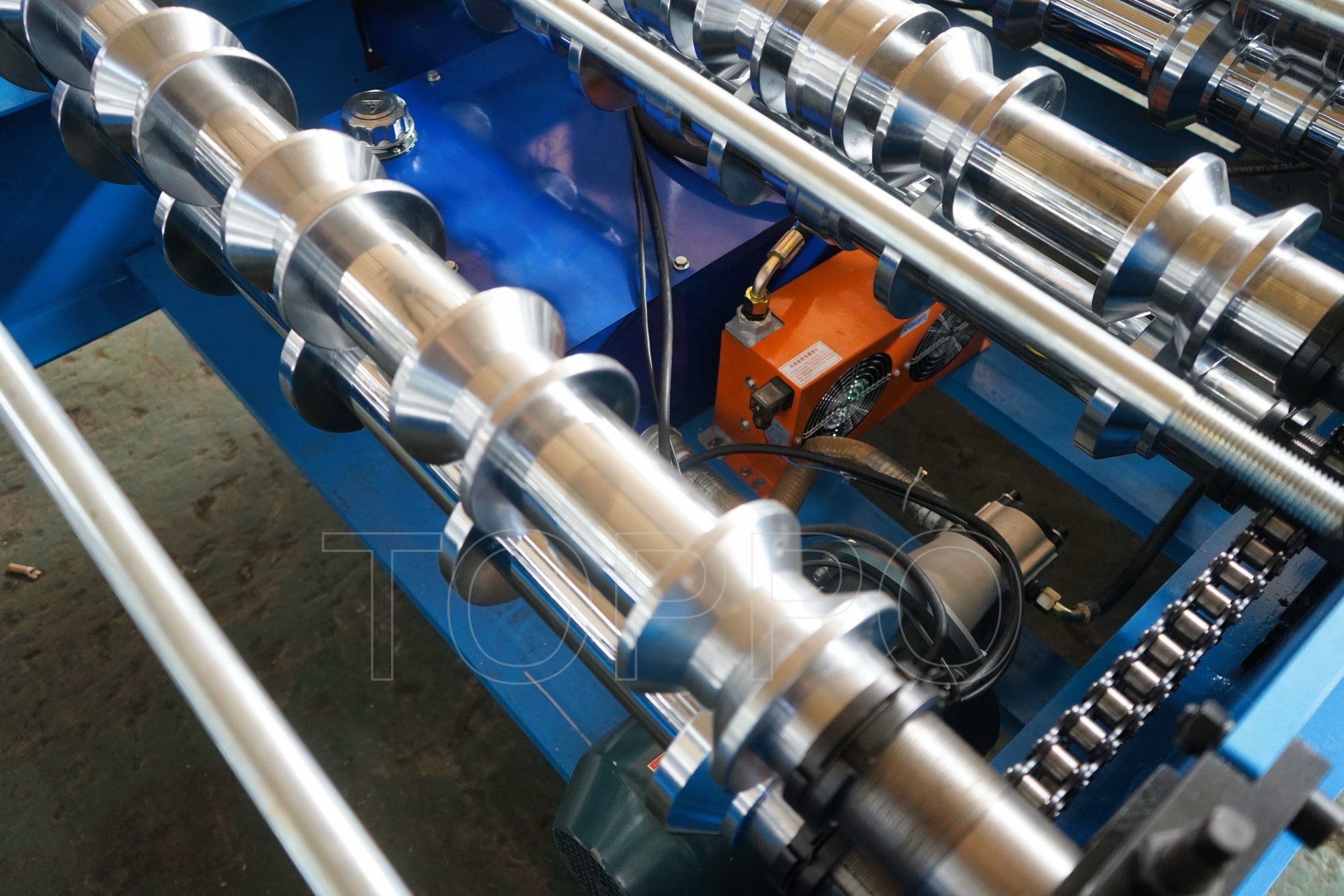

• Roller Material: GCr15 steel, hardened and chrome coated

• Roller Shaft Diameter: 75 – 95 mm

• Frame Type: 350 mm H-beam heavy-duty base

• Transmission Mode: Gearbox drive or chain transmission

• Control System: Delta PLC + 7" touchscreen HMI

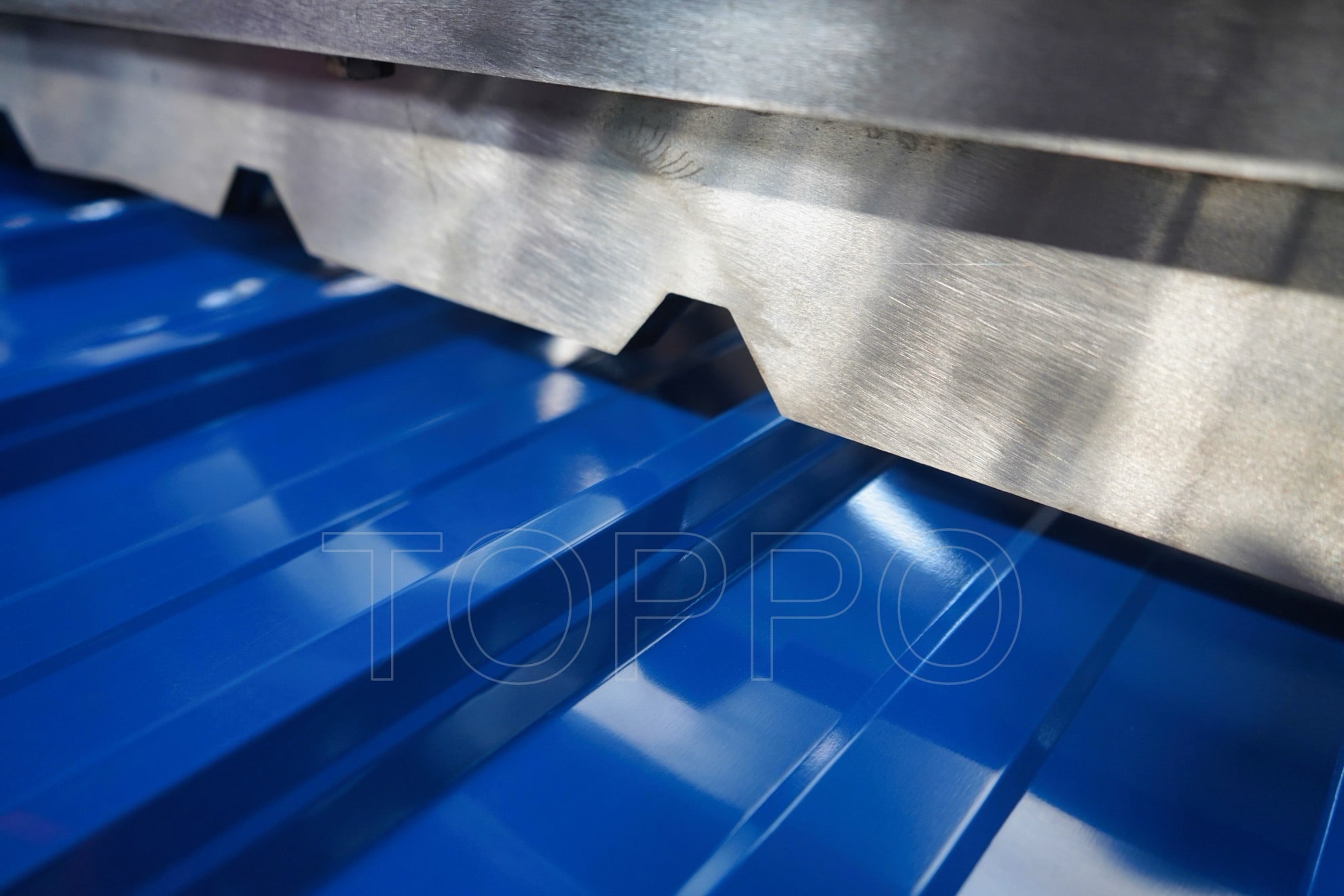

• Cutting Blade: Cr12MoV, precision processed

• Panel Width Range: 600 – 1250 mm

• Feeding Width: As per profile design

• Output Length Accuracy: ±1 mm

• Voltage: 380V/50Hz/3Phase (custom options available)

• Machine Size: Approx. 8.5 x 1.6 x 1.5 m

• Machine Weight: 6.5 – 8.5 tons

• Safety Features: Full cover protection, e-stop function

• Paint Coating: Industrial-grade, rust-resistant

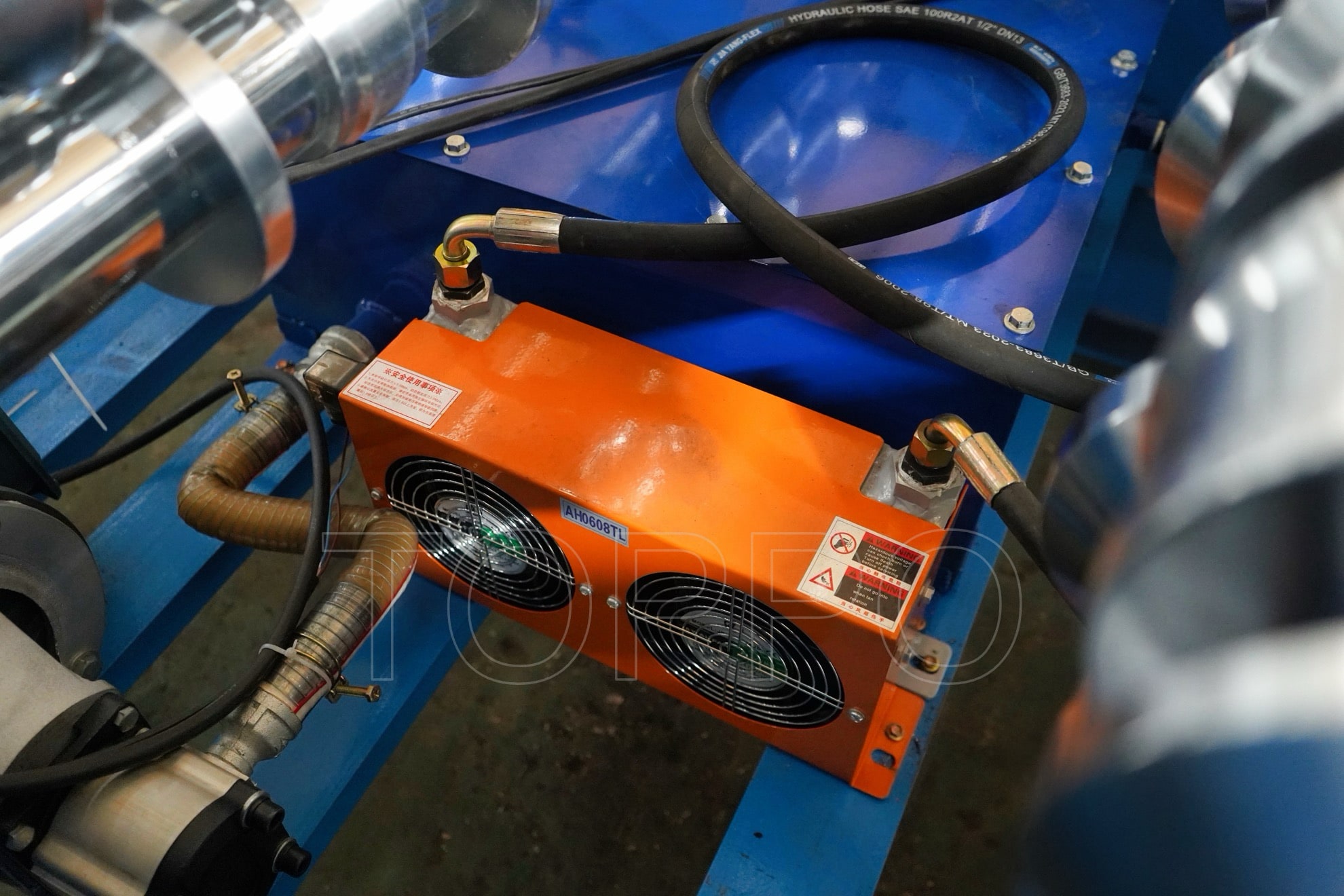

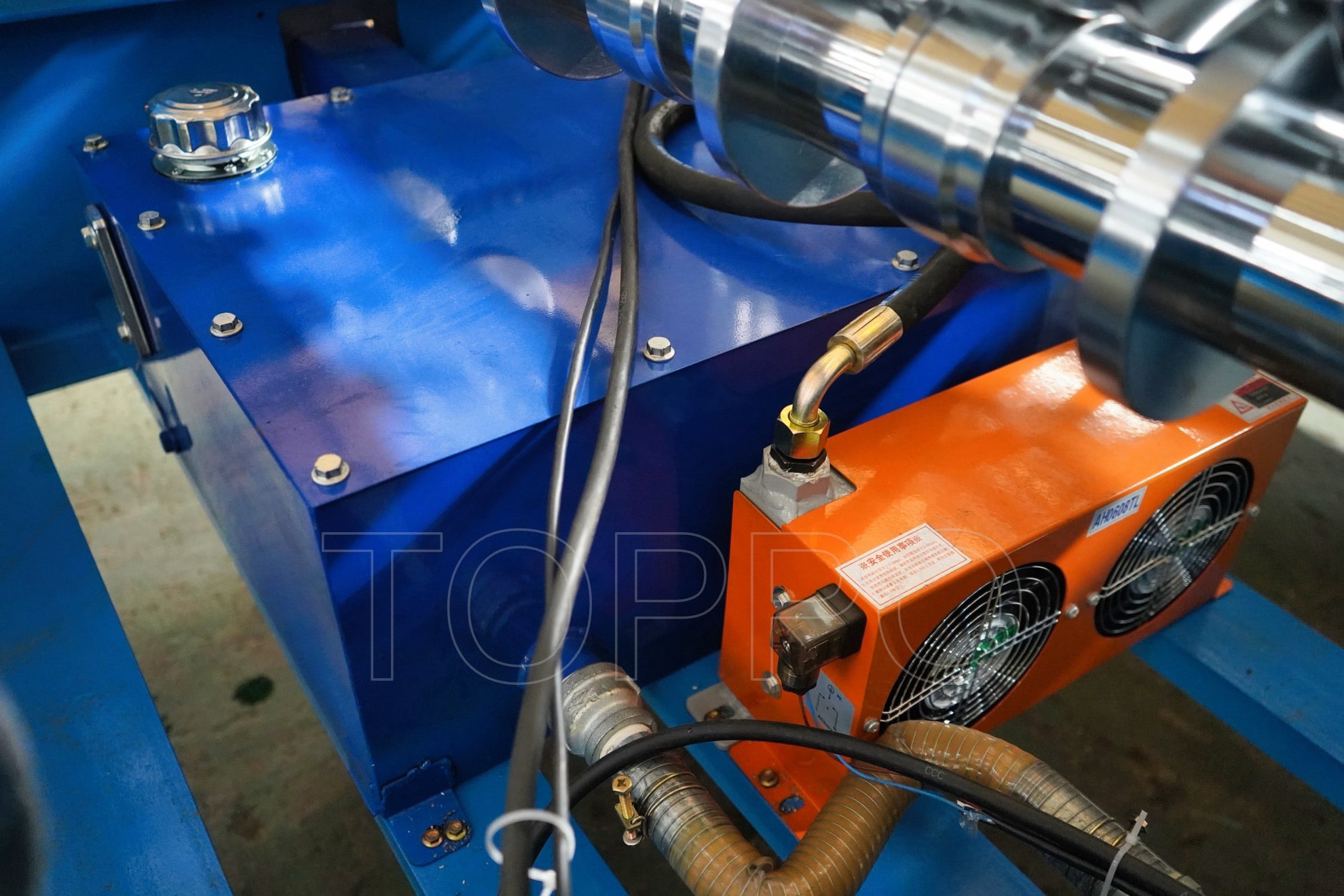

• Cooling System: Optional oil/air cooling

• Warranty: 1 year

• Installation: Field setup or remote support

• Packaging: Plastic film + steel rope securing for export

• Delivery Time: 30 – 40 working days

Applications

• Industrial roof sheet fabrication

• Steel structure construction panels

• Prefabricated and modular buildings

Key Advantages

• High-speed production with accurate profiling

• Delta PLC with touchscreen ensures easy operation

• Strong structural build and long-lasting roller quality
