Product Description

The Precision Trapezoidal Roll Forming Machine is a high-efficiency sheet forming system tailored for metal roofing panel manufacturing. With its touchscreen-operated PLC system and rugged frame construction, this machine guarantees consistent quality and reliable production for industrial applications.

Machine Specifications & Features

• Suitable Materials: Galvanized Steel, Color Steel, Aluminum

• Material Thickness: 0.3 – 0.8 mm

• Forming Speed: 10 – 18 m/min

• Main Power: 7.5 KW

• Hydraulic Power Unit: 4 KW

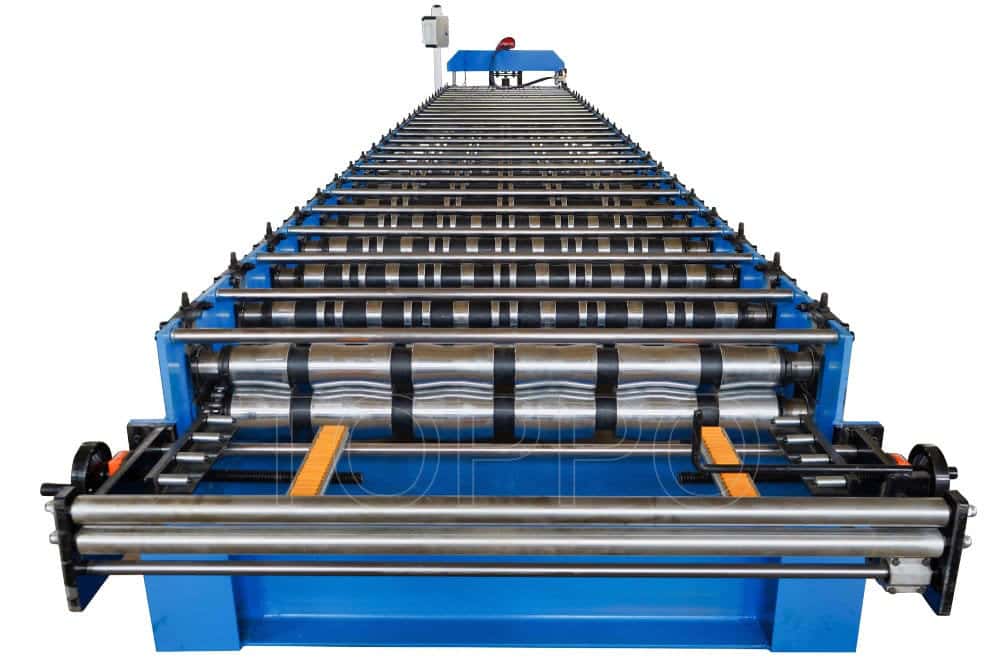

• Roller Stations: 16 – 22

• Roller Material: 45# steel with hard chrome plating

• Shaft Diameter: 75 – 90 mm

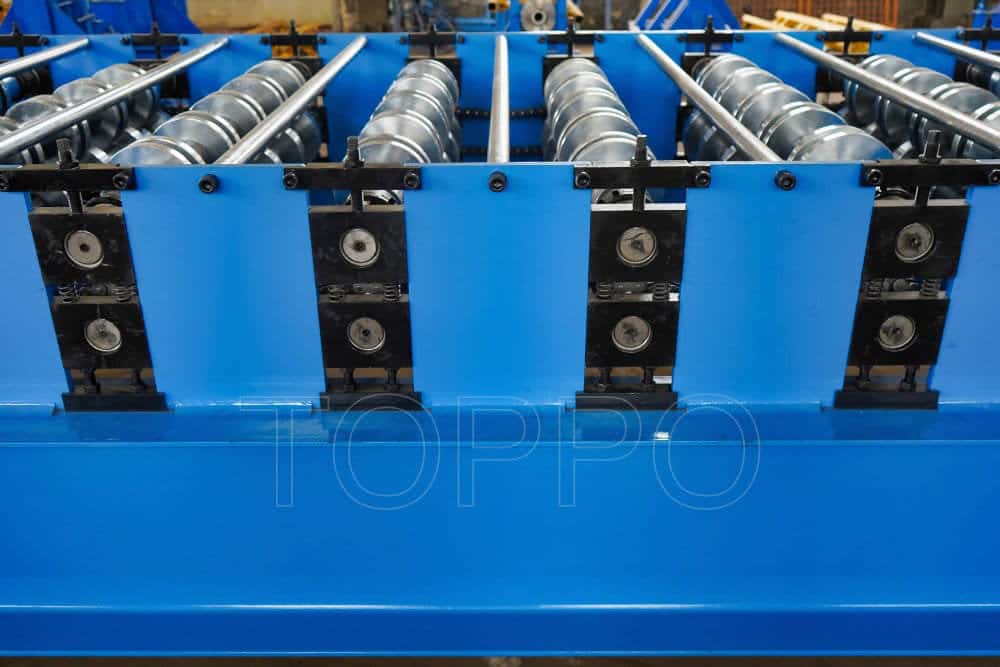

• Base Frame: 350 mm H-beam welded structure

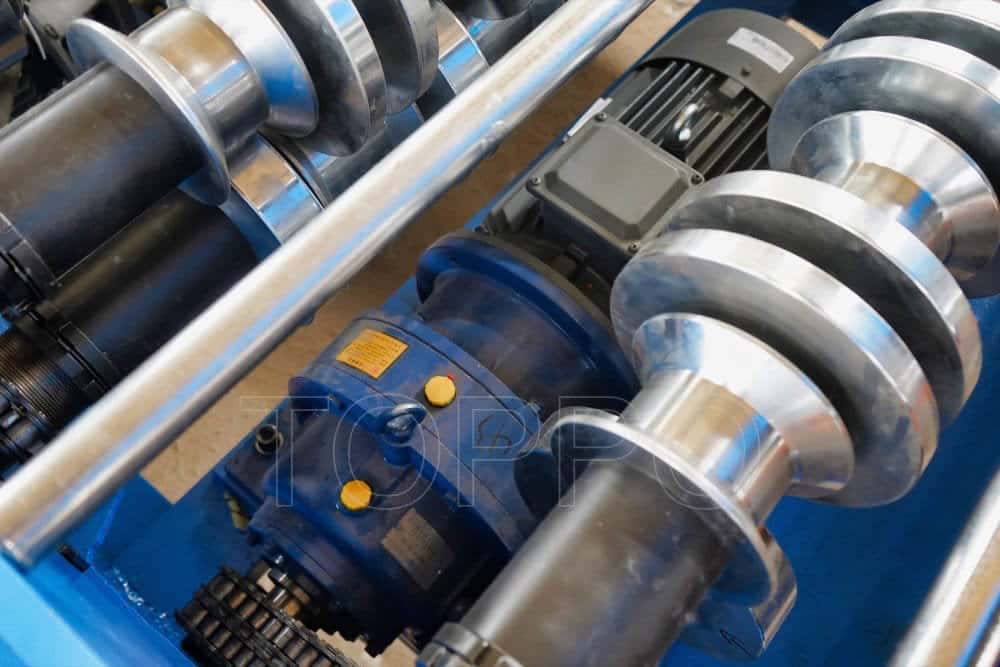

• Drive System: Chain or Gearbox

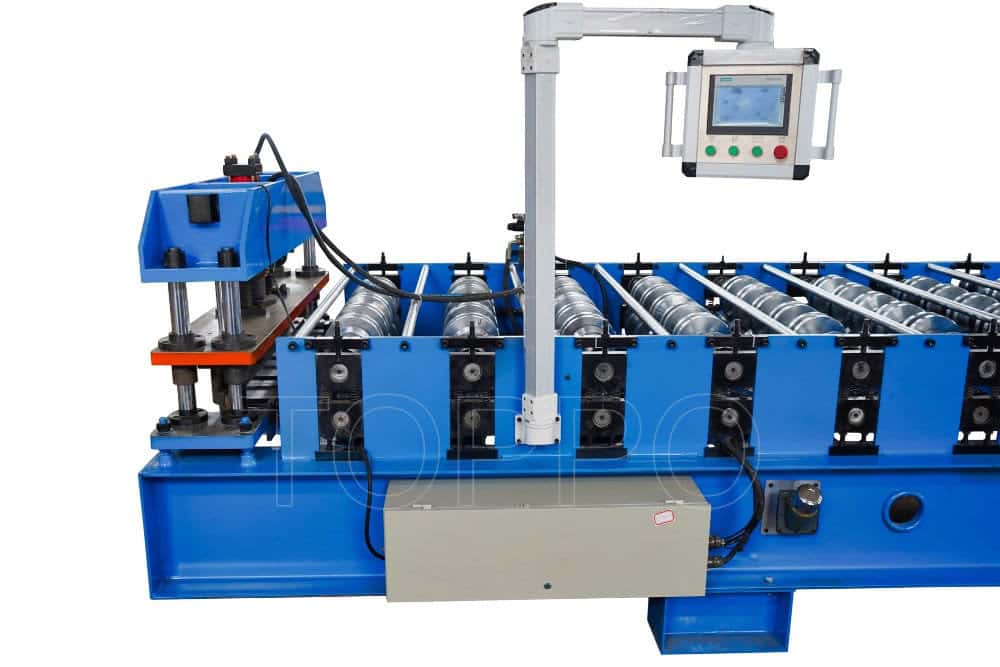

• Control: PLC + 7" Touchscreen (Delta/Siemens)

• Cutting Method: Hydraulic Post-cut with Cr12 blades

• Effective Panel Width: 600 – 1250 mm

• Feeding Width: Based on profile specification

• Precision: ±1 mm length accuracy

• Voltage: 380V/50Hz/3Phase (customizable)

• Cooling System: Optional air or oil cooler

• Color: Blue standard, customizable on request

• Machine Size: ~8.5 x 1.6 x 1.55 m

• Weight: Approx. 7.5 tons

• Noise Level: ≤70 dB

• Safety: Emergency stop, protective covers

• Warranty: 12 months

• Packaging: Plastic wrapped + steel wire fixation

• Installation Support: On-site or remote assistance

• Training: Video and manual included

• Delivery Time: 30 – 45 working days

Applications

• Industrial roof panel production

• Prefabricated construction panels

• Metal cladding and siding

Advantages

• Smart touchscreen operation for intuitive use

• Durable components with extended service life

• Fast, accurate, and consistent panel forming
