Product Description

The High-Speed Trapezoidal Roll Forming Machine is designed for rapid and reliable manufacturing of trapezoidal roofing sheets. It offers strong frame construction, precise forming rollers, and an advanced control system, ideal for medium to large production volumes.

Machine Configuration & Technical Details

• Material Support: Galvanized steel, color steel, aluminum coils

• Thickness Capacity: 0.3 – 0.8 mm

• Forming Speed: 15 – 22 m/min

• Main Power: 7.5 KW (customizable)

• Hydraulic Cutting Power: 4 KW

• Roller Stations: 16 – 24 steps

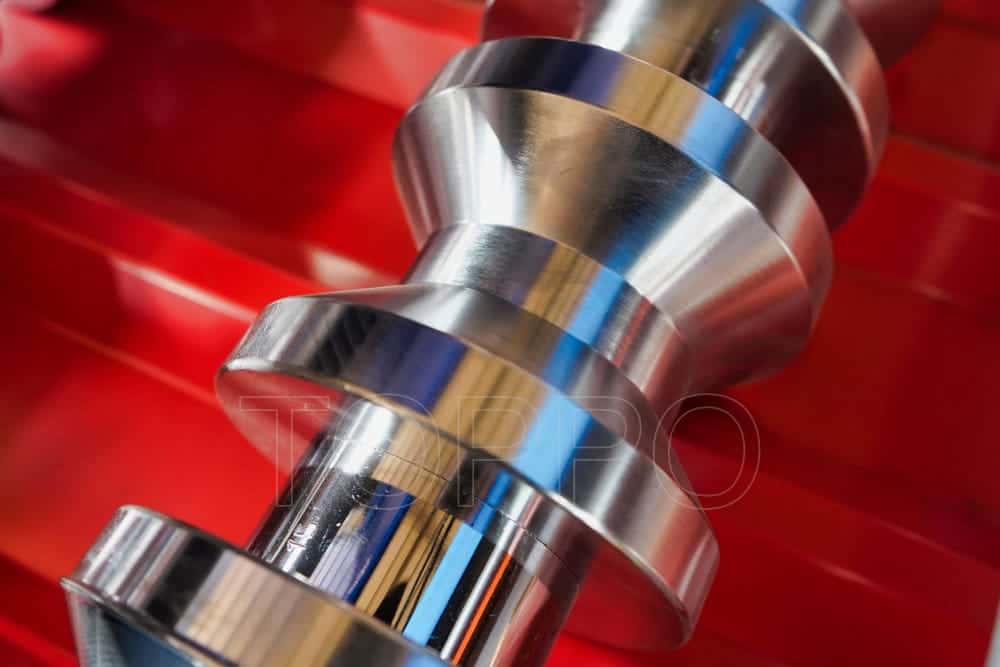

• Roller Material: GCr15 steel with hard chrome plating

• Roller Shaft Diameter: 75 – 95 mm

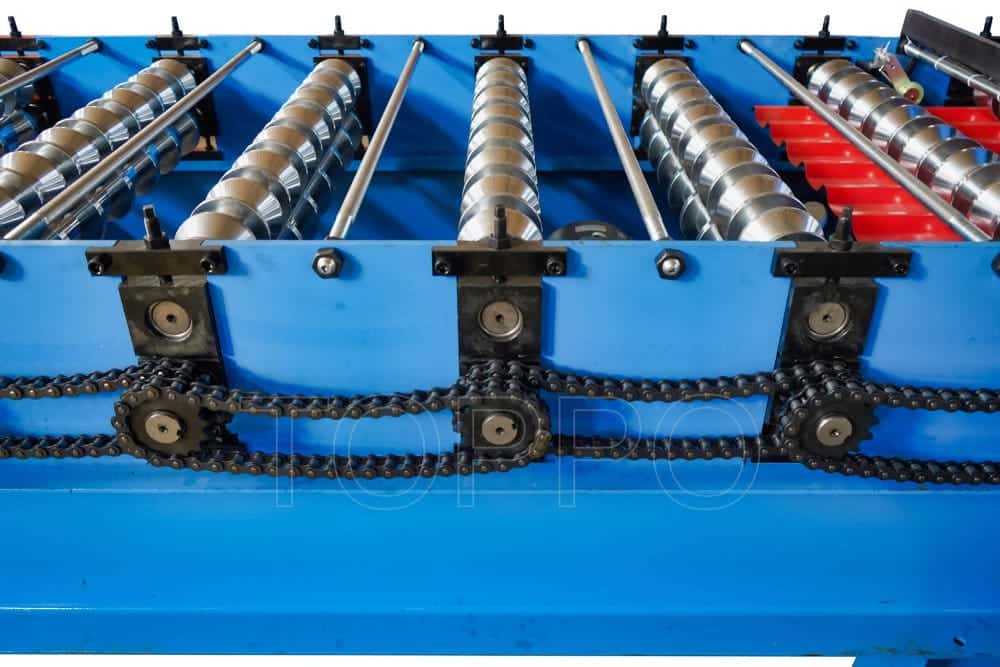

• Machine Frame: 350 H-beam welded base

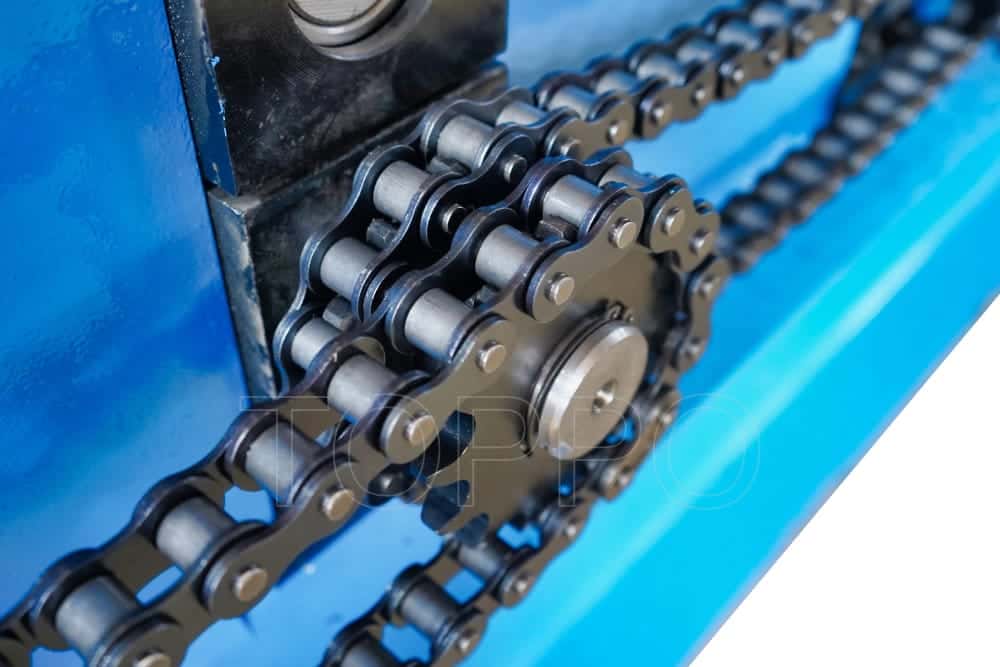

• Drive Method: Chain or Gearbox drive

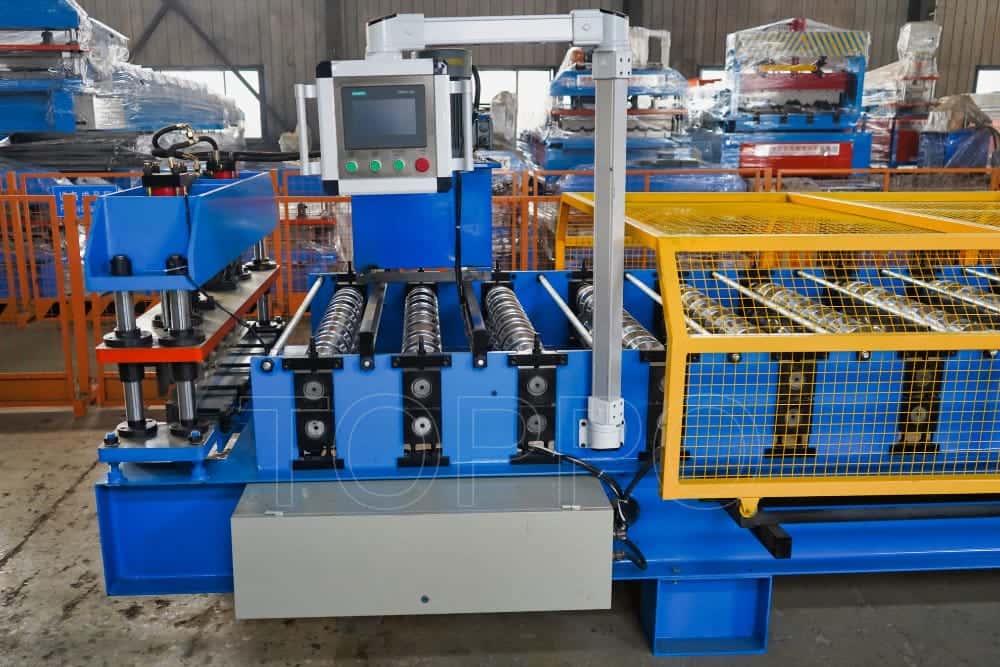

• Controller: PLC with 7" touchscreen HMI (Delta/Siemens)

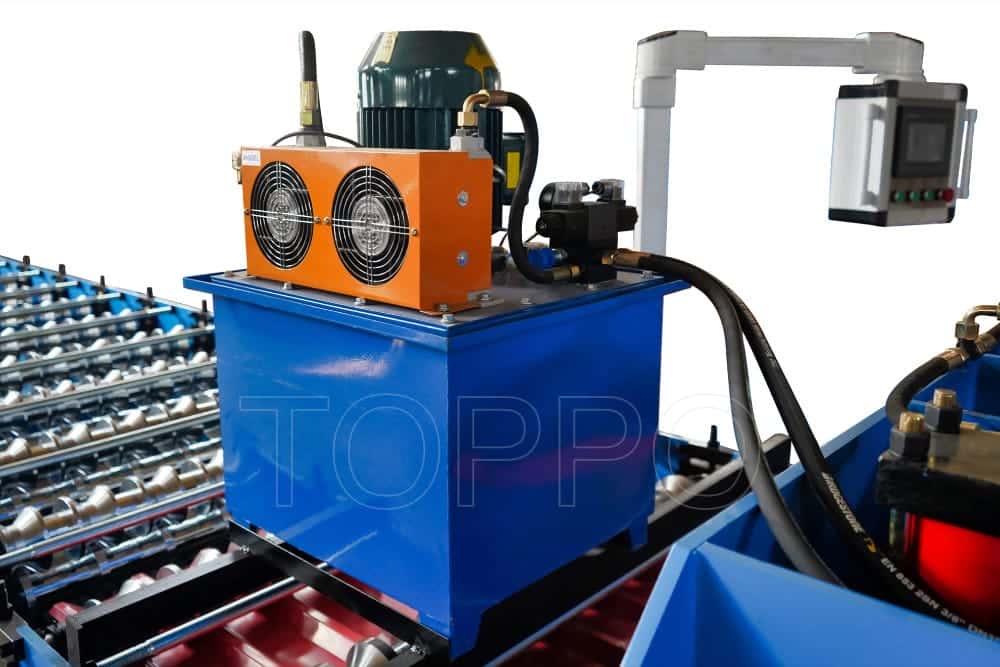

• Cutting Method: Hydraulic post-cutting with Cr12MoV blade

• Panel Width Range: 600 – 1250 mm

• Feeding Width: According to profile design

• Output Accuracy: ±1 mm

• Voltage: 380V/50Hz/3Phase or customized

• Machine Dimensions: 8.5 x 1.6 x 1.5 m (approx.)

• Weight: 6.5 – 8 tons

• Safety: Emergency stop, guard covers, overload protection

• Noise: ≤70 dB

• Color: Blue standard, customizable

• Cooling System: Optional hydraulic oil cooler

• Packaging: Waterproof film and wire fix in container

• Installation: Remote guidance or on-site support

• Warranty: 1 year

• Training: Manual + operation video

Applications

• Roofing panel production for warehouses, factories

• Steel structure projects

• Metal building envelope solutions

Benefits

• Fast forming speed improves productivity

• Precision rollers ensure consistent output

• Heavy-duty design for long-term operation
