Product Description

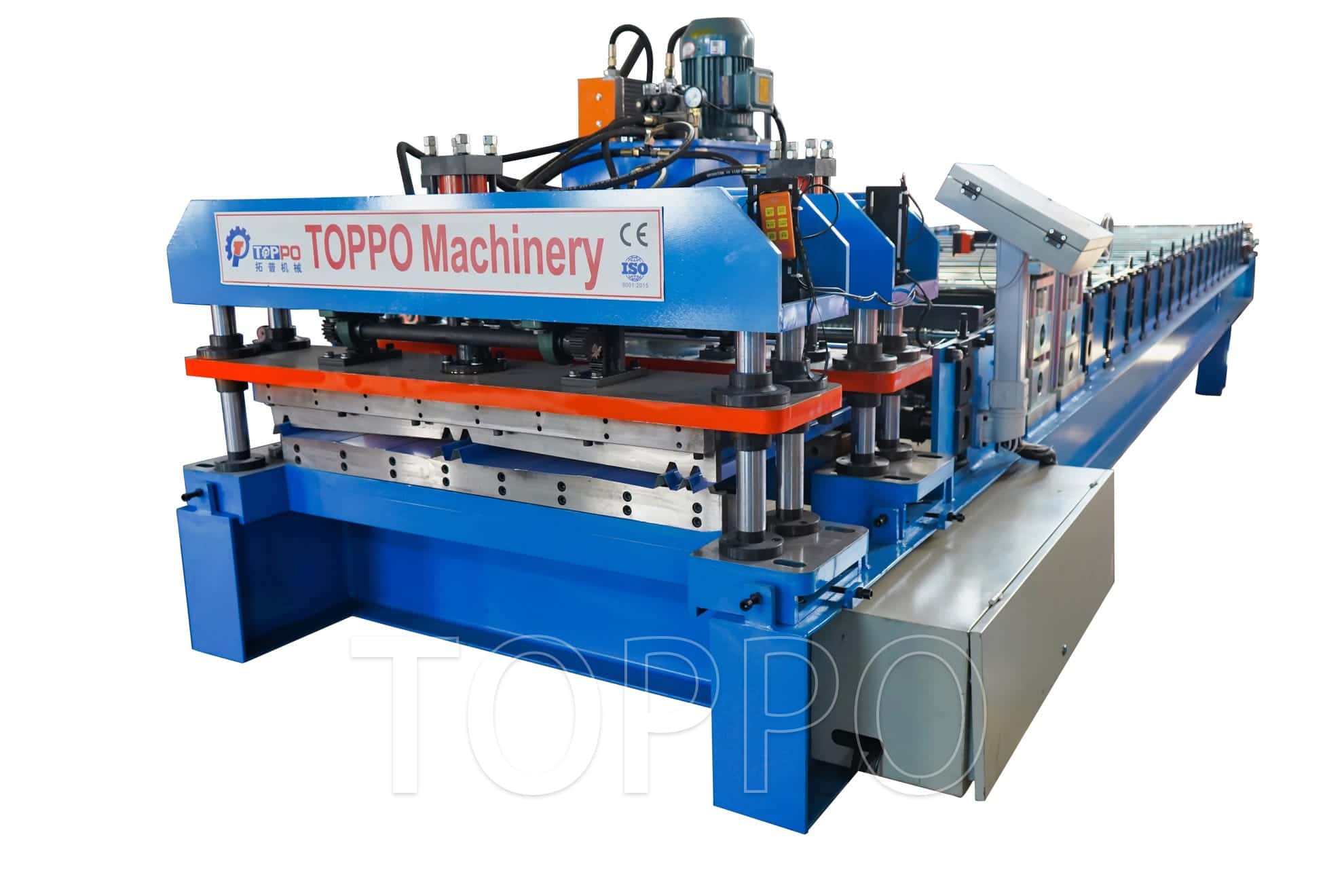

The Automated Trapezoidal Roll Forming Machine is engineered for stable and continuous operation in industrial roofing panel manufacturing. With an upgraded hydraulic system and user-friendly touchscreen control, this machine delivers superior panel accuracy and forming speed for large-scale production lines.

Technical Data & Functional Highlights

• Supported Material: Galvanized steel, PPGI, Aluminum

• Material Thickness: 0.3 – 0.8 mm

• Forming Speed: 12 – 20 m/min

• Main Motor Power: 7.5 KW

• Hydraulic Station Power: 5.5 KW

• Roller Steps: 16 – 24 stations

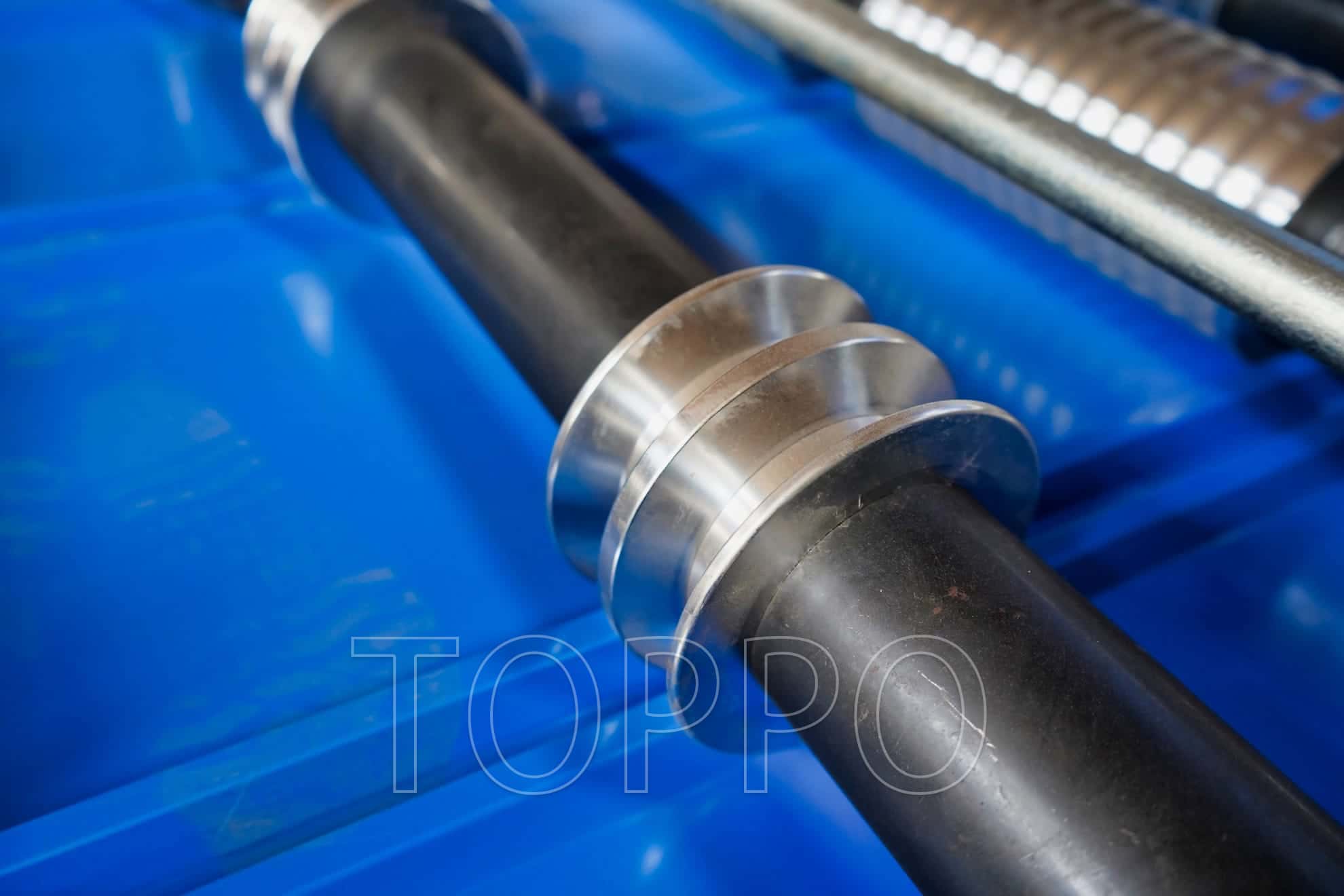

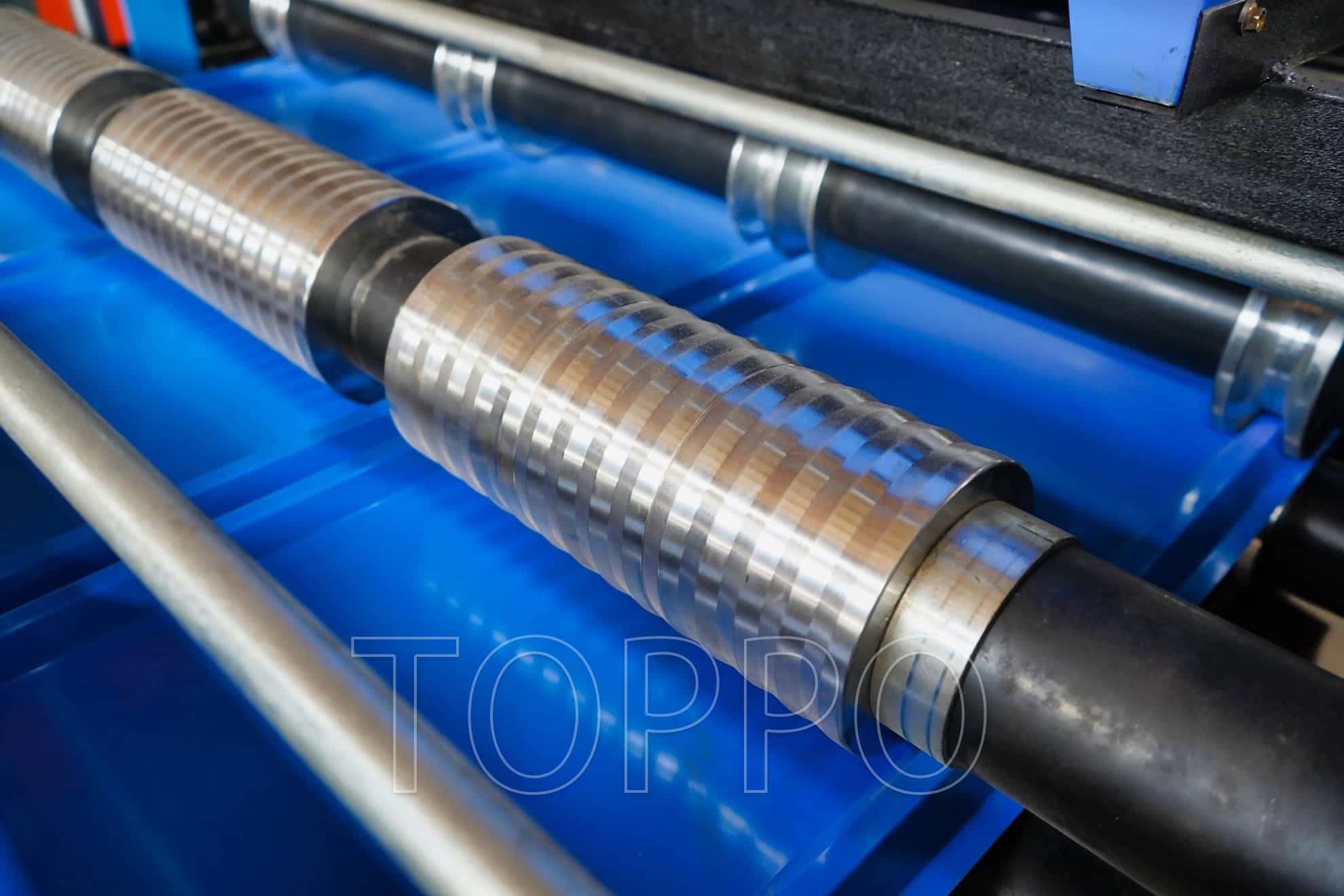

• Roller Material: GCr15 alloy steel, quenched + chrome plated

• Shaft Diameter: 75 – 95 mm

• Frame Base: 350 – 400 mm H-beam welded

• Control System: Delta PLC + 7" touchscreen (multi-language)

• Drive: Gearbox drive or chain drive

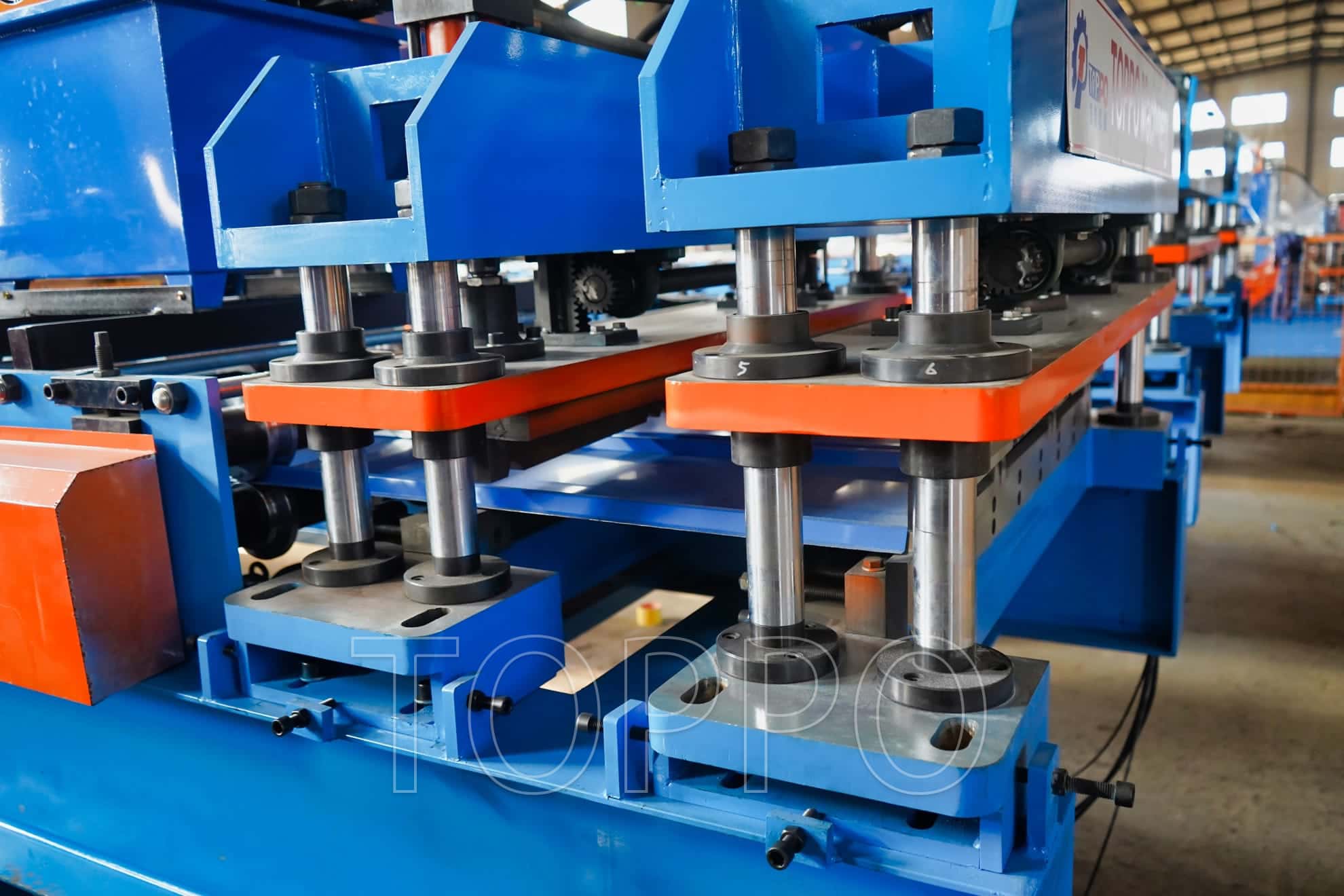

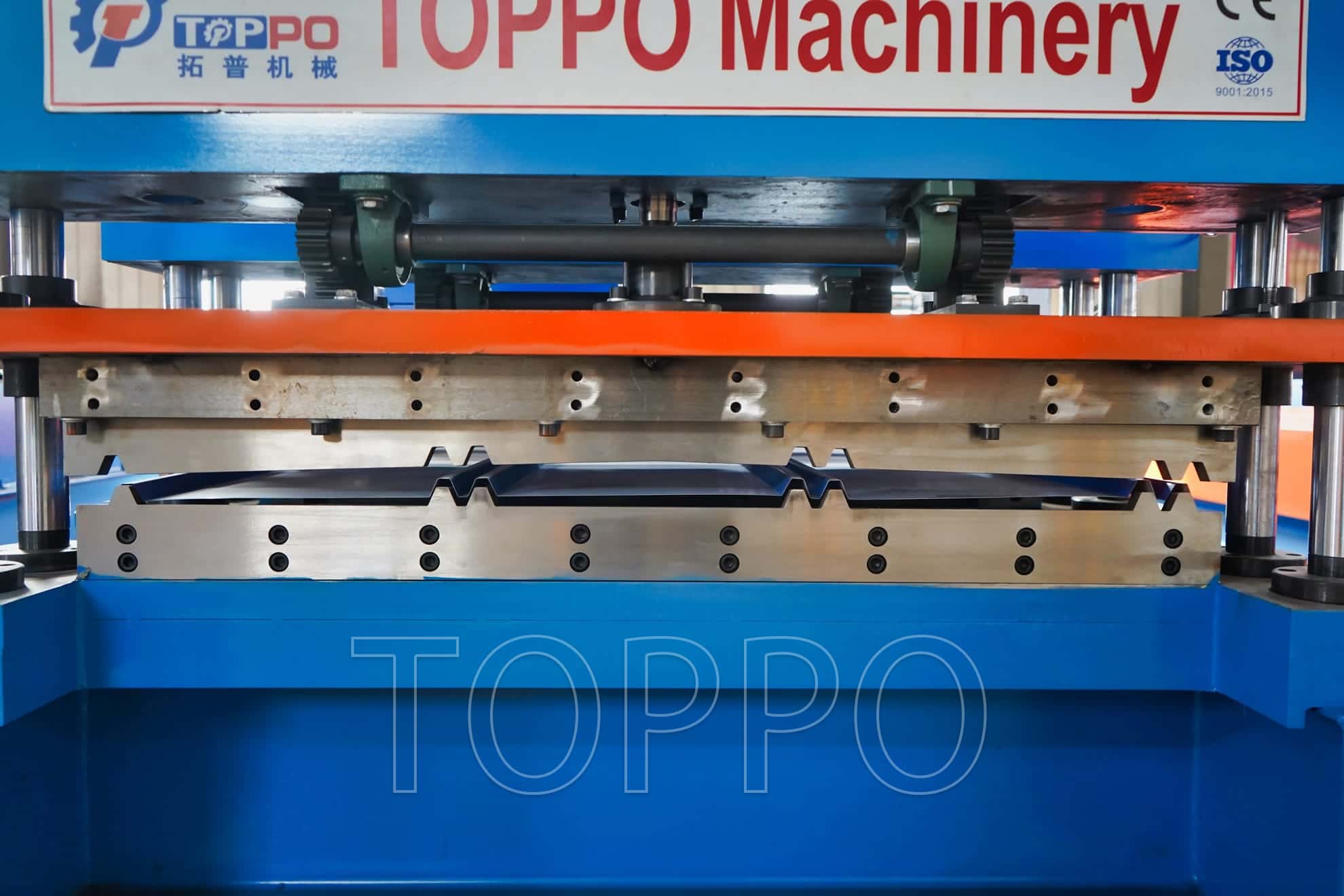

• Cutting System: Hydraulic post-cut with Cr12MoV blade

• Effective Panel Width: 600 – 1250 mm

• Feeding Width: Customized as per drawing

• Cutting Accuracy: ±1 mm

• Noise Level: ≤70 dB

• Voltage: 380V/50Hz/3Phase (or customized)

• Cooling: Optional oil cooling unit

• Paint Color: Blue (custom color available)

• Machine Dimensions: ~8.5 x 1.6 x 1.55 m

• Weight: Approx. 7 tons

• Safety: Full cover protection, emergency stop switch

• Certification: ISO9001, CE

• Warranty: 12 months

• Packaging: Plastic wrap + steel fixing for sea shipping

• Delivery Time: 30 – 45 days

• Training: Video instructions and manual provided

Applications

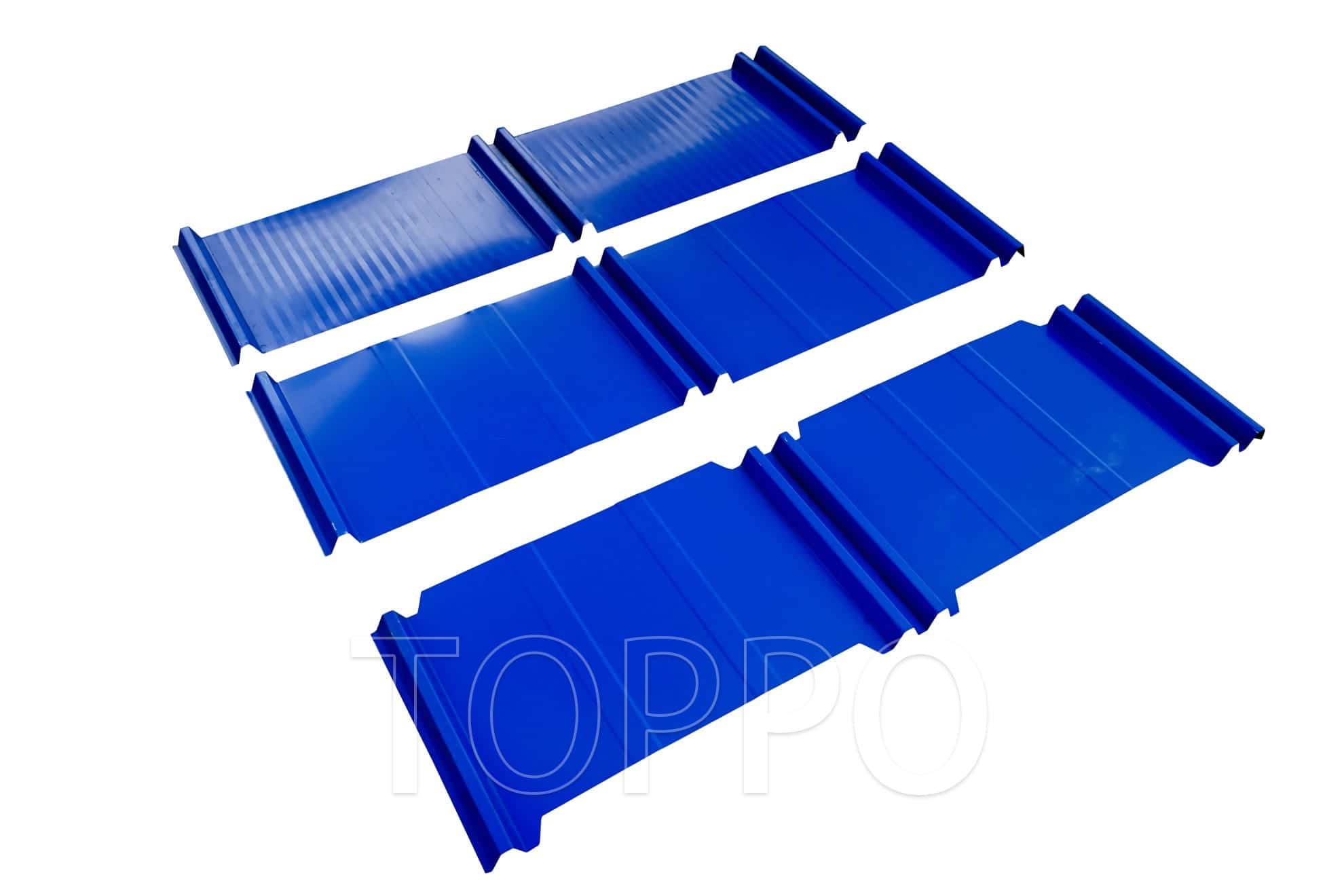

• Metal roofing sheet manufacturing

• Prefabricated structure fabrication

• Construction material production

Advantages

• Fully automated control with integrated hydraulic unit

• Consistent and high-speed panel forming

• Built for long-term industrial usage
