Product Features

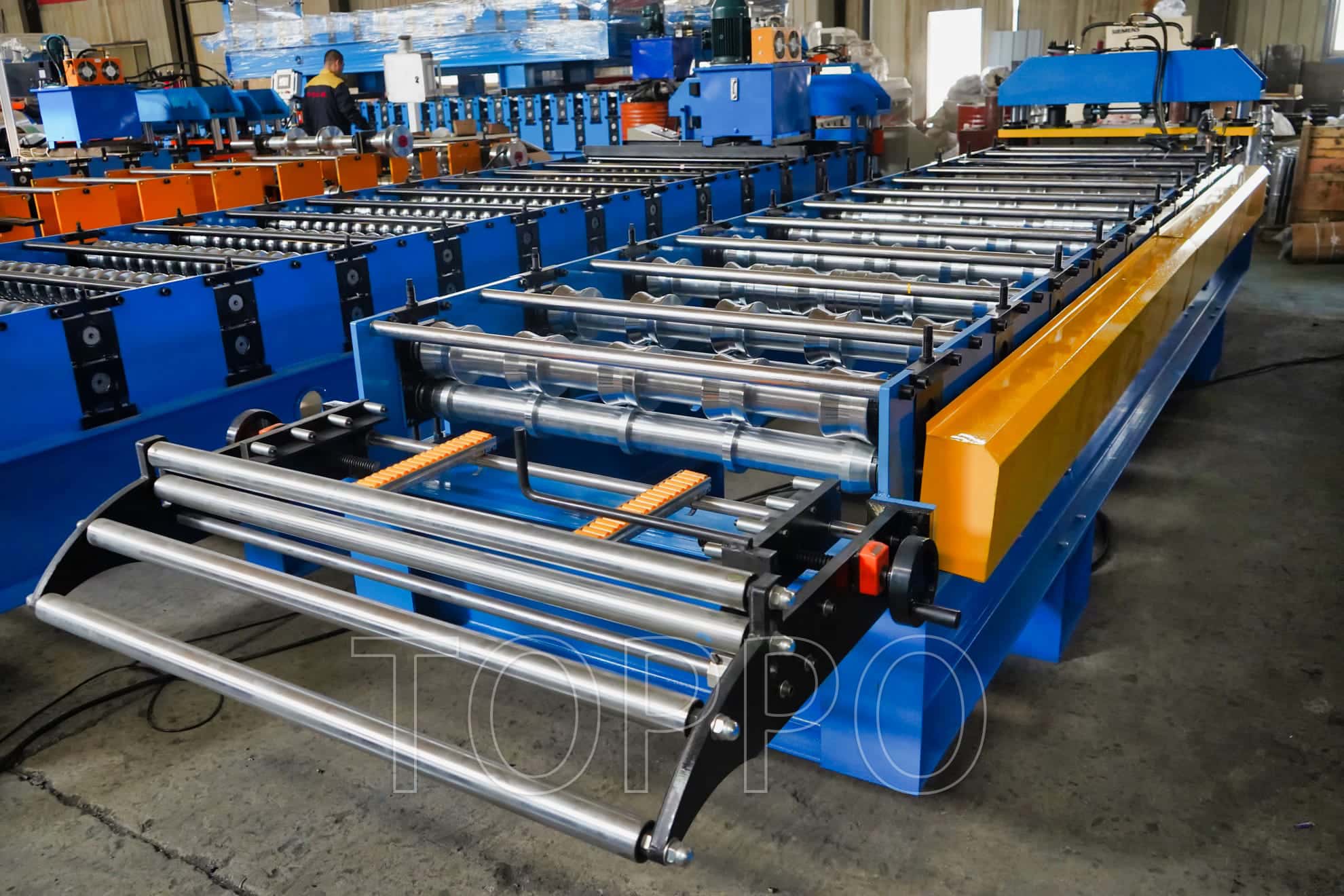

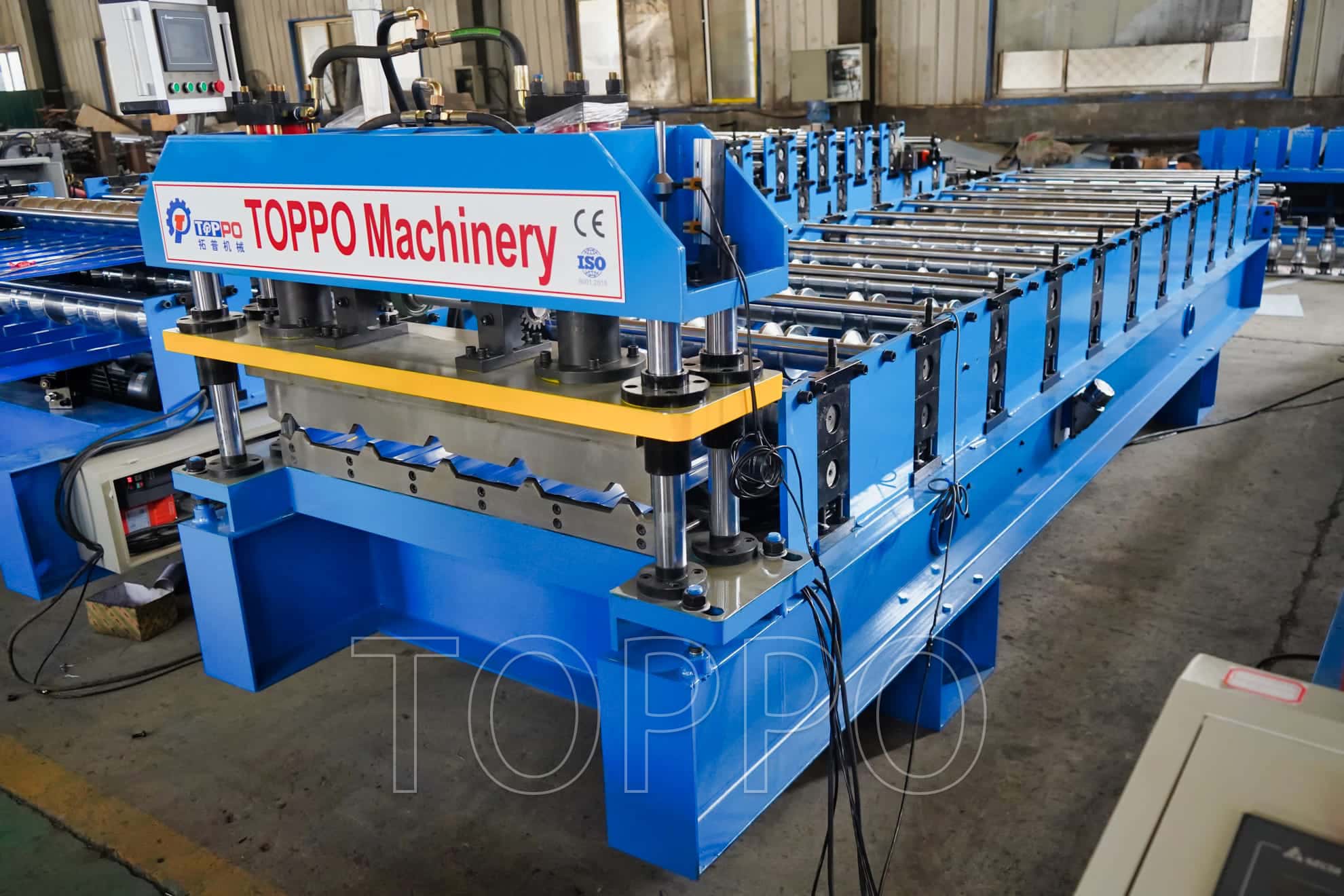

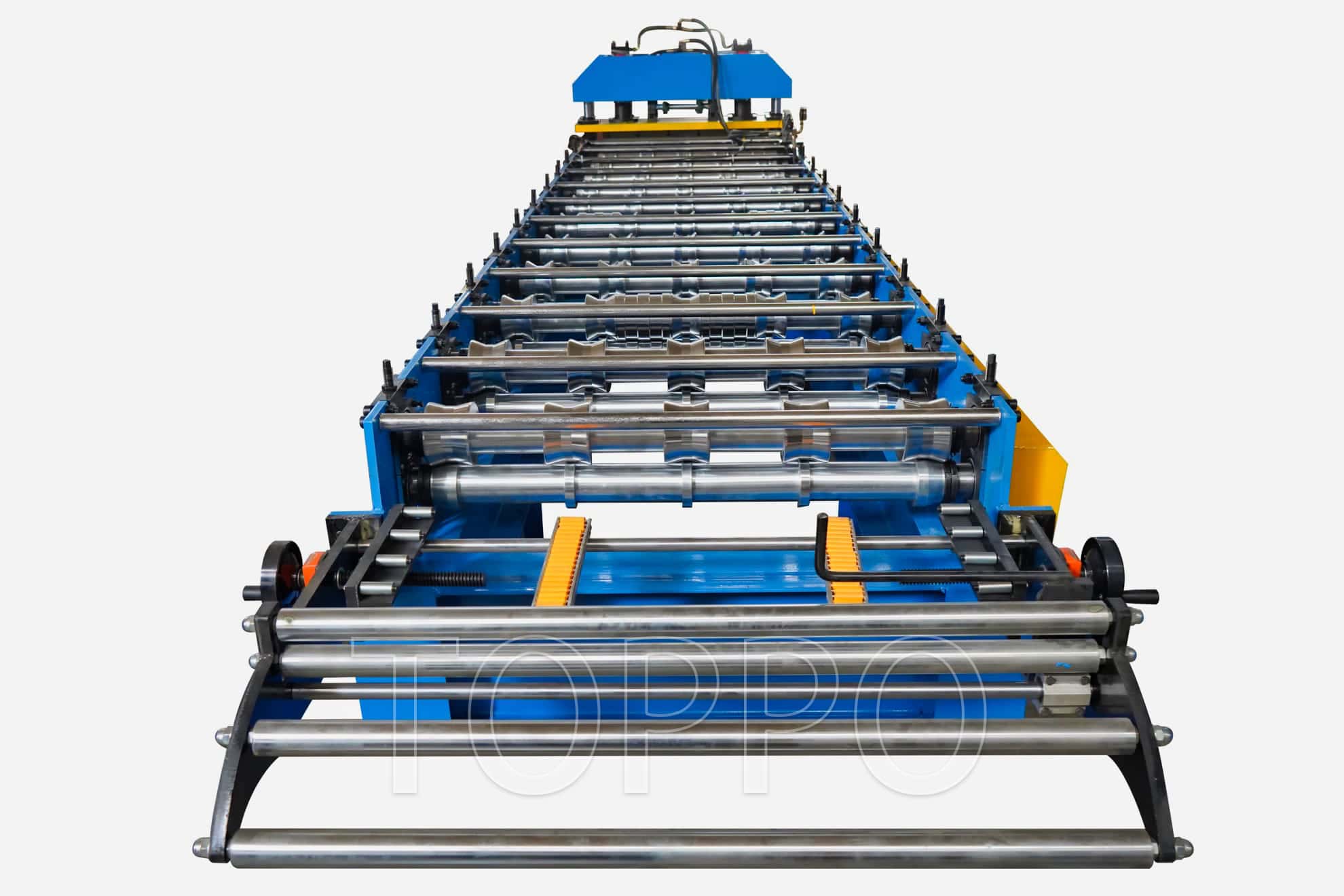

• Machine Type: Trapezoidal Roll Forming Machine

• Application: Metal Roofing Sheet, Wall Panel

• Material: Galvanized Steel, Color Steel, PPGI

• Control System: PLC (Delta brand)

• Operation: Touchscreen HMI

• Power Supply: 380V/50Hz/3Phase (customizable)

• Main Motor Power: 5.5kW – 7.5kW

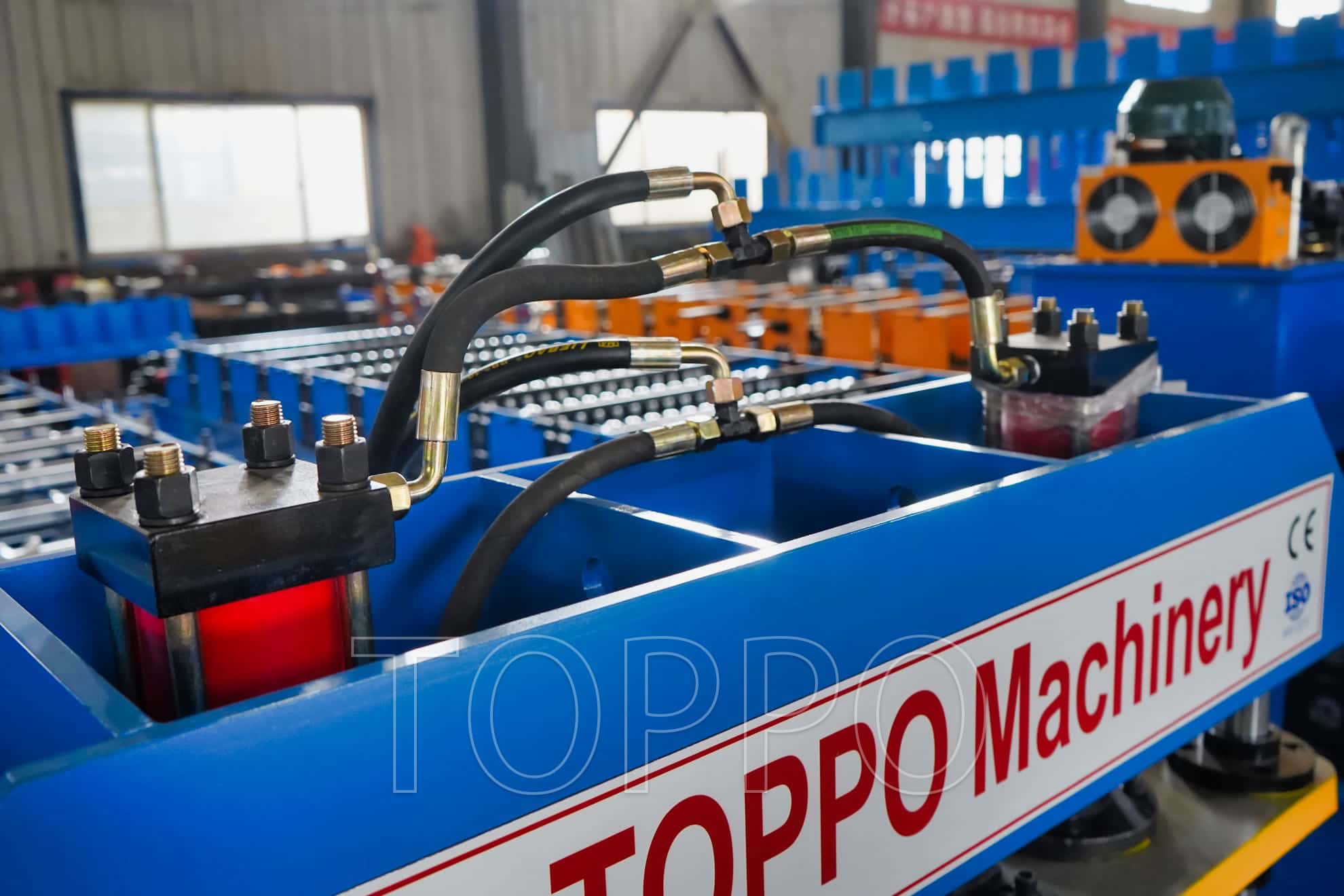

• Hydraulic Cutting Power: 4kW

• Forming Speed: 8–15m/min

• Roller Stations: 18–24 stations (customized)

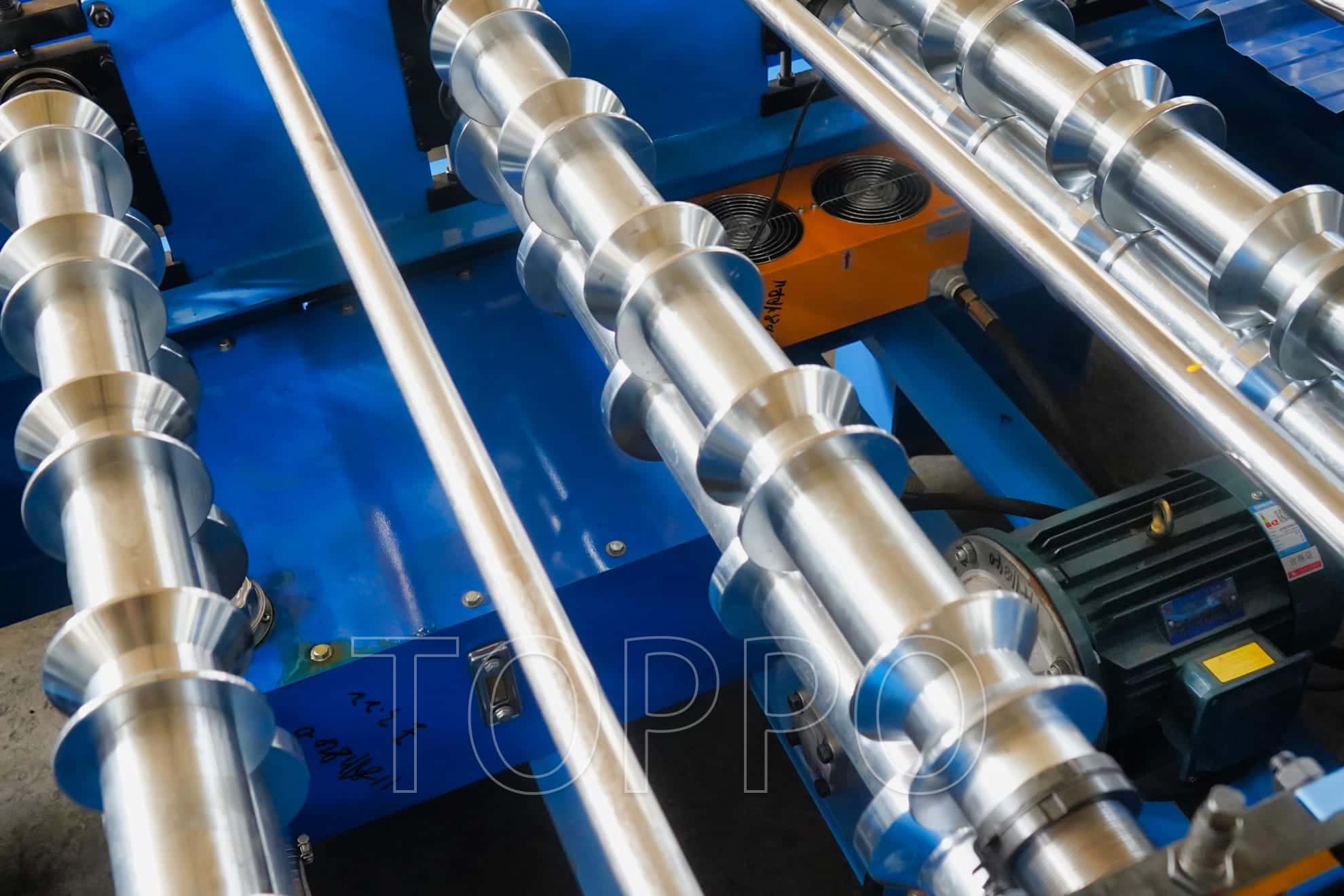

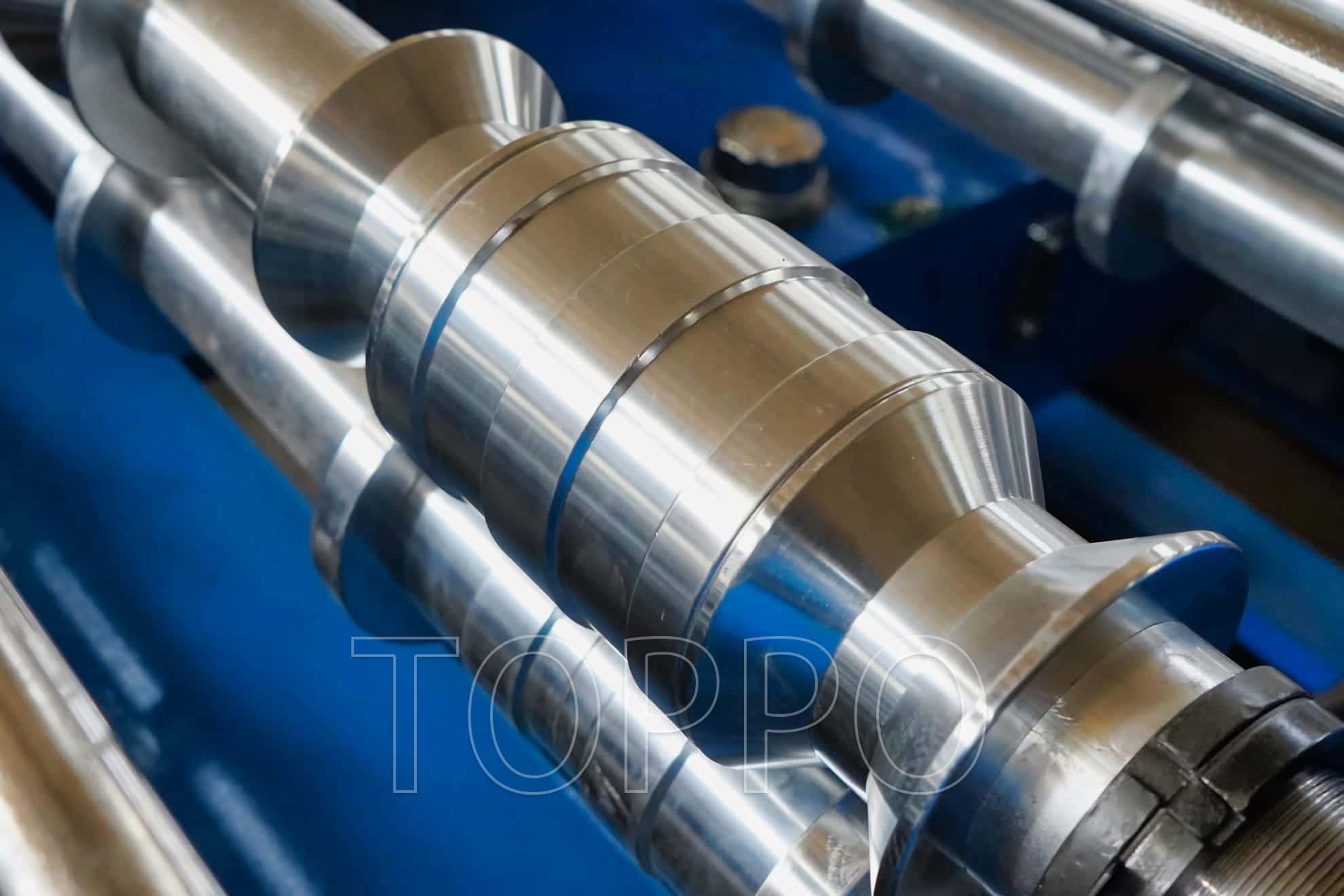

• Roller Material: 45# steel, hard chrome plated

• Shaft Material: 75mm solid shaft, quenched

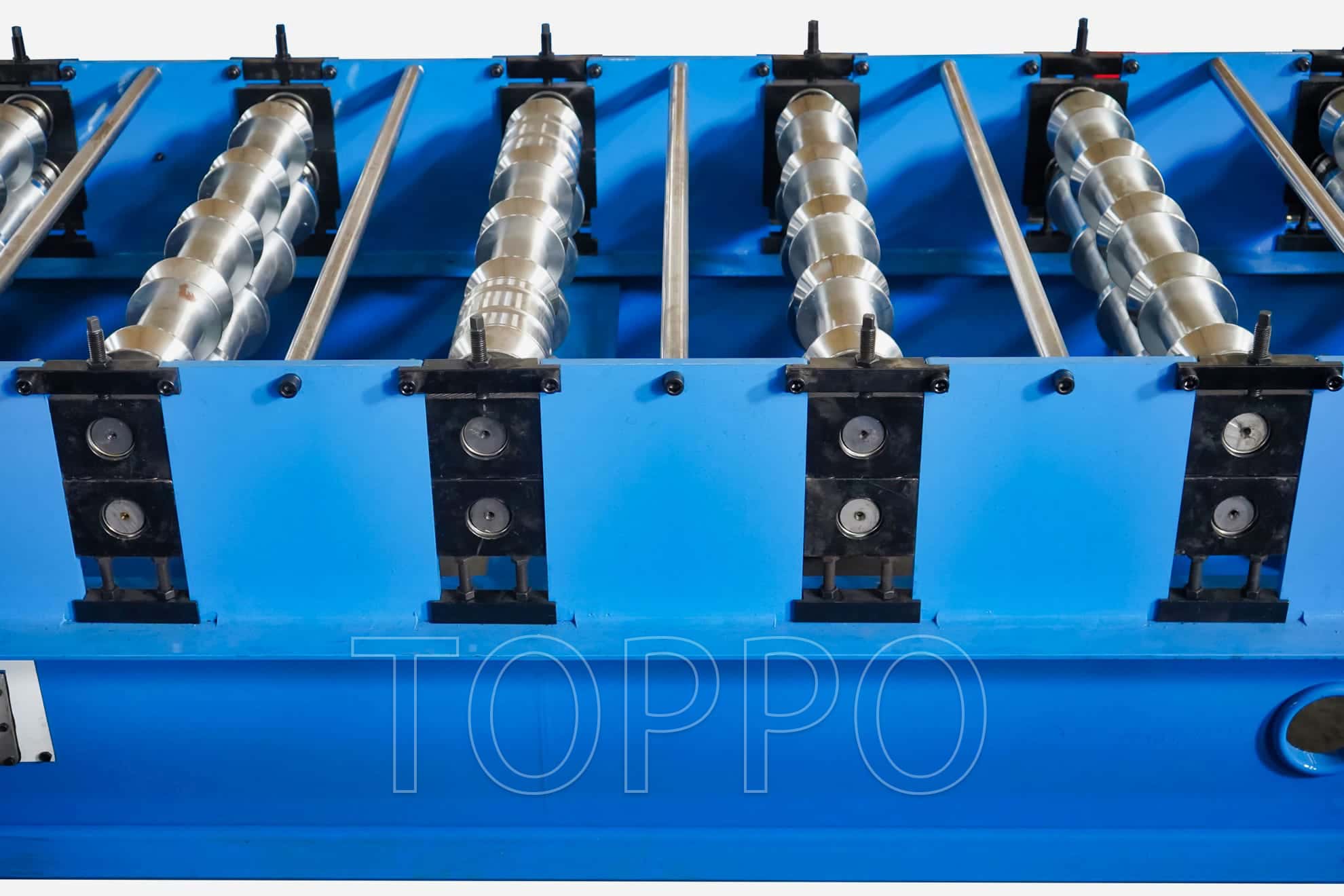

• Machine Frame: 300H steel with welded structure

• Transmission: Chain drive or gearbox (optional)

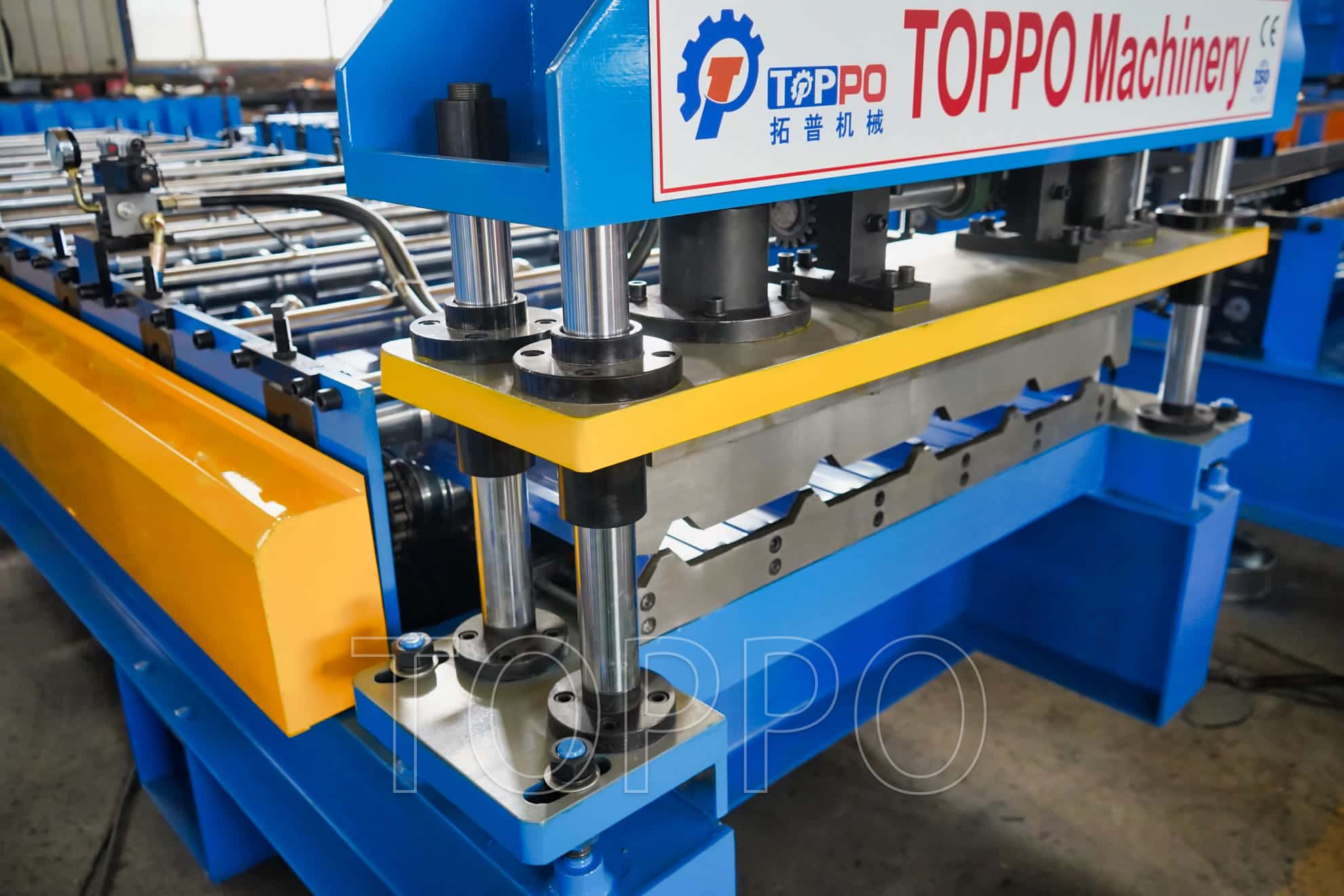

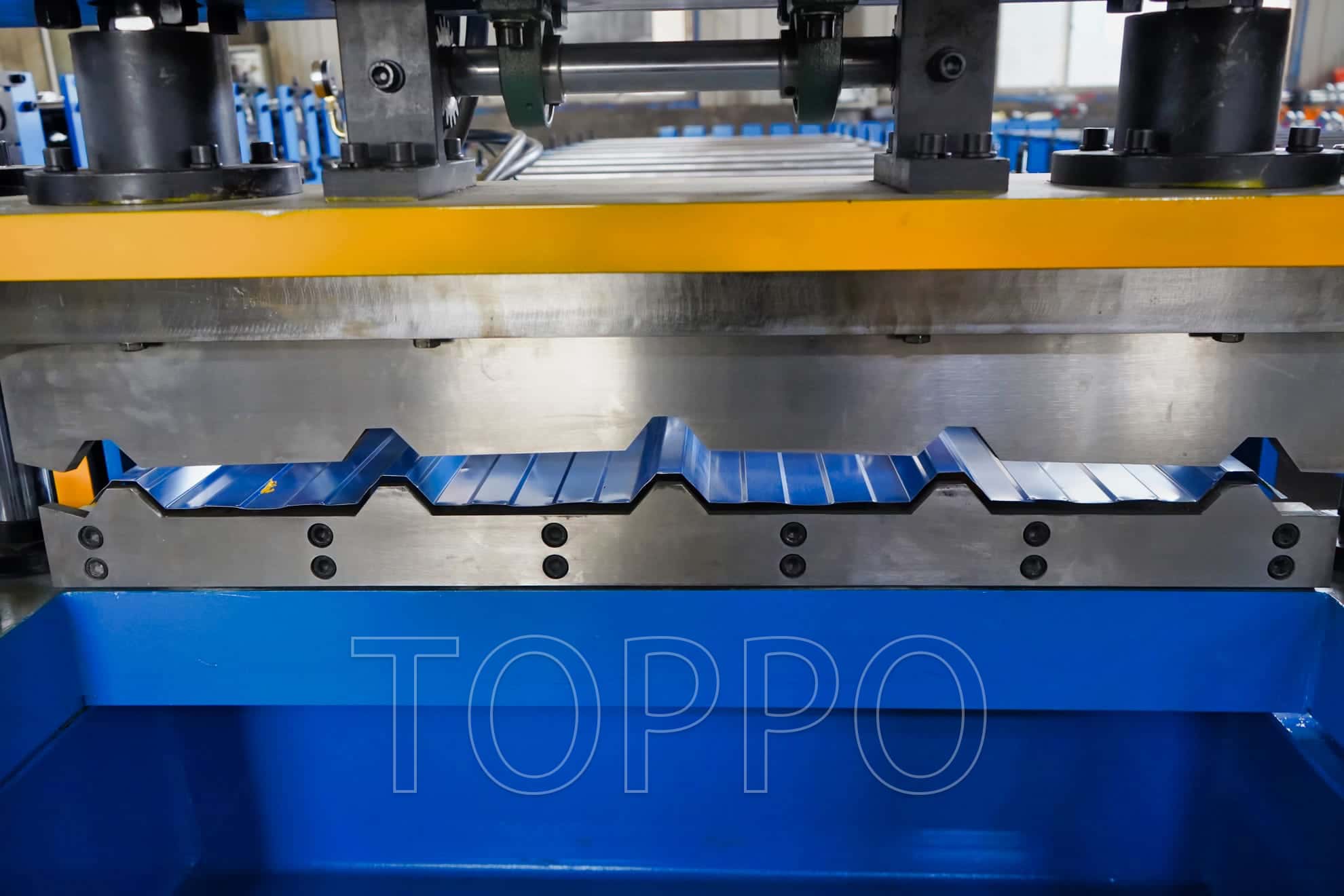

• Cutting Type: Hydraulic post-cutting

• Cutter Blade Material: Cr12Mov with heat treatment

• Machine Base: Heavy-duty steel structure

• Control Cabinet: Integrated electrical cabinet

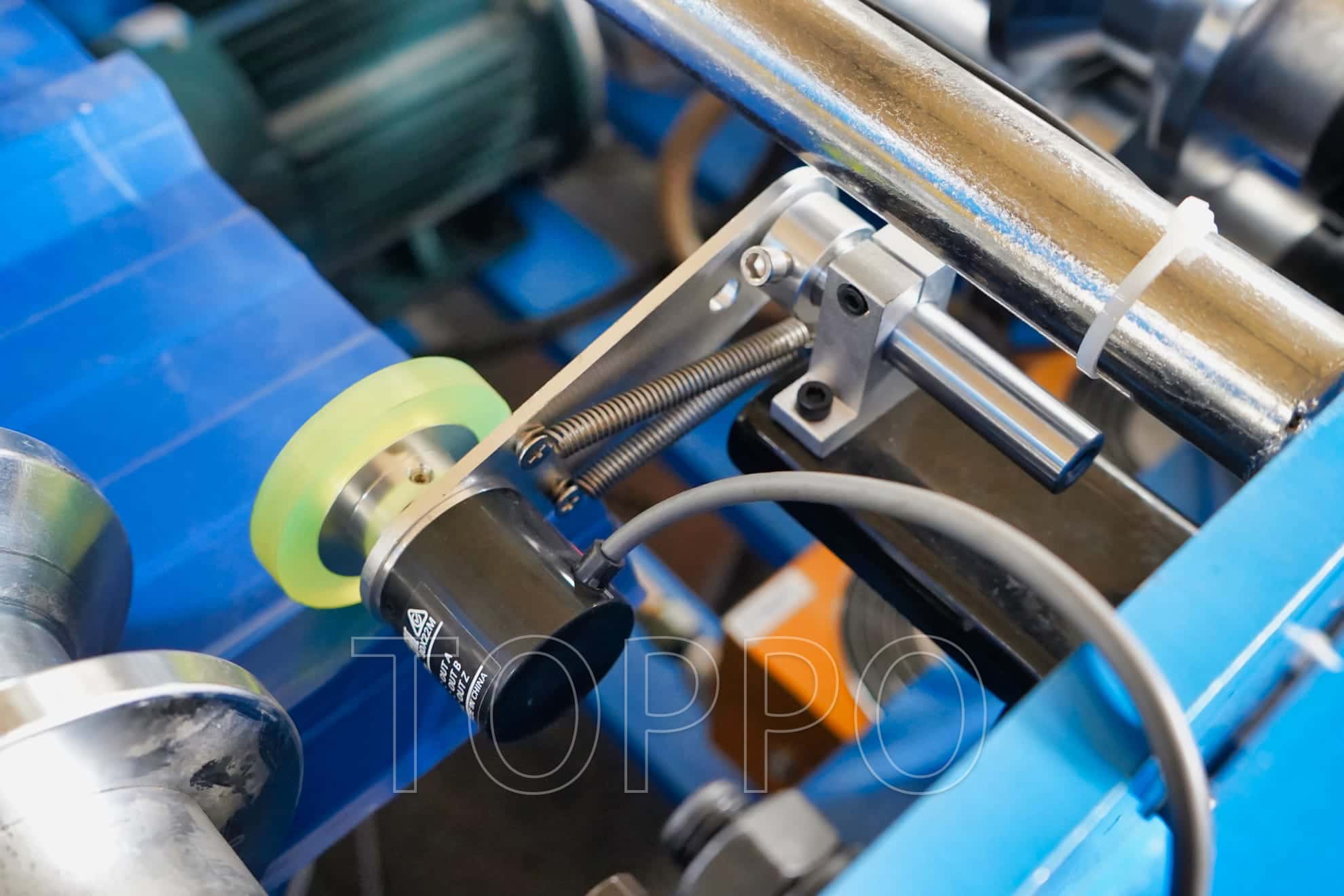

• Encoder: Omron (Japan)

• Inverter: Delta (Taiwan)

• Hydraulic Pump: Reputable domestic brand

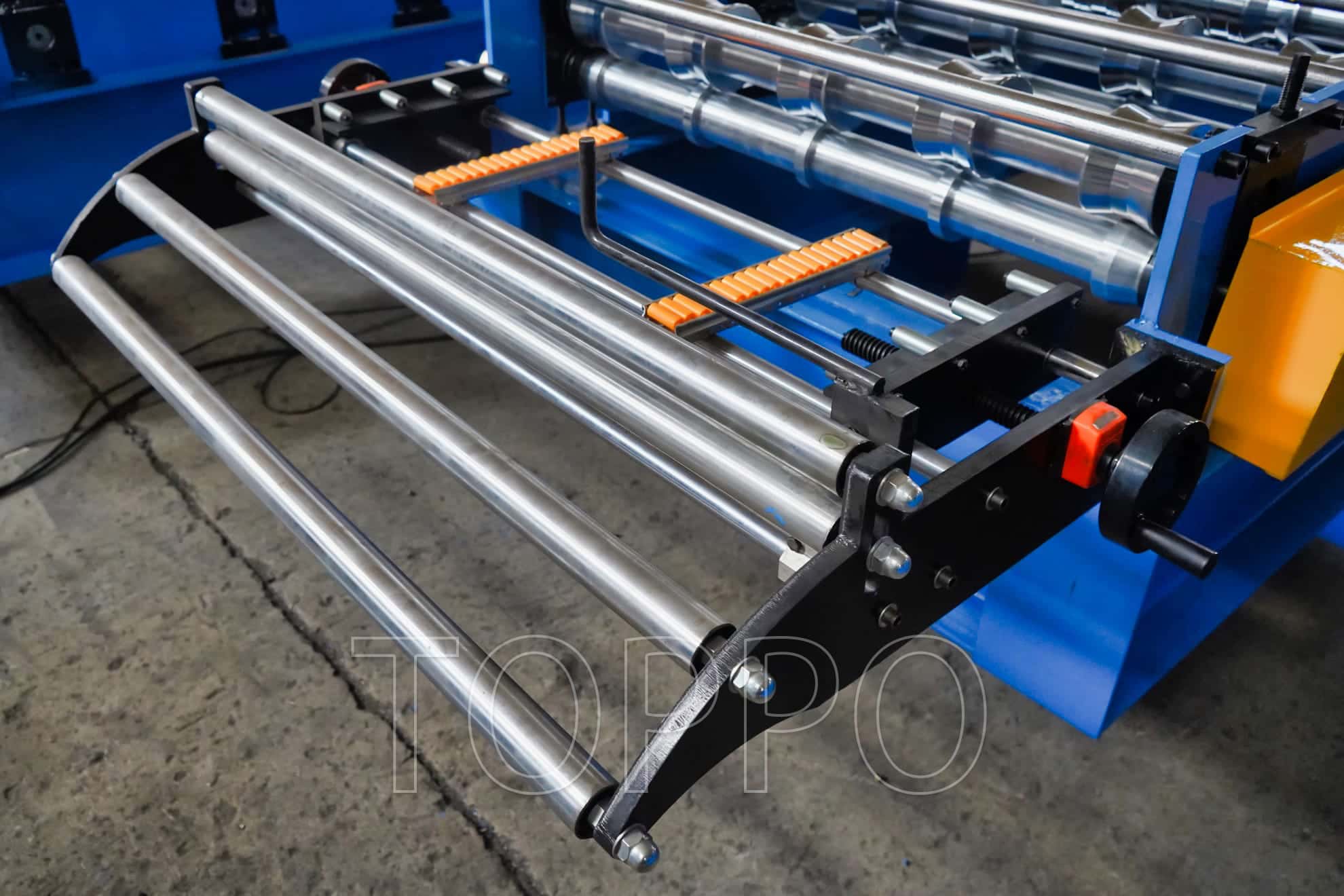

• Line Leveling Device: Manual adjustment

• Safety Guard: Equipped with emergency stop and safety covers

• Working Temperature: -10℃ to 45℃

• Installation Dimension: About 10m x 1.2m x 1.5m

• Total Weight: Approx. 6.5 tons

• Production Tolerance: ±1mm

• Surface Treatment: Powder coating & rust prevention

• Support Profile Width: 914mm / 1000mm / 1200mm (customizable)

• Feeding Material Thickness: 0.3–0.8mm

• Support Roll Formed Types: Trapezoidal, Corrugated (optional)

• Language Support: Multi-language operation interface

• Production Capacity: 500–800m² per day

• Warranty: 1 Year Limited Warranty

• After-sales Service: Engineers available overseas

• Certification: CE & ISO Approved

• Optional Features: Auto stacker, hydraulic decoiler, embossing roller

• Lead Time: 30 days

• Packing: Nude packing with waterproof film

Application

This trapezoidal roll forming machine is widely used for producing high-quality roofing sheets and wall panels in industrial, commercial, and residential construction projects.
