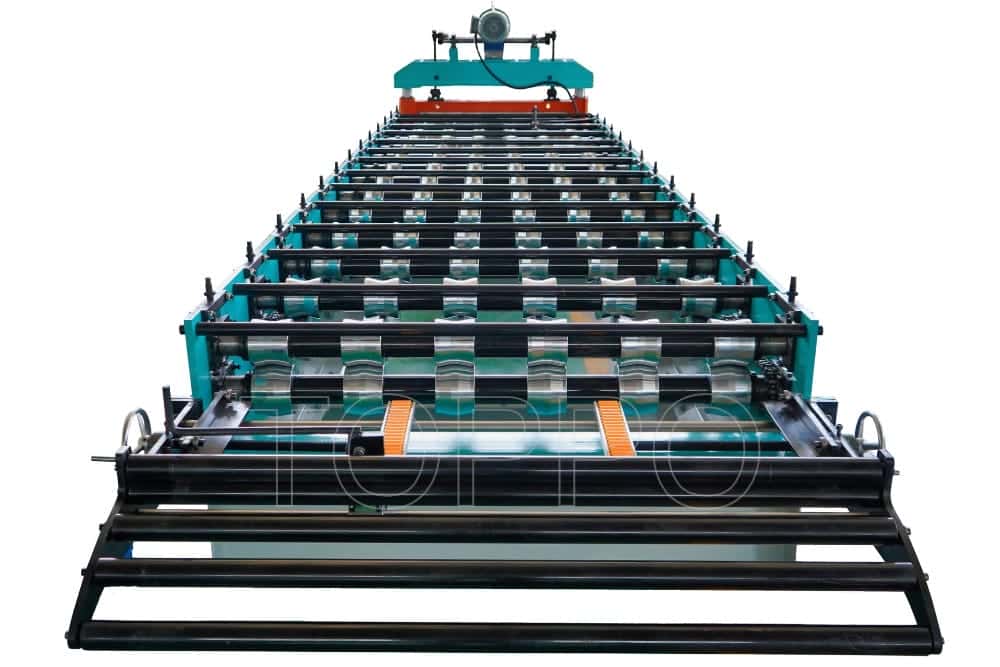

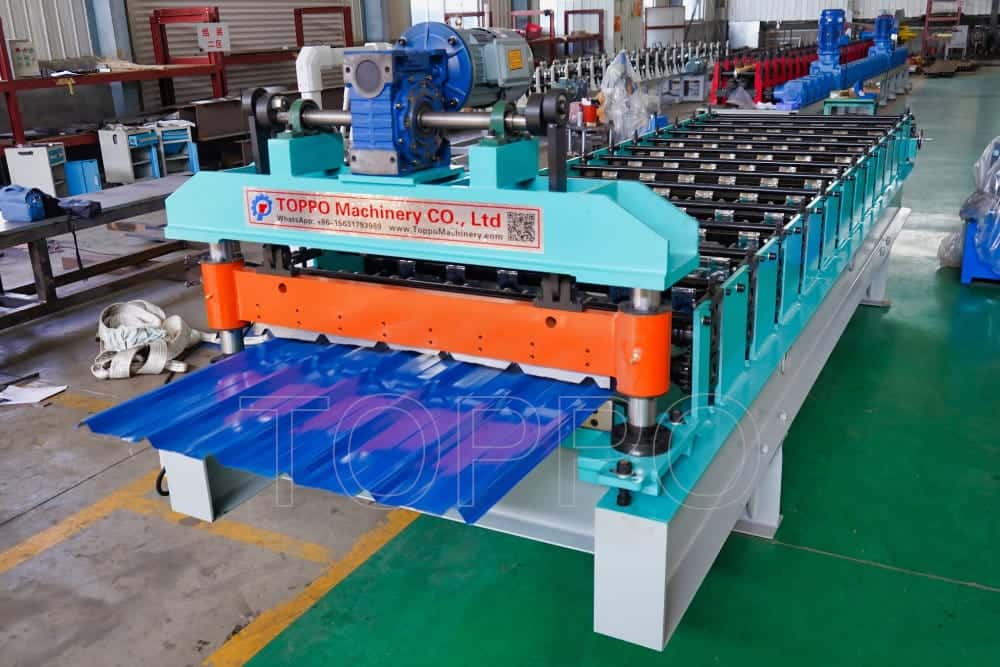

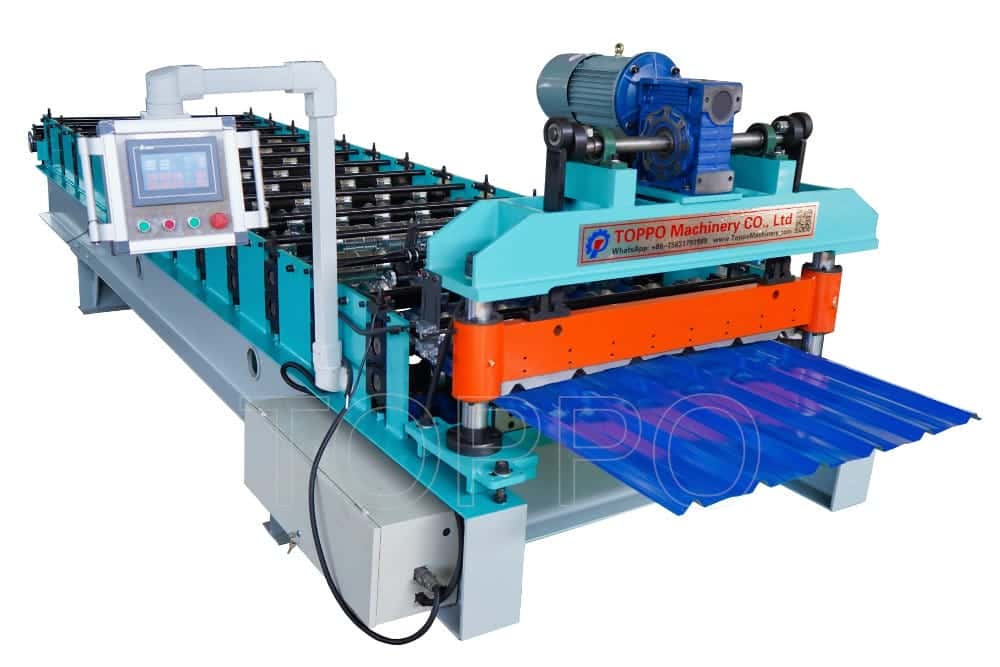

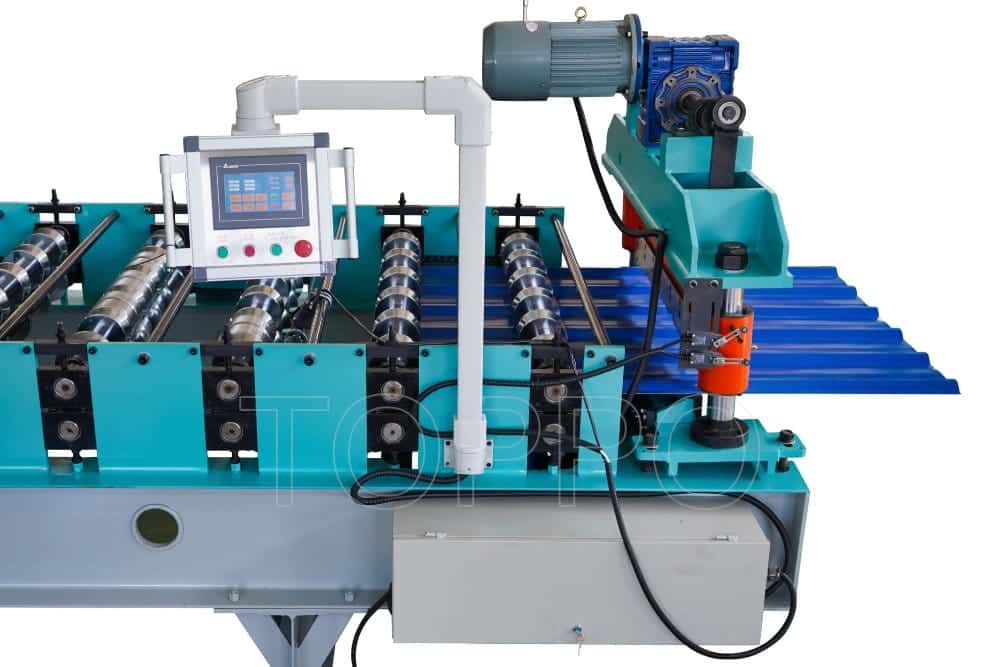

The Hydraulic Trapezoidal Roll Forming Machine with Integrated Cooling Fan is a high-efficiency system designed for producing precise trapezoidal sheet profiles. This machine integrates advanced hydraulic cutting, PLC touchscreen control, and heavy-duty rollers to ensure consistent panel quality for industrial and commercial applications.
Hydraulic cutting system
Integrated cooling fan for motor protection

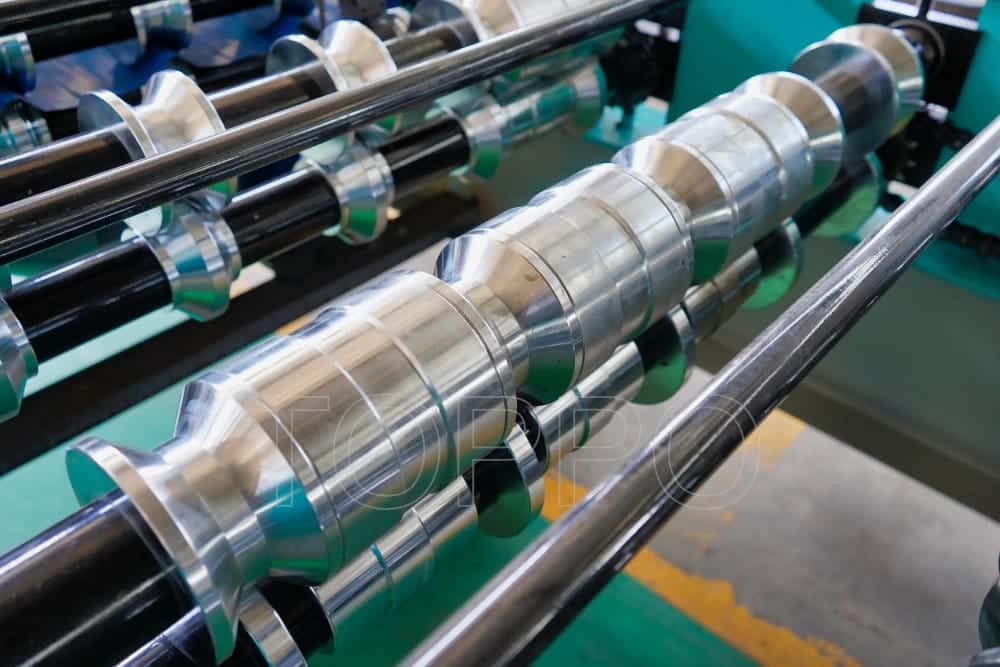

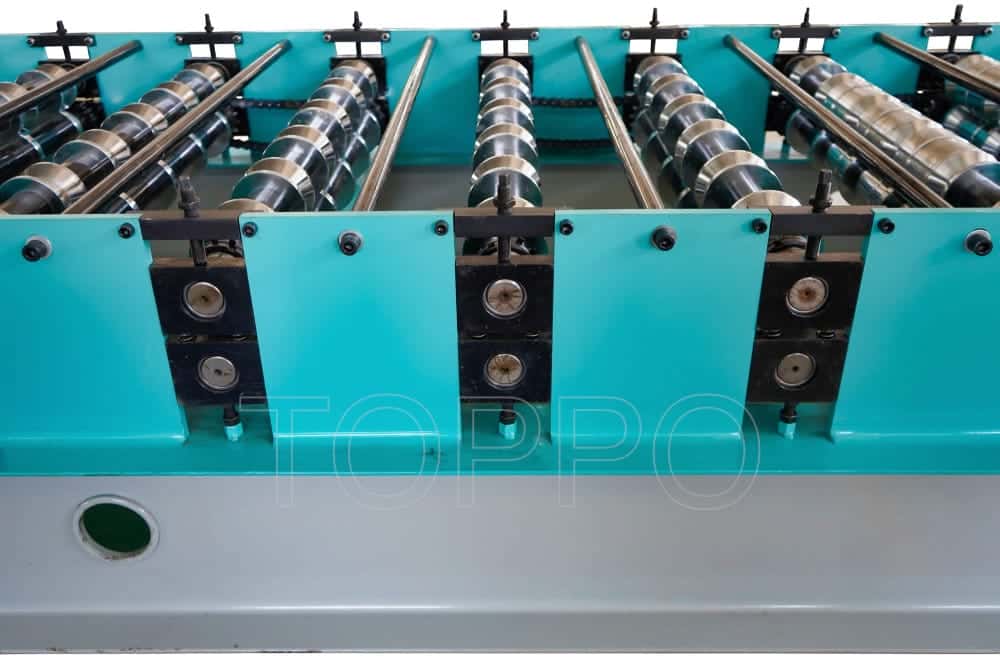

Heavy-duty rollers for consistent forming

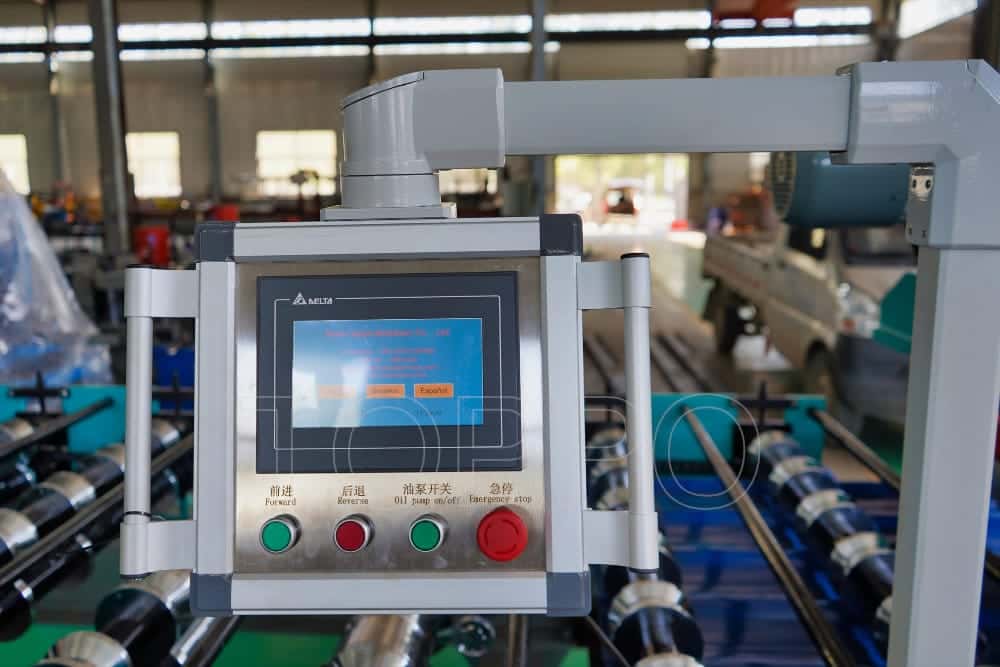

PLC touchscreen control (Delta/Siemens optional)
High-speed roll forming up to 15-20m/min
Auto length and quantity setting

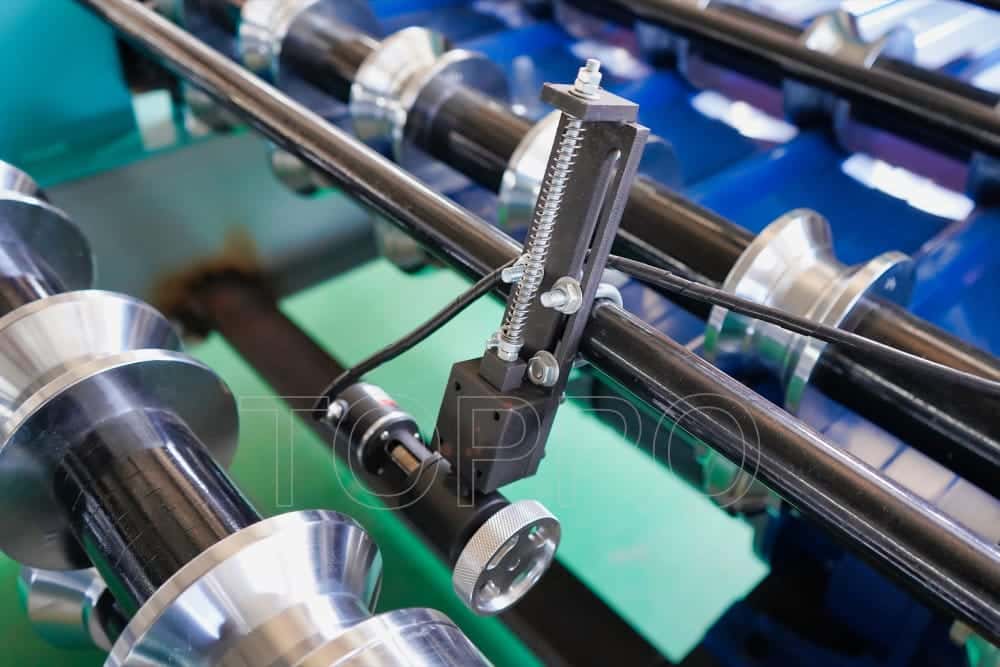

Precision encoder tracking system
Manual decoiler or hydraulic decoiler optional
Suitable for 0.3-0.8mm galvanized steel, PPGI, aluminum
Roller stations: 16-22 (customizable)

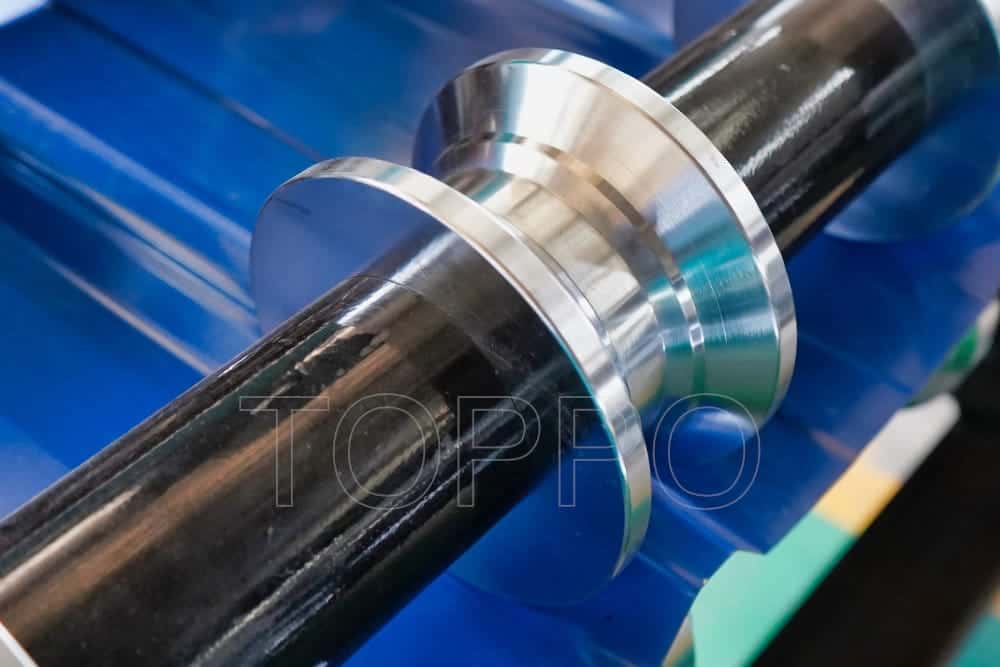

Roller material: 45# steel, hard chrome plated
Shaft diameter: 70mm or customized
Machine frame: 300H steel welded
Transmission: chain drive
Cutting blade material: Cr12Mov, heat treated

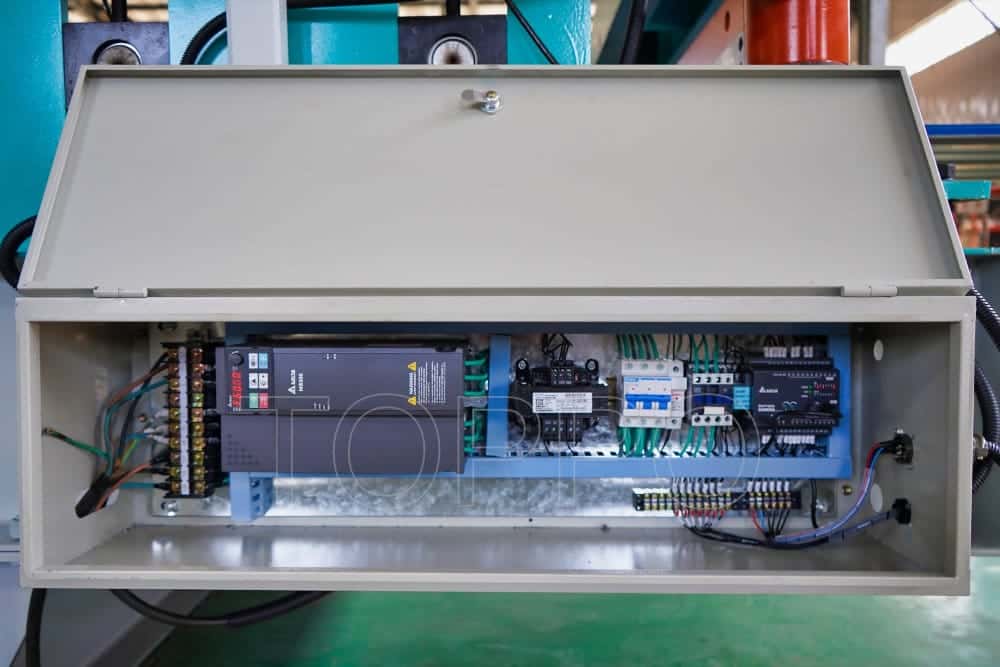

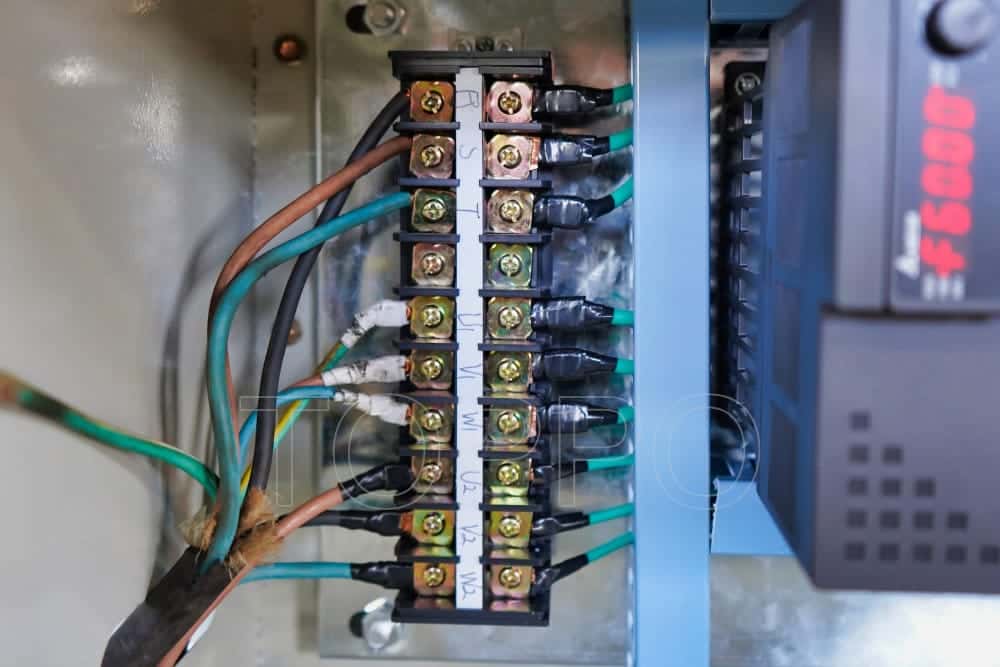

Electrical components: Schneider, Delta
Cutting tolerance: ±1mm
Machine color: customizable (standard: blue & red)
Power requirement: 380V/50Hz/3Phase or customized
Main motor power: 4-7.5kW
Hydraulic power: 4kW
PLC system supports multiple languages
Output table: manual or automatic stacker
CE and ISO certified
Machine weight: approx. 4-6 tons
Dimensions: about 7.5m x 1.5m x 1.5m
Warranty: 1 year
After-sales support: video technical support, online service

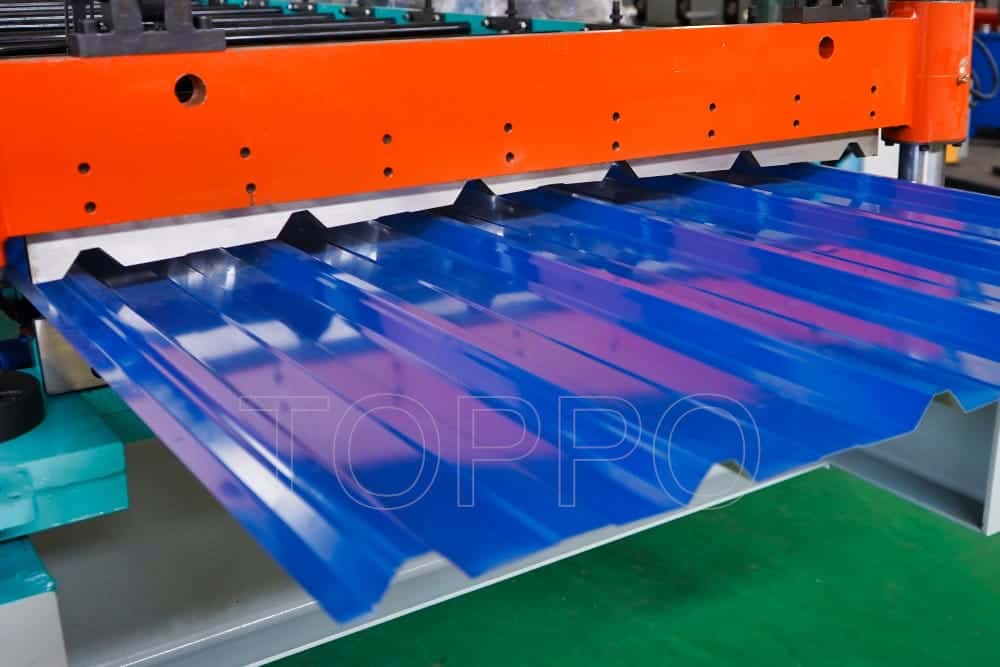

Production application: roofing sheets, wall panels, industrial buildings
Highly customizable profile designs
Quick roller changeover
Stable working performance
Long service life of tooling
Simple operation and maintenance
