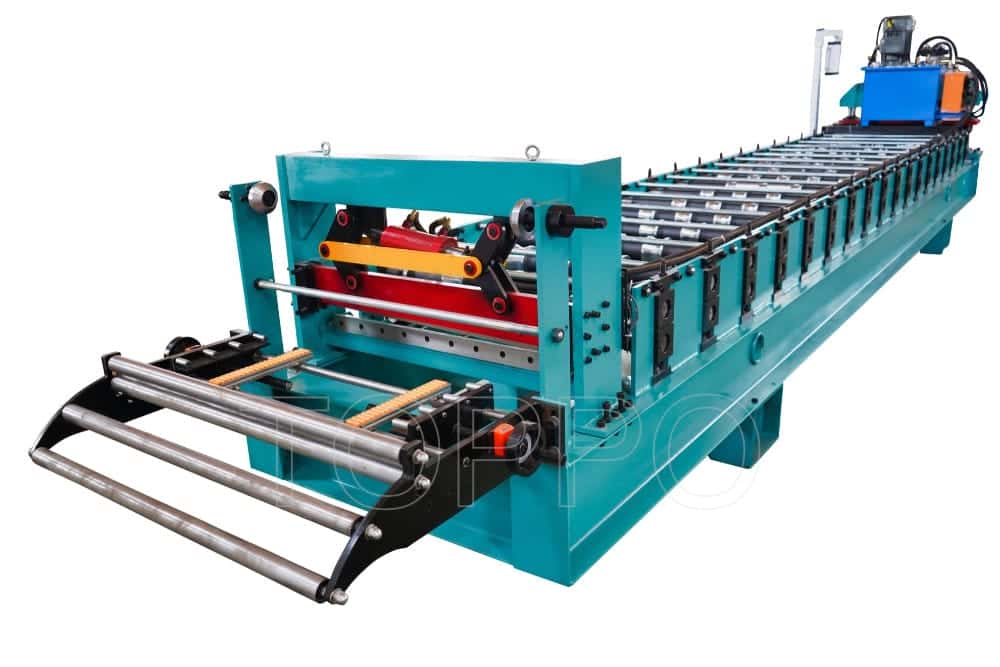

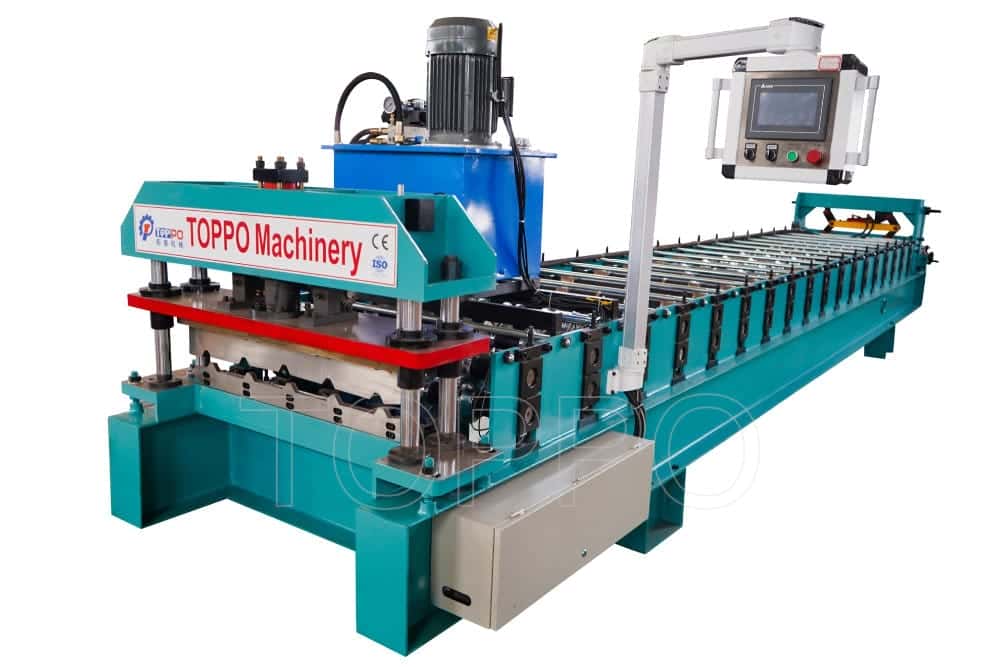

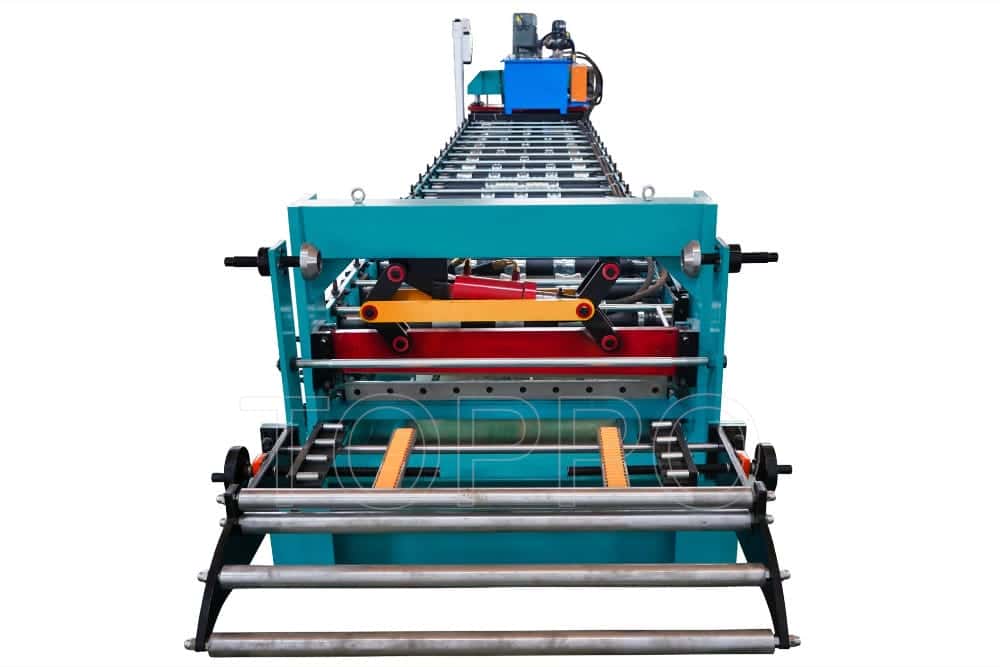

Machine Type: Trapezoidal Roof Roll Forming Machine
Applicable Material: Galvanized Steel, Color Steel, Aluminum
Material Thickness: 0.3–0.8mm
Material Width: 1000–1250mm
Roller Stations: 16–22 stations (customizable)

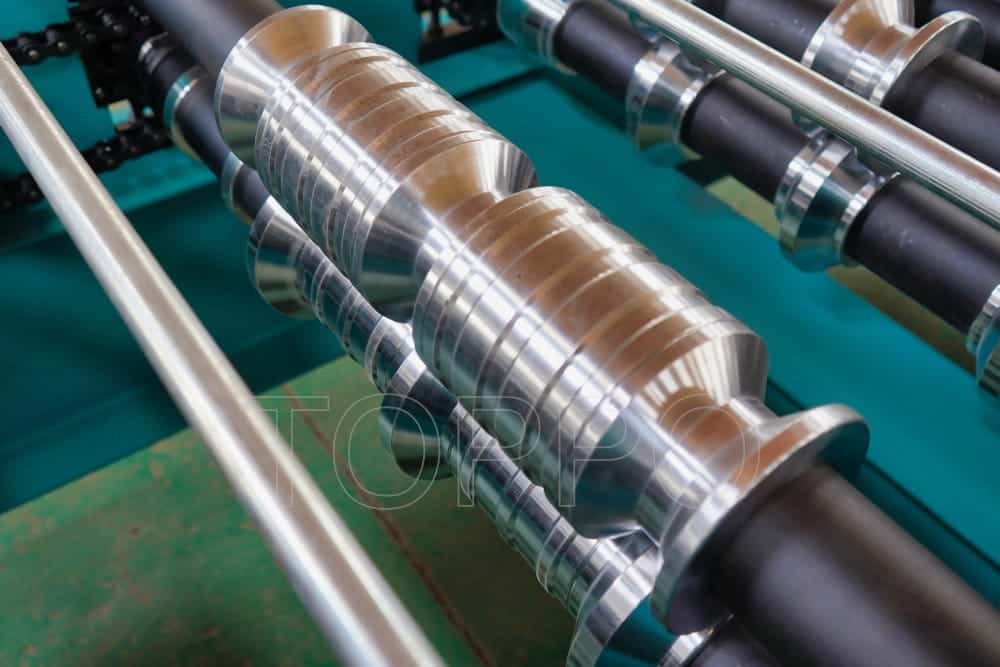

Roller Material: 45# Steel, Hard Chrome Coated
Shaft Material: High Grade Steel, Quenched
Shaft Diameter: 70–90mm
Forming Speed: 10–15m/min
Transmission System: Chain Drive / Gearbox Drive
Control System: PLC Control (Panasonic/Delta/Siemens optional)

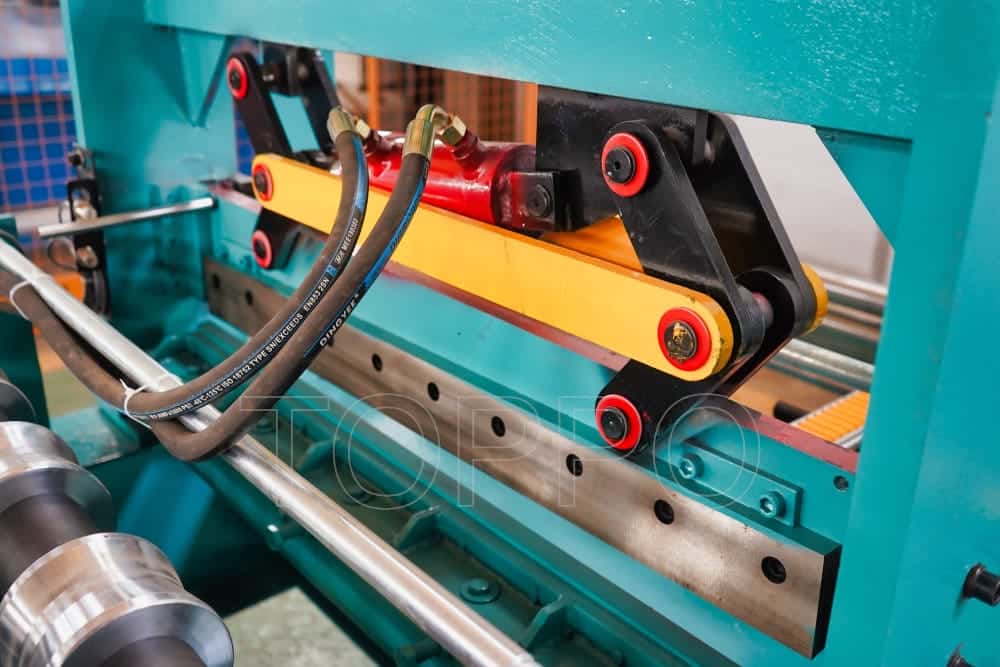

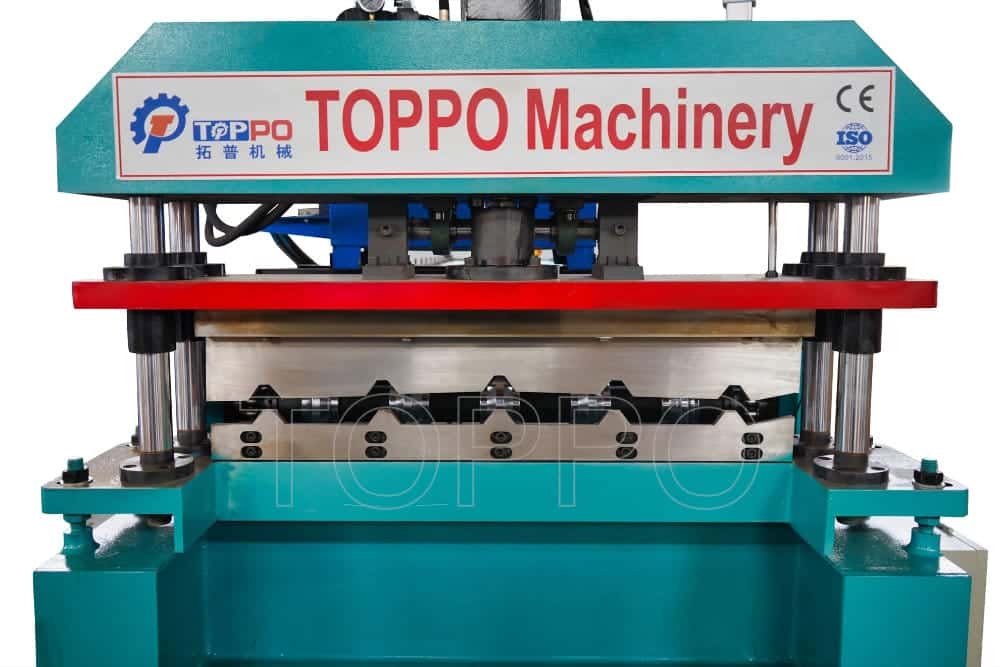

Cutting System: Hydraulic Cutting
Hydraulic Power: 4–5.5KW
Main Motor Power: 5.5–7.5KW
Voltage: 380V, 50Hz, 3Phase (customizable)

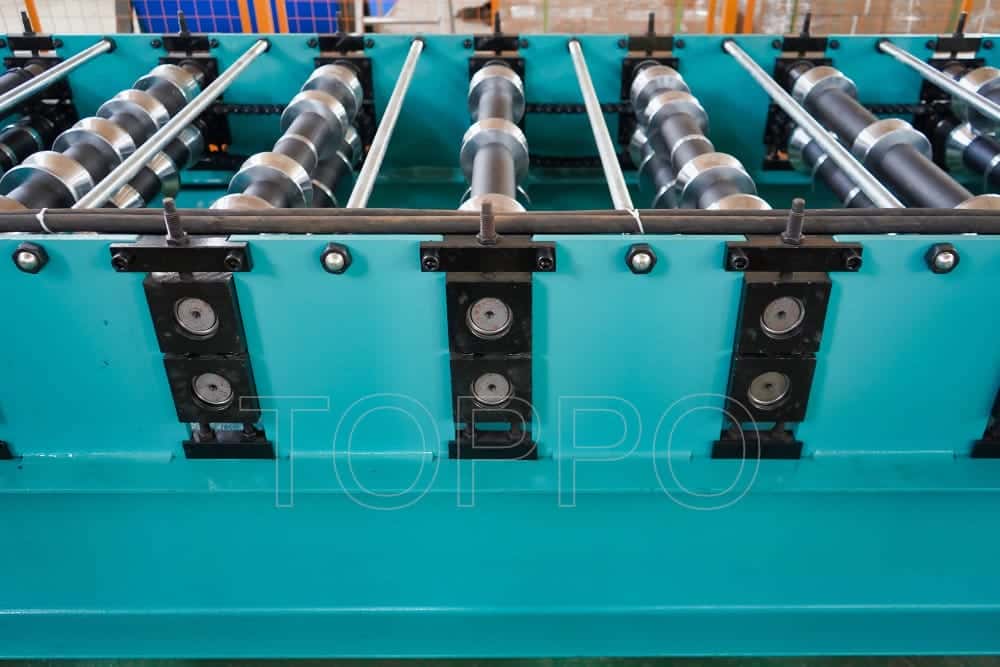

Machine Frame: 300H Steel Welded
Base Frame: Welded Structure with Leveling Feet

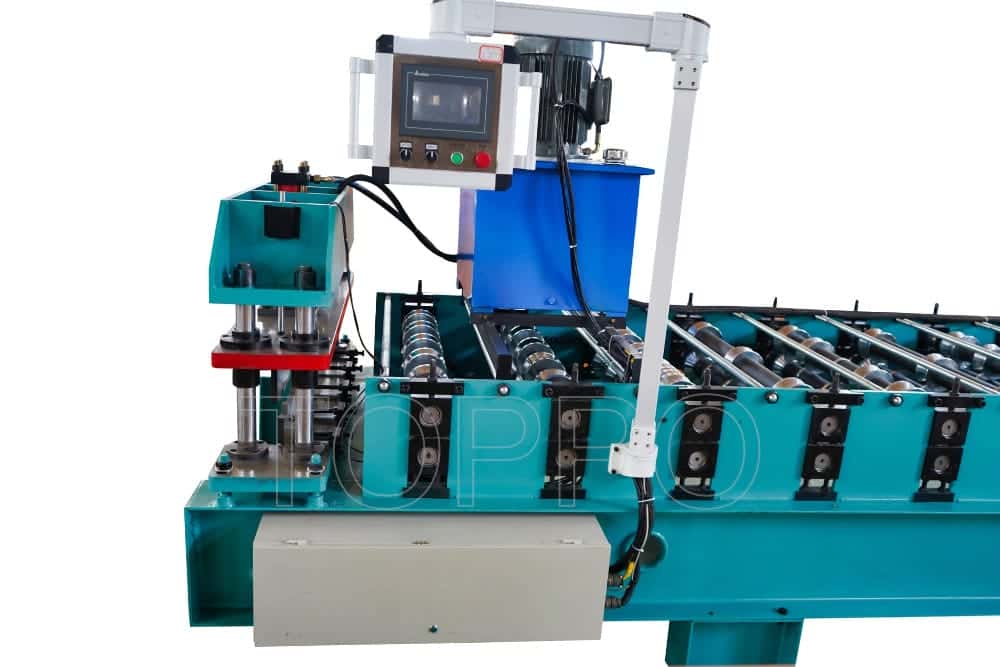

Control Cabinet: Separated Cabinet with Touch Screen
Encoder: Omron
Length Accuracy: ±1mm
Profile Shape: Trapezoidal
Application: Industrial and Residential Roof Sheets
Operator Requirement: 1–2 Workers
Production Capacity: 2000–4000 m²/day

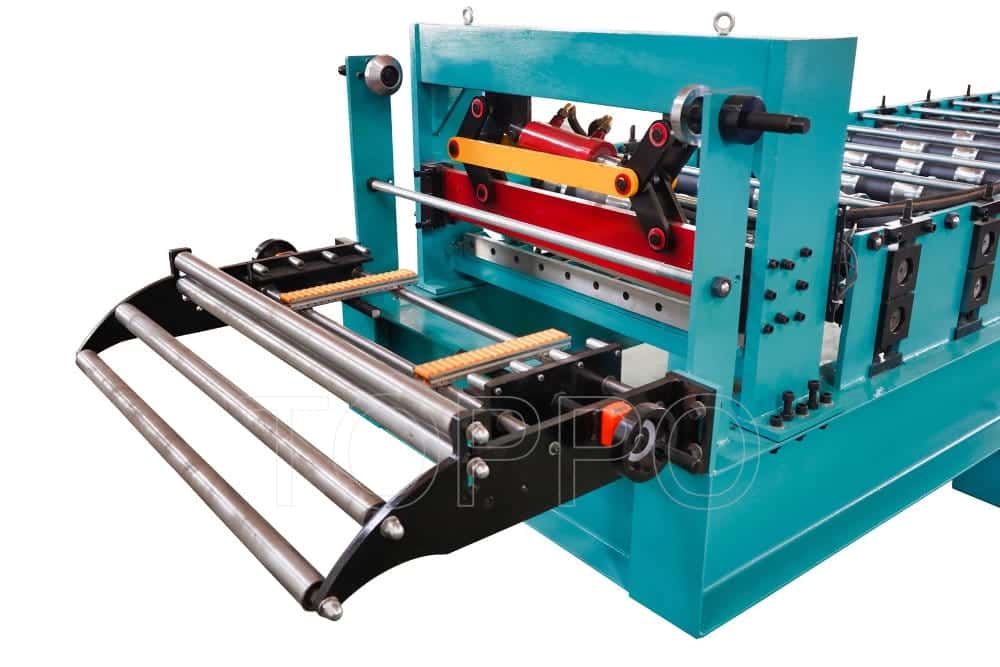

Feeding Guide: Manual / Automatic
Roller Shaft Bearings: NSK/SKF
Lubrication: Centralized Grease System
Noise Level: ≤75dB
Color: Customizable
Installation Service: Available Overseas
Warranty: 1 Year
After-Sales Service: Video Support, Spare Parts
Certification: CE/ISO9001
Loading Container: 1x40GP
Net Weight: 7–10 Tons
Dimension (L*W*H): 8500mm*1500mm*1500mm
Surface Treatment: Painted / Coated
Operation Mode: Automatic
Cooling System: Air Cooling
Coil Car: Optional
Decoiler: Manual / Hydraulic (5T–10T)
Leveling Device: 4–7 rollers
This trapezoidal roof roll forming machine is designed to produce high-quality steel roofing sheets with accurate profiles and consistent dimensions. With advanced PLC control, robust hydraulic systems, and customizable components, it ensures durability, stability, and easy operation in both industrial and commercial applications. Ideal for mass production of metal roof panels with minimal labor cost.
