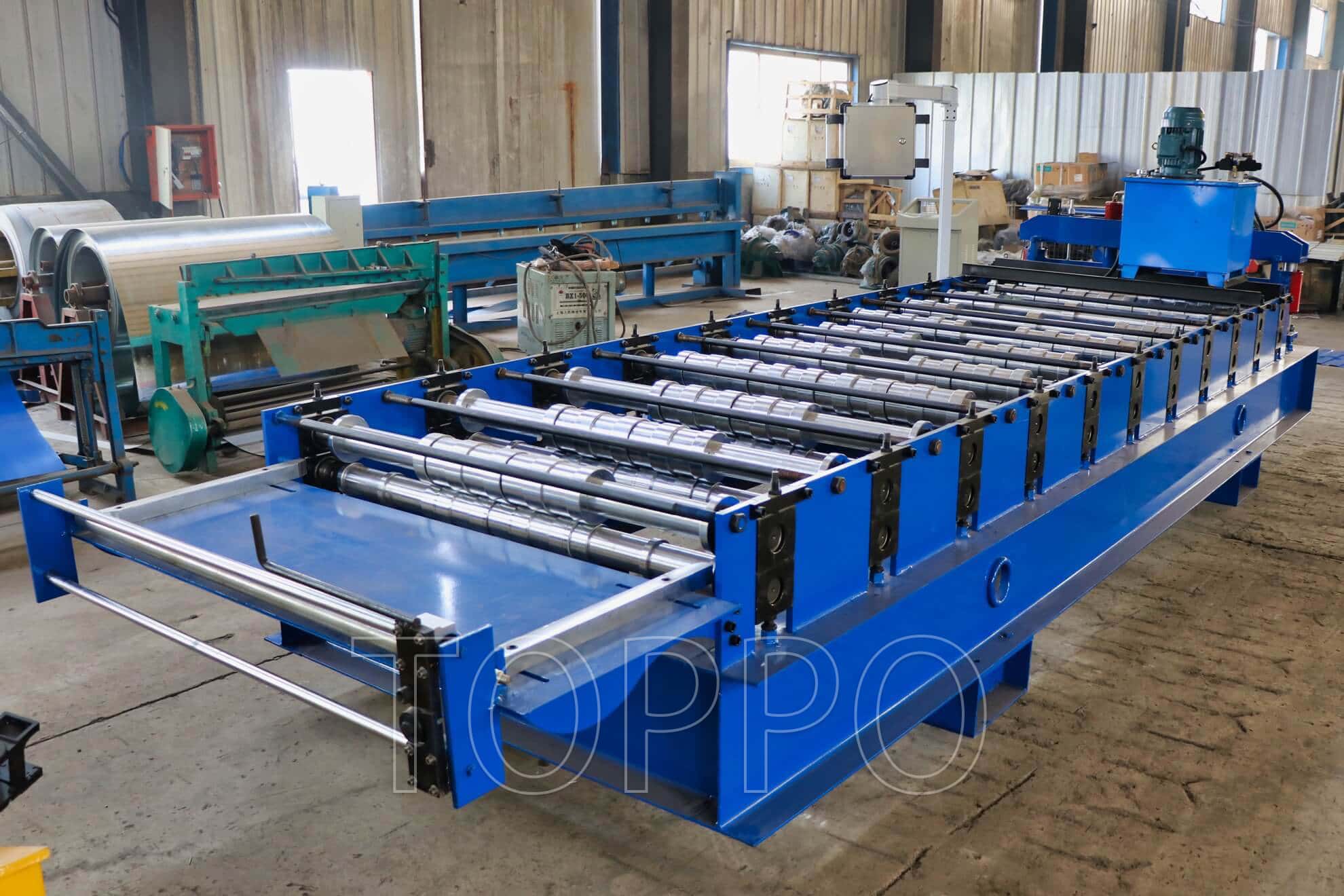

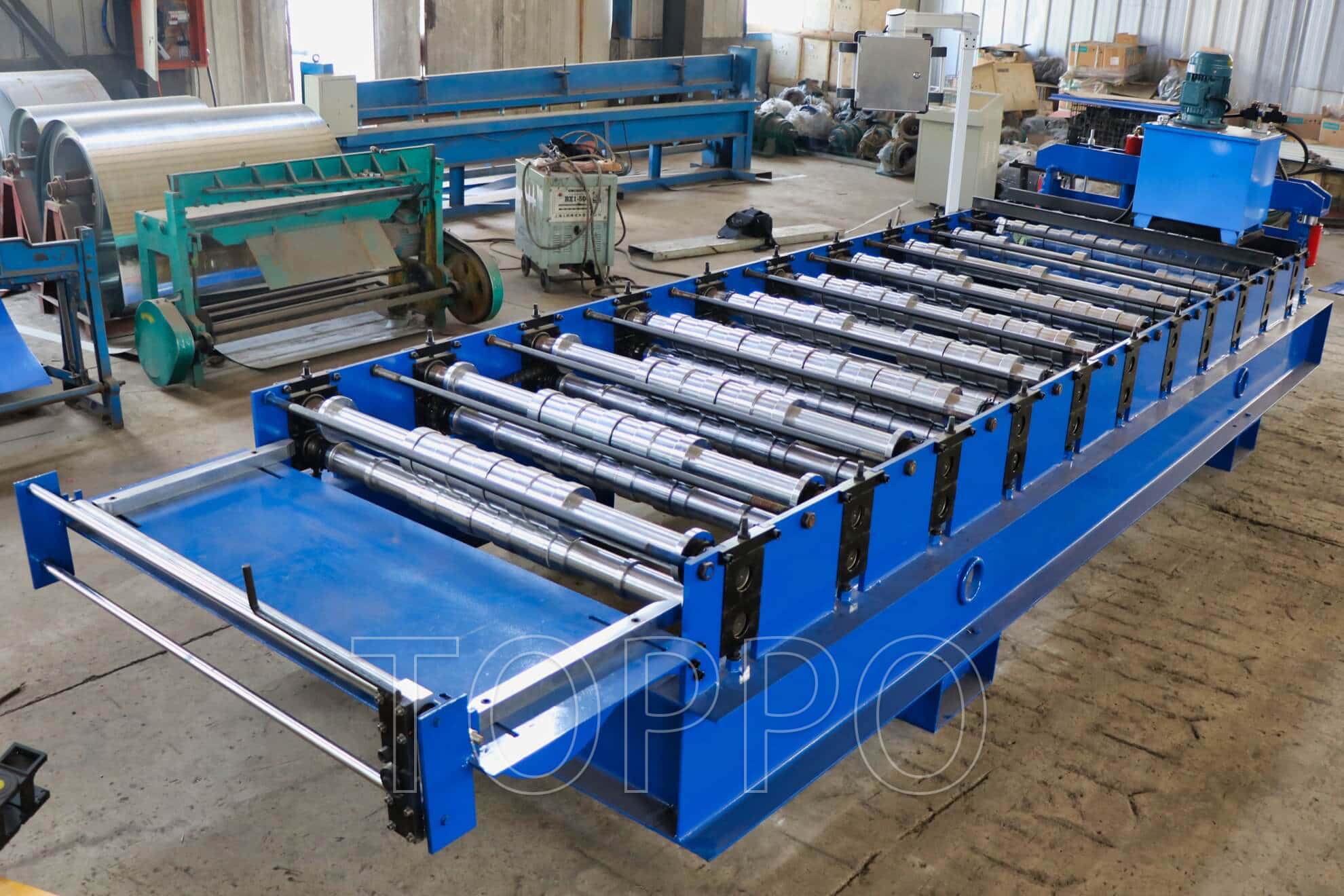

Machine Type: Trapezoidal Roof Roll Forming
Material: Galvanized Steel, PPGI, Aluminum Coils
Material Thickness: 0.3–0.8mm
Feeding Width: 1000–1250mm
Effective Width: 760–1100mm
Roll Forming Steps: 18–24 Stations
Roller Material: 45# Steel, Hard Chrome Coated
Shaft Diameter: 75–90mm
Shaft Material: High Grade Steel
Transmission: Gearbox / Chain Drive
Cutting Type: Hydraulic Shear
Hydraulic Power: 5.5KW
Main Motor Power: 7.5KW
Forming Speed: 10–18m/min
Control System: PLC Automatic Control with Touch Screen
PLC Brand: Delta / Siemens / Panasonic (Optional)
Voltage: 380V, 50Hz, 3Phase (Customizable)
Machine Base: 300H Beam Welded Structure
Panel Shape: Trapezoidal Roofing Sheet
Color: Blue and Orange (Customizable)
Profile Application: Roofing for Warehouse, Factory, Residential
Output Capacity: 3000–6000m²/day
Accuracy: ±1mm
Roller Bearing: NSK / SKF
Operation Mode: Fully Automatic
Operator: 1–2 People
Decoiler: Manual / Hydraulic 5–10T
Leveling Rollers: 4–7 (Optional)
Cooling Method: Air Cooling
Safety Protection: Emergency Stop, Side Covers
Lubrication: Centralized Greasing
Noise Level: ≤70dB
Paint: Anti-Rust Industrial Paint
Warranty: 1 Year
Certification: CE, ISO
Support: Video Instruction, Spare Parts
Container Loading: 1x40GP
Machine Size: 9000*1500*1500mm
Net Weight: 9–11 Tons
Coil Car: Optional
Output Table: Manual / Pneumatic
Encoder: Omron

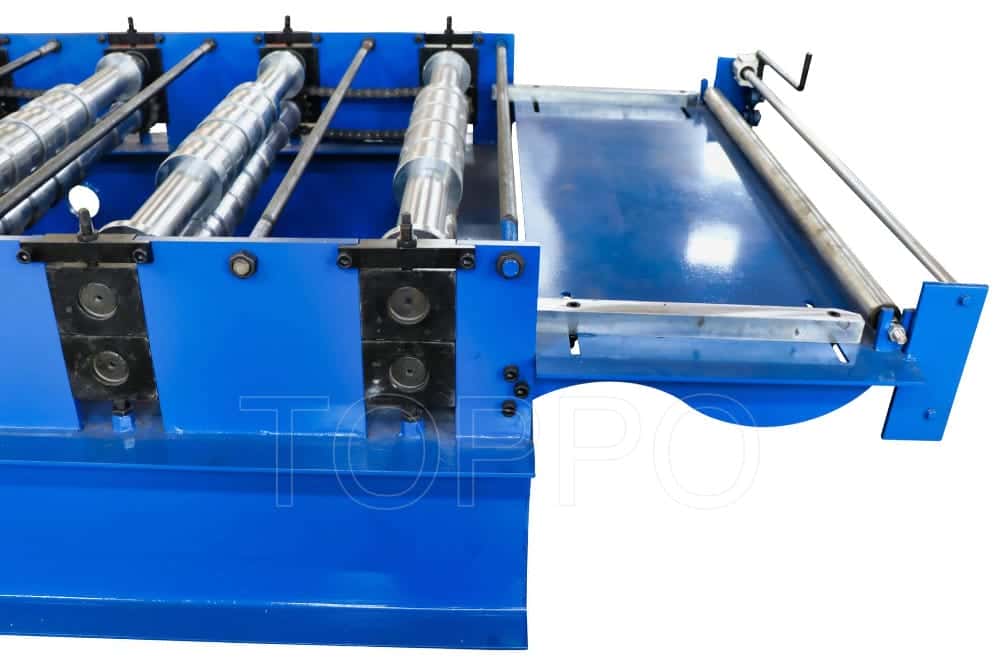

Feeding Guide: Adjustable Manual Guide
Maintenance: Low Maintenance with Durable Parts
This heavy-duty trapezoidal roll forming machine is built for long-term industrial use, with a robust structure, user-friendly control, and high output. It ensures accurate panel shaping and stable production for metal roofing projects. Optional features and customization make it a versatile choice for various factory settings.
