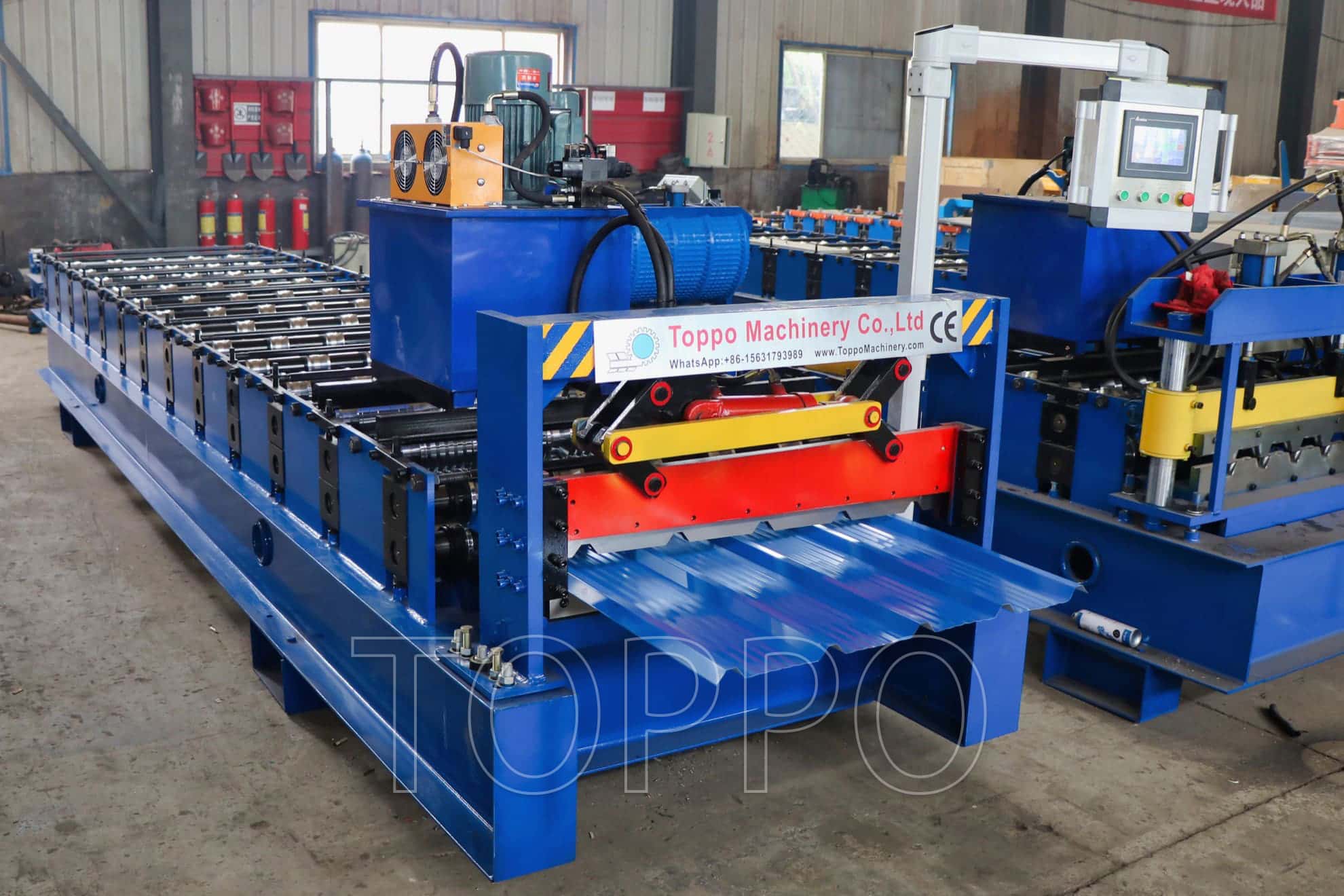

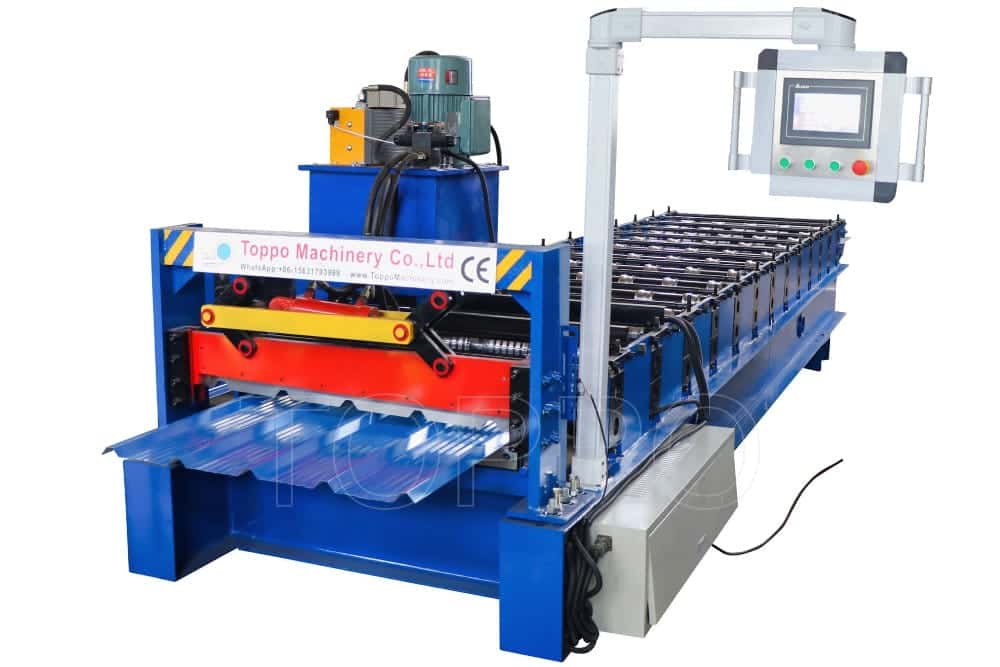

Product Name: Trapezoidal Roof Sheet Roll Forming Machine
Material Types: Galvanized Steel, PPGI, Aluminum
Material Thickness: 0.3–0.8mm
Feeding Width: 1000–1250mm
Effective Width: 762–1100mm
Roller Stations: 16–24 Stations
Roller Material: 45# Steel, Chrome Plated
Shaft Diameter: 75–90mm
Shaft Material: Solid Steel with Quenching
Driving Type: Gearbox / Chain Drive
Cutting System: Hydraulic Cutting System
Hydraulic Power: 5.5KW
Main Motor Power: 7.5KW
Control System: Delta PLC with Touch Screen
Operation Type: Fully Automatic
Voltage: 380V, 50Hz, 3Phase (Customizable)
Speed: 10–20m/min
Accuracy: ±1mm
Machine Frame: H Beam Welded Frame

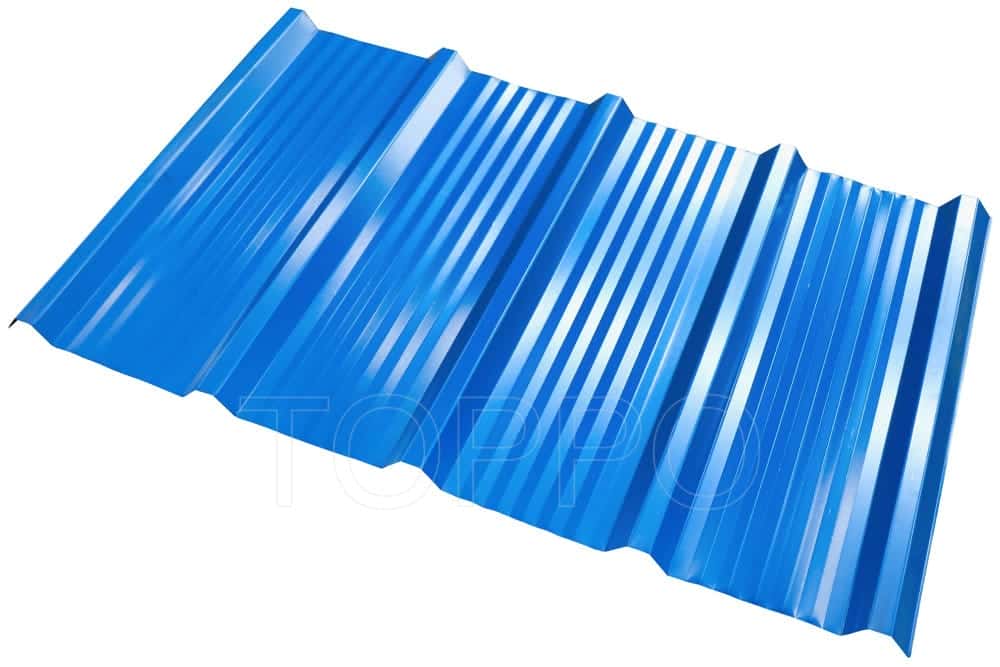

Application: Industrial & Commercial Roofing Projects
Roller Bearings: NSK / SKF
Paint: Industrial Blue with Anti-Corrosion Coating
Color Options: Custom Available
Noise Level: ≤70dB
Lubrication: Centralized Grease System
Decoiler: Manual / Hydraulic 5T-10T (Optional)
Leveling Rollers: 4–7 Rollers
Touch Screen: 7" Color Display
Encoder: Omron

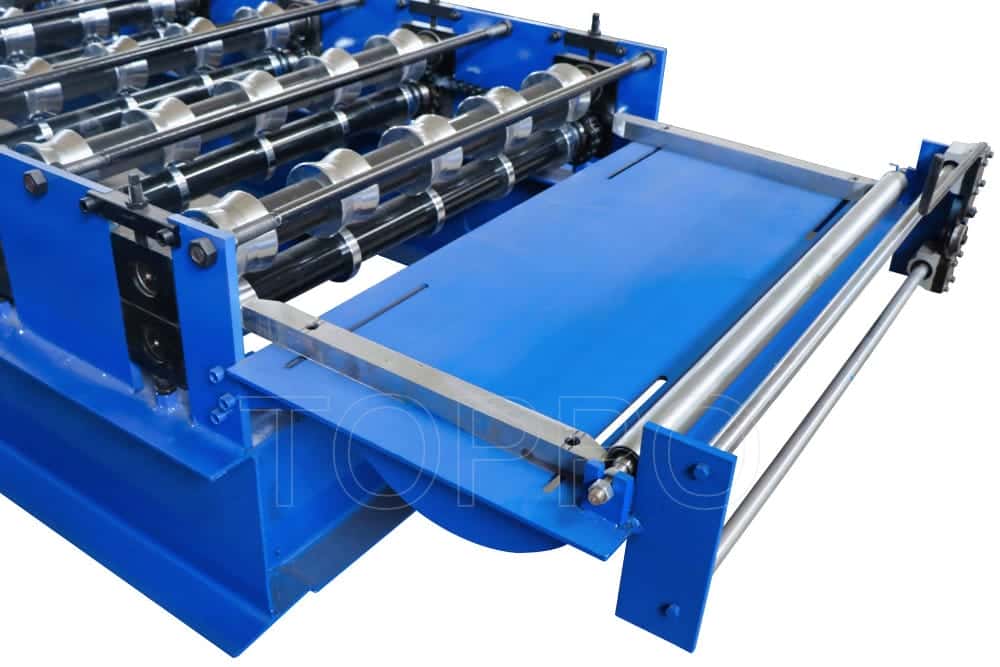

Output Table: Manual / Pneumatic
Production Output: 3000–6000m²/day
Dimension (L*W*H): 8500*1500*1500mm
Weight: 8–10 Tons
Container Requirement: 1x40GP
Warranty: 1 Year
Support: Video Technical Support + Spare Parts
Certification: CE / ISO
Cooling Type: Air Cooled
Operator Required: 1–2 People
Safety Design: Emergency Stop Button + Protective Covers
Maintenance: Easy Access, Low Maintenance
Feeding Guide: Manual Adjustable
This precision-engineered trapezoidal sheet roll forming machine delivers fast, accurate and stable production of roofing panels. Integrated with Delta PLC and touch screen interface, it offers easy control, high durability and long-lasting performance, making it ideal for large-scale roofing sheet fabrication.
