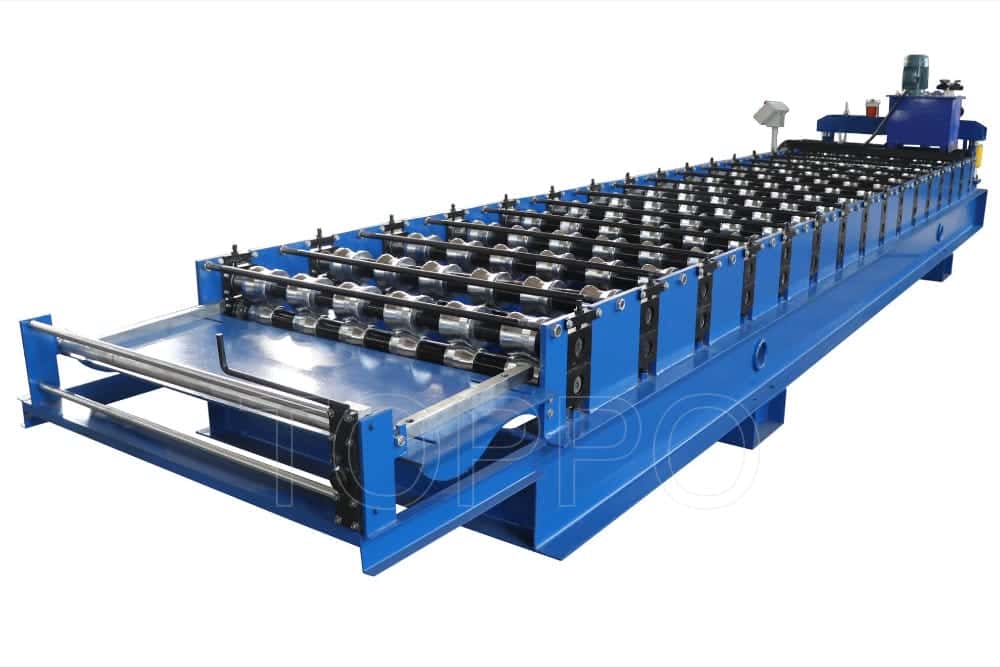

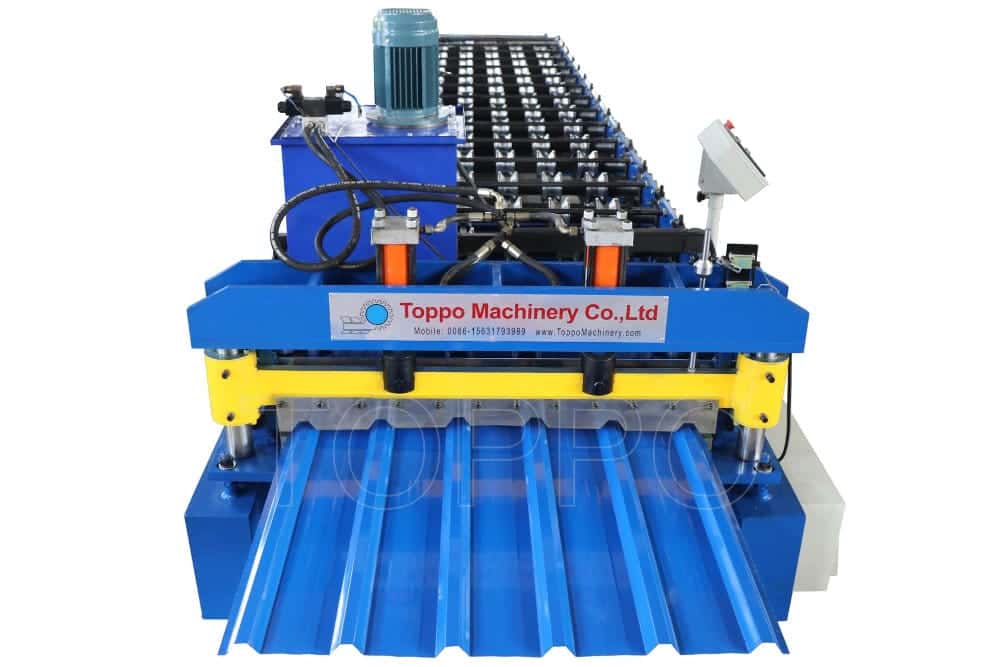

Machine Function: Forming trapezoidal roof panels from metal coils
Applicable Materials: Galvanized Steel, PPGI, Aluminum
Material Thickness: 0.3–0.8mm
Effective Width: 762–1100mm
Feeding Width: 1000–1250mm

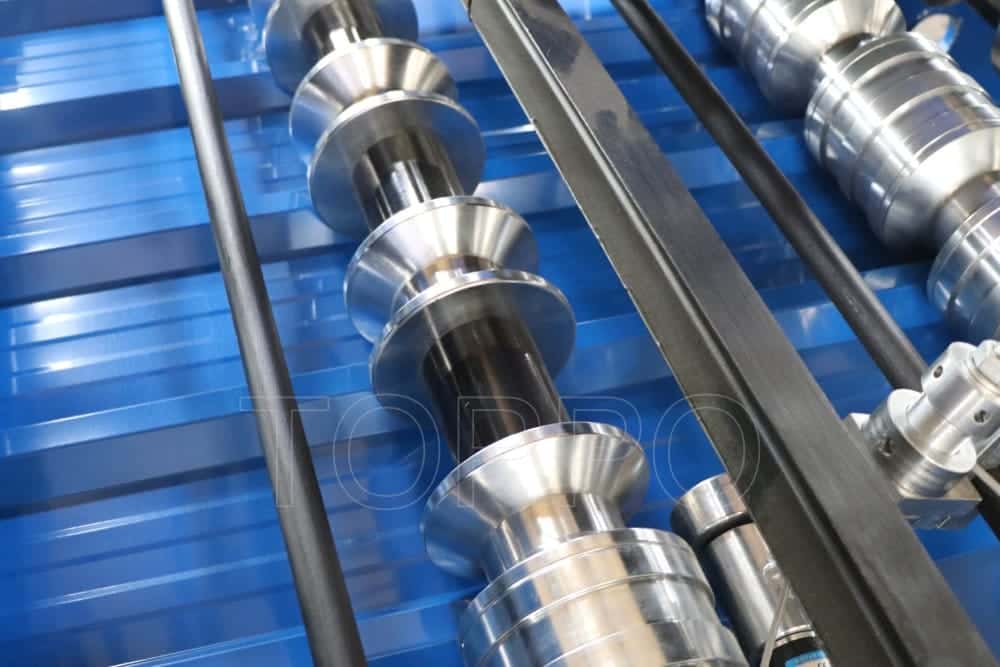

Roller Stations: 16–22
Roller Material: 45# Steel with Hard Chrome Coating
Shaft Material: High-Strength Steel, Heat Treated
Shaft Diameter: 75mm
Forming Speed: 10–20m/min
Drive System: Gearbox / Chain Drive
Main Motor Power: 5.5–7.5KW
Hydraulic System Power: 4KW

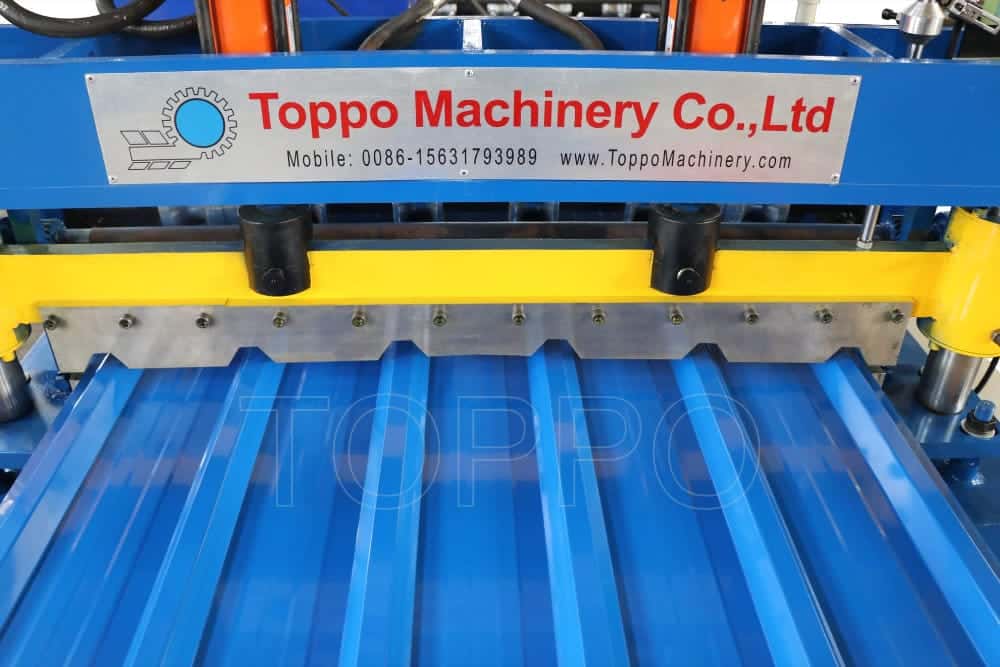

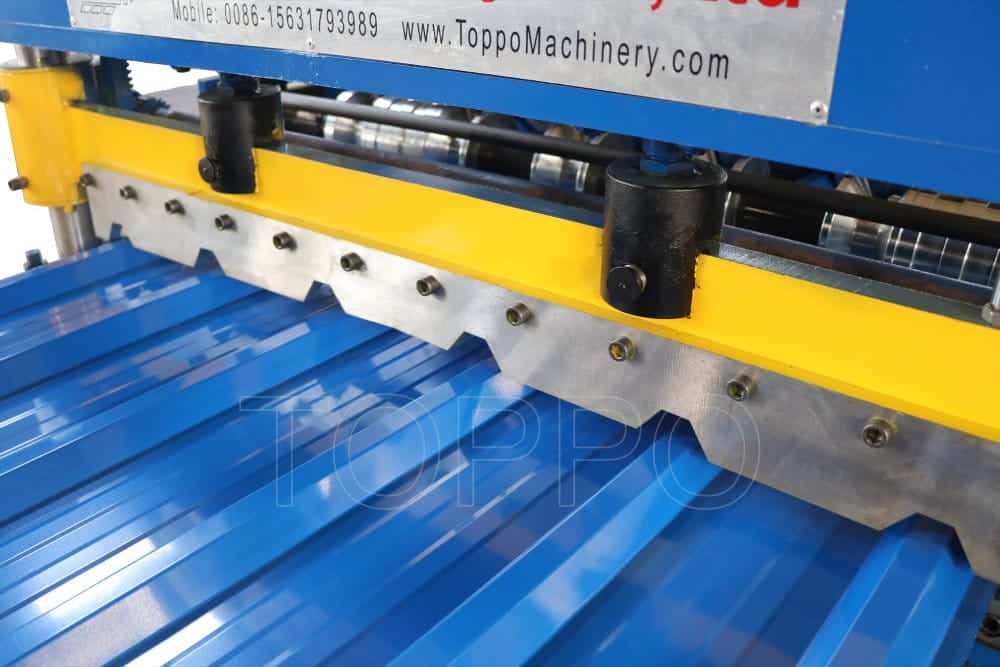

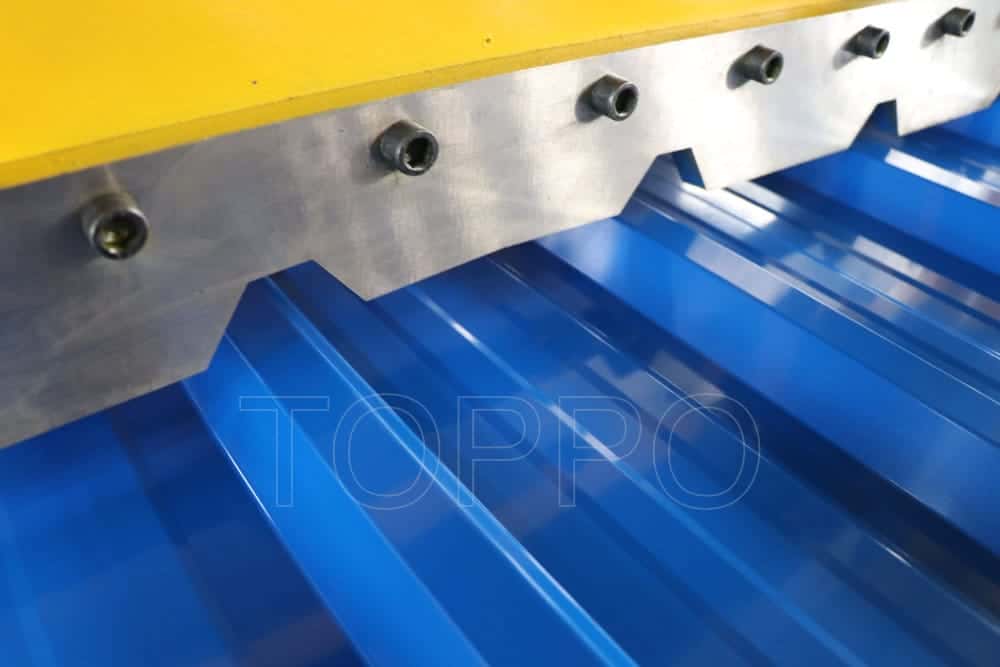

Cutting Method: Hydraulic Post-Cutting

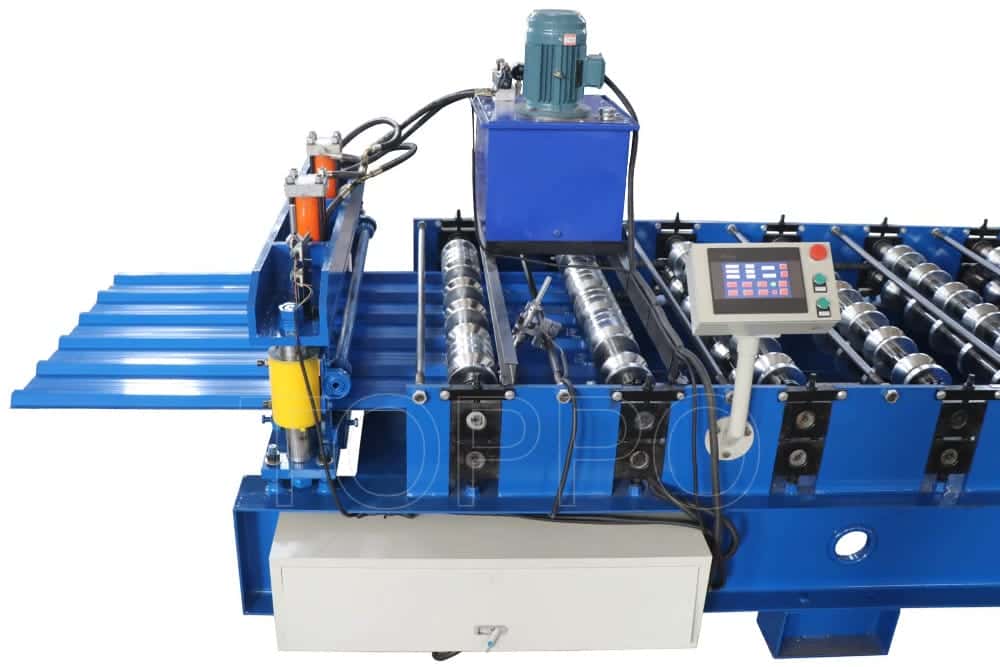

Control System: PLC with Touch Screen (Delta / Siemens optional)
Voltage: 380V/50Hz/3Phase (customizable)

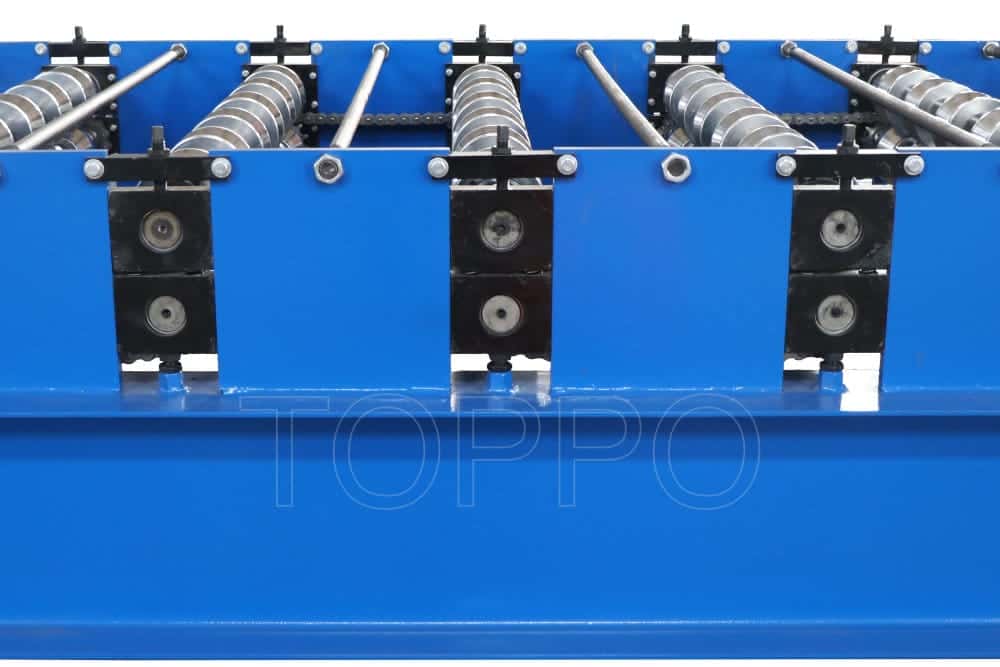

Machine Frame: 300H Steel Welded
Decoiler Type: Manual / Hydraulic, 5T Capacity
Output Table: Manual / Pneumatic

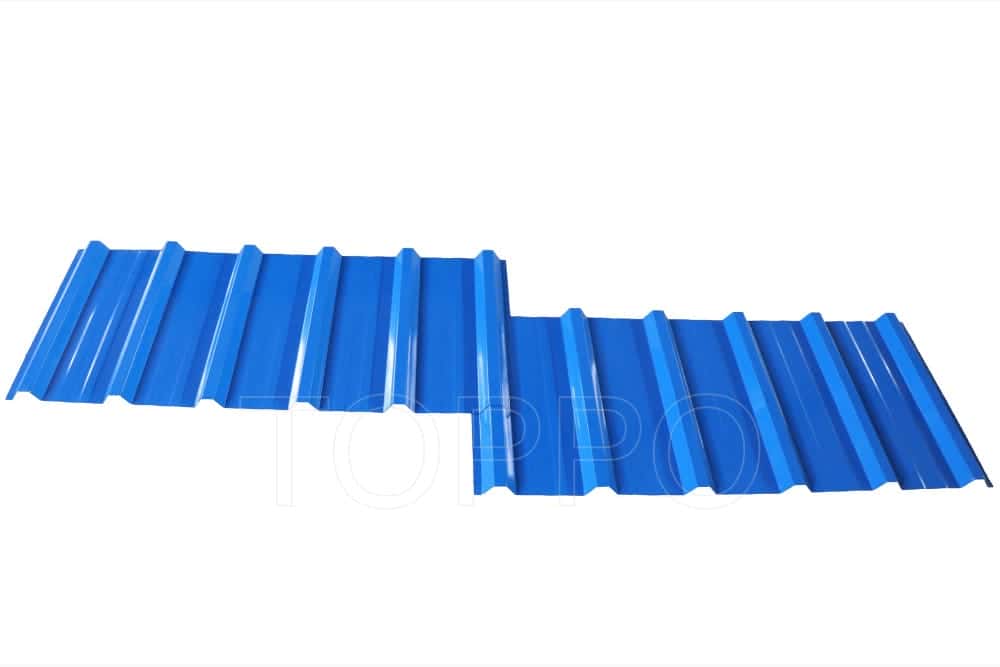

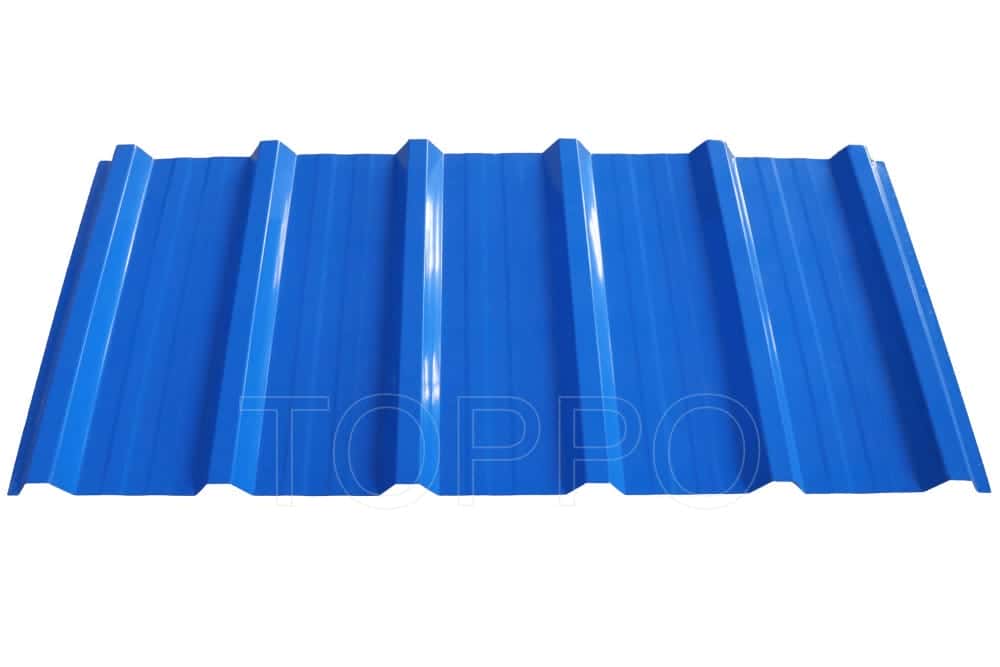

Profile Type: Trapezoidal
Accuracy: ±1mm
Panel Application: Roofing Panels for Industrial and Commercial Use
Touch Screen: User-Friendly Interface
Production Output: 2000–5000m² per day
Lubrication System: Automatic Greasing System
Roller Shaft Bearings: NSK/SKF
Surface Treatment: Painted with Anti-Rust Coating
Noise Level: ≤70dB
Color: Blue / Customizable
Installation & Training: Overseas Engineers Available
Certification: CE, ISO9001
Warranty: 12 Months
Spare Parts: Free Parts Included
Shipping: 40GP Container
Dimension: 8500mm x 1500mm x 1400mm
Net Weight: 8–10 Tons
Cooling System: Natural Air Cooling
Coil Loading System: Optional Coil Car
Leveling Rollers: 4–7 Rollers (Optional)
Operating Mode: Fully Automatic
Operator Required: 1–2 Personnel
Maintenance: Low Maintenance Required
Safety Features: Emergency Stop, Safety Guards
This advanced trapezoidal roll forming machine is engineered for efficient and precise production of metal roofing sheets. It offers excellent stability, reduced labor, and consistent output. Equipped with high-end control systems, hydraulic cutters, and robust structure, it’s ideal for industrial-scale roofing projects.
