Product Overview

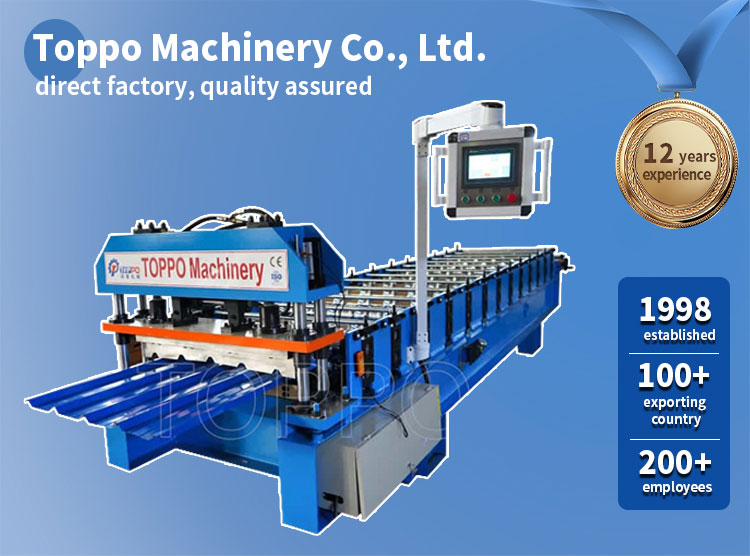

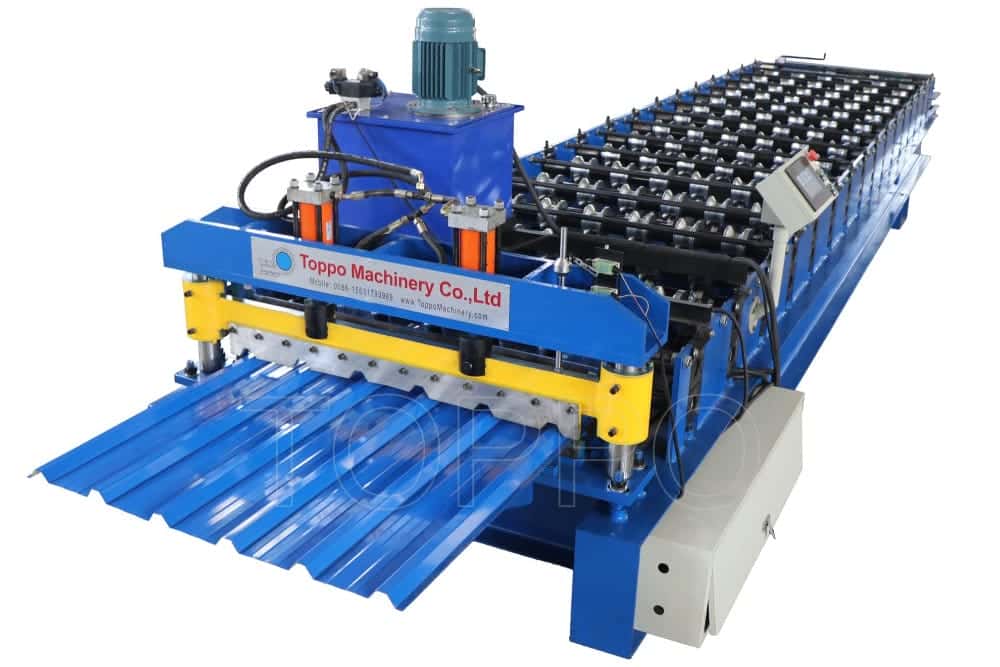

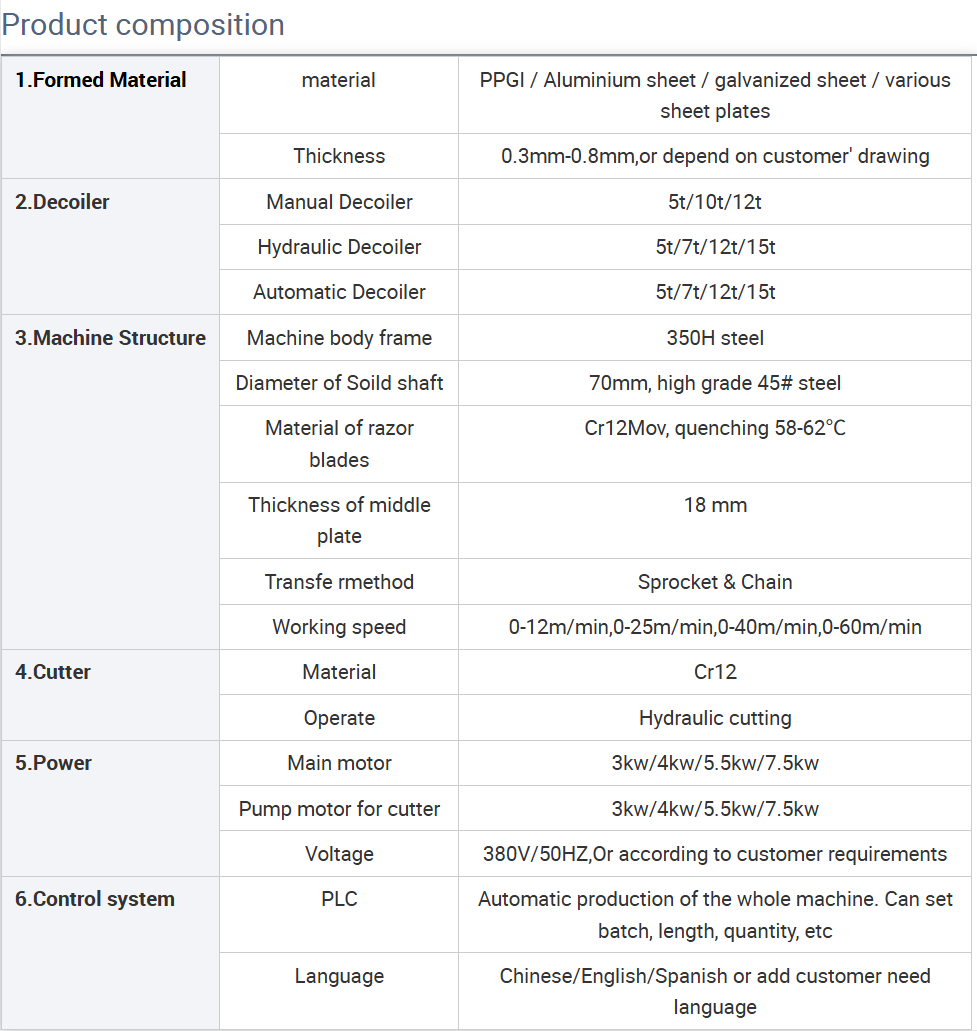

• Type: Trapezoidal Roofing Roll Forming Machine

• Input Material: Color steel, galvanized steel, galvalume, aluminum

• Material Thickness: 0.3–0.8 mm

• Input Coil Width: 1000 mm / 1250 mm

• Effective Panel Width: 836 mm / 1050 mm (varies by profile)

• Profile Shape: Deep rib trapezoidal

• Roller Stations: 18 rows

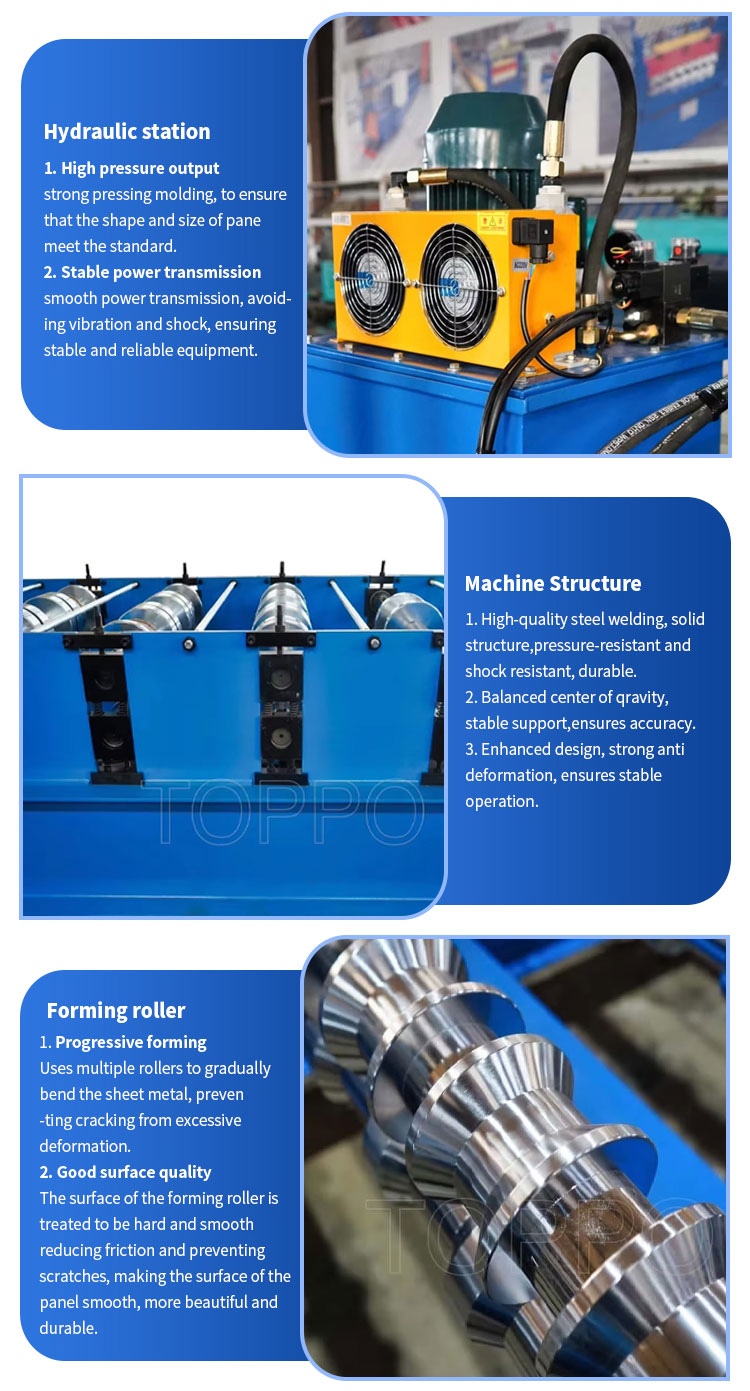

• Rollers: GCr15 steel, heat-treated and chrome-coated

• Shaft Diameter: 75 mm precision-turned solid shaft

• Transmission: Gearbox or chain drive

• Main Motor Power: 7.5 kW

• Hydraulic Power: 4.0 kW

• Cutting Blade: Cr12Mov steel, quenched

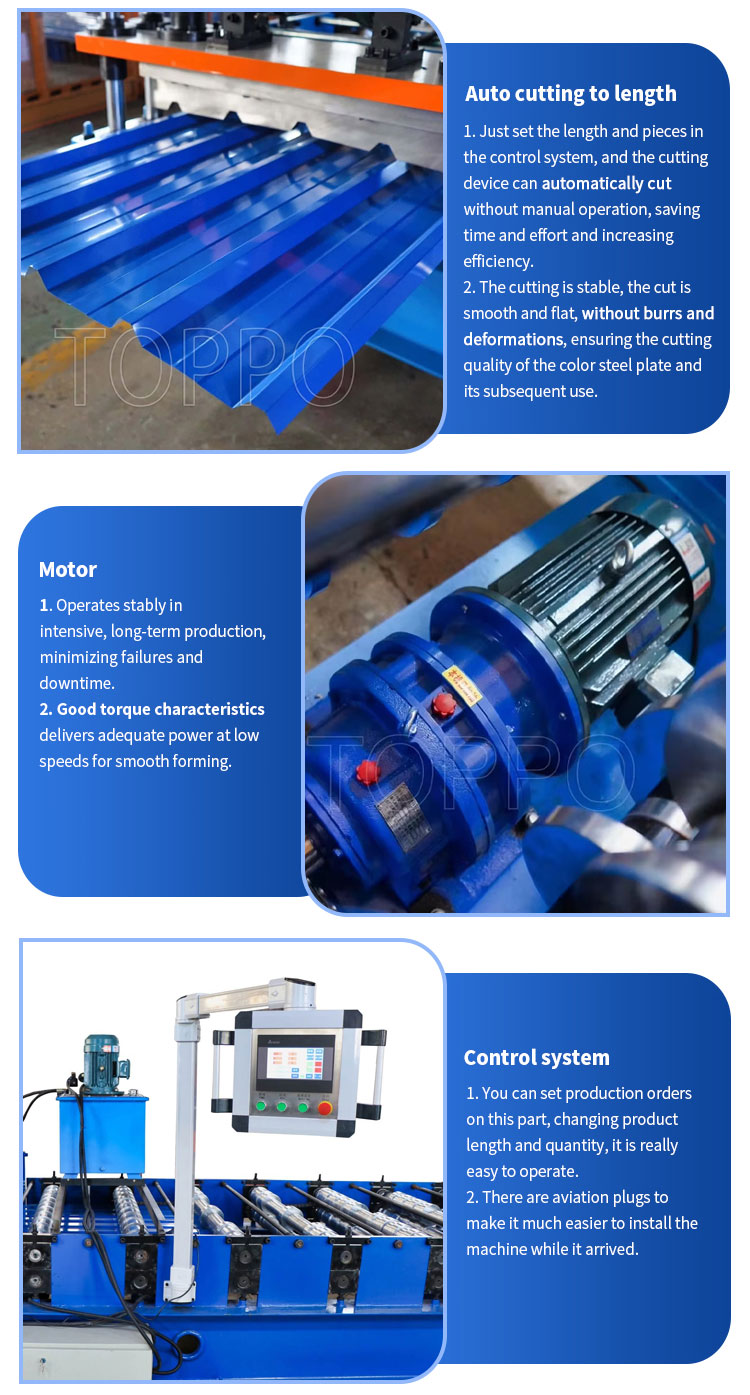

• Cutting Method: Hydraulic post-cutting

• Cutting Tolerance: ±1 mm

• Control System: PLC + touch screen (Delta/Siemens)

• Operation Language: English/Chinese/optional

• Speed: 10–18 m/min depending on profile

• Voltage: 380V/50Hz/3Phase (or customized)

• Weight: Approx. 6.0 tons

• Machine Dimensions: 9.0 × 1.5 × 1.6 m

• Uncoiler: Hydraulic or manual, 5-ton capacity

• Output Rack: 3-meter passive run-out table

• Coil Inner Diameter: 508 mm

• Coil Outer Diameter: ≤1300 mm

• Max Coil Weight: 5000 kg

• Lubrication System: Manual greasing (automatic optional)

• Safety Features: Emergency stop, covers, limit switches

• Finish Quality: Smooth and uniform profile, no scratches

• Usage Environment: Indoors, temperature 0–40°C

• Dust Protection: Electrical components with IP54 rating

• Production Workflow: Coil → Leveling → Roll forming → Cutting → Collecting

• Certification: CE certified

• Color: Blue / Custom RAL code on request

• Application: Roofing systems for factories, logistics parks, farms

• Machine Color: Industrial blue (customizable)

• Maintenance: Low maintenance, easy to clean

• Support: Online training and operation guide

• Installation: Engineer available for overseas installation

• Warranty: 24 months for core components

• Optional Features: Inkjet printer, auto stacking system

• Noise Level: Less than 80 dB

• Auto Counting: Integrated piece counter

• Profile Adjustment: Interchangeable roller molds optional

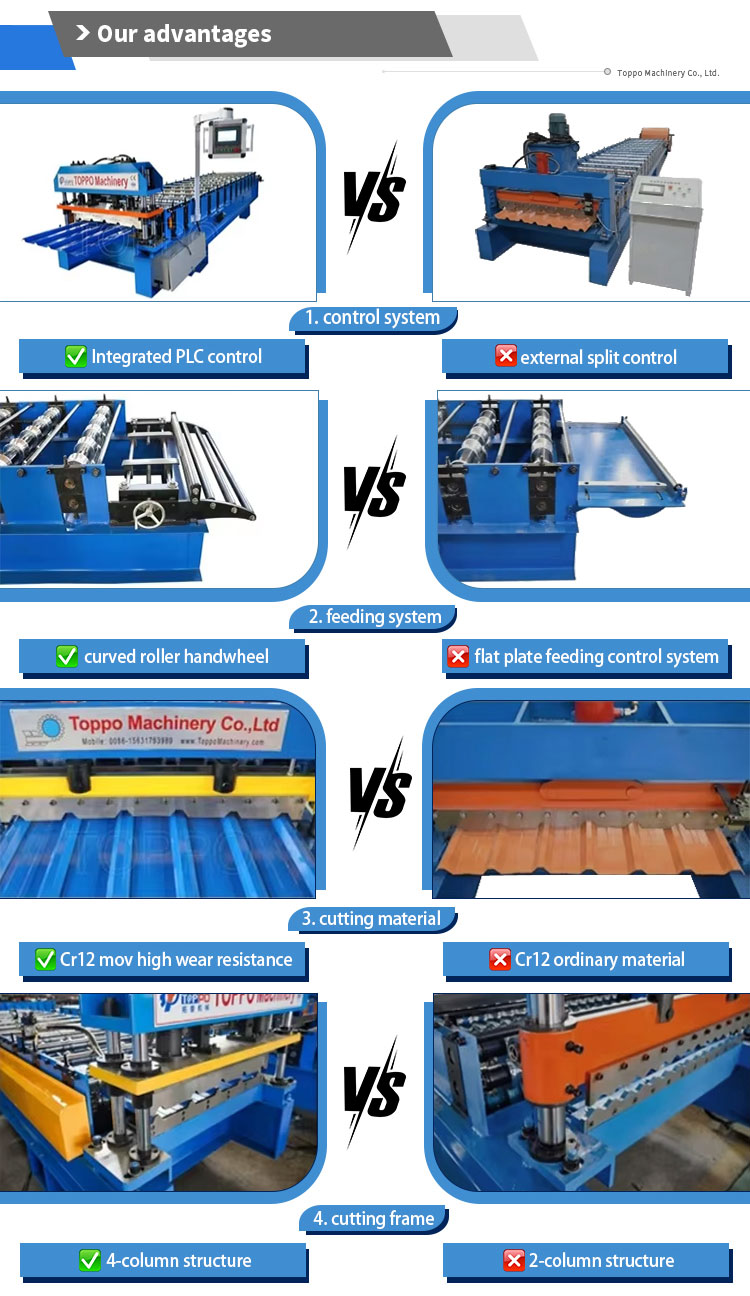

Why This Model?

Engineered for heavy-duty forming, this machine is suitable for long-span trapezoidal sheet production with minimal error. With its high-speed capability, durable frame, and intelligent control system, it delivers stable performance for high-output environments.

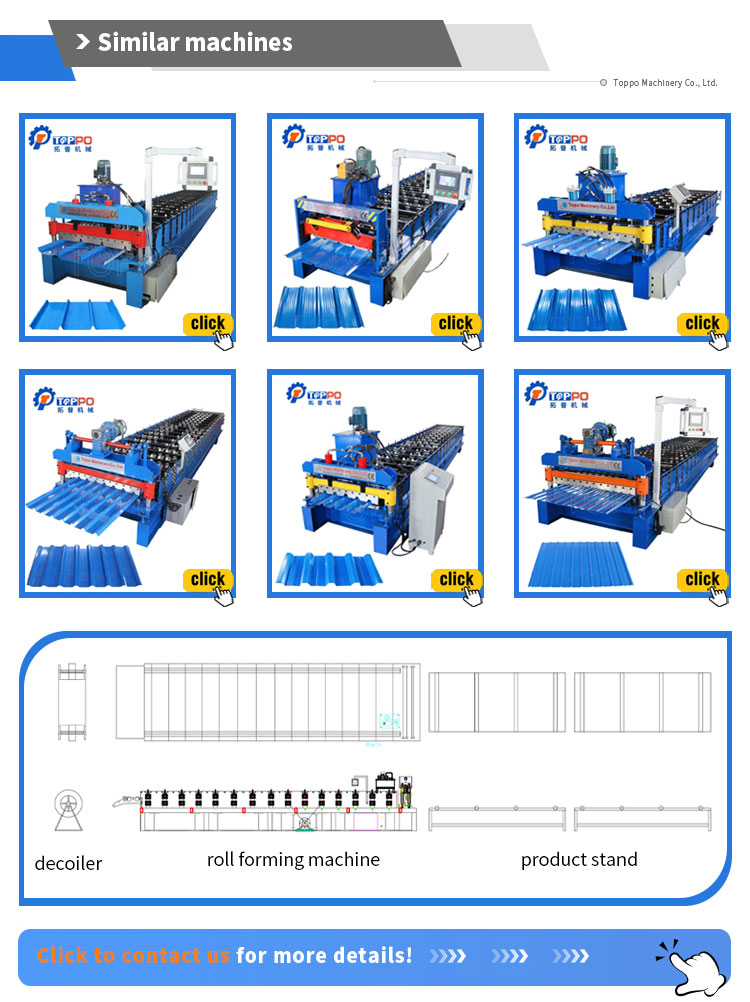

Working Flow

Coil feeding → Sheet guiding → Roll forming → Hydraulic shearing → Finished panel output → Stacking.
