Product Overview

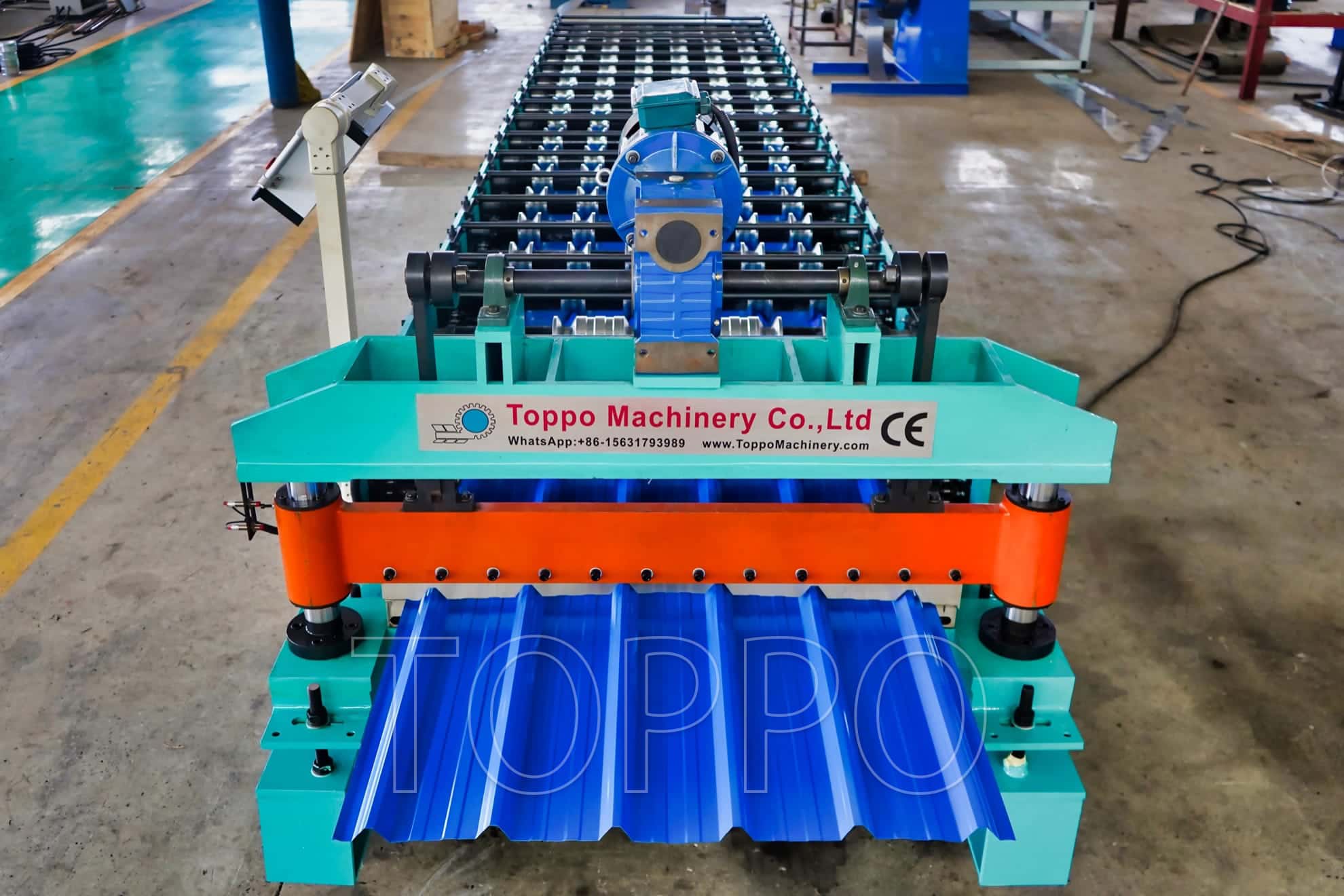

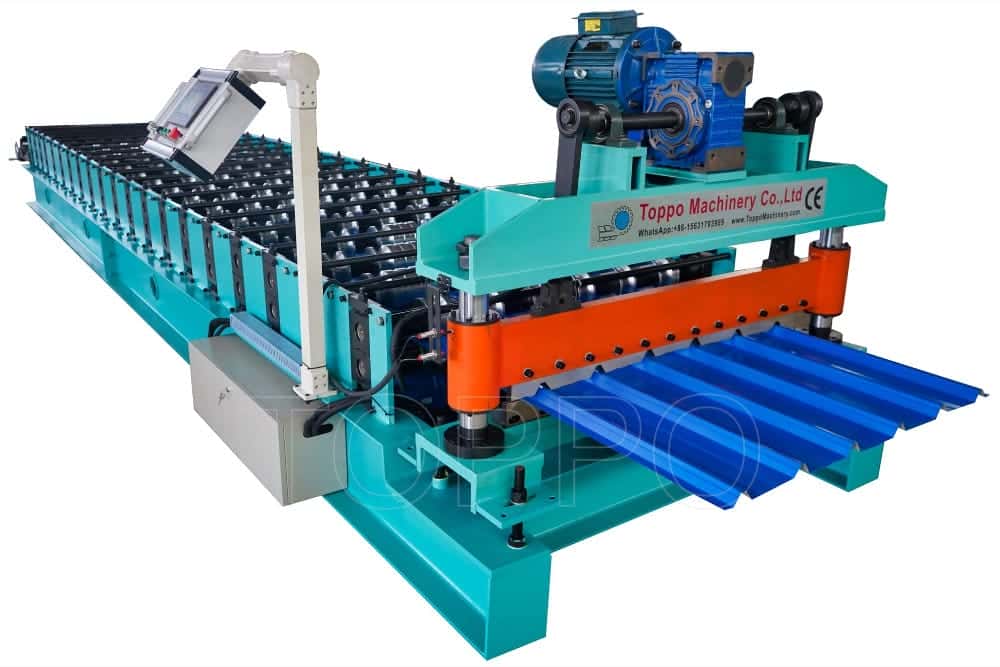

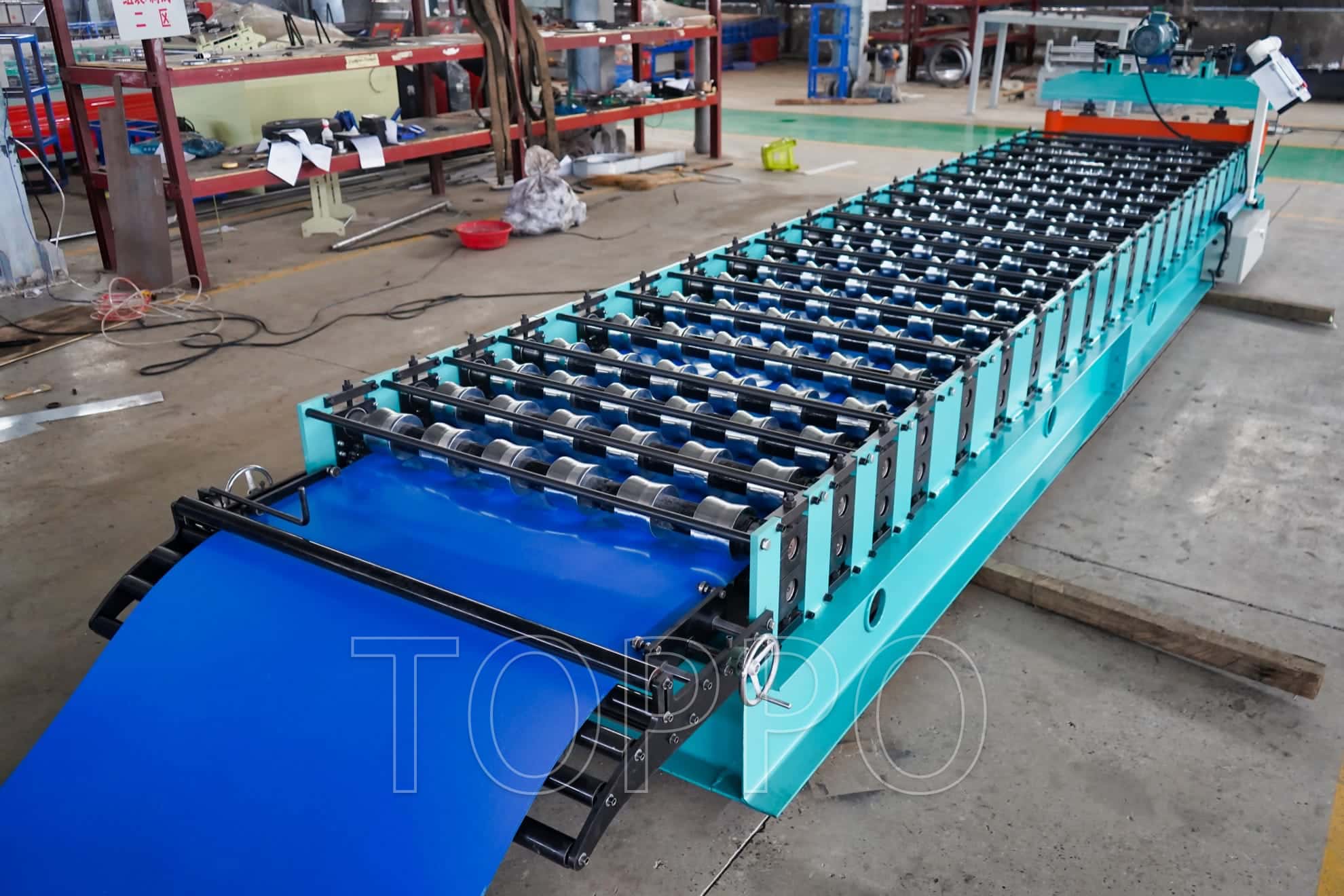

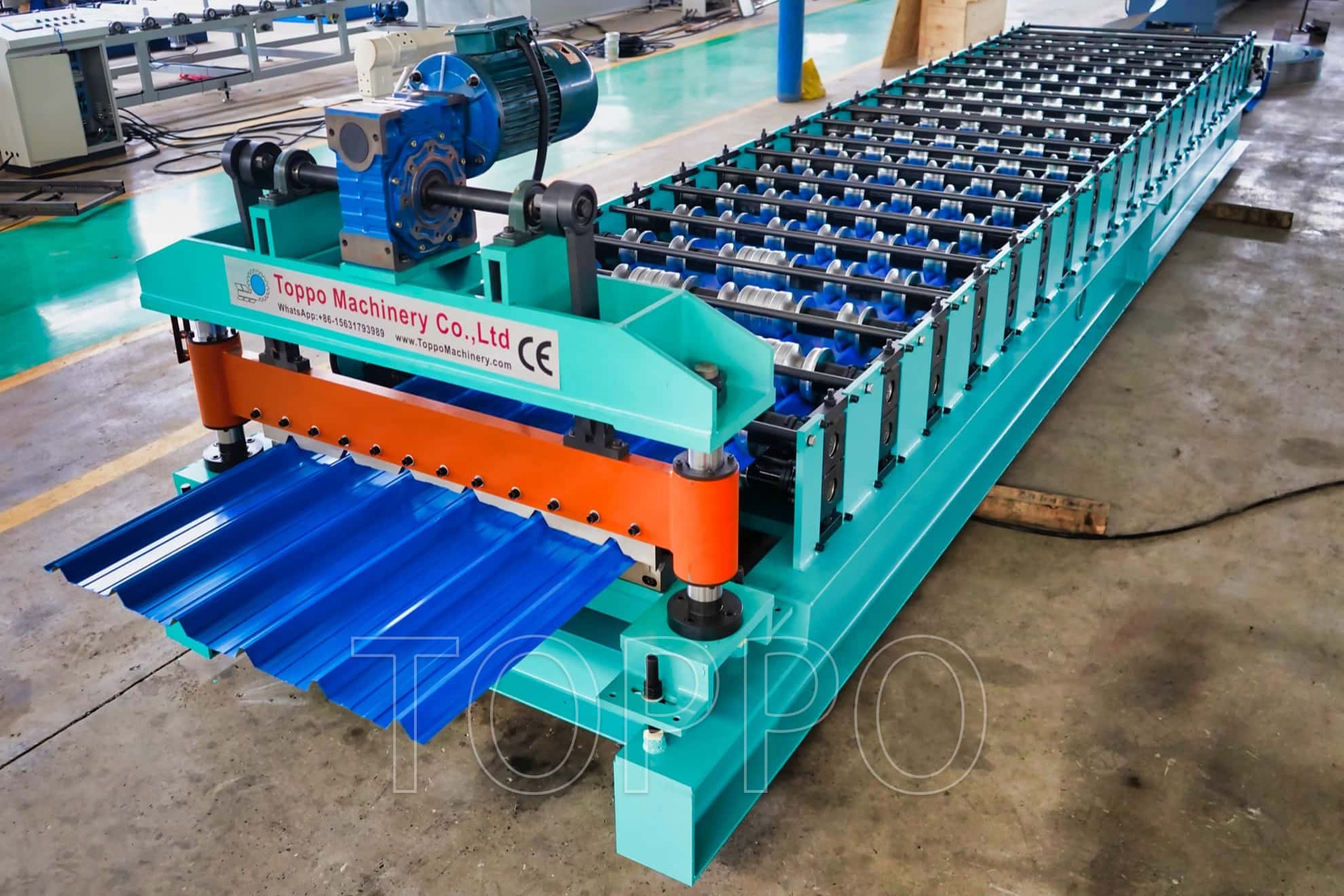

• Machine Type: Trapezoidal Roof Roll Forming Machine

• Processed Materials: Galvanized Steel, Color Steel, PPGI, Aluzinc

• Material Thickness: 0.3–0.8 mm

• Feeding Width: 1000 mm / 1250 mm

• Effective Width: 828 mm / 1050 mm (customizable)

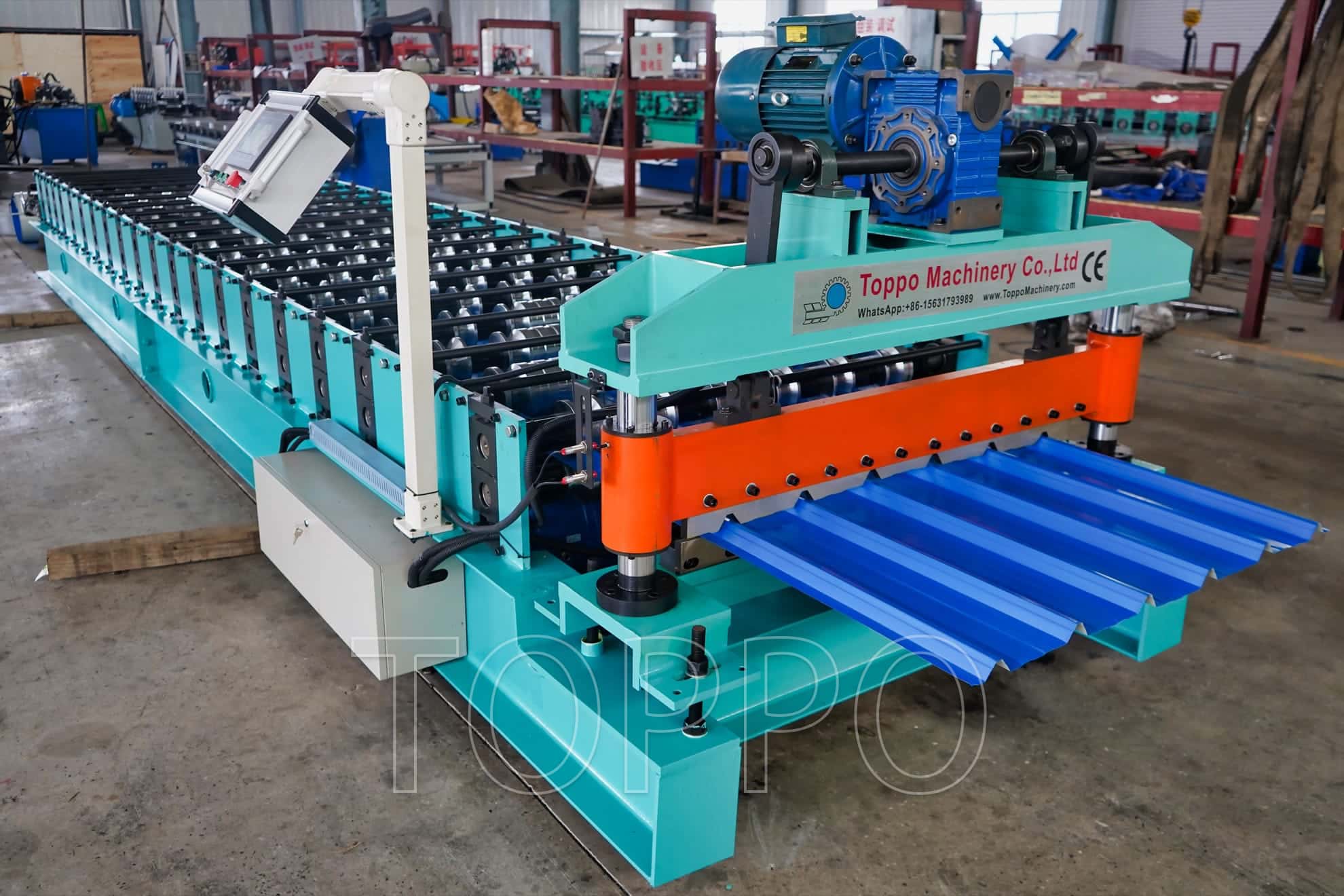

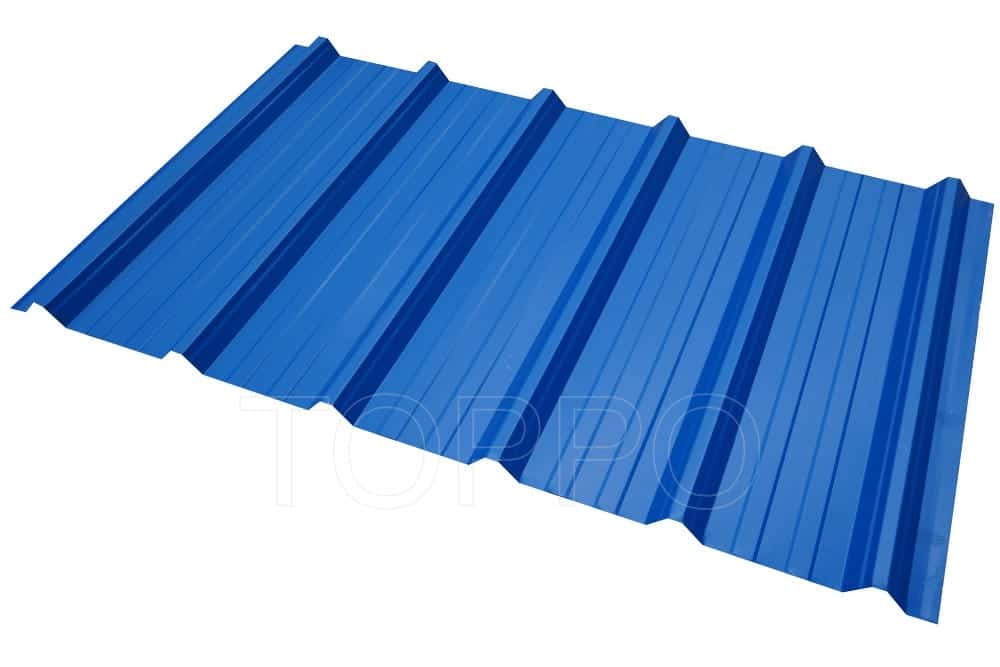

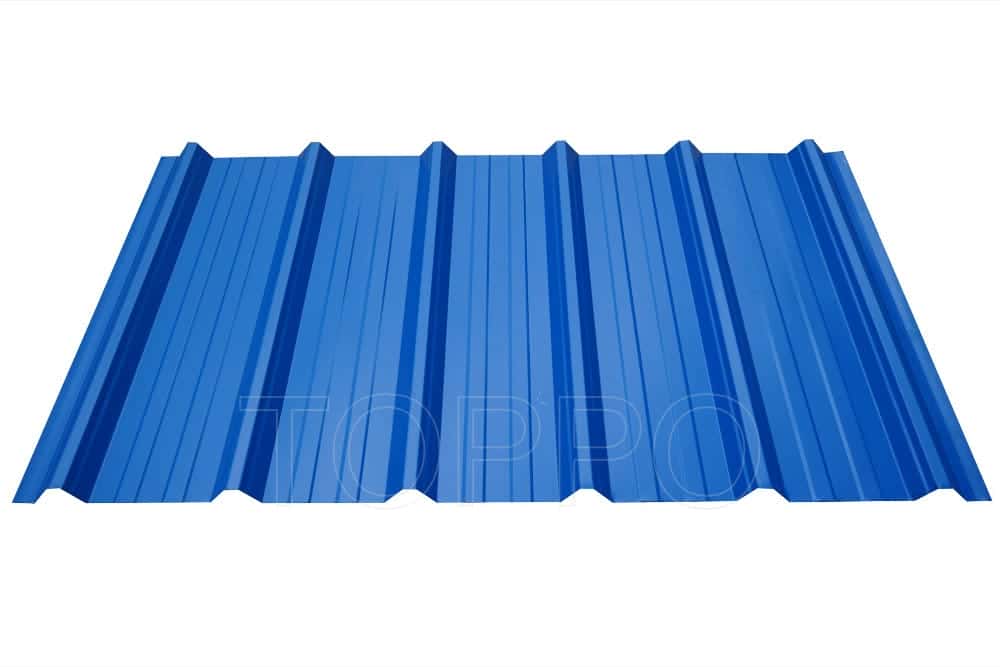

• Formed Shape: Trapezoidal metal roofing profile

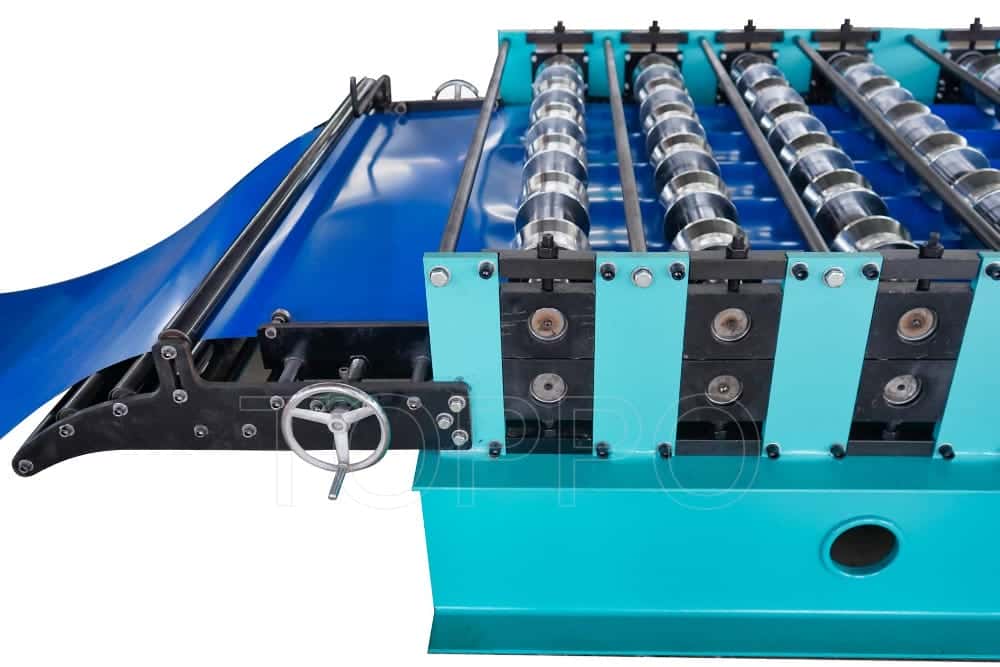

• Roll Stations: 16–20 rows

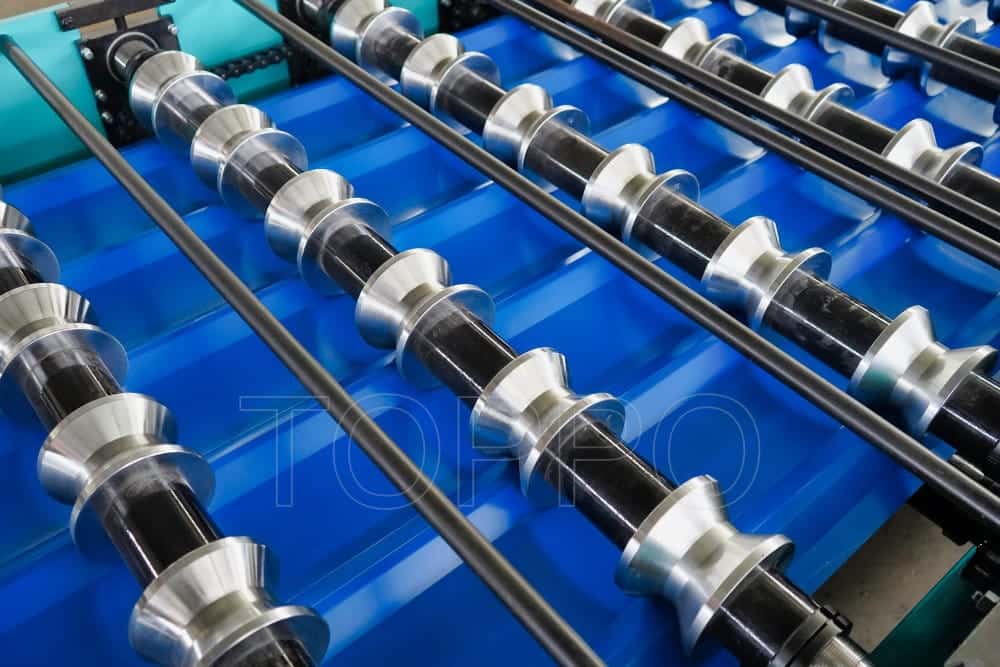

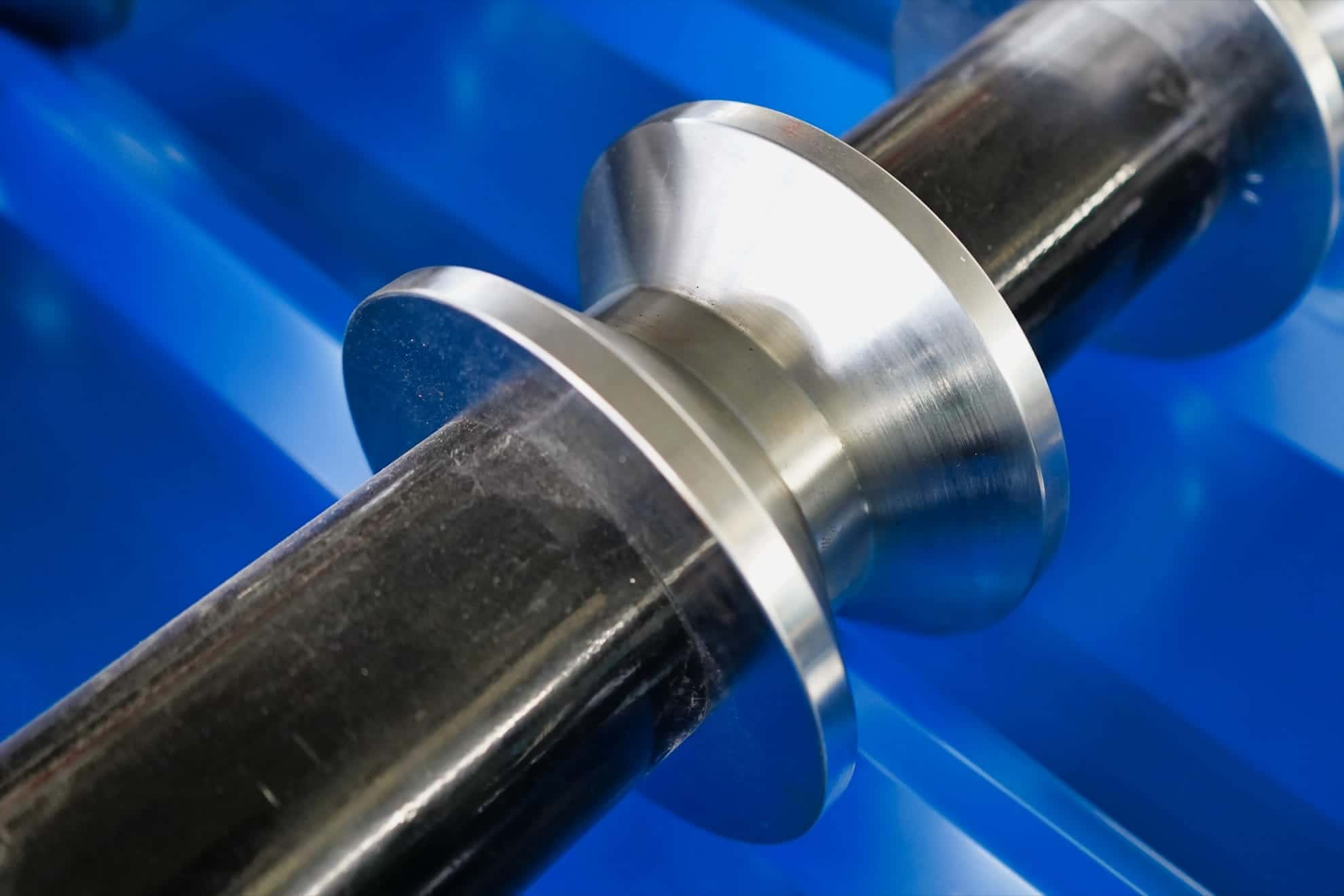

• Roller Material: 45# steel with hard chrome coating

• Driving Mode: Chain drive or gearbox

• Shaft Diameter: 70 mm solid shaft

• Structure: 350H steel welded frame

• Main Motor Power: 5.5 kW (adjustable)

• Hydraulic Power: 4.0 kW hydraulic station

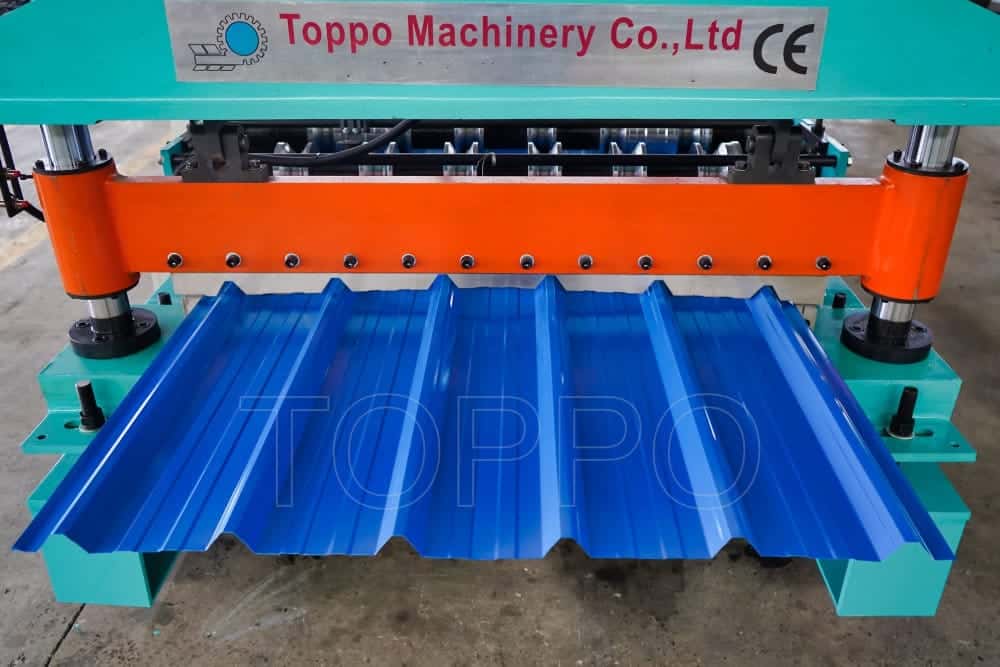

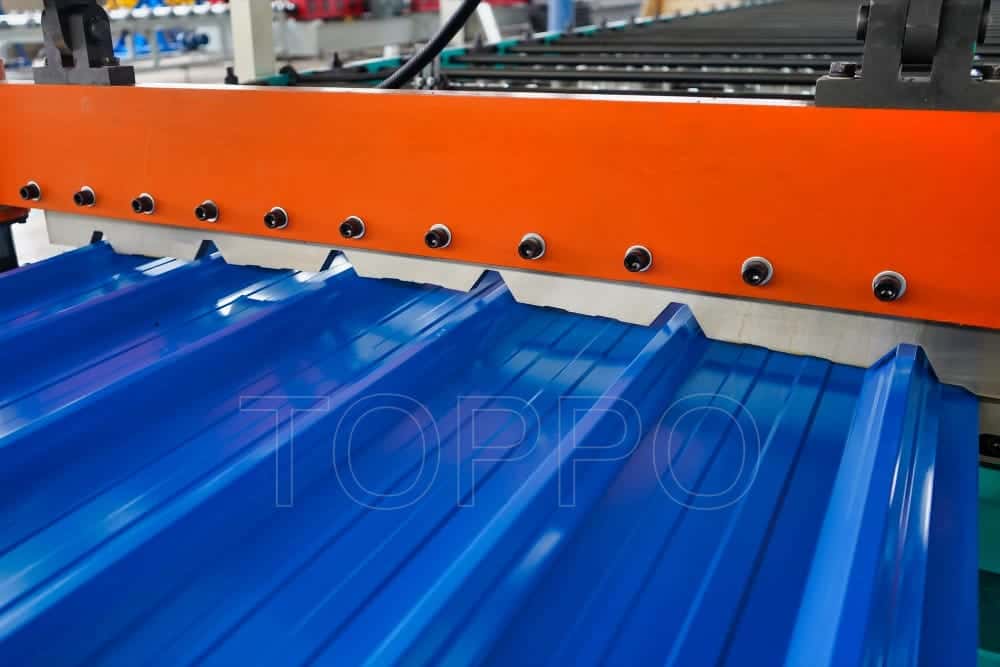

• Cutting System: Hydraulic shear, blade Cr12Mov

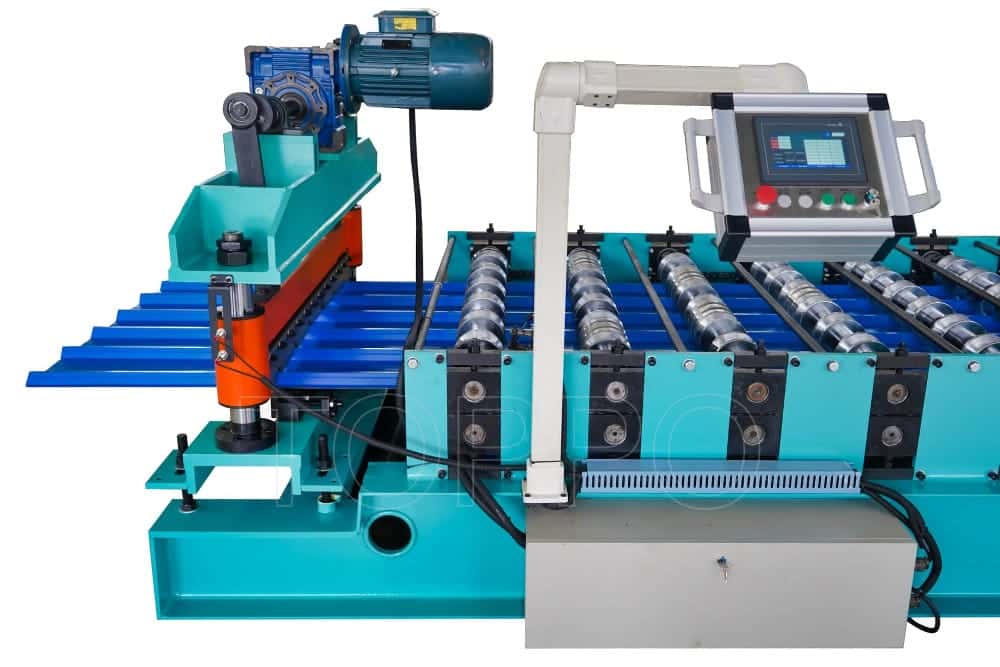

• Control Mode: PLC control with touch screen (Siemens/Mitsubishi)

• Accuracy: ±1.5 mm per piece

• Speed: 12–15 meters/min (depending on profile)

• Decoiler: Optional hydraulic decoiler 5 tons capacity

• Output Table: Manual or automatic stacking rack

• Voltage: 380V/50Hz/3Phase (customizable)

• Weight: Approx. 5.2 tons

• Machine Size: Approx. 8.0 × 1.4 × 1.5 m

• Warranty: 2 years for main components

• Support: Online guidance, spare parts free during warranty

• Noise Level: Below 85 dB

• Application: Roofing for steel buildings, factories, farms, warehouses

• Customization: Available for profile design and automation level

• Temperature Range: -10°C to +45°C

• Working Humidity: Up to 90% RH non-condensing

• Emergency Stop: Integrated safety system

• Lubrication: Automatic oiling system optional

• Marking System: Optional inkjet printer for logo/date

• Coil Inner Diameter: 508 mm

• Coil Outer Diameter: ≤1500 mm

• Max Coil Weight: 5000 kg

• Cutting Length Setting: via touch screen input

• Alarm System: Alerts for material jam or limit overrun

• Remote Diagnostics: Available with internet connection

• Power Consumption: ~10–12 kW total

• Installation: Engineer available overseas (optional)

• Training: User manual, online video, live demo support

• Finish Quality: Smooth surface, no scratch or indentation

Why Choose This Machine?

This machine offers industrial-grade durability with precise roll forming for long-span metal roofing panels. The integration of a high-efficiency hydraulic system and intelligent PLC operation ensures minimum scrap, high productivity, and operator safety. Its compatibility with various steel materials makes it ideal for multiple roofing applications.

Production Process

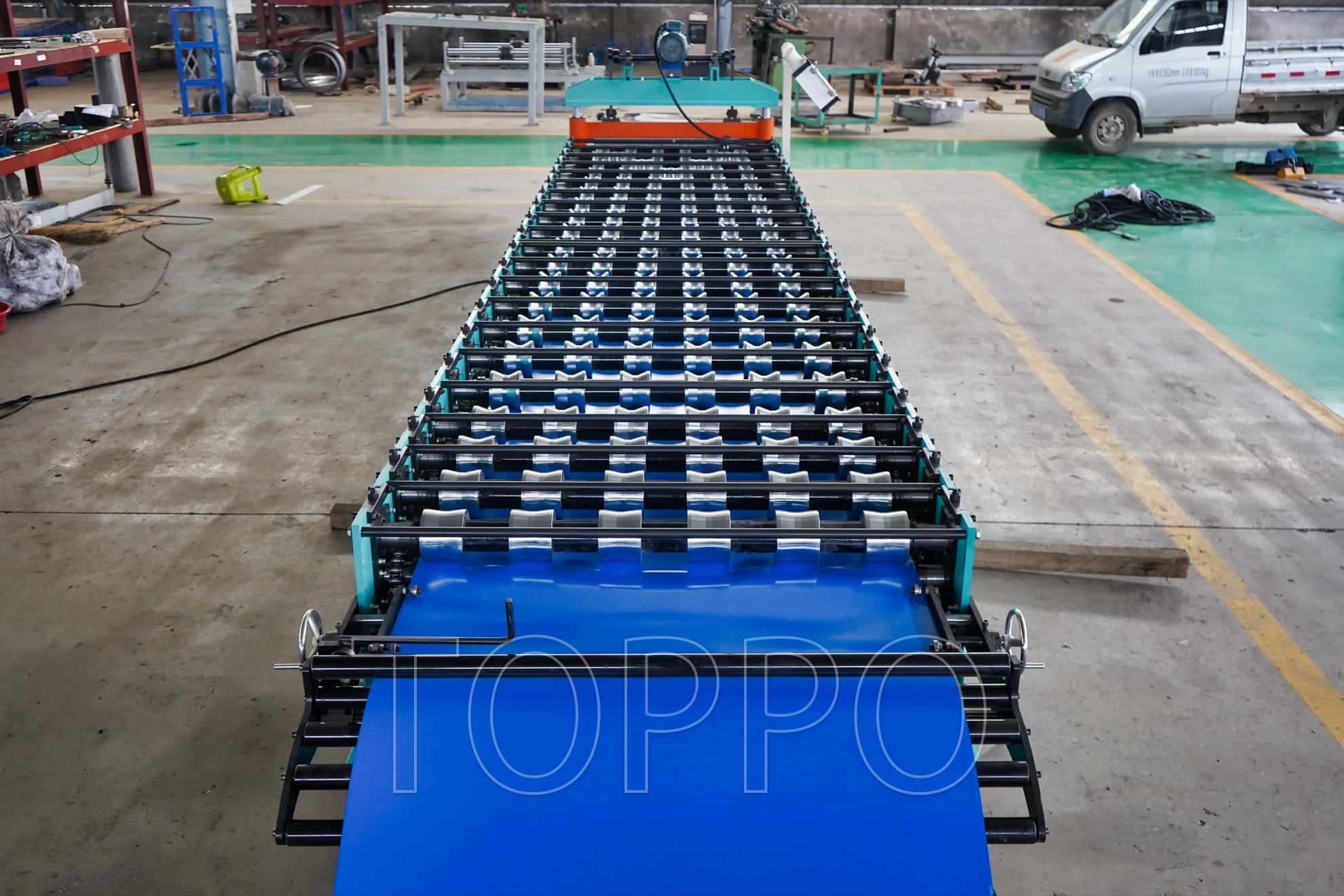

Coil feeding → Roll forming → Hydraulic cutting → Output table → Collection. Optional automation includes stacking, marking, and remote diagnostics.
