Product Overview

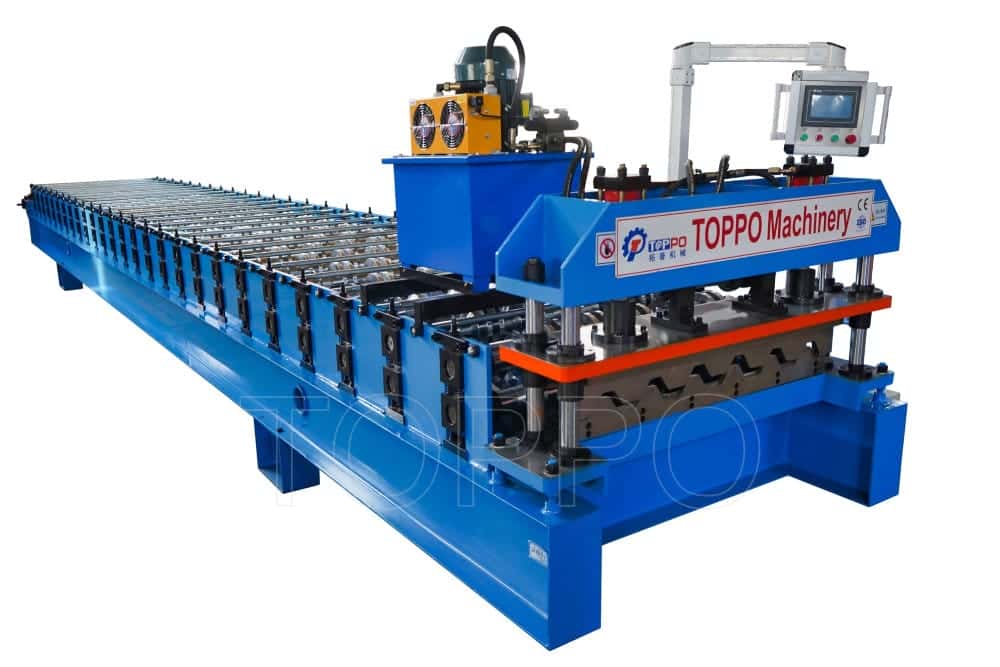

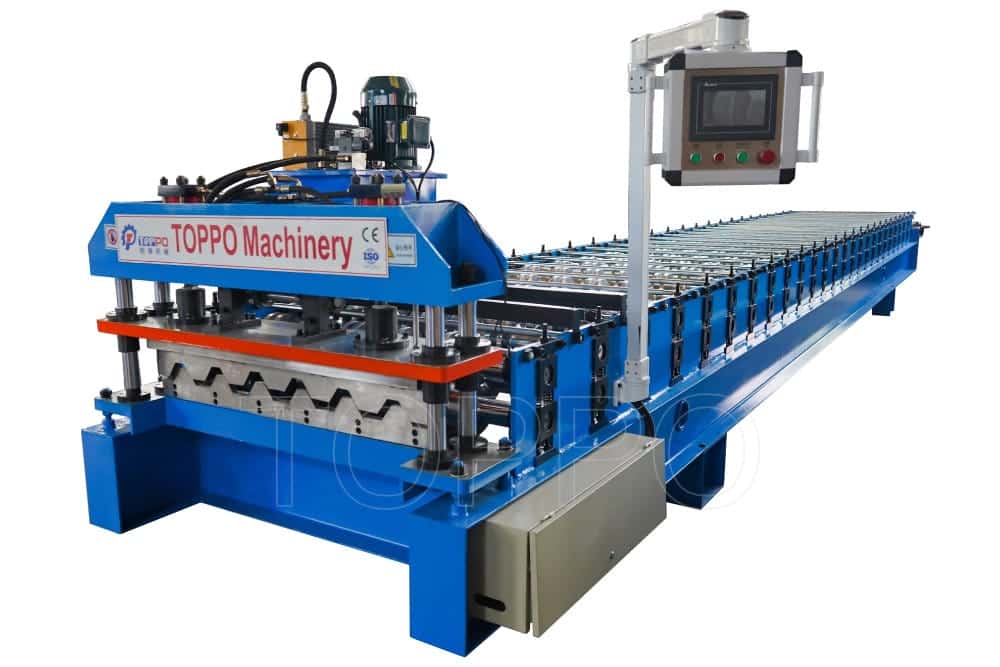

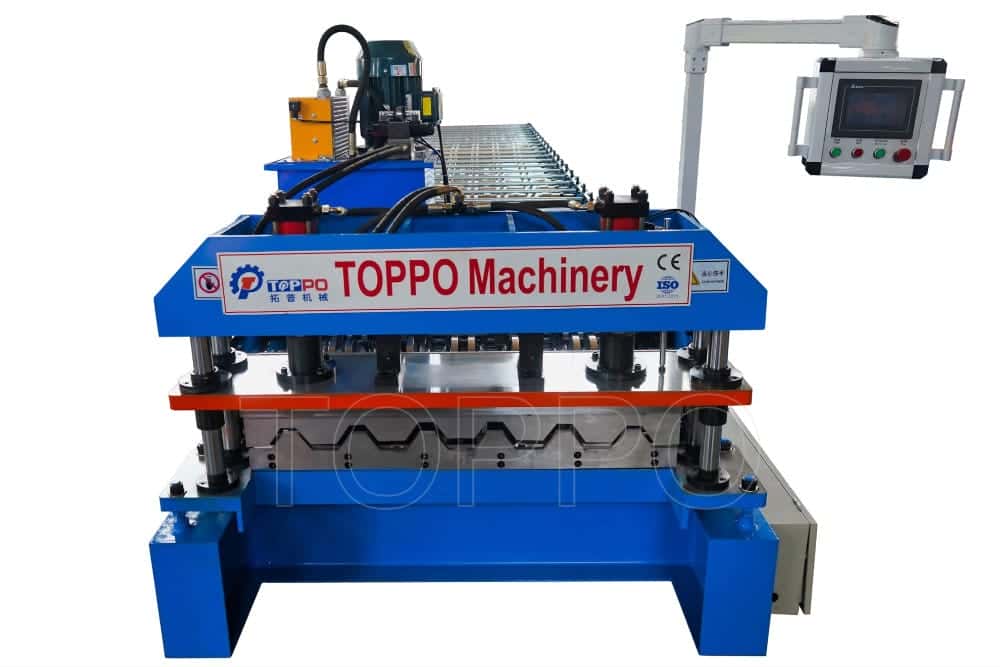

• Machine Type: Trapezoidal Roof Roll Forming Machine

• Material Processed: Color-coated steel, Galvanized steel (GI), Aluzinc, Prepainted steel

• Material Thickness Range: 0.3 mm – 0.8 mm (customizable)

• Maximum Forming Width: e.g. 1000 mm / 1250 mm

• Formed Sheet Profile: Trapezoidal rib profile

• Number of Roll Stations: e.g. 15 / 18 stations

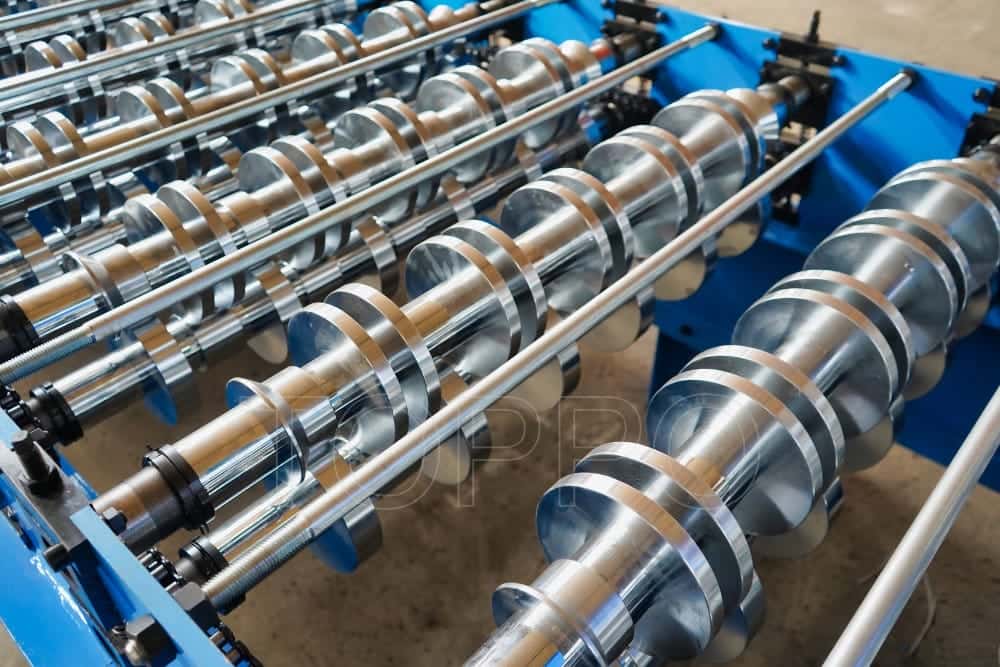

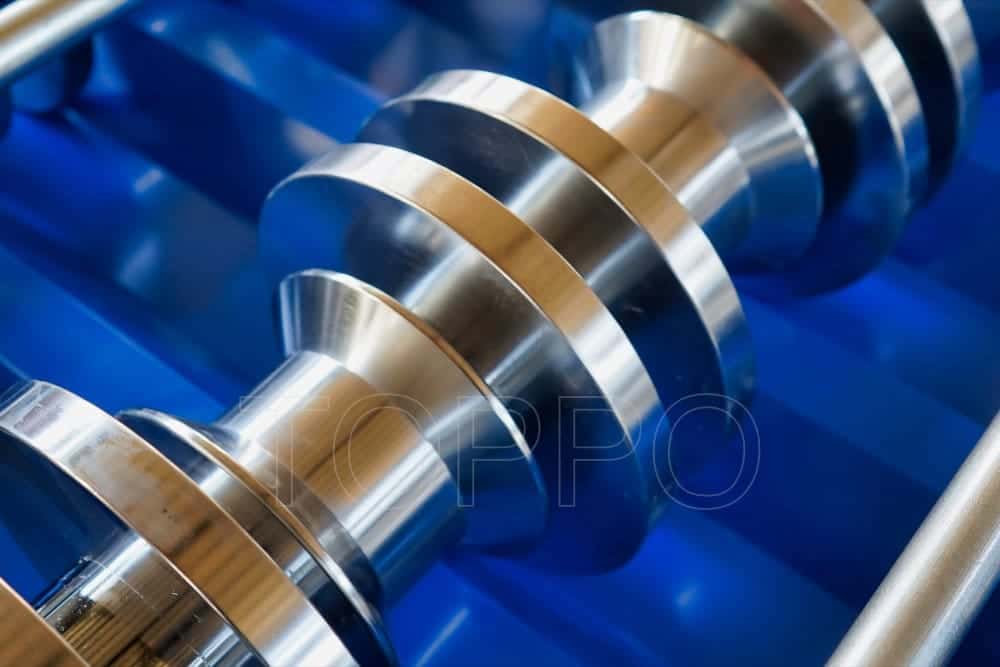

• Roller Material: 45# steel with chrome plating

• Shaft Material: High-grade steel, solid shaft

• Shaft Diameter: e.g. 70 mm

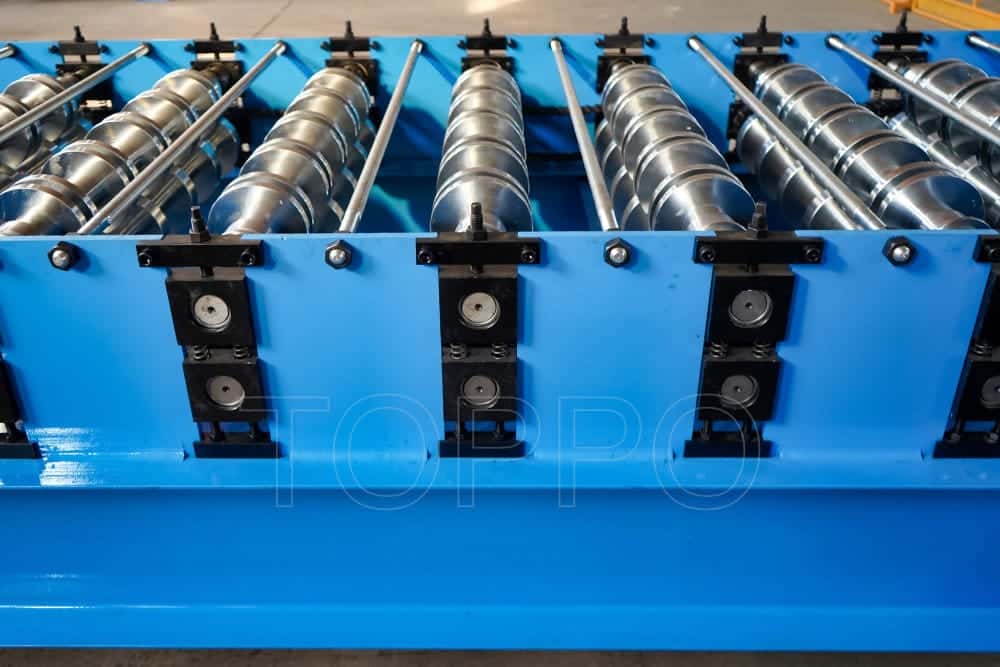

• Frame Structure: Welded H-beam steel frame

• Main Beam Size: e.g. 400H / equivalent

• Driving Mode: Motor with gearbox / chain drive

• Motor Power: e.g. 5.5 kW (or as specified)

• Hydraulic System: Hydraulic station for cutting

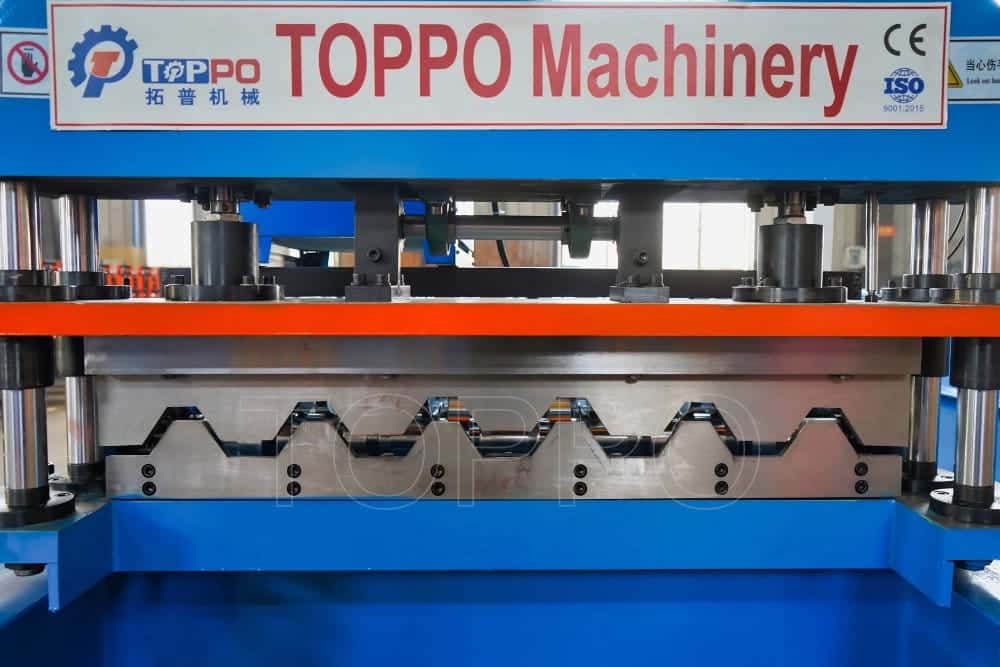

• Cutting Blade Material: Cr12Mov (quenched & tempered)

• Cutting Mode: Hydraulic shearing

• Cutting Accuracy: ±2 mm (or specified tolerance)

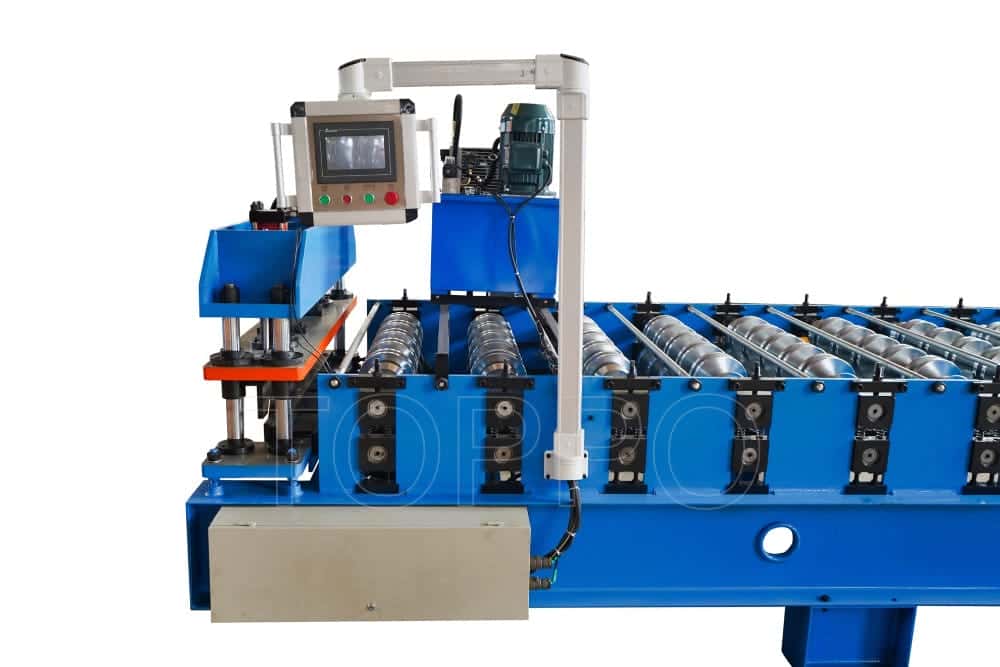

• Control System: PLC + touch screen / HMI

• Controller Brand: e.g. Delta / Siemens / Mitsubishi

• Length Measuring Device: Photocell or encoder feedback

• Decoiler (optional): Manual or hydraulic decoiler

• Max Coil Outer Diameter (Decoiler): e.g. Ø 1500 mm

• Coil Inner Diameter Support: Ø 450–550 mm

• Max Coil Weight: e.g. 5 tons

• Running Speed: e.g. 10–15 m/min

• Machine Dimensions (L×W×H): e.g. 7.0 × 1.3 × 1.55 m

• Machine Weight: e.g. ~4.8 tons

• Voltage & Phase: e.g. 380 V, 50 Hz, 3-phase (customizable)

• Power Supply Options: 220V / 440V / 60Hz (on request)

• After-sales Warranty: 24 months (or 2 years)

• Spare Parts: Free wear parts within warranty period

• Life‑long Technical Support: Provided

• Installation & Commissioning: On-site assistance or remote guidance

• Operating Temperature Range: –10 °C to +40 °C (or design spec)

• Control Language: English / Chinese / Others (multilingual support)

• Error Alarm System: For overload, overcurrent, fault detection

• Safety Protection: Emergency stop buttons, safety guards, limit switches

• Maintenance Access: Easy removal covers and lubrication points

• Lubrication System: Manual or automatic lubrication of bearings

• Power Consumption: Approximate full-load consumption (e.g. 12 kW)

• Noise Level: < 85 dB (approximate, at operating state)

• Application Venue: Factory, building site, roofing workshop, prefab plant

• Applicable Structures: Steel structure buildings, warehouses, agricultural roofs

• Customizable: Yes (profile, width, automation level)

Working Process

The process includes: decoiler → leveling / uncoiling → guiding → roll forming (multi-step) → hydraulic shear → output / stacking.    The PLC system automatically measures and cuts each piece to the preset length.    Users only need to feed the coil and collect the finished sheets.

Highlights / Advantages

• Stable frame reduces vibration & deformation

• Precision forming ensures high-quality trapezoidal profile

• Automatic cutting eliminates manual measurement error

• High speed improves production efficiency

• Simple operation with touch screen interface

• Low maintenance and long service life

• Flexible configuration and easy expansion

• Safe design with emergency stops and protection devices

About After‑sales & Support

We offer 24-month warranty, free wear parts, lifetime technical support, and optional on-site installation or remote commissioning.    If buyer requires, we can provide application drawings, profile design, and user training.
