Profile Type: Trapezoidal metal roofing sheet
Raw Material: Color steel, Galvanized steel, Aluminum
Material Thickness: 0.3–0.8mm
Feeding Width: 1000–1250mm
Effective Panel Width: Customizable
Roller Stations: 18–24 stations
Roller Shaft Diameter: 70mm

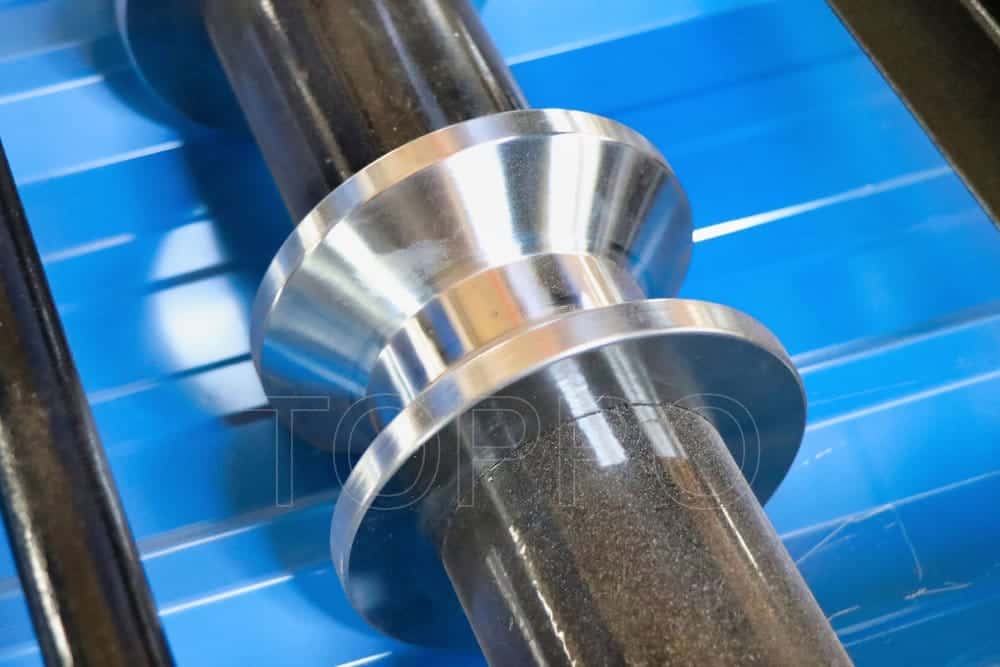

Roller Material: 45# steel, plated with hard chrome
Drive System: Chain or Gear drive
Motor Power: 5.5kW – 7.5kW
Hydraulic Power: 4kW
Control System: PLC (Siemens/Mitsubishi/Delta)
Cutting Type: Hydraulic cutting system
Blade Material: Cr12Mov with heat treatment
Forming Speed: 12–18m/min
Operation: Fully automatic
Voltage: 380V/50Hz/3Phase or customized
Machine Frame: Welded 350H beam steel
Machine Weight: 6–8 tons approx.
Dimension: Approx. 8m × 1.5m × 1.6m
Color: Customizable (Default: Blue + Yellow)
Warranty: 12 months
Certification: CE certified
Usage: Roofing sheet production
Application Fields: Construction, Warehouses, Factories
Cooling System: Fan cooling (optional)
Decoiler: Manual or Hydraulic optional
Output Method: Automatic stacker or manual table
Safety Guard: Installed for operator safety
Sound Level: Low-noise operation
Operator Required: 1–2 persons
Maintenance: Low and easy
Surface Treatment: Painted, rust-proof
Lubrication: Auto/manual oiling
Transportation: Containerized for shipping
Installation: Engineer available overseas
Support: Online technical support & spare parts
Packing: Wrapped with plastic film or wooden box
Lead Time: 25–30 working days
Customizable Profiles: Yes, based on customer drawings
Temperature Resistance: Stable in wide ranges
Environmental Compliance: Eco-friendly production
