This advanced machine is built to produce wave-style metal glazed tiles, offering excellent aesthetics and structural consistency. Designed with industrial-grade rollers and a digital PLC control system, it ensures accurate dimensions, high-speed production, and long-term performance.
Model: Wave Profile Glazed Tile Roll Forming Machine
Material Type: Galvanized Steel, PPGI, Color Steel
Thickness: 0.3mm - 0.8mm
Input Coil Width: 1250mm
Output Tile Width: 1000-1050mm
Profile Shape: Wave corrugated glazed tile
Roller Stations: 18 rows
Roller Material: GCr15 with hard chrome
Shaft Diameter: 75mm
Motor Power: 7.5KW

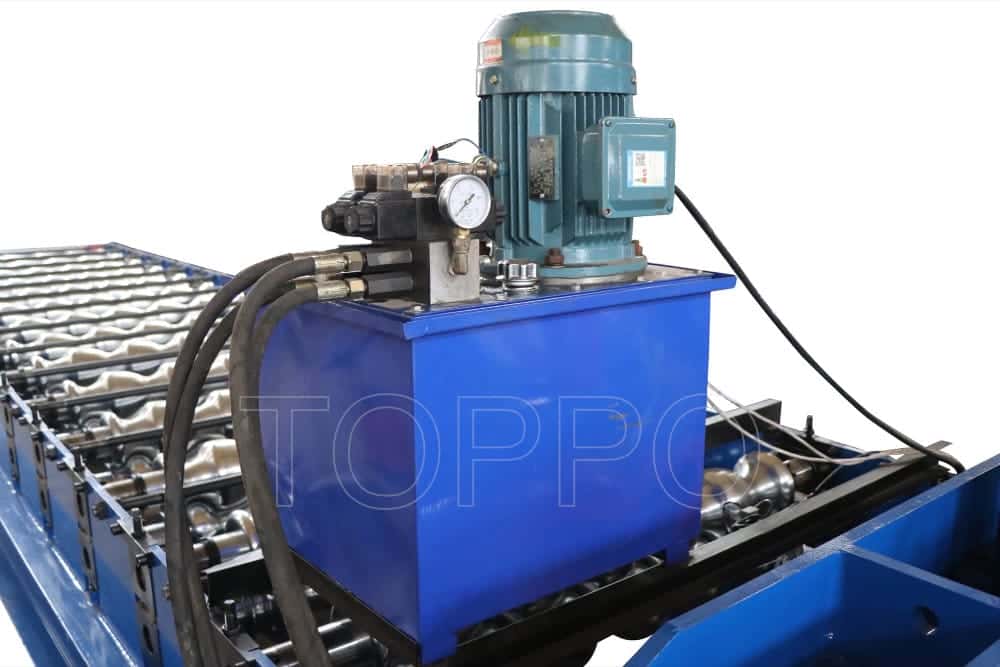

Hydraulic Cutting Power: 5.5KW

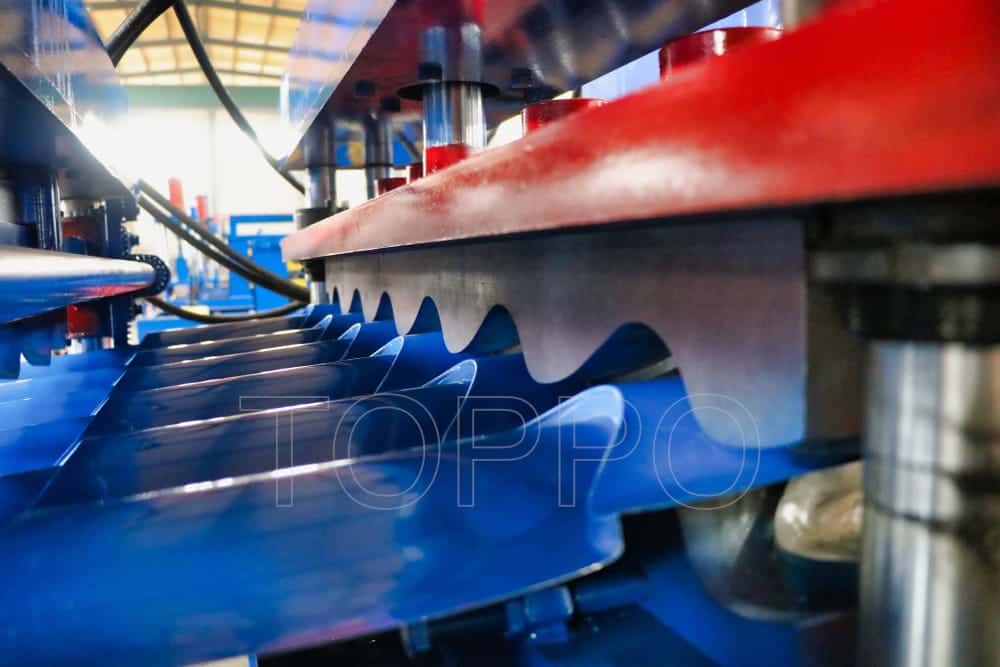

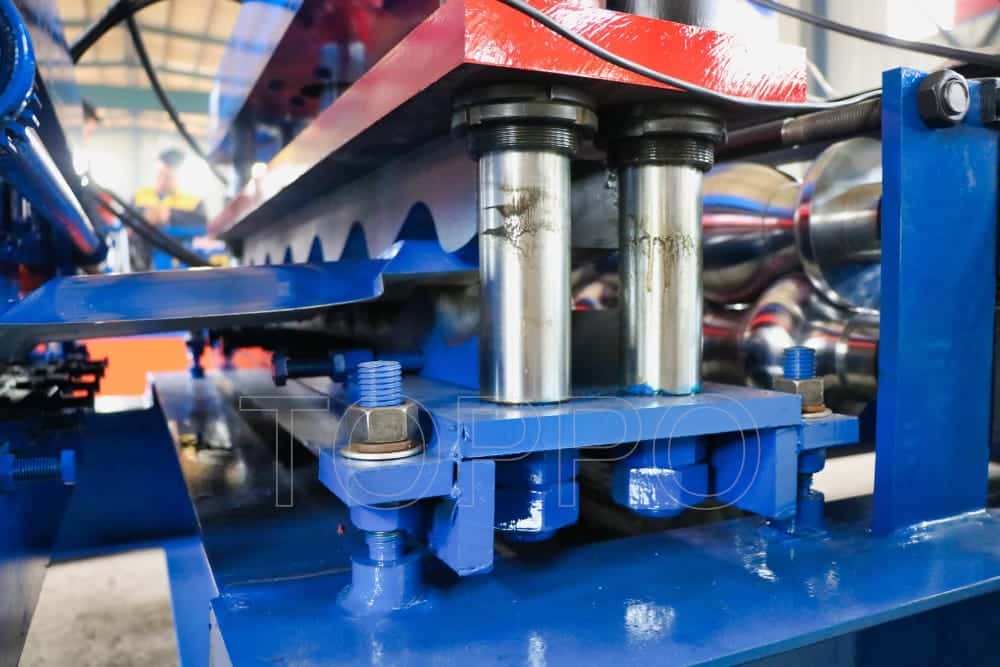

Cutting Type: Hydraulic post cutting
Control System: PLC (Siemens/Delta) with HMI touch screen
Production Speed: 8-12 meters/min
Operation Mode: Fully automatic
Control Cabinet: Independent electric cabinet with safety controls
Machine Color: Blue frame, red cutter, white control panel
Frame: 350H beam welded steel
Accuracy: ±1mm cutting precision
Coil ID: 508mm
Warranty: 12 months
Service: Overseas installation & training available
Voltage: 380V / 50Hz / 3Phase (customizable)
Weight: Approx. 8-9 tons
Dimensions: 9.5m x 1.5m x 1.5m
Certification: CE, ISO
Application: Residential and industrial metal tile roofing
This machine is ideal for manufacturers targeting premium wave tile profiles for durable, water-resistant, and visually appealing roofing systems.
