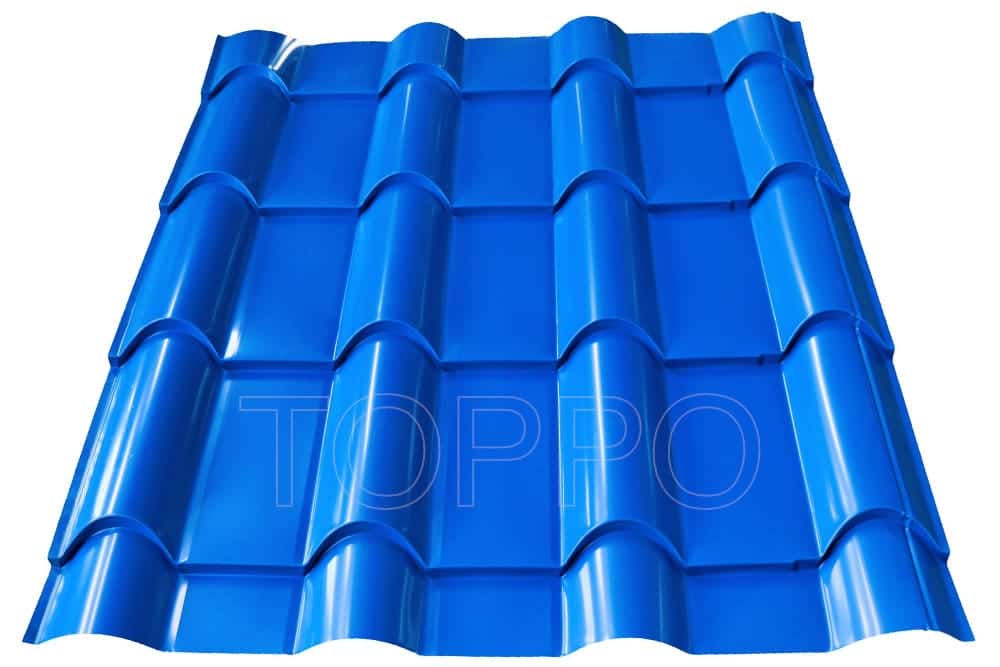

Application: Glazed tile production for roofing
Control System: PLC with touchscreen interface
Operation: Fully automatic
Cutting Type: Hydraulic cutting
Drive Type: Chain drive
Rollers: High precision machined
Roller Material: 45# steel with hard chrome plating
Shaft Diameter: 70-90 mm
Frame: 300-350H steel
Main Motor Power: 5.5-7.5 kW
Hydraulic Station Power: 4 kW
Voltage: 380V, 50Hz, 3 Phase (customizable)
Forming Speed: 8-15 m/min
Tile Thickness: 0.3-0.6 mm
Tile Width: 1000-1250 mm
Material: PPGI, GI, PPGL, Aluminum
Cutting Blade Material: Cr12Mov steel with heat treatment
Control Cabinet: Industrial level
Encoder: Omron (Japan)
Length Accuracy: ±1.5 mm
Transmission: Chain
Roll Station: 16-20 stations
Production Line Length: Approx. 8-10 m
Lubrication: Automatic lubrication system
Touchscreen Brand: Delta/Siemens
Electrical Components: Schneider or Siemens
Weight: Approx. 5-7 tons
Machine Color: Customizable
Certification: ISO/CE
Warranty: 1 year
Support: Engineers available overseas
Packaging: Plastic film + steel wire fix
Delivery Time: 30 days
MOQ: 1 set
After-sales Service: Online support, video technical support
Design Software: AutoCAD/SolidWorks
Forming Type: Cold roll forming
Noise Level: Low noise operation
Environmental Protection: Eco-friendly design
This machine ensures high efficiency and uniform tile profiles, widely used in industrial, commercial, and residential roofing projects worldwide.
