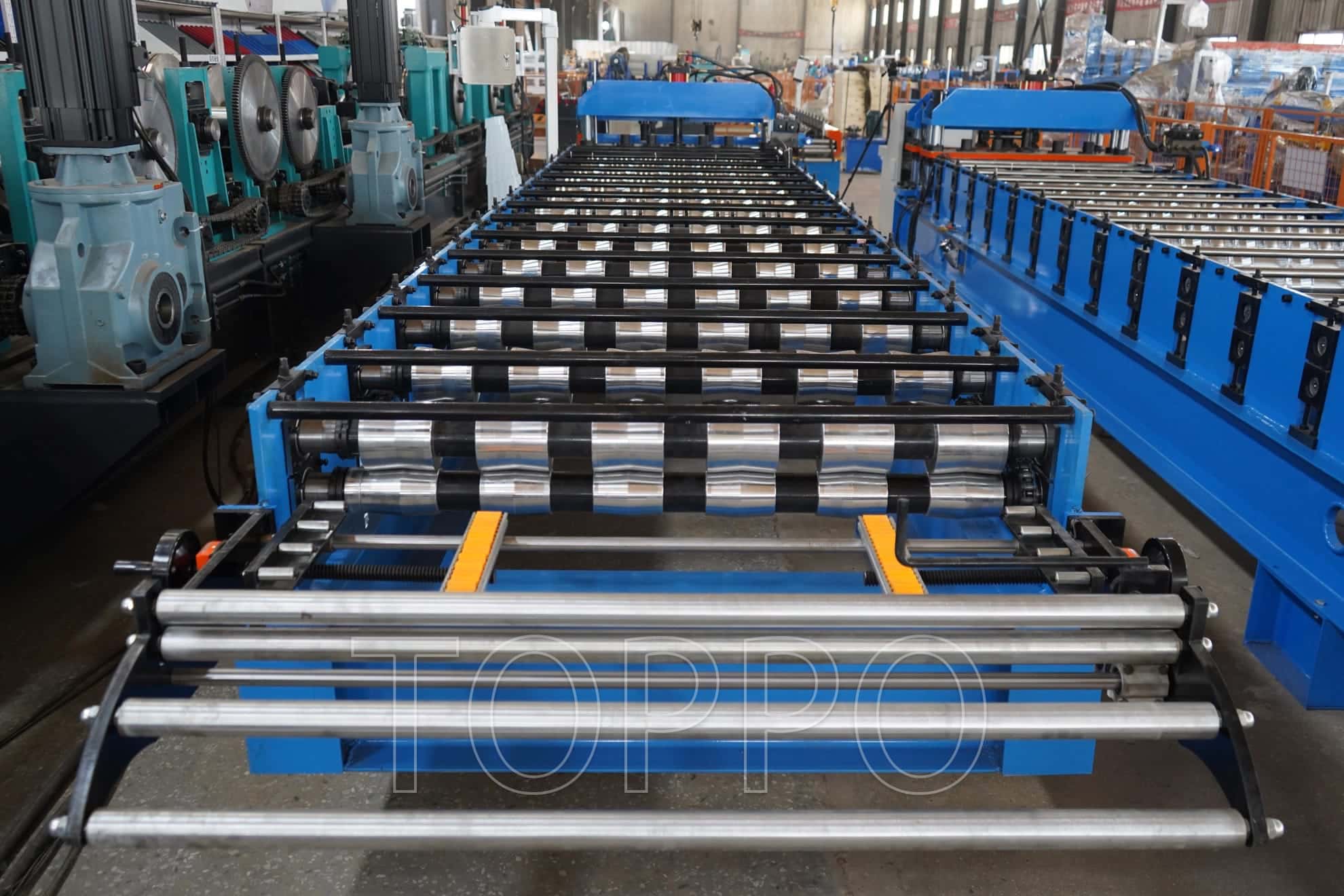

This glazed tile roll forming machine is engineered for producing high-quality glazed roofing sheets with fast production speed and minimal labor. It is widely used in construction and steel structure industries.
Material type: Color steel, galvanized steel, aluminum
Material thickness: 0.3–0.8 mm
Feeding width: 1000 mm (customizable)
Effective width: 828 mm (adjustable)
Roller stations: 16 rows
Roller material: High-grade 45# steel with hard chrome plating
Frame structure: 300H steel welded
Forming speed: 8–12 m/min
Transmission system: Chain drive / Gearbox (optional)
Cutting type: Hydraulic post-cutting
Blade material: Cr12MOV
Control system: PLC (Panasonic/Mitsubishi/Siemens)
Operation interface: Touch screen
Voltage: 380V, 50Hz, 3Phase (customizable)
Hydraulic station motor power: 4 kW
Main motor power: 5.5 kW
Weight: Approx. 6.5 tons
Dimension: 7.5m x 1.5m x 1.6m
Color: Customizable
Surface treatment: Painted/Coated
Certification: CE, ISO9001
Application: Roofing sheet manufacturing
Industry: Construction, Steel Building, Workshop Roofing
Automation: Fully automatic
Installation: Engineer guide available
After-sales service: Lifetime technical support
Warranty: 12 months
Noise level: Low
Production efficiency: High
Operation: User-friendly
Maintenance: Easy maintenance
Durability: Long service life
Flexibility: Custom profiles available
Safety system: Emergency stop & covers
Cooling system: Air cooled
Lubrication: Centralized lubrication
Alignment system: Laser alignment optional
Tooling: Precision machining
Transport: Sea-worthy packing
MOQ: 1 set
Lead time: 30 days
OEM/ODM: Accepted
Software support: Included
Digital display: Yes
Invest in this state-of-the-art glazed tile forming line to boost your production capability with reliable performance and advanced control systems.
