Material Thickness: 0.3-0.8mm
Material Type: Galvanized steel, PPGI, Aluminum
Effective Width: 1000mm
Feeding Width: 1220mm
Roller Stations: 16 rows
Roller Material: 45# steel with hard chrome coating
Shaft Diameter: 70mm
Shaft Material: High-grade steel
Machine Frame: 300H steel welded
Drive Type: Chain drive
Main Motor Power: 5.5 kW
Hydraulic Cutting Power: 4 kW
Cutting Type: Hydraulic cutting
Blade Material: Cr12 with heat treatment
Control System: PLC automatic control
PLC Brand: Delta / Siemens
Operation Panel: Touch screen
Encoder Brand: Omron
Voltage: 380V/50Hz/3Phase or customized
Production Speed: 10-15m/min
Forming Accuracy: ±1mm
Transmission: Chain
Color: Customized
Weight: About 5 tons
Dimension: 7500*1500*1500mm
Application: Roof panel, wall panel production
Warranty: 12 months
Certification: CE / ISO
After-Sales Service: Engineers available to service overseas
Cutting Control: Fully automatic
Lubrication System: Automatic
Noise Level: Low noise operation
Roller Surface: Polished and chrome coated
Roll Forming Type: Trapezoidal profile
Structure: Welded steel frame
Safety Protection: Emergency stop and safety covers
Control Box: Integrated
Cooling System: Optional
Feeding Guide: Adjustable
Installation: On-site installation support
Packing: Plastic film and steel wire fixed

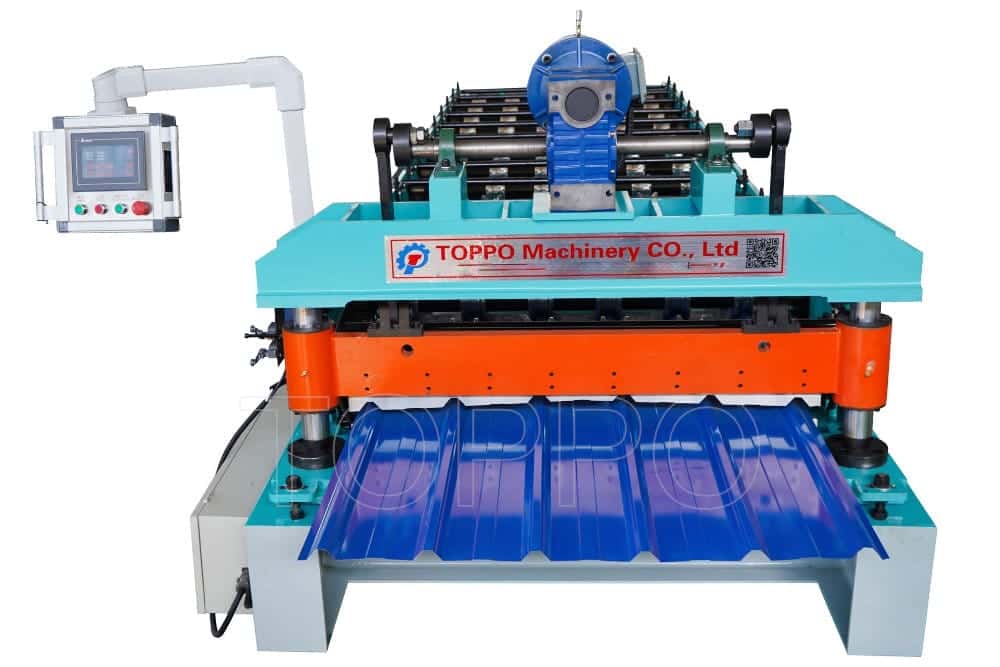

This trapezoidal roll forming machine is designed for efficient and precise forming of metal sheets into trapezoidal profiles, which are widely used for industrial and commercial roofing solutions. The machine features a robust structure, automatic PLC control, and high-precision cutting system, making it ideal for continuous production lines. With CE/ISO certifications and reliable after-sales service, it's an excellent investment for metal fabrication businesses.
