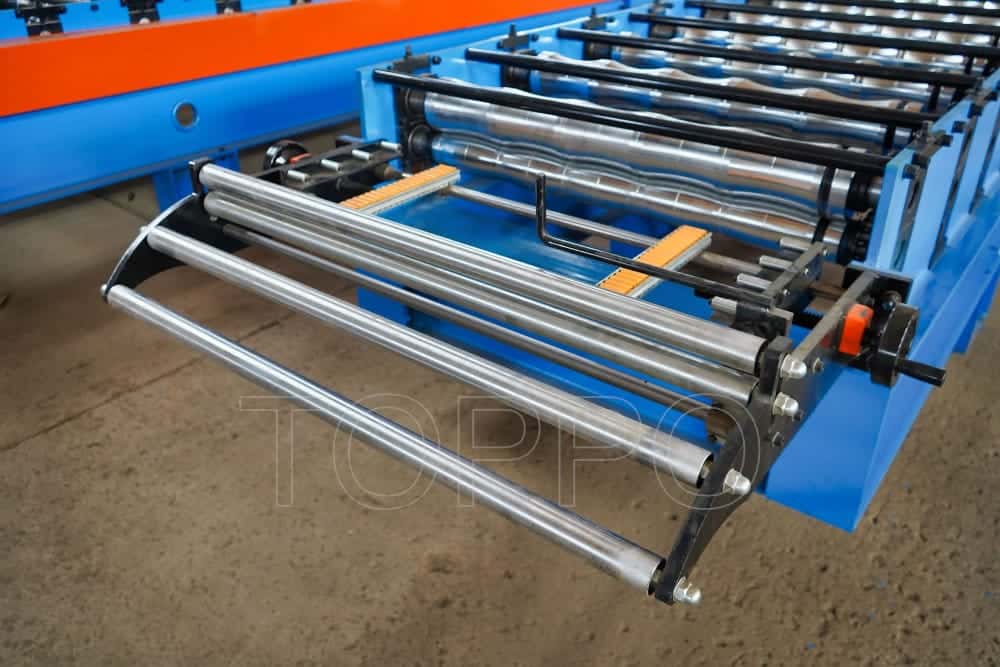

Product Type: Glazed Tile Roll Forming Machine
Applicable Material: Color-coated steel, Galvanized steel, Aluminum
Material Thickness: 0.3 – 0.6 mm
Forming Speed: 12 – 15 m/min
Roller Stations: 18 rows
Roller Material: GCr15 steel with heat treatment and hard chrome coating
Main Frame: 350 H-beam with welded construction
Transmission: Gearbox drive system
Cutting Type: Hydraulic cutting using Cr12 high-speed steel blades
Control System: PLC control with touch screen (Delta/Siemens optional)
Operating Voltage: 380V/50Hz/3Phase (customizable)
Main Motor Power: 7.5 kW
Hydraulic Station Power: 4 kW
Operation Mode: Fully automatic
Accuracy: ±1.0 mm length tolerance
Noise Level: ≤75 dB
Cooling Method: Natural or air-cooled
Feeding Width: 1200 mm
Effective Width: 1050 mm
Tile Step Distance: 250–300 mm
Step Height: 20–30 mm
Line Length: Approx. 11 meters
Machine Color: Customizable (blue standard)
Surface Finish: Industrial painting or powder coating
Safety Mechanism: Emergency stop, limit switches, overload protection
Panel Design: Glazed and curved tile type
Applications: Residential, commercial, and industrial roofing
Automation Level: Full automation with user-friendly interface
Material Utilization: Optimized for minimal waste
Changeover Time: Minimal; quick production change capability
Feeding Mechanism: Manual guide or servo feeding
Packaging: Wrapped with plastic film and fixed in steel frame
Warranty: 1 year warranty with lifetime technical support
Installation Support: Engineers available for overseas installation
Production Capacity: Up to 6000 m²/day
Delivery Time: 30–40 working days
OEM/ODM: Available
Certifications: CE, ISO9001
This machine is a smart investment for businesses aiming to expand their metal roofing product line with elegant, strong, and cost-effective tile designs. Built to last and engineered for performance, it delivers quality panels for both aesthetic and functional roofing systems.
