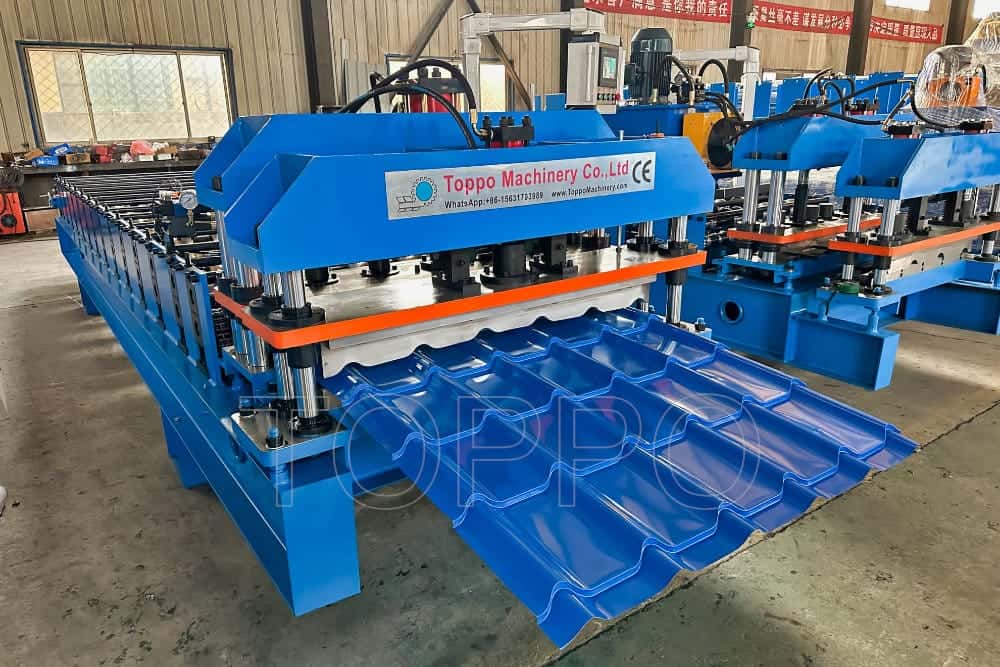

Product Description

The Automatic Glazed Tile Roll Forming Machine is engineered for the efficient production of high-quality glazed roofing sheets used in residential and industrial projects. Its advanced control system and rigid structural design ensure stable, high-speed forming with minimal material waste.

Key Features and Specifications:

• Product Name: Glazed Tile Roll Forming Machine

• Material Type: Color steel, Galvanized steel, Aluminum

• Material Thickness: 0.3–0.6 mm

• Feeding Width: 1000 mm

• Effective Width: 828 mm

• Tile Step: 250 mm

• Step Height: 20 mm

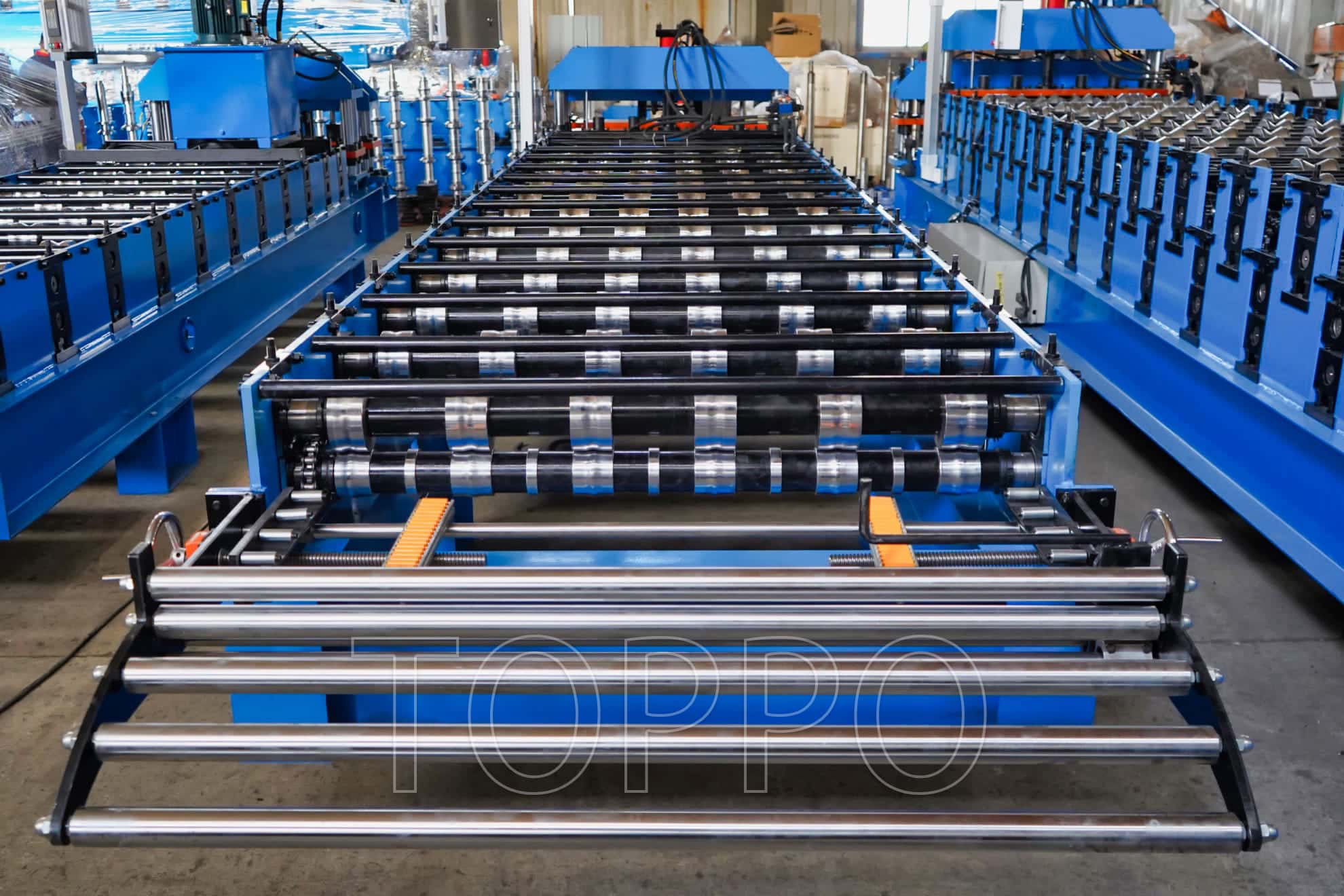

• Roller Stations: 16–20 stations

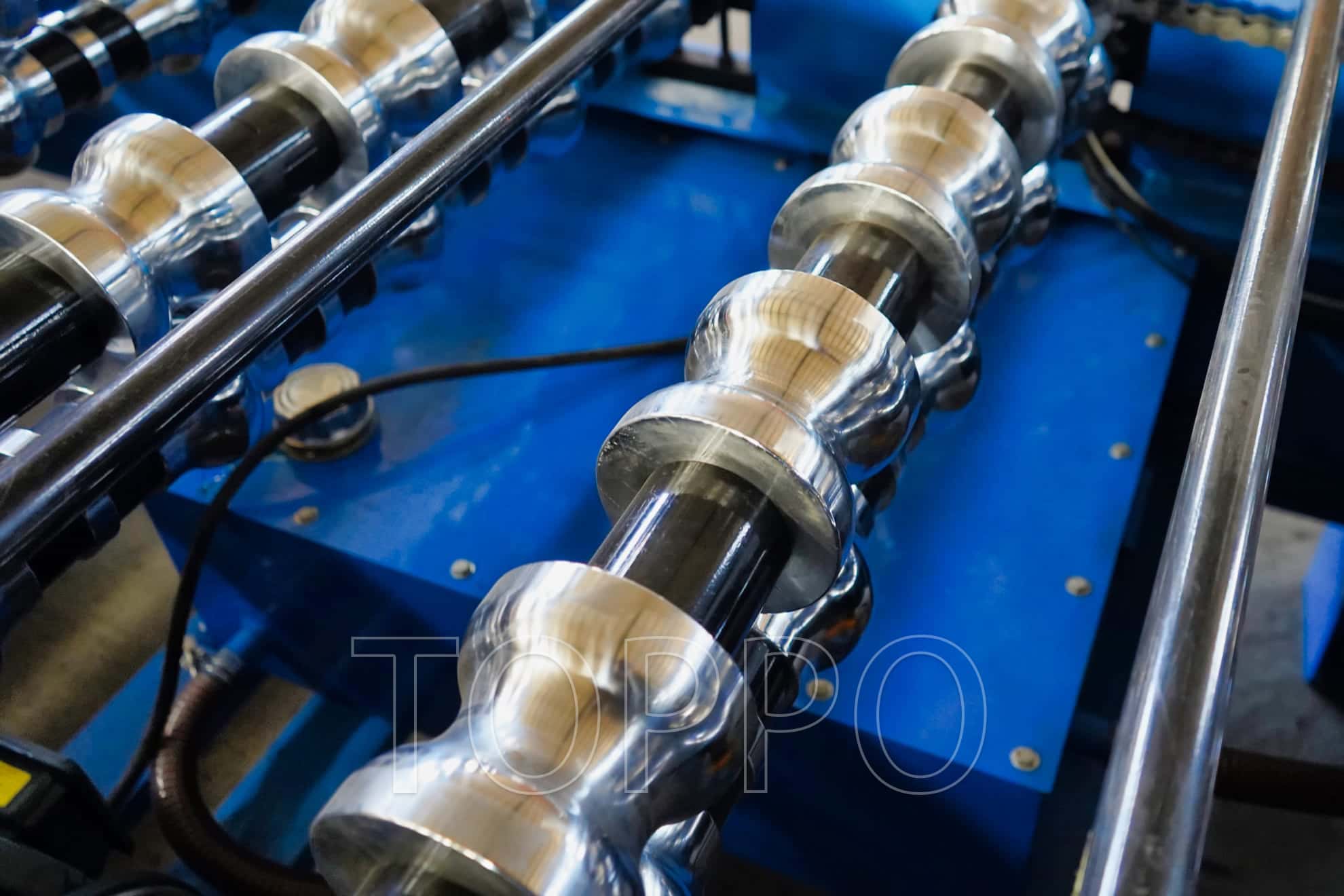

• Roller Material: GCr15 with hard chrome plating

• Frame Structure: 300–350 H-beam welded base

• Drive Type: Chain drive or gearbox

• Forming Speed: 8–12 meters per minute

• Main Motor Power: 5.5–7.5 kW

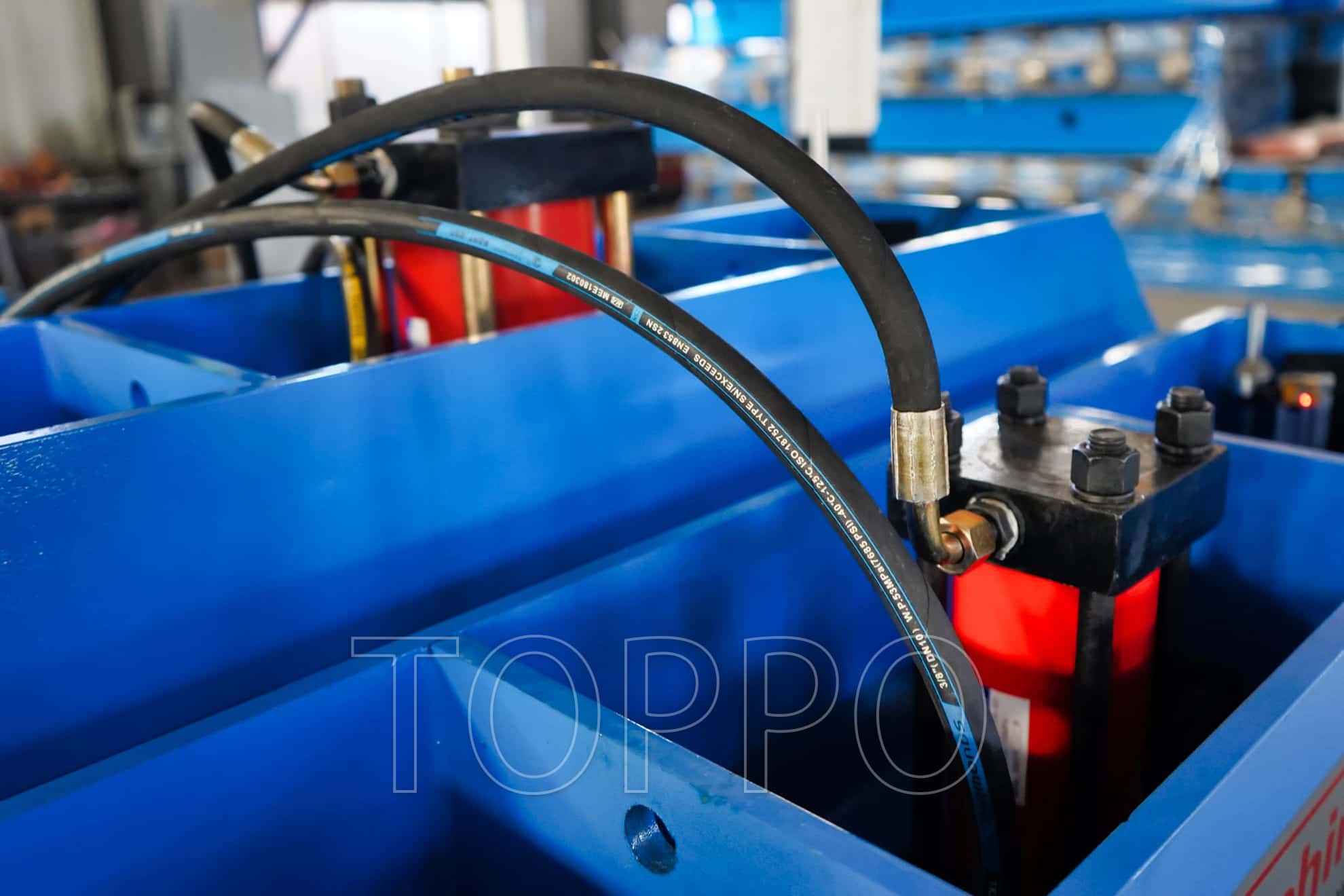

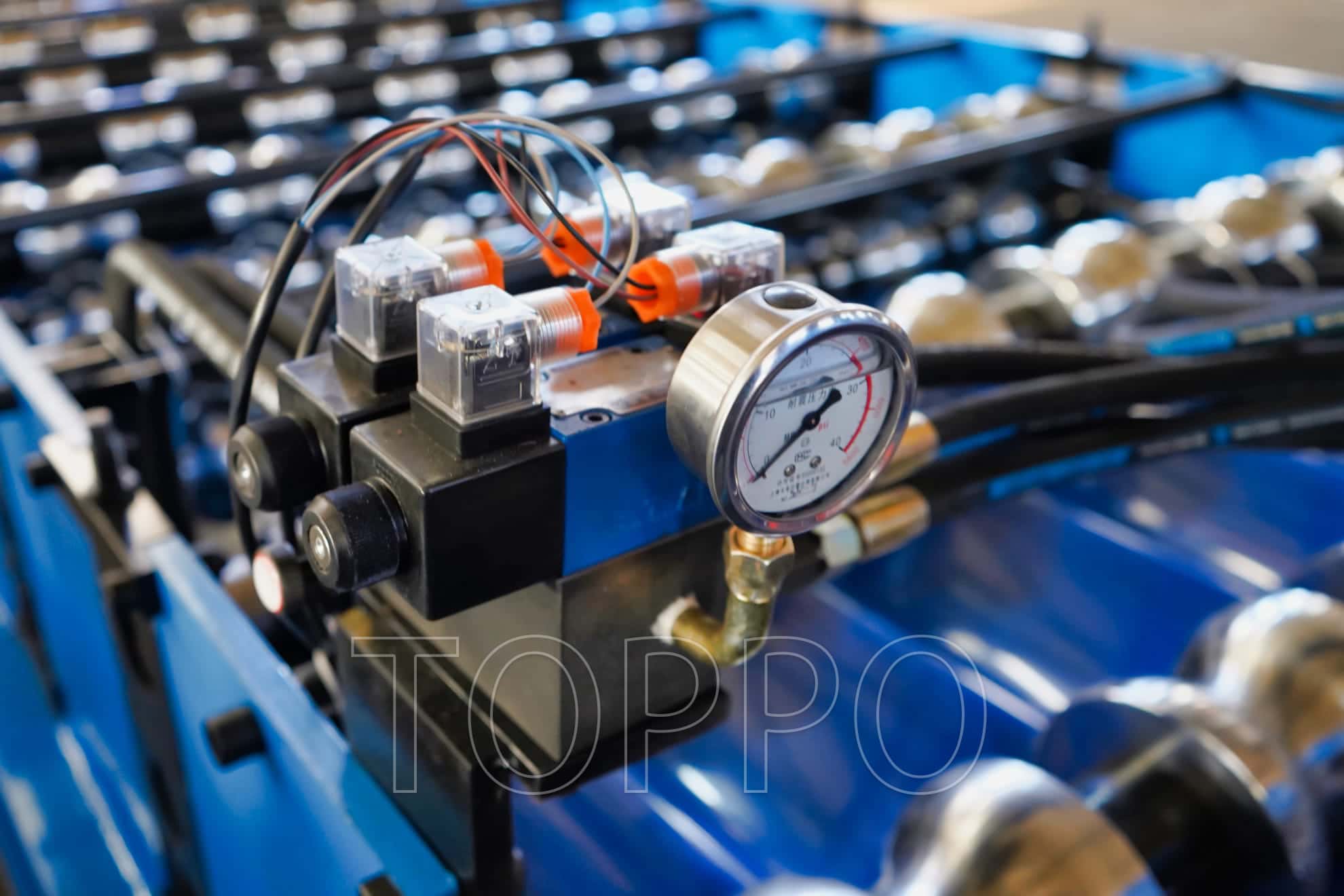

• Hydraulic Cutting Power: 4 kW

• Cutting Blade: Cr12 mold steel

• PLC System: Siemens/Delta with touch screen

• Automation: Fully automatic control

• Voltage: 380V/50Hz/3Ph (customizable)

• Control Accuracy: ±1 mm

• Machine Color: Customizable standard blue

• Paint Type: Industrial-grade powder coating

• Safety Features: Emergency stop, overload protection

• Noise Level: ≤75 dB

• Machine Dimension: Approx. 10 x 1.5 x 1.5 m

• Weight: 6–8 tons

• Application: Roofing tile manufacturing

• Output Capacity: 5000–6000 sqm/day

• Cooling System: Optional air cooling

• Feeding Guide: Manual adjustable guide

• Operation Requirement: One or two operators

• Maintenance: Simple structure, easy maintenance

• Packaging: Film wrapped with steel frame or wood box

• Lead Time: 30–40 working days

• OEM Service: Available

• Certifications: CE, ISO9001

• Support: Technical team available for overseas service

This machine is especially designed for clients seeking fast, aesthetic, and cost-efficient glazed tile production with minimal manpower and high consistency in output quality.
