This Color Steel Metal Roof Trapezoidal Roll Forming Machine is a high-precision equipment designed to produce trapezoidal metal roof panels efficiently. It is suitable for industrial, commercial, and residential roofing applications. Manufactured by TOPPO Machinery, it ensures long-term performance and durability.
Machine type: Roll forming
Applicable material: Color steel, galvanized steel, pre-painted steel
Material thickness: 0.3-0.8mm
Feeding width: Customizable, typically 1000-1250mm
Effective width: 828-1000mm (adjustable by profile)
Roller material: 45# steel with hard chrome plating
Roller stages: 13-18 rows (varies by profile)
Main motor power: 5.5-7.5kW
Hydraulic station power: 4kW
Roller shaft diameter: 70-90mm
Cutting system: Hydraulic cutting
Cutting blade material: Cr12Mov with heat treatment

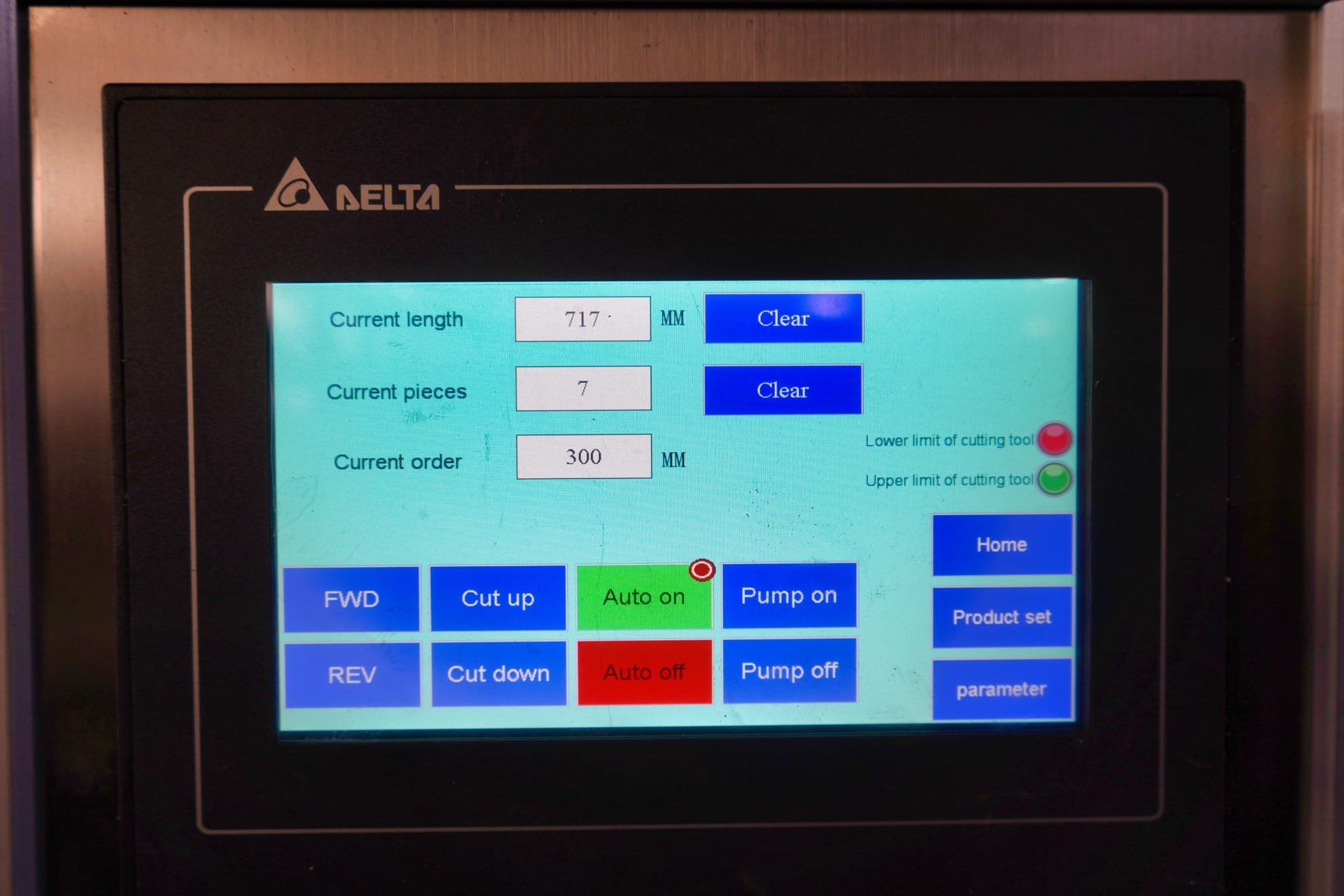

Control system: PLC automatic control system (Siemens/Delta)
Drive type: Chain drive / gearbox drive
Machine frame: 300-400H steel welded
Transmission: Chain 1 inch
Forming speed: 8-15m/min
Operation type: Fully automatic
Voltage: 380V/50Hz/3Phase (customizable)
Machine color: Blue and customizable
Dimension: Approx. 8500mm x 1500mm x 1200mm
Weight: 5-7 tons
Warranty: 12 months
Support: Online and on-site technical support
Installation: Available upon request
Certification: CE, ISO9001
OEM/ODM: Acceptable
Forming material type: Corrugated, trapezoidal
Automatic length measurement: Yes
Automatic quantity counting: Yes
Protective cover: Optional
Language support: English/Chinese touch screen
Lubrication system: Manual/automatic (optional)
Decoiler: Manual/hydraulic (optional)
Output table: 2-3m manual or powered
Application: Roof panel production
Industry use: Construction, metal building
Environment: Indoor or factory setting
Packing: Plastic film or wooden case
Shipping: By sea in 20GP/40GP containers
Production time: 30-45 working days
After-sales service: 24/7 support available
