This advanced Color Steel Metal Roof Trapezoidal Roll Forming Machine is engineered for consistent, high-speed forming of steel roof panels in trapezoidal profiles. It ensures precise forming and clean cutting with minimal manual input. Ideal for mass production in the metal construction industry.
Machine type: Trapezoidal profile roll forming machine
Material: Color-coated steel, galvanized sheet, PPGI, GI
Material thickness range: 0.3-0.8mm
Coil width: 1000-1250mm
Effective panel width: 828-1000mm
Forming stations: 13-20 rollers (customized)

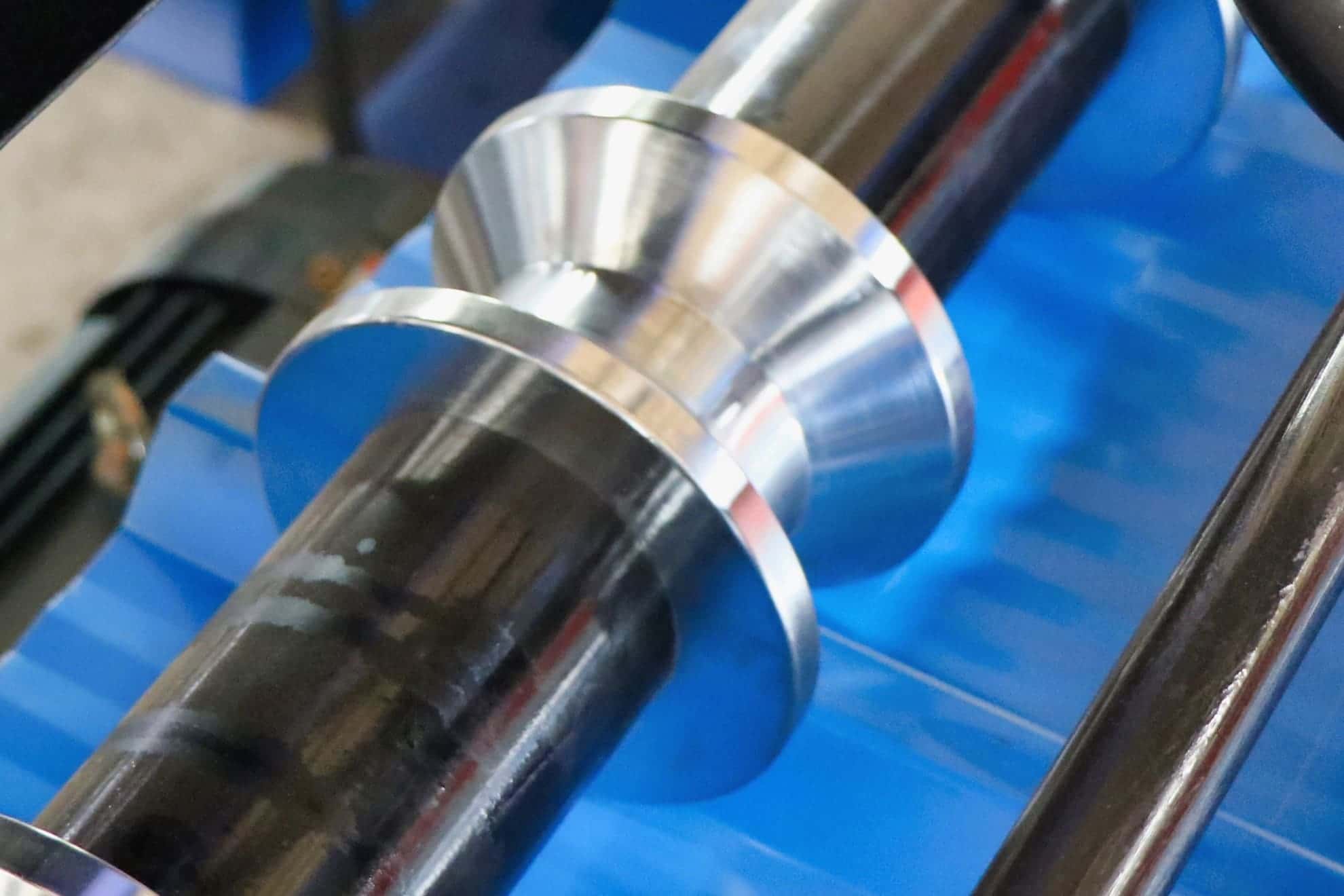

Roller material: GCr15 / 45# steel with heat treatment
Shaft diameter: 70-90mm solid steel
Drive type: Chain or gearbox
Motor power: 5.5kW to 7.5kW
Hydraulic station: 4kW
Blade material: Cr12Mov
Control system: PLC (Delta, Siemens optional)
Forming speed: 8-15m/min
Cutting system: Hydraulic post cutting
Control panel: Touch screen + emergency stop
Voltage: 380V, 50Hz, 3Phase (adjustable)
Machine dimension: Approx. 8500mm × 1500mm × 1200mm
Machine weight: 6-8 tons
Frame structure: 350H steel base
Operation: Fully automatic
Output table: 3m manual or powered type
Decoiler: Manual or hydraulic (5T/10T optional)
Lubrication: Optional auto/manual lubrication system
Protective covers: Optional
Application: Roofing, industrial buildings, warehouses
Warranty: 12 months
After-sales support: Lifetime technical service
Installation: On-site or remote guidance
Packaging: Plastic film wrap or wooden box
Delivery time: 30 working days
Export market: Global (Asia, Africa, South America)
Safety features: Emergency stop, overload protection
CE & ISO certified
OEM/ODM support: Yes
Remote support: Available via video/phone
Color: Standard blue or customized
Environment: Factory/production plant use
Automation level: High automation with PLC
