Machine Type: Trapezoidal Roof Roll Forming Machine
Brand: TOPPO Machinery
Material Type: Galvanized Steel, Color Steel, Aluminum
Applicable Material Thickness: 0.3-0.8mm
Effective Panel Width: 760mm-1100mm (customizable)

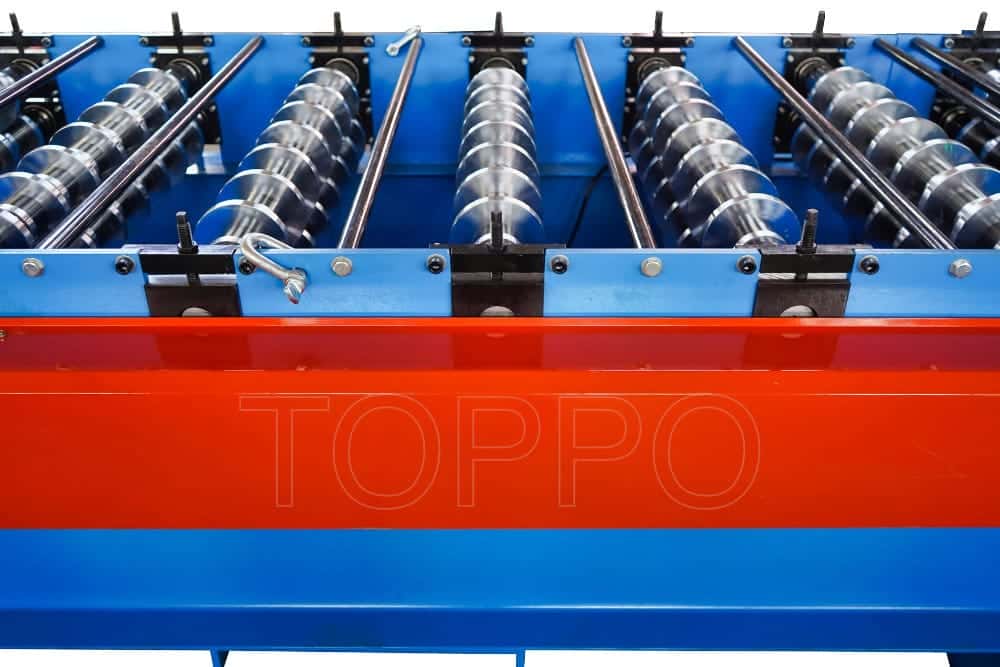

Forming Stations: 16–24 stations
Roller Material: 45# Steel, Chrome Plated
Shaft Diameter: 70mm
Shaft Material: High Grade Steel with Quenching
Drive Type: Chain Drive / Gear Drive
Main Motor Power: 5.5–7.5kW
Hydraulic Station Power: 4kW

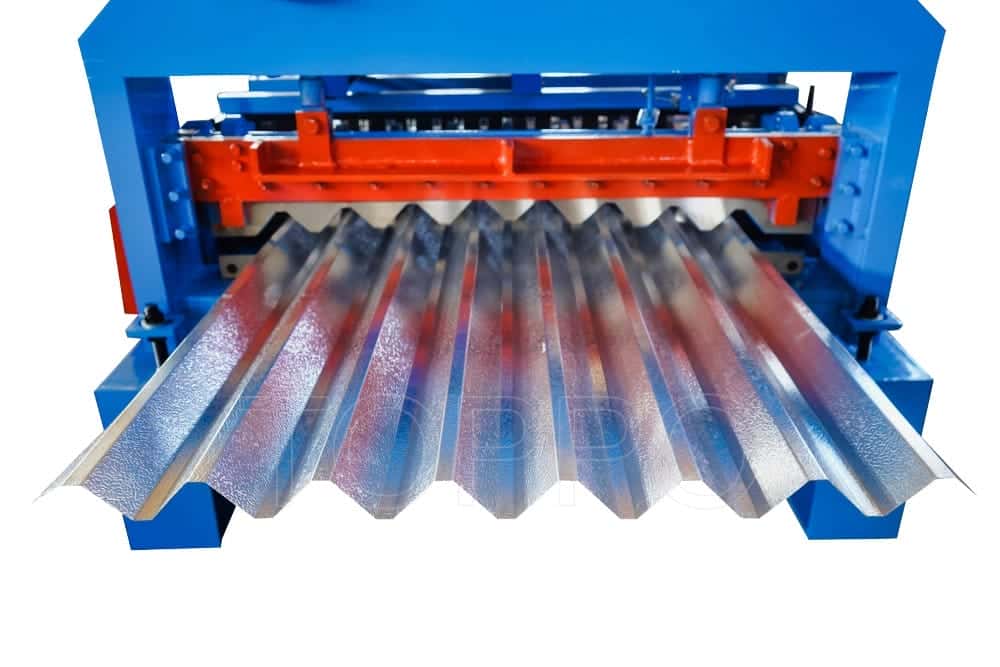

Cutting Type: Hydraulic Cutting
Cutting Blade Material: Cr12Mov, Heat Treatment

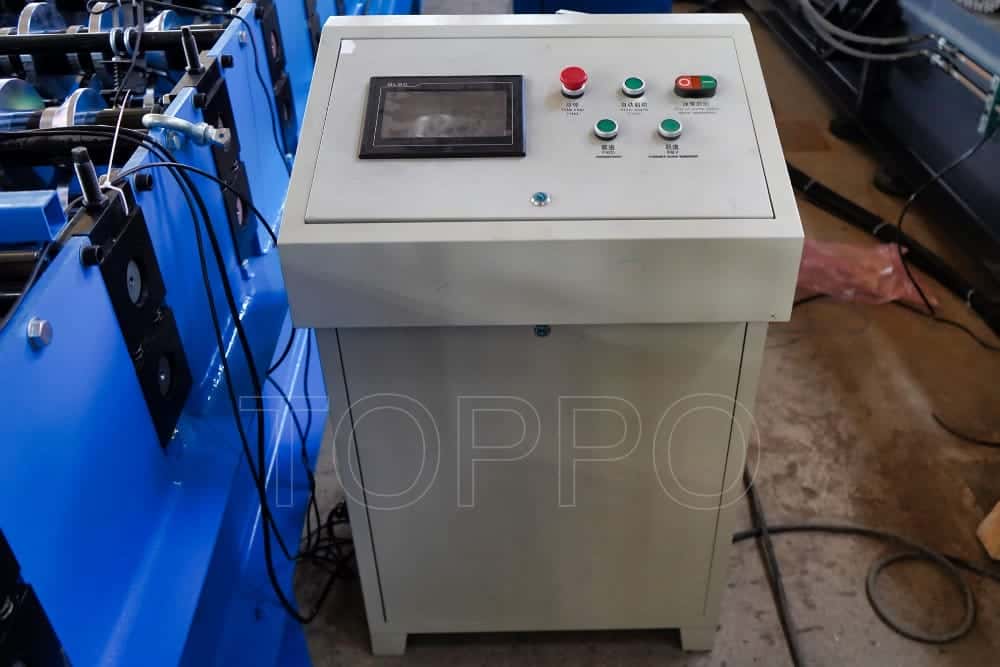

Control System: PLC Control (Siemens/Delta)
Operation Interface: Touch Screen
Line Speed: 10–15 m/min
Voltage: 380V/50Hz/3Phase (customizable)
Machine Frame: 350H Beam Welding Frame
Forming Accuracy: ±1.0mm
Roller Coating: Hard Chrome Coating
Usage: Steel Roofing Panel Production
Automation Level: Fully Automatic
Safety System: Emergency Stop Button Included
Certification: CE, ISO
Color: Customizable
Weight: 5–7 Tons
Dimension: 9000*1500*1500mm
Lubrication: Manual or Auto Oil Pump
Cooling System: Air Cooling

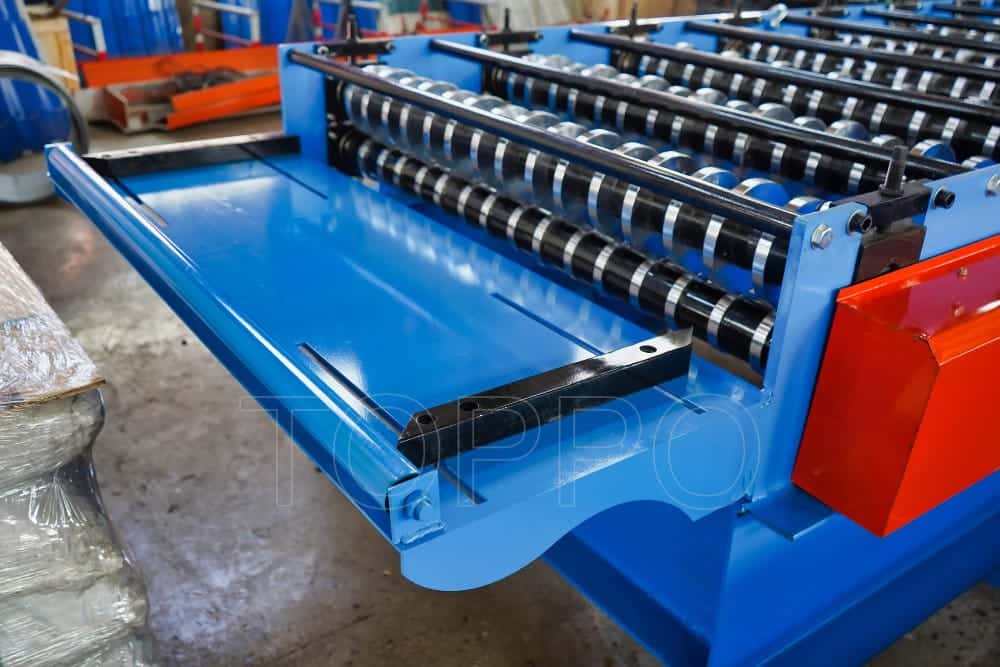

Feeding Width: 1000–1250mm
Noise Level: ≤70dB
Warranty: 1 Year
After-sales Service: Online Support, Video Instruction
Applicable Industries: Construction, Manufacturing
Installation: Engineer Available for Overseas
Packaging: Standard Export Packing
Delivery Time: 30 Days After Deposit
MOQ: 1 Set
Custom Services: Profile Design, Logo Branding
