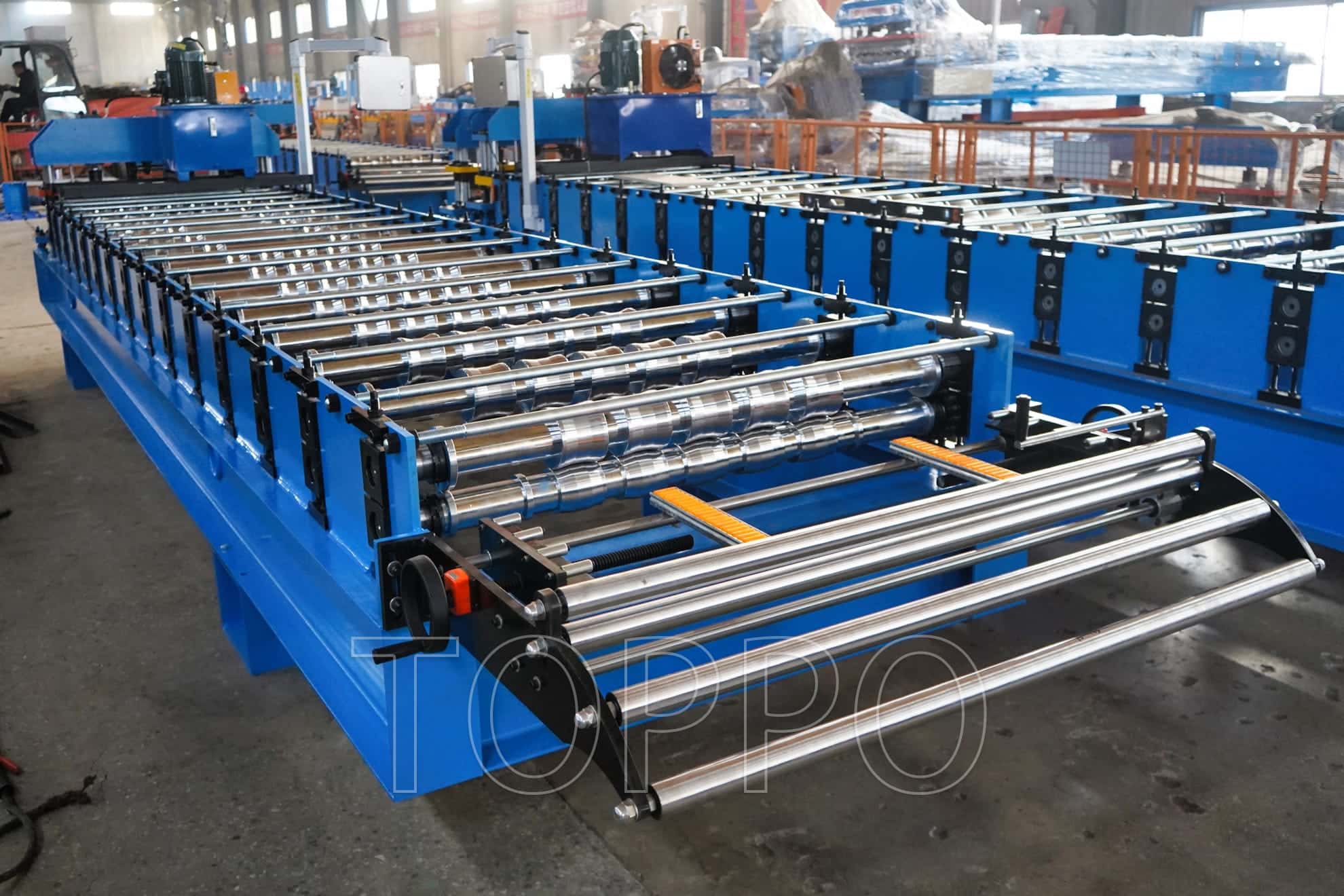

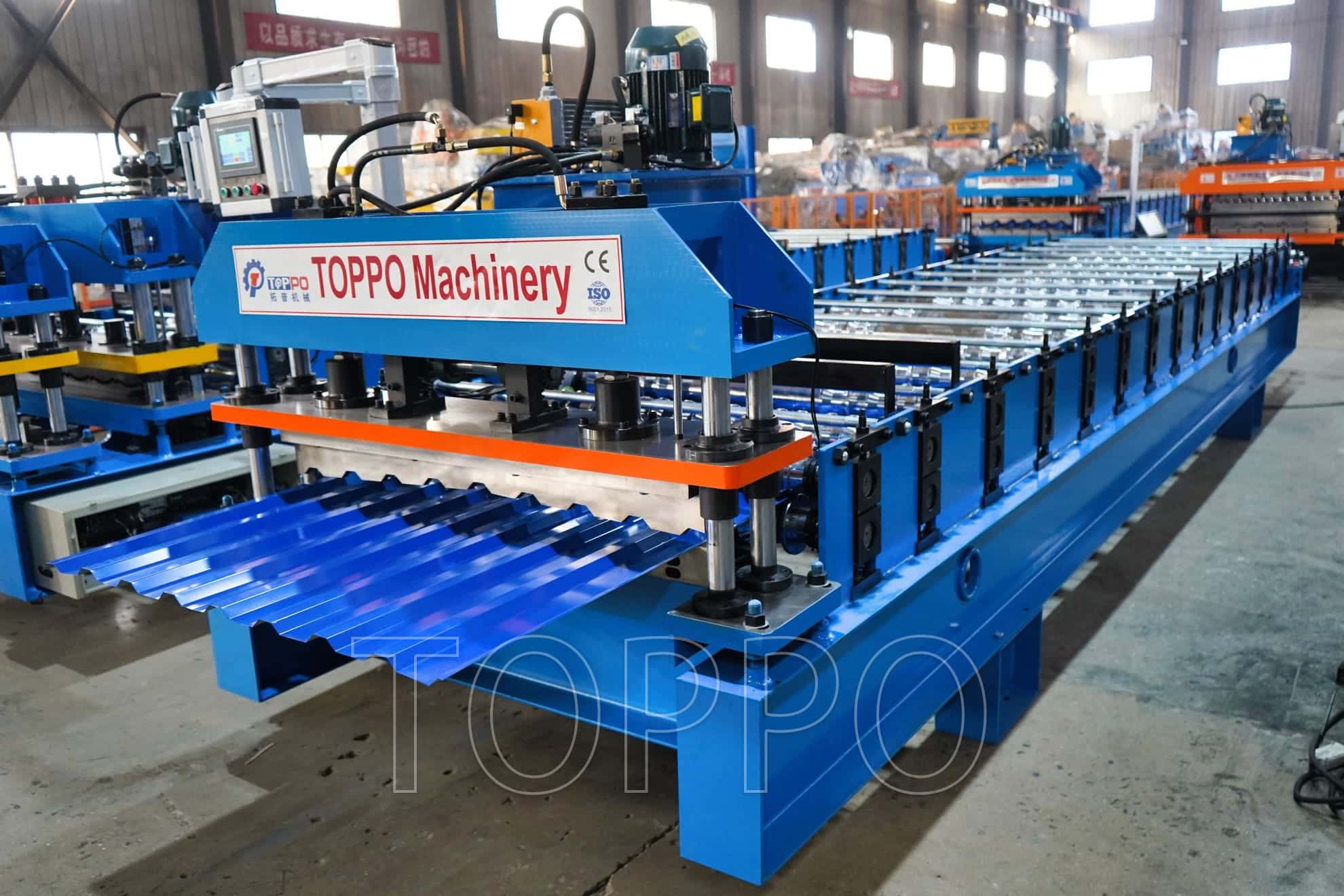

Machine Type: Roof Sheet Roll Forming Machine
Brand: TOPPO Machinery

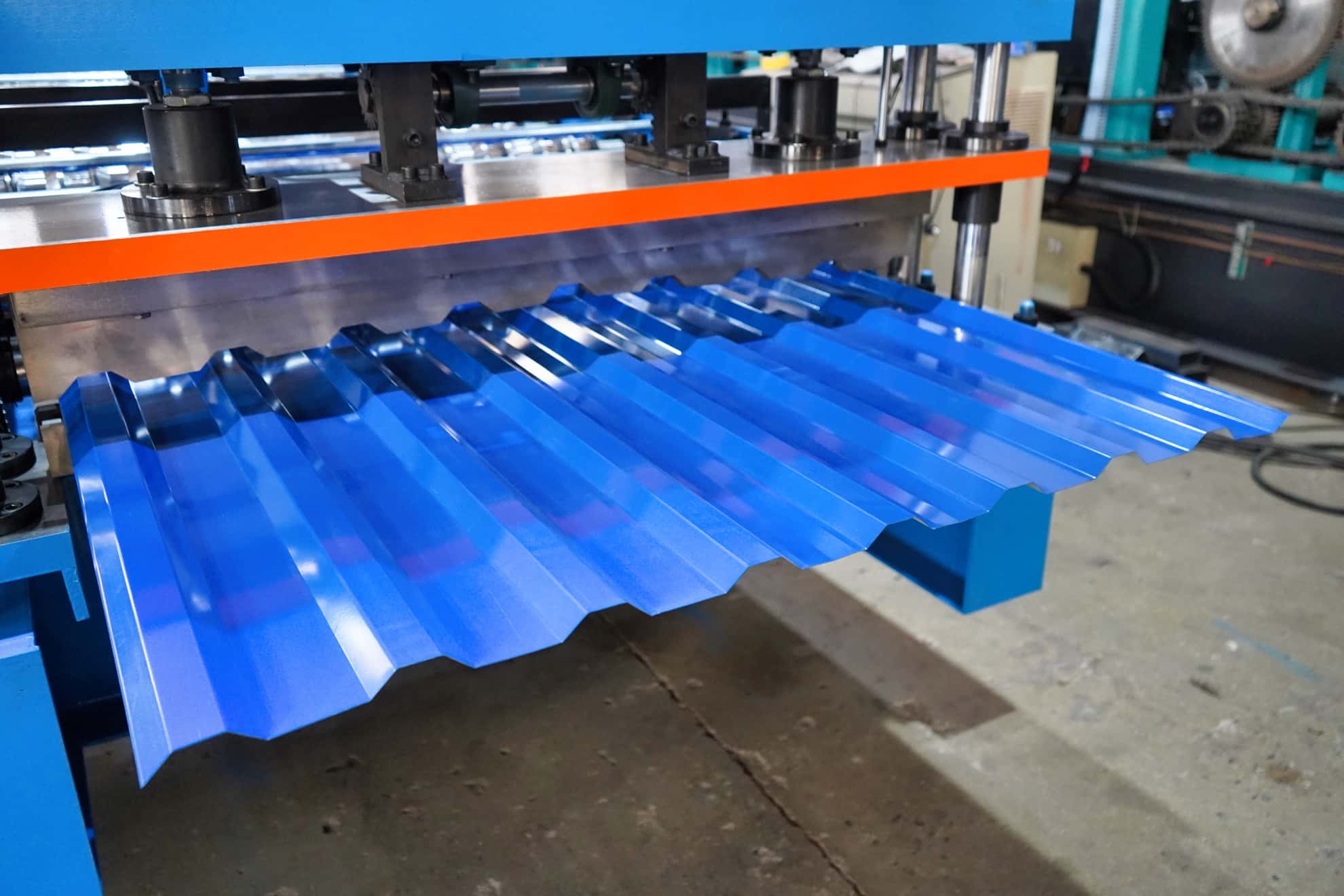

Formed Profile: Trapezoidal Roofing Panel
Material Type: Galvanized Steel, PPGI, Aluminum
Material Thickness: 0.3–0.8 mm
Effective Width: 760–1100 mm
Feeding Width: 1000–1250 mm

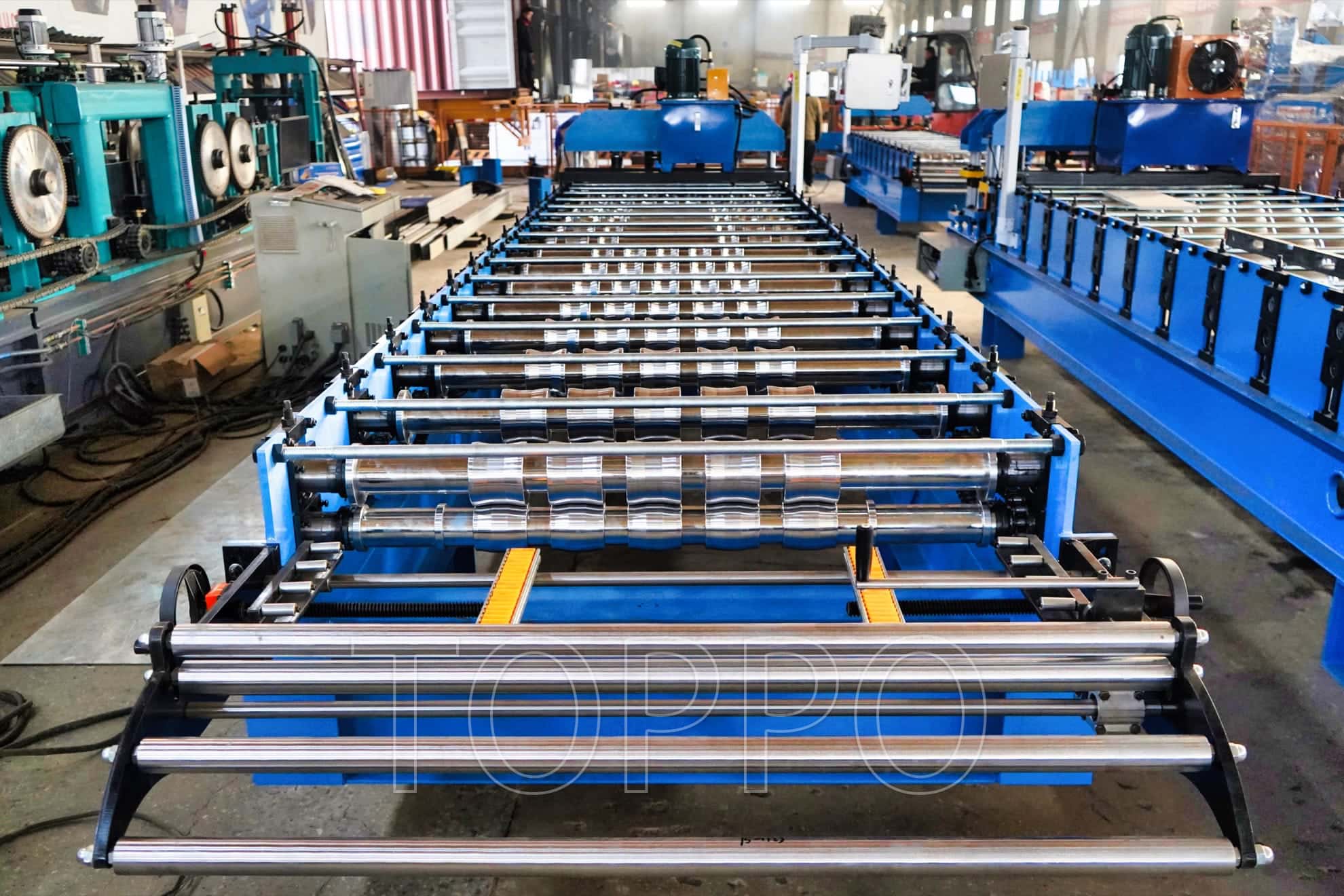

Forming Steps: 16–24 Stations

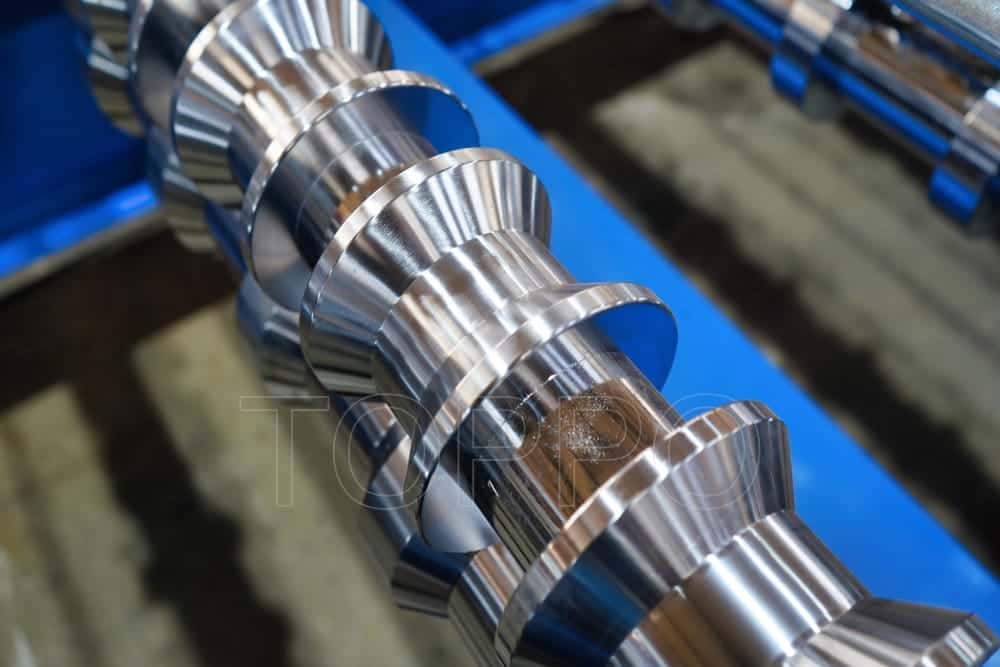

Roller Material: 45# Steel with Hard Chrome Plating
Drive Mode: Chain or Gear Drive
Shaft Diameter: 70 mm
Shaft Material: High Strength Steel
Main Power: 5.5–7.5 kW

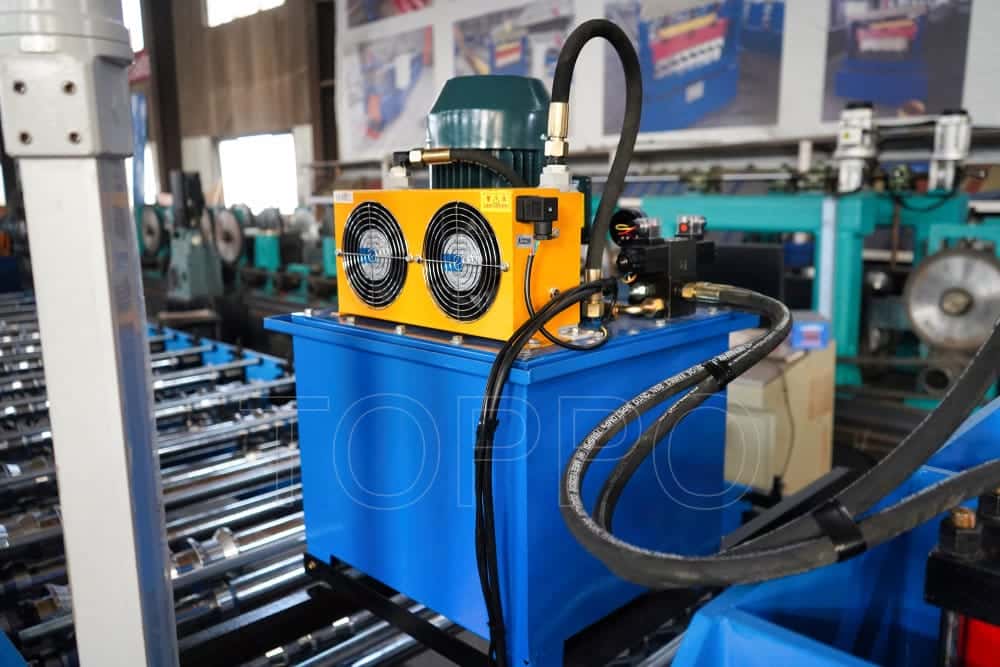

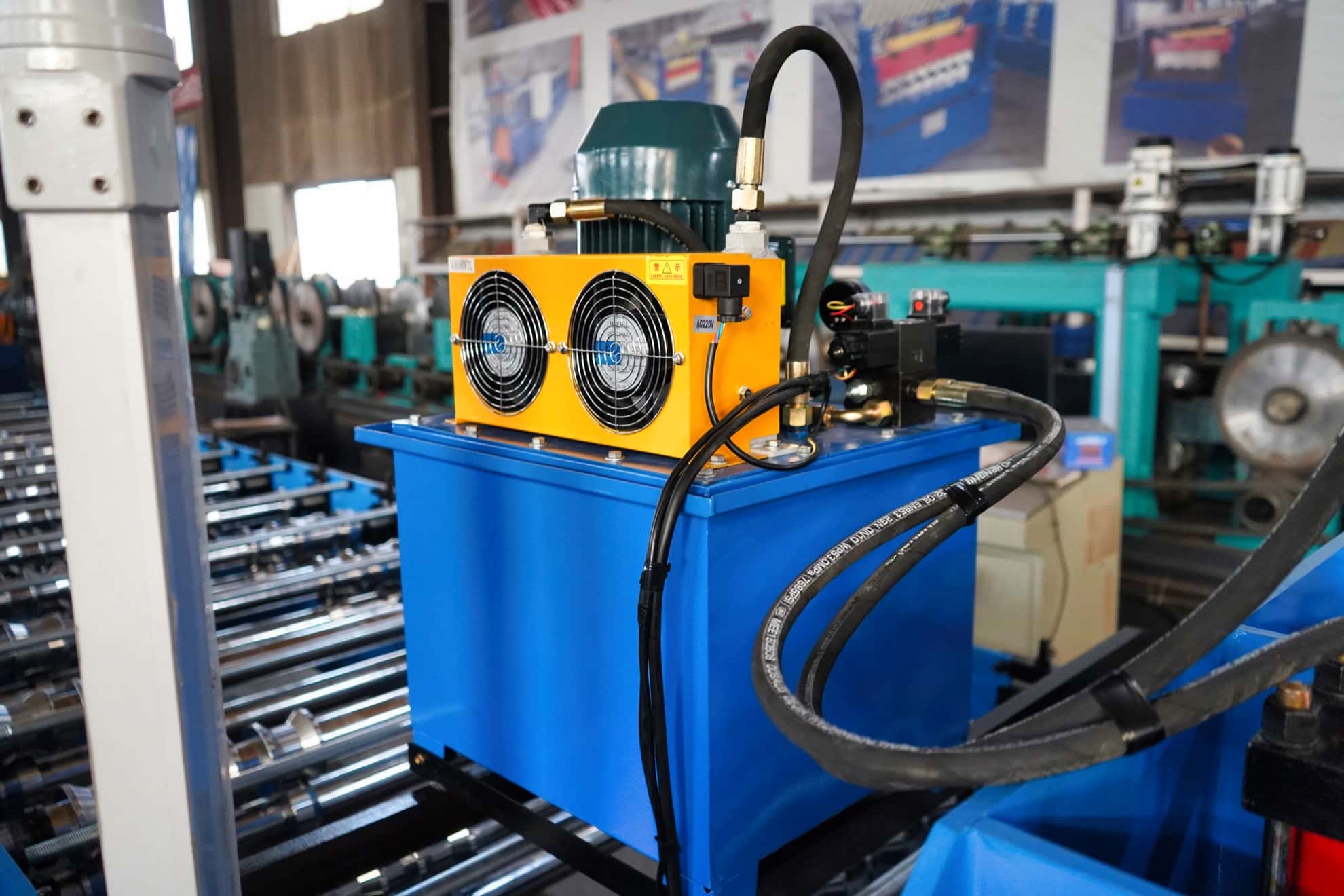

Hydraulic Power: 4 kW

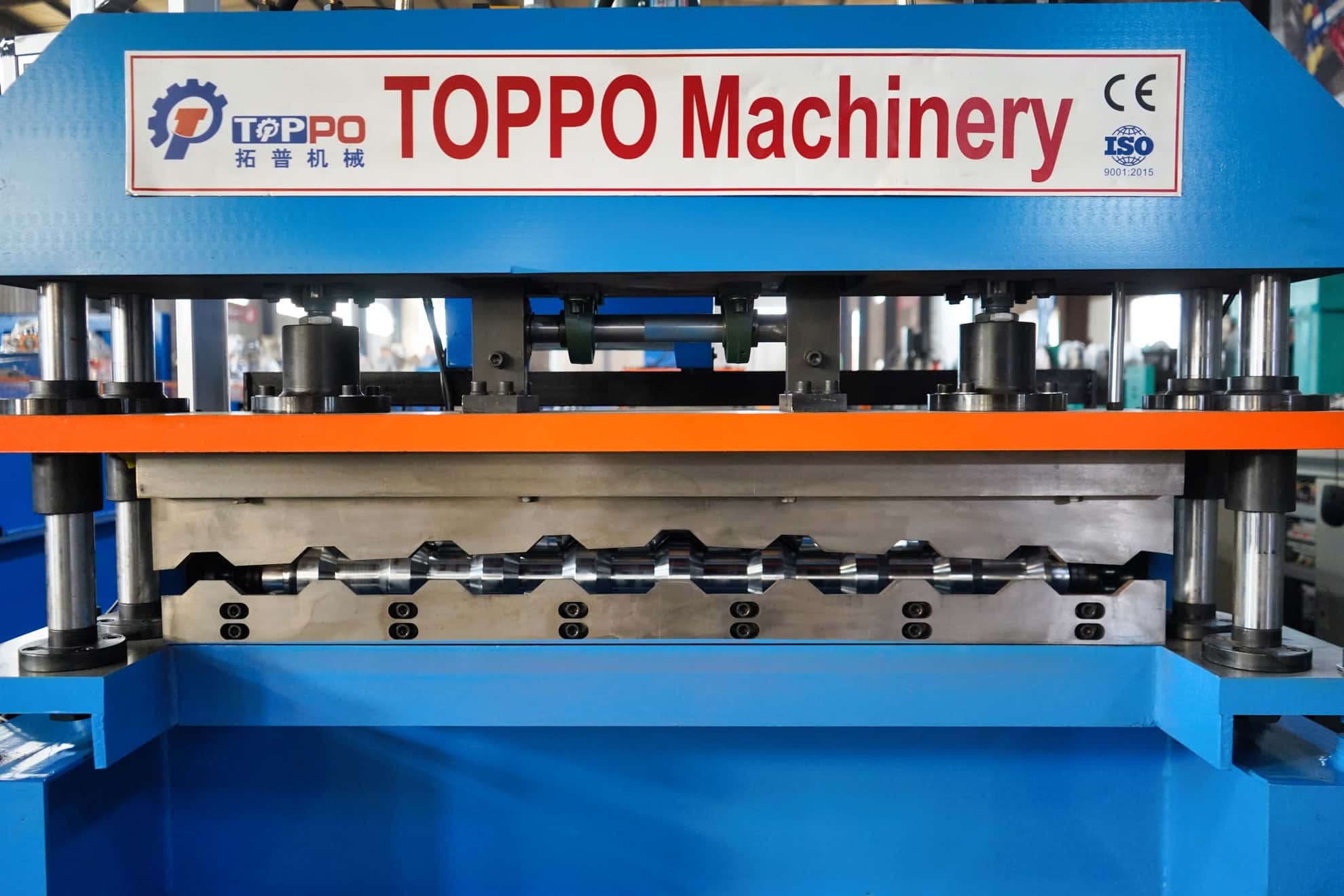

Cutting Type: Hydraulic Shear
Cutting Blade: Cr12Mov, Heat Treated

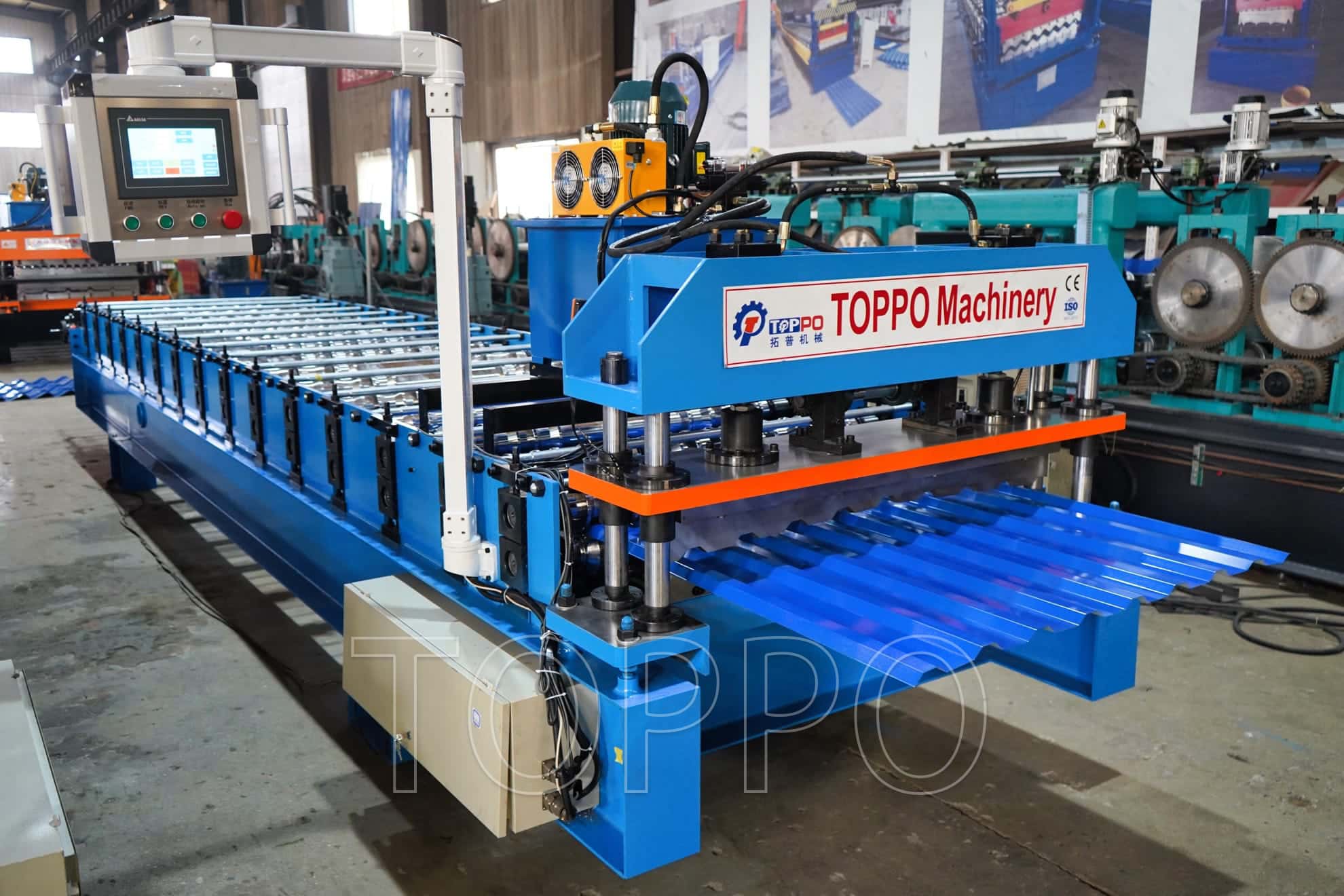

Control System: PLC (Siemens/Delta)
Operation: Touch Screen
Production Speed: 10–15 m/min
Voltage: 380V, 50Hz, 3Phase
Structure: 350H Steel Welded Frame
Color: Blue/Customizable
Machine Size: 9000*1500*1500 mm
Machine Weight: 5–7 Tons
Lubrication: Manual/Automatic Oil Pump
Cooling Method: Air Cooling
Noise Level: ≤70 dB
Precision: ±1 mm
Warranty: 1 Year
Certification: CE, ISO9001
Application: Steel Roofing Production
Usage: Industrial and Commercial Roofing Projects
Automation: Fully Automatic
Safety: Emergency Stop, Overload Protection
Maintenance: Easy Access Design
After-Sales Service: Video Support, Engineers Available Overseas
Packaging: Plastic Film + Steel Wire Fixed
Delivery Time: 30 Days After Deposit
MOQ: 1 Set
OEM/ODM: Available
Profile Customization: Supported with CAD Drawing
Market: Southeast Asia, Africa, Middle East, Europe
Extra Features: Low Power Consumption, Long Service Life
This machine is ideal for mass production of trapezoidal metal panels used in modern construction. It helps reduce labor, improve accuracy, and increase productivity. Highly recommended for metal roofing sheet manufacturers and contractors.
