Machine Model: Trapezoidal Panel Forming Line
Manufacturer: TOPPO Machinery
Material Supported: Galvanized Steel, Color-Coated Steel, Aluminum
Thickness Range: 0.3–0.8 mm
Effective Panel Width: 750–1100 mm
Feeding Coil Width: 1000–1250 mm

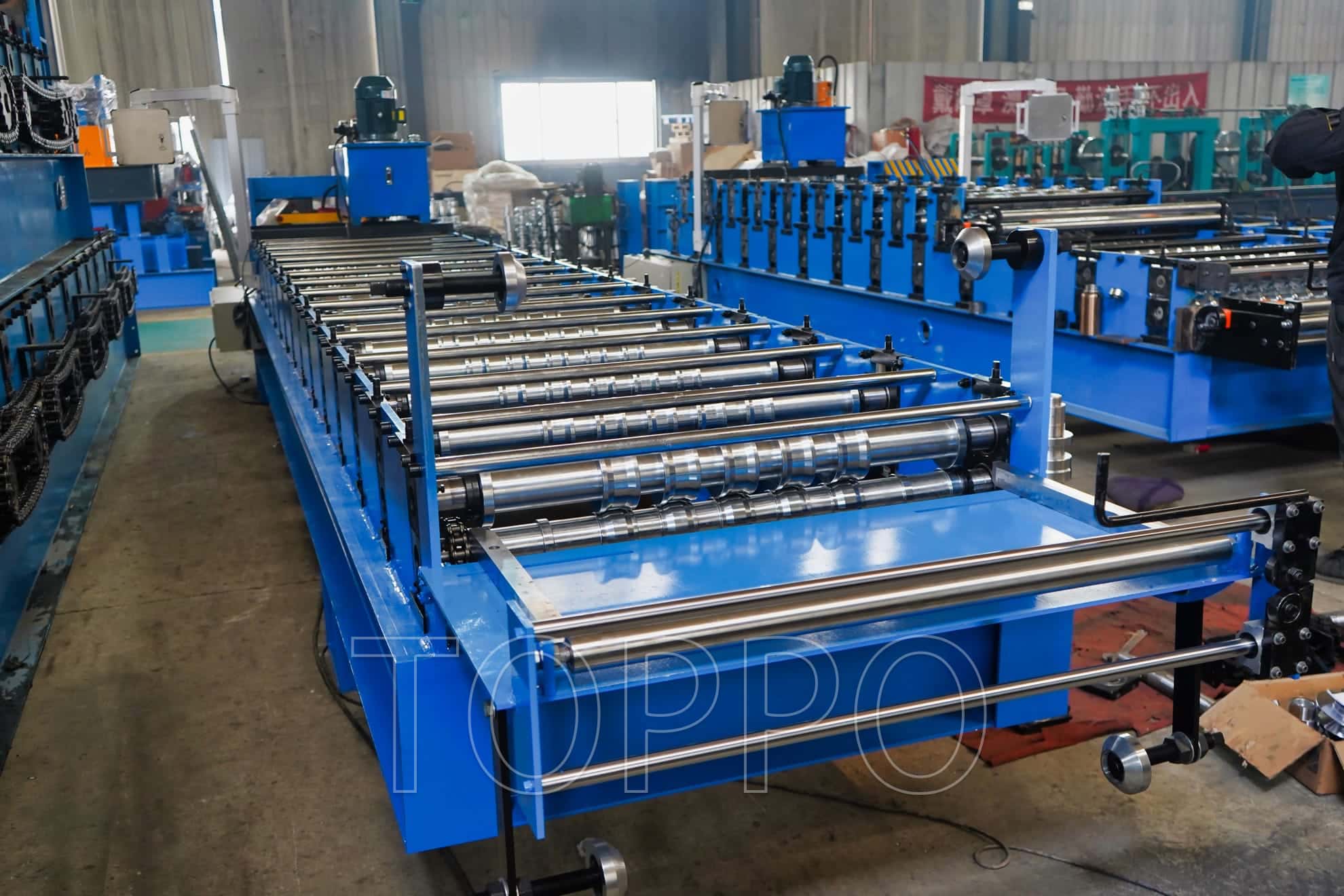

Roll Forming Stations: 18–22 Steps
Roller Shaft Diameter: 70 mm

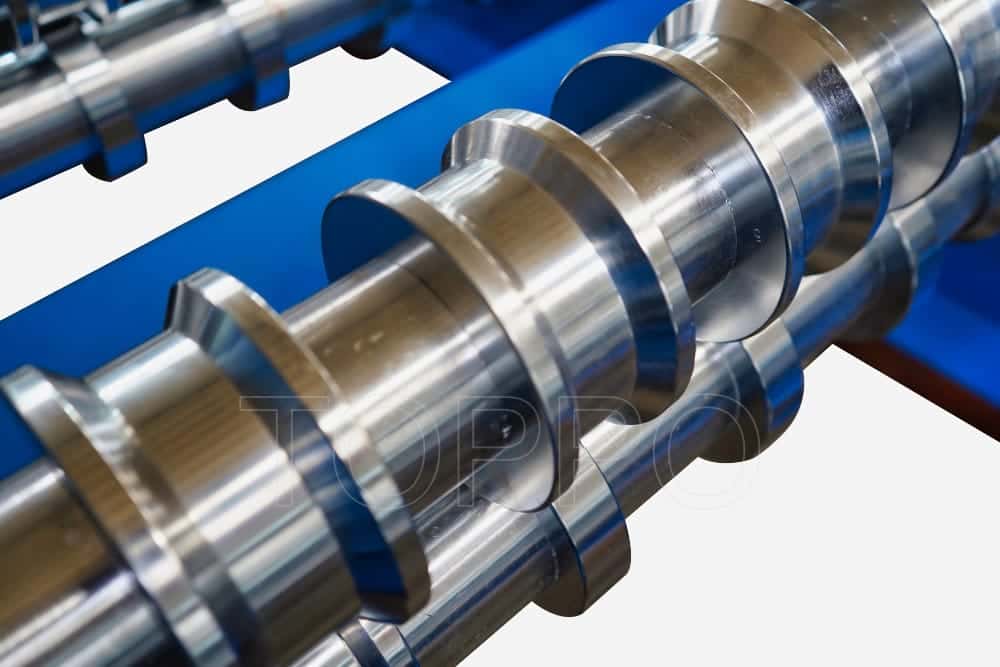

Roller Material: GCr15 with heat treatment and chrome coating
Frame Structure: Welded 350H Steel Frame
Drive Type: Chain Drive or Gear Drive
Main Motor Power: 5.5–7.5 kW
Hydraulic Power: 4 kW

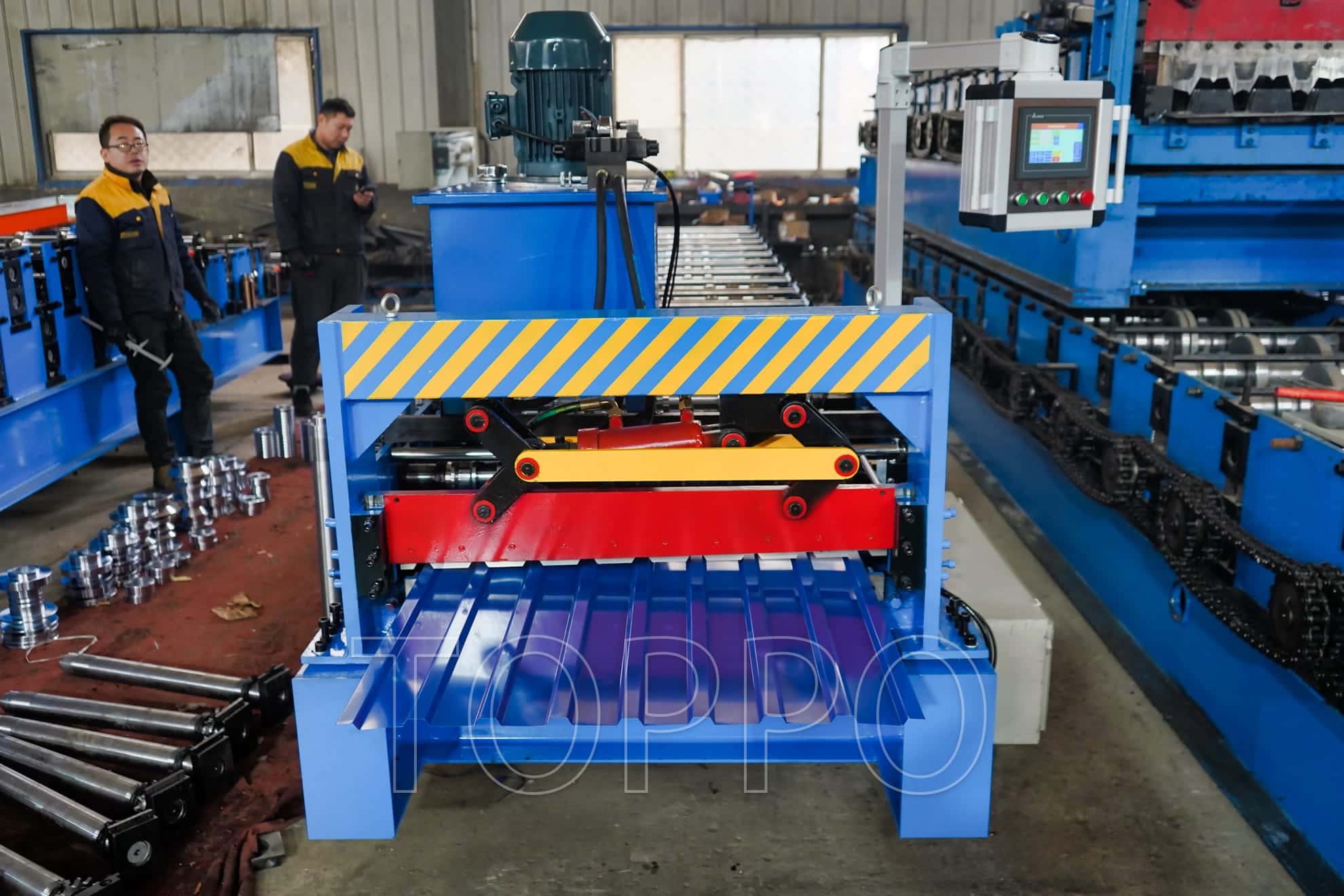

Cutting Mechanism: Hydraulic Post-Cutting
Blade Material: Cr12Mov with heat treatment
PLC System: Siemens / Delta
Operation Panel: Touch Screen HMI
Max Production Speed: 10–15 meters/min
Voltage Standard: 380V / 50Hz / 3Phase
Color: Standard Blue (customizable)
Dimension: 8800*1400*1400 mm
Weight: 5–6 Tons
Accuracy: ±1 mm
Noise Level: ≤70 dB
Automation Level: Fully Automatic
Cooling Method: Air Cooling
Safety Devices: Emergency Stop, Warning Labels
Lubrication: Automatic/Manual Oil Pump
Packaging: Export-Grade Packaging
Warranty: 1 Year
Certification: CE, ISO9001
Delivery Time: 30–35 Working Days
Minimum Order: 1 Unit
Custom Profile Design: Supported (Based on Drawing)
Technical Support: Engineers Available Overseas
After-sale Service: Video Technical Support
Target Users: Roofing Contractors, Sheet Manufacturers

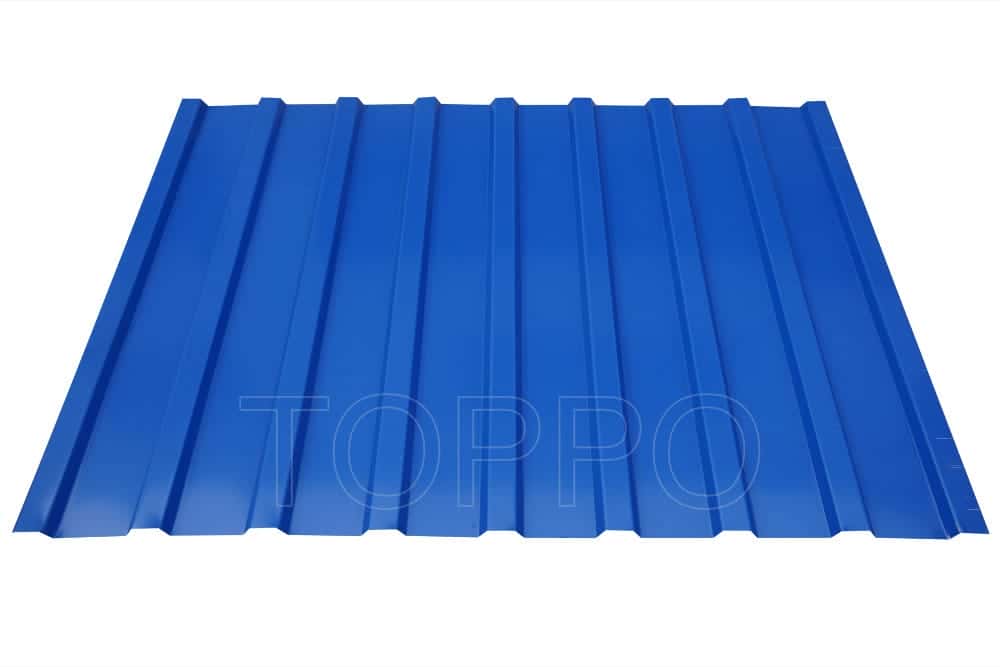

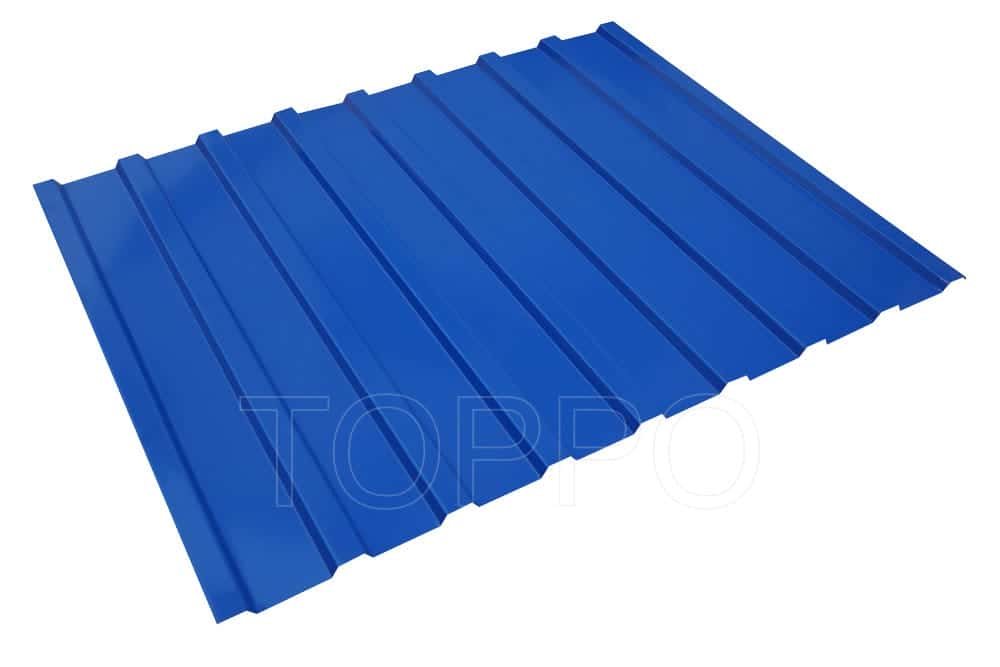

Application: Metal Roofing, Wall Panels
Usage: Industrial Building, Warehouse, Villa
Power Efficiency: Low Power Consumption System
Durability: Long Life Span Components
This machine is optimized for consistent performance, requiring minimal maintenance while maximizing output and precision. Designed for professionals demanding robust machinery for high-volume roof sheet production.
