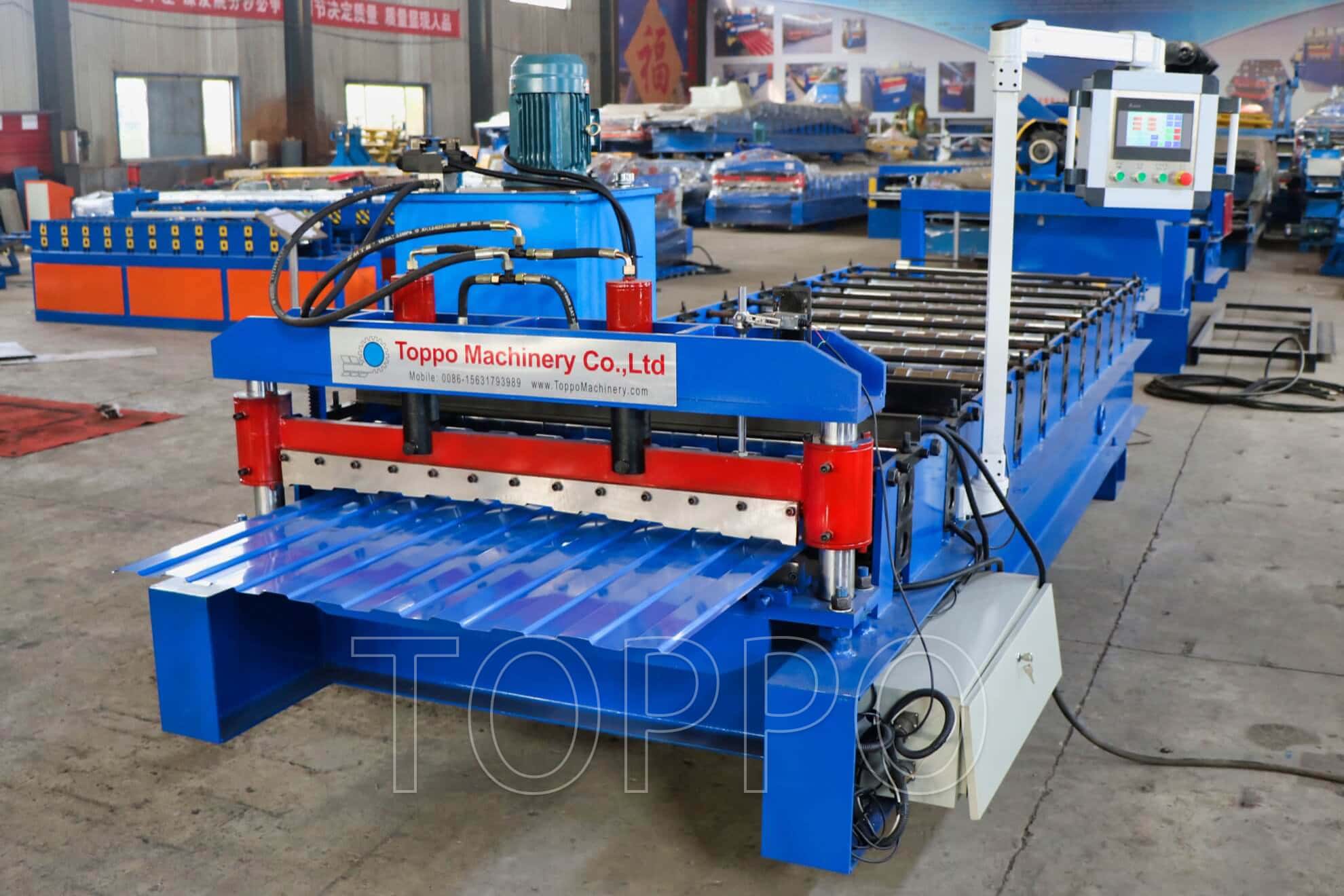

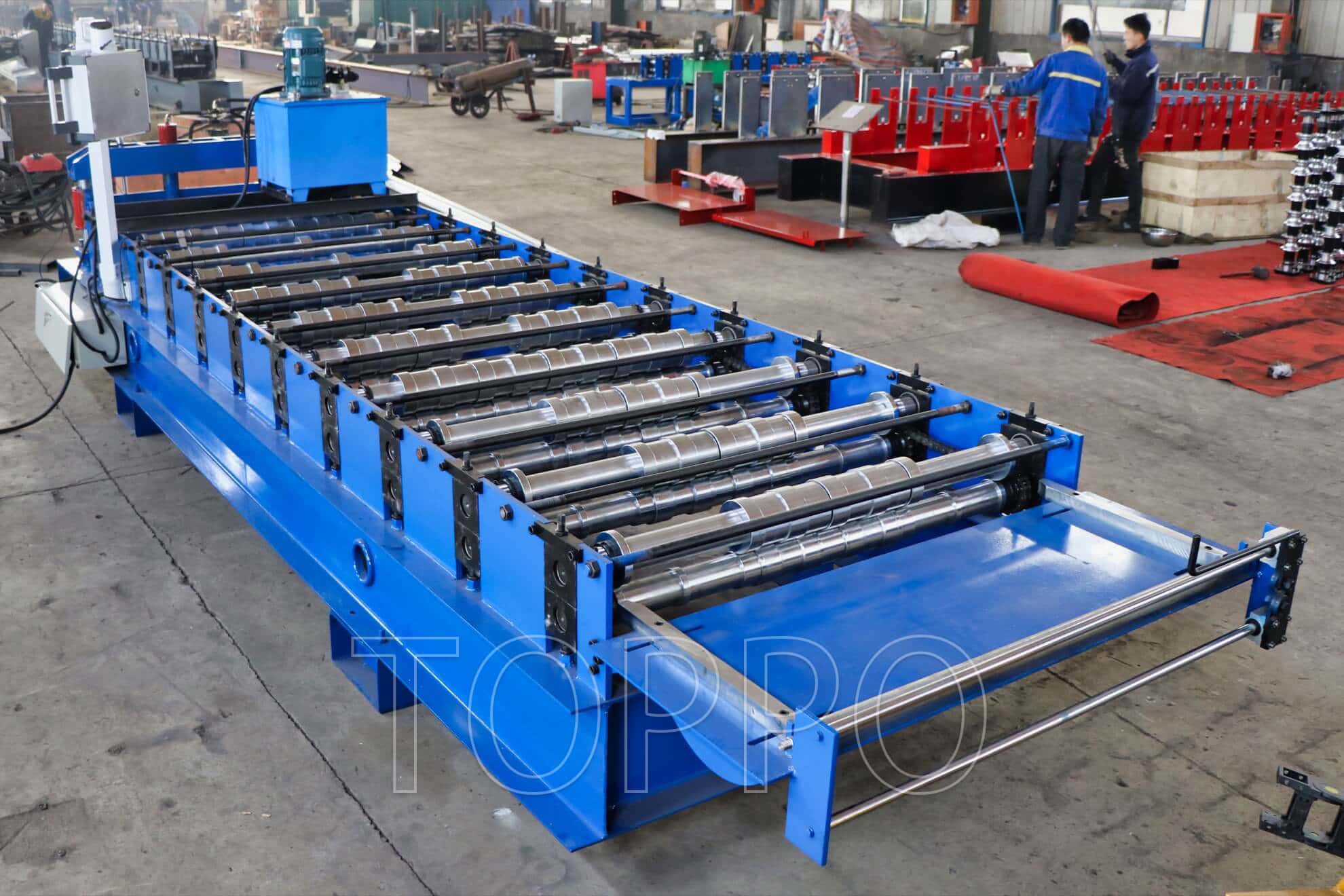

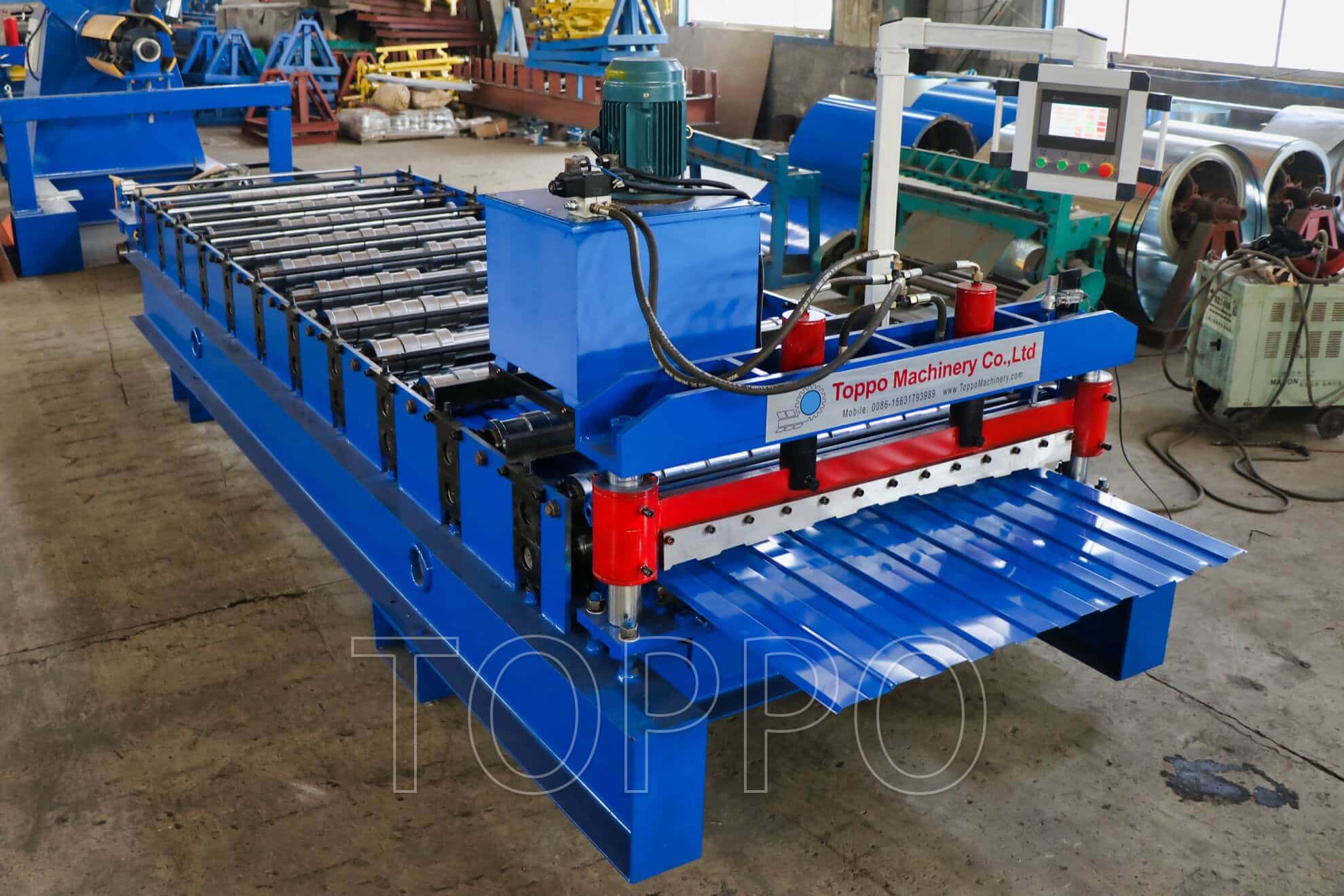

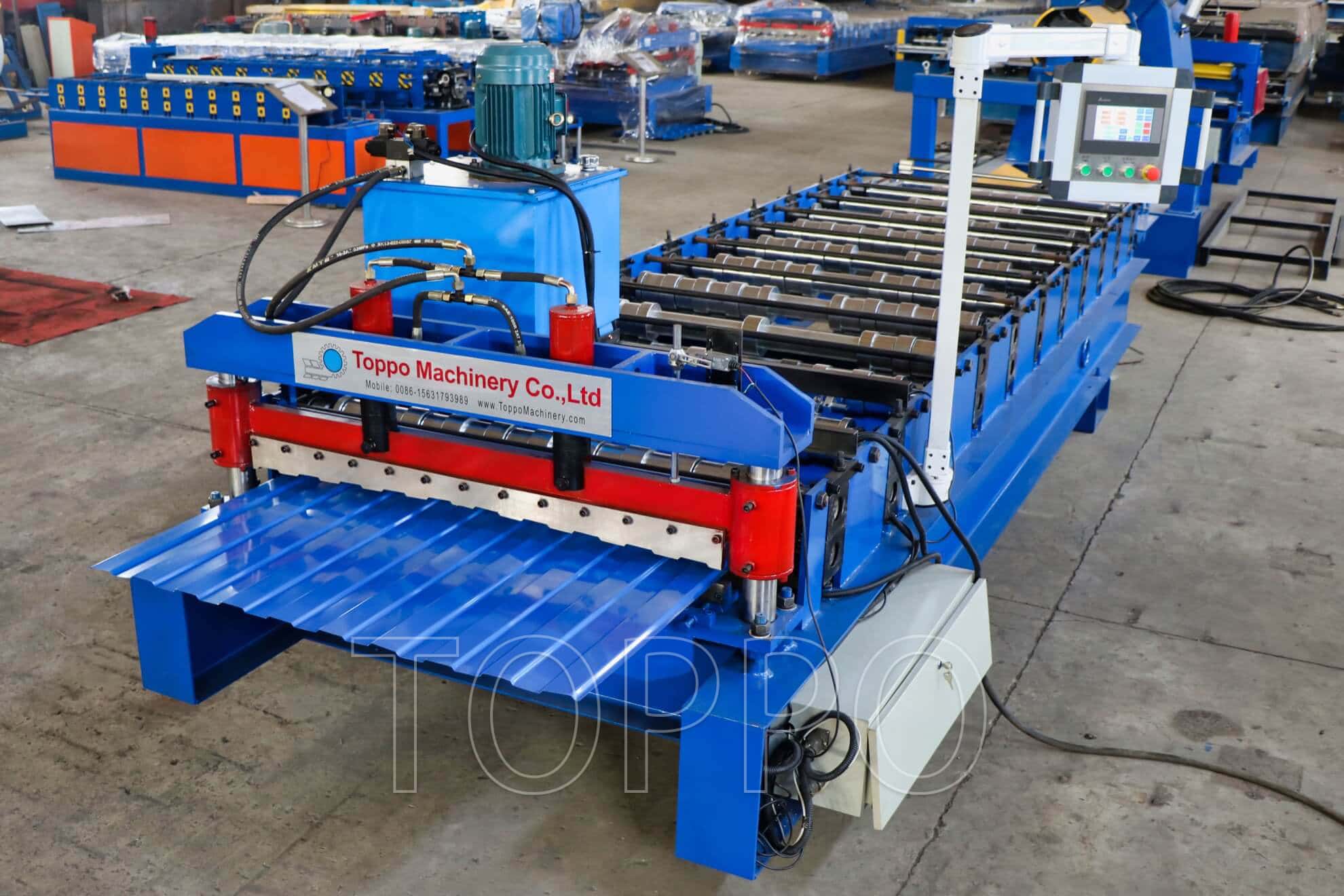

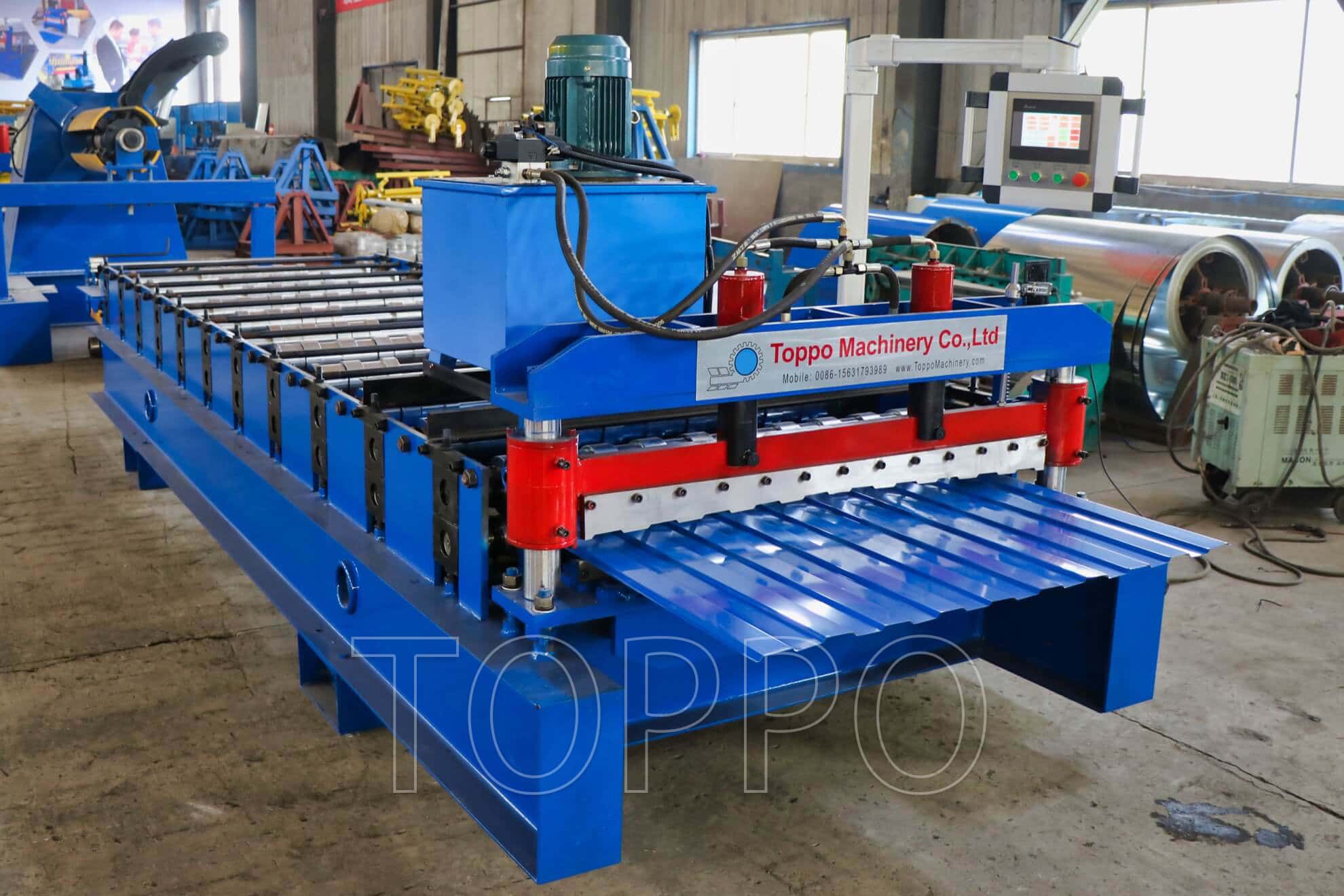

Machine Type: Trapezoidal Roof Panel Forming Machine
Brand: Toppo Machinery Co., Ltd
Supported Materials: Galvanized Steel, PPGI, Aluminum Sheets
Material Thickness: 0.3–0.8 mm
Effective Panel Width: 750–1100 mm
Input Coil Width: 1000–1250 mm

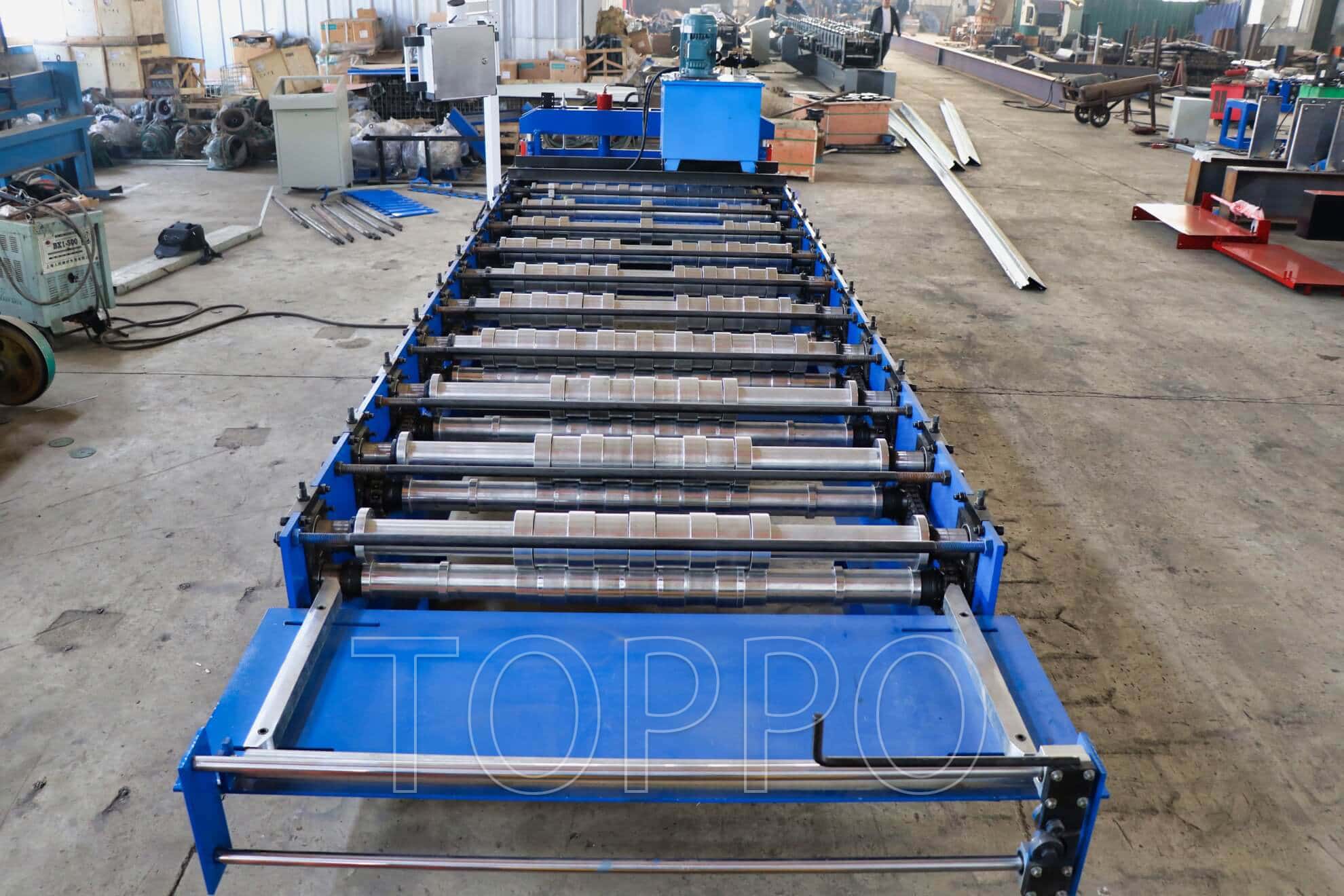

Forming Stations: 18–22 Stations

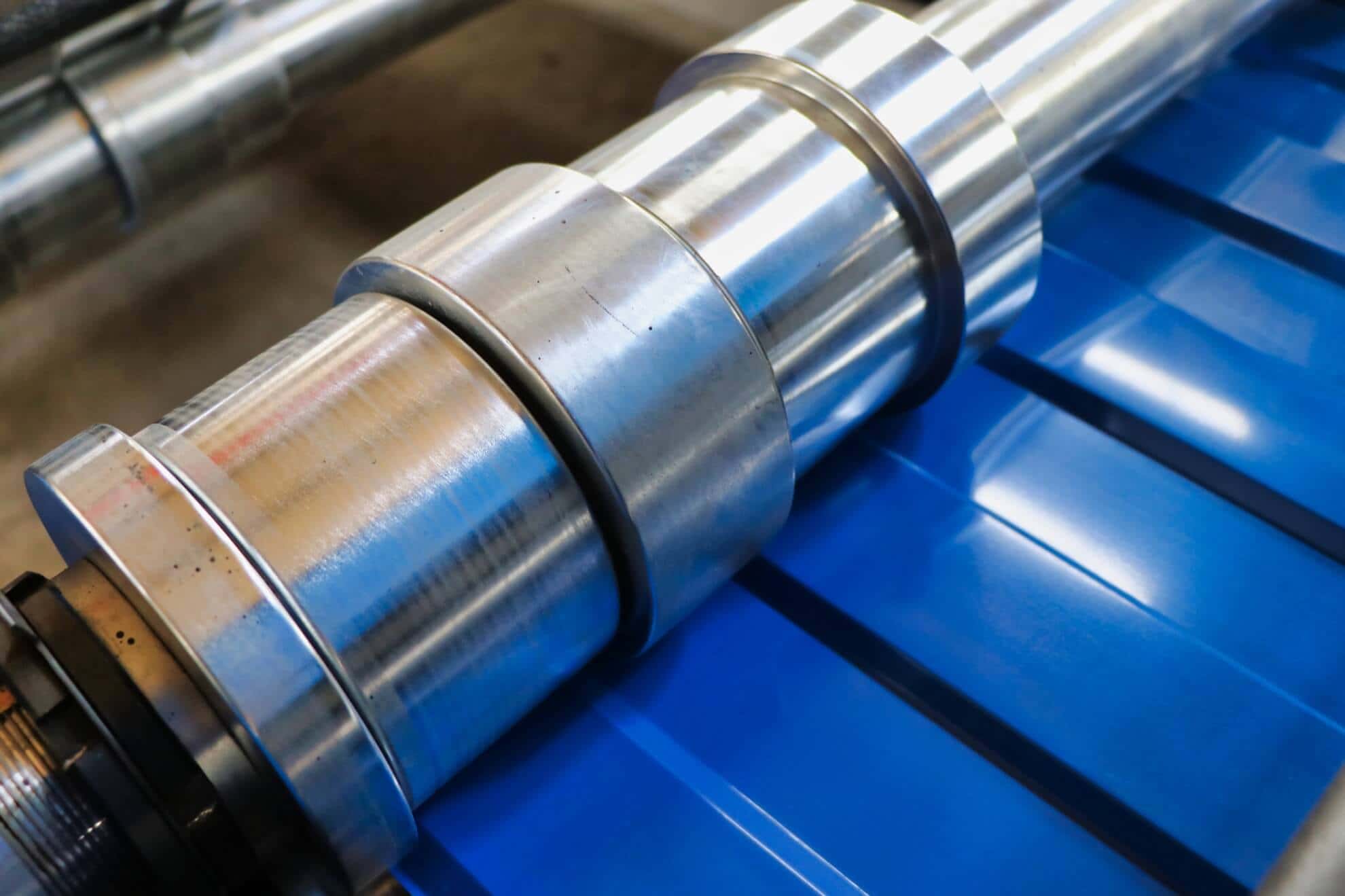

Roller Material: GCr15 with Chrome Plating
Roller Shaft Diameter: 70 mm
Drive Method: Chain or Gear Drive
Main Motor Power: 5.5–7.5 kW

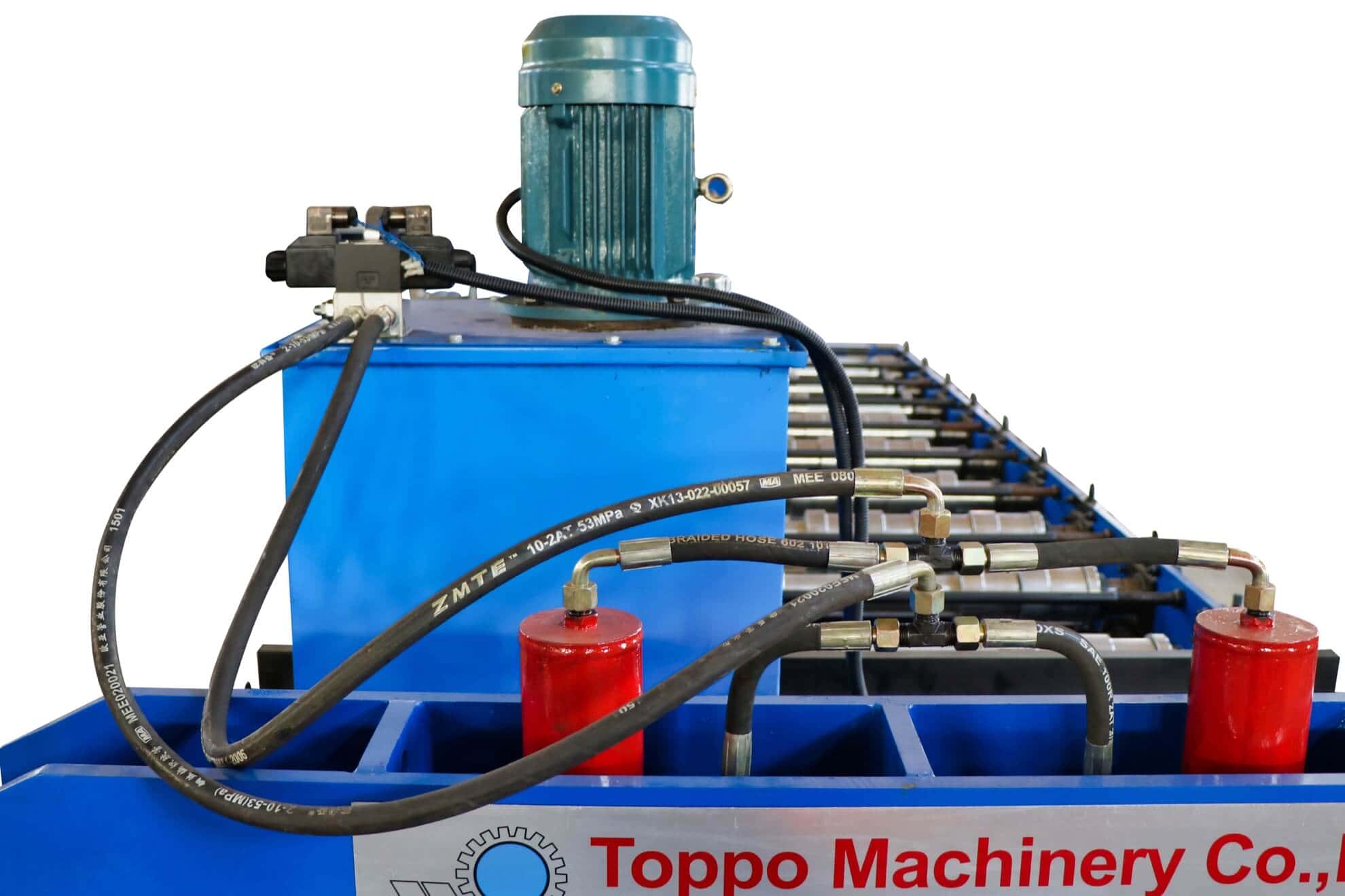

Hydraulic System Power: 4 kW

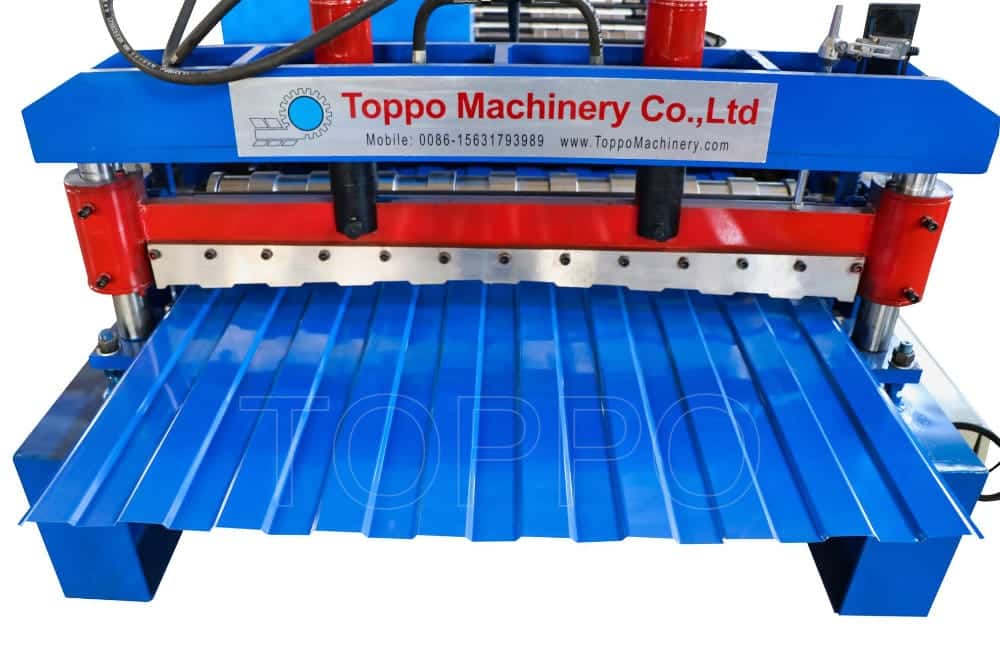

Cutting Type: Hydraulic Shear Cutting
Blade Steel: Cr12Mov (heat-treated)

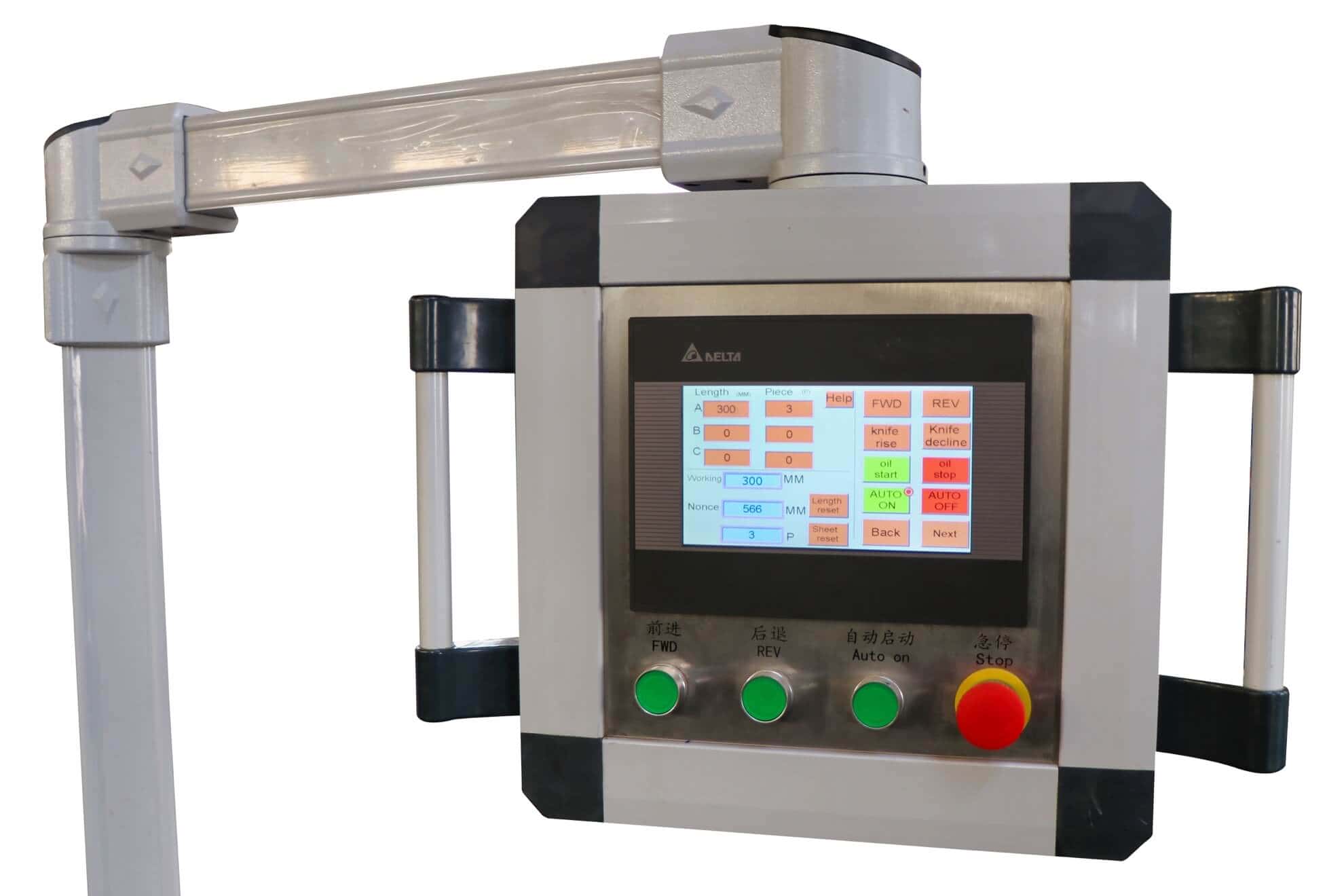

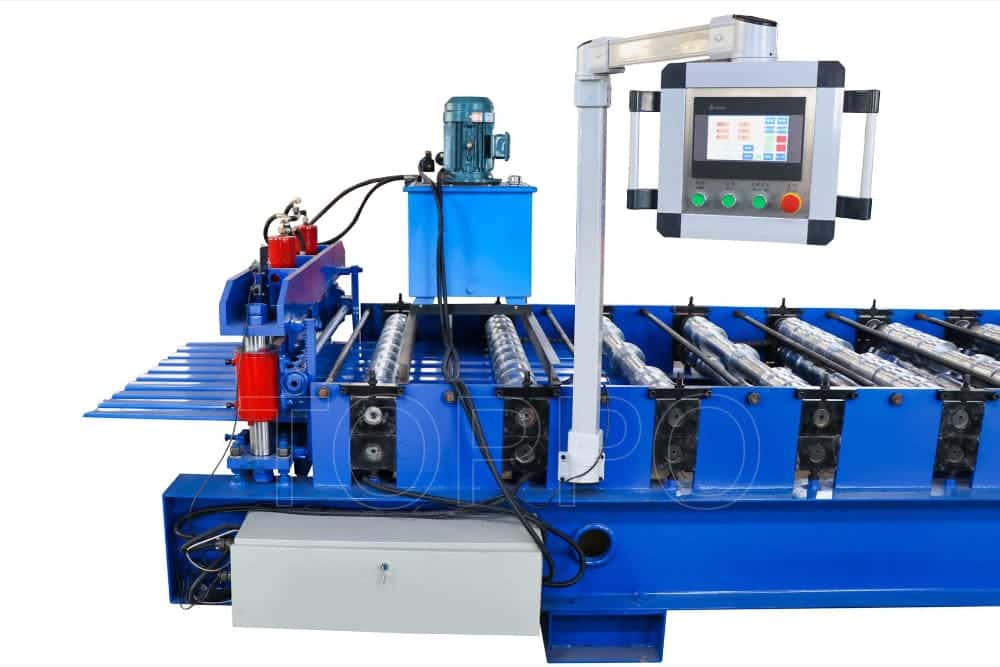

PLC Control: Siemens/Delta with Touch Screen
Operation Interface: HMI Touch Panel
Production Speed: 10–15 meters/min
Voltage: 380V / 50Hz / 3Phase

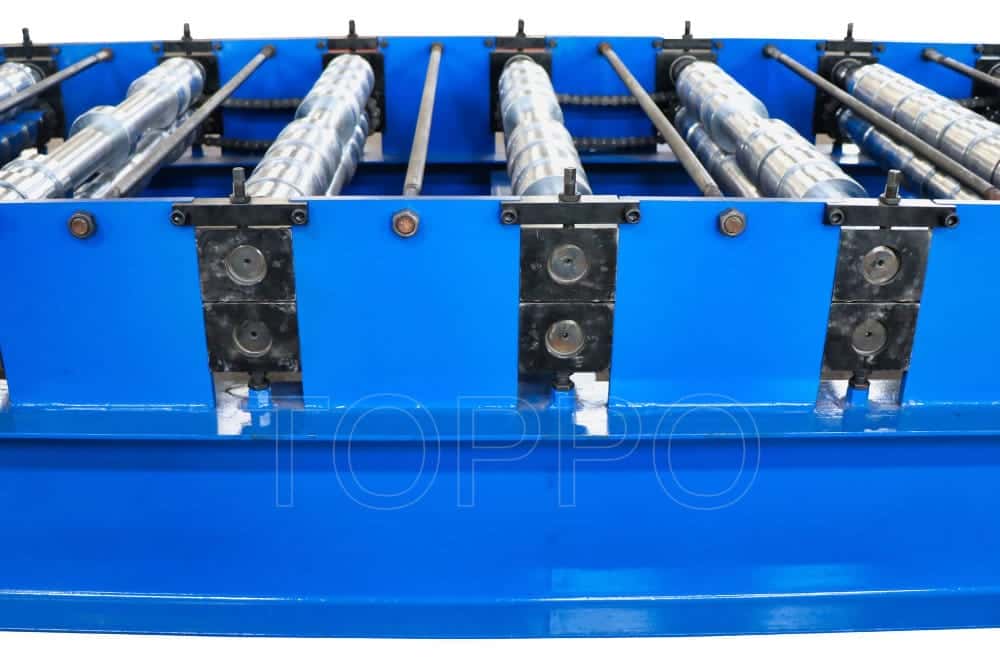

Frame: H-Beam Welded Structure
Machine Size: 9000*1500*1500 mm
Weight: 5–6 Tons
Accuracy: ±1 mm
Cooling System: Air Cooling
Noise Level: ≤70 dB
Color: Blue (Custom Available)
Safety: Emergency Stop, Overload Protection
Lubrication: Automatic or Manual Oil Pump
Automation: Fully Automatic Line
Application: Steel Roofing, Construction Panels
Industries: Construction, Steel Structure, Warehouses
Service Life: 15+ Years (with proper maintenance)
Installation Support: Available Overseas
Warranty: 1 Year
Packaging: Plastic Film + Steel Wire Secured
Delivery: 25–30 Days After Order
MOQ: 1 Set
OEM Customization: Supported
Profile Design: Free CAD Drawing Support
Maintenance: Low Maintenance Requirements
Efficiency: Designed for Continuous High-Volume Production
Operator Training: Online or Onsite
Spare Parts: Available on Request
This roll forming machine is a smart investment for companies needing accurate, consistent output for trapezoidal steel panels. It combines efficiency, safety, and ease of use in one advanced system.
