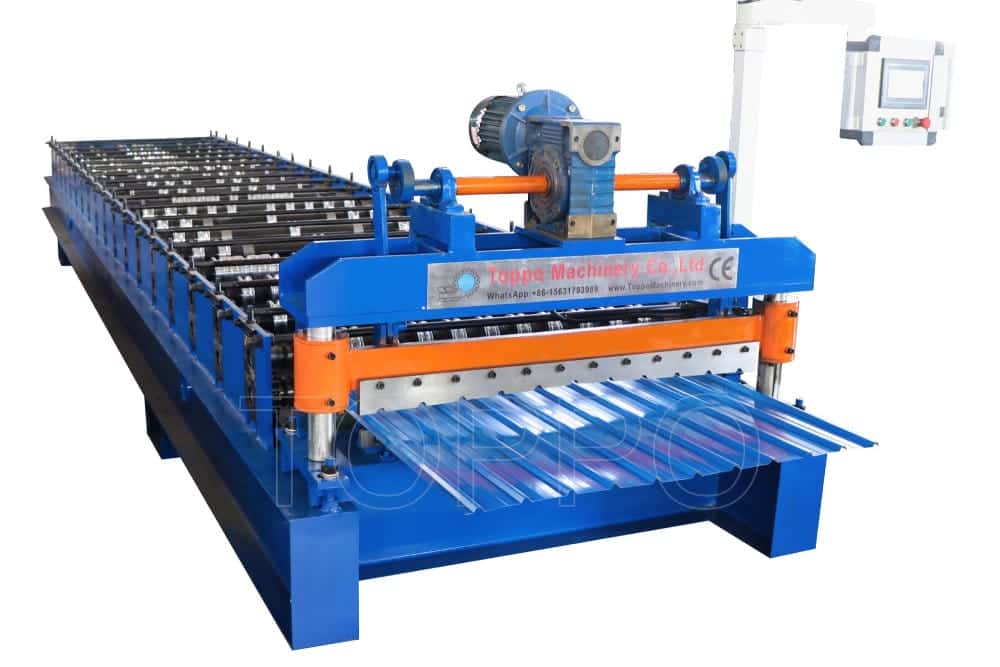

Brand: Toppo Machinery Co., Ltd
Model: Trapezoidal Roll Former
Application: Roofing Panel Manufacturing
Material Options: Galvanized Steel, PPGI, Aluminum
Sheet Thickness: 0.3–0.8 mm
Effective Panel Width: 750–1100 mm

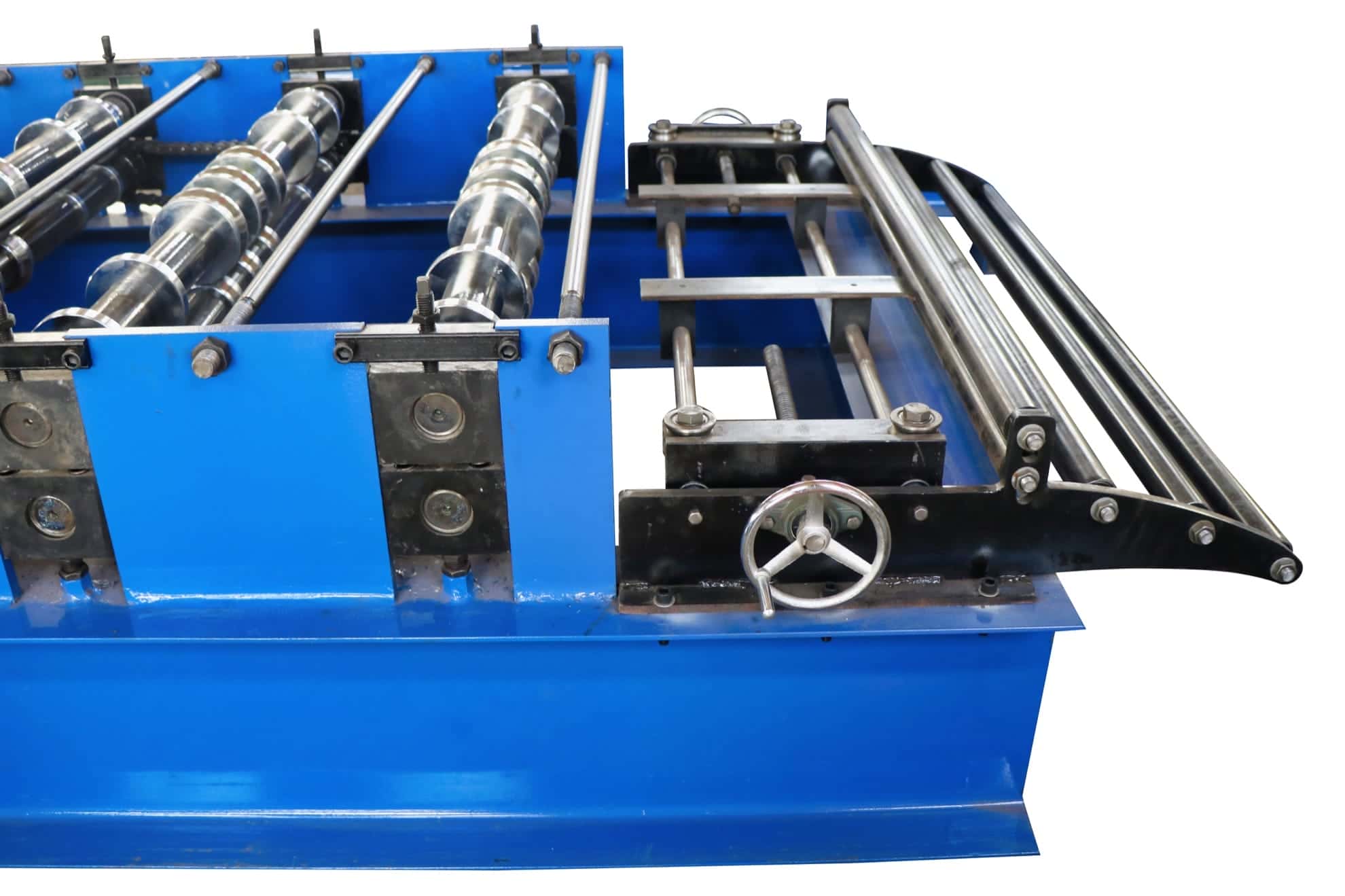

Coil Feeding Width: 1000–1250 mm

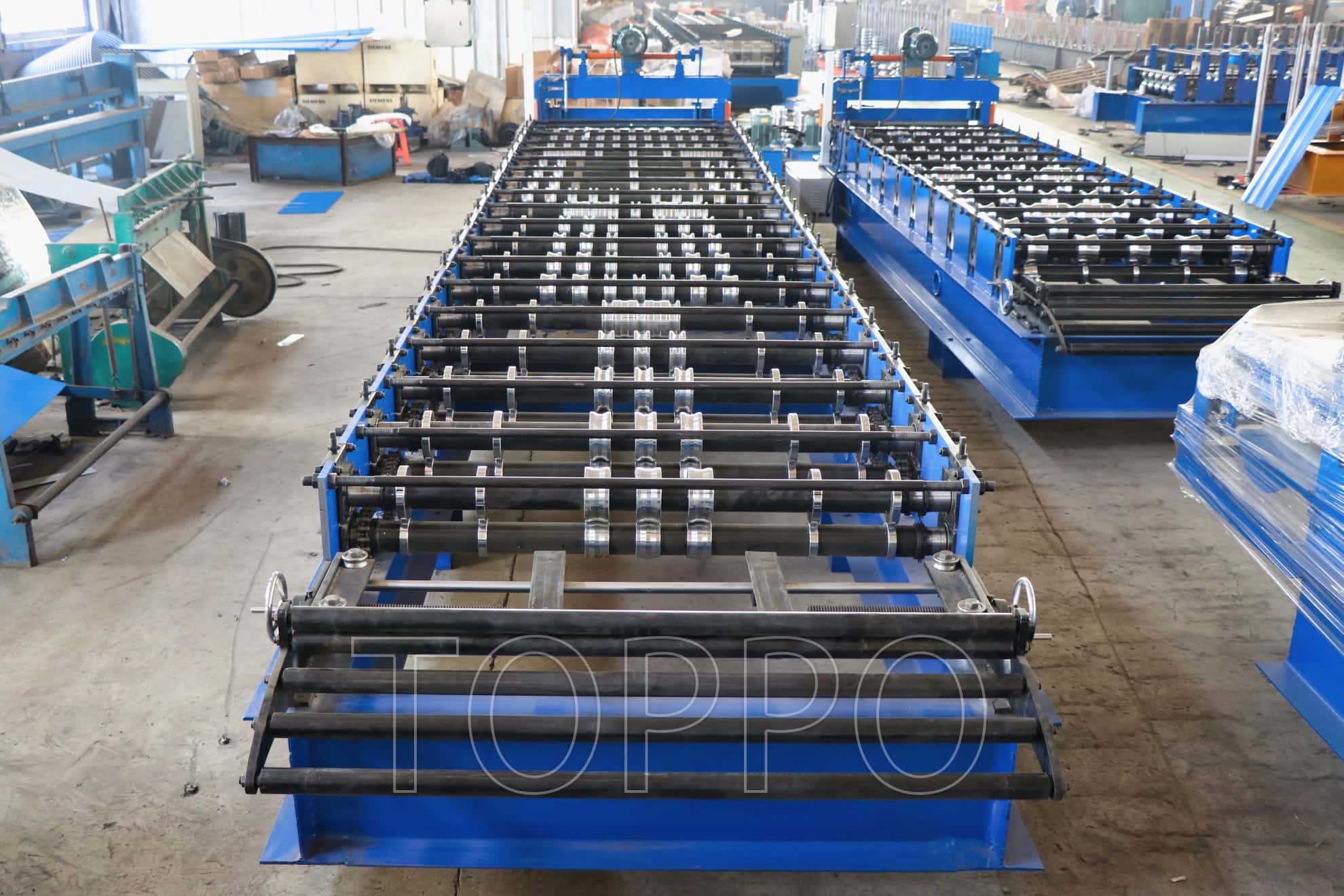

Forming Stations: 18–22 Stations

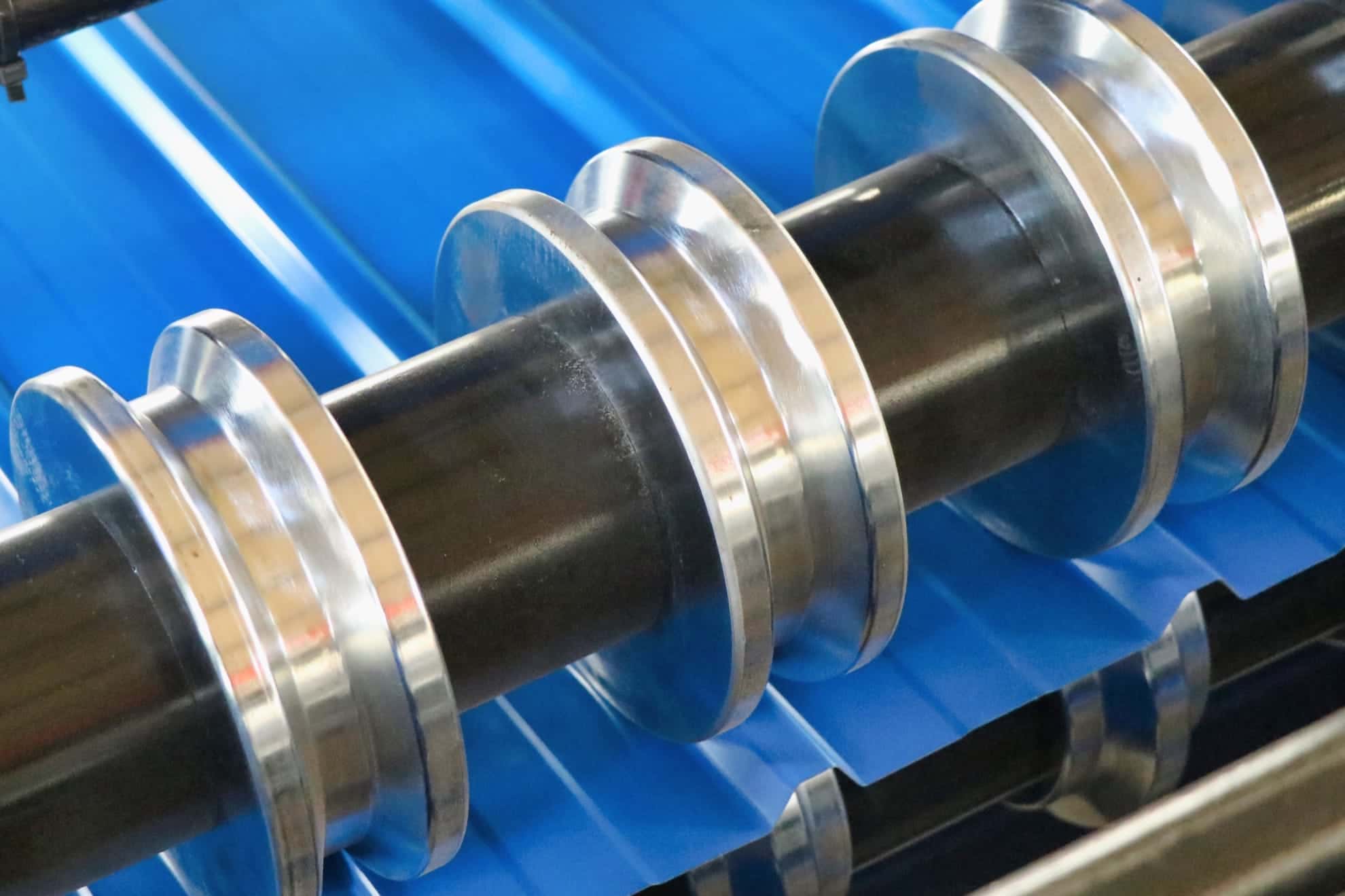

Roller Shaft Diameter: 70 mm
Roller Material: GCr15 (chrome-coated)
Transmission: Chain or Gear Drive

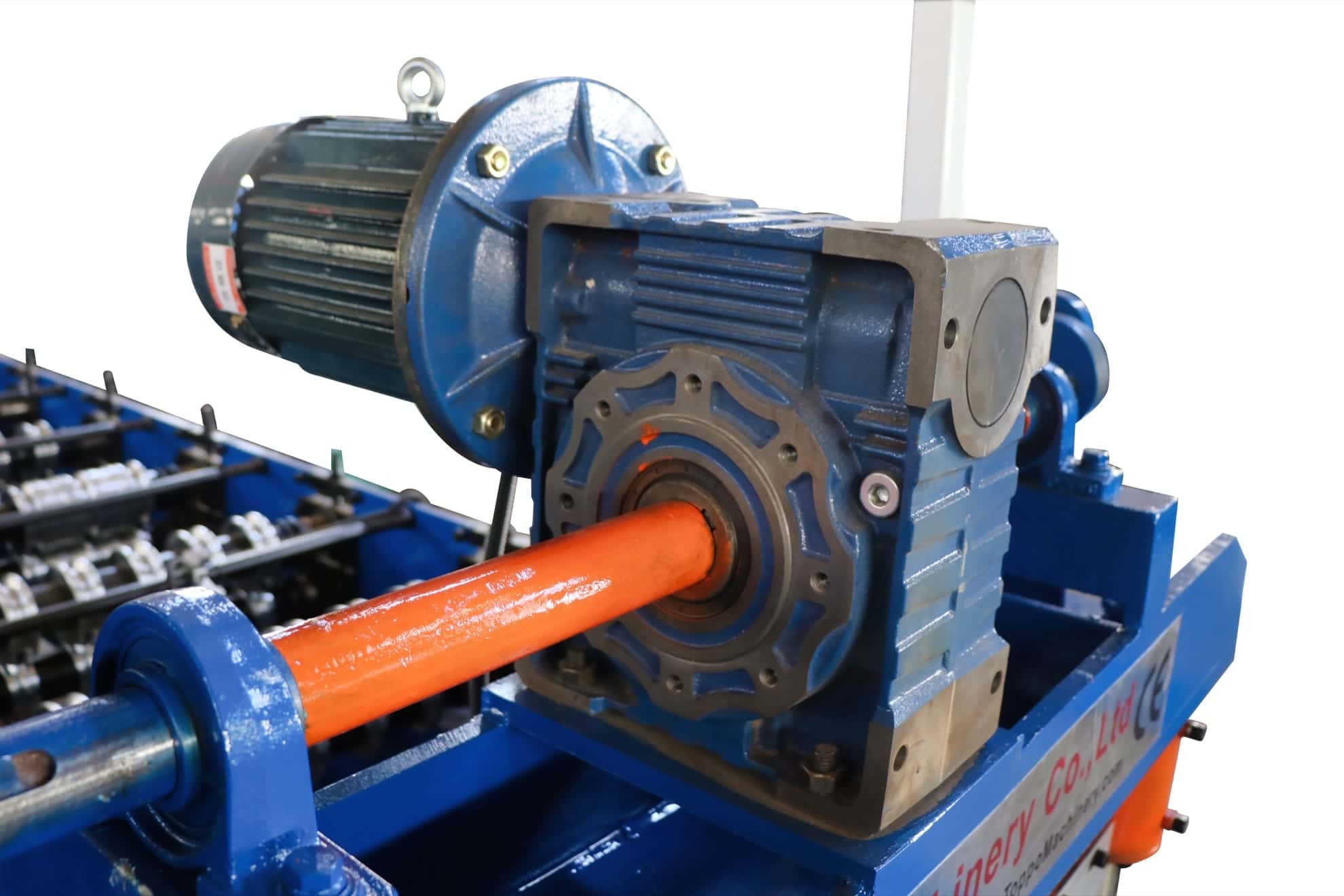

Main Motor Power: 5.5–7.5 kW
Hydraulic Cutting Power: 4 kW

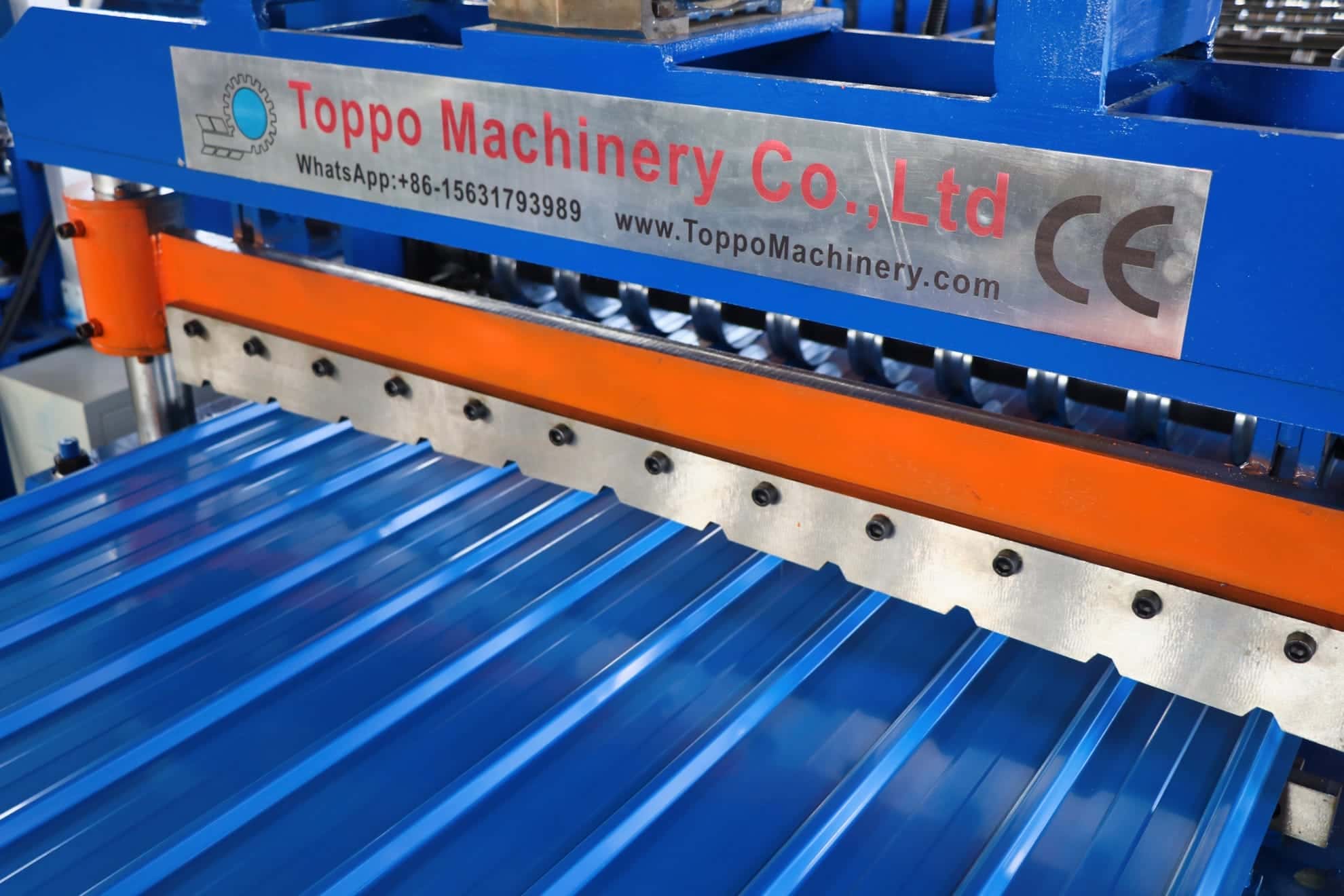

Cutting Type: Hydraulic Post-Cutting
Blade Material: Cr12Mov (Heat Treated)

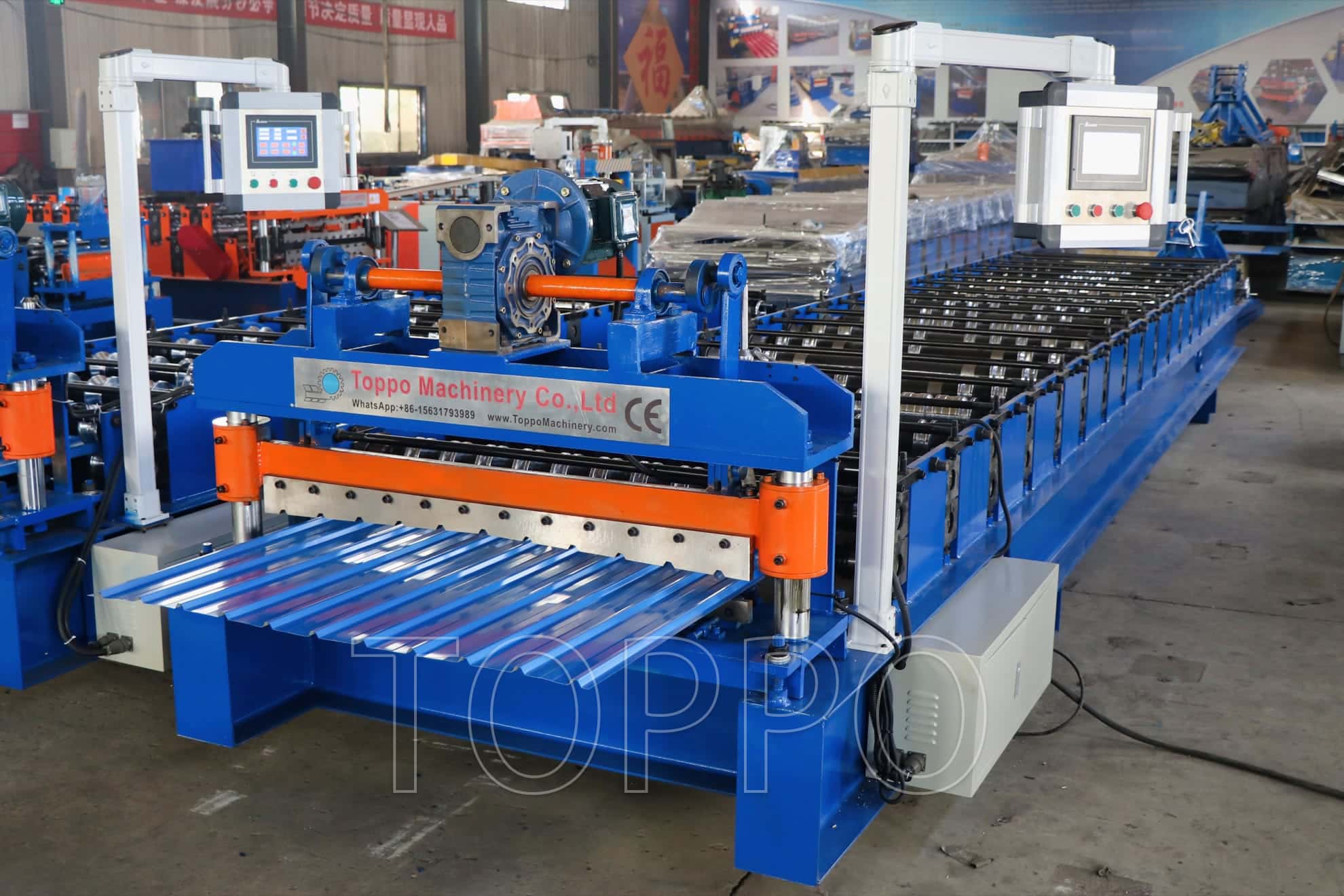

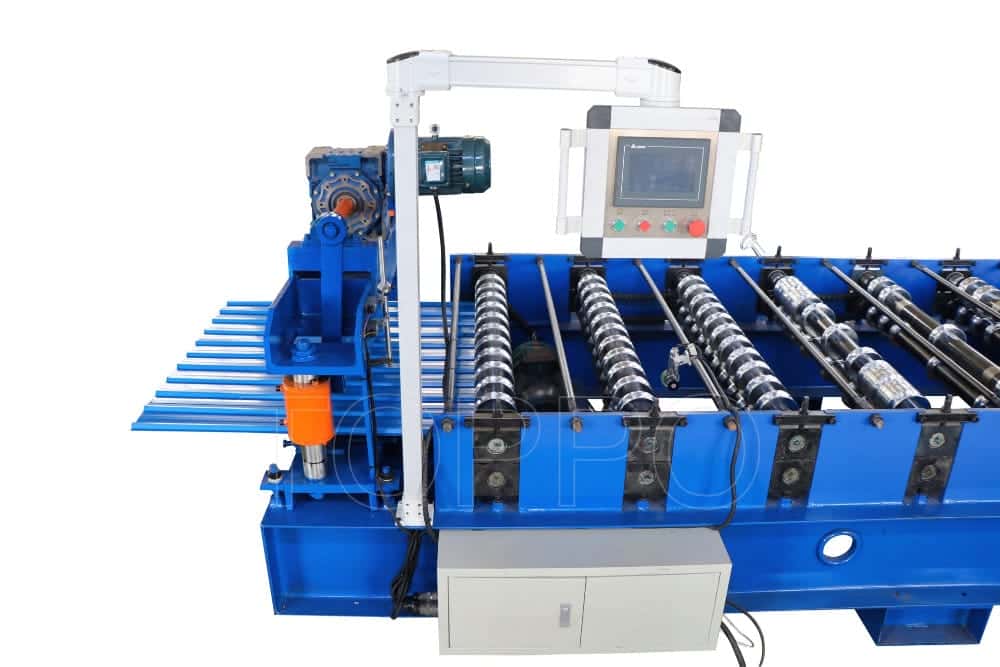

Control System: PLC (Siemens or Delta)
HMI: Touch Screen Panel
Speed: 10–15 m/min
Voltage: 380V / 50Hz / 3Phase

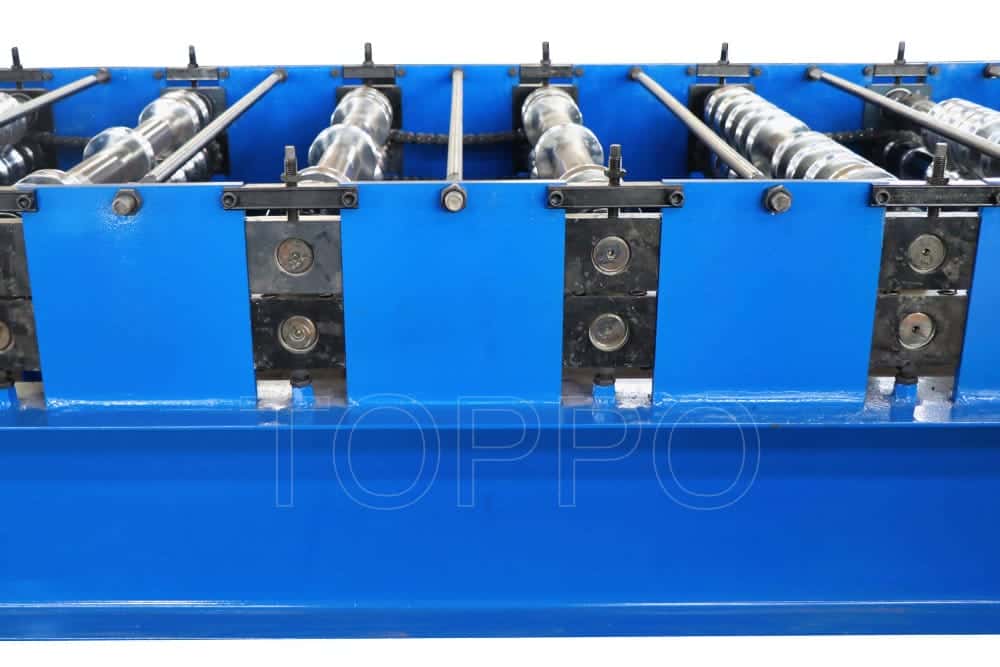

Machine Structure: 350H Beam Welded
Color: Blue & Orange (Customizable)
Overall Size: 9000*1500*1500 mm
Weight: Approx. 5–6 Tons
Noise Level: ≤70 dB
Cutting Precision: ±1 mm
Cooling System: Air Cooling
Lubrication: Manual or Automatic Pump
Safety System: Emergency Stop + Overload Protector
Packaging: Plastic Wrap + Steel Wire Fixed
Warranty: 1 Year
Delivery: Within 30 Days
MOQ: 1 Set
OEM/ODM: Available
Profile Customization: Free CAD Design Available
After-sales Support: Video Instruction + Engineers Abroad
Operation Training: Remote or Onsite
Ease of Maintenance: Low Maintenance Required
Durability: Over 15 Years with Proper Use
Ideal For: Construction Companies, Roofing Contractors, Sheet Plants
Efficiency: Designed for Continuous and Accurate Production
This machine integrates engineering-grade design and intelligent control to ensure reliable, efficient performance for roofing sheet production. Trusted globally by industrial roofing manufacturers.
