Brand: TOPPO Machinery

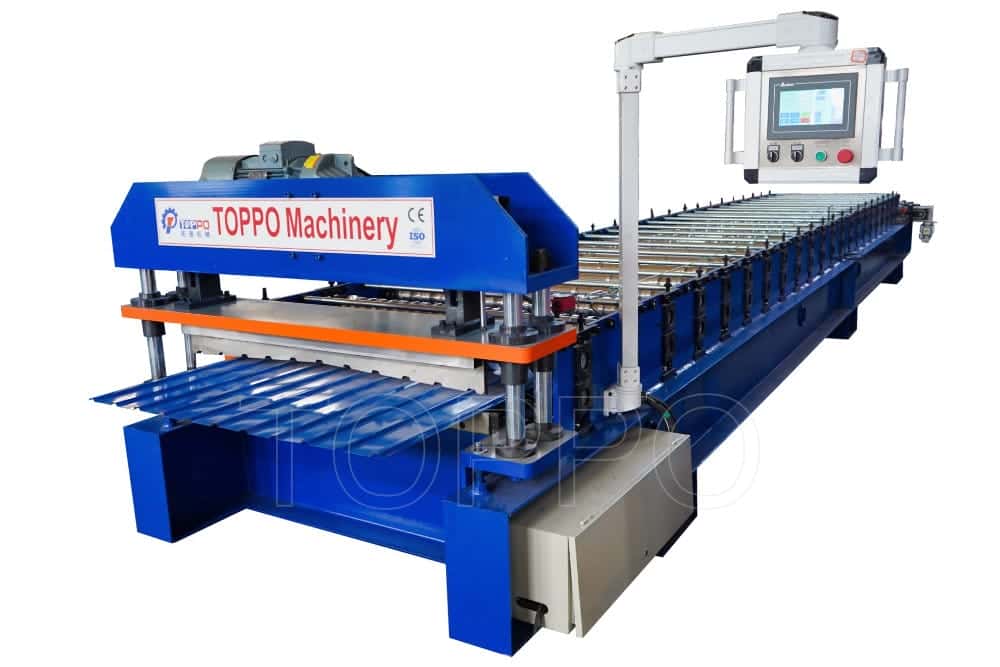

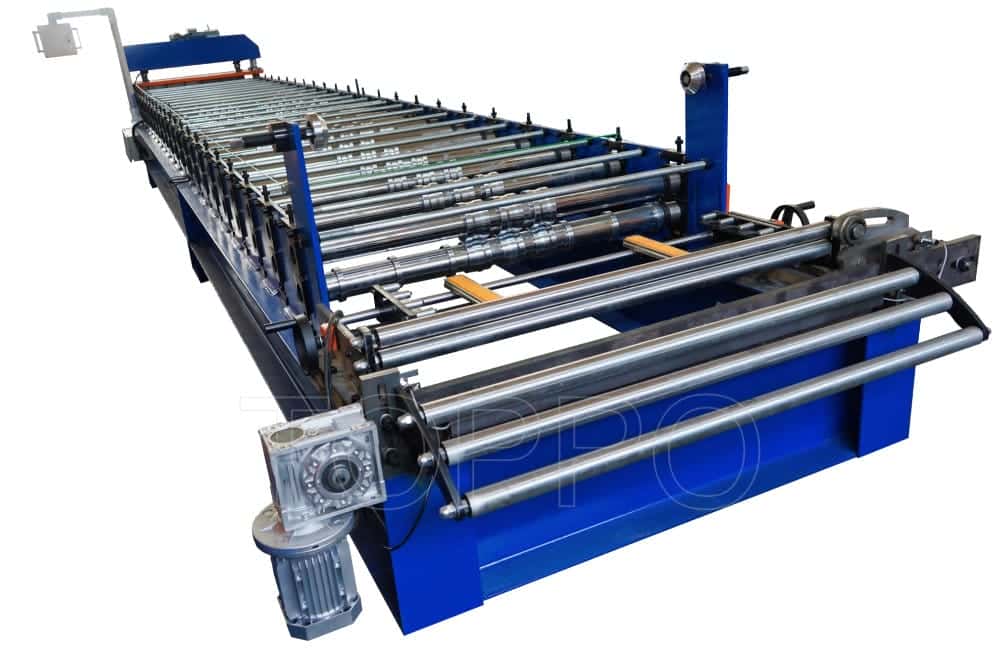

Model: Trapezoidal Roofing Sheet Roll Forming Line
Application: Industrial Roofing Panel Manufacturing
Material Compatibility: Galvanized Steel, Pre-painted Steel, Aluminum
Sheet Thickness Range: 0.3–0.8 mm
Effective Panel Width: 760–1100 mm
Feeding Coil Width: 1000–1250 mm

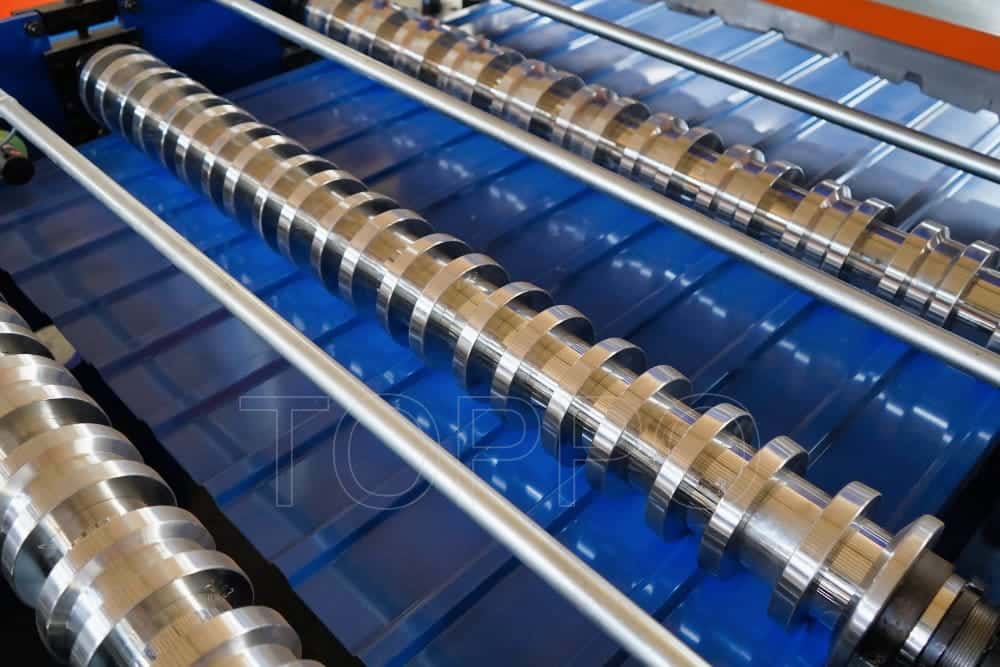

Forming Stations: 18–24 Steps
Roller Shaft Diameter: 70 mm

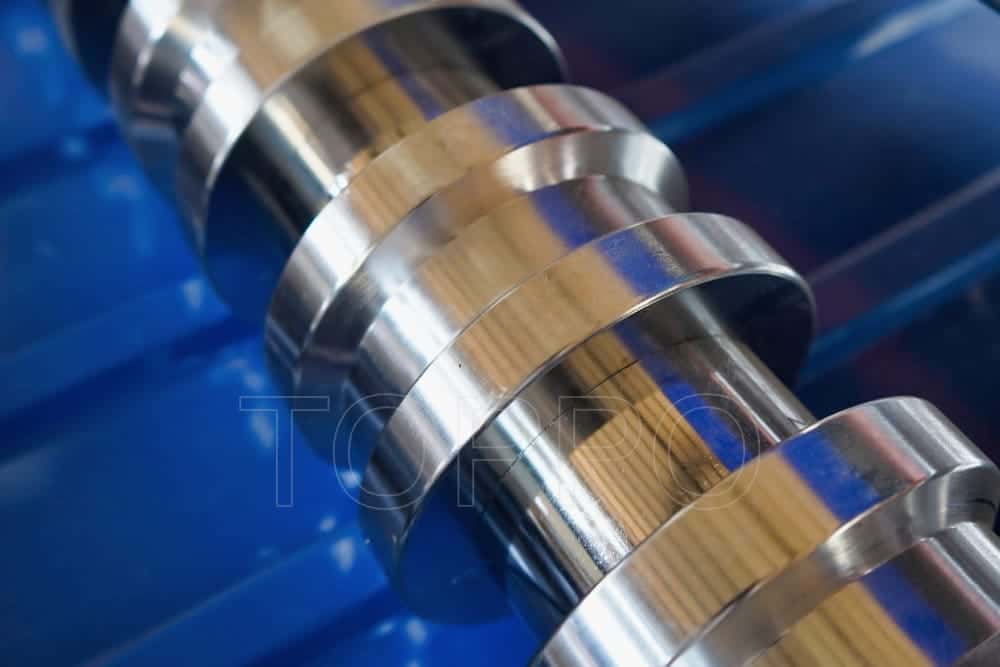

Roller Material: GCr15, Chrome Coated
Transmission Method: Chain or Gear Drive
Main Motor Power: 7.5 kW
Hydraulic Power: 4 kW

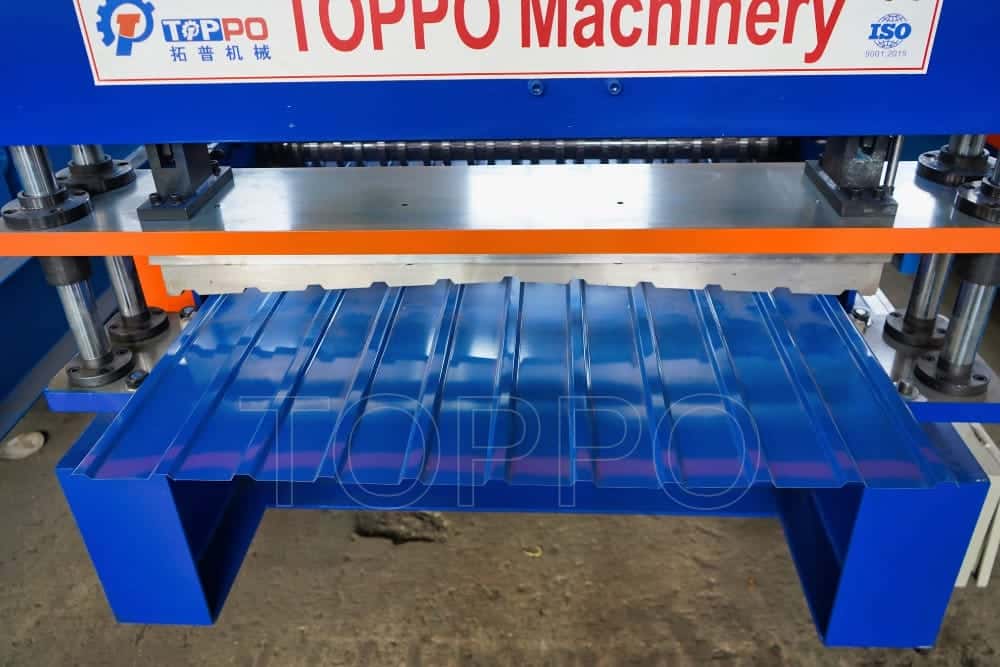

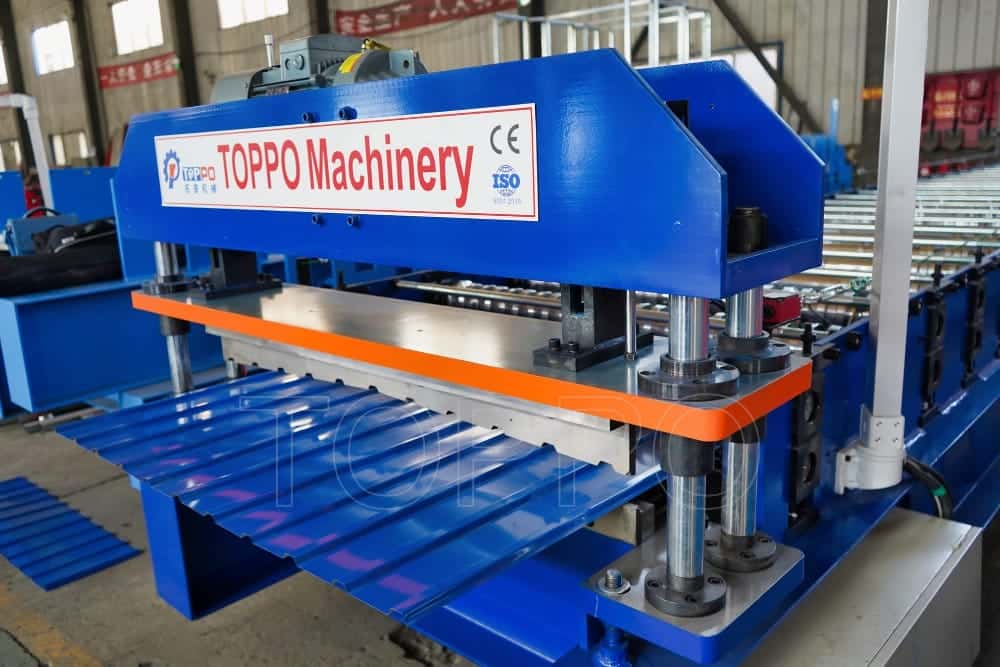

Cutting System: Hydraulic Post-Cutting
Blade Type: Cr12Mov Steel, Heat Treated
Control System: PLC by Siemens or Delta
Human Interface: Touch Screen HMI
Forming Speed: 10–15 m/min
Voltage: 380V, 50Hz, 3Phase
Frame Type: Welded H-Beam Steel
Machine Size: 9000*1500*1500 mm
Machine Weight: Approx. 5–6 Tons
Noise Level: ≤70 dB
Cutting Accuracy: ±1 mm
Cooling Type: Air Cooling
Lubrication: Manual/Auto Pump
Safety Features: Emergency Stop, Overload Guard
Packaging: Waterproof Film + Steel Wire Fixed
Warranty: 1 Year
Delivery Time: 30 Days After Deposit
Minimum Order: 1 Set
OEM/ODM Service: Available
Custom Profile Support: CAD Drawing Design
Support & Training: Remote or Onsite Available
Service Life: Over 15 Years
Industries Used: Steel Structure, Roofing, Prefab Construction
Energy Efficiency: Optimized Power Usage
Ease of Use: User-Friendly Control System

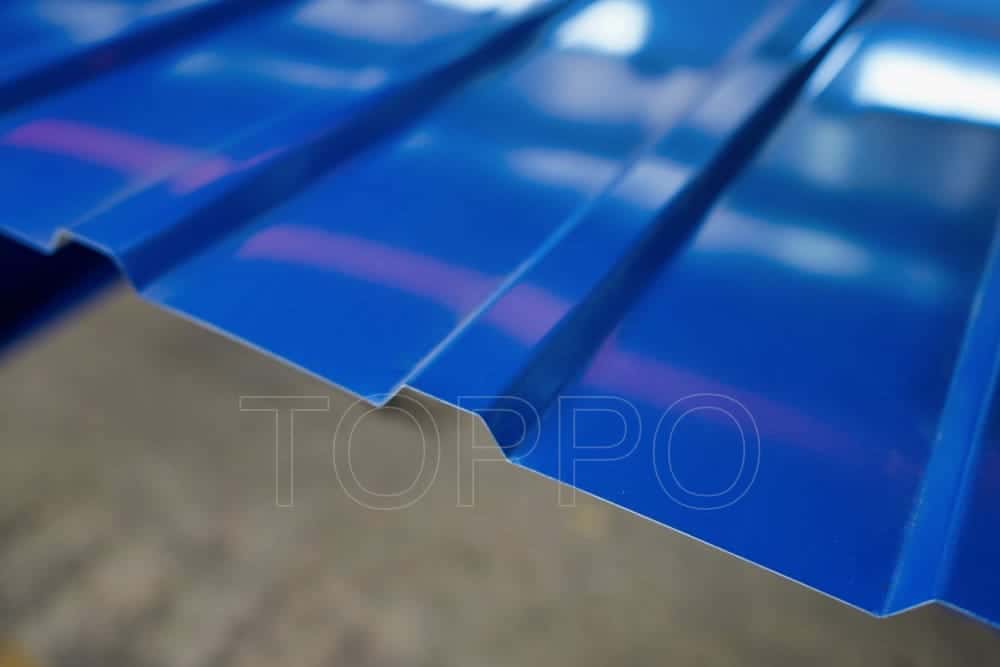

This machine is a top-tier choice for contractors and manufacturers seeking a robust, automated solution for producing high-quality trapezoidal roofing panels. It delivers consistent output and low operational costs.
