Brand: Toppo Machinery Co., Ltd
Model: Compact Trapezoidal Panel Machine

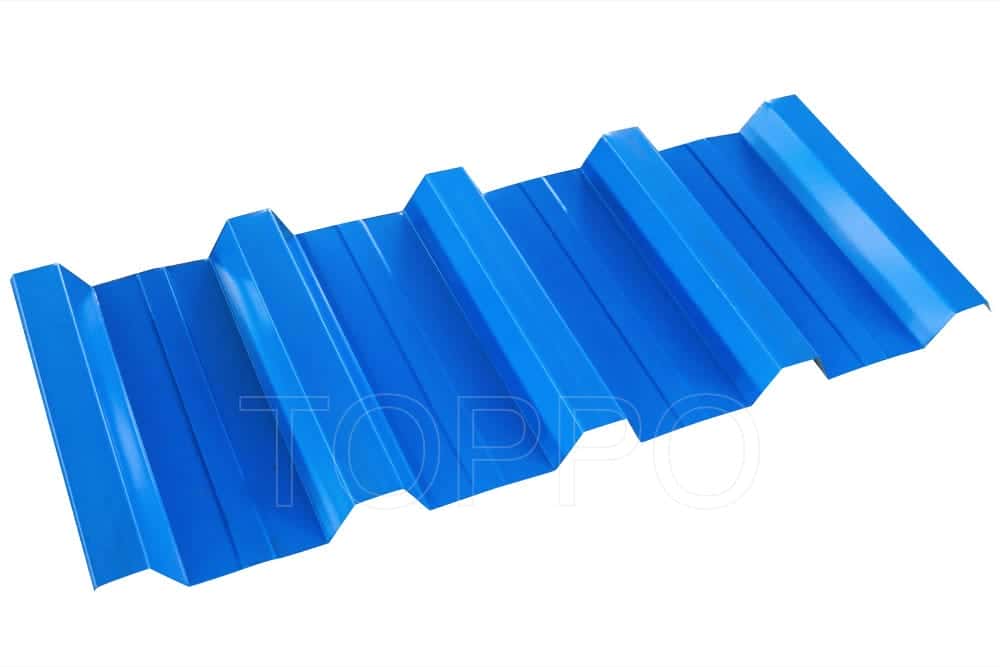

Function: Metal Roofing Panel Forming
Material: Galvanized Steel, PPGI, Aluminum
Material Thickness: 0.3–0.8 mm
Panel Effective Width: 760–1100 mm
Feeding Coil Width: 1000–1250 mm
Forming Steps: 16–22 Stations
Roller Material: GCr15 with Chrome Coating
Shaft Diameter: 70 mm
Drive System: Chain or Gear Driven
Main Motor Power: 5.5 kW
Hydraulic Power: 4 kW
Cutting Mode: Hydraulic Post-Cutting
Blade Material: Cr12Mov (Heat Treatment)
PLC Control: Siemens or Delta
Touch Screen: User-Friendly HMI
Working Speed: 10–15 m/min
Power Supply: 380V, 50Hz, 3Phase
Machine Frame: 350H Steel Welded
Color Scheme: Blue + Yellow (Customizable)
Machine Dimension: 8800*1400*1400 mm
Weight: About 5 Tons
Noise Level: ≤70 dB
Accuracy: ±1 mm
Cooling Type: Air Cooling
Lubrication: Automatic / Manual Oil System
Safety Devices: Emergency Stop Button
Packaging: Film Wrapped and Steel Wire Fixed
Warranty: 1 Year
Lead Time: 25–30 Days
MOQ: 1 Set
OEM/ODM: Support Available
Custom Design: Free CAD Profile Service
After-sales Service: Engineers Overseas, Video Support
Ease of Operation: Simplified Control System
Usage Scenarios: Industrial Warehouses, Steel Roof Projects
Performance: Stable, Continuous Production for Large-Scale Use
This machine offers excellent forming accuracy and long-lasting performance. It's widely chosen by small to medium steel structure manufacturers for its compact footprint and superior automation level.
