Brand: Toppo Machinery Co., Ltd

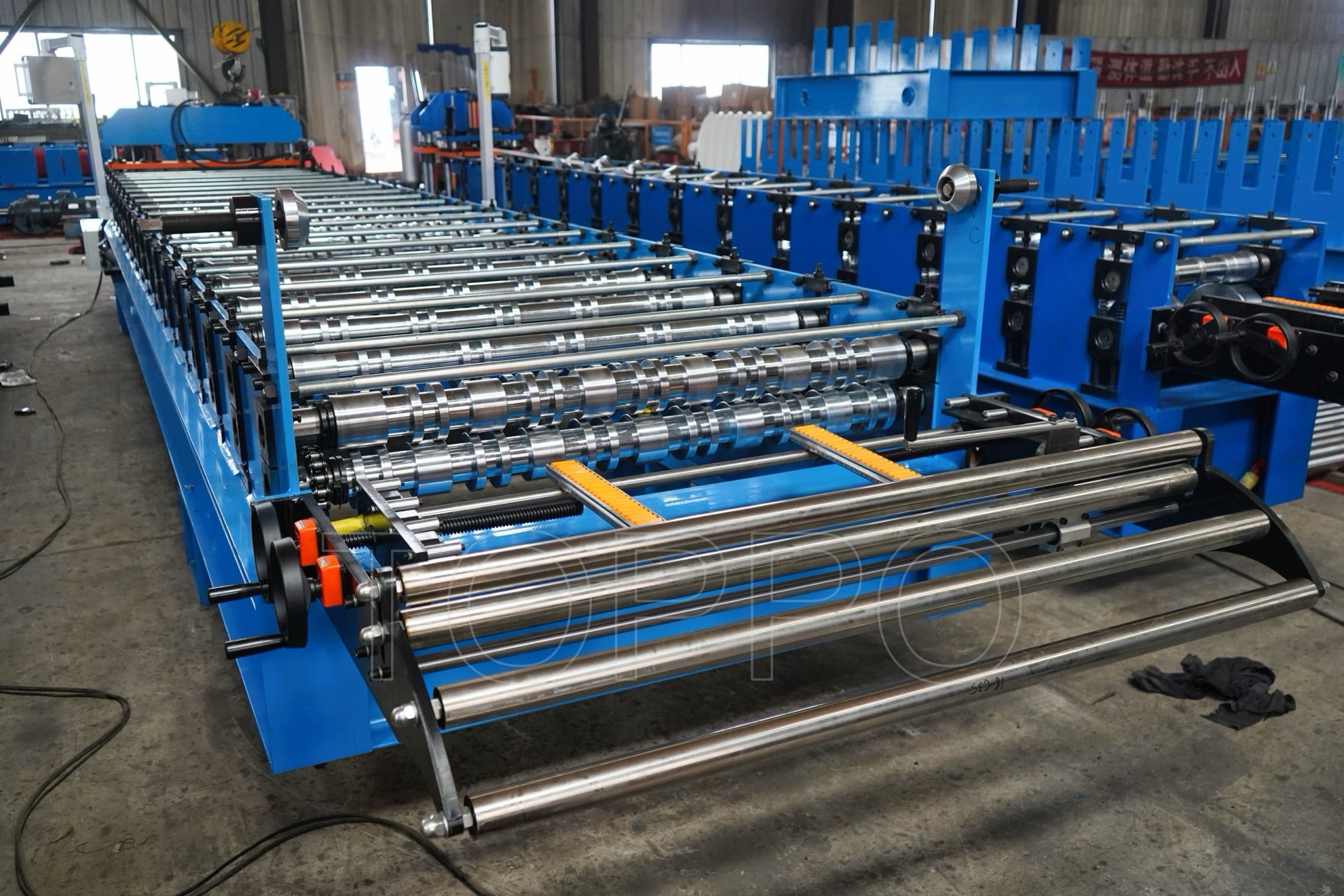

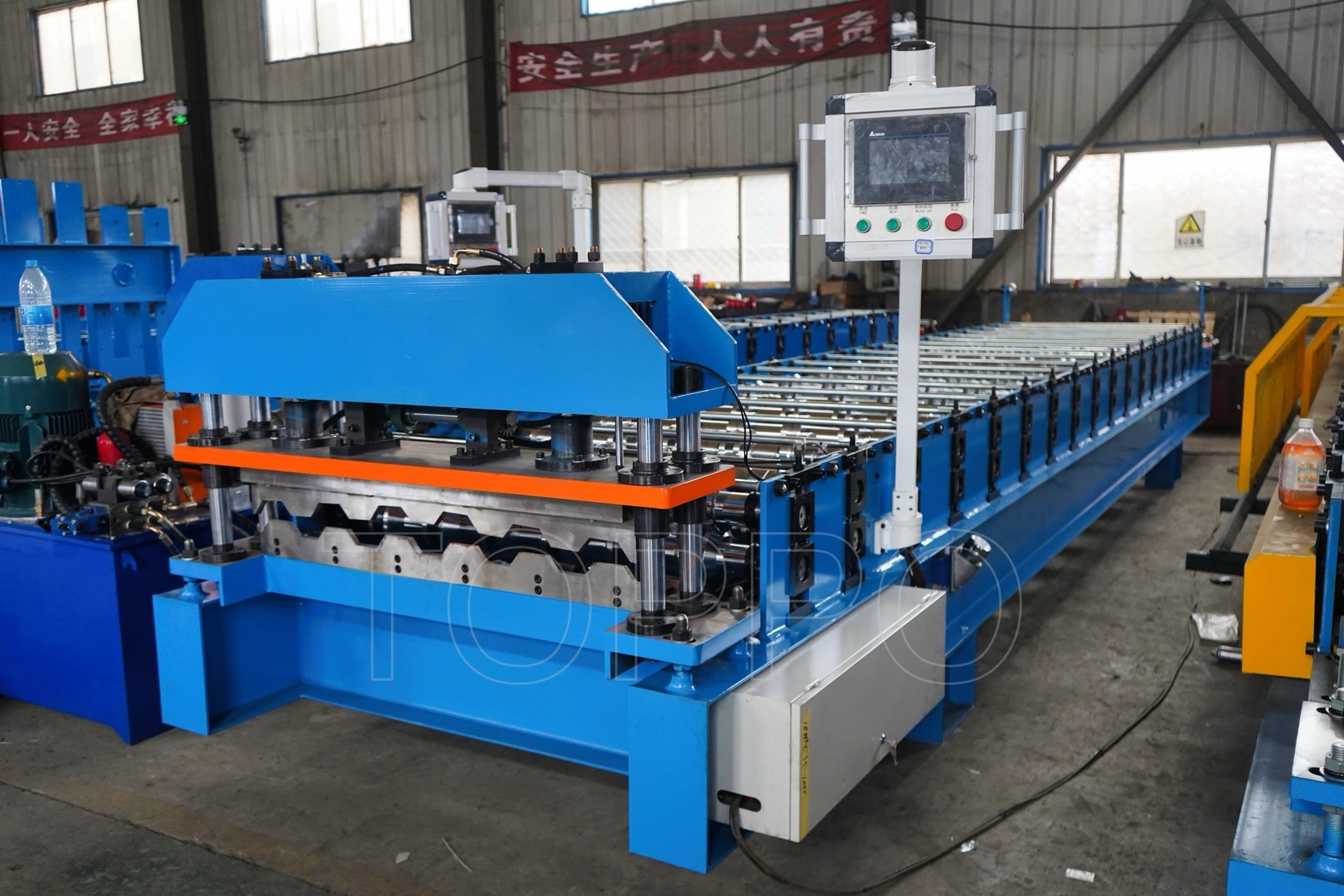

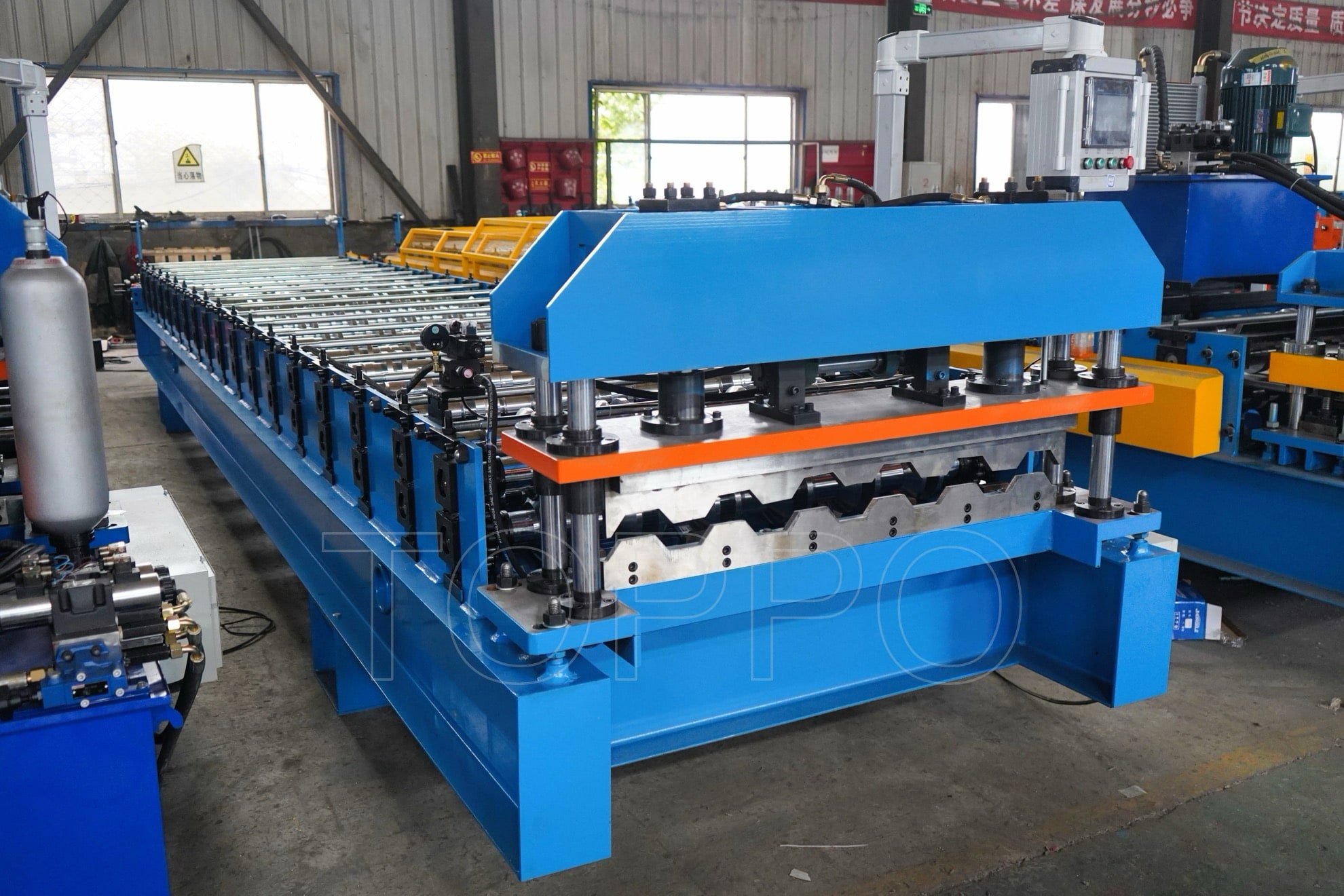

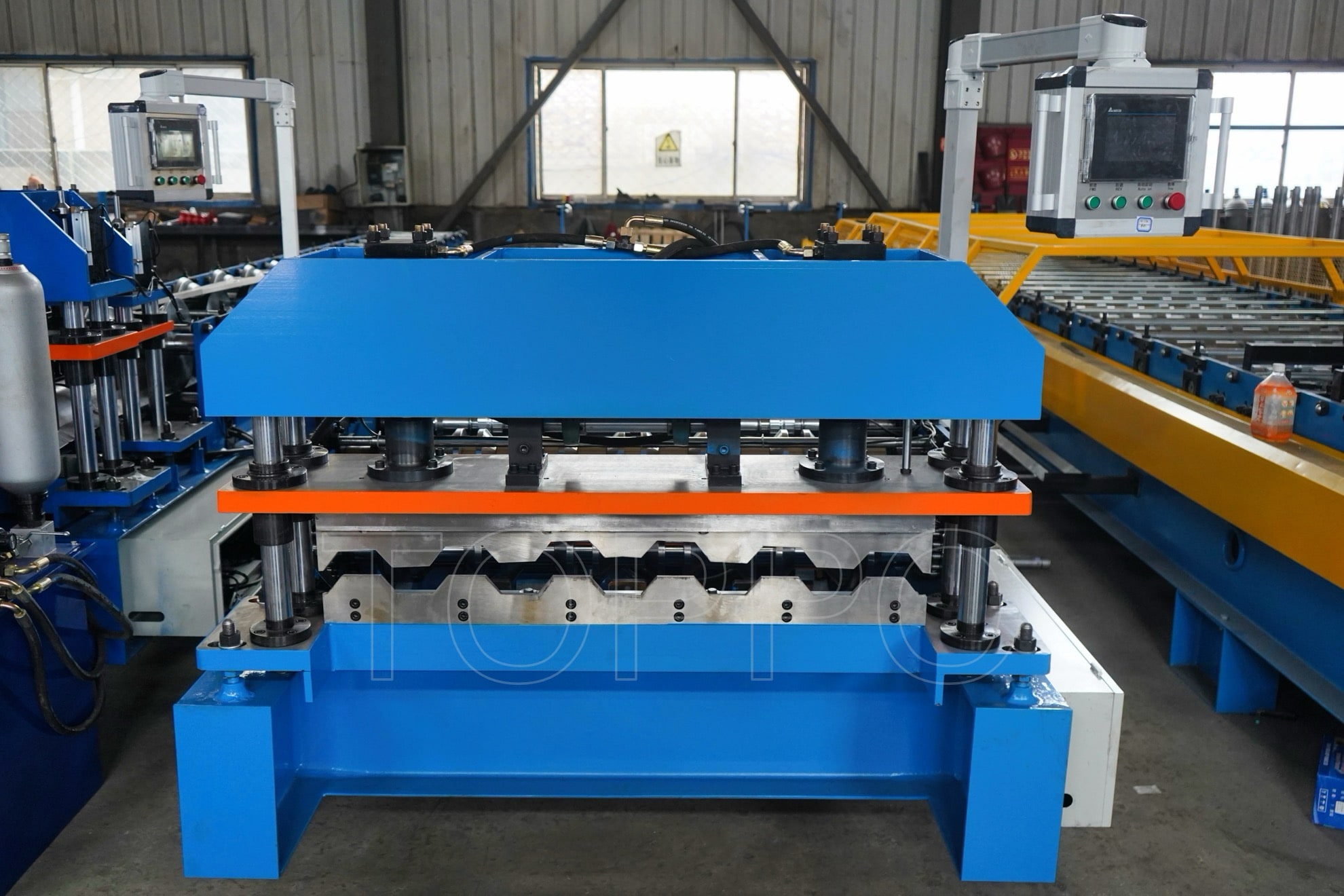

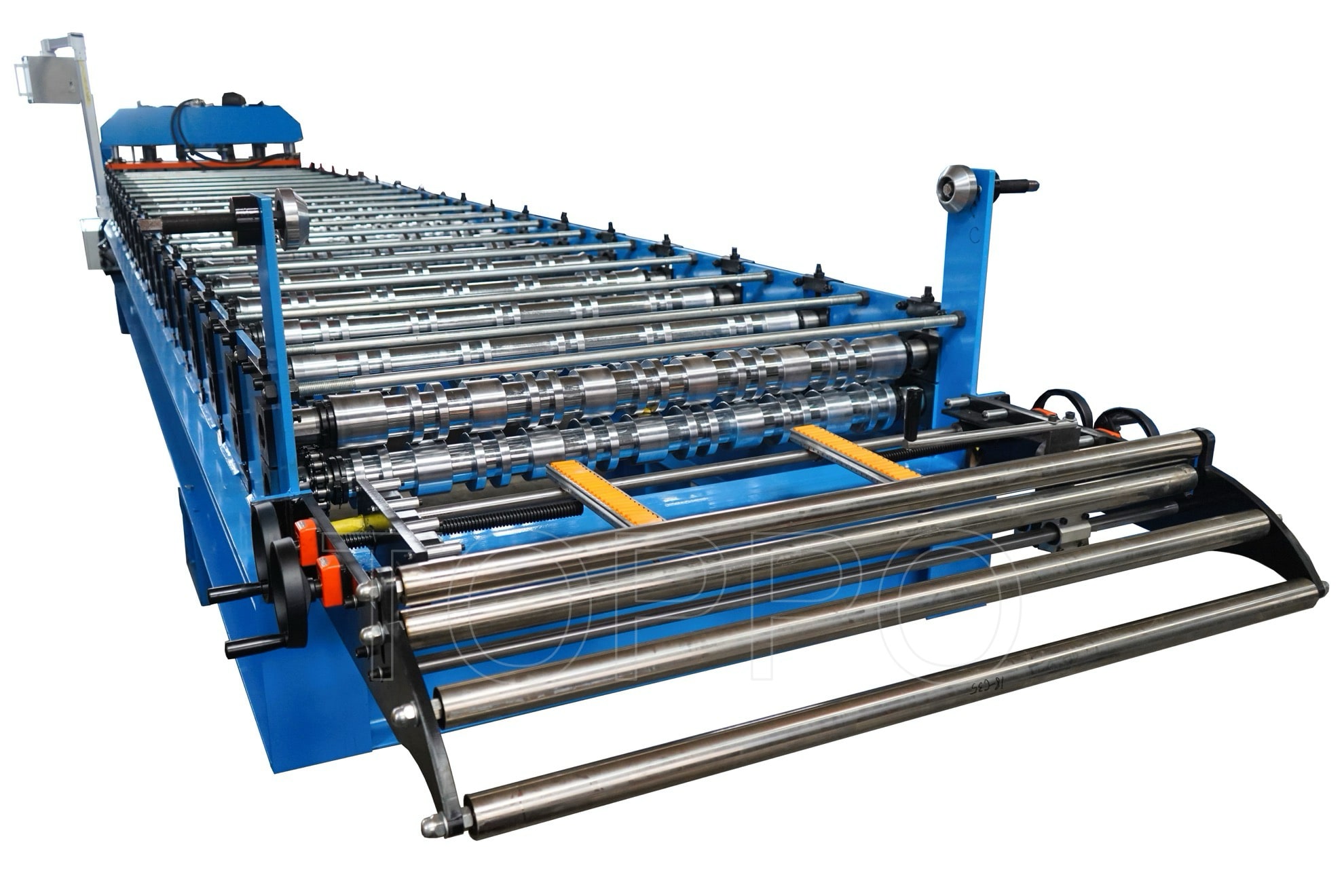

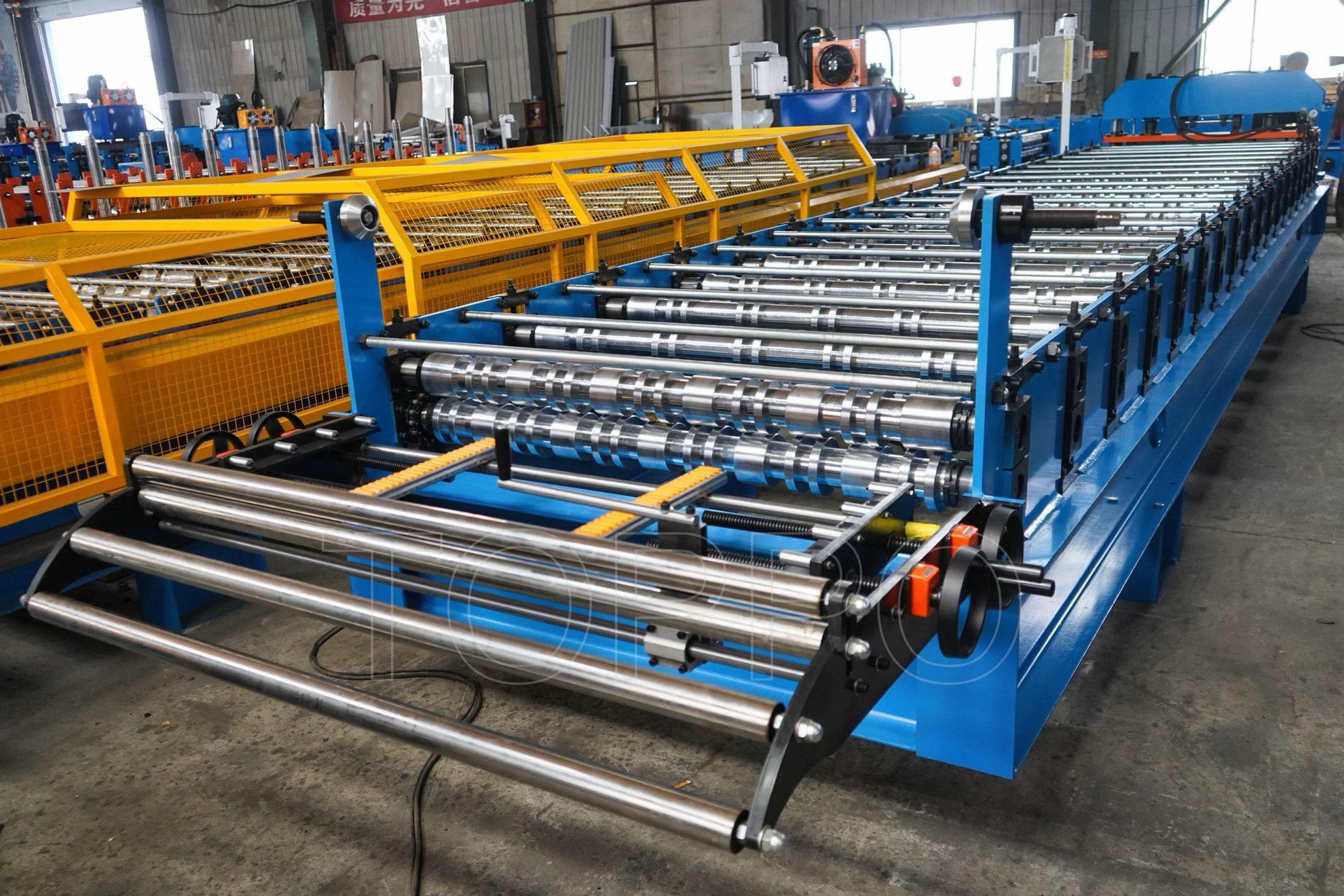

Machine Type: Trapezoidal Sheet Roll Forming Line
Material Options: Galvanized Steel, Color-Coated Steel, Aluminum
Material Thickness: 0.3–0.8 mm
Effective Sheet Width: 750–1100 mm

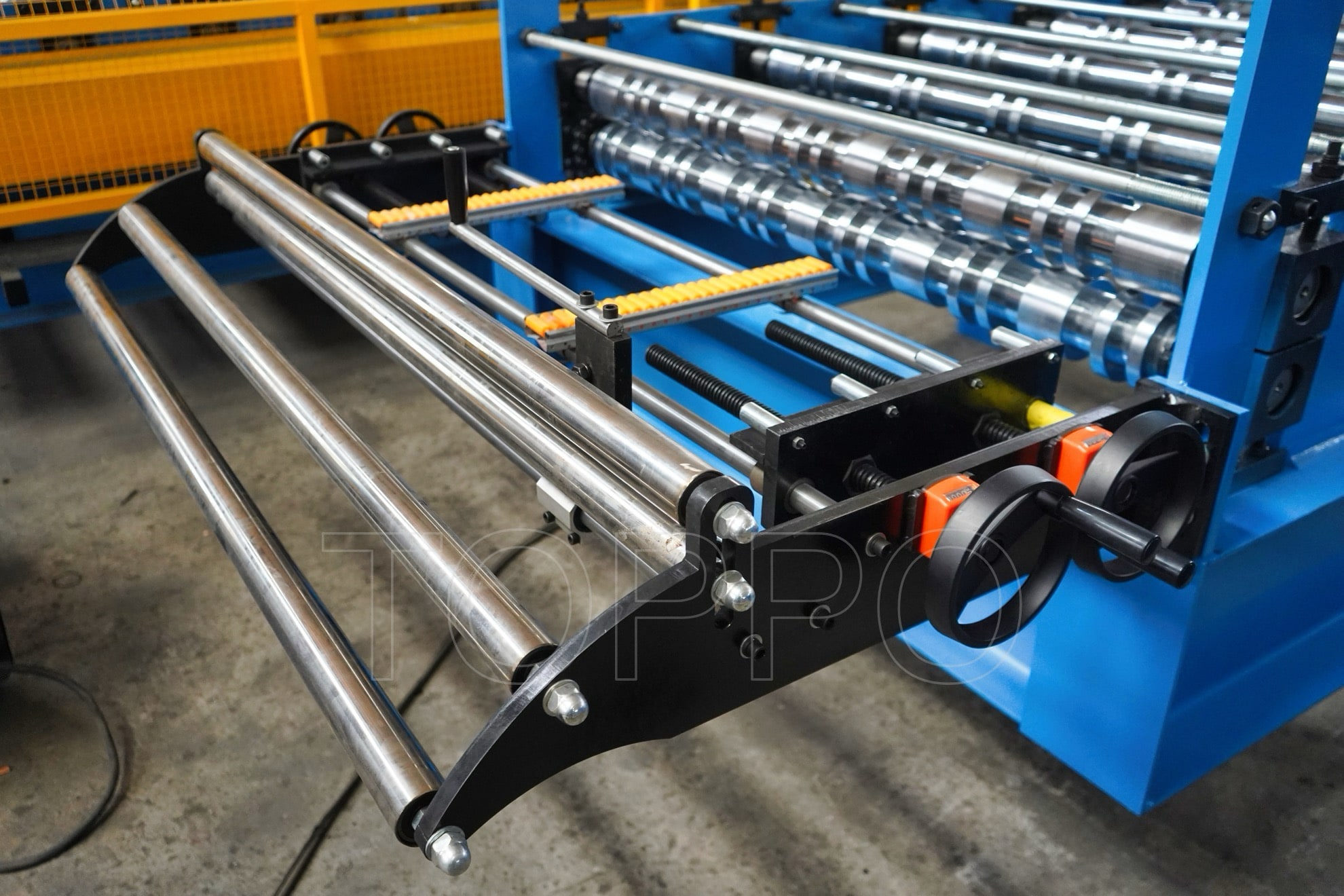

Feeding Width: 1000–1250 mm

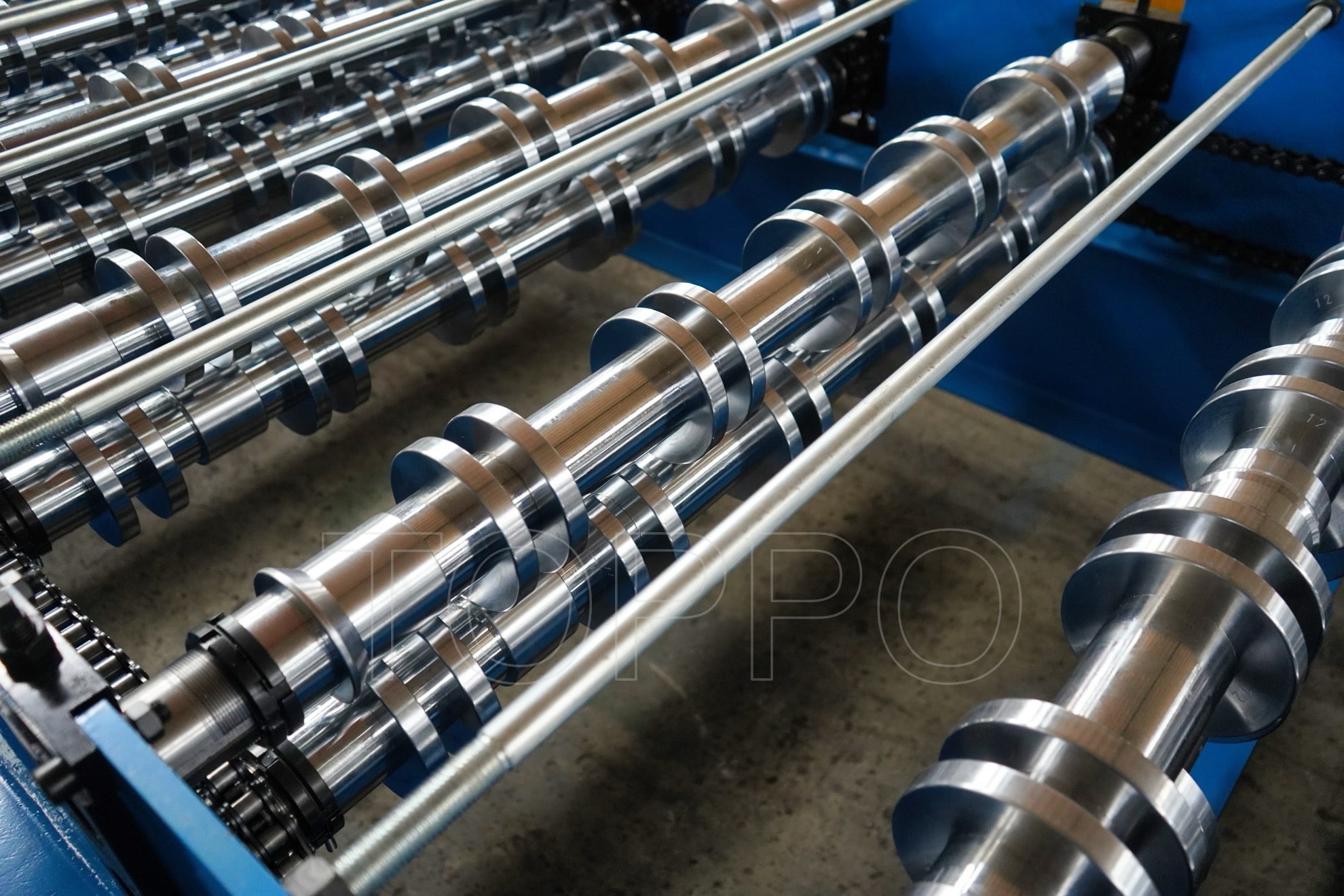

Forming Stations: 18–22 Stations

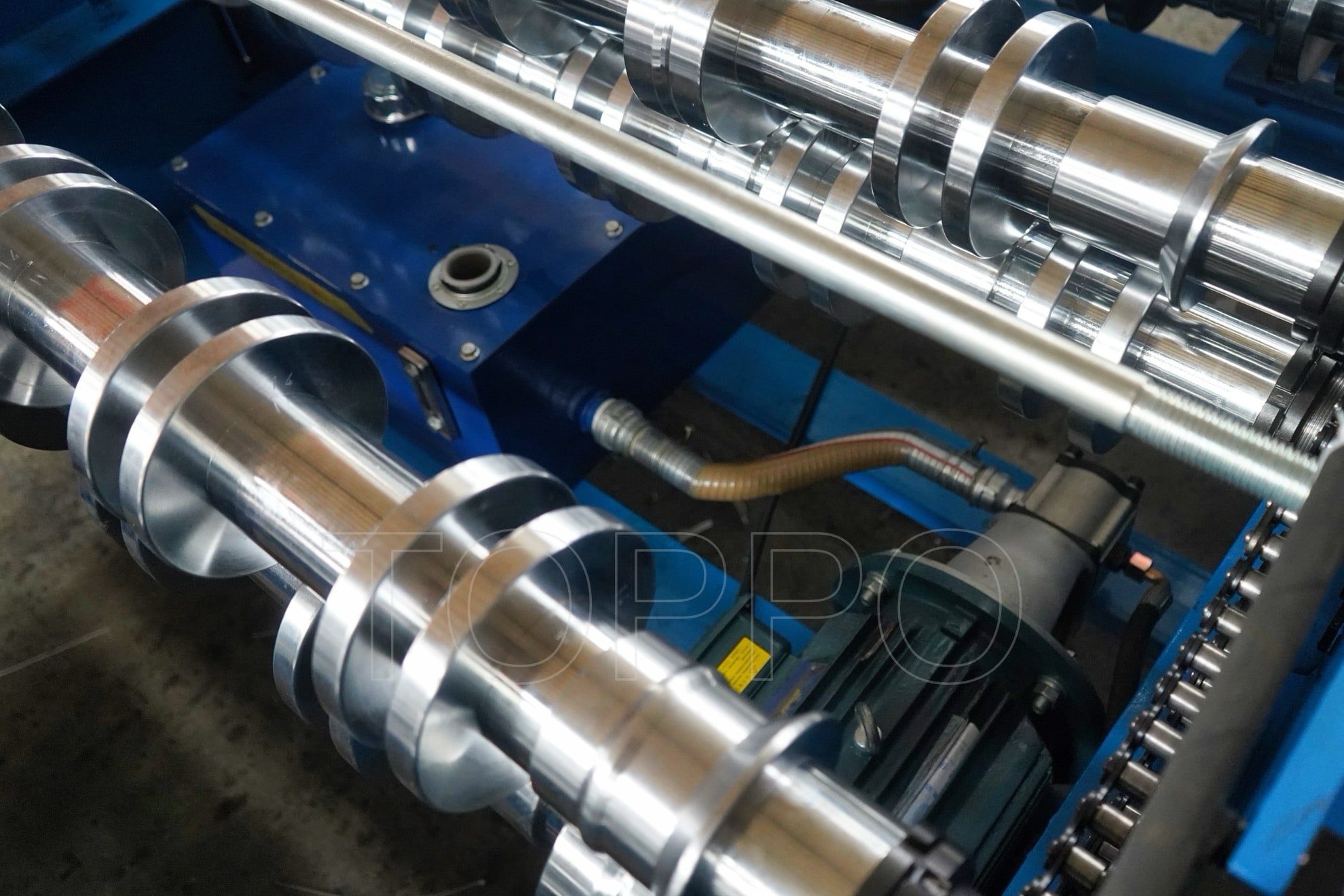

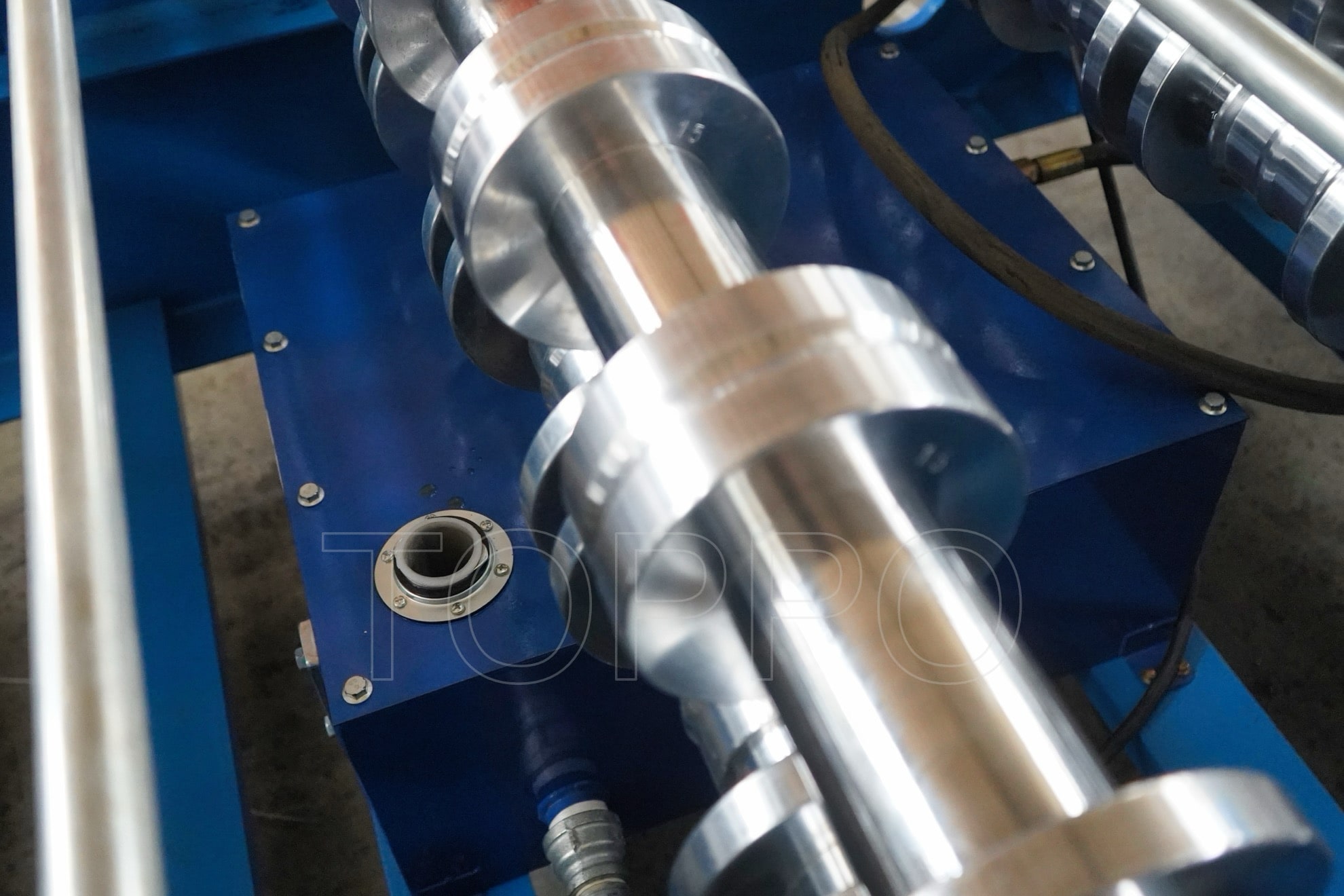

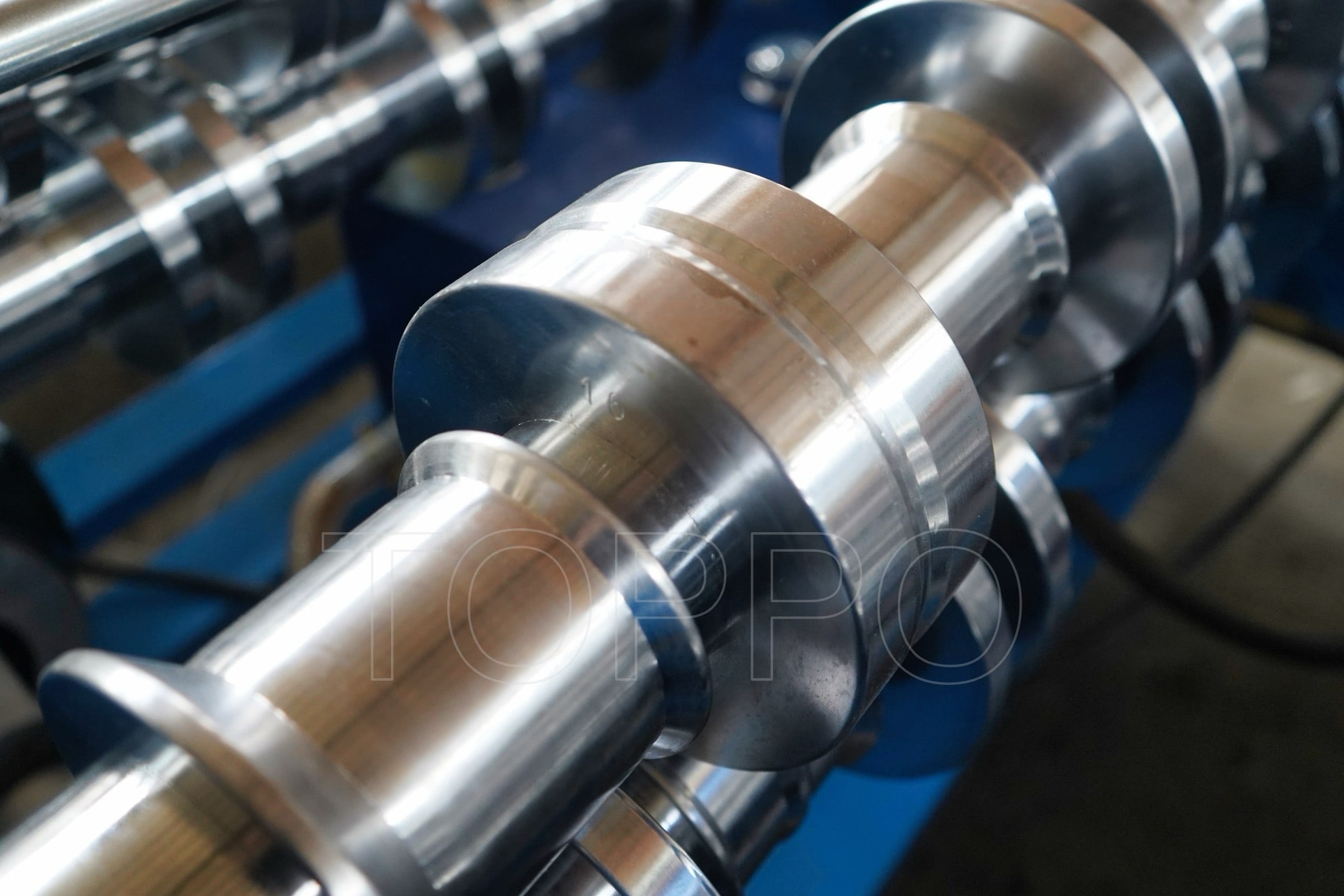

Roller Material: GCr15 with hard chrome coating
Shaft Diameter: 70 mm
Drive Method: Chain / Gear Transmission

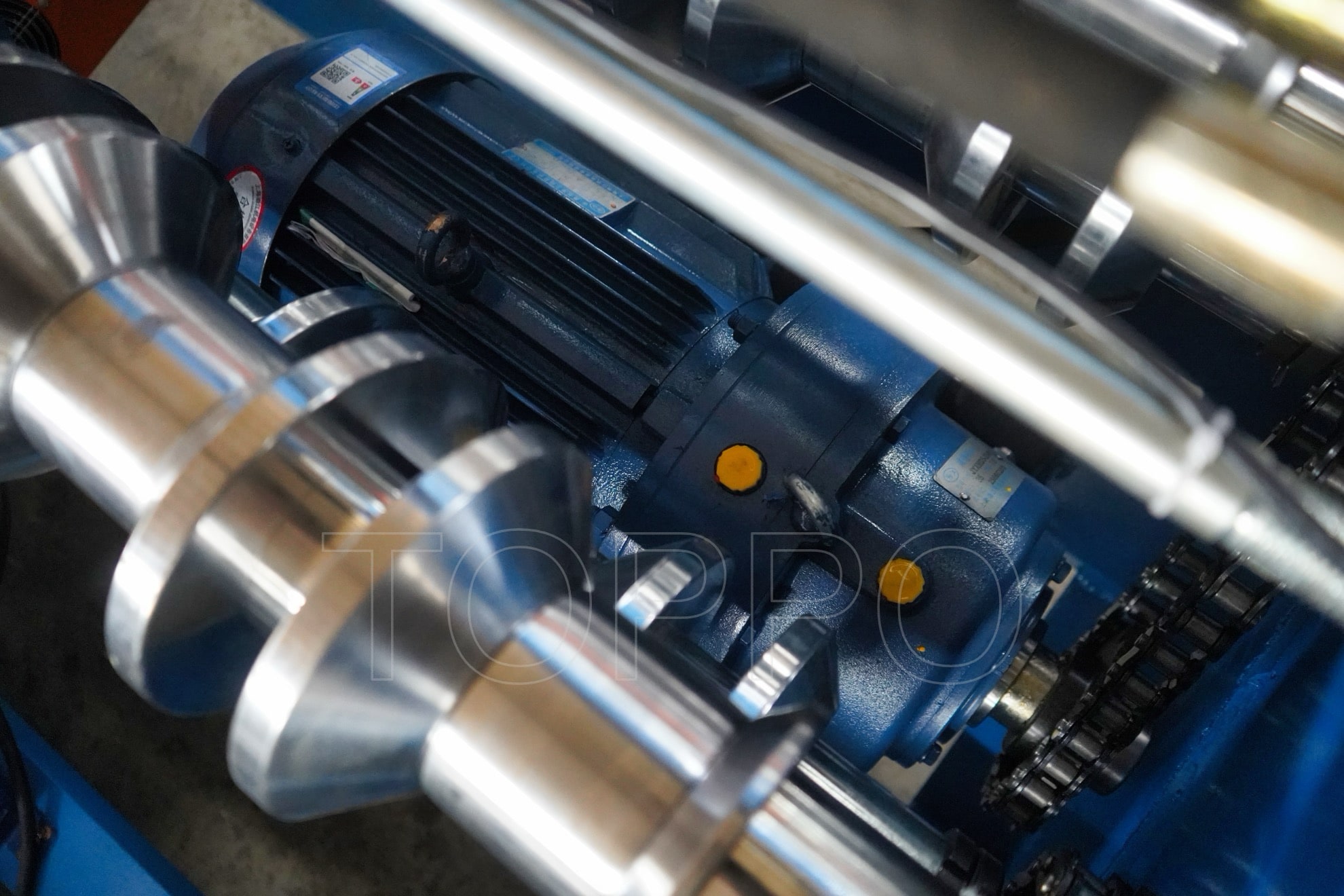

Main Motor: 7.5 kW

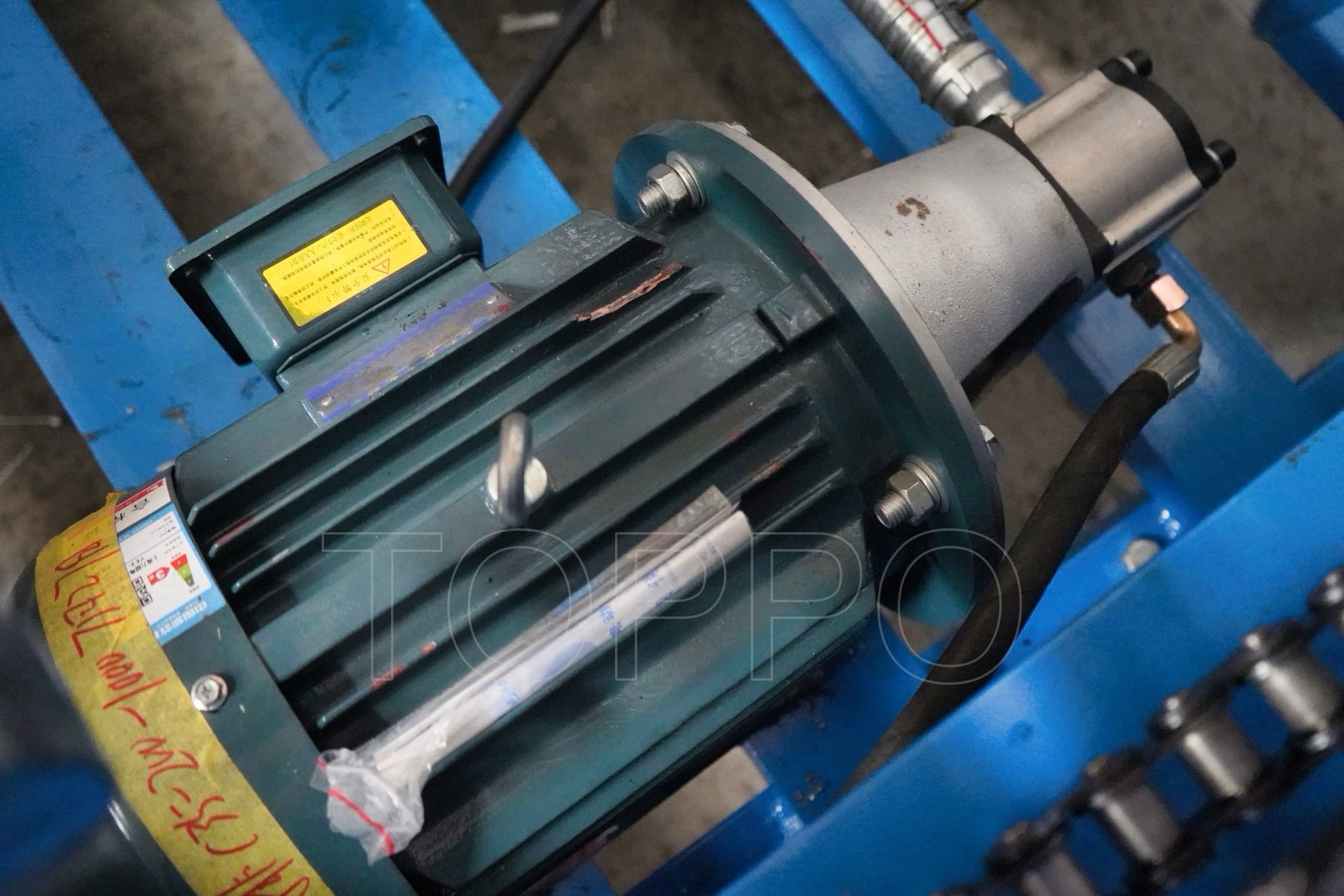

Hydraulic Power: 4 kW

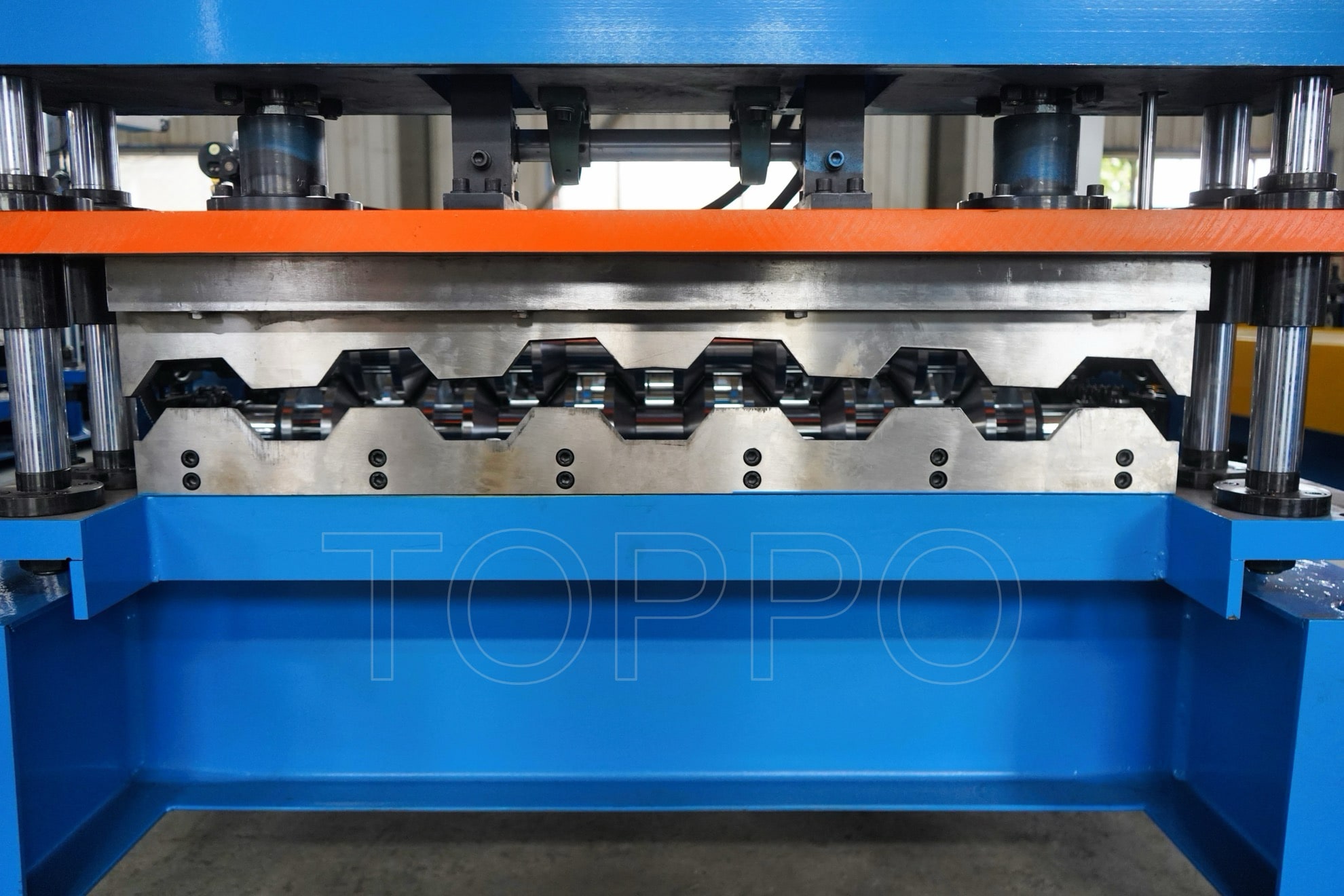

Cutting Type: Hydraulic Post Cutting
Blade Material: Cr12Mov with heat treatment
Control System: Siemens/Delta PLC
Operation Interface: Touch Screen (HMI)
Line Speed: 10–15 m/min
Voltage: 380V / 50Hz / 3Phase
Machine Structure: Welded 350H Steel Frame
Color: Blue + Orange (Custom Available)
Machine Size: 8800*1500*1500 mm
Weight: 5–6 Tons
Accuracy: ±1 mm
Cooling: Air-Cooled System
Noise Level: ≤70 dB
Lubrication: Automatic/Manual Oil Pump
Packaging: Plastic Film + Steel Wire Fixed
Safety Protection: Emergency Stop & Overload Protector
Warranty: 1 Year
Lead Time: 25–30 Days
MOQ: 1 Set
OEM/ODM: Available
Custom Profiles: CAD Drawing Support Included
After-Sales Support: Engineer Onsite or Remote Video
Use Case: Metal Roof Panel Factories, Sheet Contractors
Service Life: 15+ Years with Proper Maintenance
Operational Benefit: Low Operating Cost & High Output
This model is an optimal solution for mass production of trapezoidal roofing panels. Its automated workflow and durable build make it highly efficient and reliable in demanding industrial environments.
