Brand: Toppo Machinery Co., Ltd

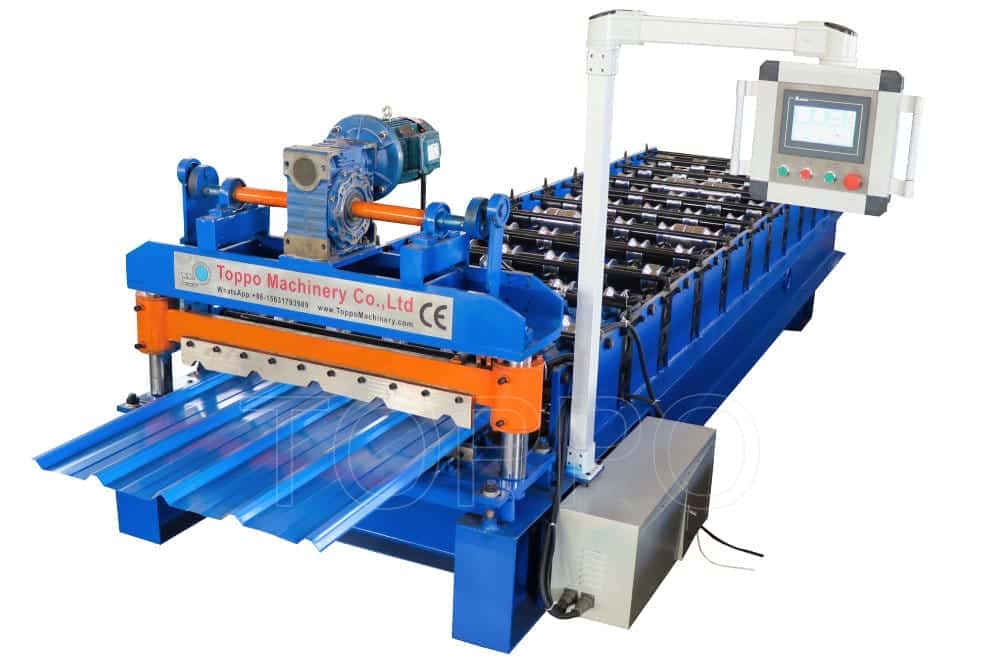

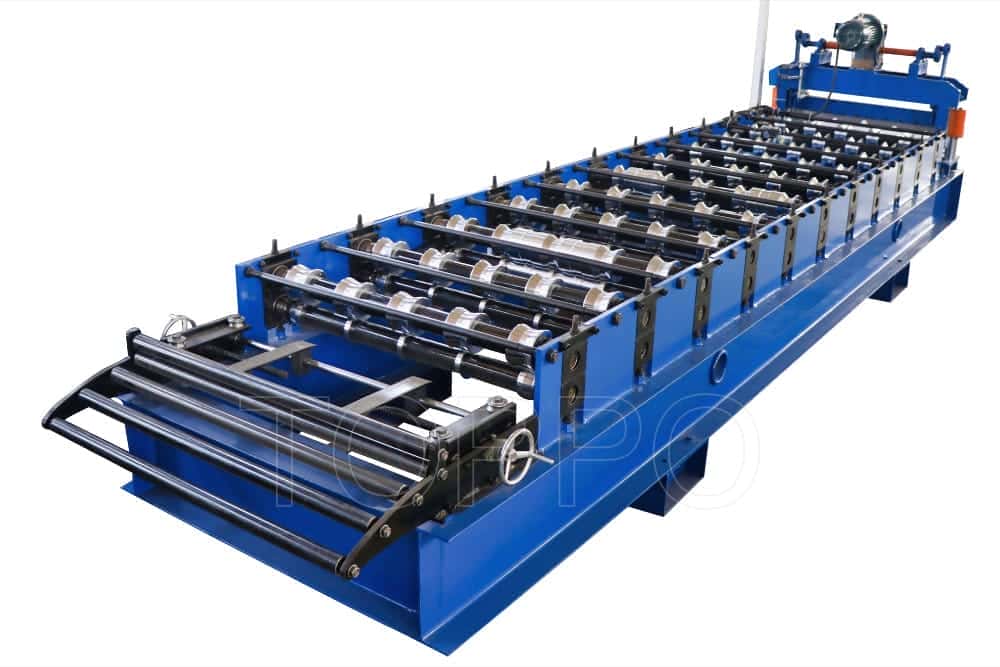

Machine Type: Trapezoidal Roofing Sheet Forming Machine
Material Options: Color Steel, Galvanized Steel, Aluminum
Material Thickness: 0.3–0.8 mm
Effective Panel Width: 750–1100 mm
Coil Width: 1000–1250 mm
Forming Steps: 16–24 Stations

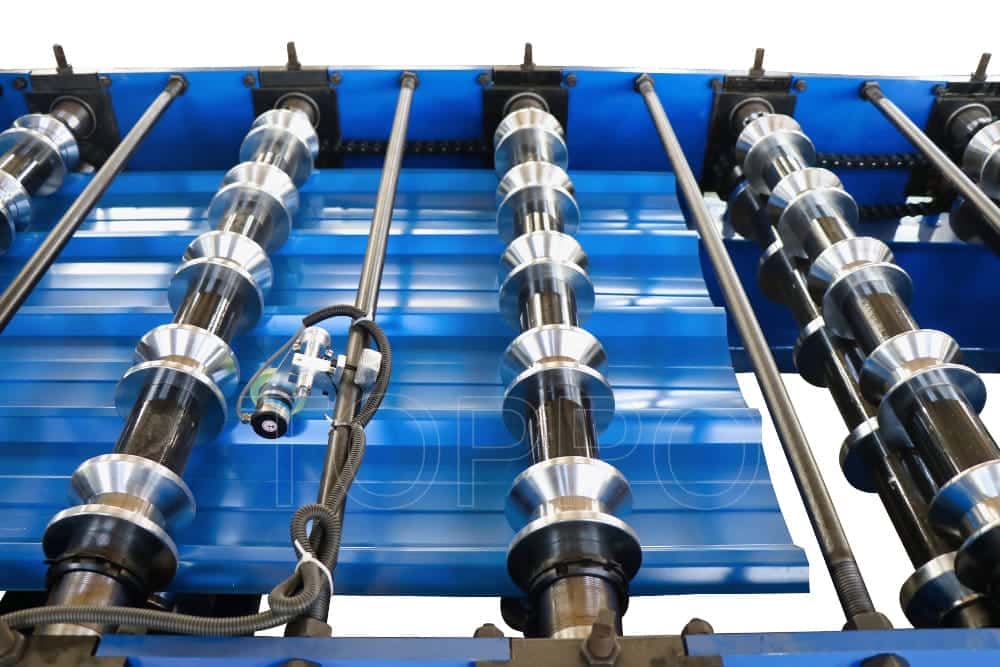

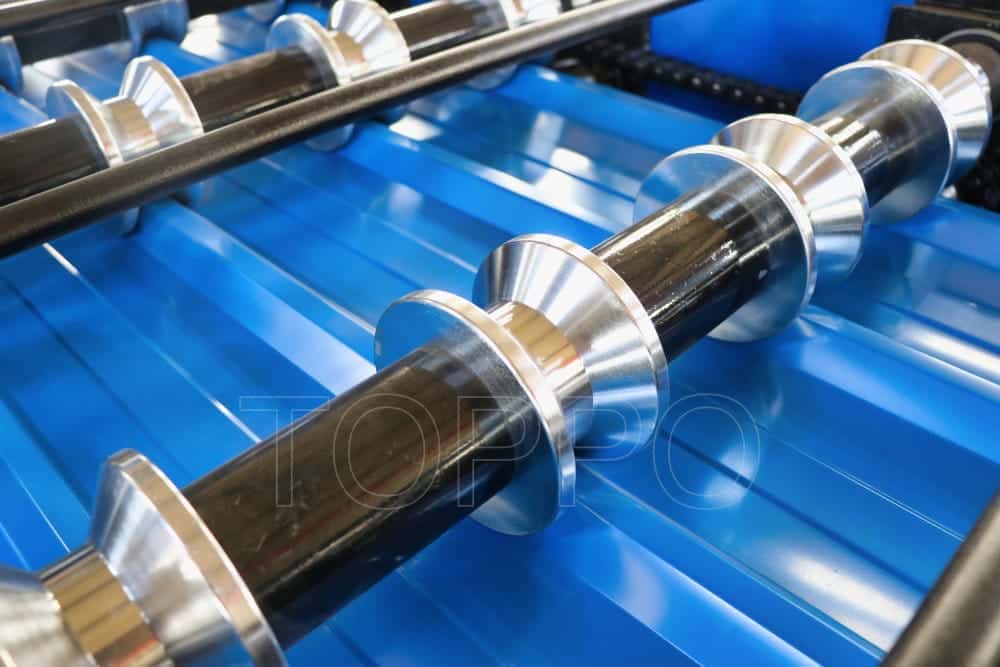

Roller Material: GCr15 (Heat-Treated & Chrome Coated)
Shaft Diameter: 70 mm
Drive System: Chain or Gear Driven
Main Motor Power: 7.5 kW
Hydraulic Power: 4 kW

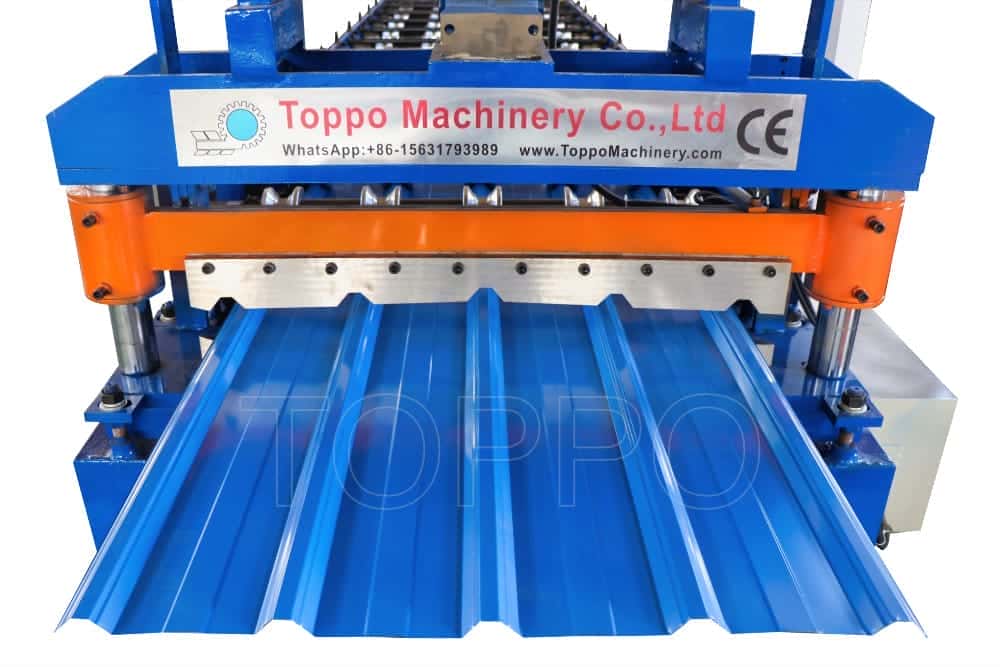

Cutting System: Hydraulic Shearing

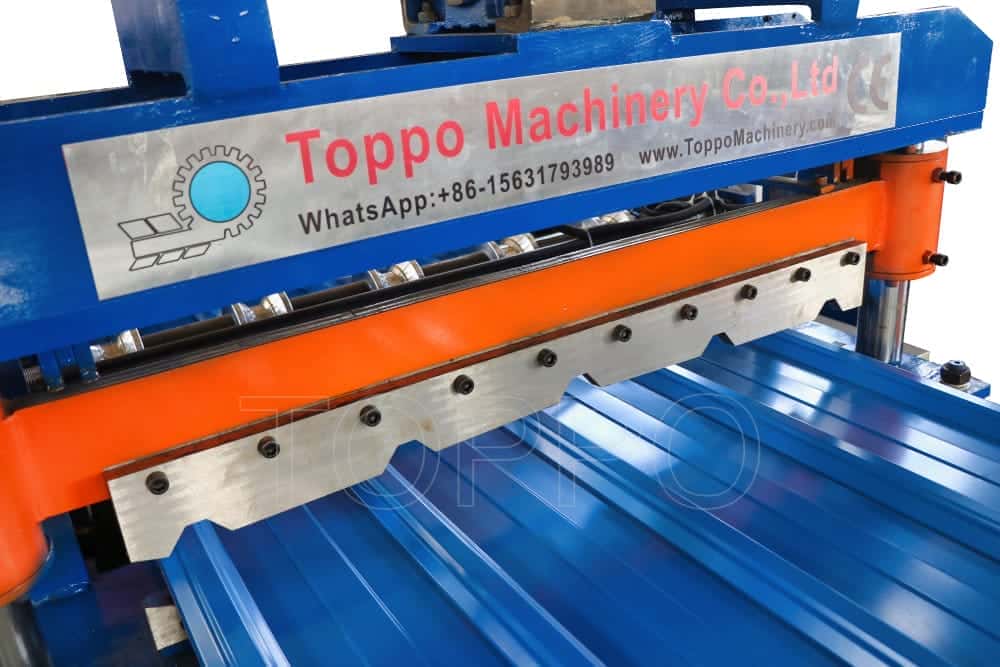

Blade Steel: Cr12Mov, Hardened
PLC System: Siemens / Delta
Touchscreen: Color HMI Panel
Production Speed: 10–15 m/min
Power Supply: 380V, 50Hz, 3Phase

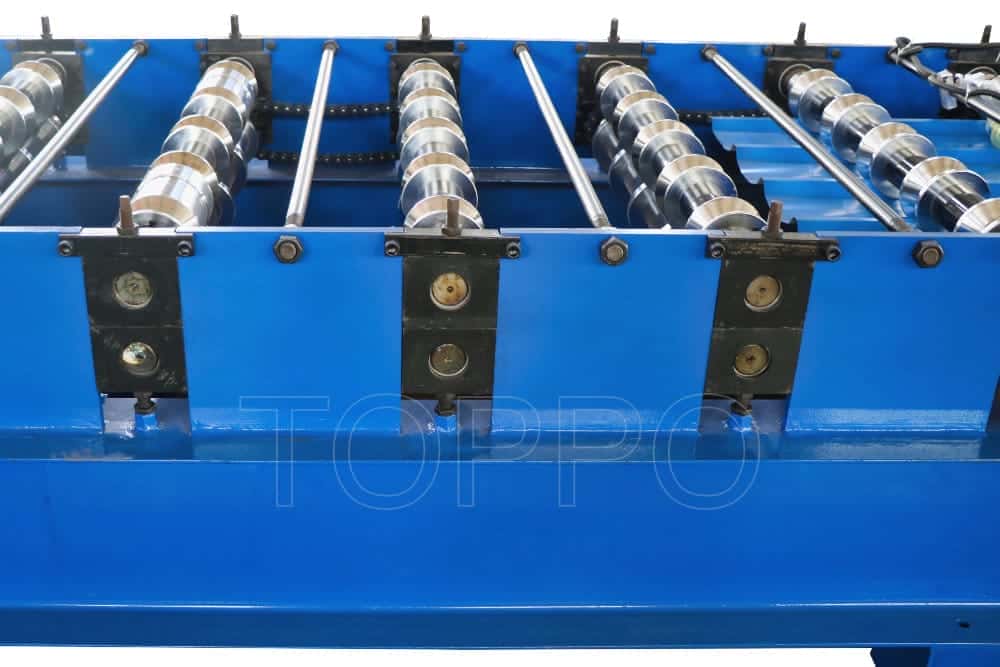

Machine Frame: 350H Beam Welded Frame
Paint Color: Teal + Orange (Customizable)
Machine Dimensions: 9000*1500*1500 mm
Machine Weight: 6 Tons
Cutting Accuracy: ±1 mm
Cooling Method: Air Cooling
Lubrication: Manual or Auto Oil Pump
Noise Level: ≤70 dB
Safety System: Emergency Stop & Circuit Protection
Packaging: Plastic Film + Wire Secured
Warranty: 1 Year
Lead Time: 25–30 Days
Minimum Order: 1 Unit
OEM & Customization: Supported
CAD Design: Free for Profile Drawing
Support: Engineers Overseas / Video Assistance
Durability: Over 15 Years with Proper Use
Use Case: Roofing Sheet Factories, Construction Projects
Efficiency: High-Speed + Energy Efficient
Additional Benefit: Suitable for Various Roofing Profiles
This model is engineered to output various roof panel profiles with colored sheet options. It’s highly suitable for manufacturers handling different sheet colors and thicknesses under one roof.
