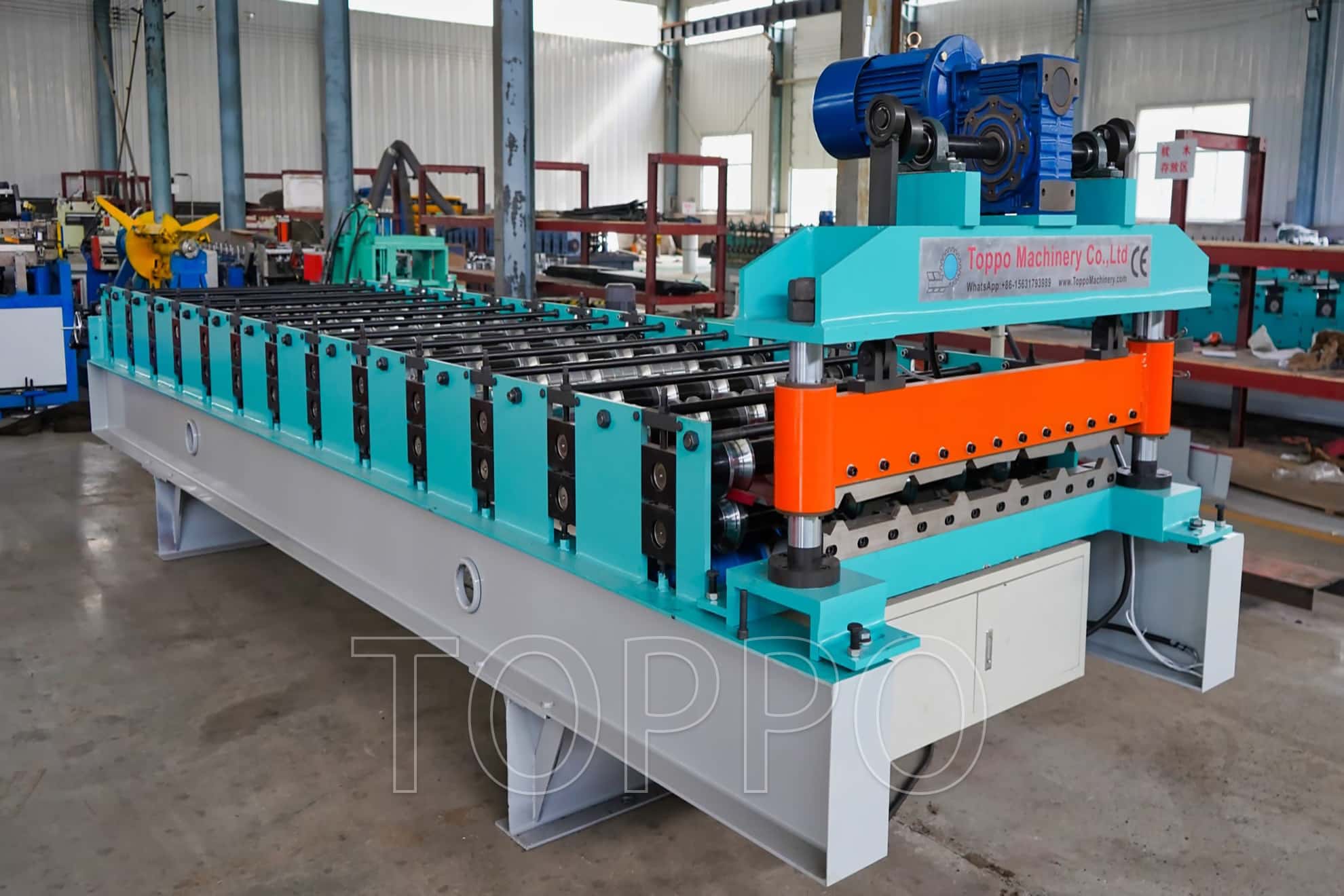

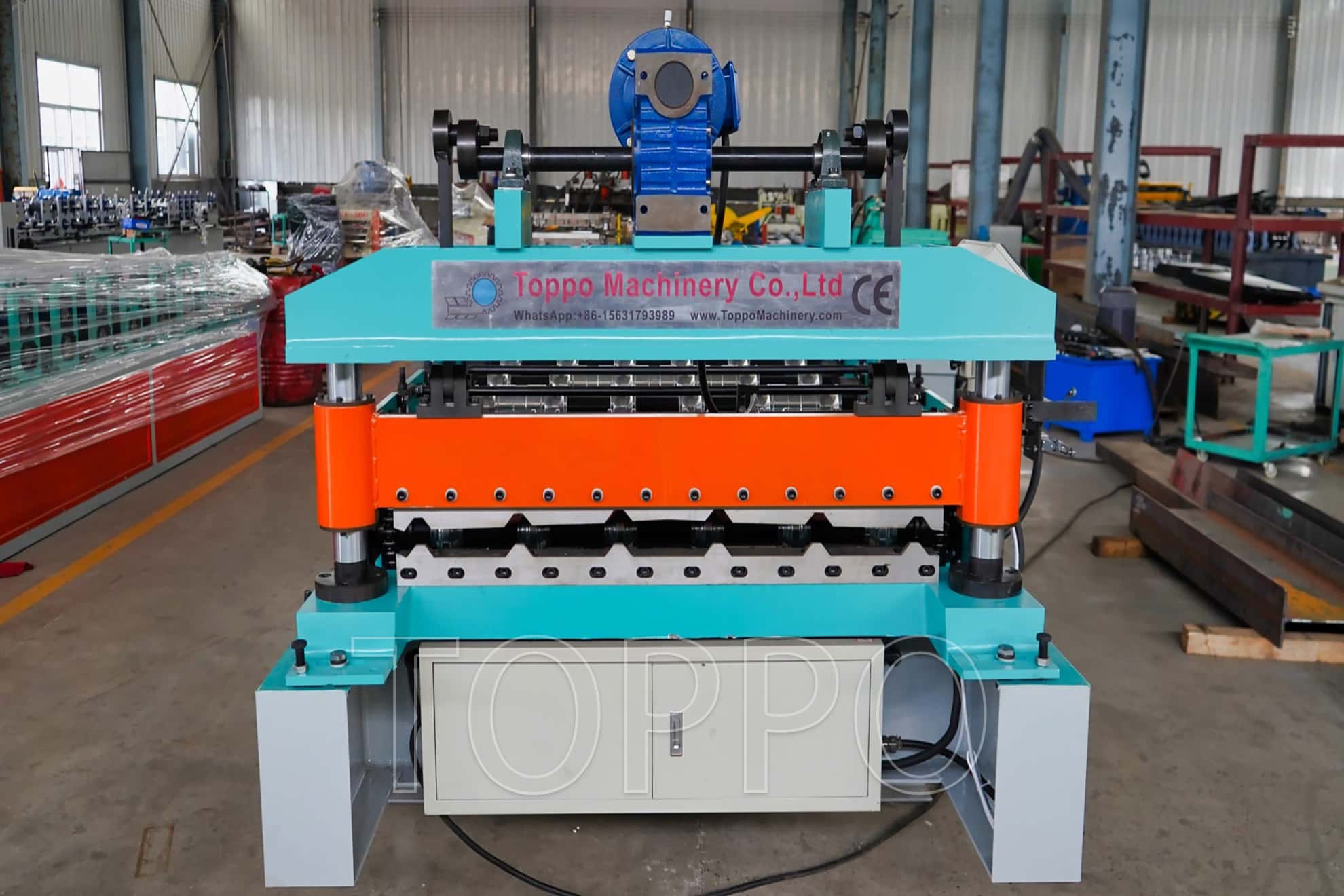

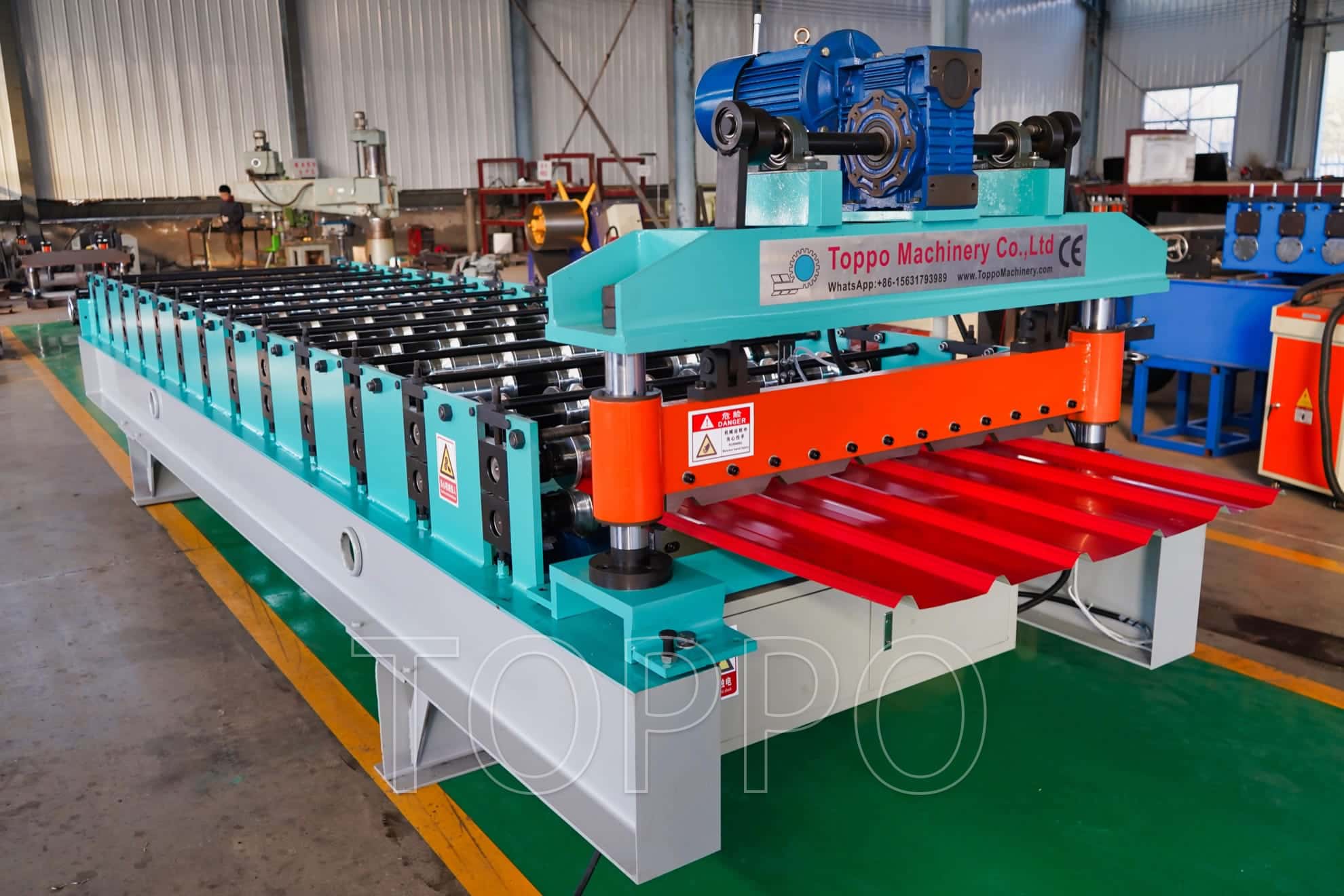

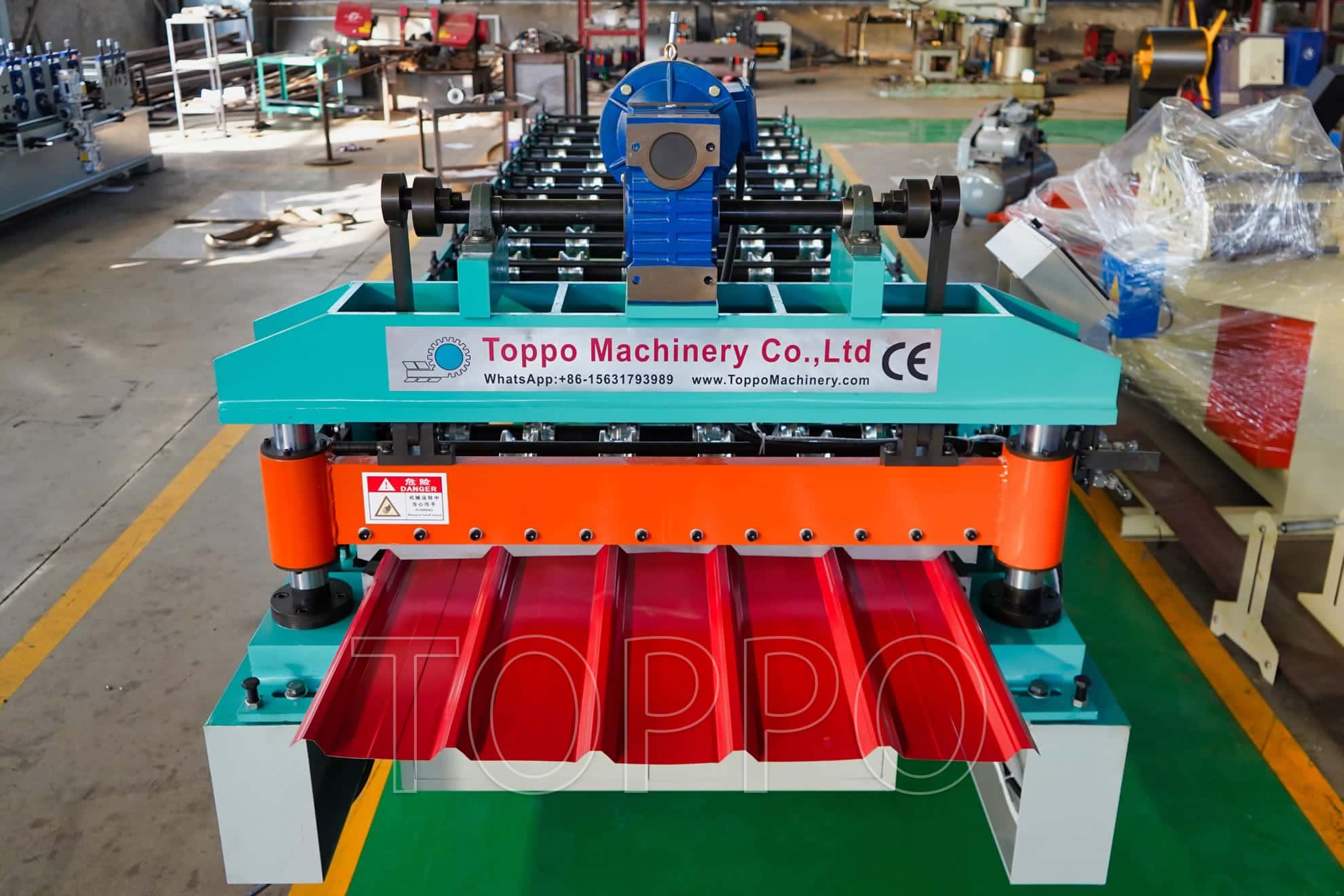

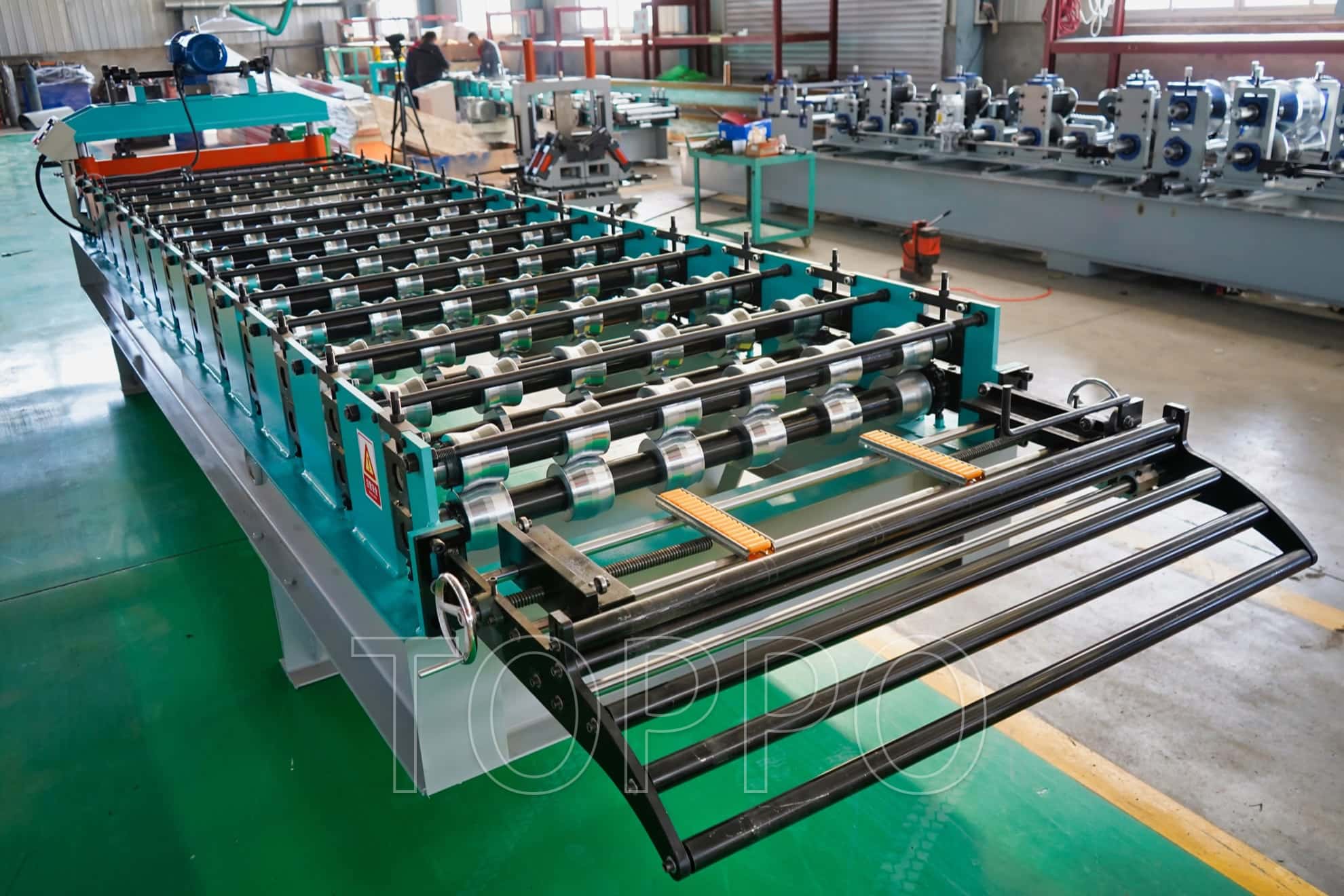

Trapezoidal Roof Panel Roll Forming Machine

Main data :

• Material: Galvanized steel, PPGI, Aluminum

• Material Thickness: 0.3-0.8mm

• Material Width: 1000-1250mm

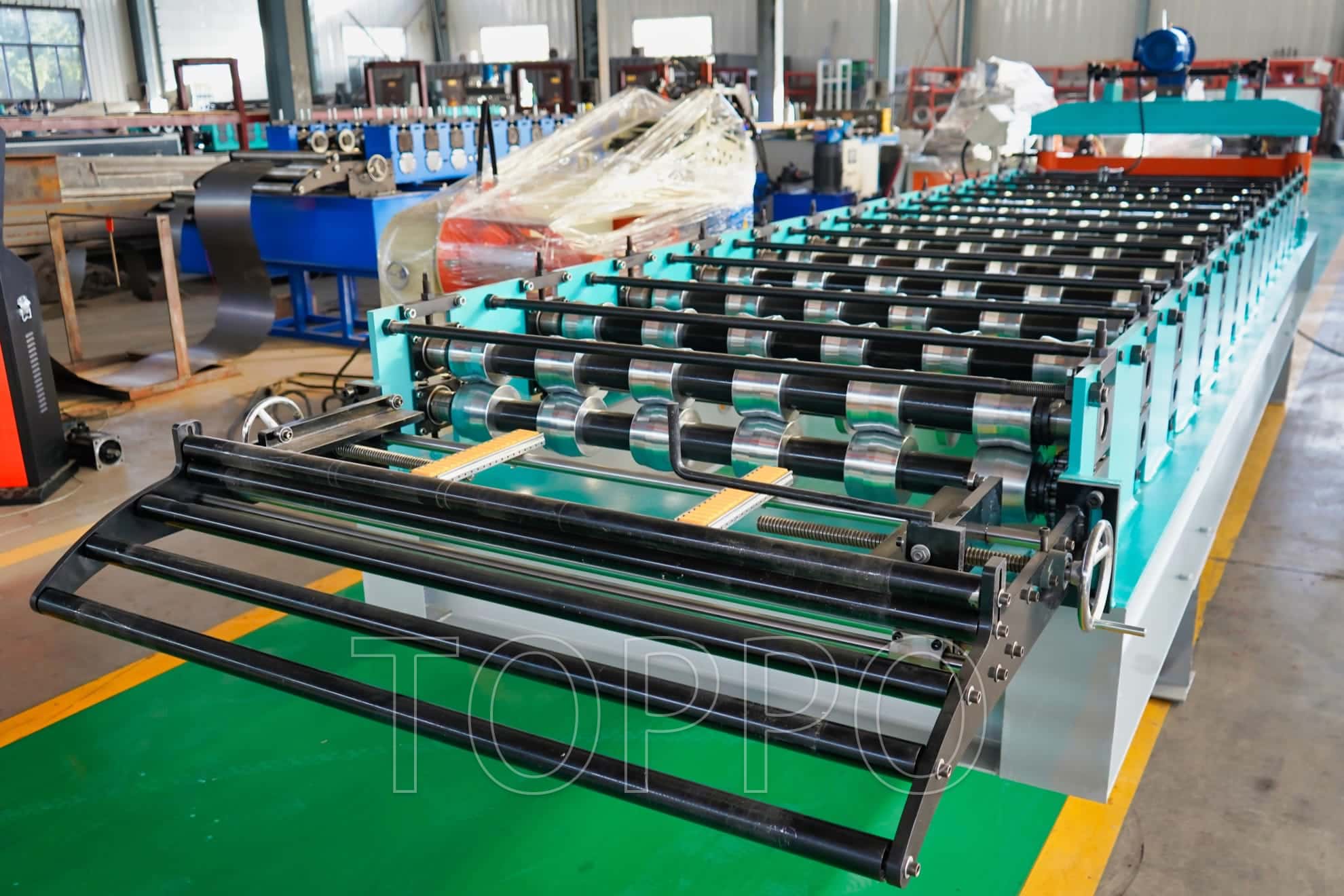

• Forming Stations: 16-24 steps

• Shaft Diameter: 70-90mm

• Shaft Material: 45# steel, quenched & tempered

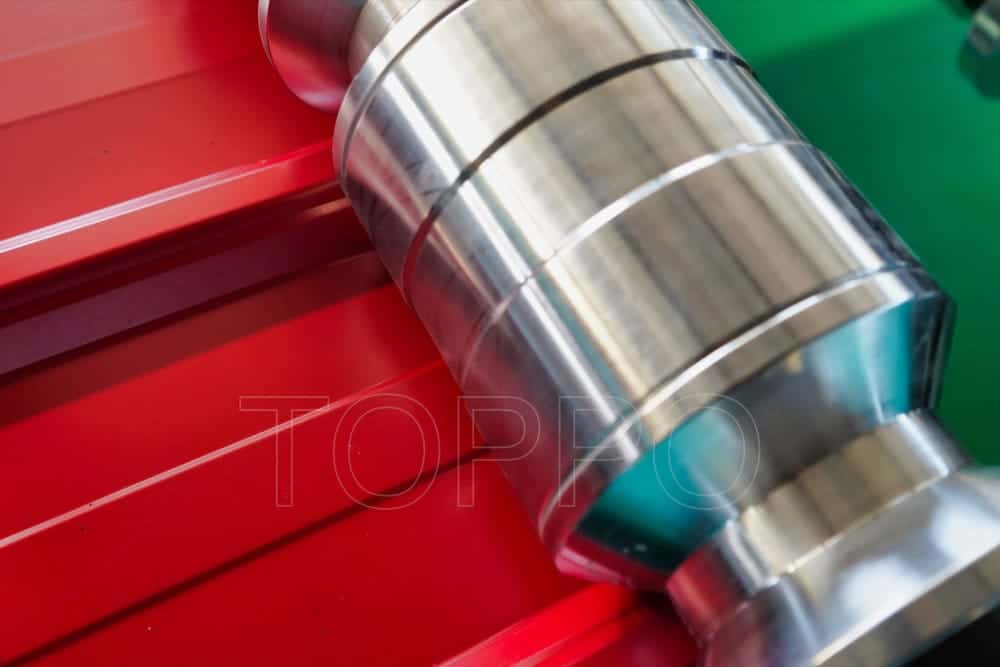

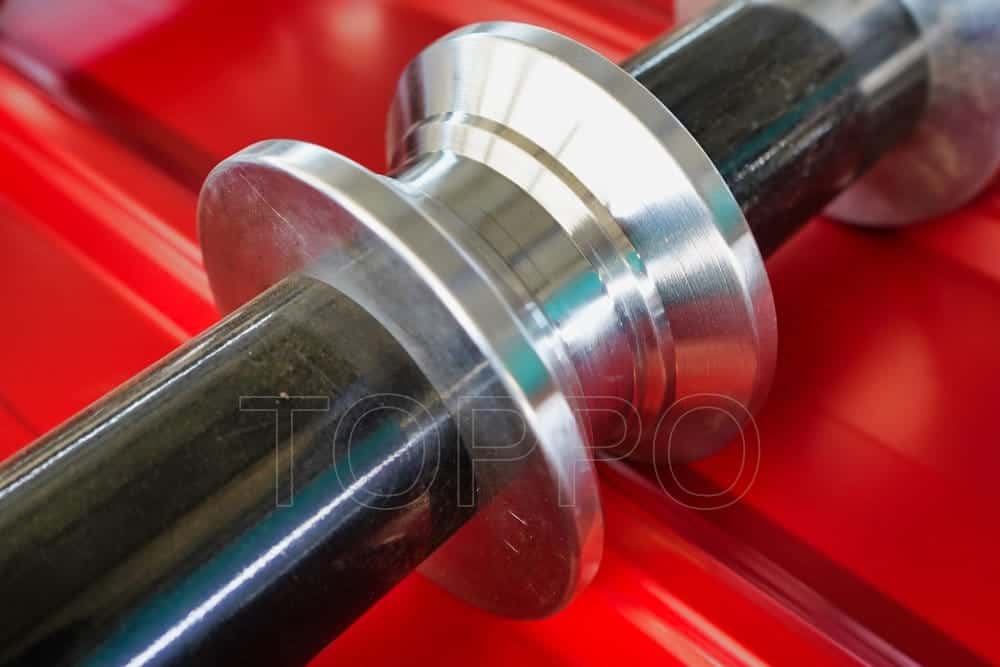

• Roller Material: GCr15, hard chrome plated

• Forming Speed: 10-15m/min

• Drive Type: Chain drive / Gearbox

• Motor Power: 5.5kW - 15kW

• Hydraulic Power: 4kW

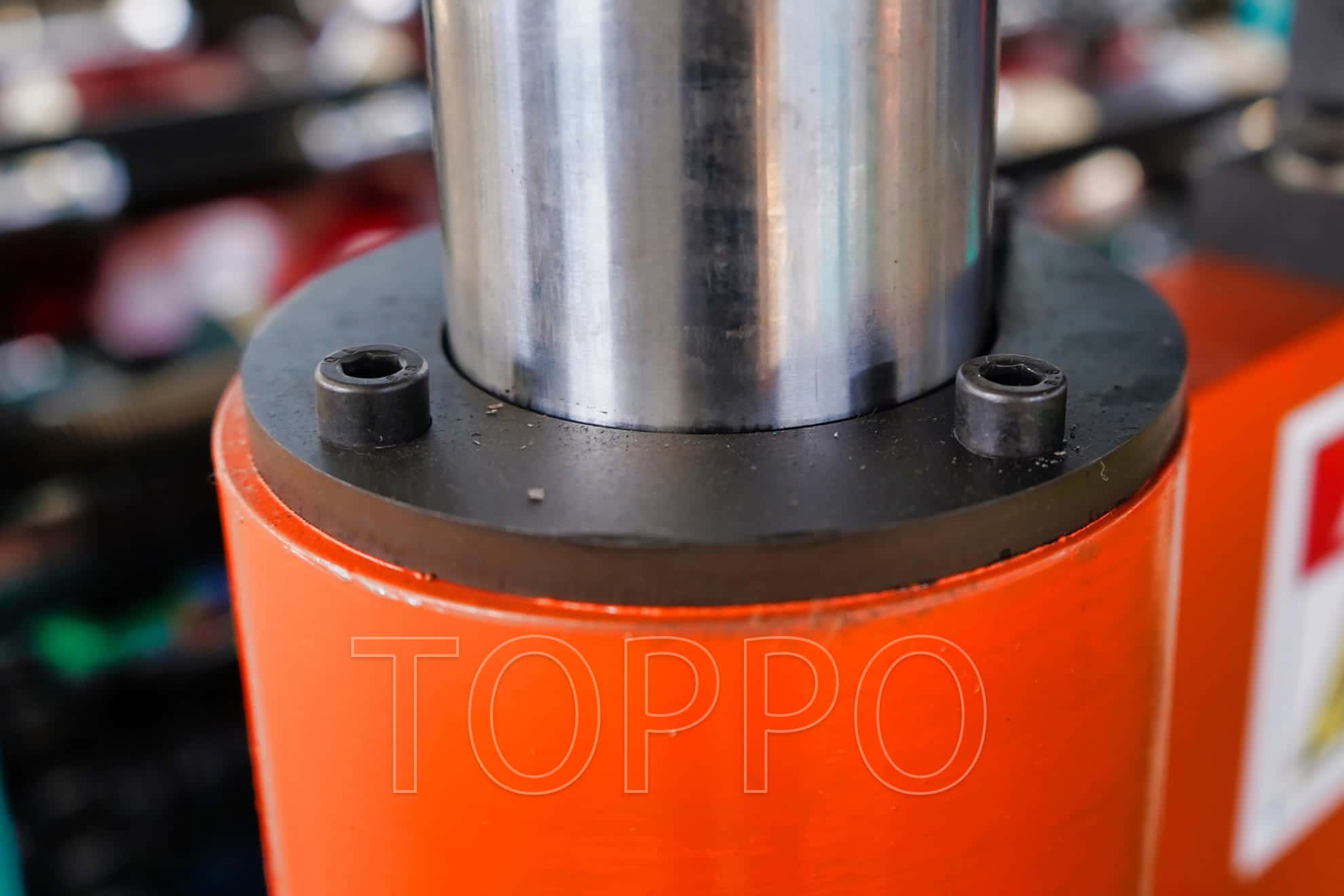

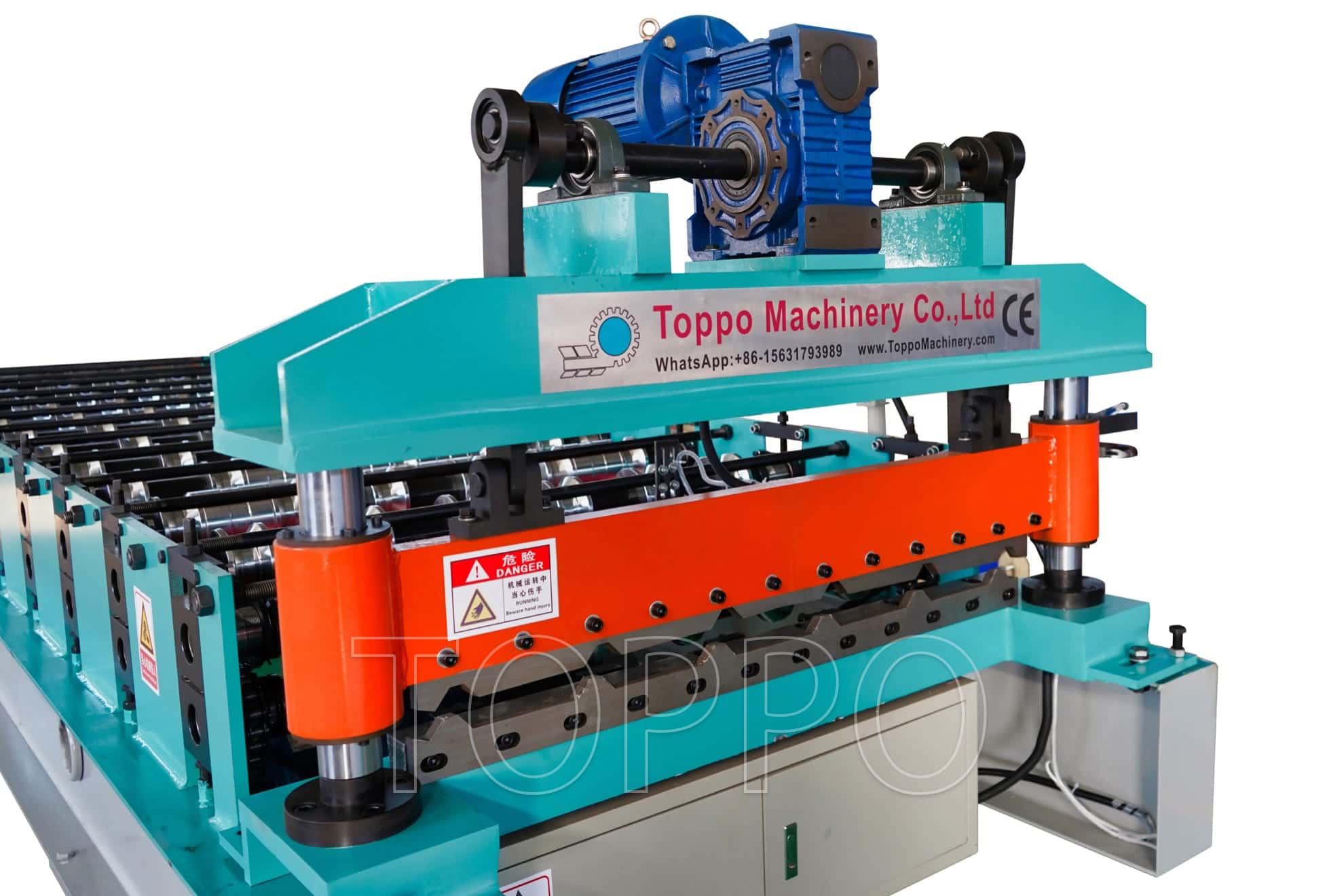

• Cutting Type: Hydraulic cutting

• Cutting Blade Material: Cr12Mov

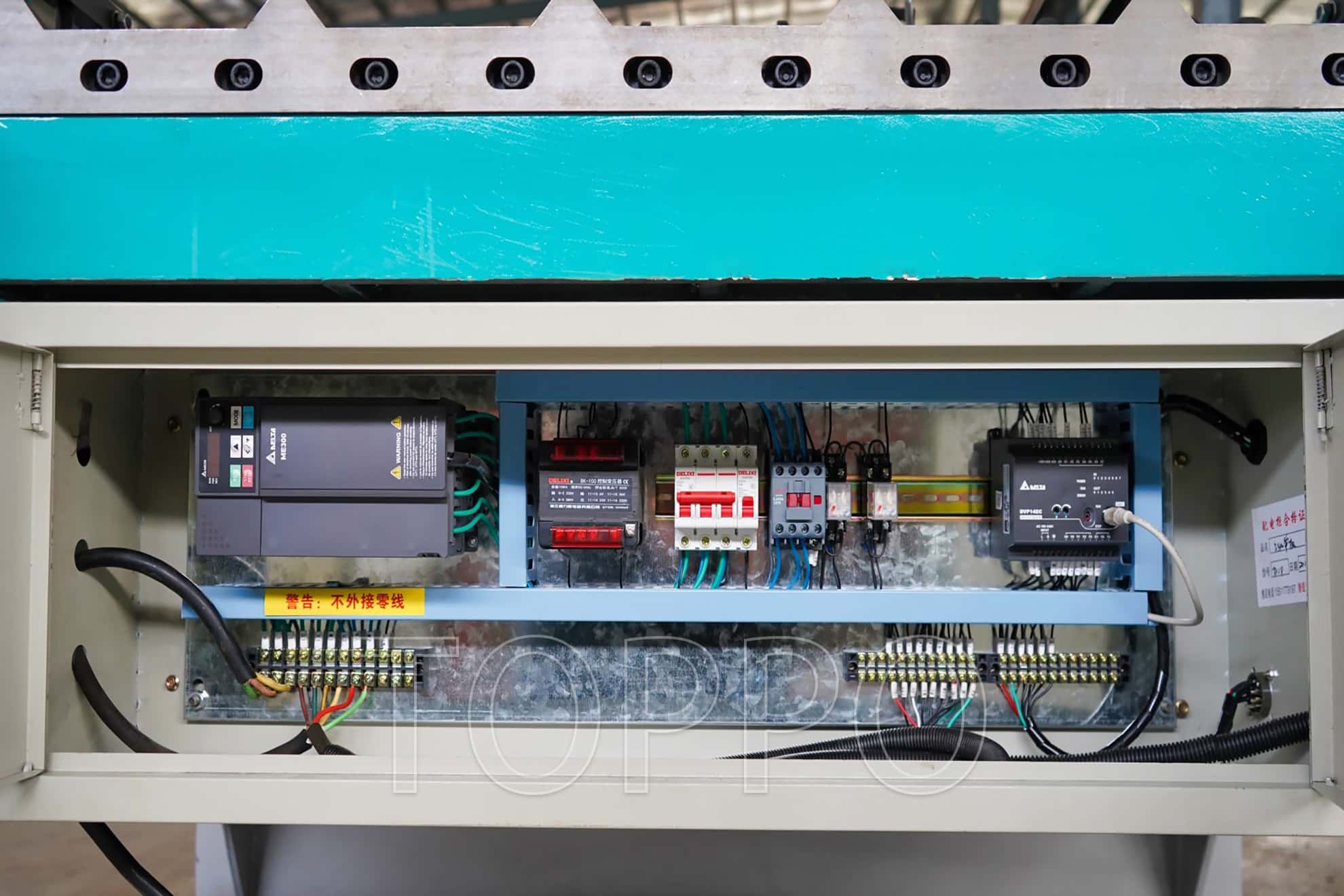

• Control System: PLC (Siemens/Delta/Mitsubishi)

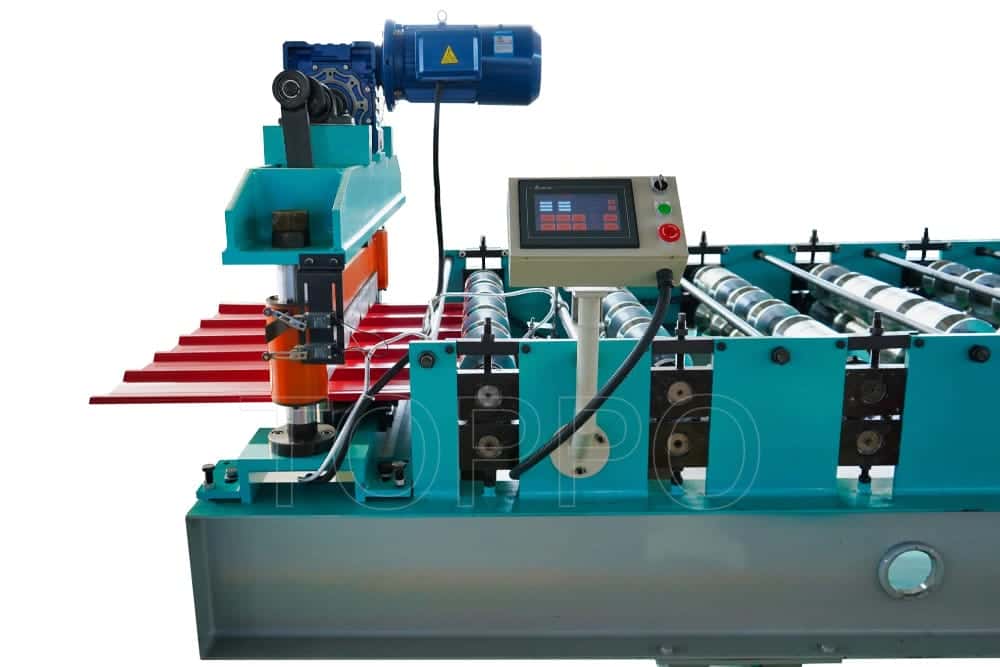

• Operation: Touch screen HMI

• Decoiler: Manual or hydraulic

• Recoiler: Optional

• Length Tolerance: ±2mm

• Voltage: 380V/50Hz/3Phase (customizable)

• Frame: Welded steel structure

• Color: Customizable (default blue & orange)

Main data :

• Certification: CE, ISO

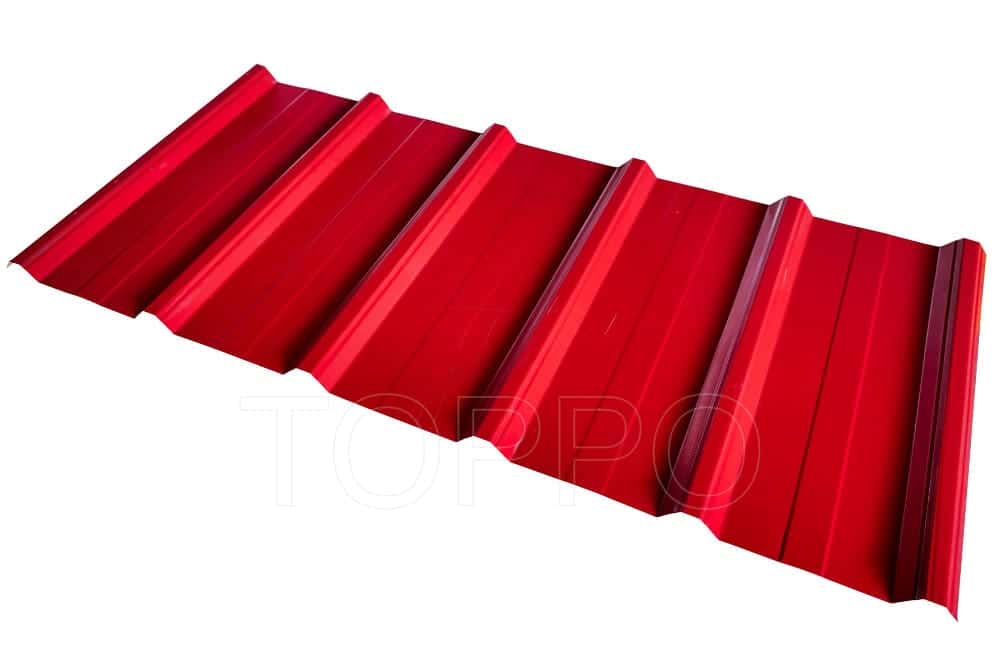

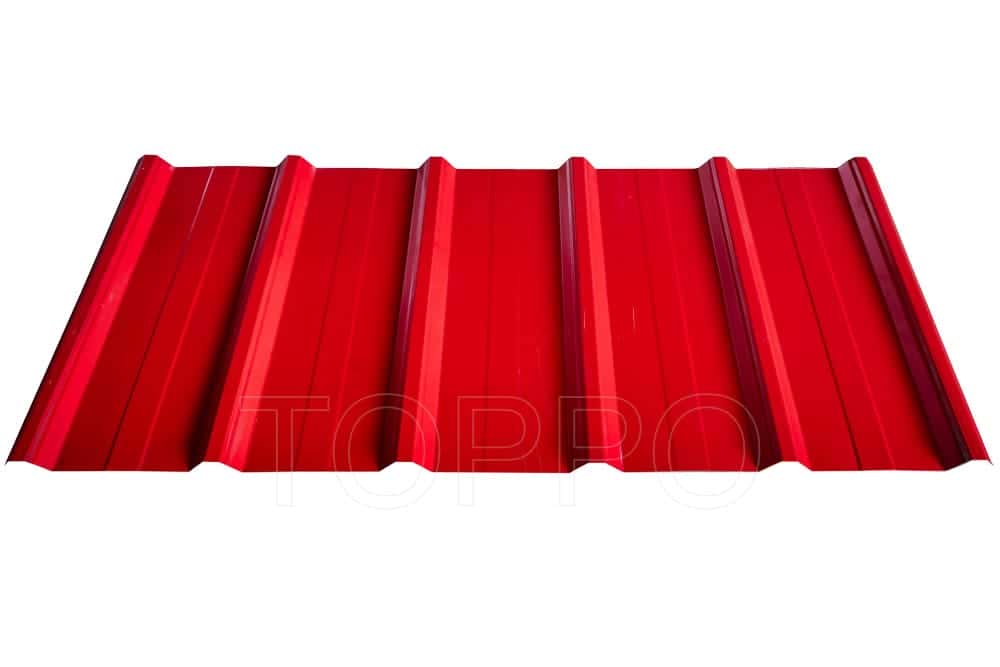

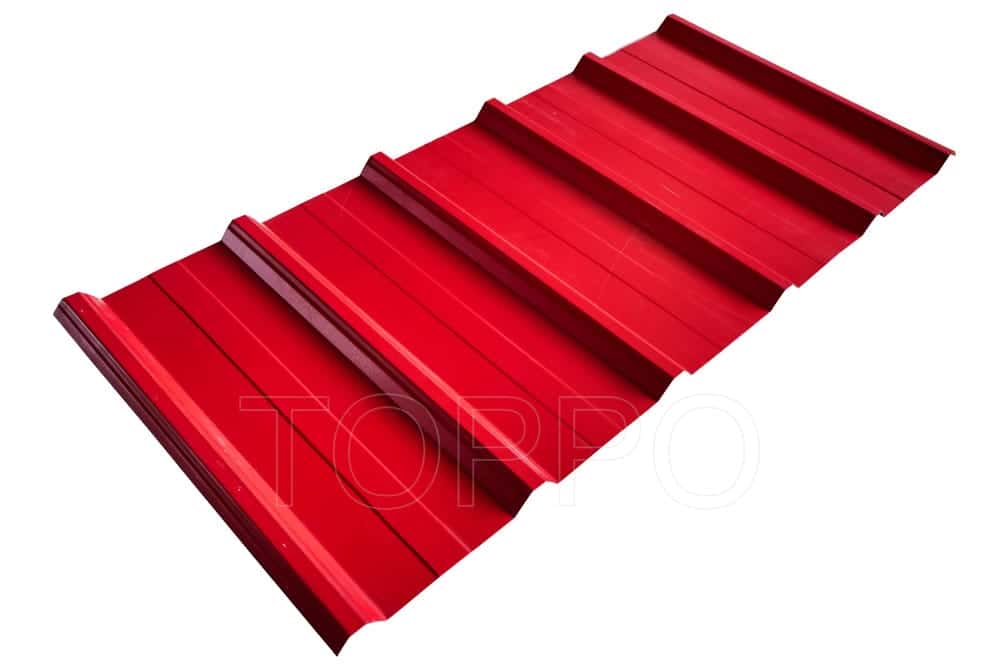

• Usage: Metal roofing sheet forming

• Application: Industrial, Commercial, Residential buildings

• Cooling System: Air cooling

• Lubrication: Manual or automatic

• Production Line: Fully automatic / Semi-automatic

• Noise Level: ≤75dB

• Warranty: 18 months

• Technical Support: Lifetime

• Delivery Time: 30-45 days

• Packaging: Waterproof film & steel frame

• Port: Tianjin / Shanghai

• MOQ: 1 set

• After-Sales Service: Engineers available overseas

• Installation: On-site or video support

• OEM/ODM: Available

• Roller Coating: Anti-rust treatment

• Upgrade Options: Servo feeding, quick blade change

• Profile Customization: Accepted

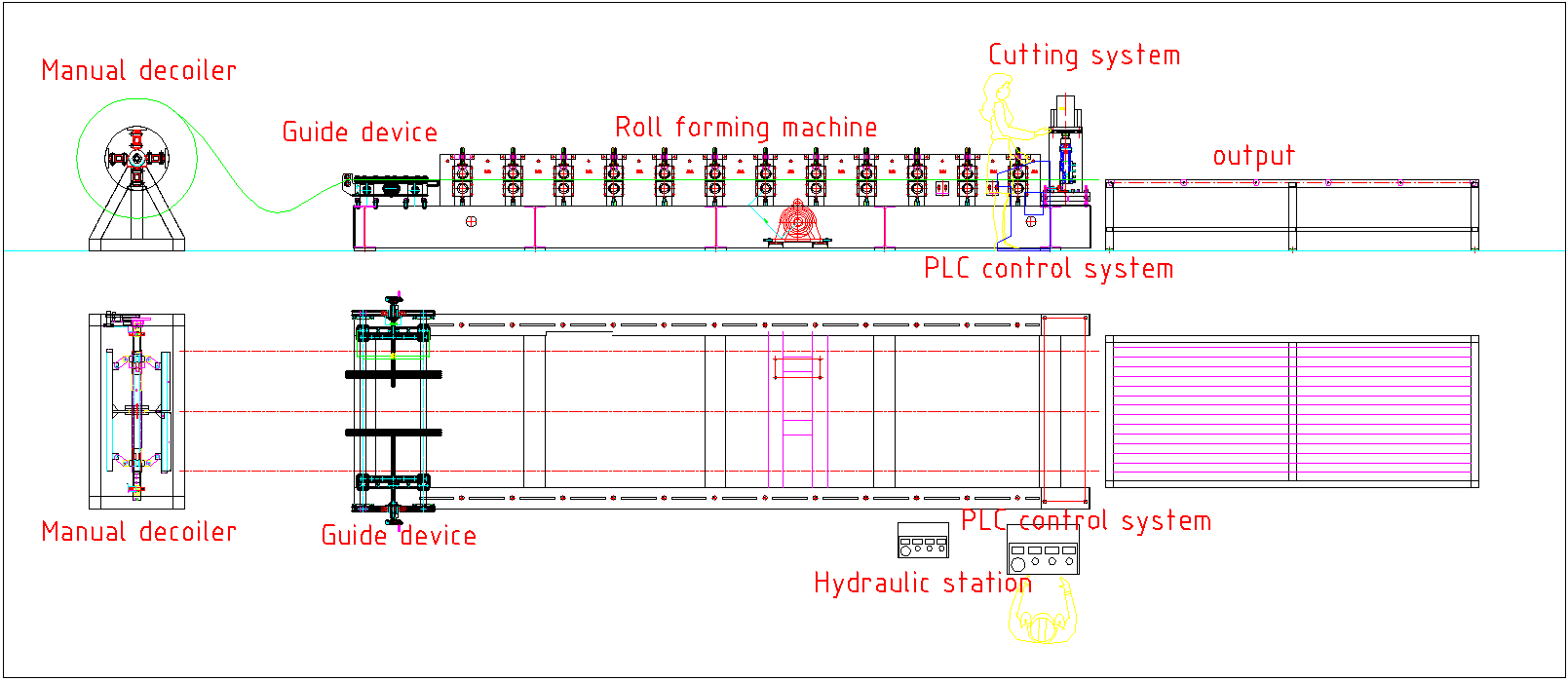

Layout

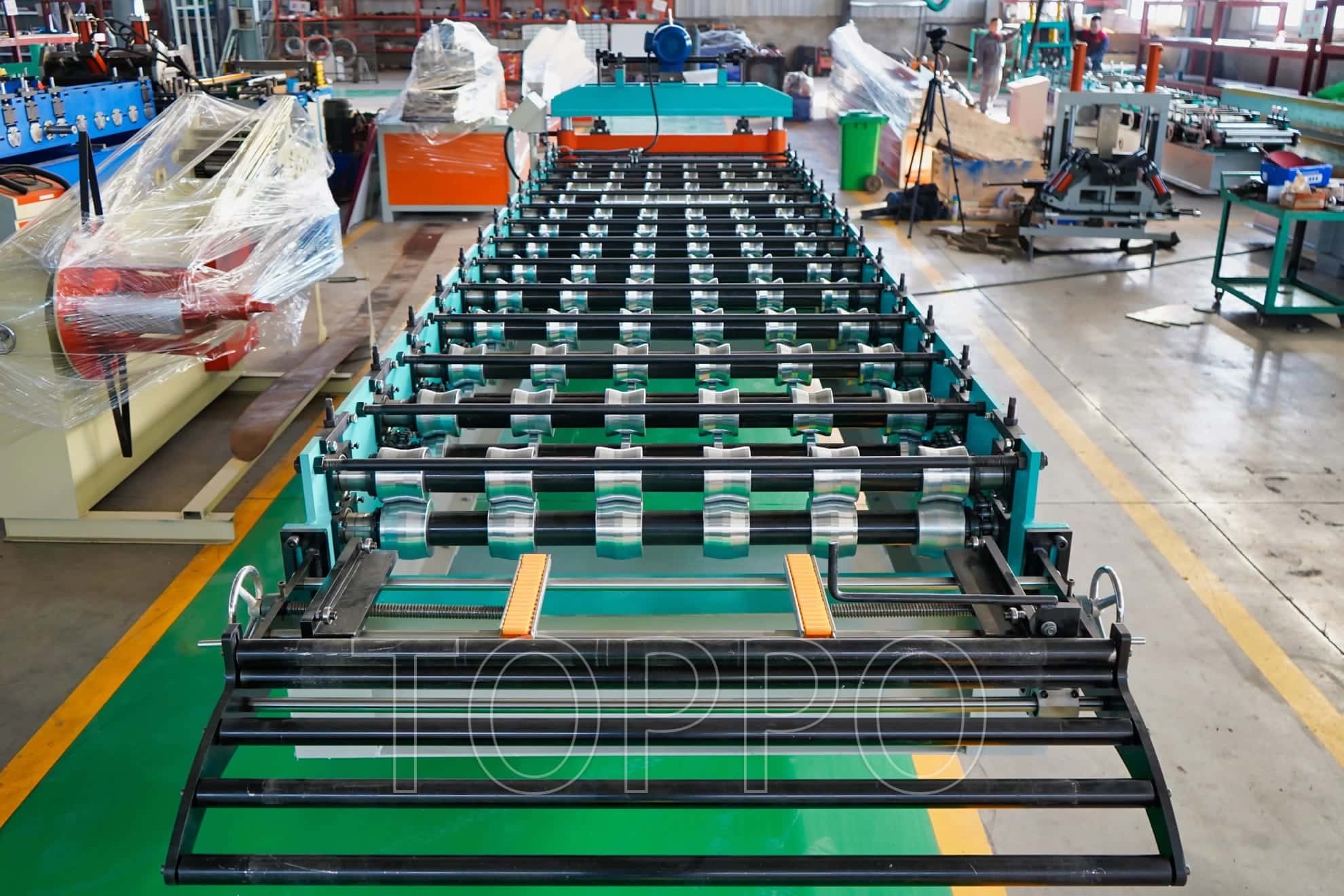

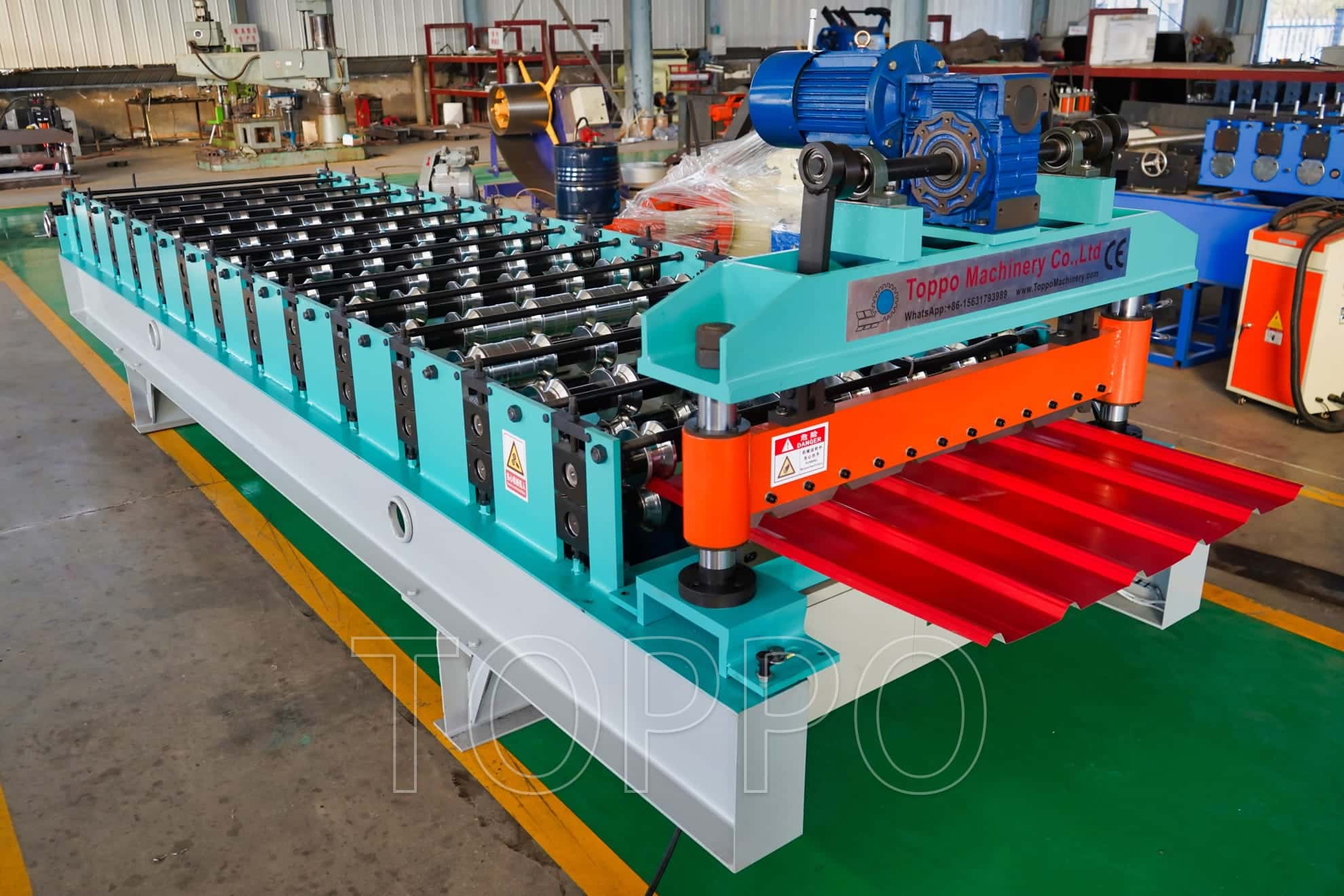

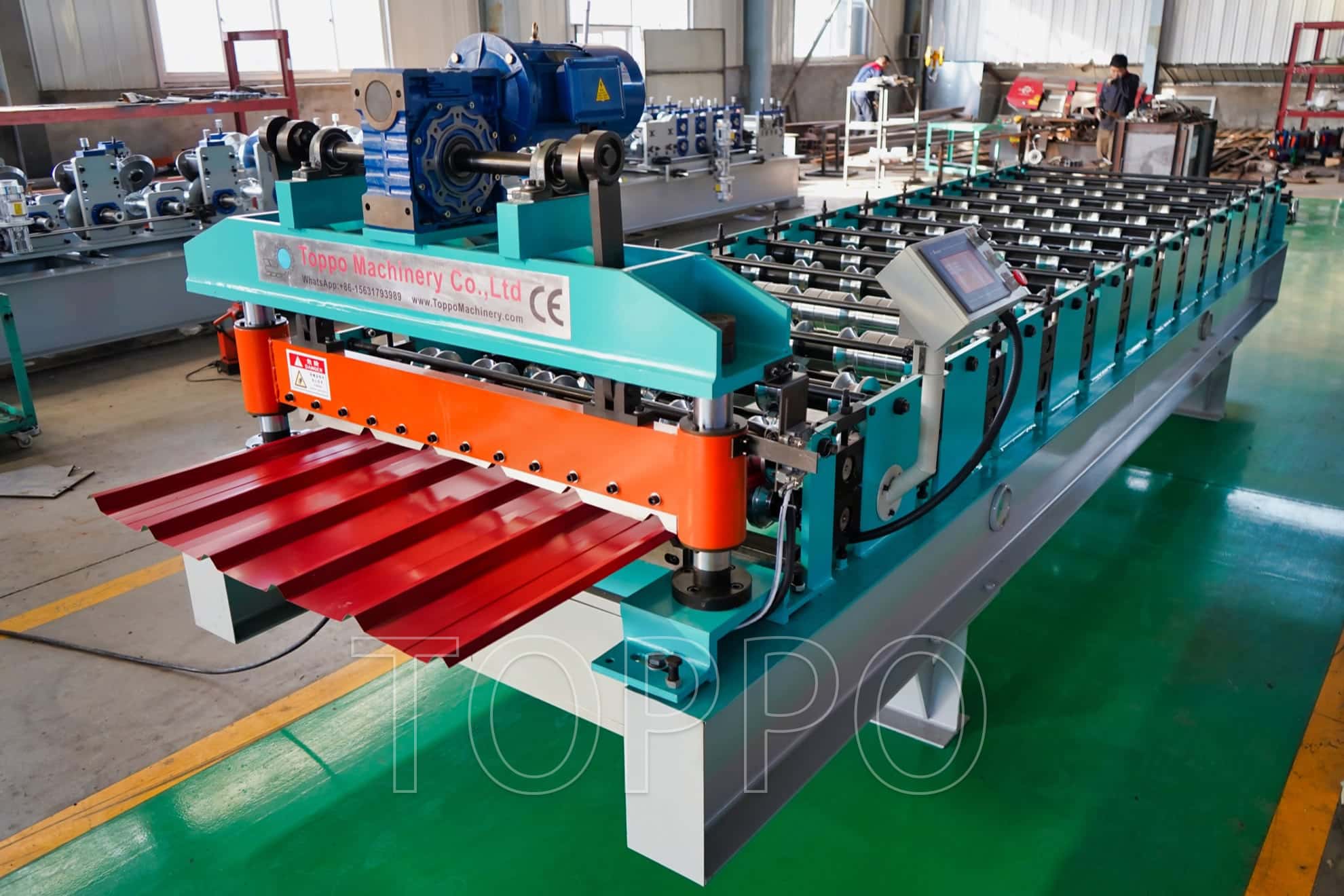

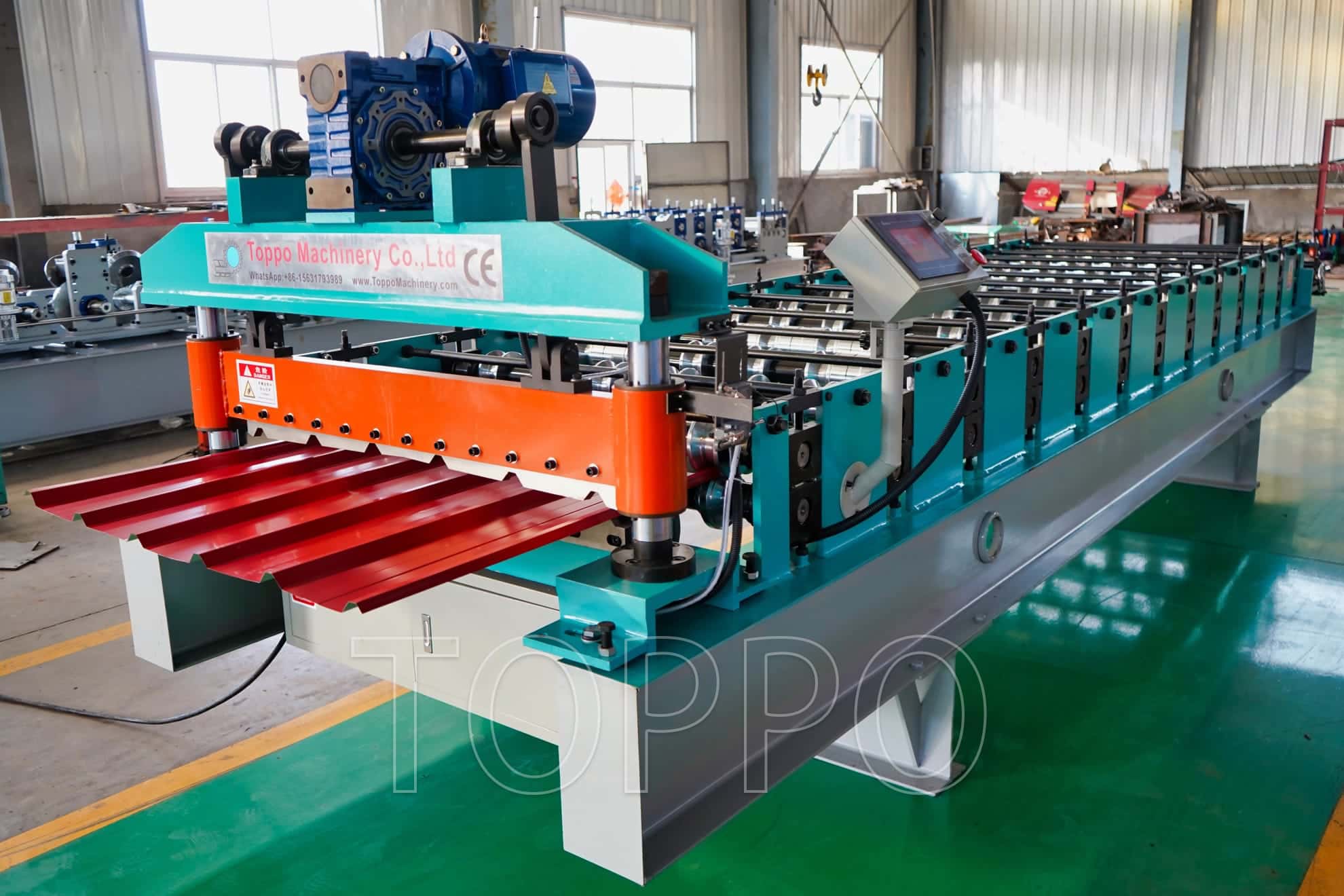

This Trapezoidal Roof Panel Roll Forming Machine is a fully automatic equipment specially designed for manufacturing steel trapezoidal roofing sheets. With high forming speed, precise cutting, and intelligent control, it offers an ideal solution for construction material producers. The equipment is easy to operate, durable, and provides excellent production efficiency, suitable for both small workshops and large industrial manufacturing lines
