This machine is specially designed to produce glazed metal roof tiles with high precision, efficiency, and aesthetic appeal. It is widely used in the construction and roofing industry.
Machine Type: Glazed Tile Roll Forming Machine
Control System: PLC control with touch screen interface
Material Thickness: 0.3-0.6 mm
Material Width: 1000-1250 mm
Material Type: Galvanized steel, color-coated steel, aluminum
Roller Material: 45# steel with hard chrome plating
Forming Steps: 18-22 steps

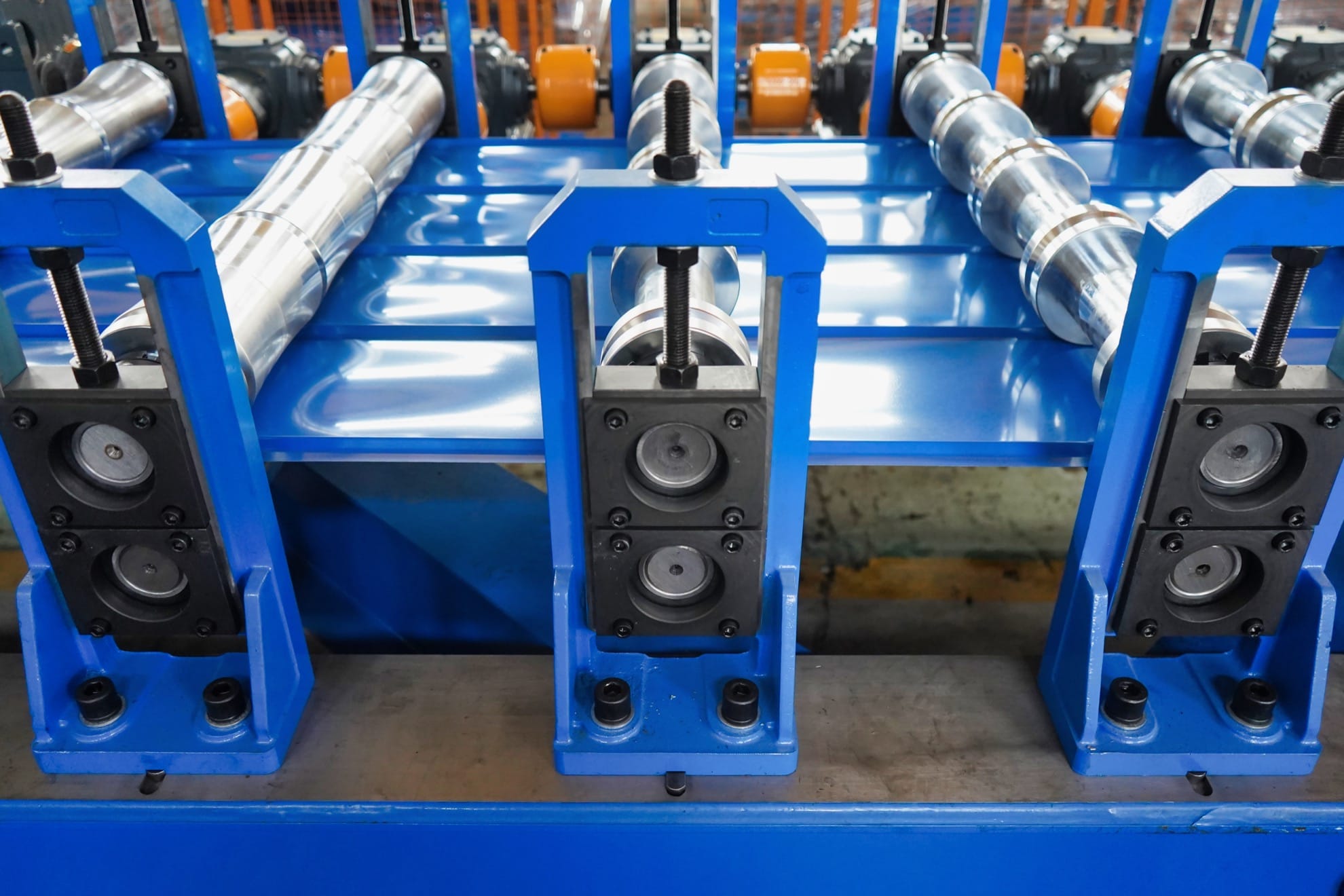

Roller Stations: Approx. 18

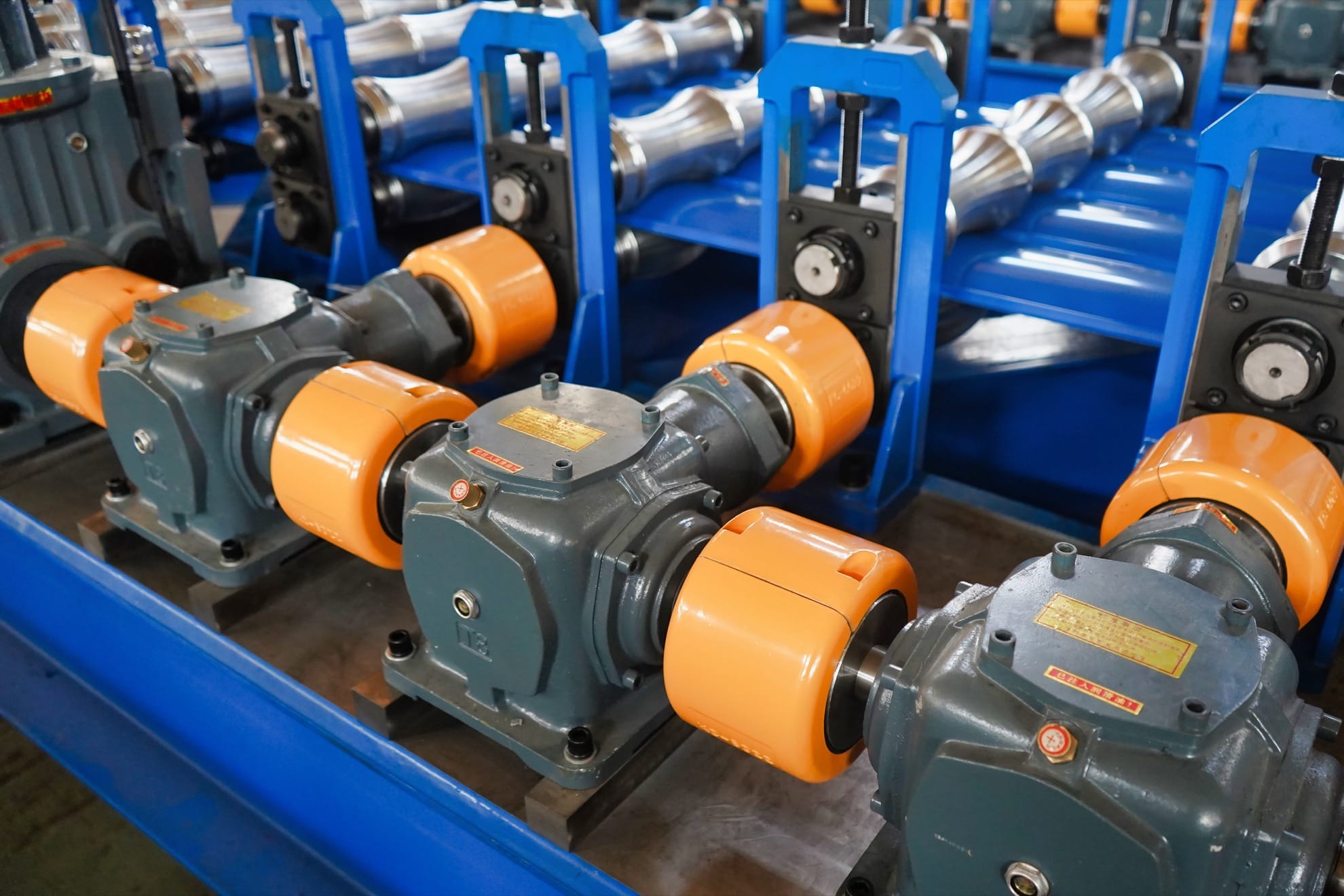

Drive Type: Chain drive or gear drive

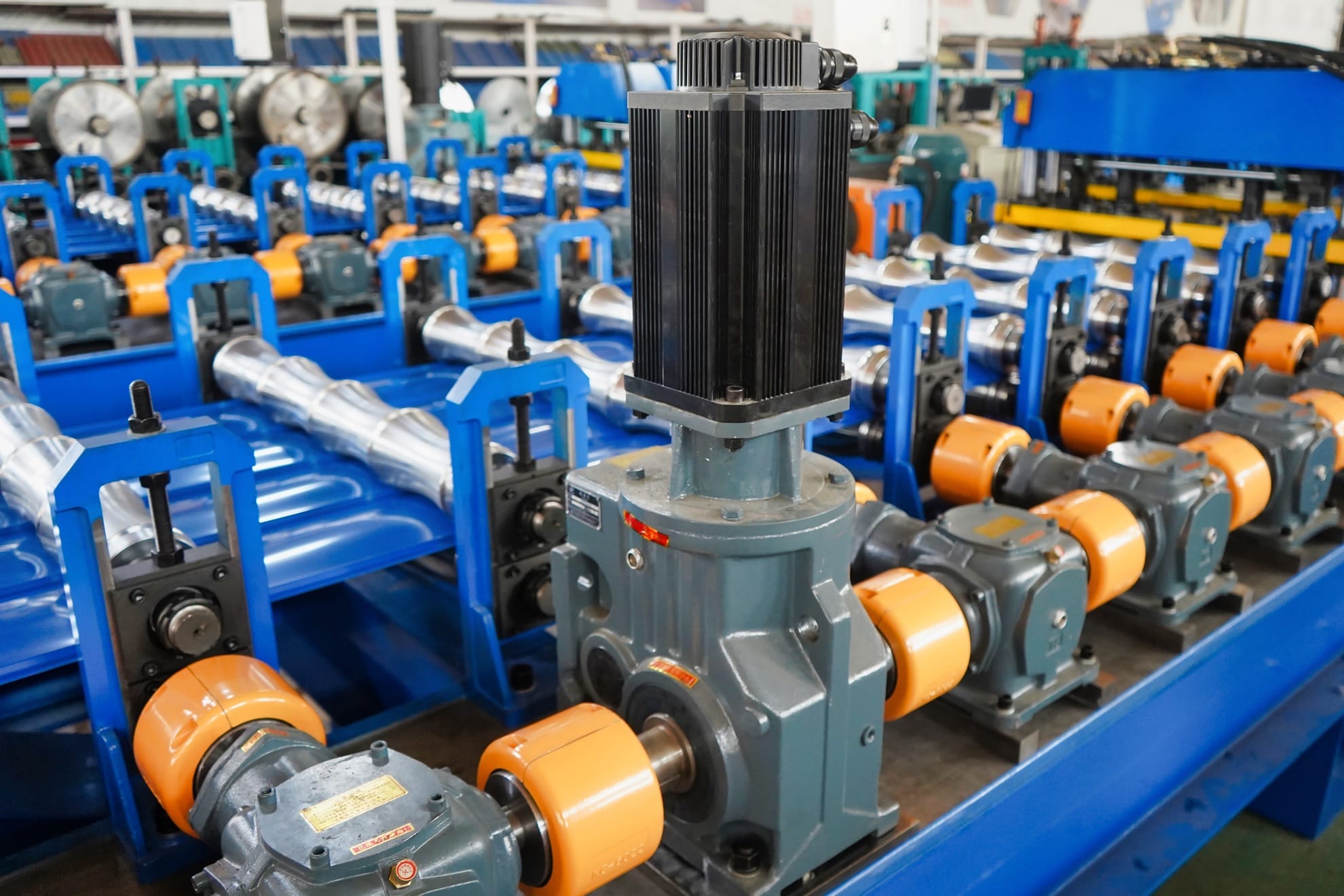

Main Motor Power: 5.5-7.5 kW

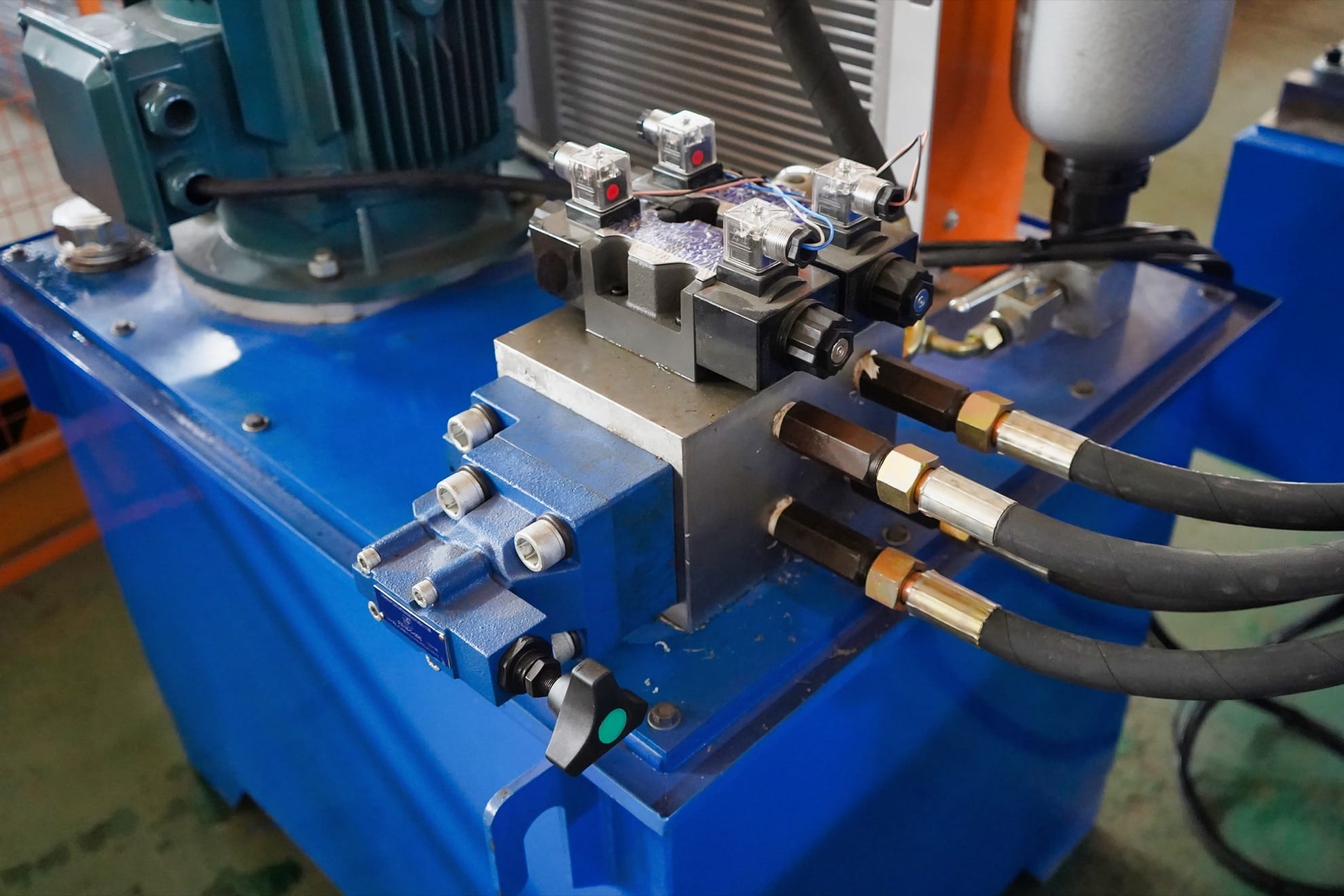

Hydraulic Station Power: 3 kW

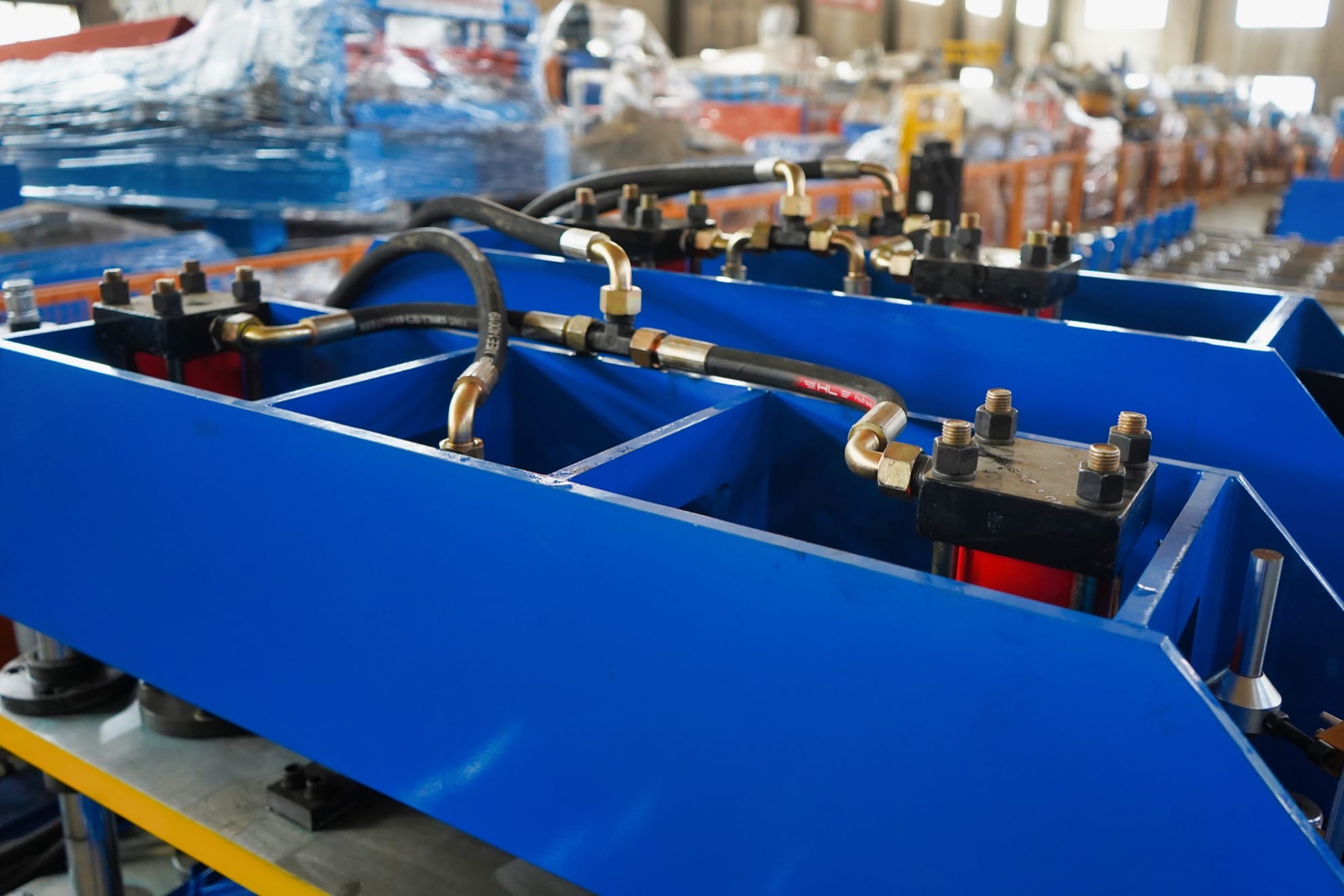

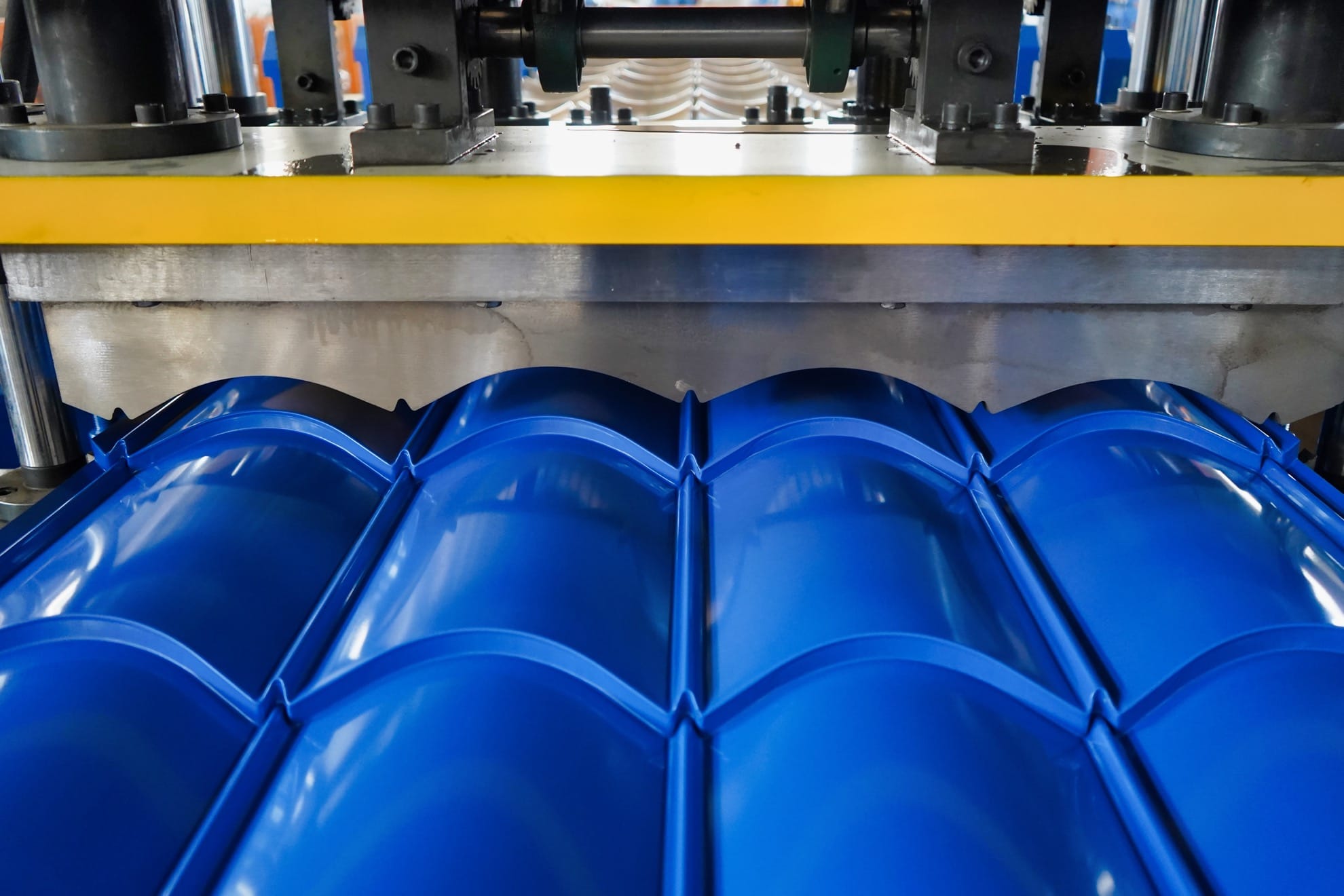

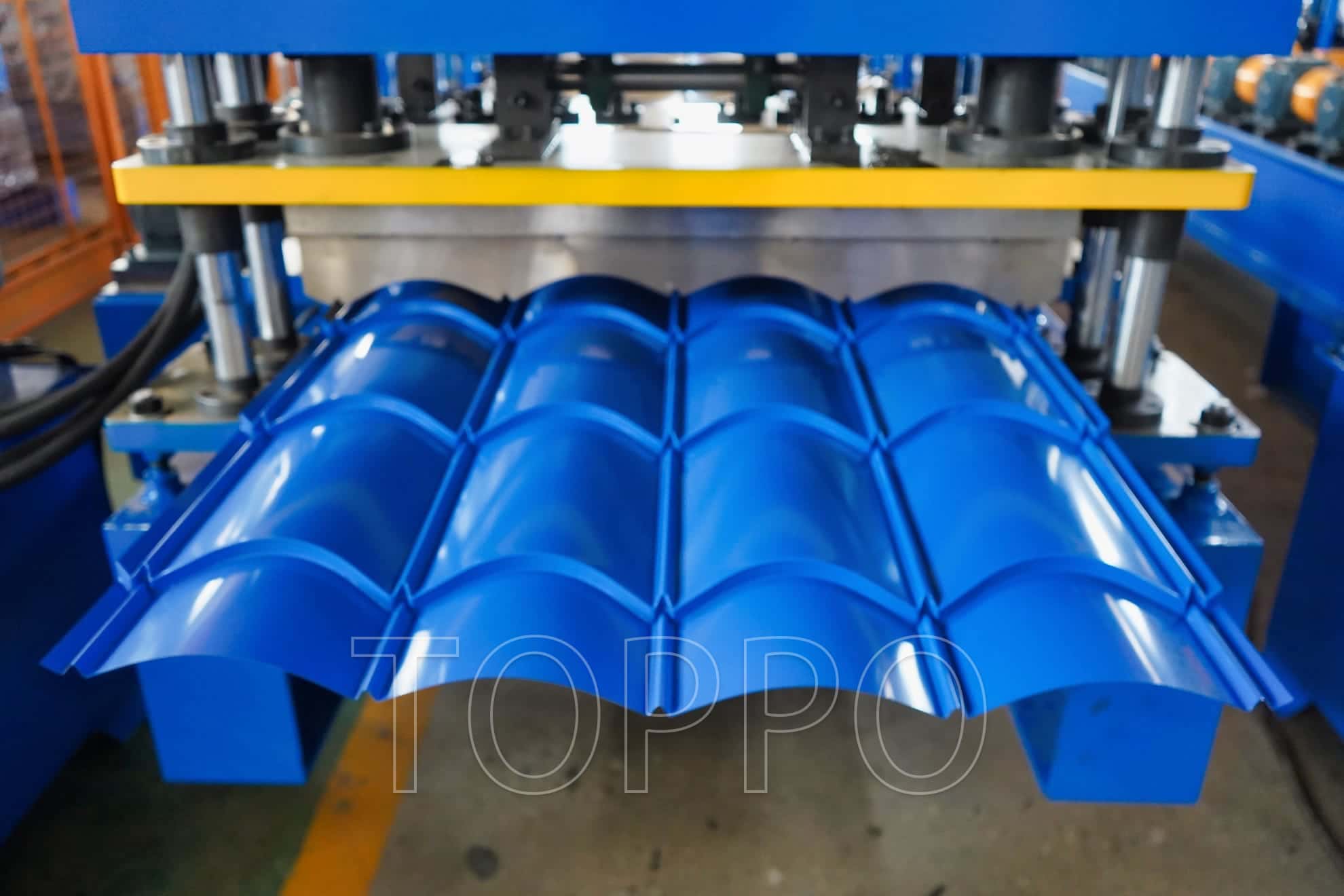

Cutting Type: Hydraulic cutting system
Blade Material: Cr12MoV hardened steel
Cutting Length Accuracy: ±1 mm
Production Speed: 2-4 m/min (depends on profile)
Machine Frame: 300H steel welded
Transmission: Chain transmission
Power Supply: 380V, 50Hz, 3Phase (customizable)
Control Voltage: 24V
Dimension: Approx. 8.5m x 1.5m x 1.6m
Weight: Approx. 6.5 tons
Application: Roofing sheet production

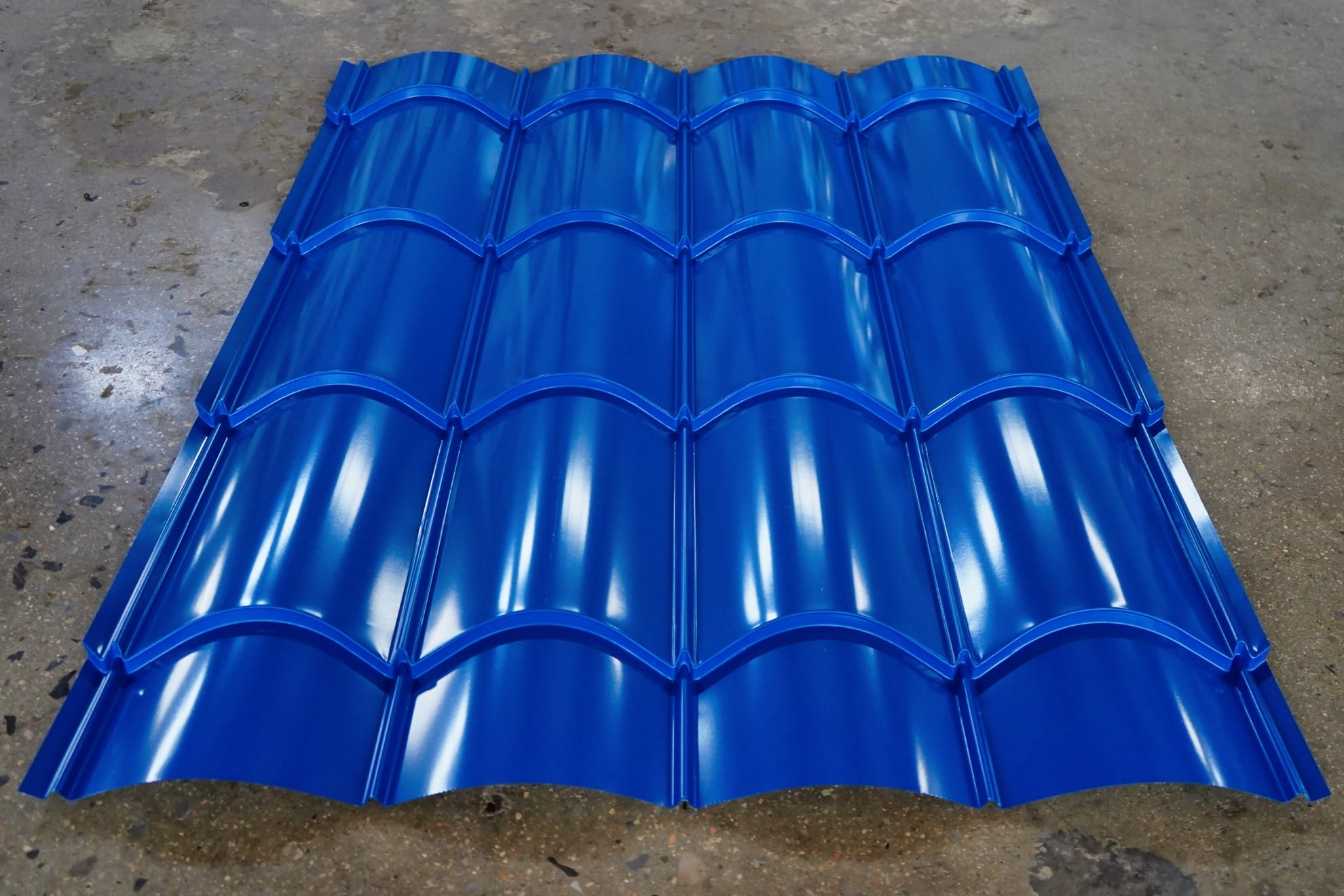

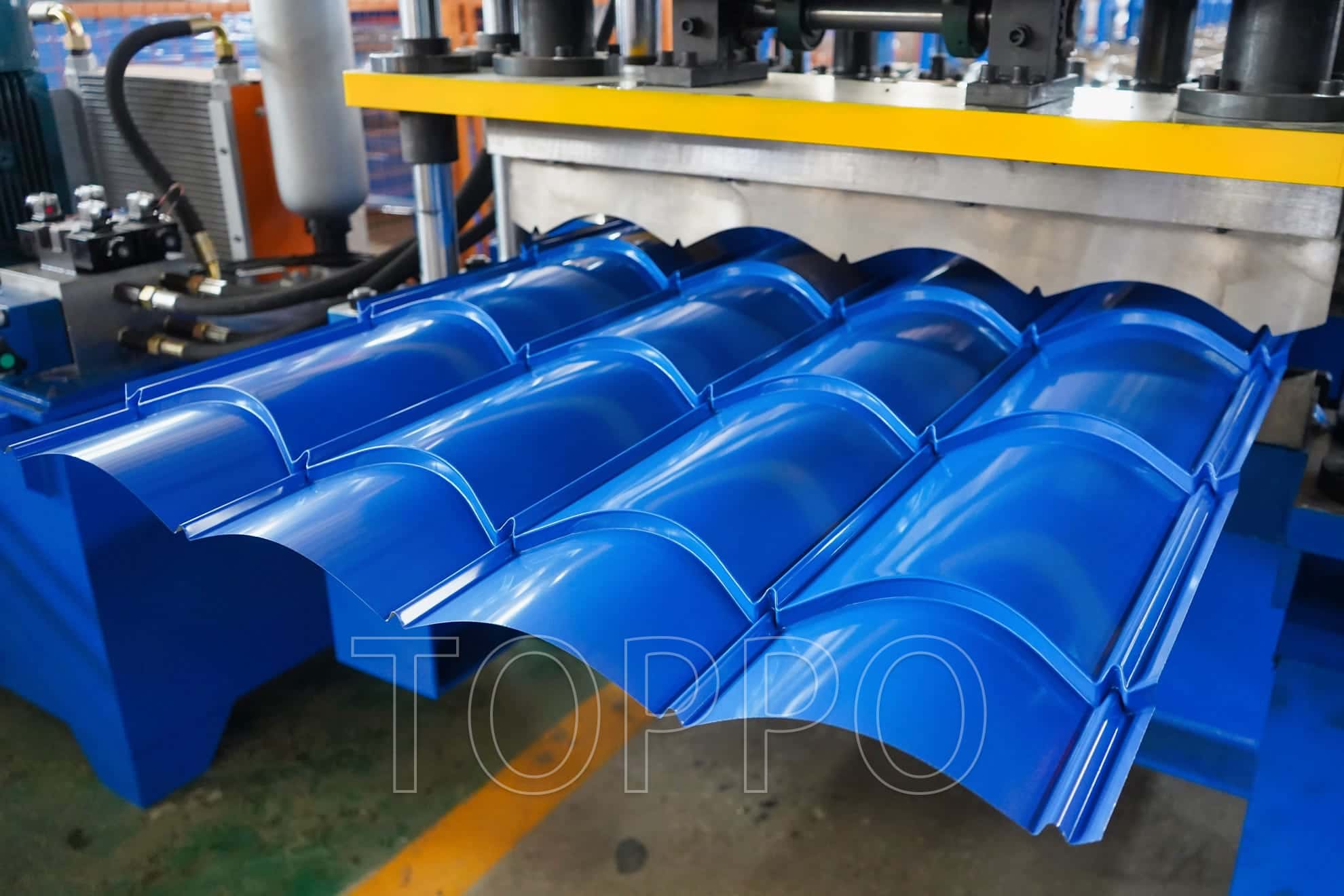

Profile Type: Glazed tile profile
Feeding System: Manual decoiler or hydraulic decoiler
Cutting Control: Auto length cutting by encoder
Noise Level: ≤85 dB
Color: Customizable
Operation: One-person operation
Warranty: 1 year
Support: Lifetime technical support
Certification: CE/ISO
Installation: Engineer available overseas
Maintenance: Easy maintenance with accessible design
Software: Integrated auto-control system
Packaging: Plastic film or wooden case
Lead Time: 30-45 working days
After-sales Service: Video support and online guidance
Market: Global
Transport: Sea shipment
Operation Language: English/Customizable
Working Environment: Indoor
Safety System: Emergency stop and protection covers
Lubrication: Centralized lubrication system
Design: Modular & compact structure
This glazed tile roll forming machine is an ideal solution for mass production of beautiful and durable roofing tiles. Its automated features ensure consistent quality and minimal manual intervention, making it a preferred choice for roofing sheet manufacturers.
