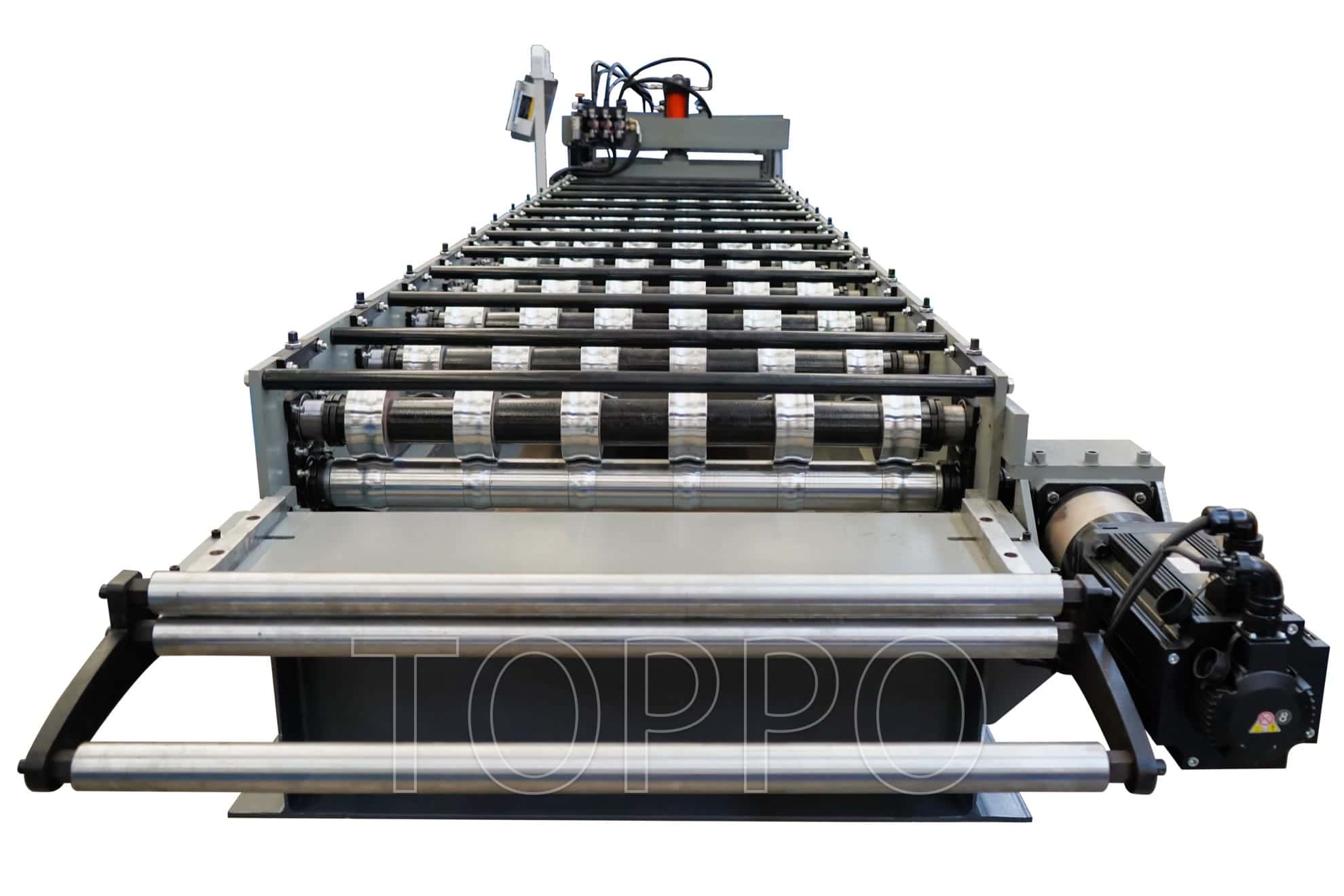

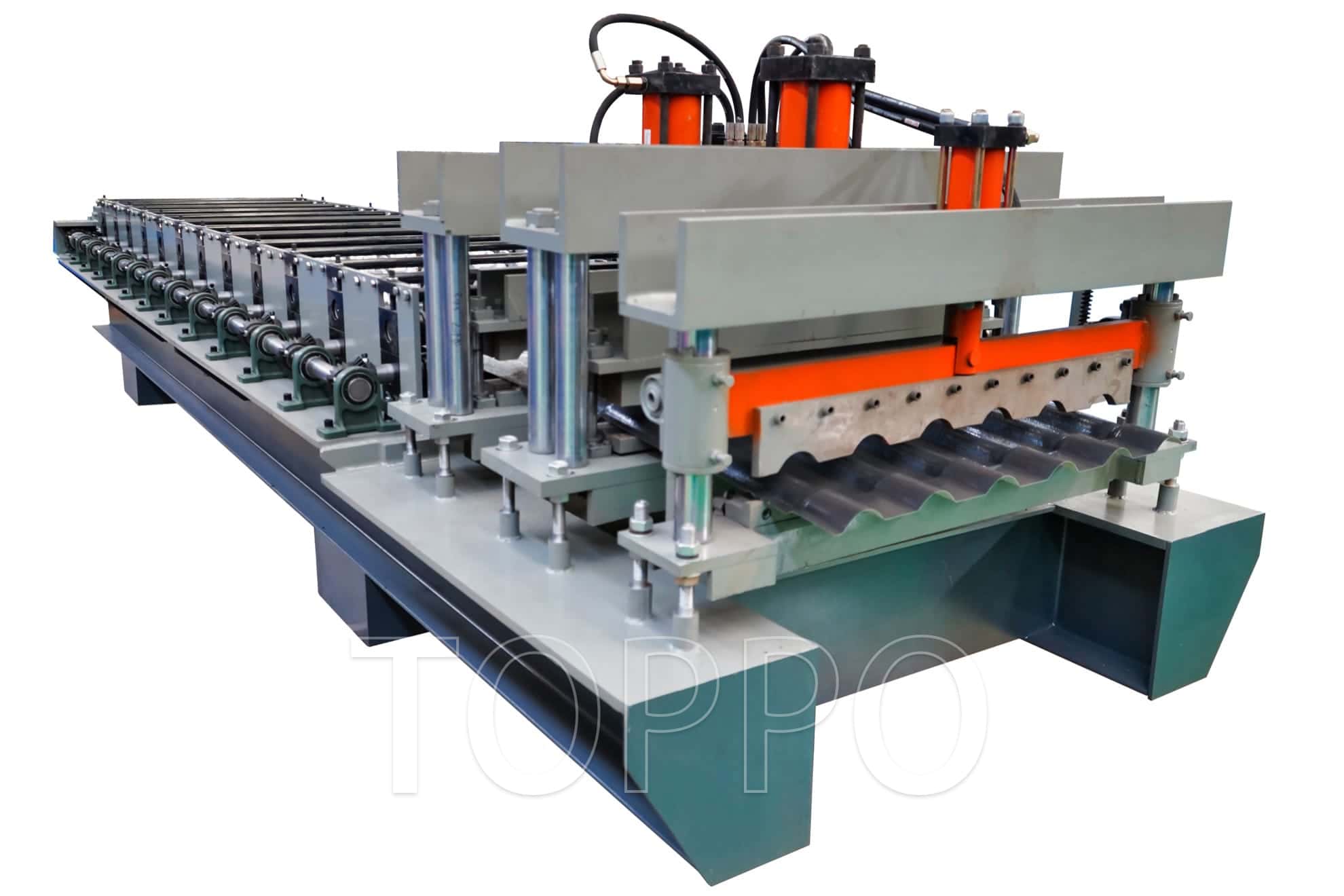

This machine is engineered for producing bamboo pattern glazed roof tiles with high precision, excellent durability, and appealing appearance. It integrates a fully automatic PLC control system for optimal performance and minimal manual operation.

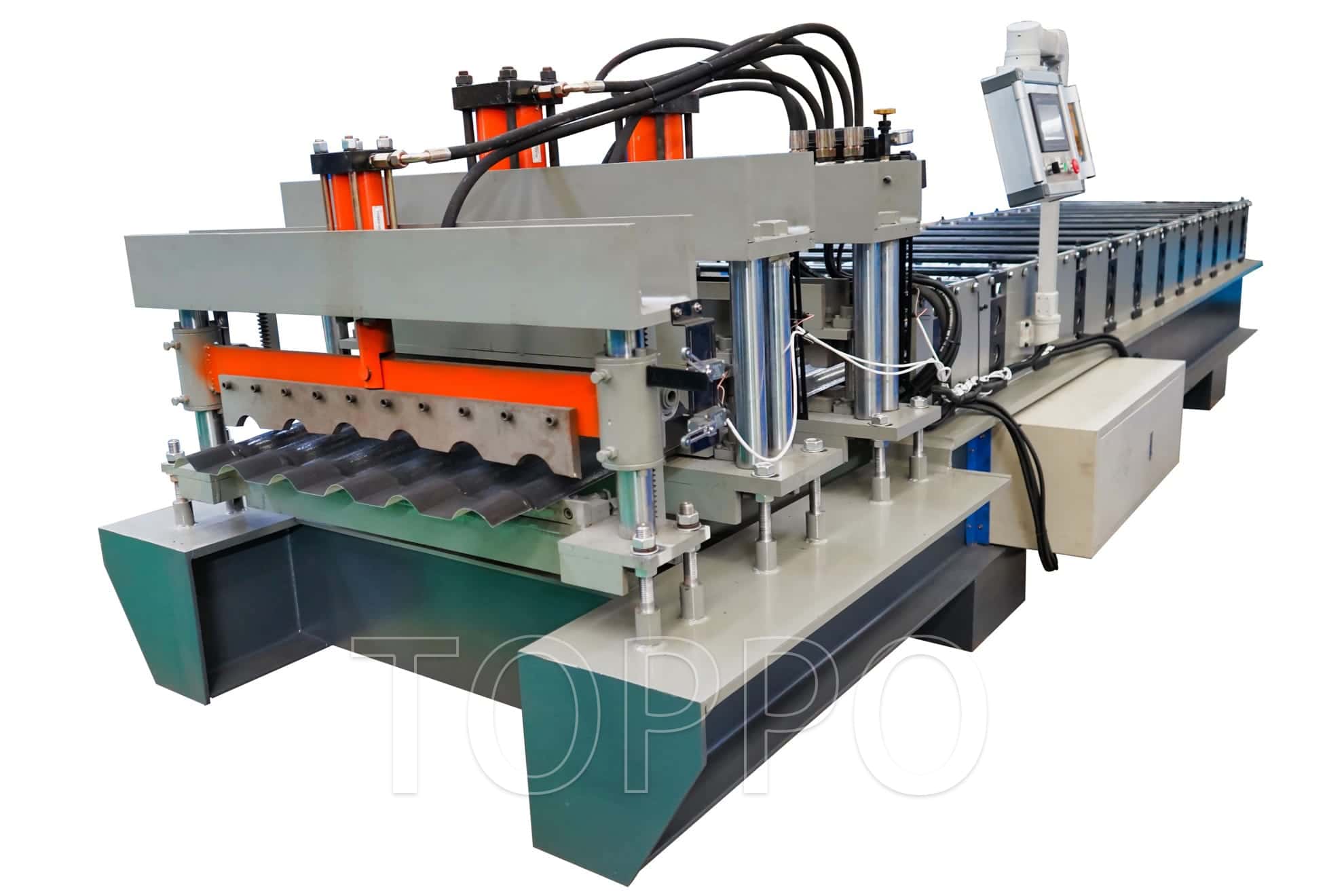

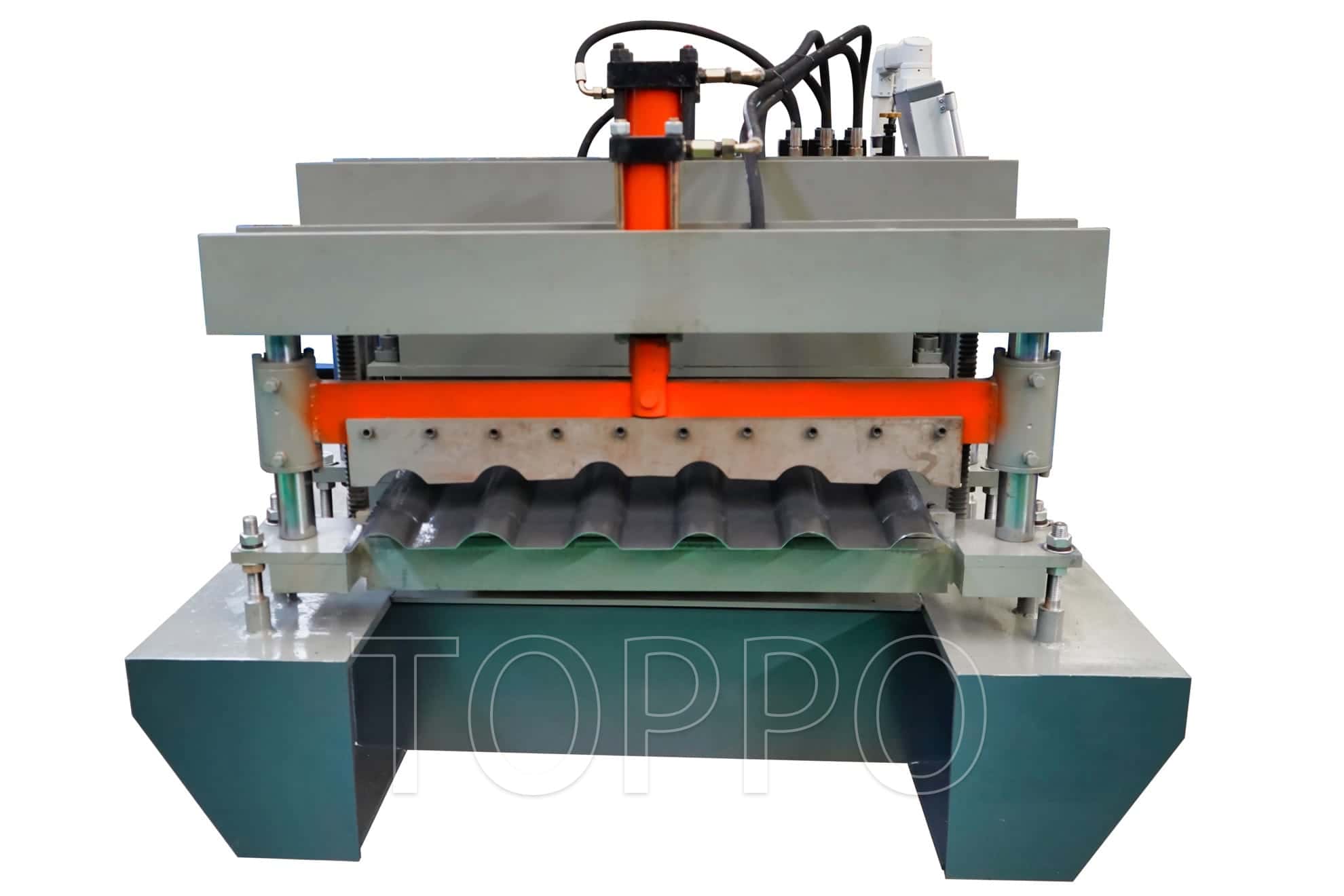

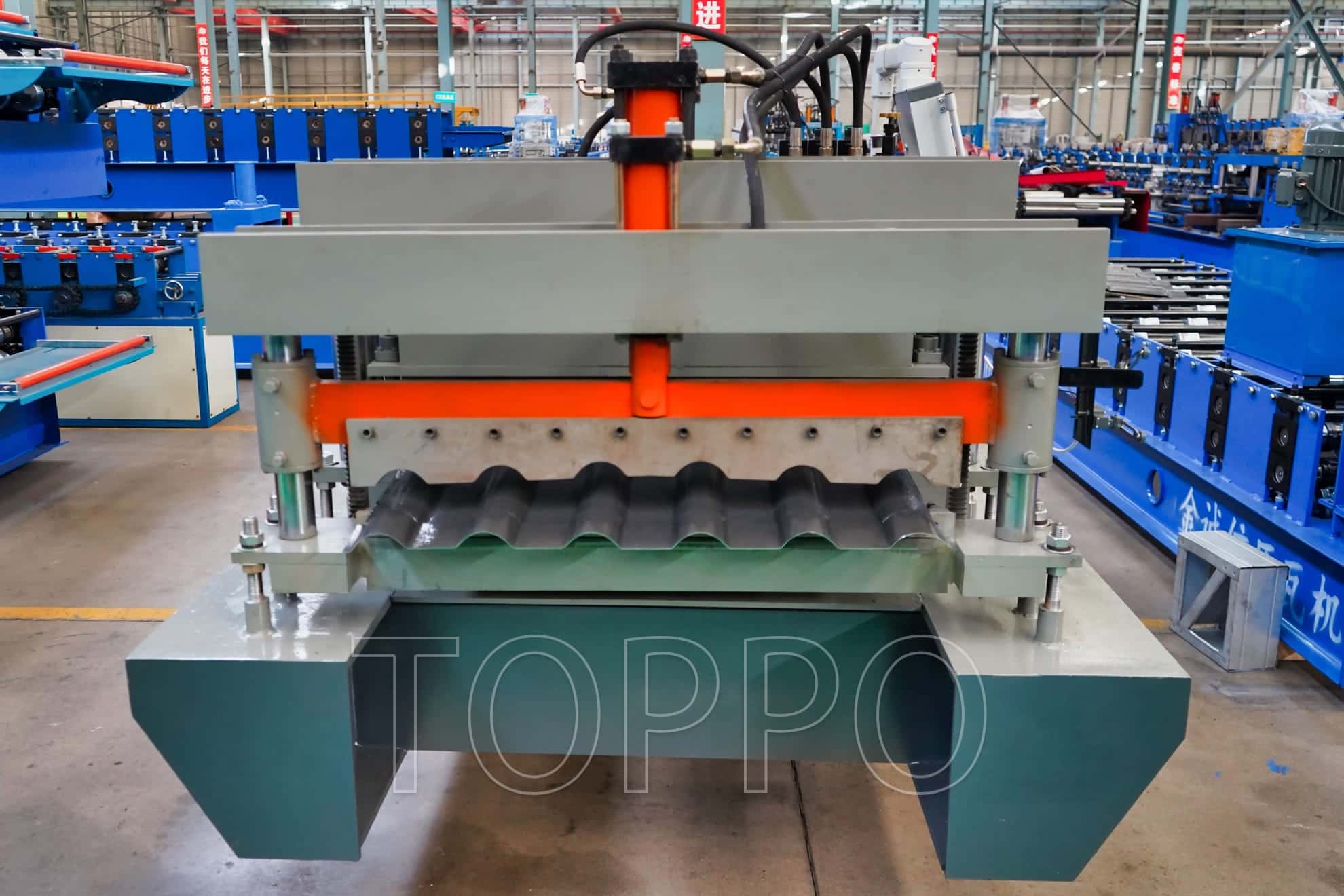

Machine Type: Bamboo Glazed Tile Cold Roll Forming Machine

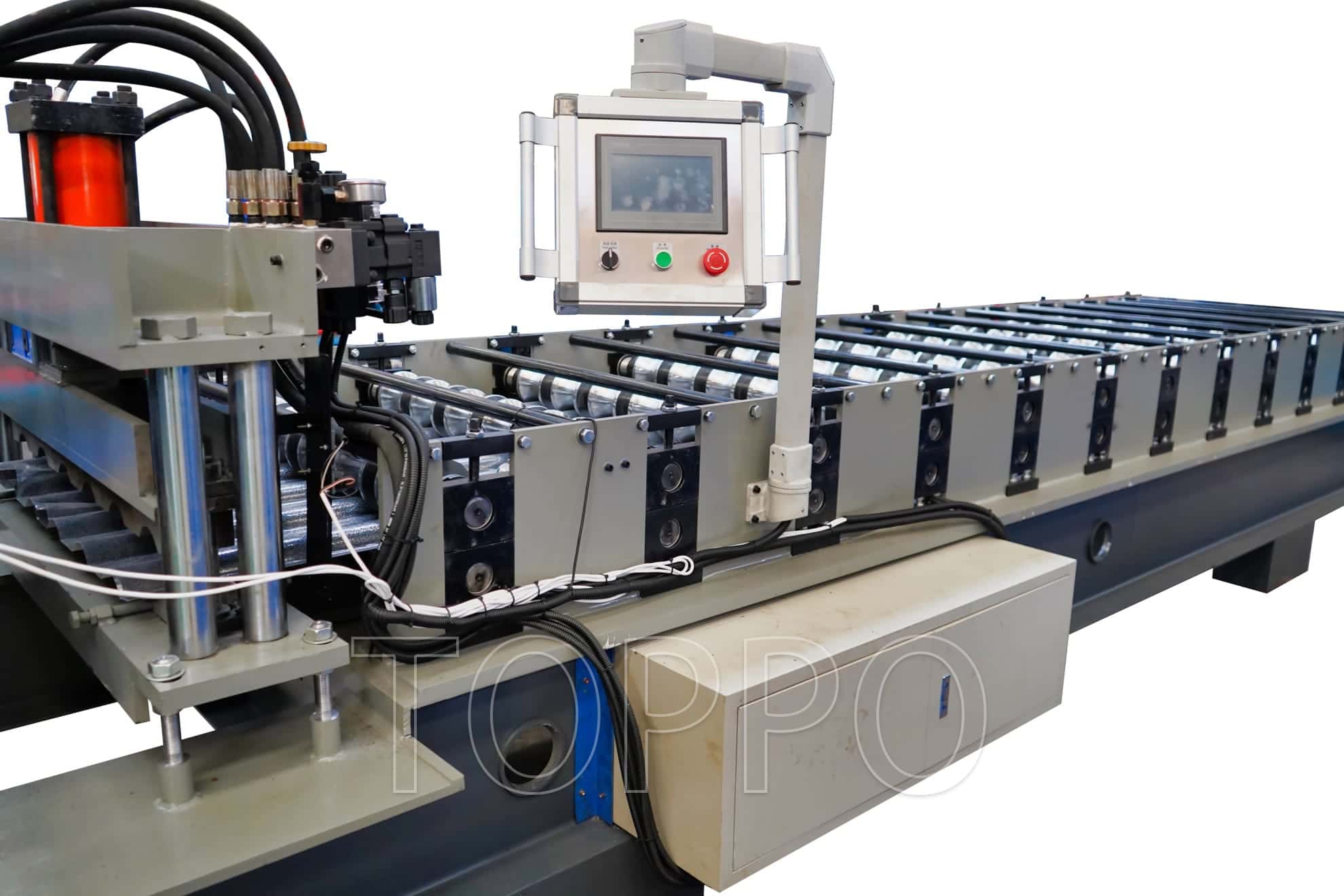

Control System: Delta/Siemens PLC with HMI touch screen
Material Thickness: 0.3-0.6 mm
Material Width: 1000-1250 mm
Material Type: Pre-painted steel, galvanized steel, aluminum

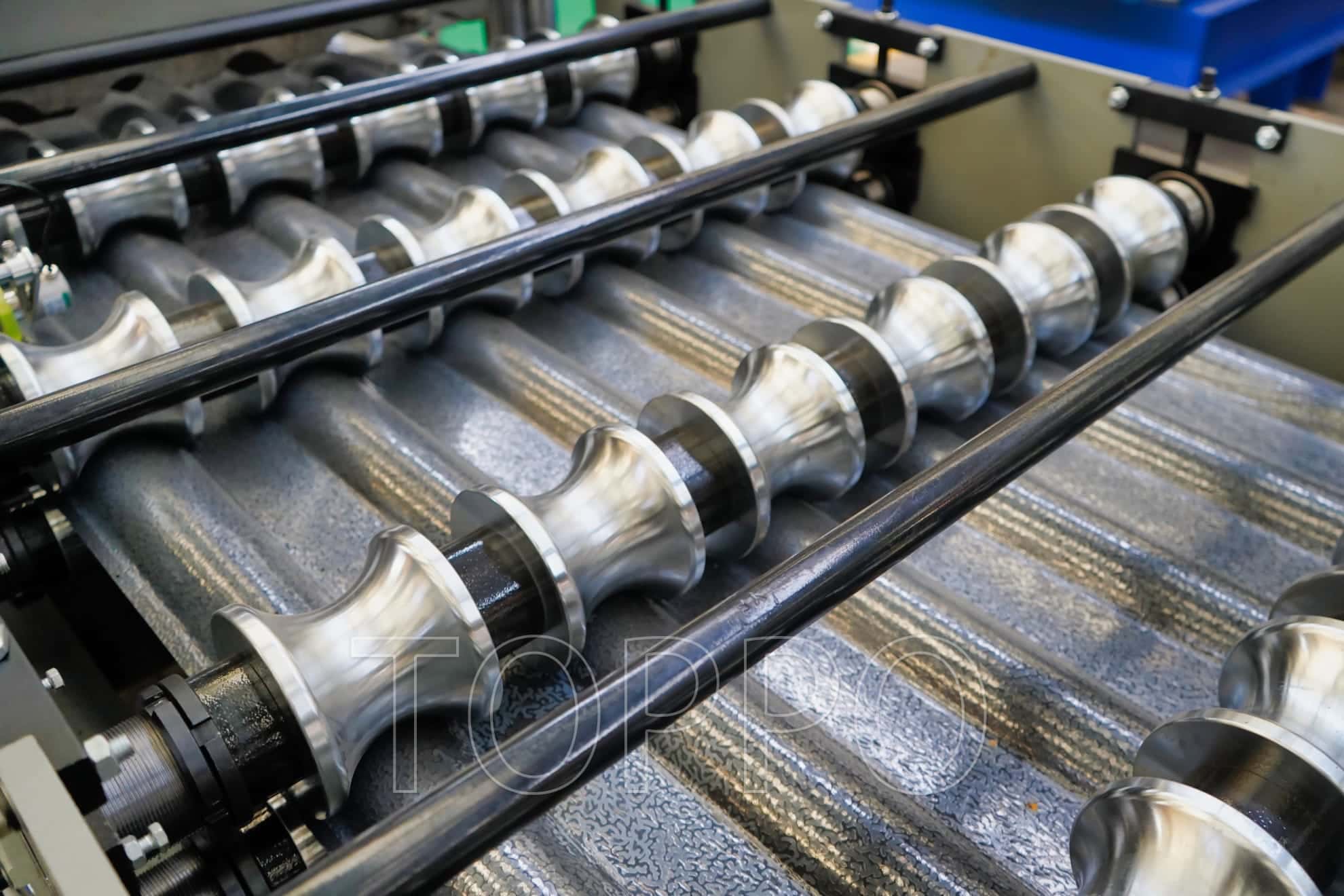

Roller Material: GCr15 steel with heat treatment
Forming Steps: 18-22 steps
Roller Stations: Approx. 18

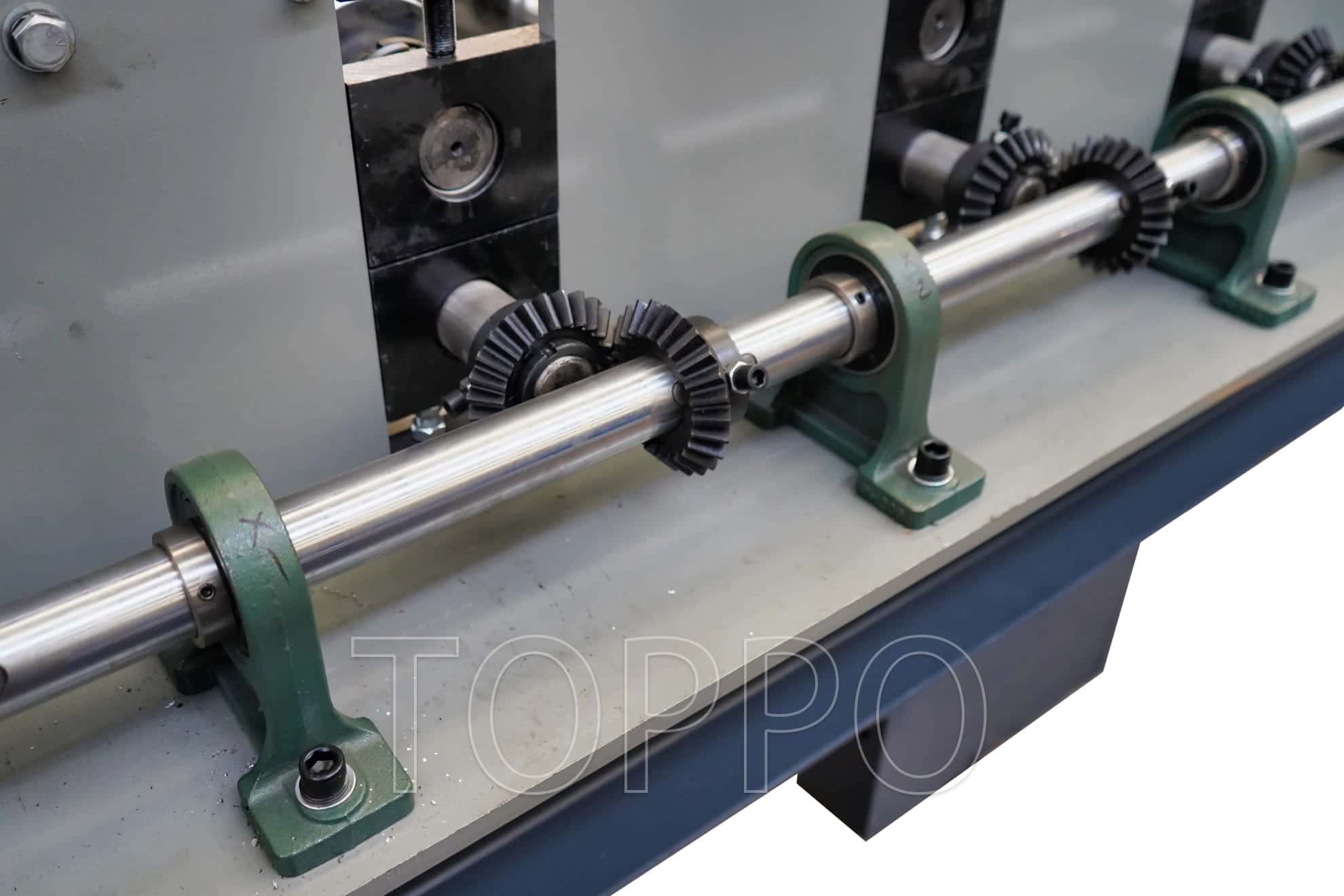

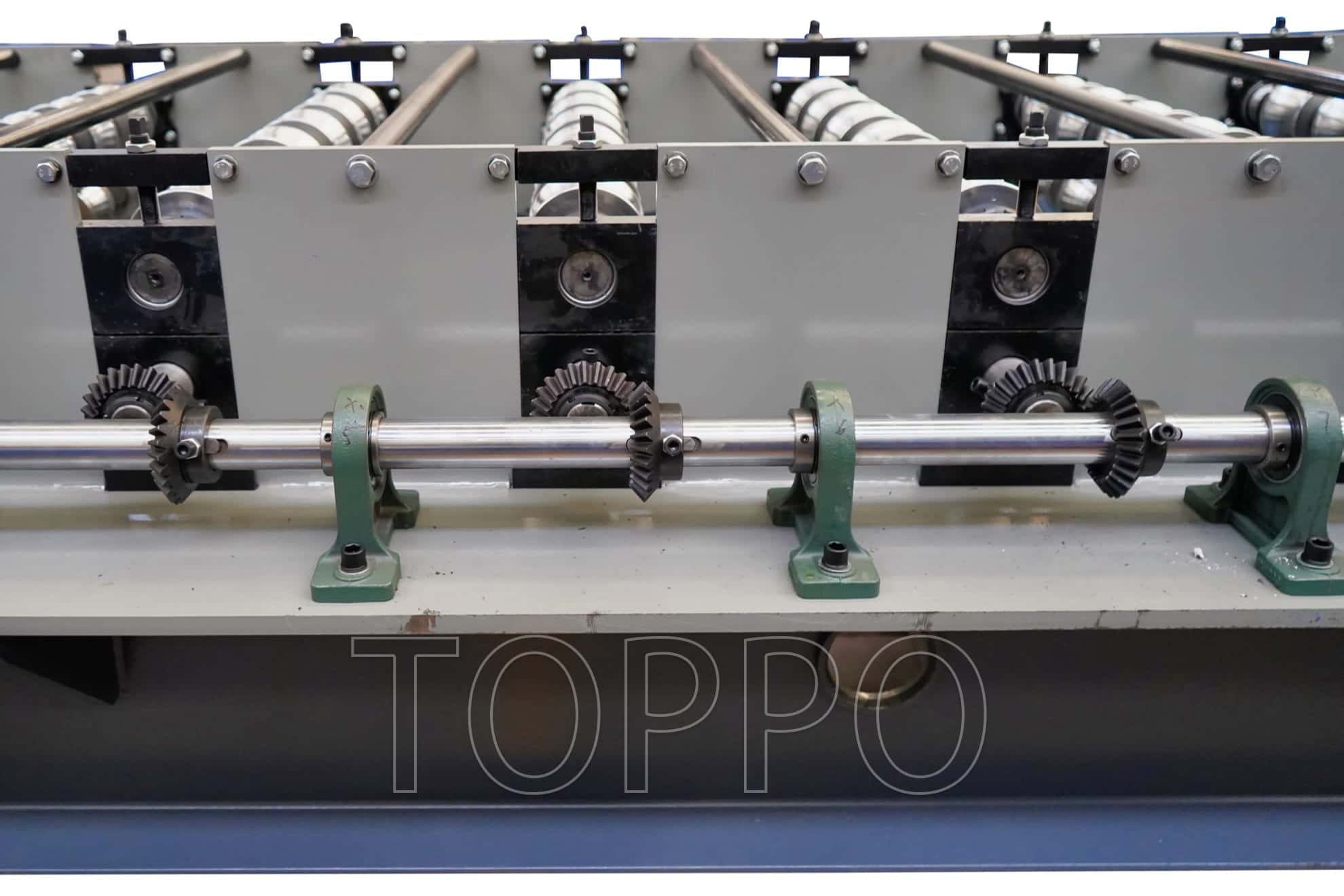

Drive Type: Chain or gearbox drive
Main Motor Power: 7.5 kW
Hydraulic Station Power: 4 kW

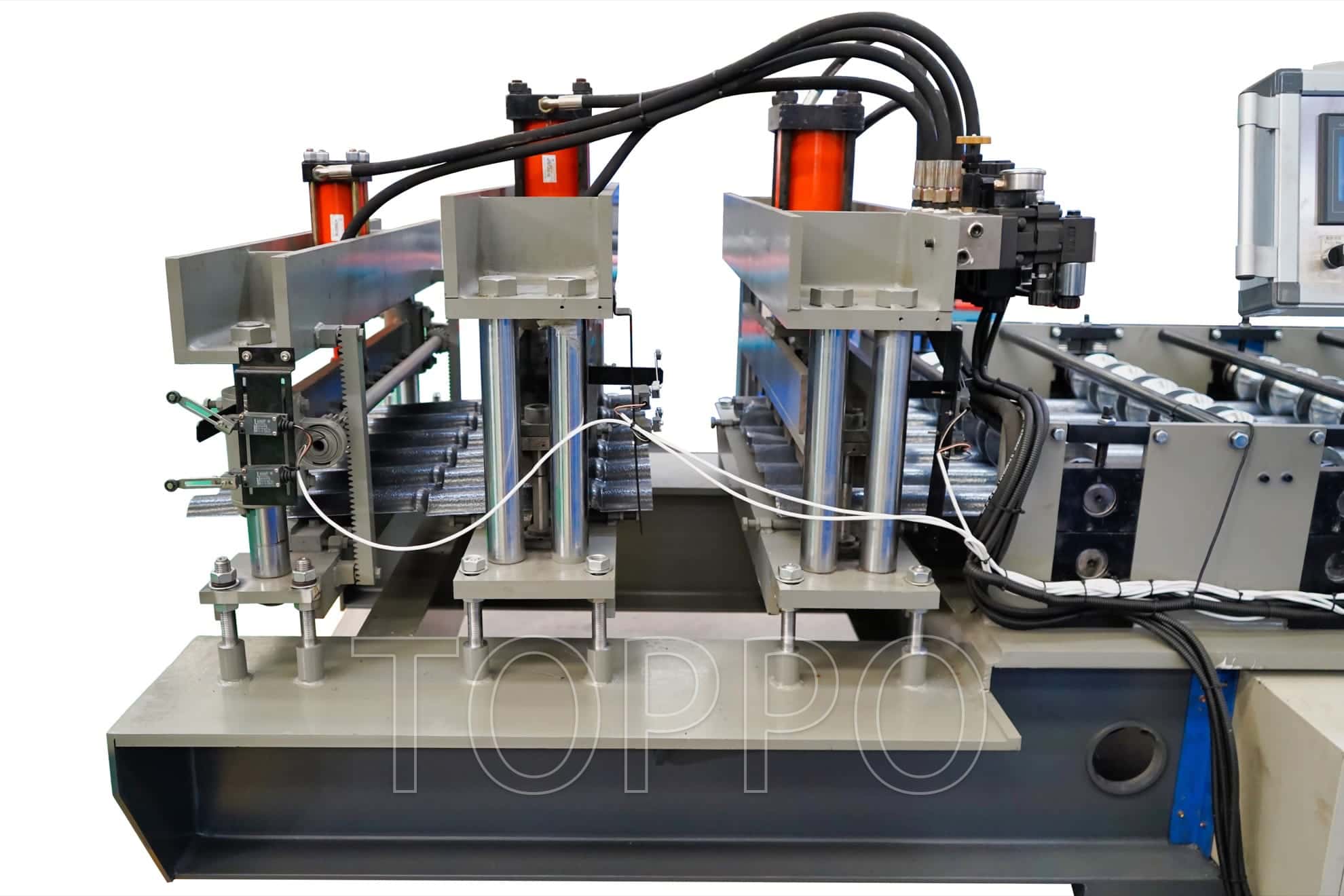

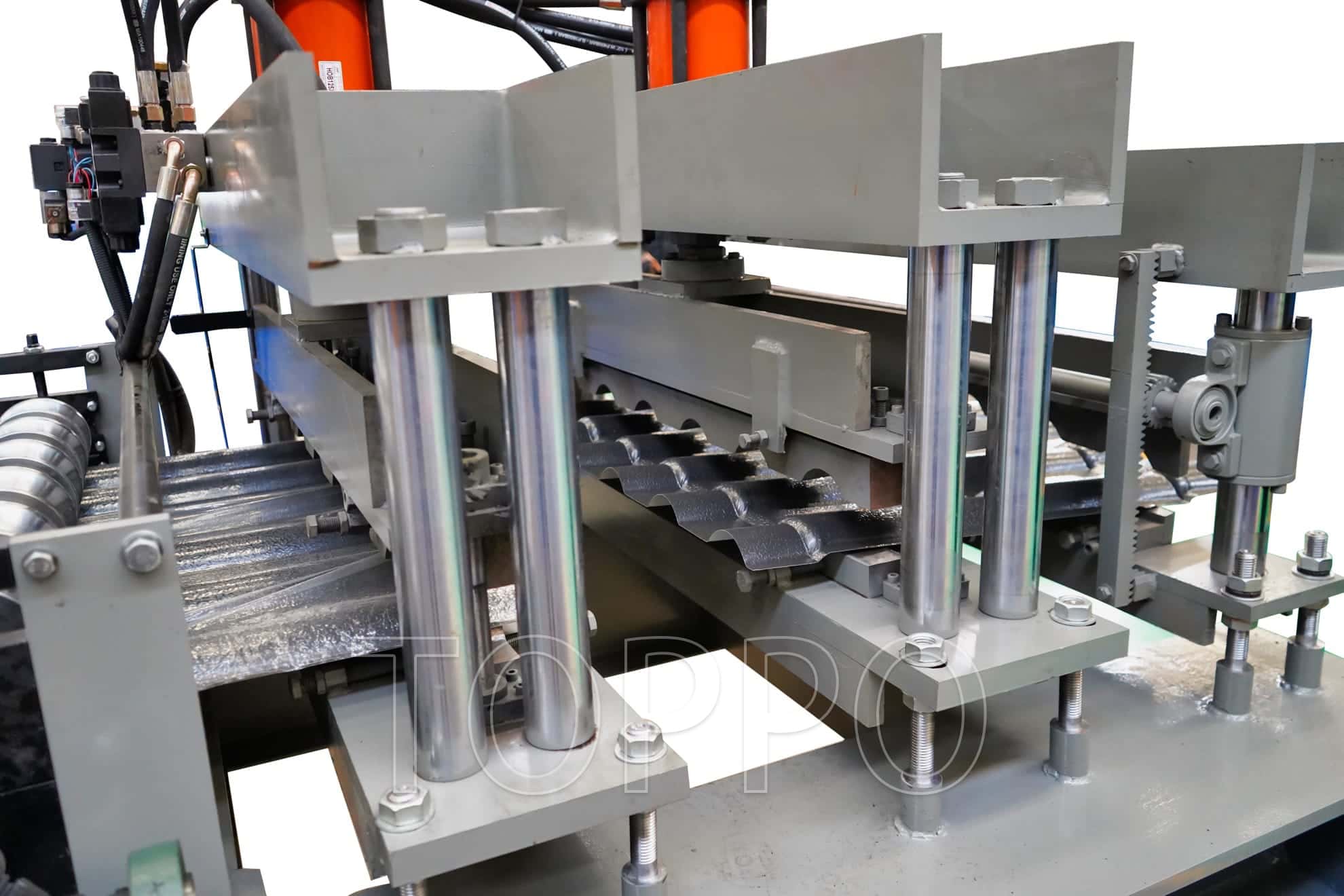

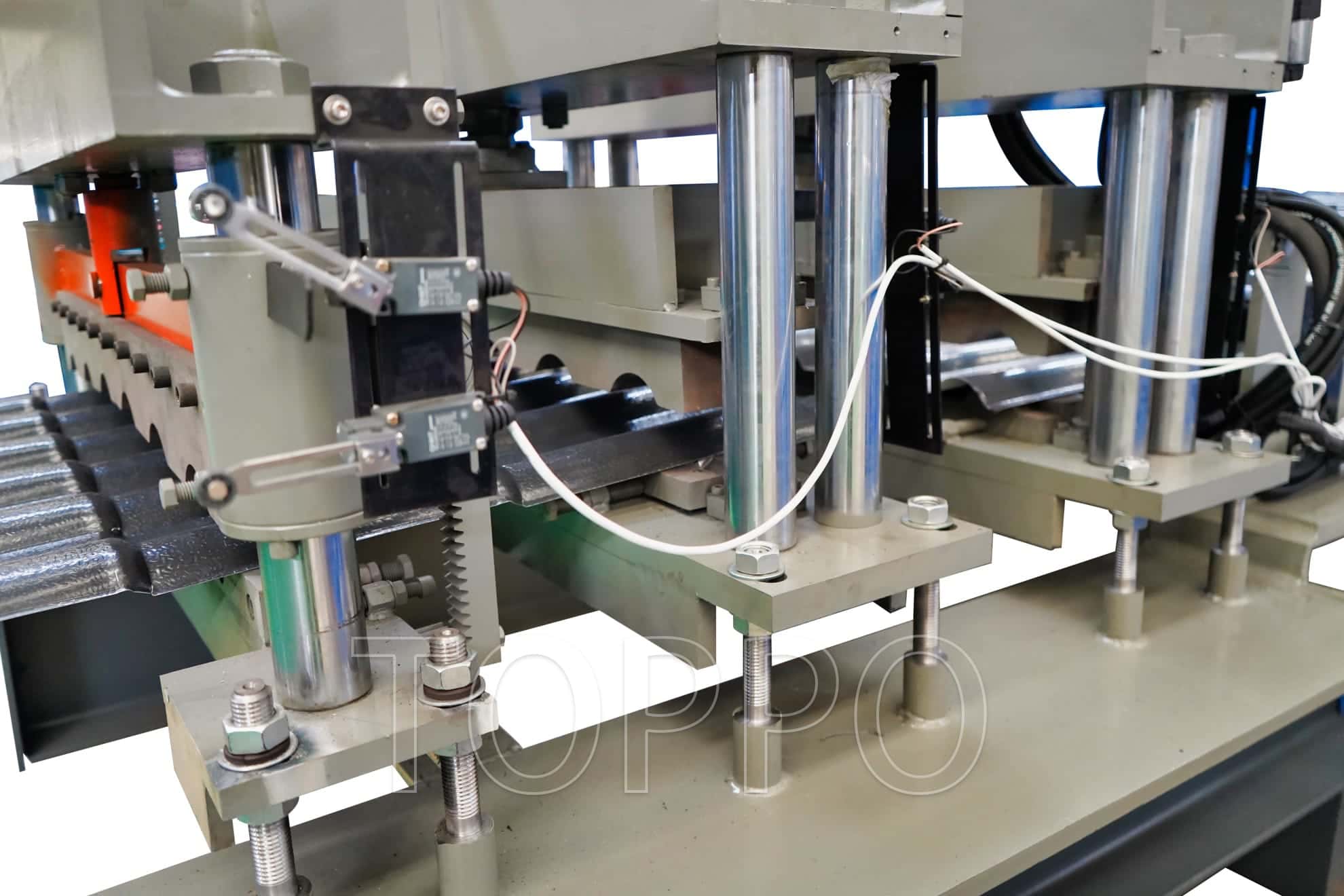

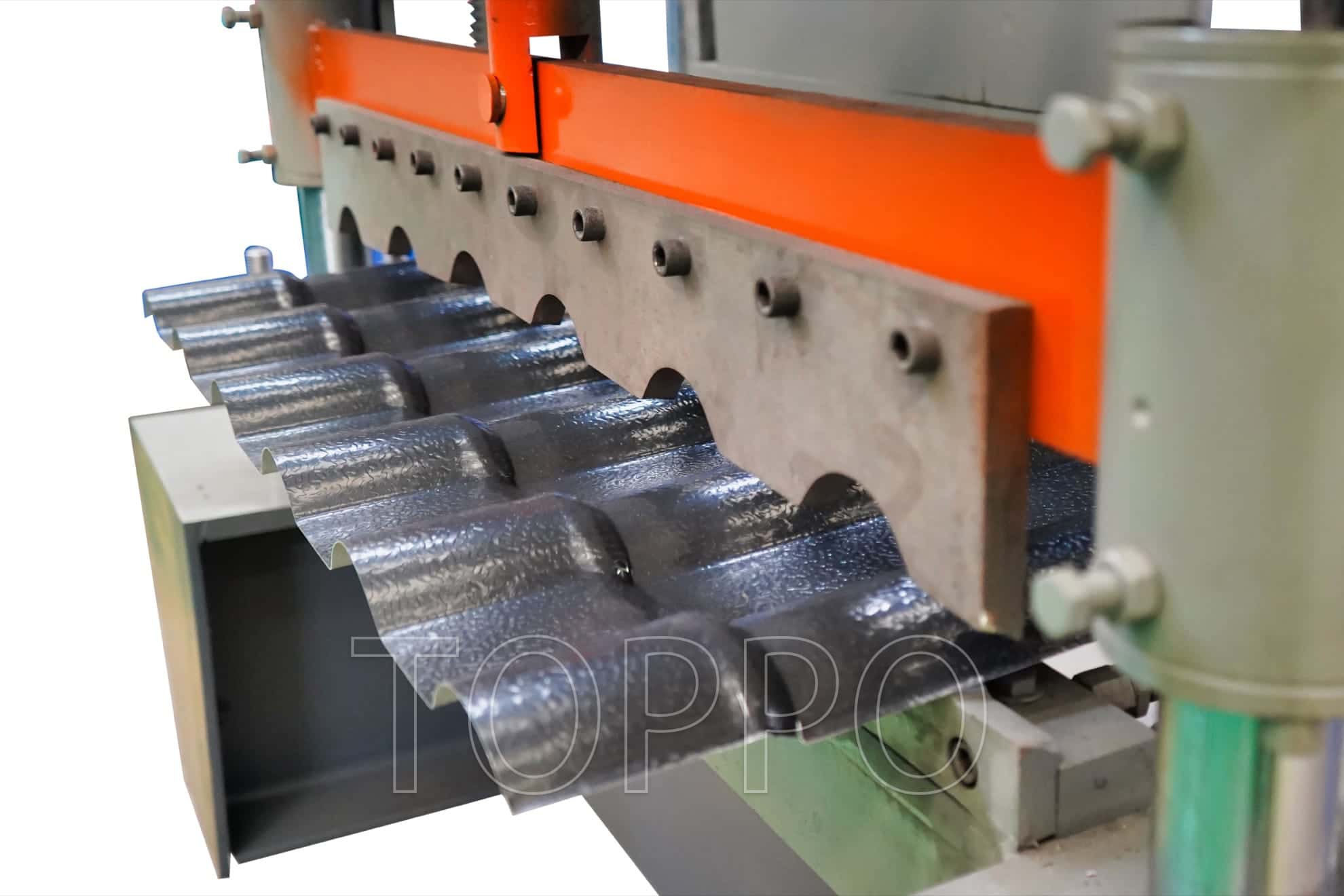

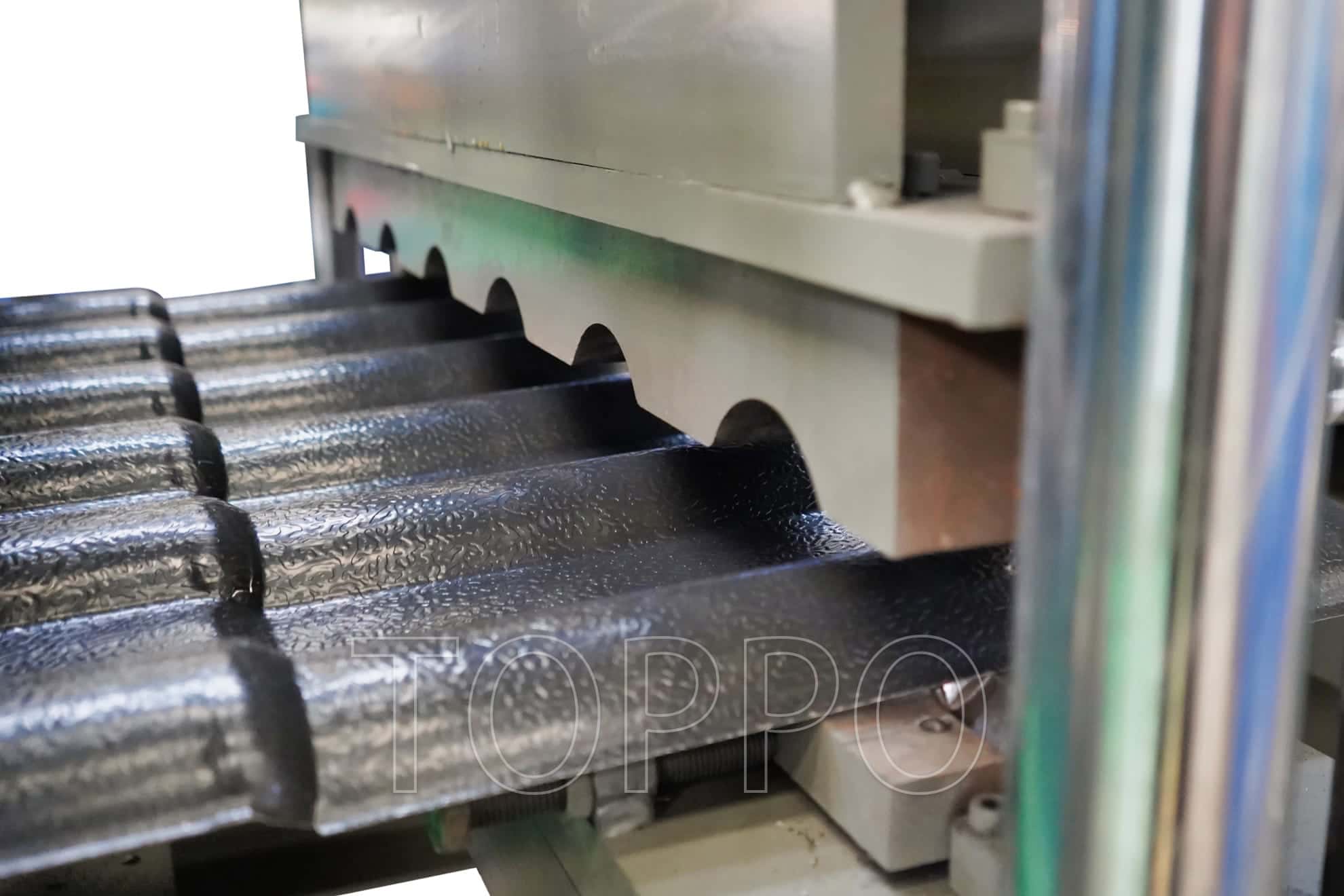

Cutting Type: Hydraulic cutting system
Blade Material: Cr12MoV steel, heat-treated
Cutting Accuracy: ±1 mm
Production Speed: 5-8 m/min
Frame Structure: Welded steel frame
Power Supply: 380V/50Hz/3Phase (customizable)
Control Voltage: 24V DC
Overall Size: 9m x 1.5m x 1.6m
Machine Weight: Approx. 6.8 tons
Tile Profile: Bamboo pattern glazed tile
Feeding Method: Manual or hydraulic decoiler
Length Measurement: Encoder controlled
Noise Level: ≤80 dB
Operation: One-button start, easy interface
Color: Customizable
Warranty: 1 year
After-sales Service: Online support, video guidance, overseas service
Certification: CE, ISO9001
Installation: On-site engineer available
Lubrication: Manual/centralized
Cooling System: Air-cooled (optional)
Application: Roofing sheet industry
Design Feature: Compact modular structure
Automation: Full auto operation
Safety System: Emergency stop, guard covers
Software: Integrated control software
Packaging: Plastic film & steel frame support
Lead Time: 30 days
Market: Global export
Shipping: Sea freight
Language Support: English or customer specific
Maintenance: Easy with low-cost spare parts
Display: Color touch screen
Feeding Tolerance: ±0.2 mm
Steel Grade: Q195, Q235
This high-speed bamboo tile roll forming machine offers reliability, performance, and an elegant finish for residential and commercial roofing projects. The integrated control ensures consistent outputs, reduced errors, and simplified operation.
