Designed for producing color steel bamboo pattern glazed tiles, this roll forming machine combines speed, automation, and precision. It is ideal for mass production in the roofing industry, offering consistent quality and enhanced productivity with user-friendly PLC control.

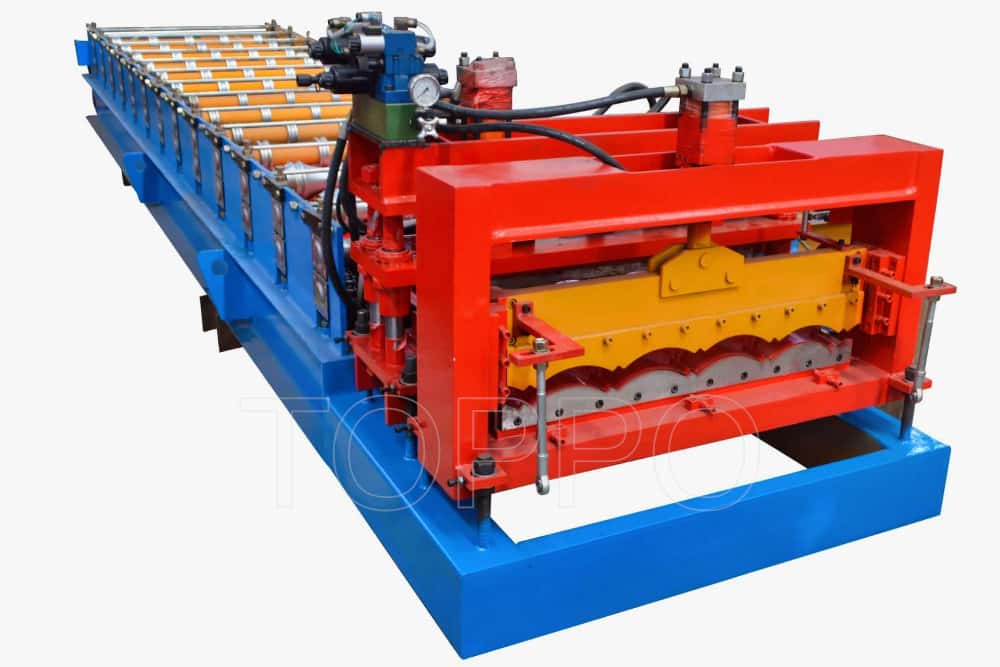

Machine Type: Bamboo Profile Glazed Tile Forming Machine
Automation: Full automatic with PLC control
Material: Color steel, galvanized sheet, aluminum
Material Thickness: 0.3–0.6 mm
Input Width: 1000–1250 mm

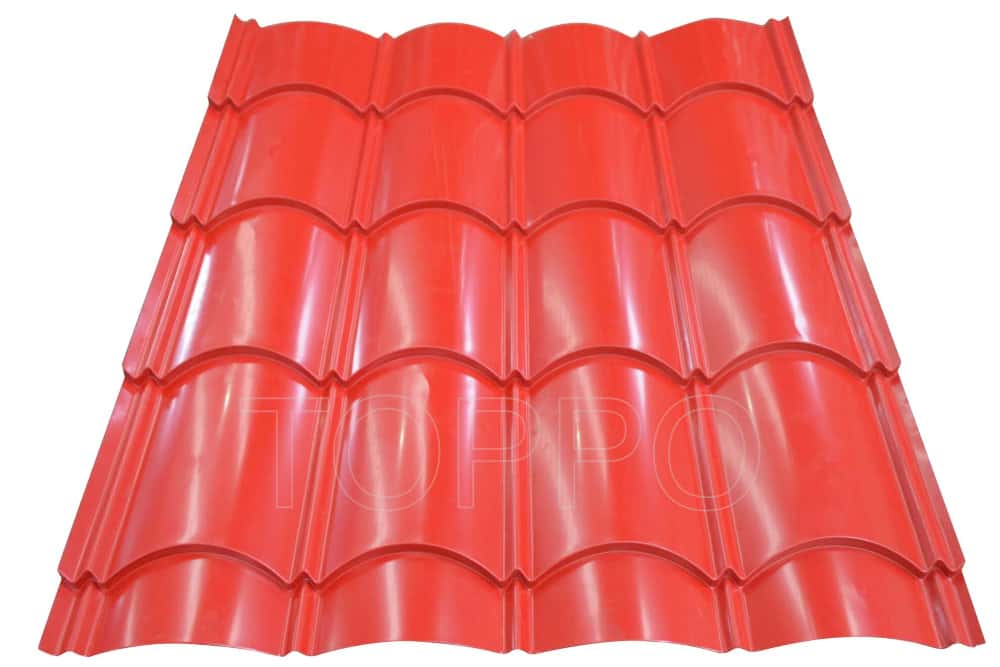

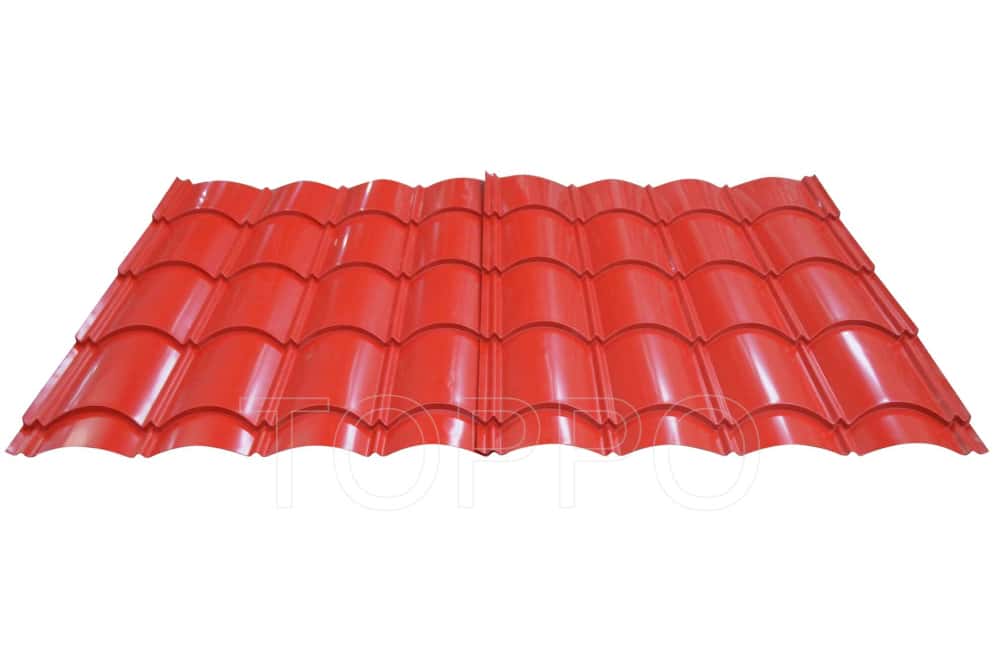

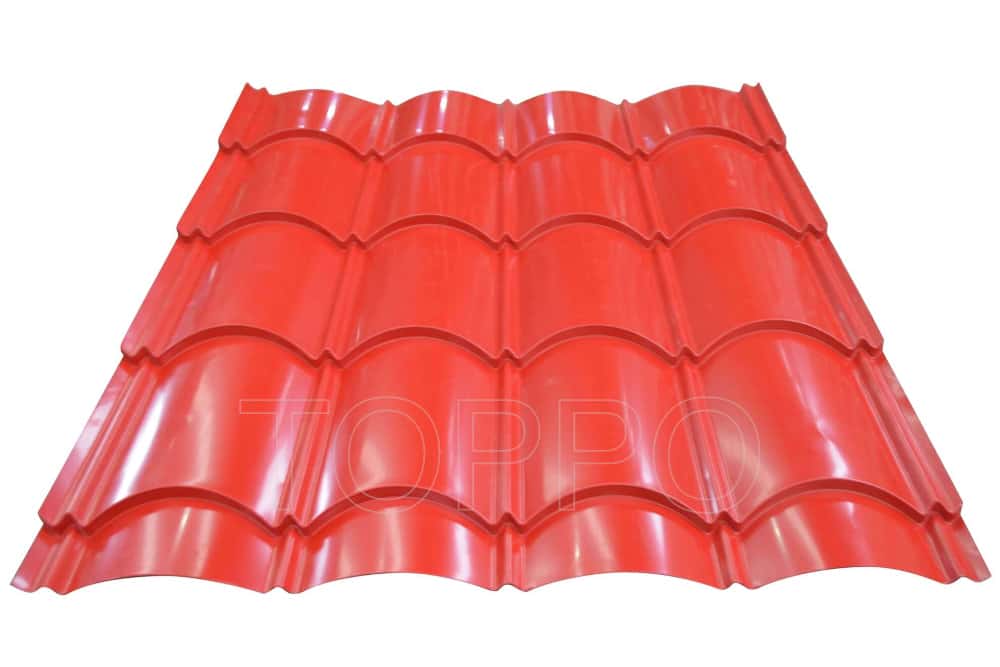

Tile Profile: Bamboo glazed style
Production Speed: 5–8 m/min

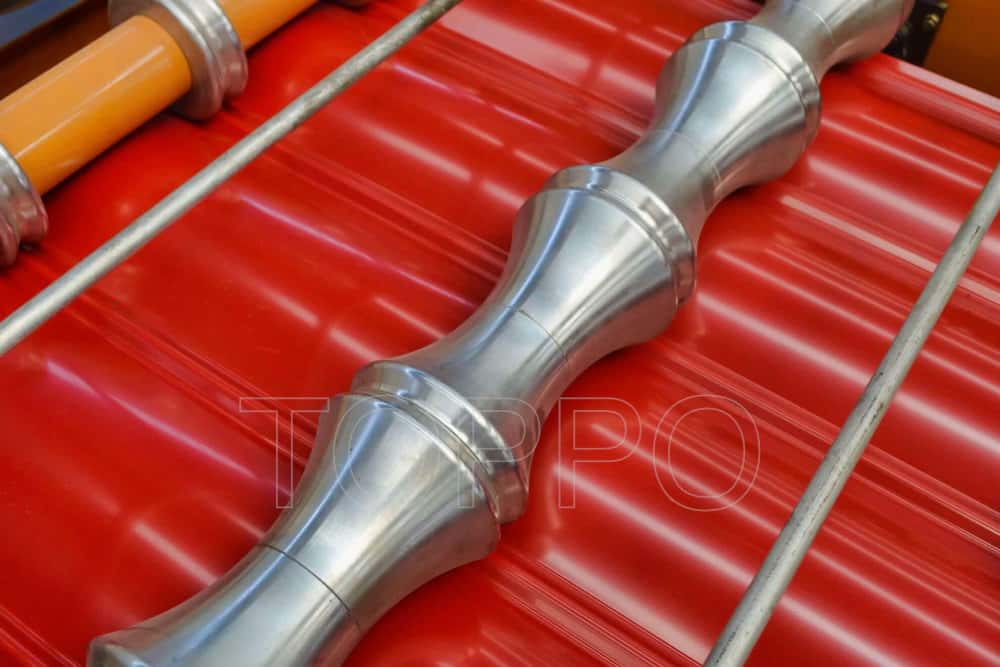

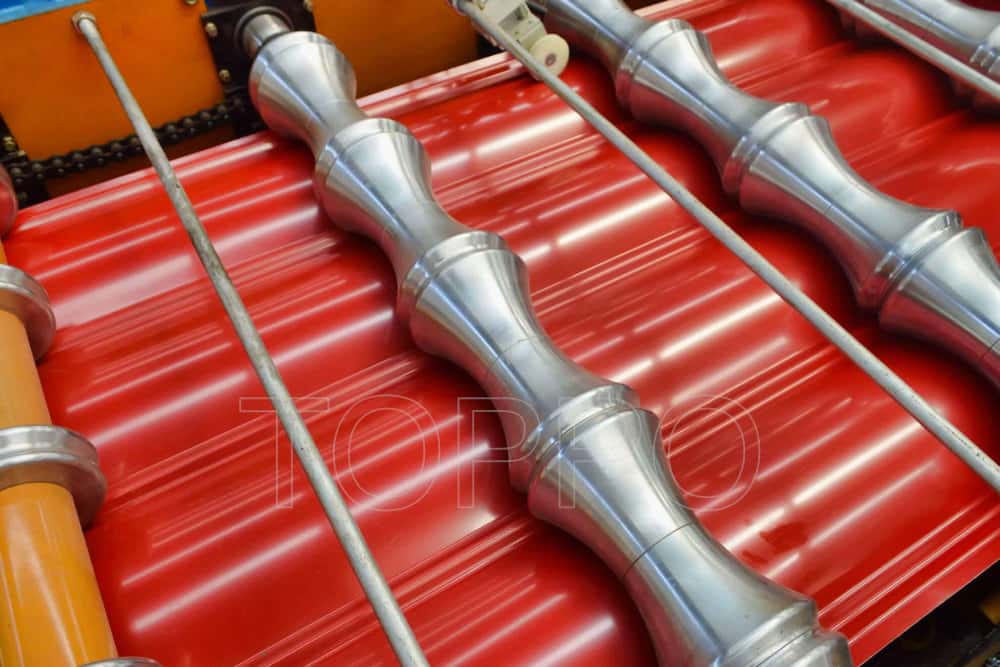

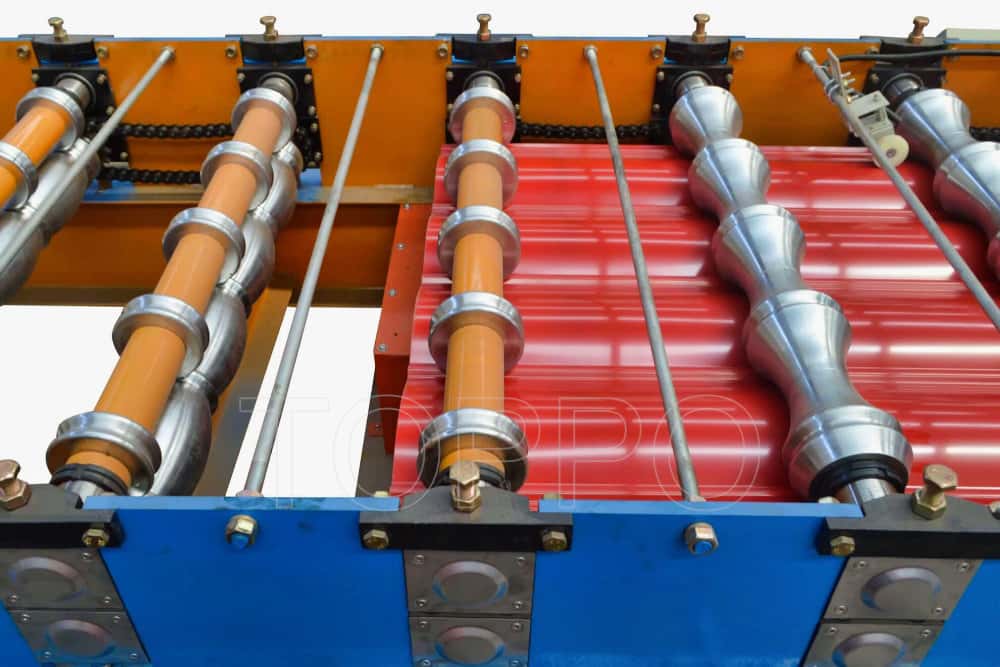

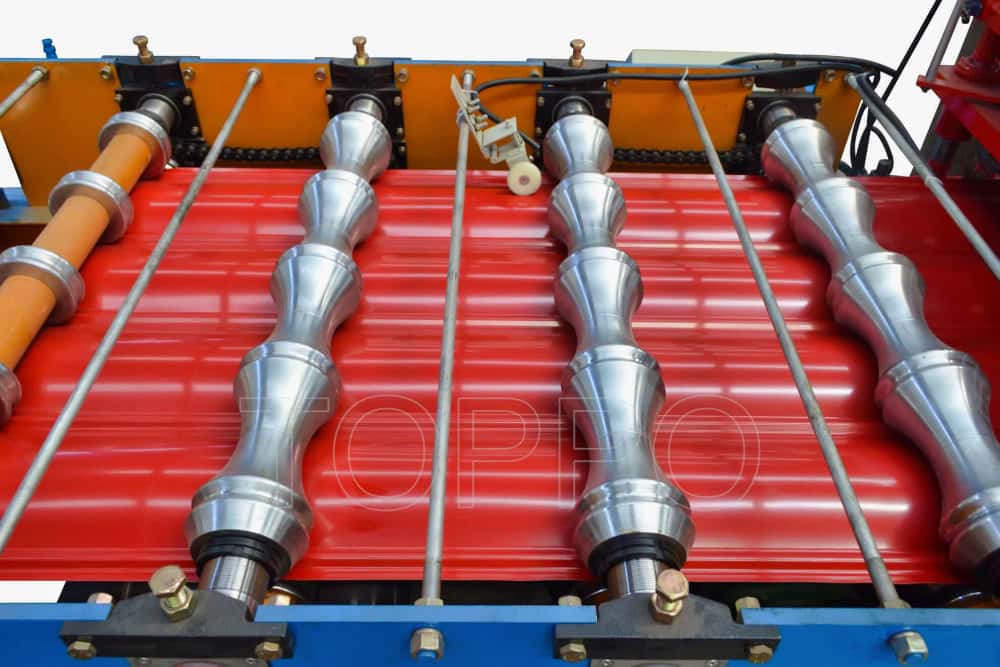

Roller Stations: About 18
Roller Material: GCr15 with heat treatment
Drive System: Chain drive or gear box
Main Motor Power: 7.5 kW
Hydraulic System Power: 4 kW

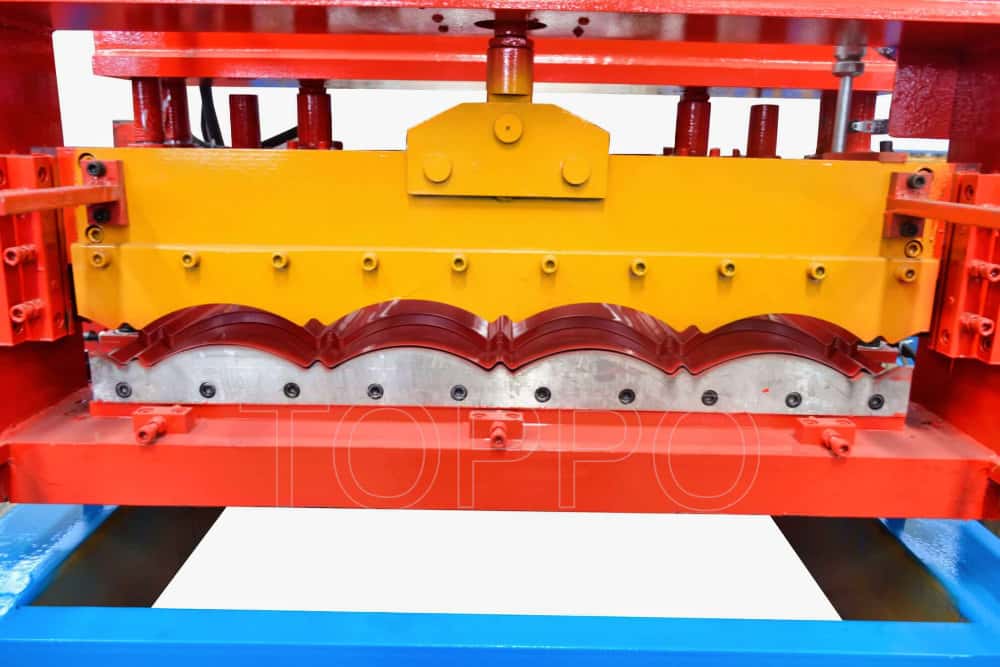

Cutting Blade: Cr12 steel, quenched
Control System: Siemens/Delta PLC + Touch screen
Cutting Accuracy: ±1 mm
Feeding System: Manual or hydraulic decoiler

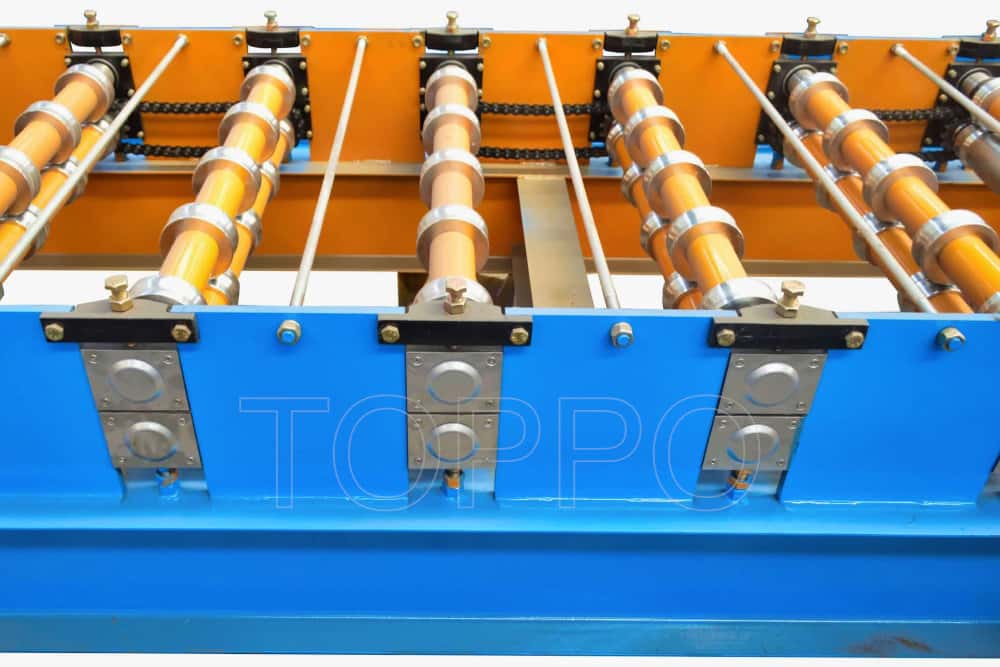

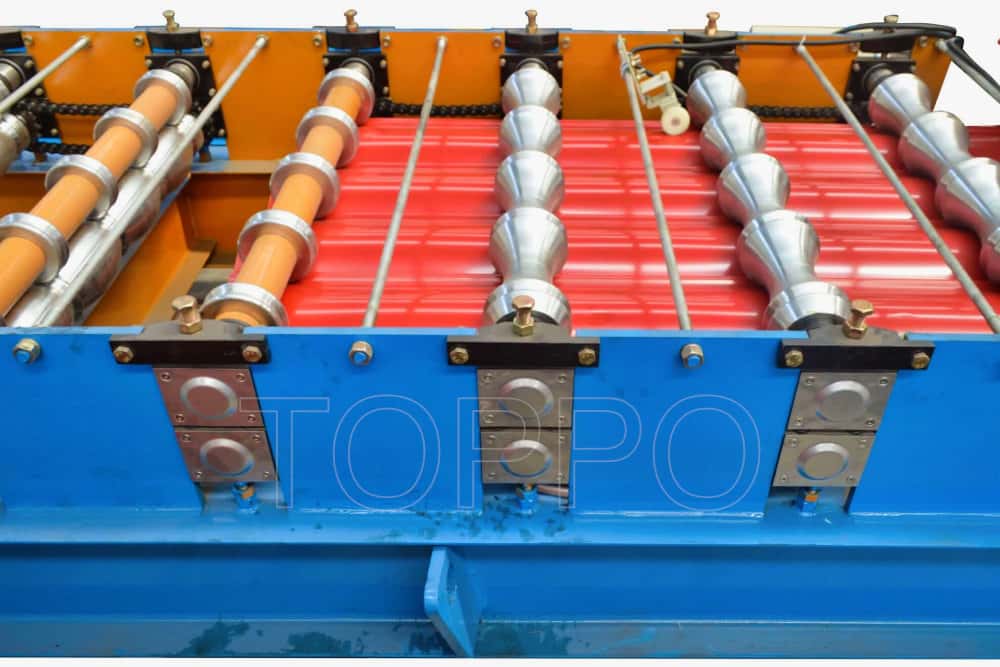

Frame: H-beam welded structure
Voltage: 380V, 50Hz, 3-Phase (customizable)
Control Voltage: 24V
Machine Size: Approx. 8.5m x 1.5m x 1.6m
Machine Weight: About 6.5 tons
Safety Equipment: Emergency stop, protective covers
Operation: Single person operation
Language: English (customizable)
Display: Touch screen interface
Application: Roofing industry, construction sector
Design: Modular and durable
Noise Level: ≤80 dB
Warranty: 12 months
Support: Online service, video instruction, field support
Lead Time: 30 working days
Market: Worldwide export
Packaging: Waterproof film or wooden box
Installation: Overseas engineer available
Lubrication: Central/manual
Software Integration: Auto-control length & count
Maintenance: Easy access design
Feeding Accuracy: ±0.2 mm
Coil Handling: Hydraulic/manual decoiler available
This roll forming machine is the ideal solution for manufacturing high-quality bamboo-style glazed roofing tiles with speed, automation, and consistent results. Suitable for a variety of construction projects globally.
