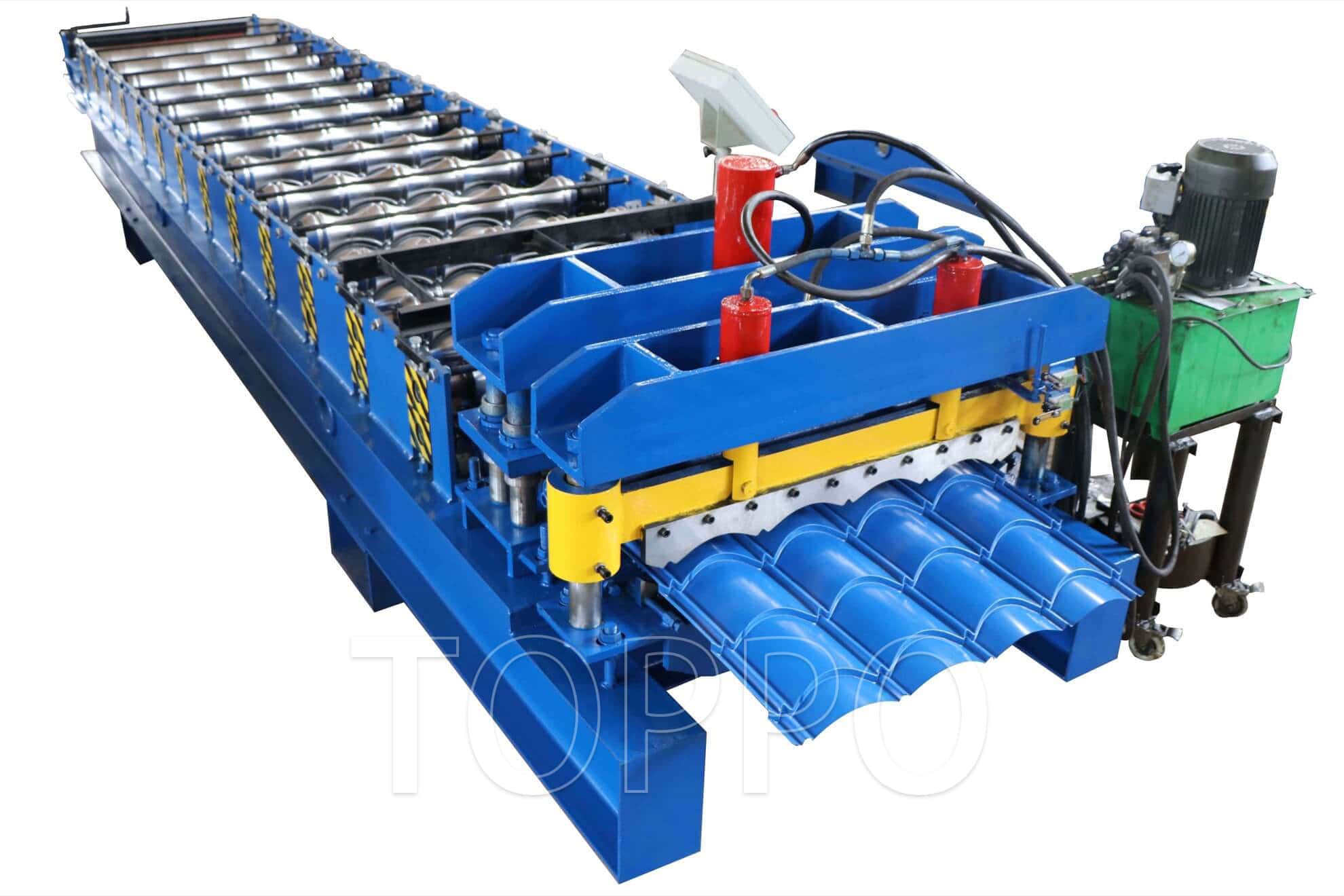

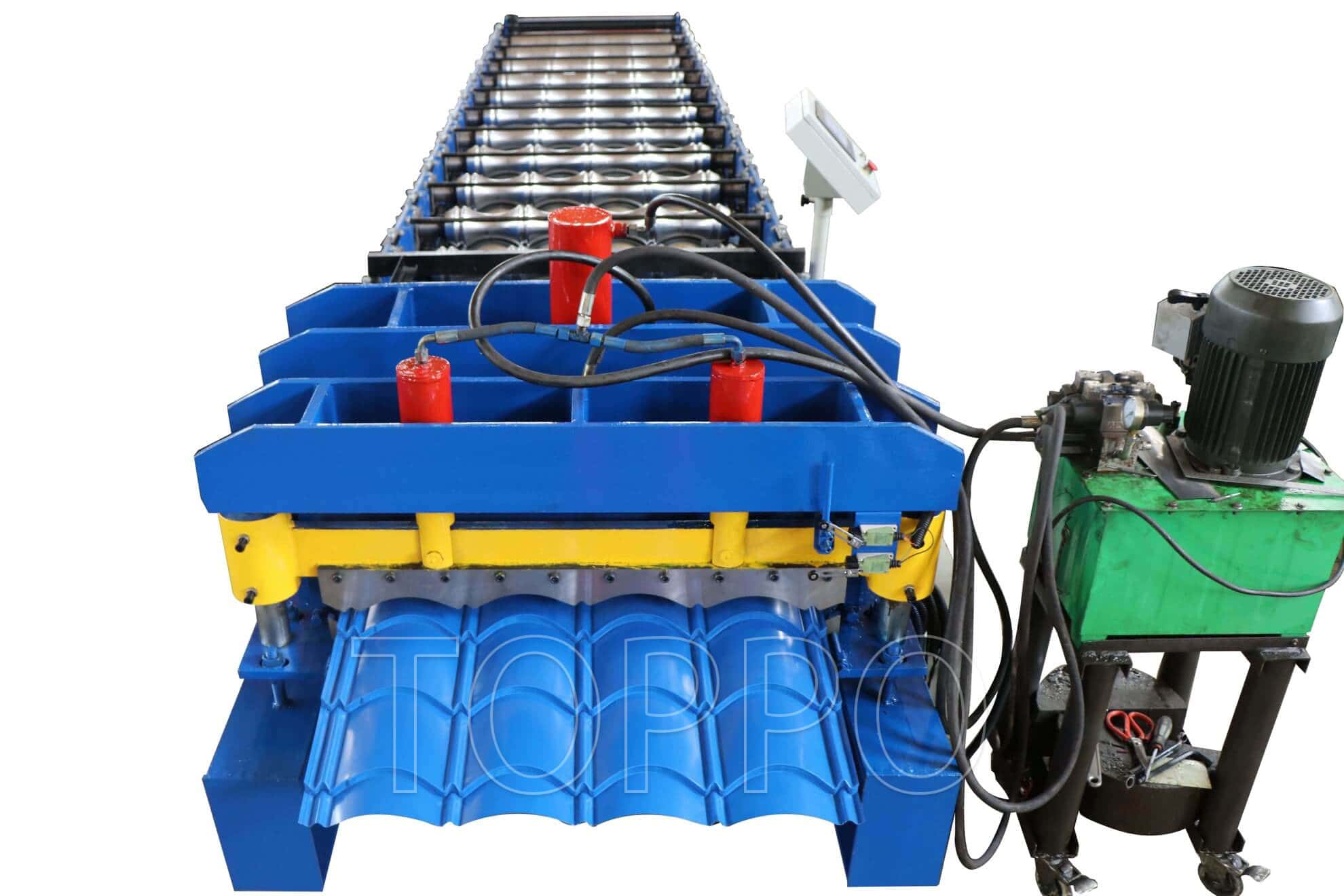

This high-performance roll forming machine is designed to manufacture bamboo-style metal glazed roof tiles with compact structure and precise automation. It is ideal for space-limited workshops and ensures consistent tile shapes and dimensions through PLC-based control.
Machine Type: Bamboo Glazed Tile Cold Roll Forming Machine

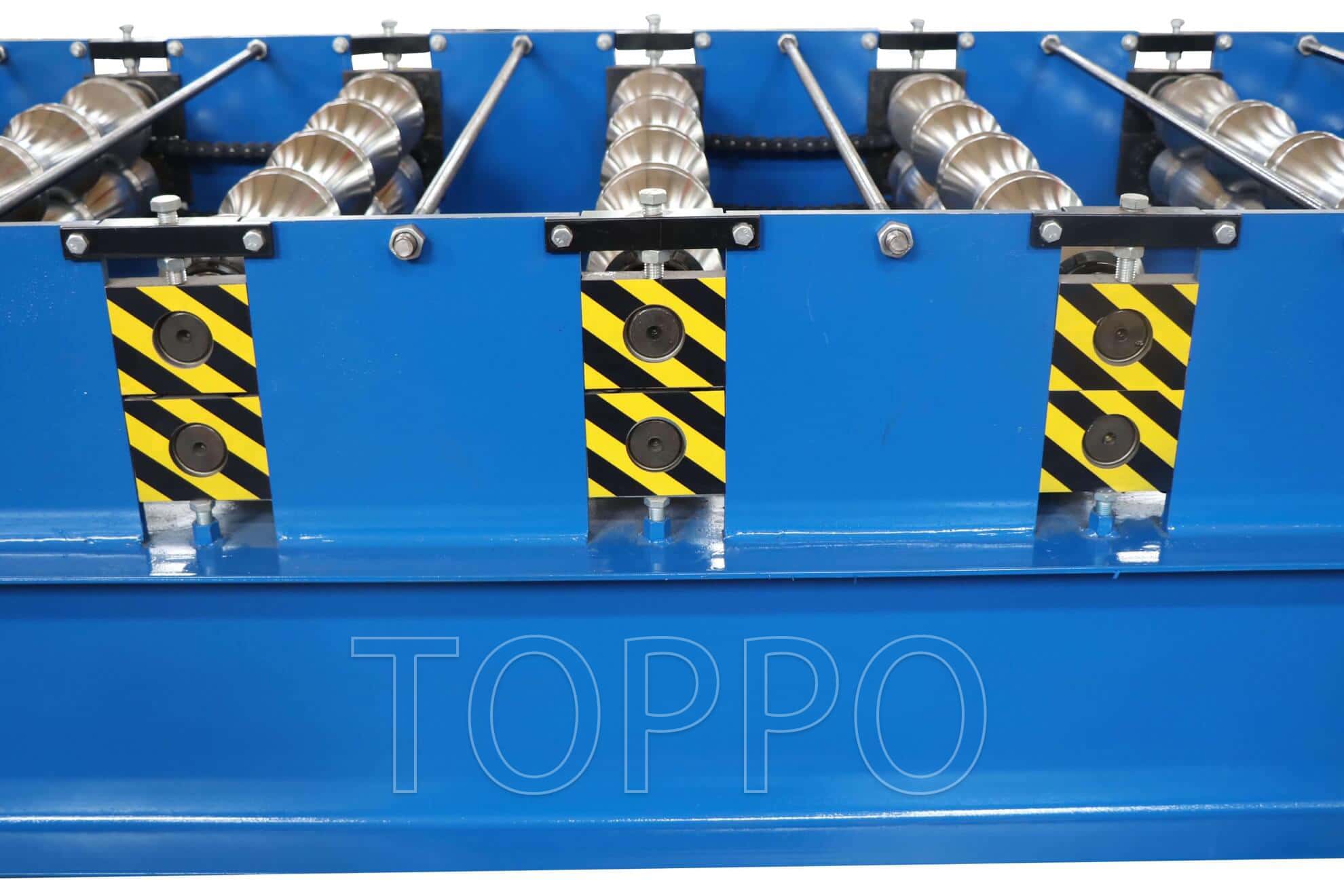

Structure: Compact and modular
Material: Galvanized steel, color coated sheet, aluminum
Material Thickness: 0.3–0.6 mm
Input Coil Width: 1000–1250 mm

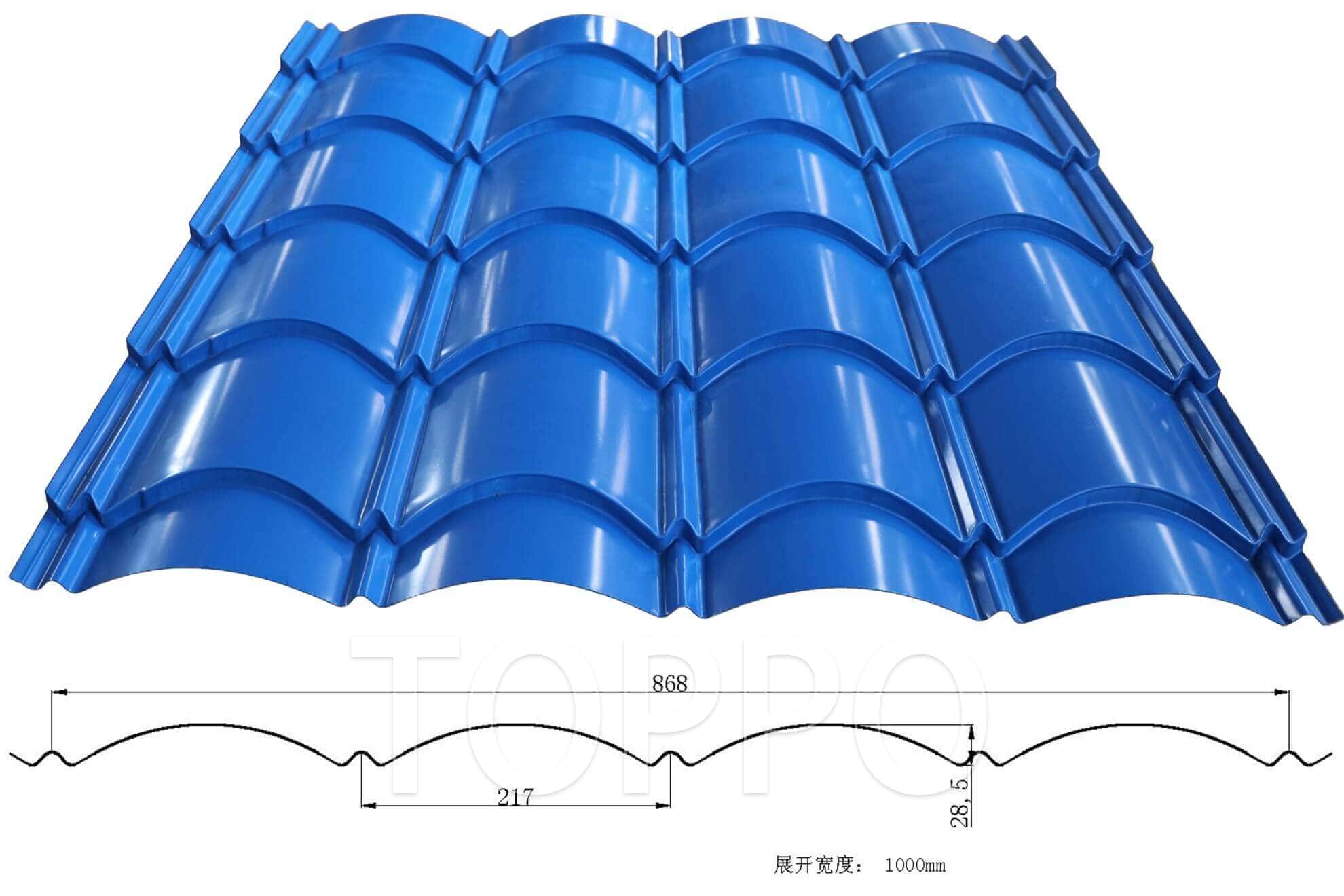

Tile Shape: Bamboo pattern
Speed: 5–7 m/min
Forming Stations: 18

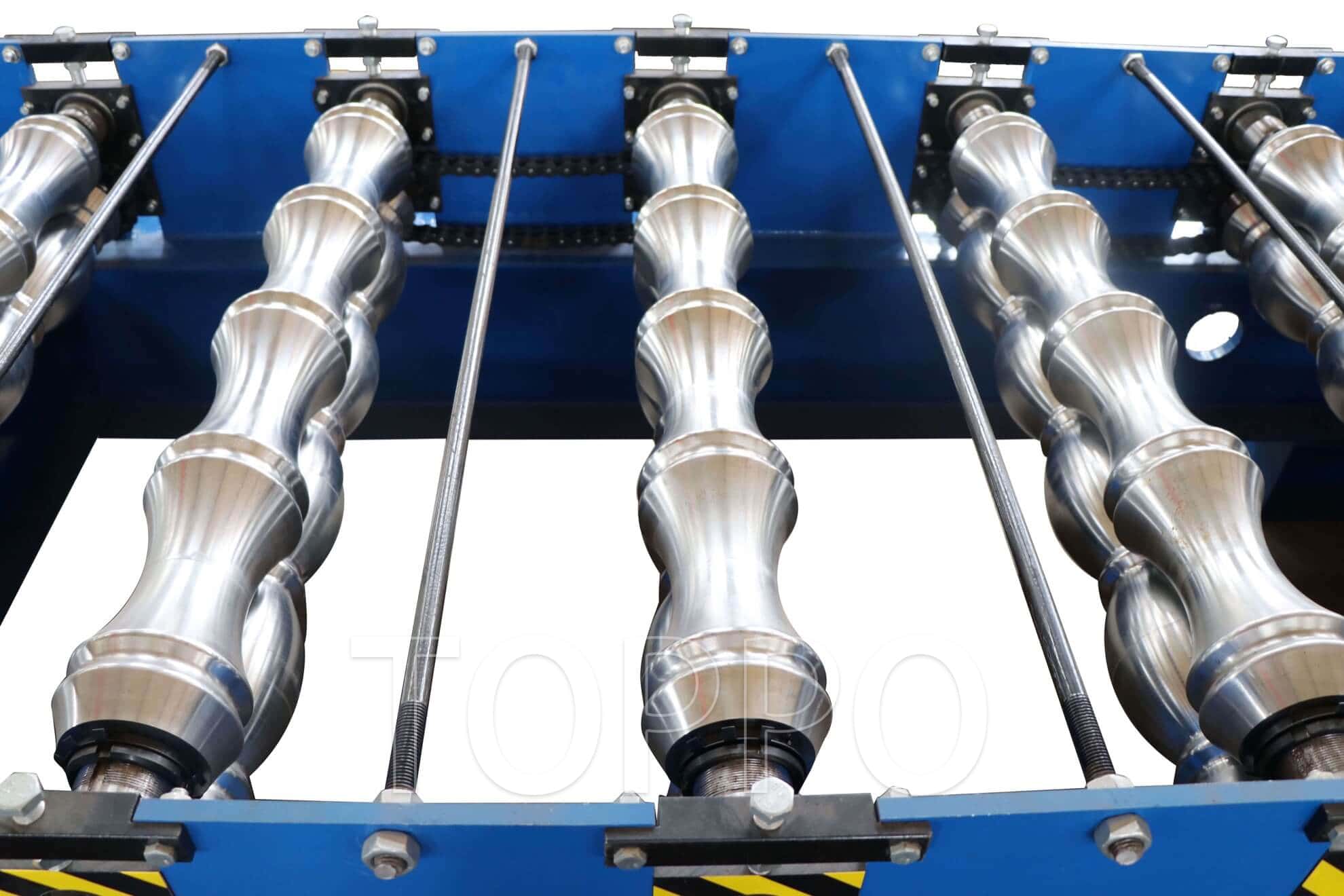

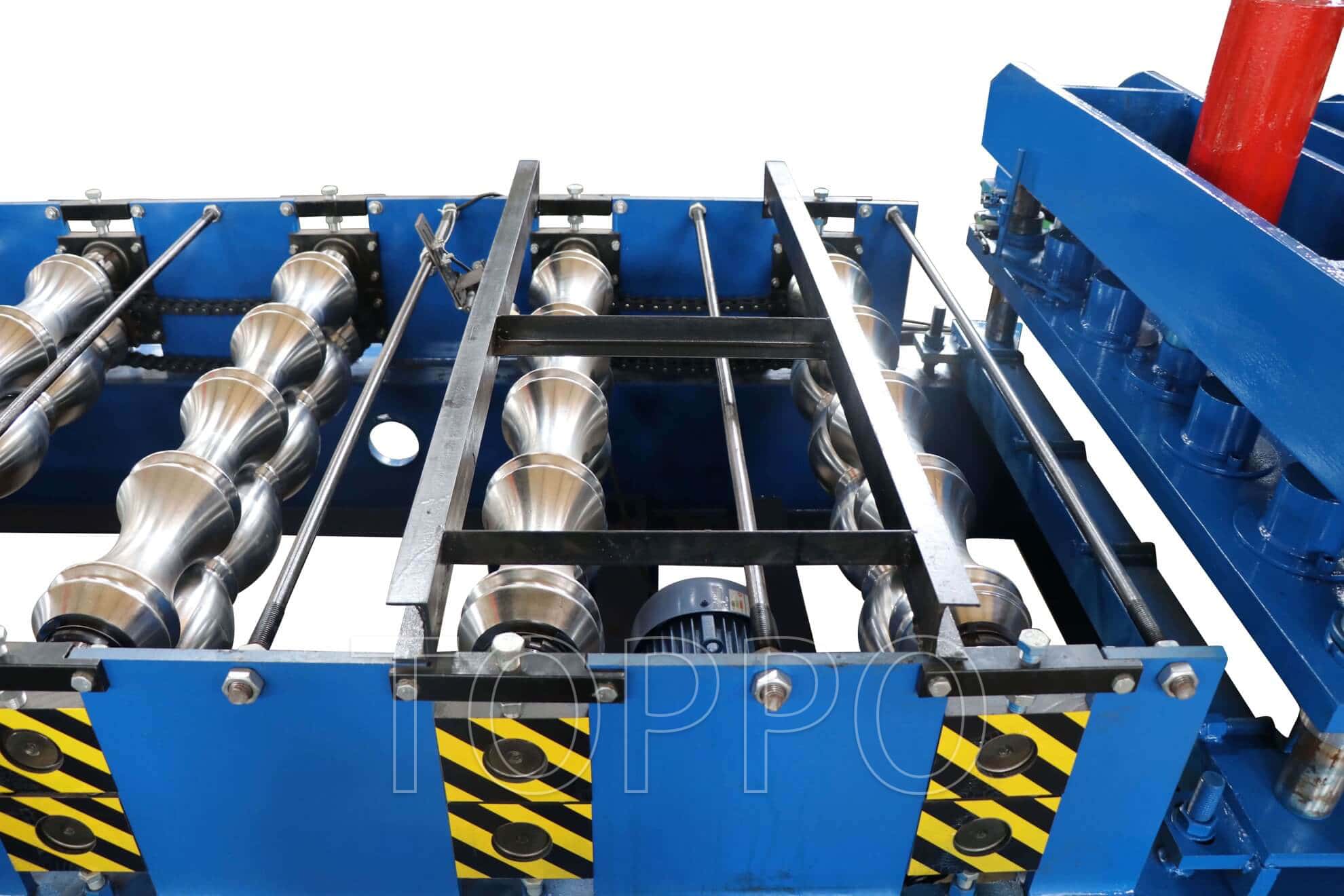

Roller Material: GCr15 with hard chrome coating
Drive Mode: Chain drive
Main Motor: 5.5 kW

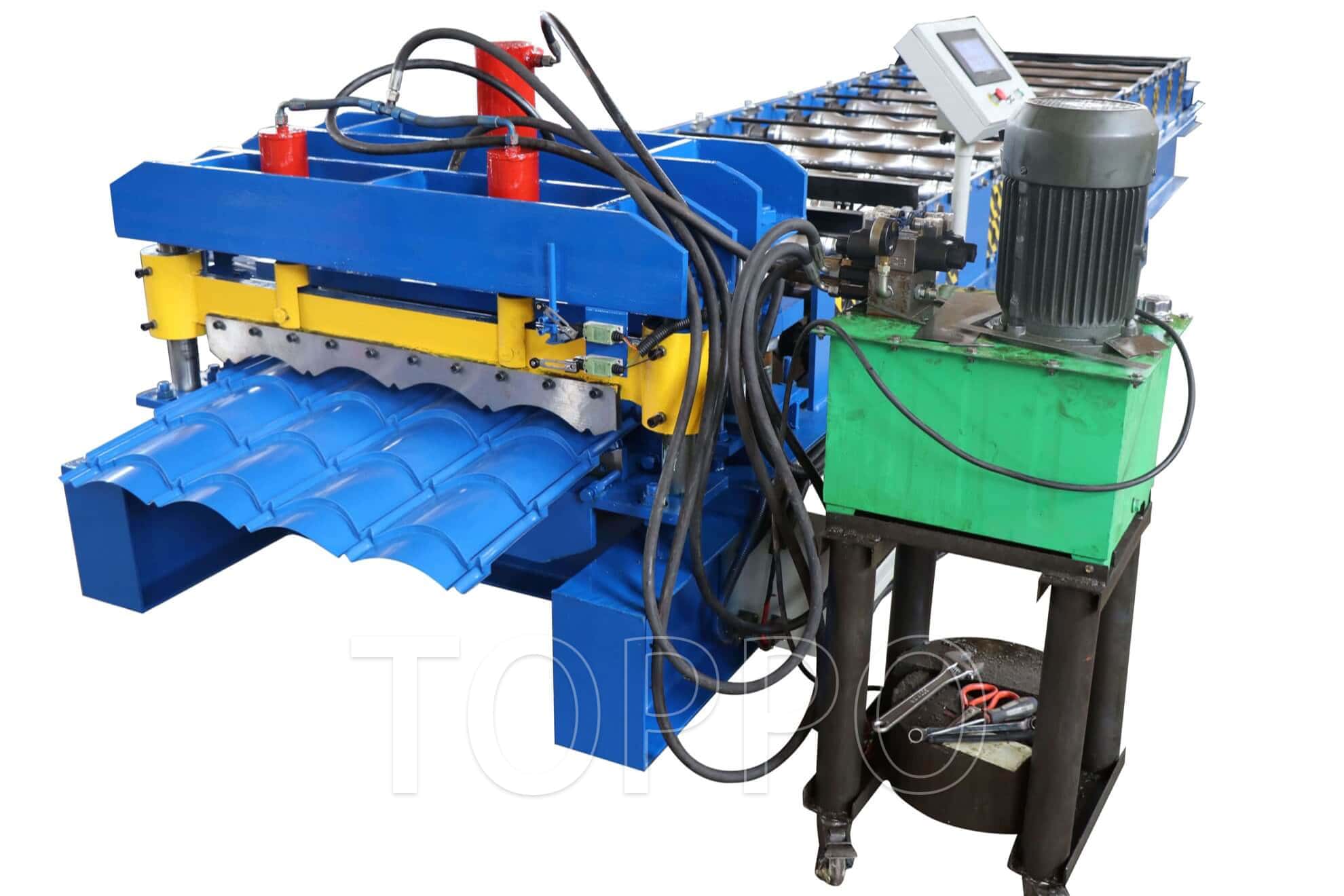

Hydraulic Power: 3 kW

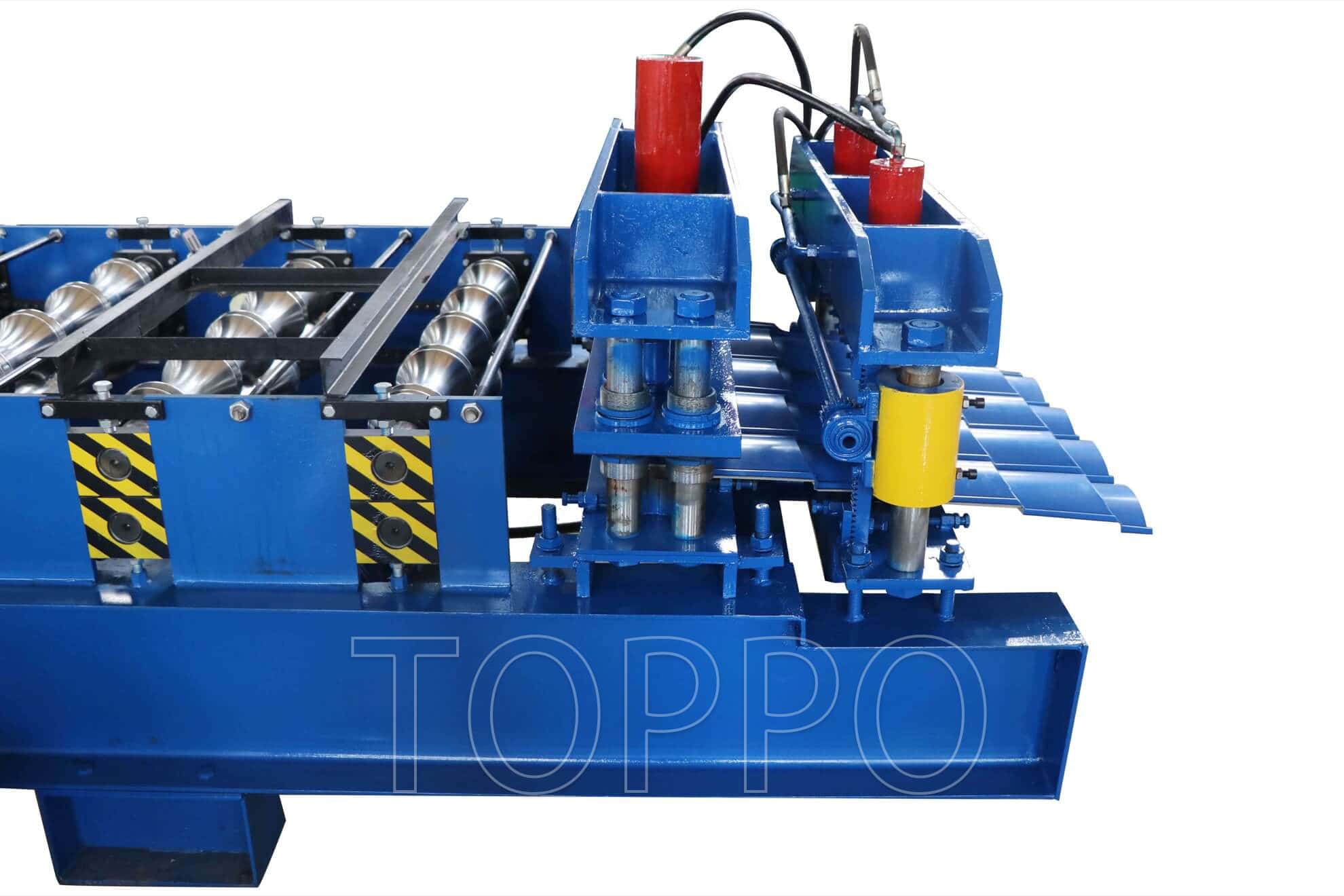

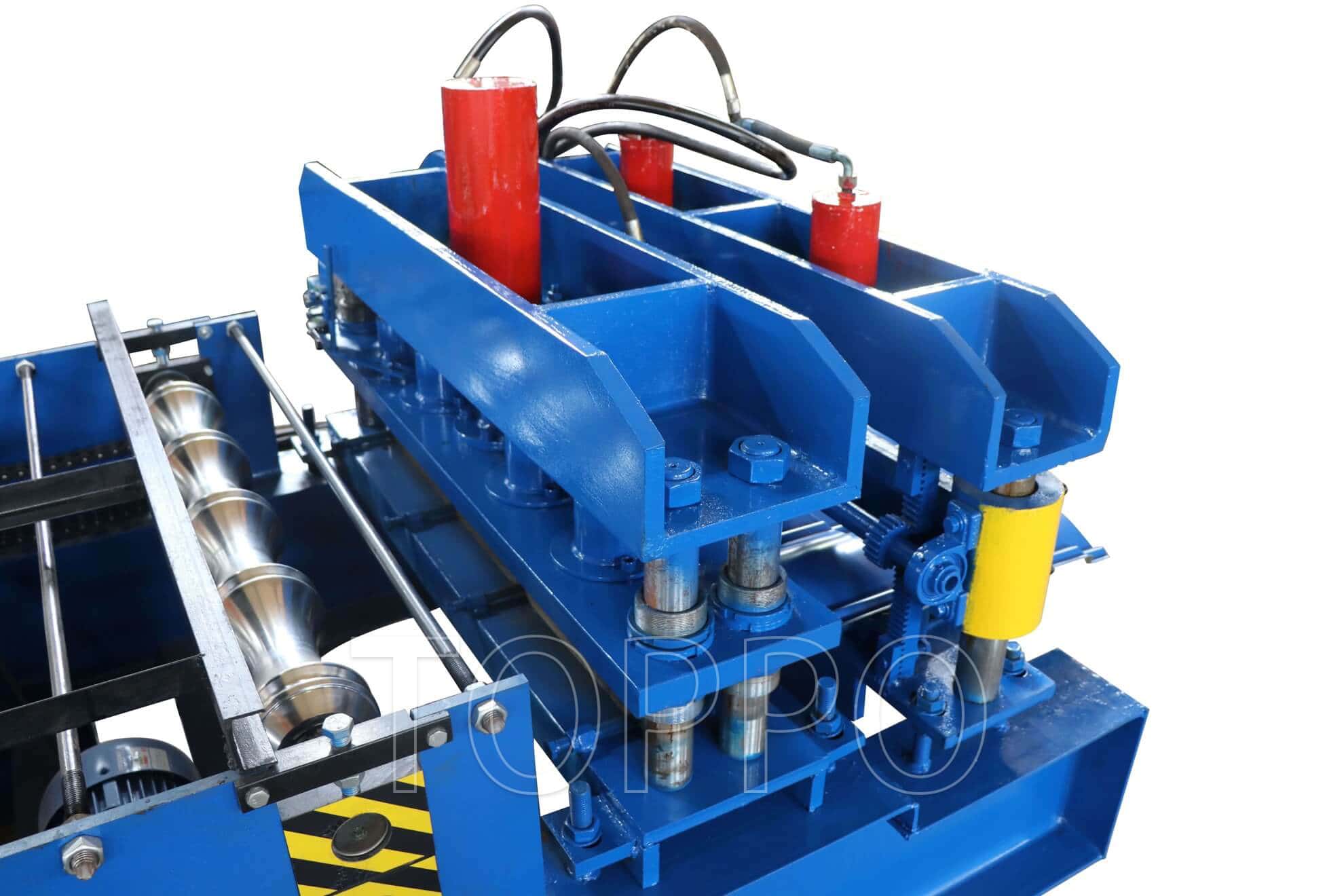

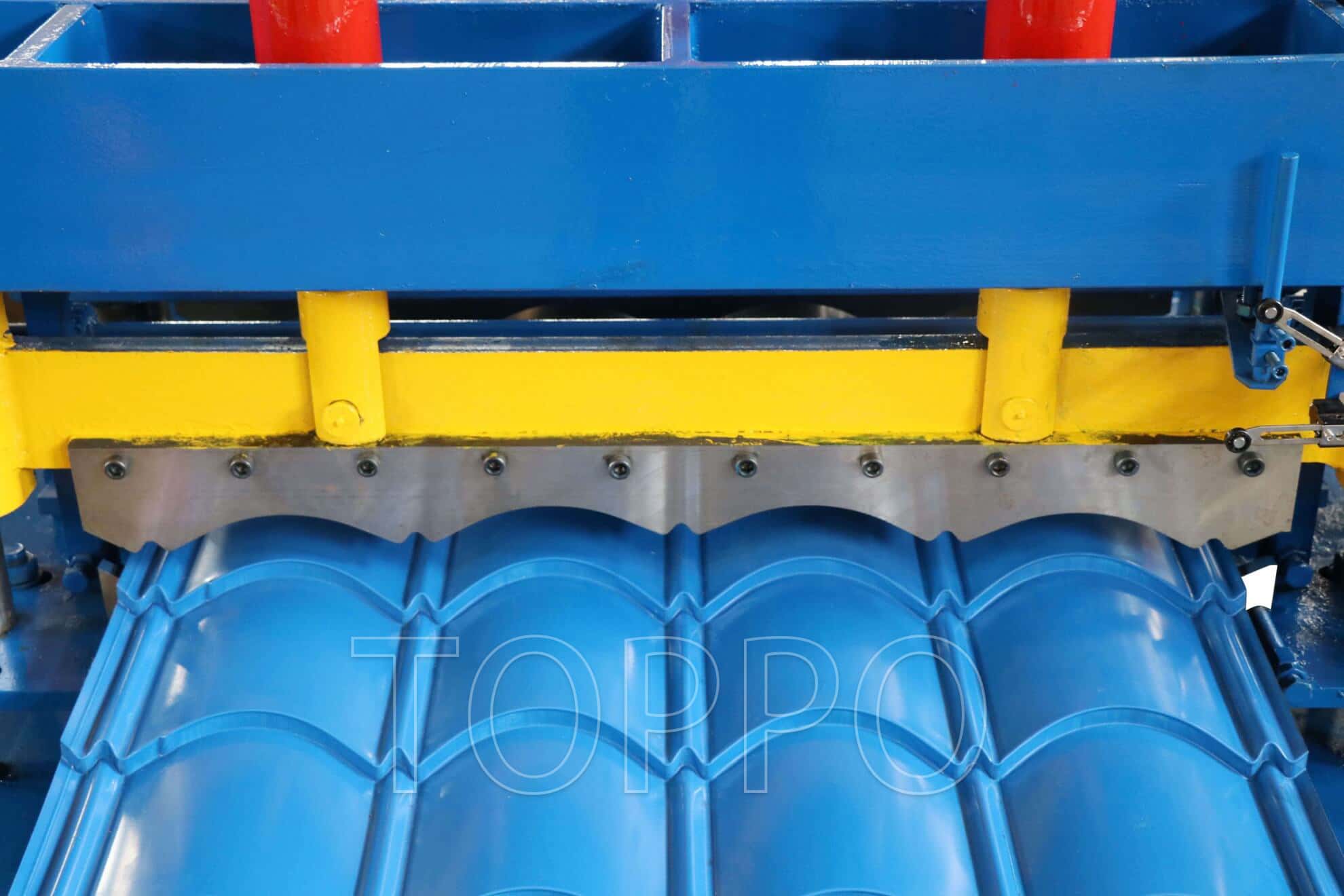

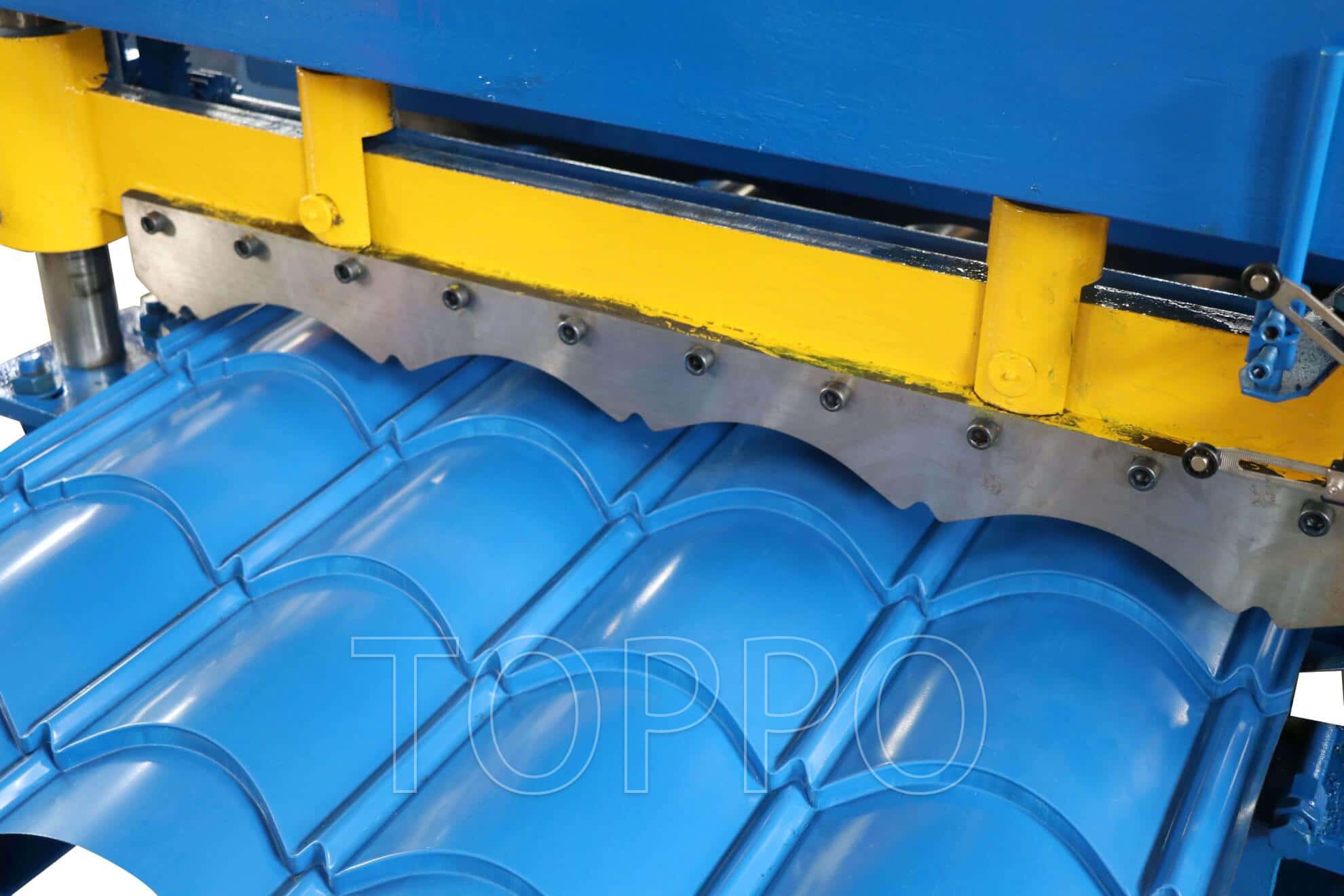

Cutting Type: Hydraulic shearing
Blade Material: Cr12Mov, quenched and tempered
Cutting Accuracy: ±1 mm
Control System: PLC + Encoder + Touch Screen (Delta/Siemens)
Decoiler: Manual or hydraulic available
Power Supply: 380V, 50Hz, 3-Phase
Machine Dimensions: 8.2m x 1.4m x 1.5m
Weight: 6 tons approx.
Language Interface: English or customized
Noise Level: ≤80 dB
Installation: Engineer available overseas
Warranty: 1 year
Support: Online & field support
Safety: Emergency button and guards
Display: Digital touch HMI
Packaging: Film wrapped or wooden case
Delivery Time: 30–35 days

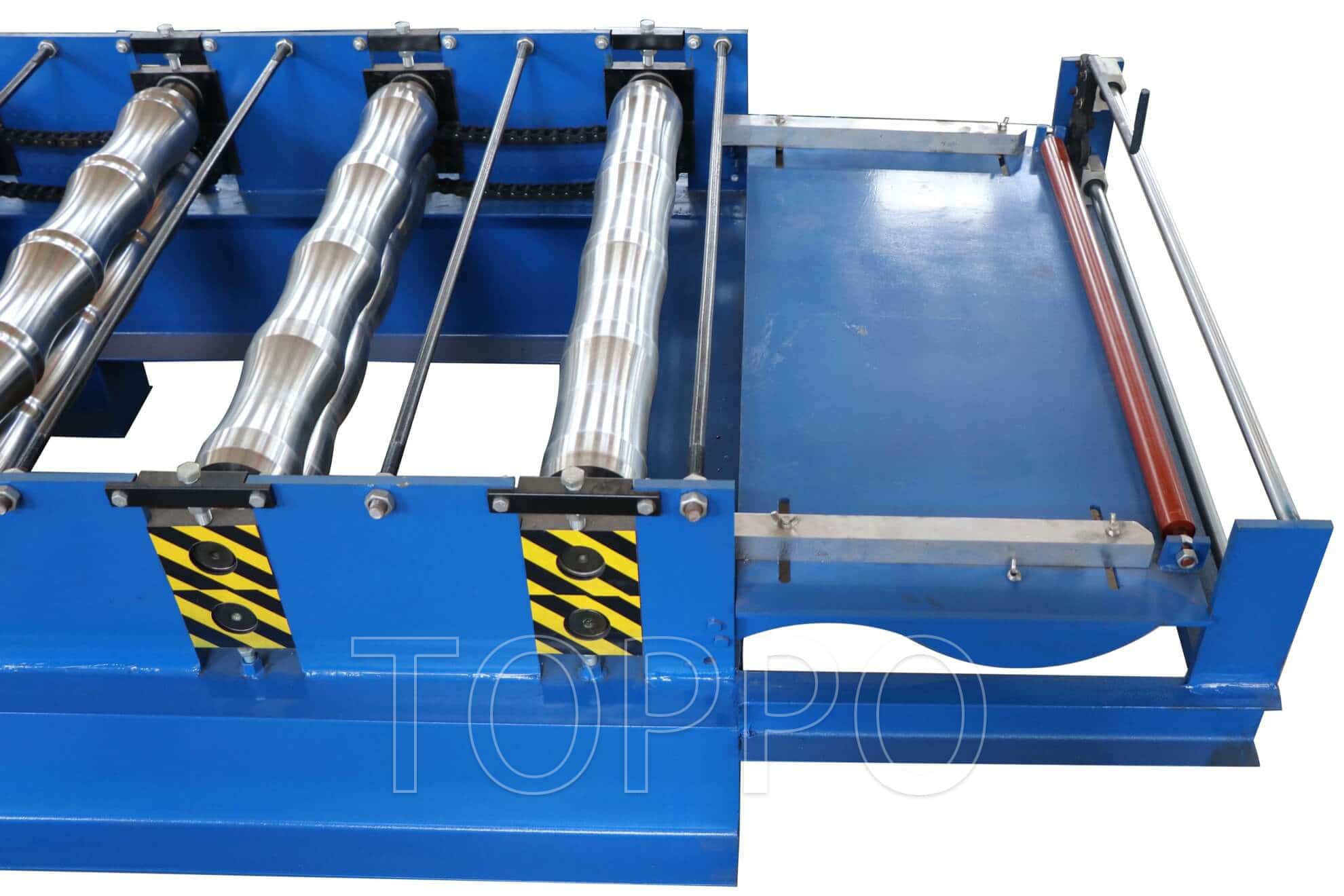

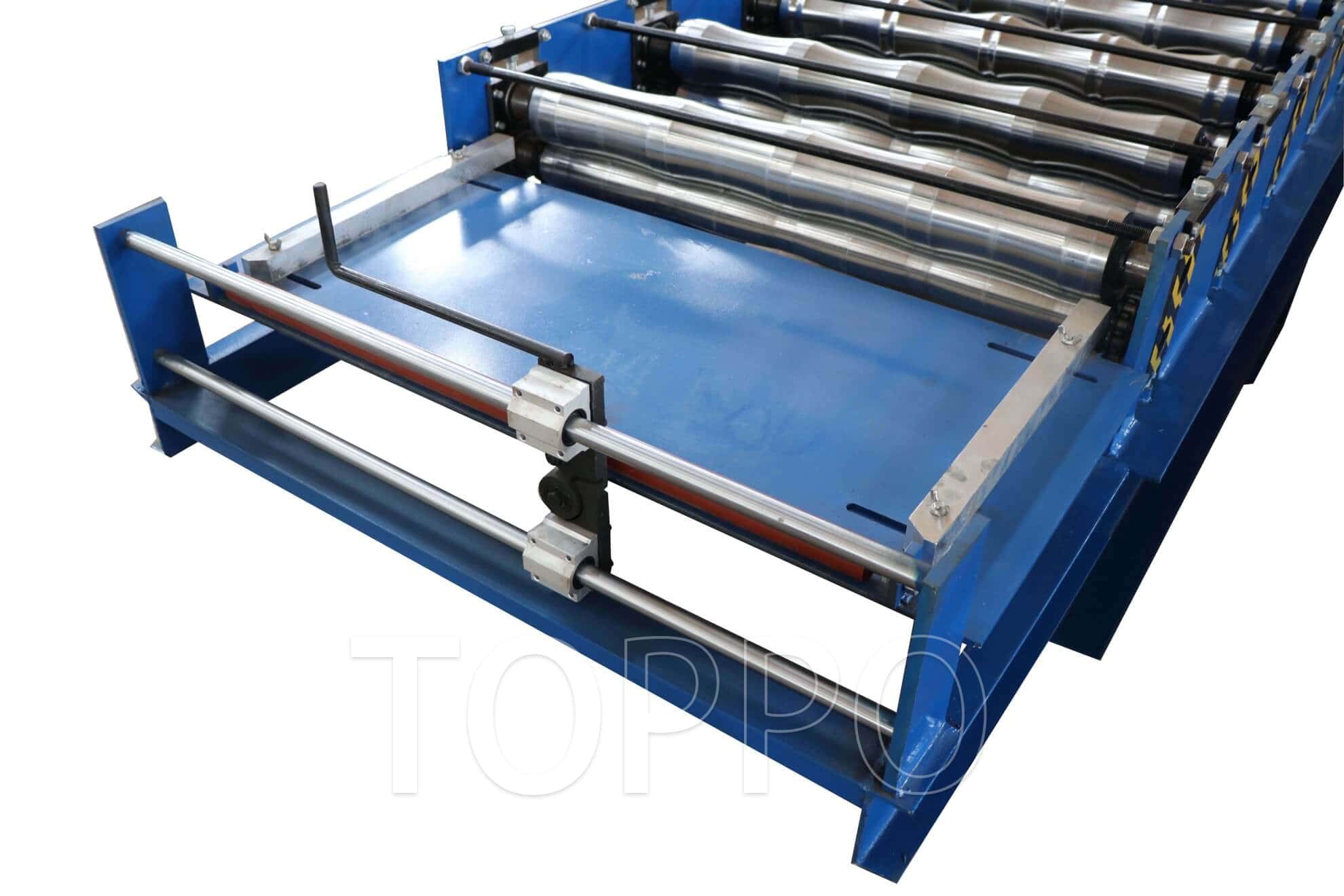

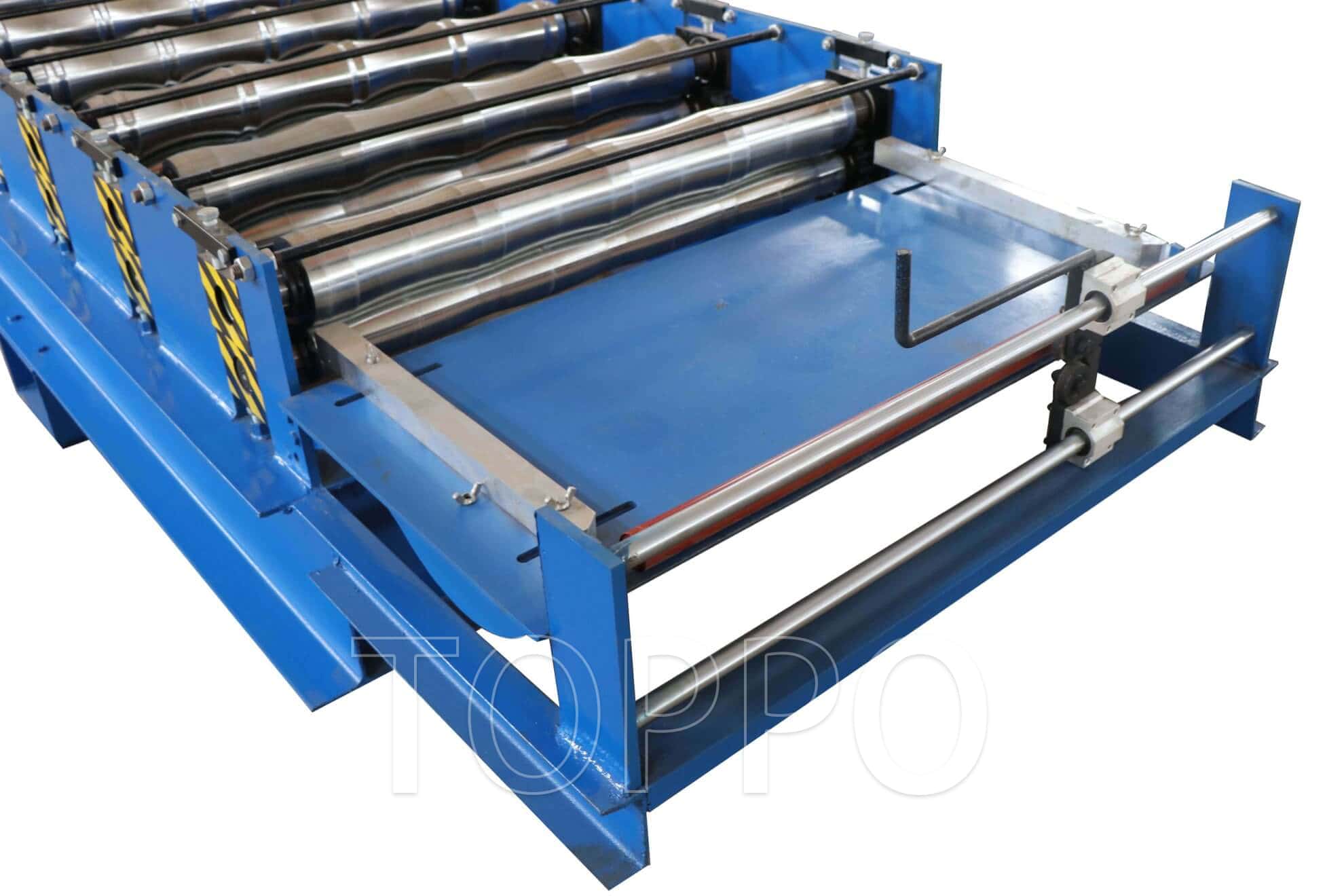

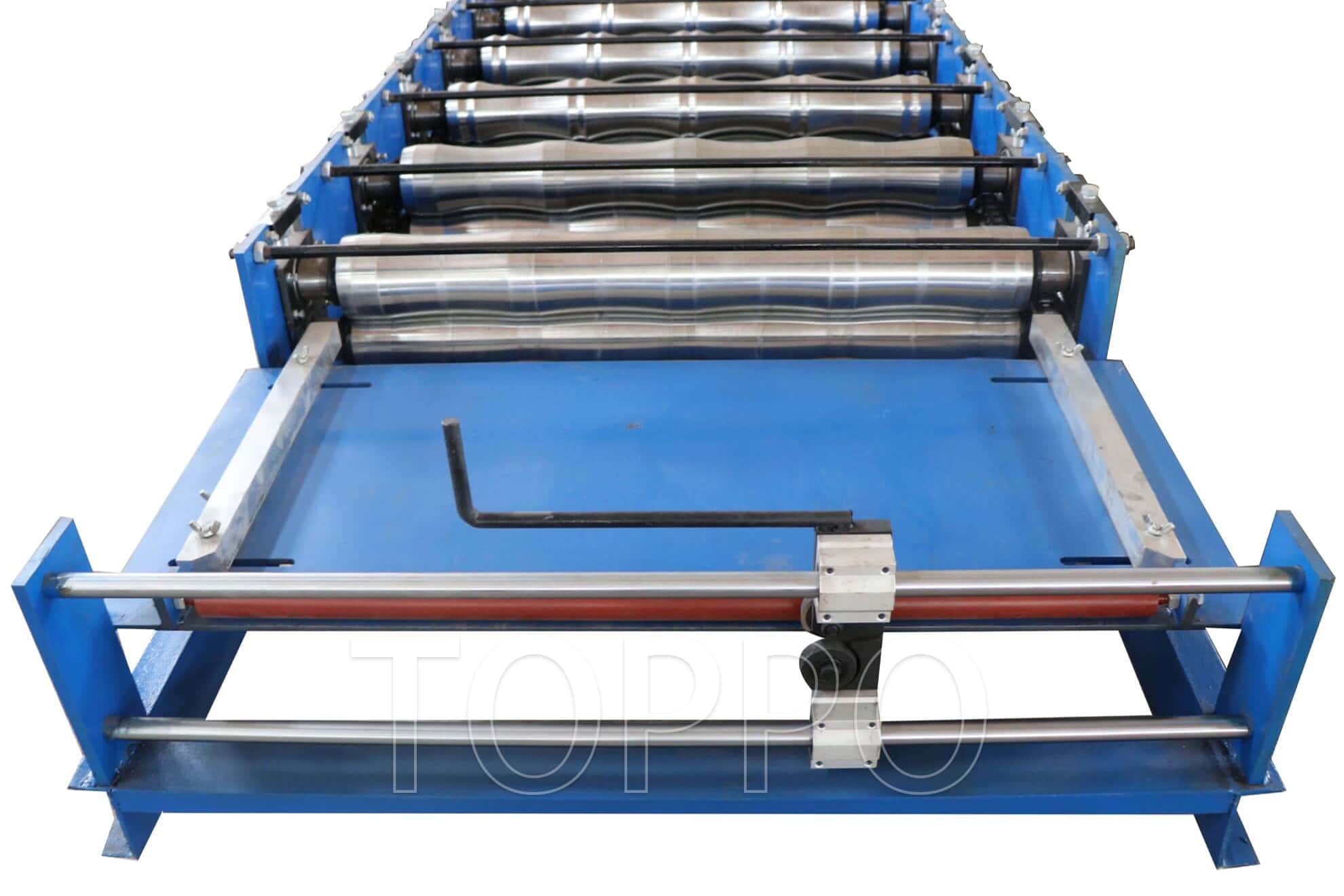

Feeding Control: Encoder-based auto-length
Market: Global roofing sector
Application: Metal roofing sheet production
Roll Surface: Polished chrome plated
Lubrication: Manual/optional centralized
Software: Auto stop and cut at pre-set length
Feeding Tolerance: ±0.2 mm
Steel Grades: Q195, Q235
Ideal for enterprises looking for a space-saving and reliable glazed tile machine, this system offers excellent output quality and minimal operational hassle, helping increase productivity while maintaining cost-effectiveness.
