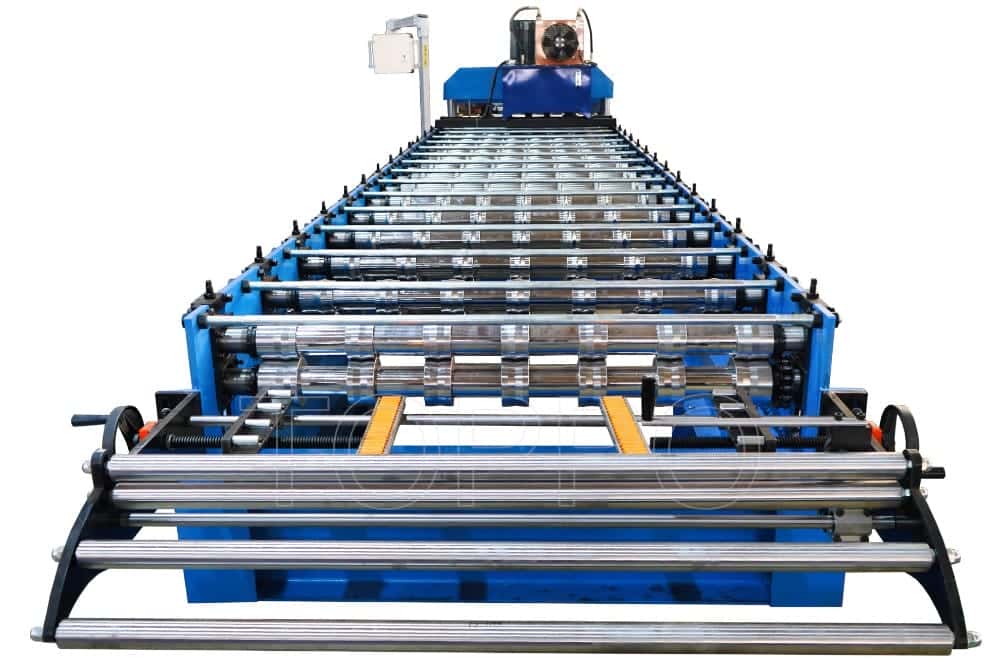

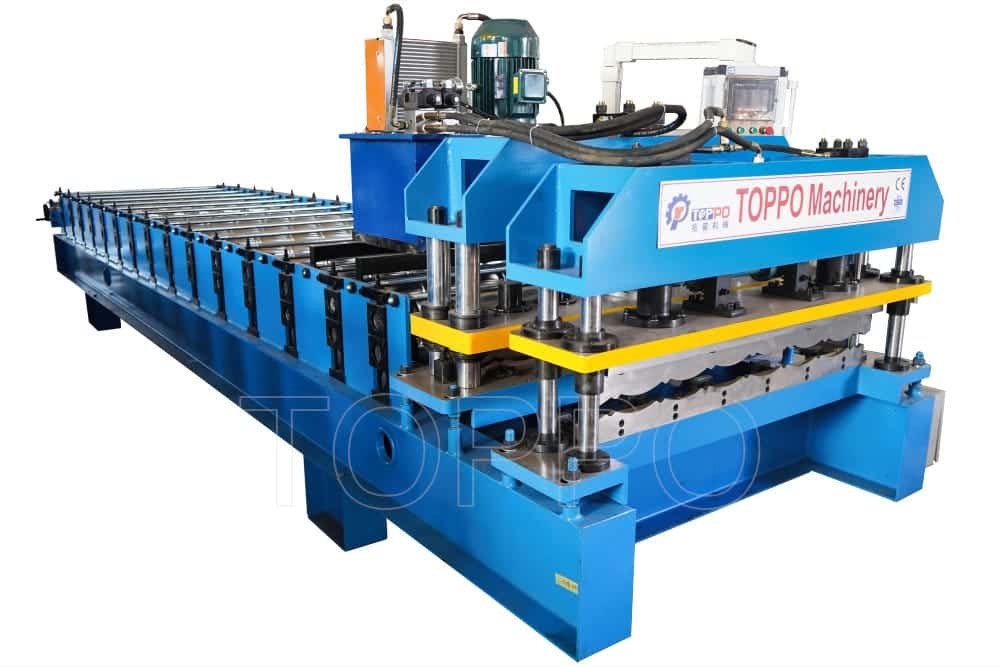

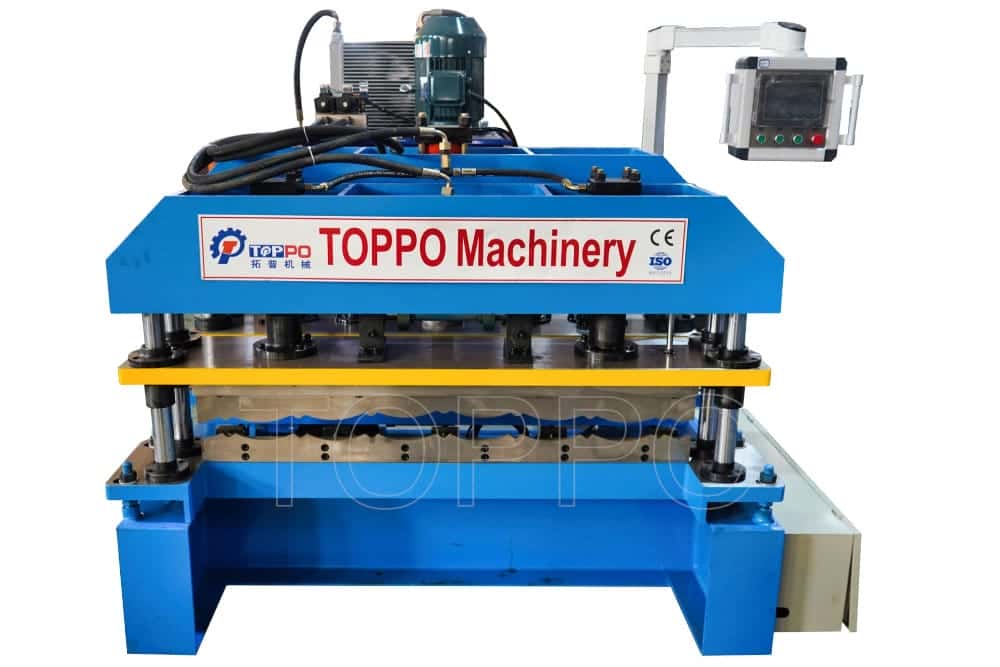

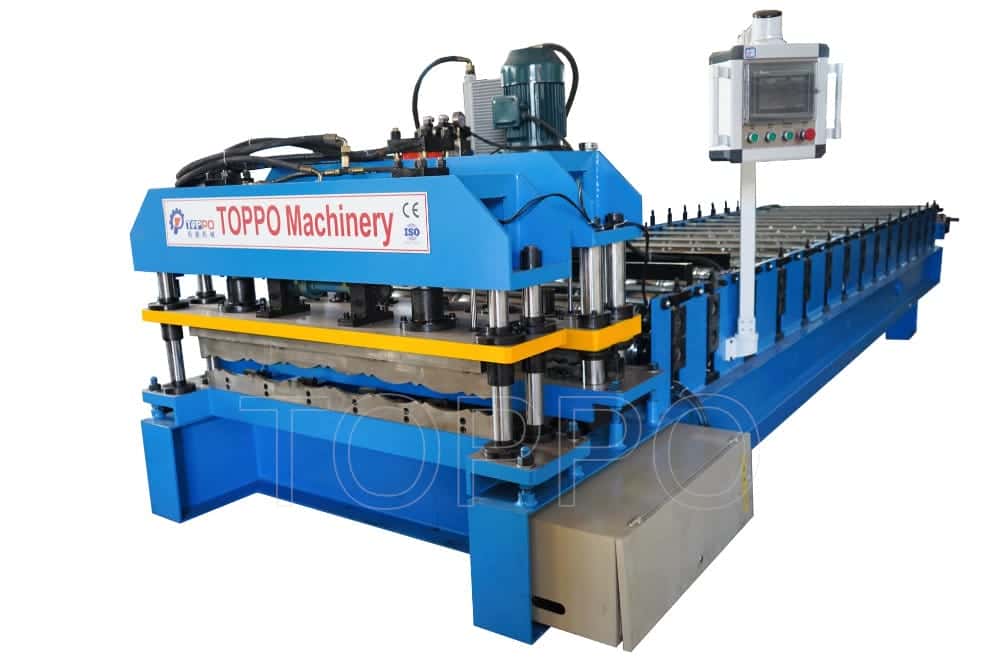

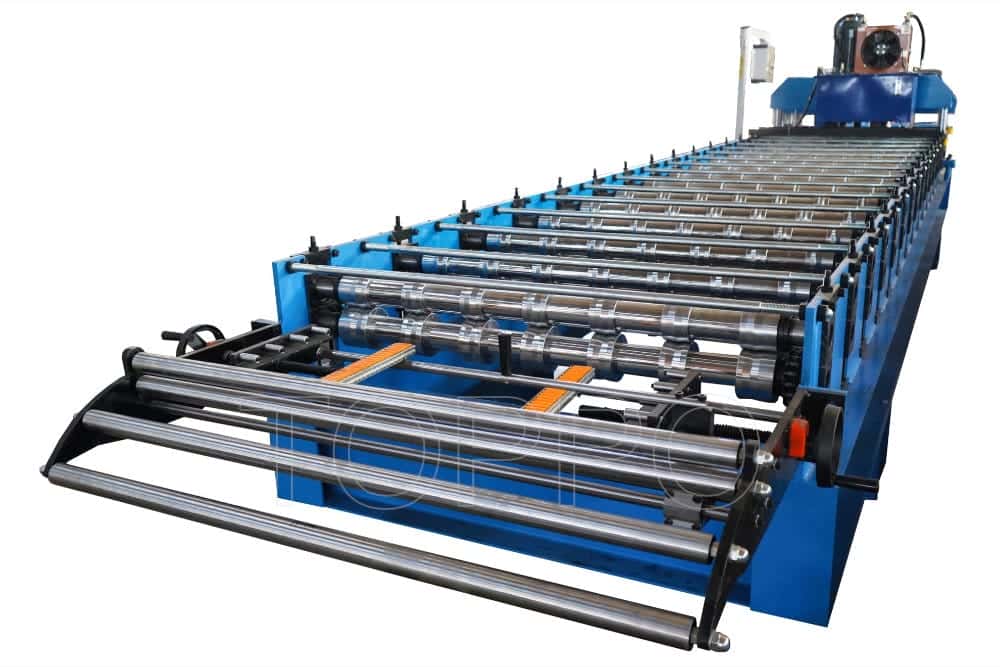

This advanced roll forming machine is designed for the efficient and automated production of bamboo-style glazed roof tiles. Built with a robust structure and precise PLC control system, it delivers high-speed performance with outstanding tile accuracy and quality.
Machine Type: Bamboo Glazed Tile Roll Forming Machine
Automation Level: Fully automatic with PLC system
Material Compatibility: Color steel, aluminum, galvanized steel
Material Thickness: 0.3–0.6 mm
Coil Width: 1000–1250 mm
Roll Forming Steps: 18–22

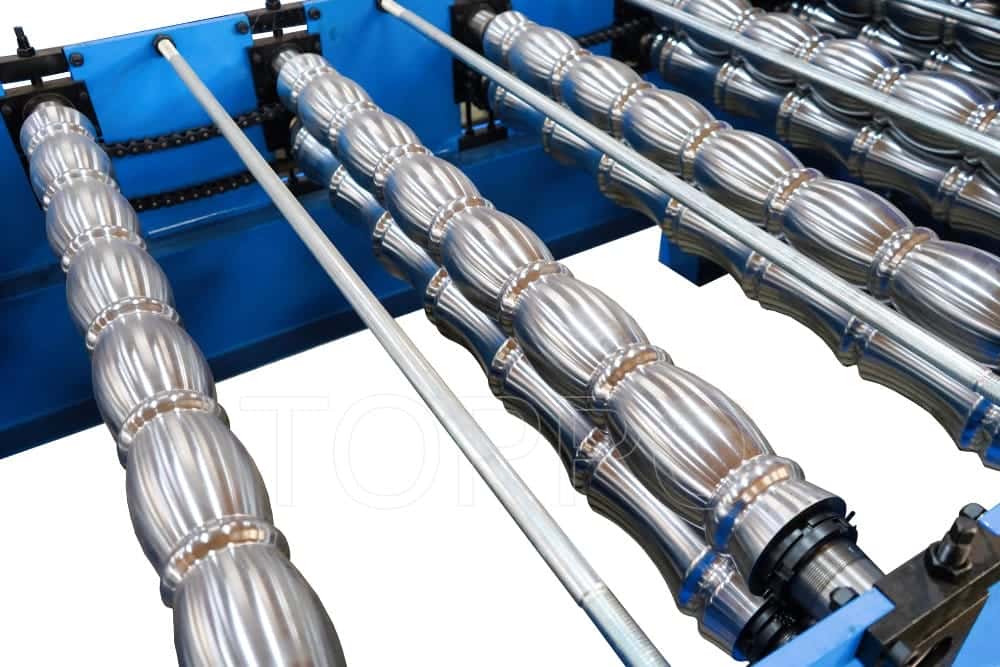

Roller Material: GCr15 with polishing and hard chrome

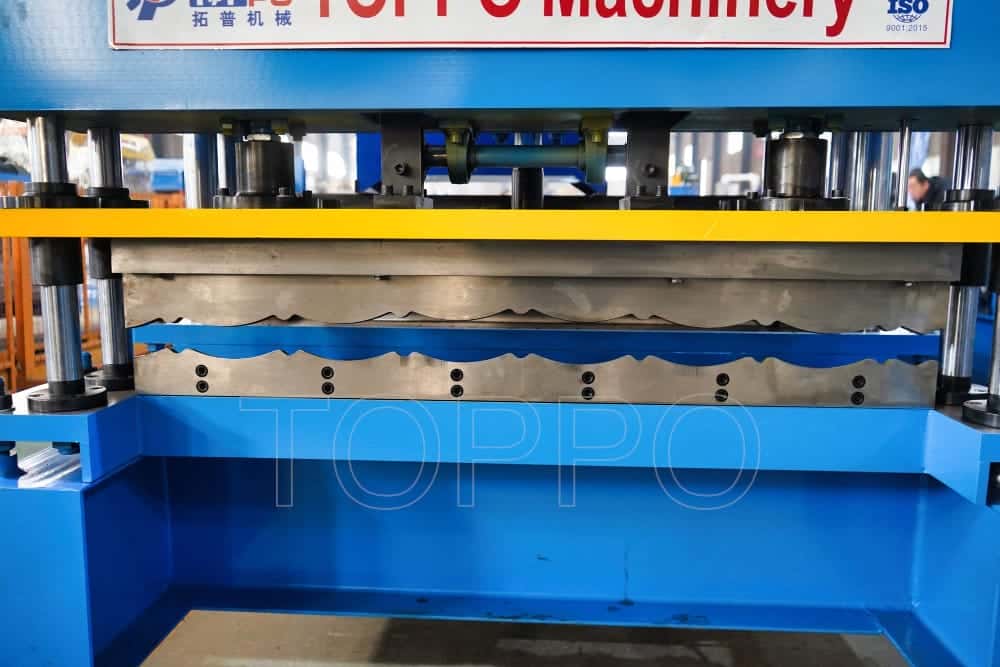

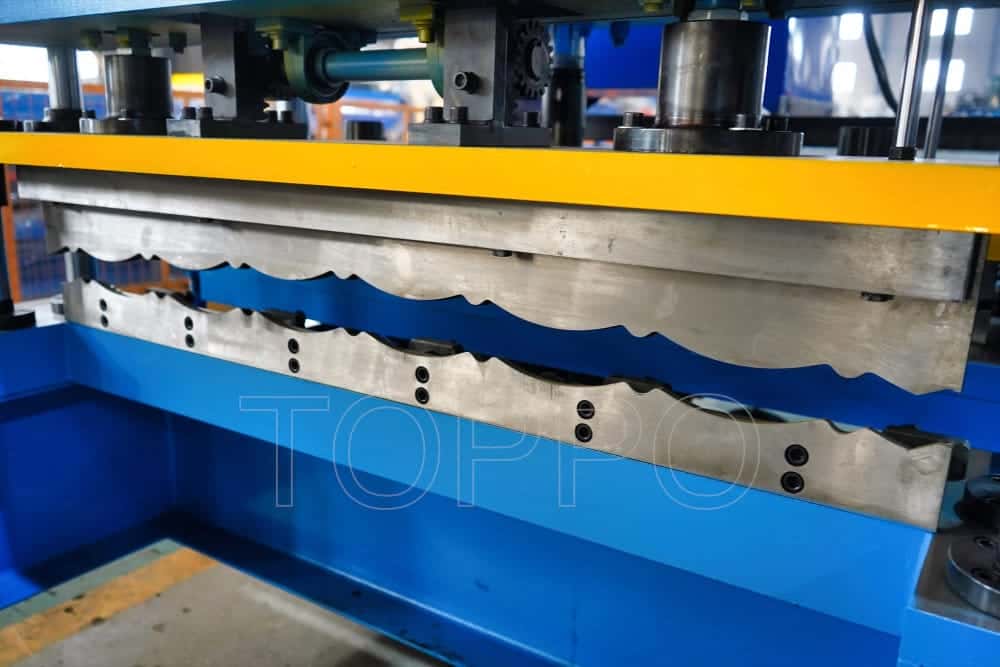

Cutting System: Hydraulic cutting
Blade Steel: Cr12MoV with heat treatment
Forming Speed: 5–8 m/min

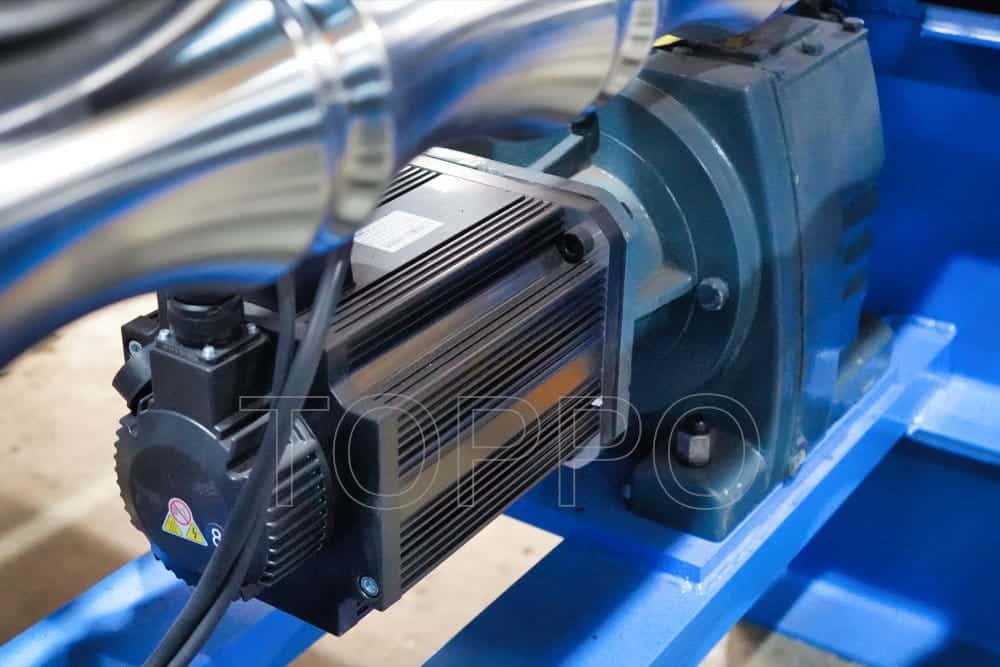

Main Motor: 7.5 kW
Hydraulic Unit: 4 kW
Drive System: Chain/gearbox drive
PLC Brand: Siemens/Delta
HMI: Touch screen operation
Accuracy: ±1 mm cutting precision

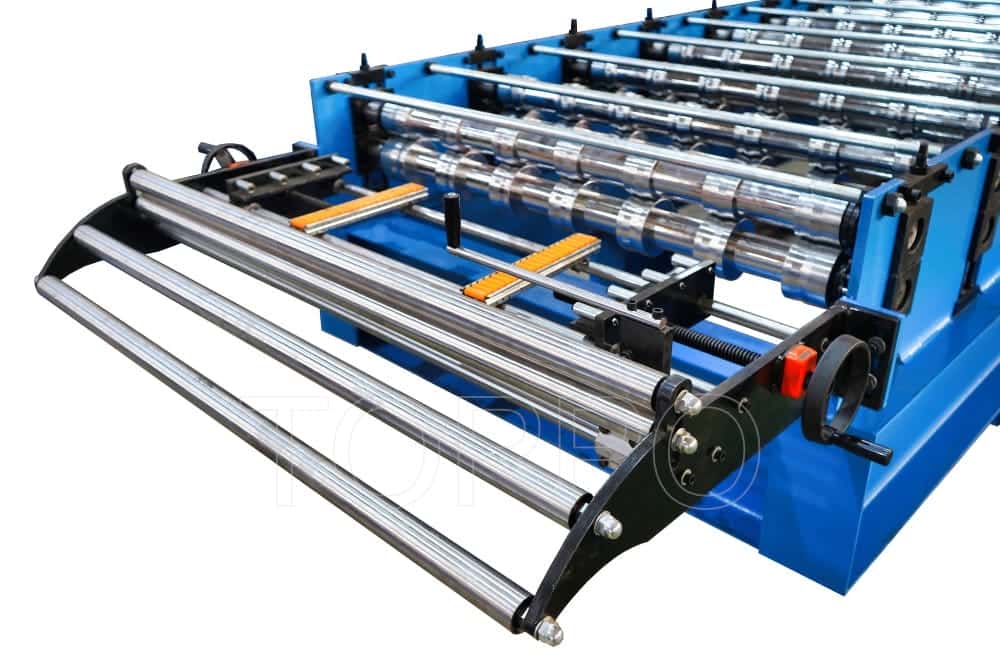

Feeding System: Manual or hydraulic decoiler
Electrical Requirements: 380V, 50Hz, 3-phase
Machine Size: 9.2m x 1.5m x 1.6m
Weight: Around 6.8 tons
Noise Level: ≤80 dB
Warranty: 12 months
Support: Online video guidance & overseas installation
Safety: Protective cover & emergency stop system
Packaging: Film wrapping or wooden box
Lead Time: 30–40 working days
Applications: Roofing tile manufacturing
Usage Scope: Residential, commercial, industrial
Language Interface: English/optional custom languages
Software Features: Auto length measurement and cutting
Maintenance: Easy operation and low maintenance
Design: Heavy-duty welded steel base

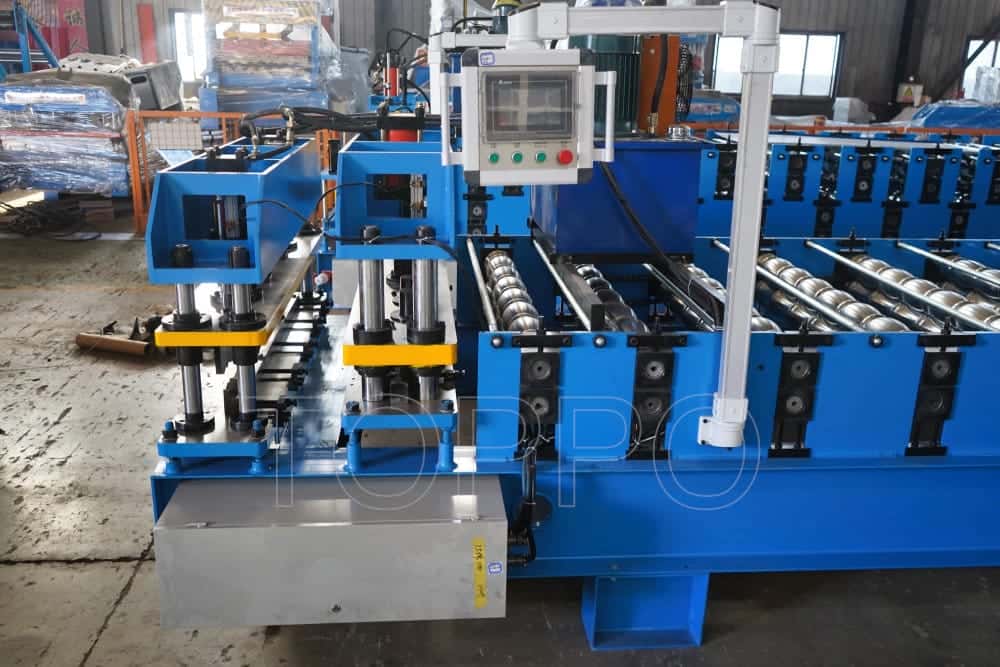

Display: Color HMI with real-time data
Tile Type: Bamboo pattern glazed roof tiles
Market: Global
Certification: CE, ISO
Steel Grades: Q195, Q235
Lubrication: Manual or optional central system
This high-end roll forming machine offers manufacturers a fast and reliable way to produce decorative bamboo-style glazed tiles with consistency and minimal labor. Built for heavy-duty production environments.
