This tile forming machine is tailored for color steel bamboo-style roofing tiles. Designed with intelligent PLC control, it offers accuracy, speed, and durability for professional roofing sheet manufacturers globally.
Machine Model: Bamboo Glazed Tile Roll Forming Machine
Material: Color steel, galvanized steel, aluminum
Tile Shape: Bamboo-style glazed profile
Material Thickness: 0.3–0.6 mm
Feeding Width: 1000–1250 mm
Production Speed: 5–8 m/min
Roll Stations: 18–22
Roller Material: GCr15 with hard chrome surface
Cutting Type: Hydraulic cutting
Blade Material: Cr12Mov steel
Drive Mode: Chain or gear drive
Main Motor Power: 7.5 kW
Hydraulic Power: 4 kW
Control System: Siemens/Delta PLC + Touch screen
Voltage: 380V, 50Hz, 3 Phase
Machine Frame: Welded steel frame
Dimension: Approx. 8.8m x 1.6m x 1.5m
Weight: Around 6.8 tons
HMI: Color touch interface
Cutting Accuracy: ±1 mm
Feeding System: Manual or hydraulic decoiler
Noise Level: ≤80 dB
Application: Roofing tile manufacturing
Support: Video and remote assistance, overseas engineers
Warranty: 1 year
Packaging: Plastic film wrap or wooden case
Installation: On-site support optional
Software: Auto-length cutting with encoder
Design: Durable, compact, and efficient
Language Support: English/custom
Market: Global export

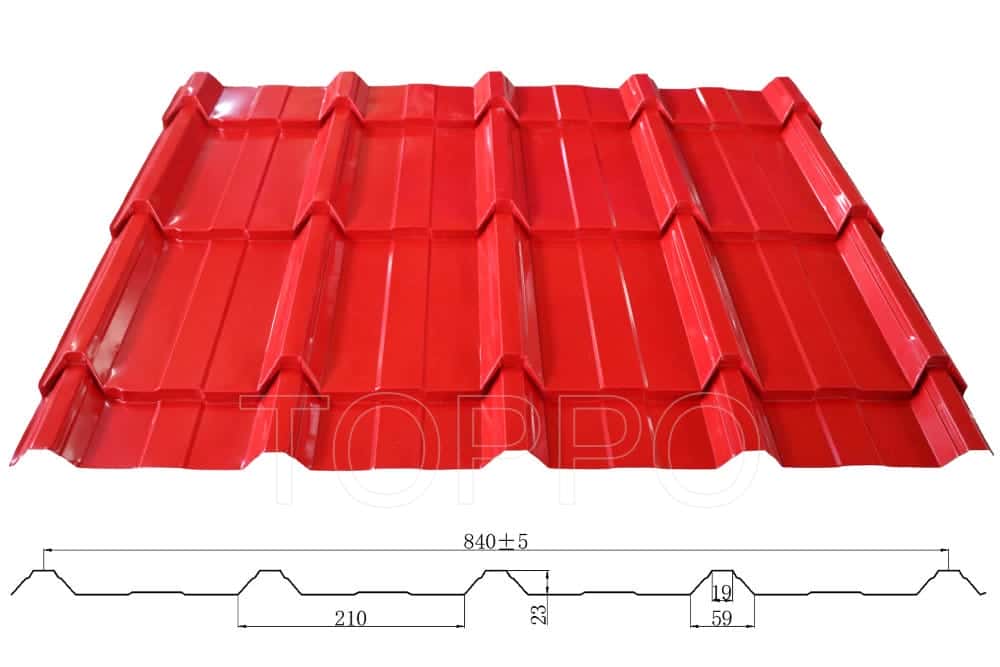

Tile Type: Decorative bamboo-style metal tiles
Operation: One-person operation
Cooling: Optional air cooling
Lubrication: Central or manual
Feeding Accuracy: ±0.2 mm
Certification: CE, ISO
Steel Grades Supported: Q195, Q235
This glazed tile machine is ideal for manufacturers aiming for premium bamboo-style roofing tiles with speed and precision. With smart PLC integration and a robust frame, it ensures top-tier results in every run.
